Product Type	Bluetooth Module for Car Stereo
Brand	DUAL
Model	BTM60
Dimensions (approx.)	Approximately 5 x 3 x 2 cm
Weight (approx.)	Approximately 30 g
Power Supply	12 V DC via dedicated connector
Main Functions	Bluetooth hands-free, incoming/outgoing calls, caller ID display, call hold, call rejection
Bluetooth Range	Approximately 10 m (without obstacles)
Microphone	Built-in, driver-oriented
Compatibility	Compatible DUAL car stereos: XDM6400, XDMA6700, XDMA6855, XDMA7715
Installation	Sun visor mounting with clip, cable along A-pillar
Care and Cleaning	Wipe with a dry, soft cloth. Do not use abrasive products.
Safety	Avoid exposure to humidity and extreme temperatures. Do not open the module.
Spare Parts and Repairability	Not user-repairable. Contact authorized customer service.
Warranty	1 year, limited to manufacturing defects. Contact customer service at 1-866-382-5476 or [e-mail]

Frequently Asked Questions - BTM60 DUAL

How to install the Bluetooth module BTM60?

Insert the mounting clip into the guide holes and attach it to the module. Mount the BTM60 on the sun visor with the microphone facing the driver. Route the cable along the A-pillar to the car stereo. Connect the plug by aligning the arrows. Refer to the car stereo manual for more details.

How to pair my Bluetooth phone with the BTM60?

Refer to your DUAL car stereo manual for the pairing procedure. The BTM60 works in conjunction with the car stereo; the pairing steps are described in the car stereo manual.

How to answer an incoming call?

When you receive a call, the car stereo automatically switches to Bluetooth mode. Press the button on the BTM60 or the corresponding button on the car stereo to answer.

How to put a call on hold?

During a call, press the ↗ button on the BTM60 to activate hold. Press ↗ again to return to the original call.

How to reject or end a call?

Press and hold the MUTE button on the car stereo for 3 seconds to reject an incoming call or end an active call.

How to make a call from the car stereo?

Press ↗ or MODE to enter Bluetooth standby mode. Then press ↗ to access the dial screen. Dial the number using keys 0-9, *, #, then press ↗ to initiate the call.

Which DUAL car stereos are compatible with the BTM60?

Compatible car stereos are: XDM6400, XDMA6700, XDMA6855 and XDMA7715. Check your car stereo manual for compatibility.

What to do if my phone does not connect properly?

Make sure your phone is compatible with Bluetooth technology. Some devices may be incompatible or function incorrectly. Refer to the car stereo manual for troubleshooting instructions.

What is the warranty period of the BTM60?

The BTM60 is warranted for one year from the date of purchase against any material or manufacturing defects. This warranty is valid for the original purchaser in the United States. For any claims, contact customer service at 1-866-382-5476 or by email at [e-mail].

Where can I find spare parts or get the BTM60 repaired?

The module is not user-repairable. In case of trouble, contact an authorized service center. Call 1-866-382-5476 or email [e-mail] to get the nearest center address.

USER MANUAL BTM60 DUAL

Close-up of a black Bluetooth device with a switch and cable, no visible text or symbols on the device itself.

BTM60

INSTALLATION/QUICK START GUIDE

Wireless Bluetooth Module

Bluetooth®

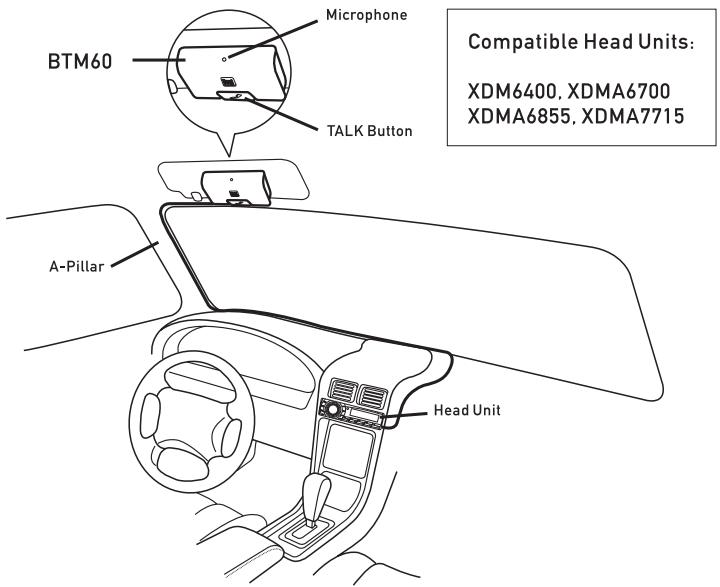

Typical Installation

Installation Quick Reference

• Insert the mounting clip into the guide holes, and attach to the BTM60 module as seen in the picture above.
• Mount the BTM60 onto the visor using the using the mounting clip, ensuring the microphone is facing the driver. Refer to the picture below for reference.
• Carefully route the connection cable down the A-pillar of the vehicle, then to the back of your Dual Bluetooth® ready head unit.
• Plug the BTM60 connector into the back of the head unit, making sure to line up the arrows before connecting. Refer to the head unit owner's manual for more information.

Quick Start Guide

Note: You must first pair and connect your Bluetooth® mobile device to the BTM60 to place and receive calls. Refer to your head unit owner's manual for pairing and detailed operation instructions.

Receiving a Call

• When the BTM60 detects an incoming call, your head unit will automatically switch to Bluetooth mode, and display the caller ID phone number.
• To receive an incoming call, press 📋 on the BTM60 or your head unit when the phone is ringing.
• During a phone call, press ↗ to activate the call waiting feature. Press ↗ once more to return to the original call.
• To reject an incoming call or to end the current call, press and hold MUTE on the head unit for 3 seconds.

Placing a Call

• To make a call using the head unit, first press ↗ or MODE to change to Bluetooth standby mode.
• While in Bluetooth standby mode, press ↗ to enter the dialing screen.
• From the dialing screen, enter the phone number using 0-9, *, # on the front panel of the head unit.
• Once the number is entered, press ↗ to place the call.

Note: Due to the differences in Bluetooth technology, some mobile devices may be incompatible or function improperly when used with the BTM60.

Limited One Year Warranty

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase.

Dual Electronics Corp. agrees, at our option, during the warranty period, to repair any defect in material or workmanship or to furnish an equal new, renewed or comparable product (whichever is deemed necessary) in exchange without charges, subject to verification of the defect or malfunction and proof of the date of purchase. Subsequent replacement products are warranted for the balance of the original warranty period.

Who is covered? This warranty is extended to the original retail purchaser for products purchased and used in the U.S.A.

What is covered? This warranty covers all defects in material and workmanship in this product. The following are not covered:

installation/removal costs, damage resulting from accident, misuse, abuse, neglect, product modification, improper installation, incorrect line voltage, unauthorized repair or failure to follow instructions supplied with the product, or damage occurring during return shipment of the product.

What to do?

1. Before you call for service, check the troubleshooting guide in your owner's manual. A slight adjustment of any custom controls may save you a service call.

2. If you require service during the warranty period, you must carefully pack the product (preferably in the original package) and ship it by prepaid transportation with a copy of the original receipt from the retailer to an authorized service center.

3. Please describe your problem in writing and include your name, a return UPS shipping address (P.O. Box not acceptable), and a daytime phone number with your shipment.

4. For more information and for the location of the nearest authorized service center please contact us by one of the following methods:

• Call us toll-free at 1-866-382-5476
• E-mail us at [e-mail]

Exclusion of Certain Damages: This warranty is exclusive and in lieu of any and all other warranties, expressed or implied, including without limitation the implied warranties of merchantability and fitness for a particular purpose and any obligation, liability, right, claim or remedy in contract or tort, whether or not arising from the company's negligence, actual or imputed. No person or representative is authorized to assume for the company any other liability in connection with the sale of this product. In no event shall the company be liable for indirect, incidental or consequential damages.

Dual Electronics Corp. Toll Free: 1-866-382-5476
