| Product Type | Refrigerator with 4-star freezer compartment, No-Frost system |
| Brand | ASPES |
| Model | 5FAC-495 INNF |
| Dimensions (H x W x D) | 1850 x 600 x 610 mm |
| Dimensions with door open | 1150 mm (depth) |
| Power supply | 220-240 V ~ 50 Hz, earthed plug |
| Refrigerant | R600a (flammable) |
| Climate class | Not specified, but works at standard room temperature |
| Main functions | Super Cooling, Super Freezing, Holiday Function, Audible/visual alarm, Freezer/refrigerator connection |
| Multifresh compartment | Yes, for optimal preservation of meat, fish and vegetables |
| Double Fresh system | Yes, membrane filter to maintain humidity in the vegetable drawer |
| Freezing capacity | Not specified, do not exceed the value on the rating plate |
| Interior lighting | E14 bulb, 220-240 V, 15 W max |
| Maintenance and cleaning | Clean interior with warm water and baking soda; do not use steam, solvents or abrasives; clean the rear grid once a year |
| Safety | Flammable refrigerant R600a; do not use flame devices inside; repair only by authorized service |
| Spare parts and repairability | Original parts only by authorized technical service; door reversal possible |
| General information | Weight not specified; manual available for download; recycling via waste disposal center |
Frequently Asked Questions - 5FAC-495 INNF ASPES
User questions about 5FAC-495 INNF ASPES
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual 5FAC-495 INNF - ASPES and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 5FAC-495 INNF by ASPES.
USER MANUAL 5FAC-495 INNF ASPES

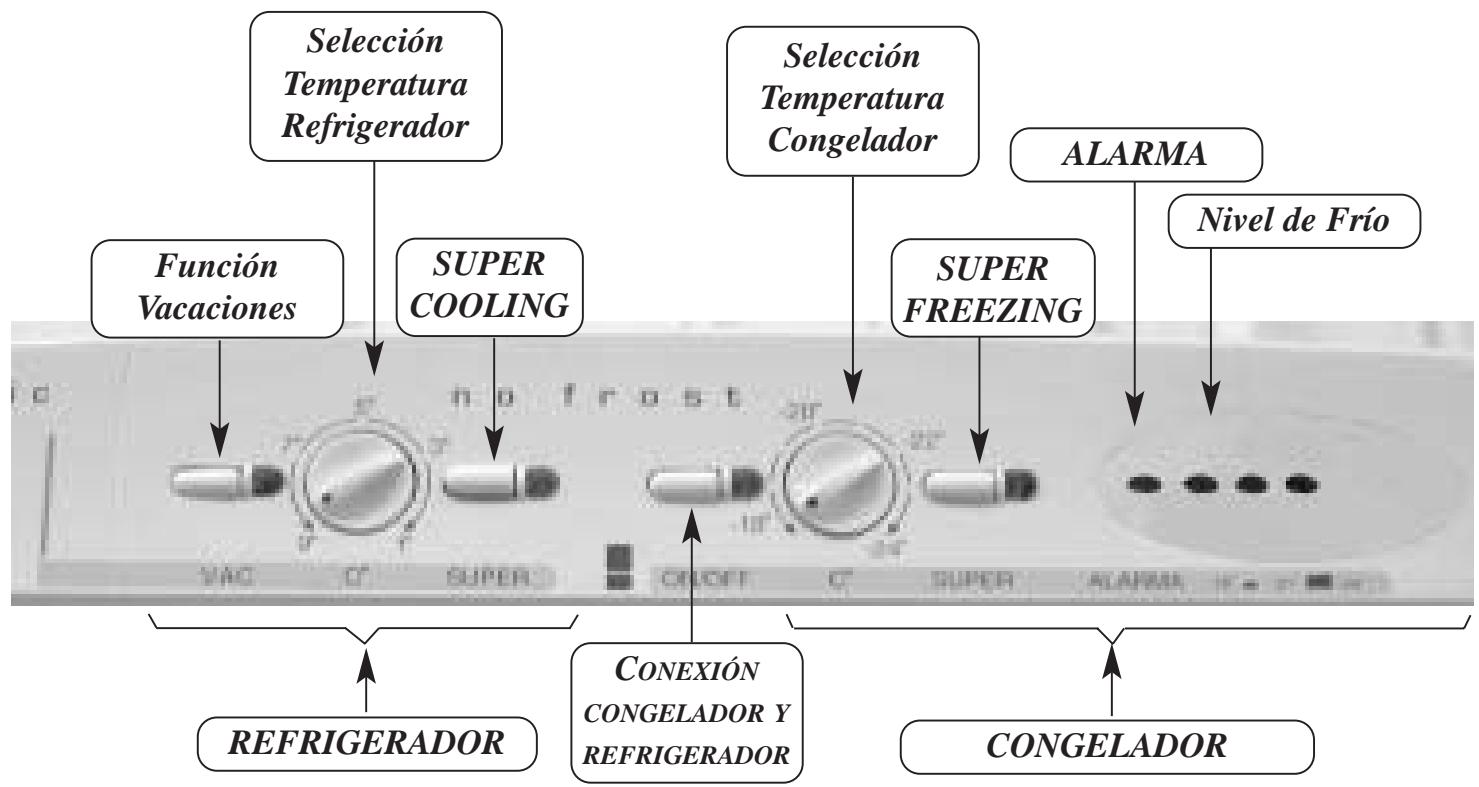

PANELDE CONTROL (No-Frost)
FUNCTIONES
SISTEMA DOUBLE FRESH
PAINEL DE CONTROLO (No-Frost)
FUNÇÖES
CES POINTS REPENDENT AUX DIRECTIVES CEE 3/23, 93/68, 89/336, 92/75, 96/57, 94/2, 86/594, 2002/72.
CONTENTS
Page 1. SAFETY INFORMATION AND GENERAL INSTRUCTIONS. .. 2
2.DESCRIPTION OF THE REFRIGERATOR. 3
3. INSTALLATION. 4
4. OPERATION AND USE OF THE REFRIGERATOR. 6
5. CLEANING AND MAINTENANCE. 10
6. NORMAL REFRIGERATOR NOISES. 11
7. TROUBLESHOOTING. 12
8. TECHNICAL SERVICE CALLS. 14
9. SPECIFICATIONS 14
Please read these instructions carefully before use. Keep this manual for future reference
1. SAFETY INFORMATION AND GENERAL INSTRUCTIONS
RECYCLING:
OLD REFRIGERATOR:
To prevent environmental damage, use the municipal collection service for disposal.
Make sure that the refrigeration circuit is not damaged: it may contain substances which could affect the environment.
Make the refrigerator unusable:
- Cut off supply cable.
- If possible remove the doors: leave the racks in place to prevent children from getting in easily.
PACKING:
The packing materials used are completely recyclable, (Cardboard, PE bubble wrap, EPS...).
WARNING: Keep packing materials out of the reach of children: these materials are potentially hazardous.
With disposal, observe local standards of treatment of this type of waste.
FEATURES OF THE REFRIGERATOR:
This refrigerator includes a four star ( **) freezer compartment enabling you to freeze food.
This refrigerator will operate correctly between the following temperatures:
No-Frost Models
10^ C - 43^ C

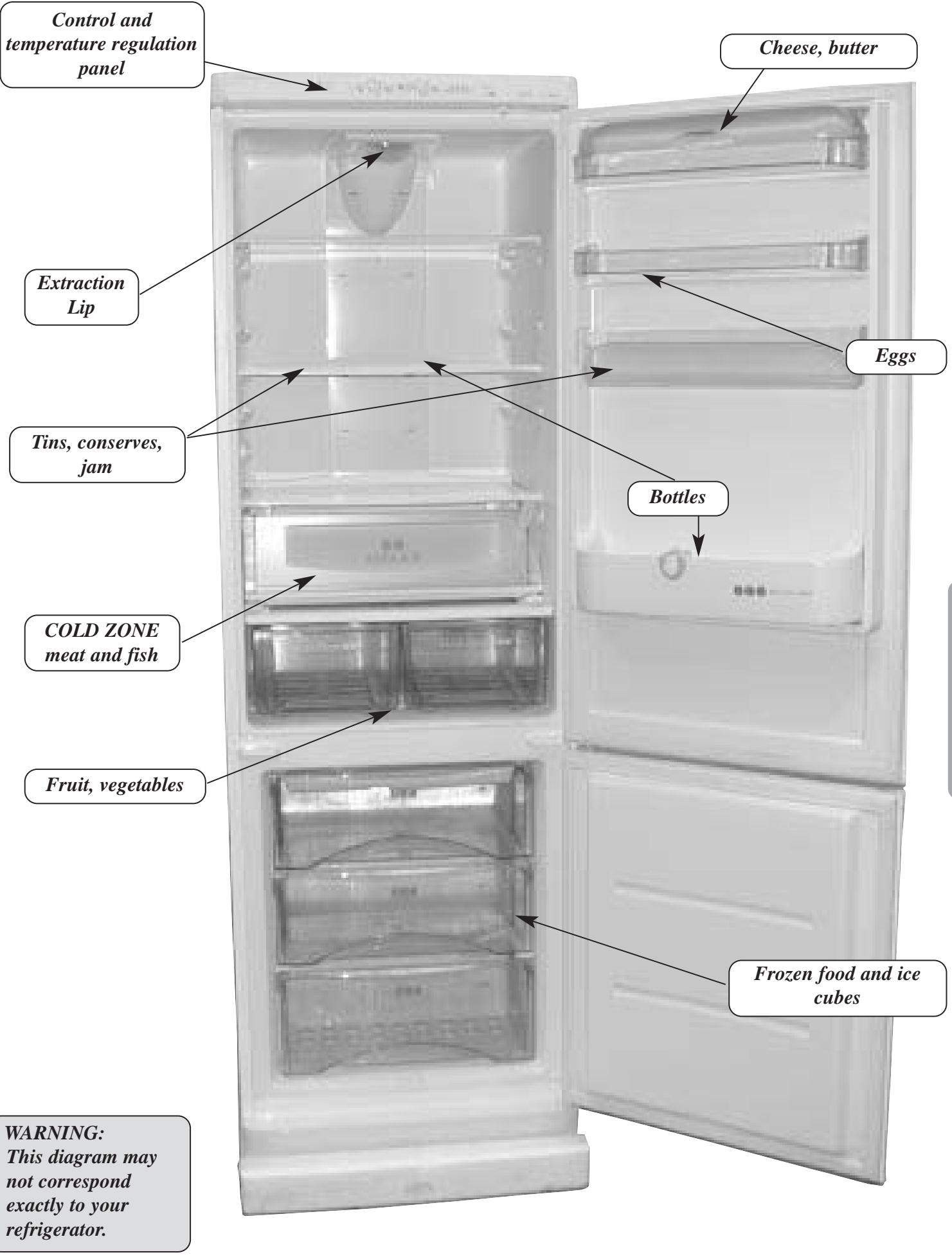

2. DESCRIPTION OF THE REFRIGERATOR
SAFETY:
This model refrigerator is commercialised with R600a coolant. Points to note:
- This coolant does not affect the environment.
- It is inflammable, so the cooling circuit must be in perfect condition. If damaged in any way, consult your distributor before switching on.
This refrigerator must be repaired only by the technical assistance service, using original spares.
Do not use flame-producing equipment or electrical apparatus inside the refrigerator.
Do not allow children to play with the refrigerator.
Do not introduce volatile liquids or inflammable products.
3. INSTALLATION
LOCATION:
Ensure that the refrigerator is located away from heat sources (stoves, radiators, etc.) and protected from direct sunlight, which increases consumption.
Allow air flow around the rear of the refrigerator. Do not cover the space between the skirting board and floor or the top of the refrigerator with any object.
The refrigerator must not be installed outdoors, or exposed to rain.
To ensure better energy efficiency, a 20mm space is recommended between the back of the refrigerator and the wall.
On certain occasions, relative humidity and room temperature may generate condensation on the inside and outside of the refrigerator.
To avoid vibrations and noise, ensure that the refrigerator is stable and level.
ELECTRICAL CONNECTION:
Plug specifications: 220-240V with earth.
Do not use adaptors or extension cables.
Ensure that the cable is not in contact with the motor.
Ensure that the cable is not caught under the refrigerator.
TOOLS REQUIRED:
An Allen screwdriver and a screwdriver with a TORX tip.

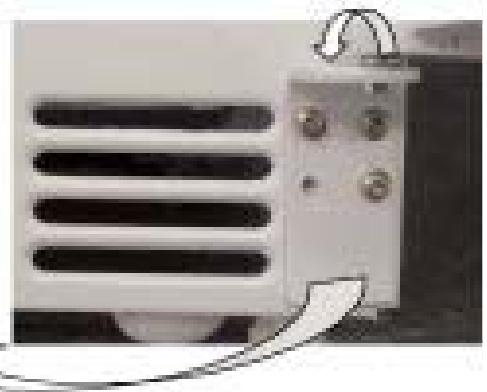

PROCEDURE:
- Unplug the refrigerator and take everything from the compartment.
- Take out the skirting board and screws and remove the bottom hinge.
- Remove the freezer door.
- Remove the cover of the central hinge screws, and loosen the two screws holding it in place.
- Remove the refrigerator door.
- Take out the top hinge pin and fit it on the other side of the refrigerator.
- Change the position of the lower hinge pin.
- If fitted, change the lateral handles to the other side.
- Reverse this procedure to refit the doors.
Switch the appliance on and check that the sealing strips seal properly when the door is closed.
BEFORE SWITCHING THE REFRIGERATOR ON:
Clean the inside with warm water and bicarbonate of soda. Rinse and dry carefully.
Wait for 2 hours before starting, to ensure that the motor lubricants have stabilised.
If the refrigerator has been switched off, wait 4 hours after restarting before placing food inside.
In normal conditions, the recommended approximate temperature is 4^ in the refrigerator and about -19^ in the freezer.
To regulate the temperature, use the temperature selection controls: temperatures are indicated in ^ C .
WARNING: The inside refrigerator temperature depends on:
Room temperature.
The location of the refrigerator.
Door-opening frequency

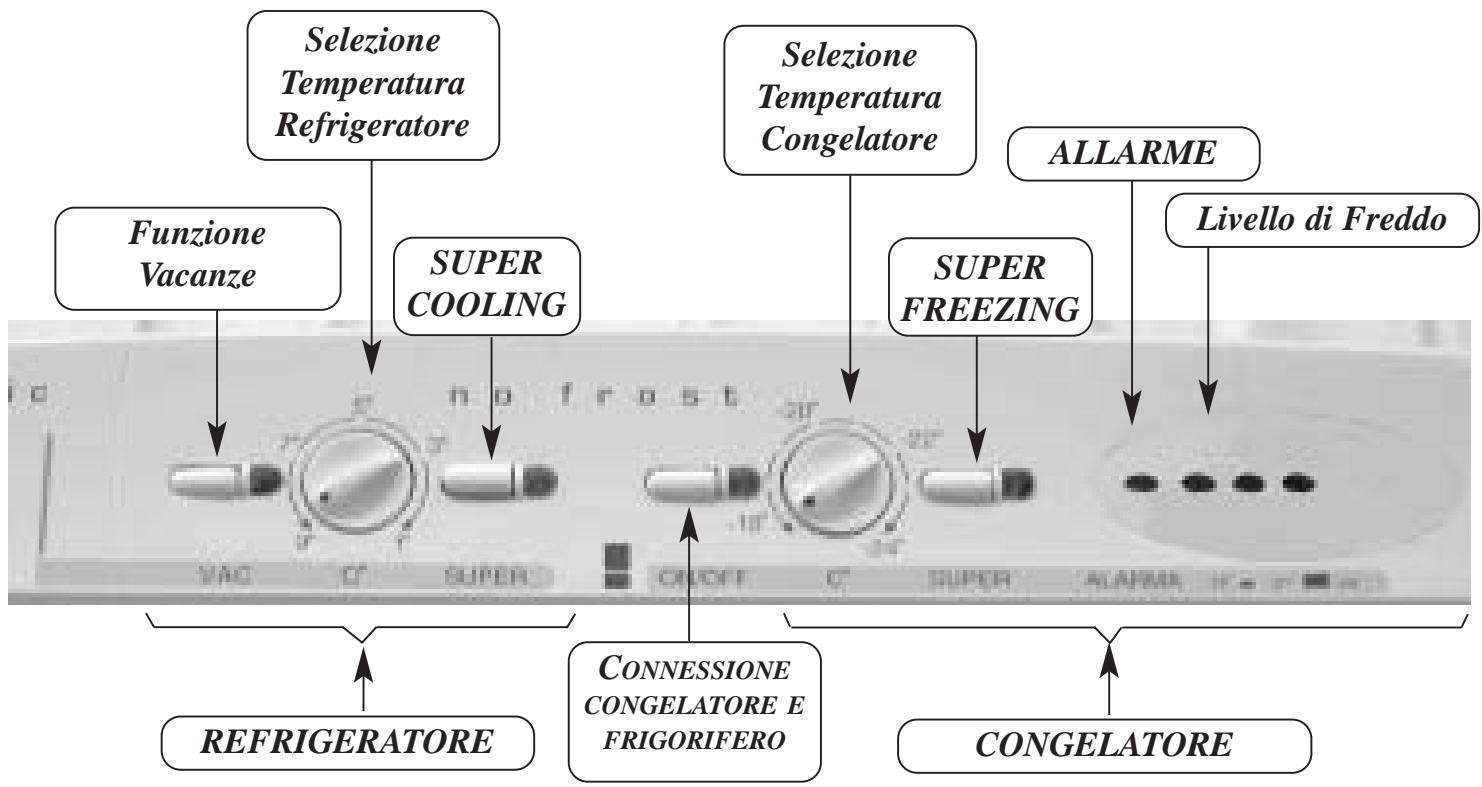

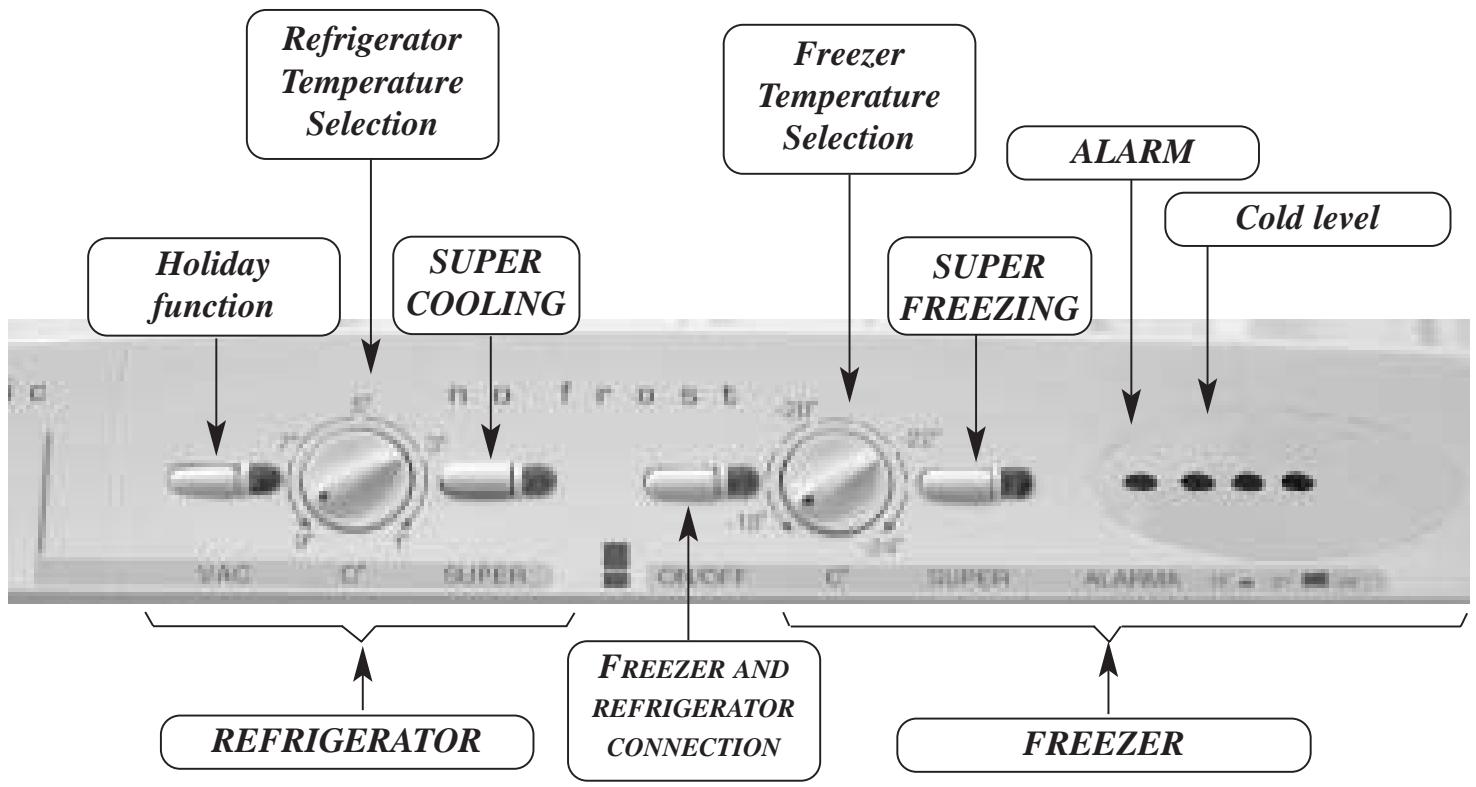

CONTROL PANEL (No-Frost)
FUNCTIONS
"Temperature selection" Turn the control to select the refrigerator and freezer temperatures in ^ C .
"Freezer and refrigerator connection" To switch the refrigerator and freezer on and off. Switching the freezer off will also switch the refrigerator off. There is an ON light.
"SUPER COOLING" With this function running, the refrigerator temperature is regulated automatically to maximum cold for six hours. It switches off automatically but can also be turned off automatically before the 6 hours is up.
"SUPER FREEZING" With this function running, the freezer temperature is automatically adjusted to maximum cold. This is to facilitate freezing of food and it is recommended that it is turned on 24 hours before introducing a large amount of food. The function will turn off automatically, and can also be switched off manually.
"Alarm" A light and audio signal is activated if the freezer temperature is abnormally low. The audio alarm can be turned off manually using the SUPER FREEZING function.
"Cold level" The number of lights on indicate freezer cold level. The more lights on, the colder the freezer.
"Holiday Function" Used when you want the freezer to work normally and the refrigerator to be switched off when you do not plan to use it for a long period of time, such as, for example, during the holiday period. Before enabling this option, empty the refrigerator, clean it and close the door. Then activate this function to ensure that your refrigerator is maintained in optimum conditions to avoid generating unpleasant odours. When you come back from your holidays, simply deactivate the function and the temperature in the refrigerator will drop once again to pre-selected level.
REFRIGERATOR
Leave enough space between food items to let air to flow around them.
Do not leave the door open longer than necessary.
Do not put hot food in the refrigerator.
Do not obstruct the ventilation grilles.
To prevent foodstuffs stored from drying out, we recommend that you place them in an airtight
container or wrapped them in aluminium foil or plastic food wrap.

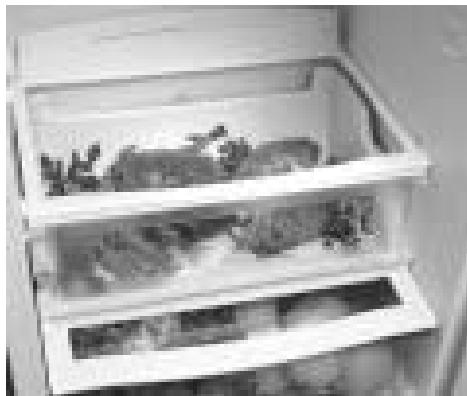

MULTIFRESH SYSTEM
If your refrigerator has a Multifresh compartment:
This guarantees ideal conservation of fresh food such as meat and fish, and also vegetables, allowing these items to be conserved for longer periods of time without having to freeze them.
This area has the coldest temperatures in the
refrigerator and is also the area least affected by frequent opening.
For meat and fish, an intermediate refrigerator temperature is recommended.
For greater capacity in the refrigerator, remove the top rack and cover, and store directly on the tray. This area loses the benefits outlined above.
DOUBLE FRESH SYSTEM
Your refrigerator is fitted with this system, the top rack covering the fruit and vegetable baskets has a membrane filter maintaining a high level of humidity in the baskets. The humidity level provided is ideal to ensure that vegetables do not dry, out, ensuring that they retain all their texture, flavour and nutritional properties.
The amount of food to be frozen at once must not exceed the freezing power indicated on the specifications plate.
Ensure that your food to be frozen is in good conditions.
Observe the best-by date.
To prevent the food from drying out, wrap it in aluminium foil or plastic film.
Do not put food to be frozen in contact with food already frozen.
Never refreeze thawed food.
Freeze in daily servings.
- Do not store bottles with carbonated drinks or glass bottles containing liquids in the freezer. They may burst.
Do not eat very cold ice-cream or food: this may burn the mouth.
Label the wrapping, indicating the content and the freezing date.
For maximum volume, we suggest that you remove the ice tray.
For best energy yield, keep the ice-cube holder full, along with the ice holder on the upper basket tray.
ICE-MAKING:
Fill the trays in the freezer up to three quarters, with water.
Place the trays in the freezer.
Once the water has frozen, the cubes can be removed by twisting the tray slightly. Store the cubes in the ice compartment.
DEFROSTING
REFRIGERATOR:
The refrigerator's defrosting system is automatic, no manual defrosting is required.
FREEZER:
No-Frost refrigerators do not generate layers of frost or ice, which means that no operations are required for their elimination.
DEFROSTING FOOD
Not all food should be defrosted in the same way
If you have bought frozen food, follow the instructions on the pack.
Vegetables should be cooked directly.
In general, prepared or pre-cooked foods can be cooked directly.
Meat and fish must be defrosted slowly in the refrigerator over several hours. If you have a microwave, this can speed this considerably.
5. CLEANING AND MAINTENANCE
CLEANING:
Before starting cleaning, switch the refrigerator off using the switches.
Clean the interior with water or bicarbonate of soda, with the help of a sponge or cloth: this will prevent the formation of odours.
Never use steam cleaning machines, solvents or abrasive detergents, which may damage the inside of your refrigerator. Do not place the inside fittings in the dishwasher.
It is recommended that the rear grill be cleaned once year using a vacuum cleaner: if it is dusty and dirty, that reduces the refrigerator's performance and increases its consumption.
CHANGING THE LIGHT
Turn the light switch off.
Press the inside lip to remove the light reflector cover.
Remove the bulb which has failed and replace it with another of the same sort, screw type E14, 220-240V, with a maximum of 15W .
If possible, do not open the refrigerator doors.
When power is restored, check to see if the food has unfrozen.
Consume any defrosted food immediately. Do not re-freeze!
WHAT TO DO IF THE REFRIGERATOR IS NOT TO BE USED FOR A LONG PERIOD OF TIME:
Empty the refrigerator.
Unplug and clean the unit as described above, and turn the light off at the switch.
Leave the doors open to prevent formation of unwanted odours.
Vacation function: If your refrigerator is not going to be used for a long period but you wish to keep food frozen in the freezer, you can turn the refrigerator section off and leave it closed: the appliance will continue to function with very low consumption, without causing odours inside.
6. NORMAL REFRIGERATOR NOISE
The refrigerating gas may produce bubbling sounds as it flows through the circuits.
The compressor may buzz and/or produce slight knocking, which may be more marked on starting.
Cracking sounds produced by expansion and contraction of the materials used.
The insulation used amplifies sound levels.
- You may hear a gentle murmur whvn your refrigerator is switched on. This is due to the working of a fan incorporated to ensure adequate air circulation inside the appliance.
In the freezers of No-Frost refrigerators, the effect will be noted of the ventilator running to cool and to eliminate frost.
7. TROUBLESHOOTING
| PROBLEM | CAUSE | SOLUTION |
| The refrigerator does not operate | ·It is not plugged in. ·There is no electrical current to the plug because the fuse has blown or the automatic power limiter has activated. ·The connection controls are not on. | ·Plug in. ·Change the fuse or reset the automatic power limiter. ·Switch the controls on. |
| The refrigerator vibrates. | ·The refrigerator is incorrectly levelled. | ·Level it, with the leveller bases. |
| The refrigerator or freezer is not very cold | ·Temperature selection is set too hot. ·The door is not properly closed or is opened very frequently. ·The space between the skirting board and floor or the top of the refrigerator has been covered. ·The refrigerator is exposed to direct sunlight or a heat source. ·A large amount of food has been introduced. ·In No-Frost refrigerators, there is something obstructing the ventilation grilles | ·Set temperature selection to maximum cold. ·Ensure that the door does not remain open too long. ·Keep these areas free as described in the "Installation" section in this manual. ·Relocate the refrigerator or protect it from these heat sources. ·Consult the section on "operation and use of the refrigerator". ·Remove any obstacles blocking the air outlet of the ventilation grilles. |
| The motor runs permanently. | ·The doors are not properly closed. ·The doors are opened often. ·The food was introduced recently. ·Temperature selection in a high position. | ·Close the door properly. ·Avoid opening the door frequently. ·Wait for the appliance to return to normal. ·Set the temperature switch to less cold. |
| The door does not close. | · The refrigerator is not correctly levelled. · The door was closed vio- lently. · It is prevented from closing by a product inside. | · Level the refrigerator correctly. · Close the doors gently. · Put this product in a suitable place. |
| A lot of ice at the front of the freezer drawers. | · The door is open. · The door has been opened often. | · Check to see if food is pre- venting the door from being closed. · Ensure that the door does not remain open for too long. |
| Odour in the refrigerator. | · Some food is transmitting odours to the refrigerator. | · Wrap the food or cover it correctly, or replace the hygienizer in models which have this function. |
| The food dries out. | · The food is not properly wrapped. | · Wrap the food or cover it correctly. |
| The refrigerator light does not come on. | · The light is loose. · It has blown. · The plug is not connected to the power takeoff. · There is no electrical current to the plug because the fuse has blown or the automatic power limiter has activated. · The light switch is off. | · Screw it in properly. · Change the light as explained in the manual. · Plug in. · Change the fuse or reset the automatic power limiter. · Set the switch so that the red point is visible. |
8. TECHNICAL SERVICE CALLS
Read the manual carefully and, if you are unable to resolve the problem, call the technical assistance service.
The address and telephone number closest to your address appear in the index of official technical service offices we supply with the refrigerator, or in your city telephone directory.
To facilitate the work of the technical assistance service, please provide them with the following details.
The refrigerator model.
The refrigerator reference.
Date of purchase.
A description of the problem.
- Your home address and telephone number.

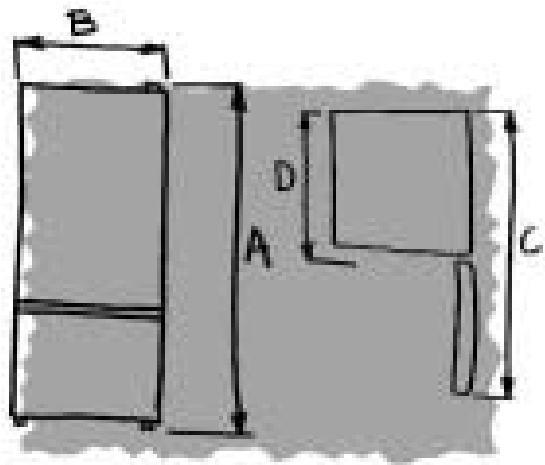

9. SPECIFICATIONS
| DIMENSIONS | |||
| Height (mm) | A | 1850 | 2000 |
| Width (mm) | B | 600 | 600 |
| With door open (mm) | C | 1150 | 1150 |
| Depth (mm) | D | 610 | 610 |
THESE UNITS COMPLY WITH EEC DIRECTIVES 3/23, 93/68, 89/336, 92/75, 96/57, 94/2, 86/594, 2002/72.
INHALTSVERZEICHNIS
Seite

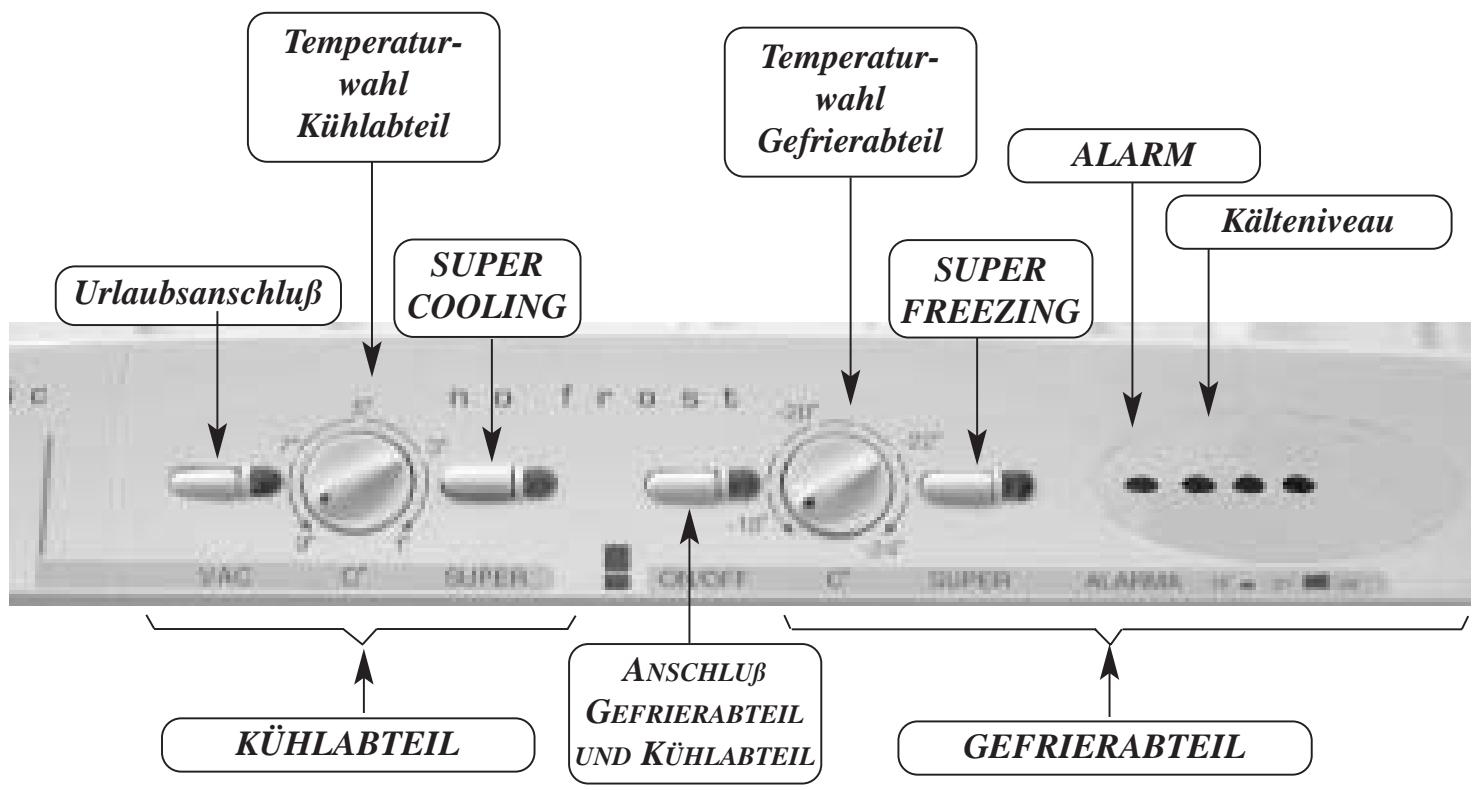

SCHALTTFEL (No-Frost)
