USER MANUAL ARTIS CABASSE

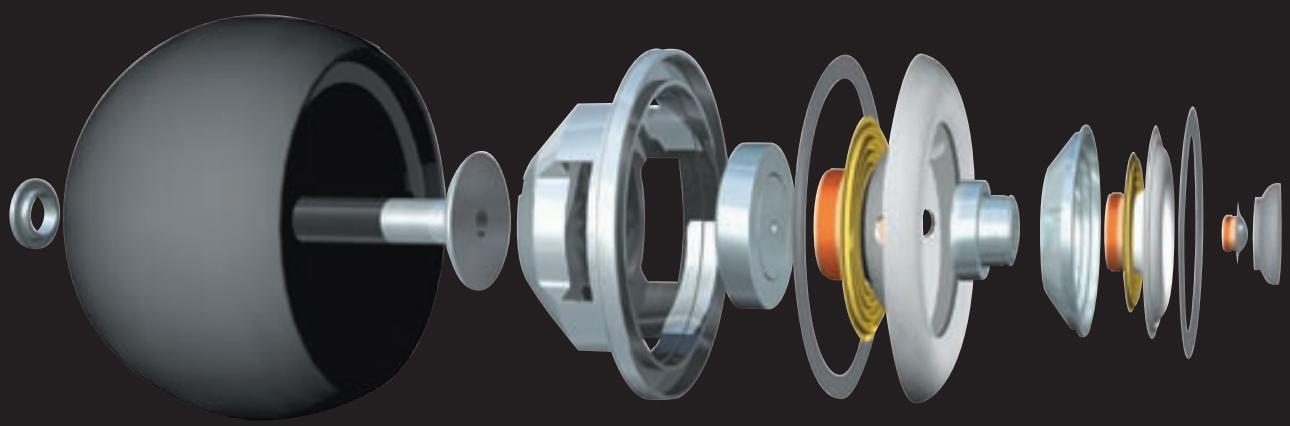

ARTIS Masterpieces signed Cabasse.
The fruit of an entire team's passion for music, the new Artis range concentrates on the very latest Cabasse innovations in coaxial technology and mastery of acoustics.
Elegant and compact, they encompass the unique qualities of the BC17, TC23 and QC55 co-axial drivers.

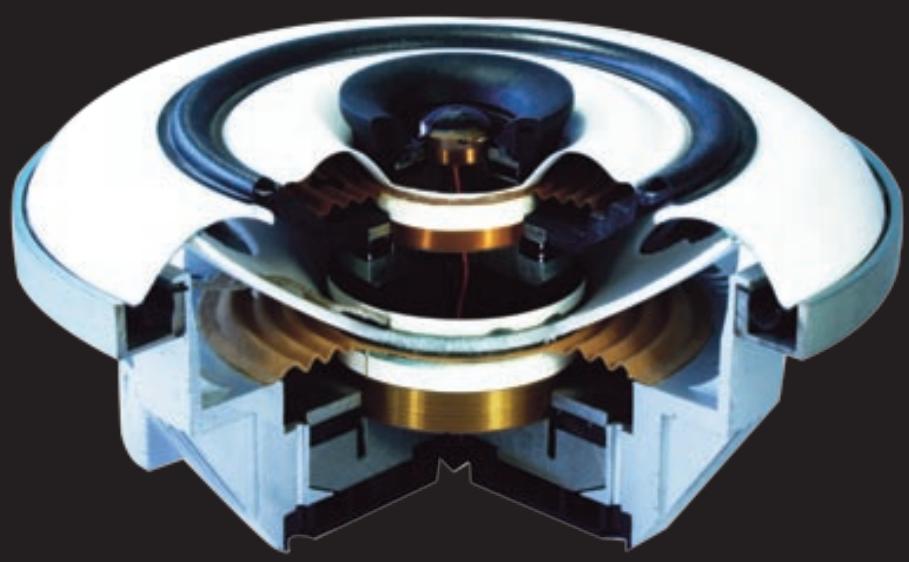

Listen to the SCS difference.
Fidelity to original timbres and dynamic range, a wide, stable and full soundstage, these are the benefits of SCS (Spatially Coherent System) technology.
Imagine three stones hitting the surface of a lake at three different points. The created waves will
mix and propagate erratically. Now imagine three stones hitting the surface at the same point,
the waves grow and spread harmoniously. This single source emission is the benefit
of the co-axial drivers and wide-range tweeters designed by the Cabasse R&D team.
Rediscover the emotions of pure sound.

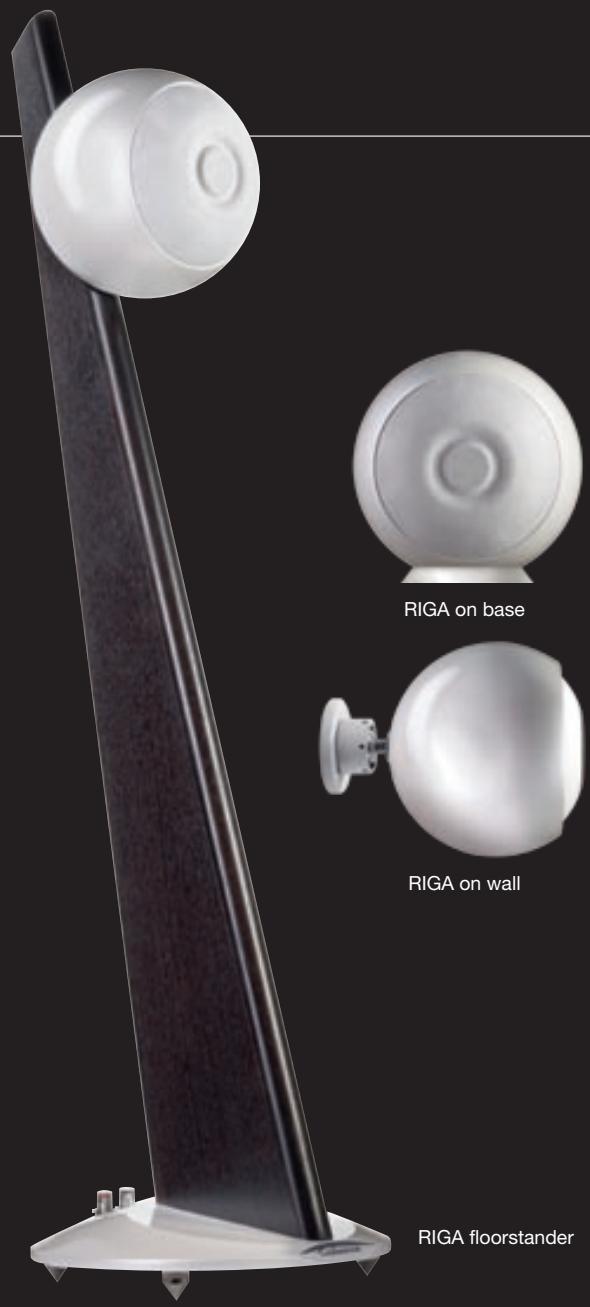

RIGA SYSTEM
Ultra compact, the Riga satellite is fitted with the 2-way co-axial BC17. A true technological feat, this new transducer consists of a dome midrange-tweeter and a ring shaped lower midrange-woofer, forming together a portion of a pulsating sphere only 17~cm in diameter. Riga concentrates all the values of the SCS principles so you can experience and share the joys of music and sound - every kind of music and every type of sound.
Santorin 30 encapsulates, in a compact enclosure, the technical innovations initially designed for the "La Sphère" subwoofer section: honeycomb dome membrane, long throw voice-coil, closed cabinet, oversized amplification, digital fine tuning and specific Cabasse audio software for room analysis and automatic tuning. Experience linear, colouration free bass down to 20Hz .
SANTORIN 30
RIGA FLOORSTANDER
RIGA ON WALL
RIGA ON BASE
| Ways | 2 | 2 | 2 |
| Drivers | 1 x 2-way co-axial BC17 : 35 mm Kaladex® midrange-tweeter 16 cm Duocell low-midrange-woofer | 1 x 2-way co-axial BC17 : 35 mm Kaladex® midrange-tweeter 16 cm Duocell low-midrange-woofer | 1 x 2-way co-axial BC17 : 35 mm Kaladex® midrange-tweeter 16 cm Duocell low-midrange-woofer |
| Sensitivity 1 W/1 m | 90 dB | 90 dB | 90 dB |
| Cross-over point | 1,600 Hz | 1,600 Hz | 1,600 Hz |
| Frequency response | 96 - 20,000 Hz | 96 - 20,000 Hz | 96 - 20,000 Hz |
| Nominal impedance | 8 ohms | 8 ohms | 8 ohms |
| Minimum impedance | 3.4 ohms | 3.4 ohms | 3.4 ohms |
| Power handing | 150 W | 150 W | 150 W |
| Peak power | 1,000 W | 1,000 W | 1,000 W |
| Dimensions (H x W x D) | 123 x 34 x 39 cm 48.4 x 13.4 x 15.4 in | 22 x 22 x 27 cm 8.7 x 8.7 x 10.6 in | 22.4 x 22 x 21 cm 8.8 x 8.7 x 8.3 in |
| Weight | 14 kg - 31 lbs | 6 kg - 13 lbs | 5.5 kg - 12 lbs |
| Standard finish | Wild cherry / Black pearl - Santos / Black pearl Wenge / Pearl - Wenge / Black pearl | Black pearl / Pearl | Black pearl / Pearl |
BALTIC SYSTEM

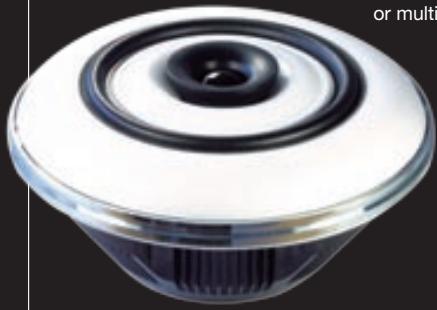

Baltic Evolution: the high-end satellite for ultimate audio systems. This 3-way SCS point source is fitted with the TC23, the heart of the QC55 of La Sphère. Available in three elegant finishes, Baltic is the solution for discreet high-end stereo or multichannel system installations.
Fitted with a measurement kit for automatic room equalisation and a remote control with direct access to three individual setups, the Santorin 30 is the ideal subwoofer for every high-end system. Combined with Baltic and Riga, it creates systems that are tiny in size but giant in performance.
SANTORIN 30
BALTIC Evolution on base
BALTIC Evolution on wall

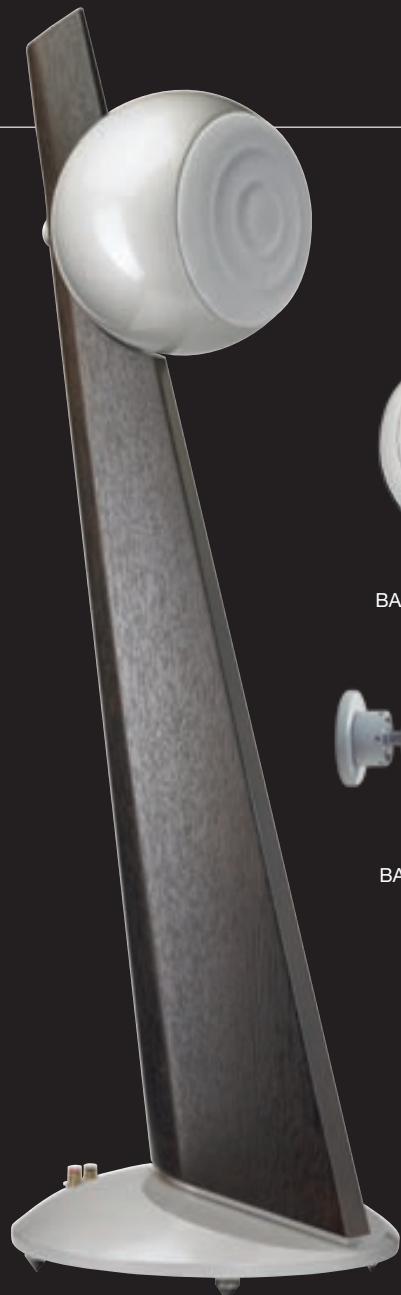

BALTIC floorstander
BALTIC EVOLUTION
floorstanding
BALTIC EVOLUTION ON BASE
booksheft
BALTIC EVOLUTION ON WALL
on wall
floorstanding
SANTORIN 30
| Ways | 3 | 3 | 3 | 1 |
| Drivers | 1 x 3-way TC23 co-axial unit : 2.8 cm Kaladex® dome tweeter 12 cm P2C ring midrange 21 cm Duocell ring woofer | 1 x 3-way TC23 co-axial unit : 2.8 cm Kaladex® dome tweeter 12 cm P2C ring midrange 21 cm Duocell ring woofer | 1 x 3-way TC23 co-axial unit : 2.8 cm Kaladex® dome tweeter 12 cm P2C ring midrange 21 cm Duocell ring woofer | 1 x 30 cm honeycomb dome woofer |
| Cross-over points | 800 - 3,500 Hz | 800 - 3,500 Hz | 800 - 3,500 Hz | adjustable from 30 to 200 Hz |
| Sensitivity 1 W/1 m | 90 dB | 90 dB | 90 dB | active |
| Frequency response | 80 - 25,000 Hz | 80 - 25,000 Hz | 80 - 25,000 Hz | 22 - 200 Hz |
| Nominal impedance | 8 ohms | 8 ohms | 8 ohms | active |
| Minimum impedance | 3.2 ohms | 3.2 ohms | 3.2 ohms | active |
| Power handing / Peak power | 220 / 1,540 W | 220 / 1,540 W | 220 / 1,540 W | 500 W RMS / 1,000 W |
| Dimensions (H x W x D) | 132 x 32 x 42 cm 53 x 12.6 x 16.5 in | 27 x 27 x 27 cm 10.6 x 10.6 x 10.6 in | 24 x 27 x 35 cm 9.4 x 10.6 x 13.8 in | 43 x 36 x 38 cm 16.9 x 14.2 x 15 in |
| Weight | 19 kg - 42 lbs | 7.5 kg - 17 lbs | 7.5 kg - 17 lbs | 28 kg - 62 lbs |
| Standard finish | Wild cherry / Black pearl Santos / Black pearl Wenge / Pearl | Black pearl, Pearl | Black pearl, Pearl, White | Black pearl, Pearl |

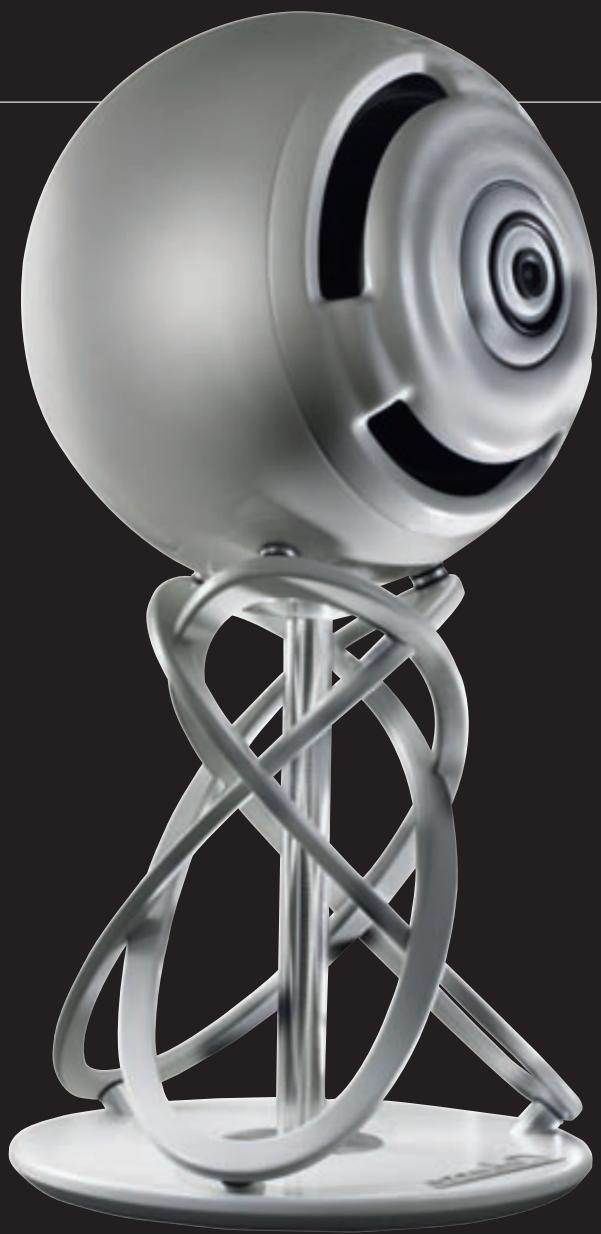

LA SPHERE
A no compromise, ultimate, acoustical masterpiece, "La Sphère" surpasses all the existing references. The incredible 55 cm 4-way concentric QC-55 driver and the active processor, with on site Cabasse tuning, provide incomparable performance whatever the listening room. High efficiency, extreme power handling, tonal balance in a 60^ cone, deep, stable and realistic sound stage: all the values that Cabasse represents converge for absolute fidelity from 20 to 25,000 Hz.
LA SPHERE
LA SPHERE ACTIVE PROCESSOR AND DEDICATED POWER AMPLIFIERS
4-WAY CO-AXIAL SYSTEM
LA SPHERE
| Drivers | 1 x QC55 22" 4-way co-axial unit ● tweeteter: 2.5 cm dome - 4,000-25,000 Hz - 93 dB (2.83V/1m) - power handling 30 W - 108 dB SPL ● upper-midrange: 13 cm P2C ring - 800-4,000 Hz - 93 dB (2.83V/1m) - power handling 80 W - 112 dB SPL ● low-midrange: 21 cm Duocell ring - 150-800 Hz - 94 dB (2.83V/1m) - power handling 170 W - 116 dB SPL ● woofer: 55 cm (22 in) honeycomb dome - 20-150 Hz - 96 dB (2.83V/1m) - power handling 1000 W - 126 dB SPL |
| Frequency response | 20 - 25,000 Hz ± 3 dB on axis |
| Frequency range | - 6 dB at 16 Hz and 25 kHz (open space conditions) |
| Dispersion | within 2 dB of reference response: over 60° arc for any plan, forming a perfect 60° cone |
| Dimensions (H x W x D) | 140 x 70 x 70 cm - 55.1 x 27.6 x 27.6 in |
| Weight | 100 kg - 220 lbs |
| 4-way active processor | - Cross-over points: 150 - 800 - 4,000 Hz - Variable slopes: 24 - 70 dB/ octave - Time alignment of the 4 acoustic centres - Room parametrical equalization - Full phase linearity |
| Standard finish | Black pearl, Pearl |
