USER MANUAL AB456 ACEC

ENGLISH ÂÀImportant Safety Information These warnings are provided in the interest of safety. You MUST read them carefully before installing or using the appliance. During use +__ This appliance has been designed for cooking edible foodstuff only and MUST NoT be used for any other purposes. +. Ensure that all control knobs are in the OFF position when not in use. + Should you connect any electrical tool to a plug near this cooking appliance, ensure that electric cables are not in contact with it and keep them far enough from the heated parts of this appliance. +__Ifthe applianceis out of order, disconnect it from the electric supply. + _ Donotleave untensils containing foodstuffs, e. g. fat oroilinoronthe appliance. This could cause damage in case the appliance is inadvertently switched on. +__ Always placethedripping panin position to collect fat whenusingthe grillorwhen cooking meat. Pouralittle water into the dripping pan to avoid smoke and unpleasant smells. + __Alwaysuseovenglovestoremove pansfromthe oven. +__ Forhygiene and safety reasons, this appliance should be kept clean at all times. A build-up of fats or other foodstuff could result in a fire. +__ Disconnect the appliance from the electrical supply, before carrying out any cleaning ormanteinance work. + Some parts ofthe appliance are covered by a shock- proof plastic film. Remove this film before using the oven. + _ This appliance is meant to operate with a single- phased connection to 230V electrical supply. An eventual 400V poliphasic connection without earth wire will destroy the oven and the hob, if fitted. + _ The manufacturer disclaims any responsability shouldallthe safety measures not be carried out. Child Safety +__ This appliance has been designed to be operated by adults and children under supervision. Young children MUST NoT be allowedtotamperwiththe controls or play near or with the oven. +__ Accessible parts of this appliance may become hot whenitis in use. Children should be kePT away until it has cooled. Installation + _Itis mandatory that all operations required for the installation are carried out by a qualified or competent person, in accordance with existing rules and regulations. +__Itis dangerous to alter the specification in any way. + Once youremoved all packaging fromthe appliance, ensure that it is not damaged andthe electric cable is in perfect conditions. Otherwise, contact your dealer before proceeding withthe installation. Service + Underno circumstances should you attemptto repair the appliance yourself. Repairs carried out by unexperienced persons may cause injury or serious malfunctioning. Refer to your local Service Centre. Always insist on genuine spare parts. n\ Environmental Information +__ Afterinstallation, please dispose ofthe packaging with due regard to safety andthe environment. + When disposing of an old appliance, make it unusable, by cutting off the cable. Itis most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred, always ensure that the book is left with the appliance in order that the new owner can get to know the functions of the appliance and the relevant warnings.

Contents For the User Warnings and important advice 35 Control panel 37 Using the oven 37 When the oven is first installed 38 Cooking with the multifunction oven 39 Cooking tables 40 Cleaning and Maintenance 41 If something goes wrong 42 Assistance and spare parts 42 Guarantee conditions 45 C € This appliance complies with the followingE.E.C. Directives: - 73/23-90/683 (Low Voltage Directive); - 89/336 (Electromagnetical Compatibility Directive); - 93/68 (General Directives) and subsequent modifications. Guide to Use the instructions The following symbols will be found in the text to guide you throughout the Instructions: ÂÀ Safety Instructions E Step by step instructions for an operation Hints and Tips

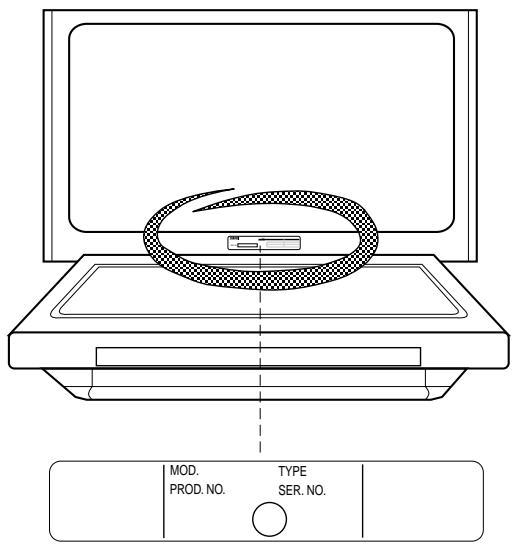

(MOD.AB456 X) All our appliances comply with the European Safety Standards. Nevertheless, in order to ensure the highest safety level, and avoid little children to be exposedtothe heatwhenthe appliance is operated, itis possible to fit a special protection device to the oven door. This device can be purchased in our Service Force Centres, specifyingthe relevant code (35791) andthe Product No. shown on the rating plate. Fitting instructions are provided with the kit package.

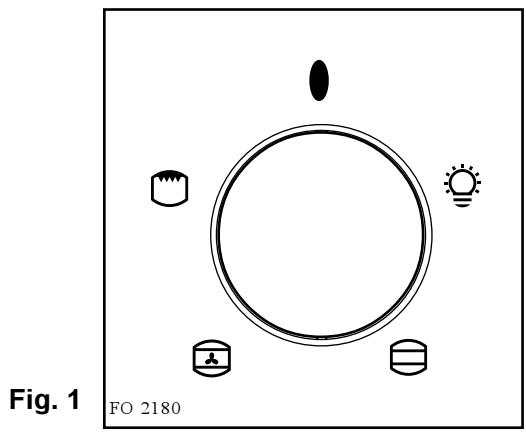

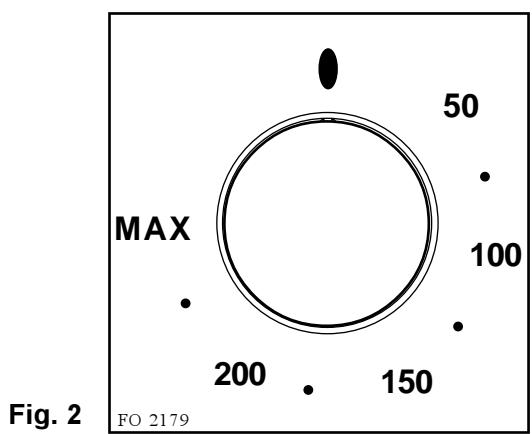

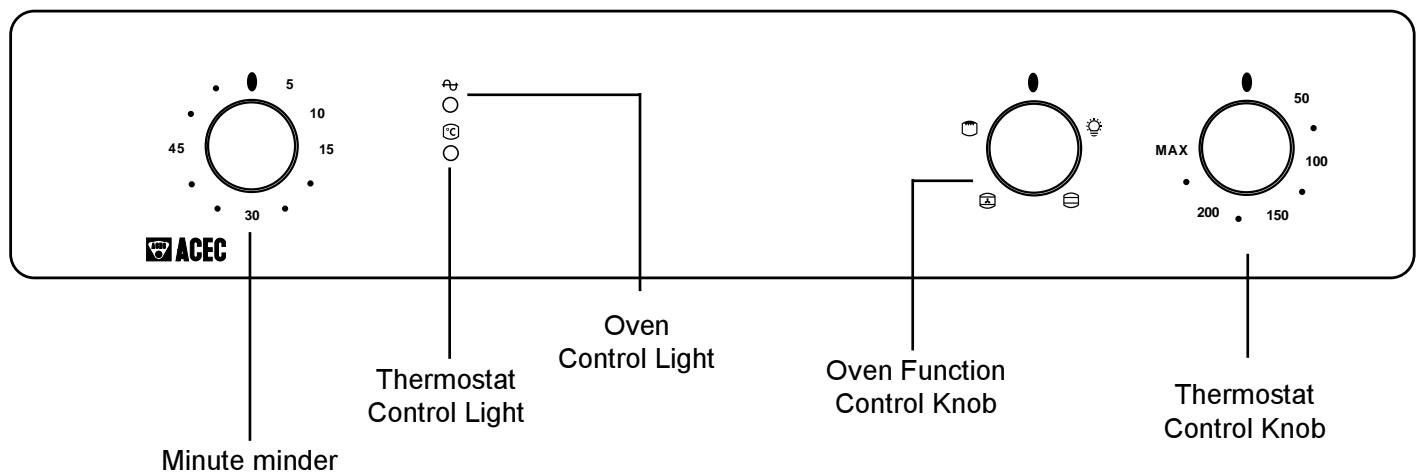

Control Panel ô Q CR © ë + © max 0 8 : 200 , 150 L | Oven | Control Light : Thermostat gl Oven Function Thermostat Control Light Control Knob Control Knob Minute minder Using the Oven Oven function control knob (Fig. 1) Fe] Oven light - The oven light will be on without any cooking function = Conventional cooking - The heat comes from both (] the top and bottom element, ensuring even heating inside the oven. | Fan cooking - This allows you to roast or roast and bake simultaneously using any shelf, without flavour interference. O Inner grill element only - can be used for grilling small quantities. es [=] Fig. 1 |ro 2150 Thermostat control knob (Fig. 2) Turn the thermostat control knob clockwise to select 0 temperatures between 50°C and 250°C (MAX). 50 Thermostat control light (9 . Once the oven temperature has been selected, the MAX temperature light will come on and remain on until the 100 oven has reached the correct setting; after that, it will go on and off with the thermostat, showing howthe tempe- . rature is being maintained. 200 , 150 Fig.2 {ro 110 Oven control light = It will come on every time an heating element is set on operation.

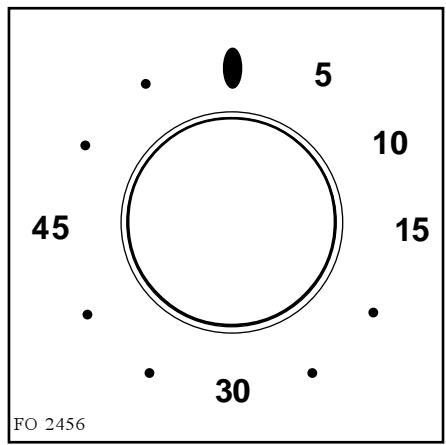

Minute minder (Fig. 3) The minute minderwill markthe end of atimed period with an acoustic alarm. The maximum timing is 60 minutes. Turnthe Minute minder knob clockwise to the maximum time position, then turn it back to the required time. When cooking time is over, an acoustic alarm will sound. The minute minder will not affect in any way the oven operation. The Safety Thermostat This ovenis provided with a safety thermostat. In case of malfunctioning of the main thermostat, and consequent over-heating, the safety device will stop the power supply to the appliance. If this happens, call your local Service Centre. Under no circumstances should you attempt to repair the appliance yourself. Cooling fan The purpose of the fan is to cool the control panel, the knobs and the oven door handle. The air stream flows out between the control panel and the oven door handle. To ensure proper cooling, the fan will continue to ope- rate even after the oven is turned off, until normal temperature levels have been reached. Fig. 3 FO 2456 All cookings must be carried out with the oven door closed When the ovenis first installed Once the oven has been installed: cg a) set the thermostat knob to MAX; b) switch the oven function control knob to conventional cooking @: c) allow the oven to run empty for approximately 45 minutes; d) open a window for ventilation. During this time, an unpleasant odour may be emitted. This is absolutely normal, and is caused by residues of manufacturing. Once this operation is carried out, let the oven cool down, then cleanthe oven cavity with a soft cloth soaked in warm soapy water. Before cooking for the first time, carefully wash the shelf and the dripping pan. To open the oven door, always catch the handle in its central part (Fig. 4).

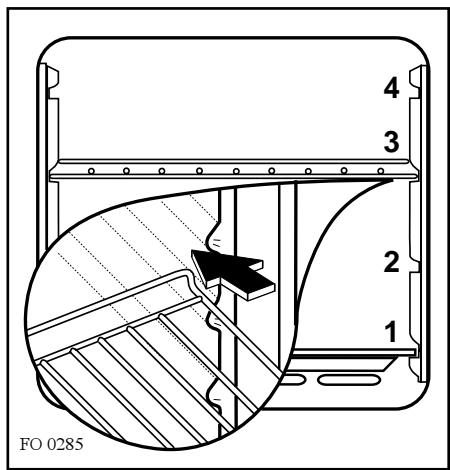

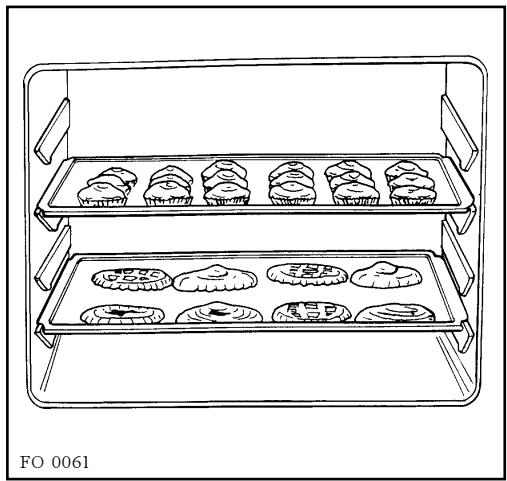

Cooking with the multifunction oven Conventional cooking Turnthe oven function control knobtothe relevant symbol (=) andsetthe thermostat knobonthe requiredtempe- rature. If your dish need more heat from the top or from the bottom adjust the shelf level as required (see Fig. 6). The Fan Oven Turnthe oven function control knobtothe relevant symbol (=) and setthe thermostat knob onthe required tempe- rature. The fan situated behindthe back panel circulates heated air into the oven. If you need to cook more than one dish in the fan oven atthe same time, place the shelves on the first and third position from the bottom (See Fig. 5). If you are cooking only one dish in the fan oven, use the lower positions, as this will give you better results. Defrosting Turnthe oven function control knobtothe relevant symbol (=) and set the thermostat knob on the OFF position (symbol : @). The oven fan operates without heat and circulates the air, atroomtemperature, insidethe oven. Thisincreases the rate at which defrosting takes place. Grilling Turnthe oven function controlknobtothe relevant symbol ((u)] and setthe thermostat knob onthe requiredtempe- rature. Place the oven shelf as shown in Fig. 6. FO 0061 Fig.5 Î Hints and Tips on Cooking Fish and Meat You can place meatin oven proof dishes, ordirectly onthe oven shelf. In this case, remember to place the dripping panin the first position from the bottom with some water init. The dripping pan will avoid the falling of melted fat on the oven base. White meat, poultry and fish in general, need a medium temperature cooking (between 150 and 175 ° C). If you need to cook red meat (slightly browned on the outside and more gently cooked in the inside), a higher tempe- rature (between 200 and 250 * C) for a short time is recommended. L | Hints and Tips on baking Cakes usually need a medium temperature cooking, between 150 and 200 °C. A short oven pre-heating (about 10 minutes) is recommeded when cooking cakes or baking. Once the cooking has been started, keep the oven door closed during all the cooking time, and check the cooking results through the oven door glass. L | Hints and Tips on grilling Ifyou need to grill meat orfish, place them directly onthe shelf after spreading a little oil on them. In the grill function, heat comes only from the top element. Therefore, youneedto adjustthe cookinglevel depending on meat or fish's thickness. Always remember to place the dripping pan in the lower position with some water in it. Fig. 6

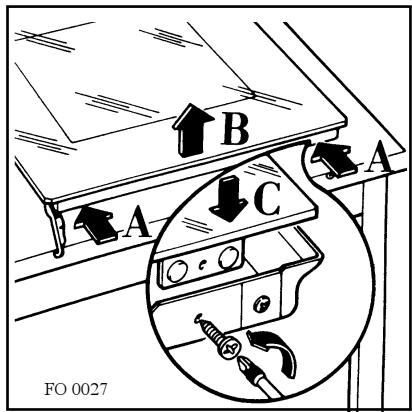

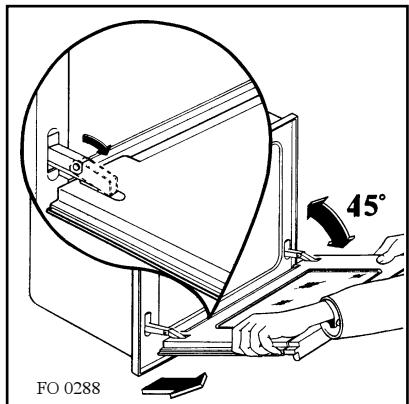

Cleaning and Maintenance General Cleaning Before cleaning, always allowthe ovento cool down. + Whenusing spray cleaning products, be careful not to spread them on the heating elements or on the thermostat sensor. + __ Never use harsh abrasives, steel wool or cleaners with bleach, as they could damage the enamel and the oven door glass. The Oven Cavity The enamelled oven cavityis best cleaned whilstthe oven is still warm. Itis advisabletowipethe oven overwith a soft cloth soaked in warm soapy water after each use. However, from time to time, it will be necessary to do a more complete cleaning, using a proper oven cleaner. In case of particularly tough stains, you can use stainless steel cleaning products or some warm vinegar. + fcookingfruits, some over-heated natual acids can squeeze and settle on the oven enamel, causing stains quite difficult to remove. This could affect the enamel brightness, but it will have no consequence on the oven performances. To avoidthese stainsto be burnt out during the next cooking, carefully clean the oven cavity after all fruits cookings. The Oven Door and its gasket Before cleaning the oven door, we recommend you to remove it fromthe oven. Proceed as follows: a) open the oven door completely; Æ Ë) find the hinges linking the door to the oven (fig c) unlock and turn the small levers located onthe two hinges (fig. 7); d)handlethe door byitsleft-andright-hand sides, then slowly turn it towards the oven until it is half- closed; e) gently pull the oven door off its site (fig. 7); f) place it on a steady plan; g) unscrew the two screws marked with lett. A fig.8; h) pull upthe oven doorglass andtake it away from the oven door. Clean the oven door glass with warm water and a softh cloth only. Once the cleaning is carried out, refit the oven door, followingthe procedure in reverse. The correct operation ofthe ovenis ensured by a gasket placed round the edge ofthe oven cavity. + _ Periodically check the condition of this gasket. If necessary, clean it without using abrasive cleaning products. + __Ifthe gasket shows to be damaged, call you local Service Centre. Do not use the oven until it has been repaired. Replacing the Oven Light + Ensure the electricity supply is switched off before carrying out this operation. The oven bulb has to comply to these features: a) resistant to temperatures of 300 °C; b) electric rate: 230 V - 50 Hz; c) electric power rate: 15 W.; d) connection type: E 14. To replace the bulb, proceed as follows (Fig. 9): a) push in and turn the glass lid anticlockwise; b) removetha faulty bulb; c) replace it with a new one; d) refit the glass lid; e) switch on the electricity supply.

What happens if something goes wrong Ifthe appliance is not working correctly, please carry out the following checks, before contacting your local Service Centre. SYMPTOM SOLUTION m The oven does not come on © Check the oven is in manual operation and that both a cooking function and a temperature have been selected

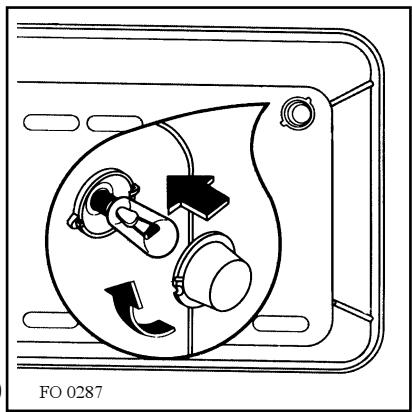

© Check the appliance is wired in properly, and the socket switch or the switch from the mains supply to the oven are ON. m The oven temperature light does not come on © Turn the thermostat knob on a temperature © Turn the oven function control knob on a function. m The oven light does not come on © Turn the oven function control knob on a function Buy a new oven light bulb, asking for it to your local Service Centre and replace it by following the instruction provided in this booklet. m lttakes too much time to finish the dishes, orthey are | @Refer to the contents of this booklet, especially to the cooked too fast. chapter "Using the Oven". # Steam and condensation settle on the food and the | @Leave dishes inside the oven no longer than 15-20 minutes oven cavity. after the cooking is completed. Technical Assistance If after the checks listed in the previous chapter, the appliance still does not work correctly, contact your local Service Centre, specifying the type of malfunctioning, the appliance model (Mod.), the product number Original spareparts, certified by the product manufacturer and carrying this symbol are only available at our Service Centre and authorized spareparts (Prod. No.) and the serial number shops. (Ser. No.) marked on the identification plate. DISTRI This plate is placed on the front ] PARTS external edge of the oven cavity. os FE MODO sr |

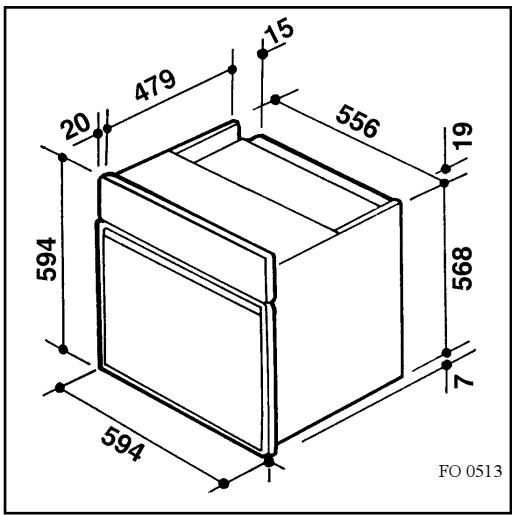

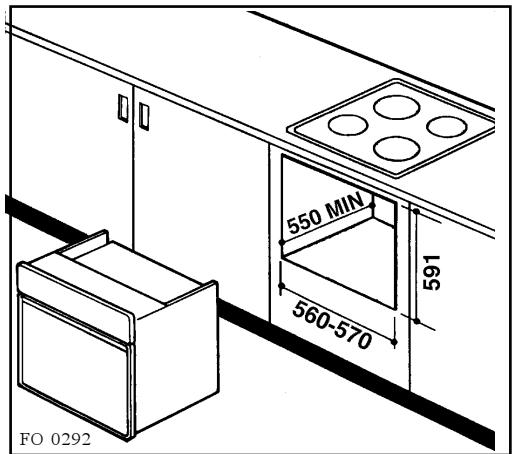

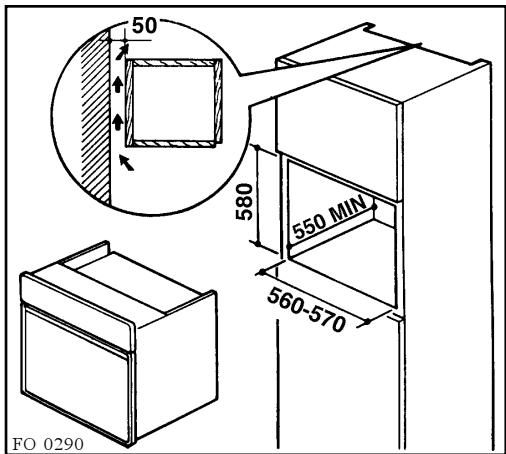

Technical Data Height 59,1 cm Heating elements ratings RECESS Width 56,0 cm Bottom heating element 1000 W DIMENSIONS ’ Depth 55,0 cm Top heating element 800 W Full Oven (Top+Bottom)(1000 + 800) 1800 W Height 32,5 cm Grill heating element 1750 W OVEN CAVITY Width 42,0 cm Convection fan 30 W DIMENSIONS Depth 39,0 cm Cooling fan 25W Volume 53 1! Oven lamp 15W Maximum power rating (230V - 50Hz) 1870 W Voltage tension (50 Hz) 230 V Installation The following instructions are meant to a 9 qualified tech n, in order to allow him carry sl & out the installation in compliance with the rules LY 56 œ in force. The building-in and the electrical connection fo the appliance must be carried out by a qualified + and authorized technician only. a 8 Building In à It is important that the dimensions and materials of the : dd ' FO 0513 surround or cabinet into which the oven will be built are Fig. 10 correct and will withstand a temperature increase. A correct installation will have to ensure a proper protection against contact with electric parts or merely functionally isolated parts. Allthe units meant to ensure protection have to be fitted not to be taken away without using any tool. Werecommednottoinstallthe appliance nearrefrigerators orfreezer, since the heat could affectthe performance of these appliances. Overall dimensions of the oven (Fig. 10) In-Column Recess Dimensions The recess must have the dimensions shown in Fig. 11. Undertop Recess Dimensions The recess must have the dimensions shown in Fig. 12. Fig. 11 Fig. 12

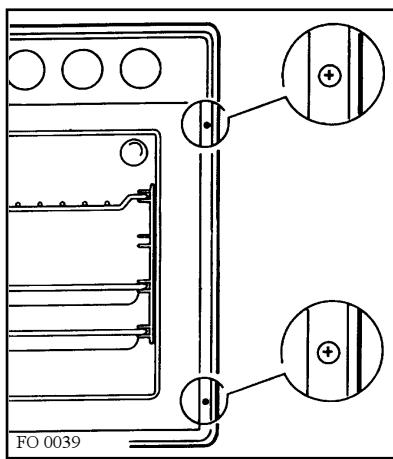

Securing the Oven to the Cabinet Fit the appliance into the cabinet recess. Open teh oven door and secure the oven to the kitchen cabinet with four wood screws, which fit the holes provided in the oven frame (Fig.13). When installing an electric plate hob over the oven, the hob's electrical connection and the oven's one have to be carried out separately, for security reasons andto let the oven be taken off the unit easier, if necessary. Electrical Connection Before the appliance is connected:

1) checkthatthe main fuse andthe domestic installation

can support the load;

2) check that the power supply is properly earthed in

compliance with the current rules;

3) checkthe socket orthe double pole switch used for

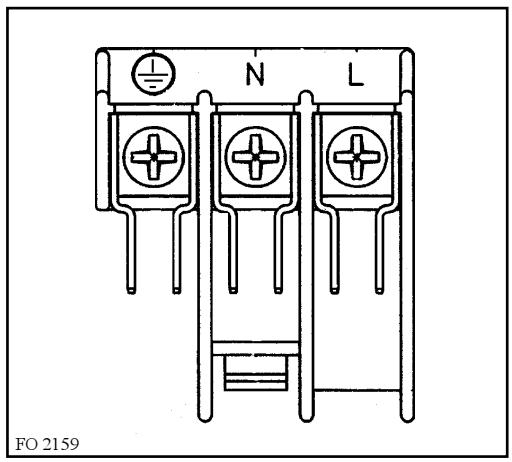

the electrical connection can be easily reached with the appliance built in the forniture unit. This appliance is delivered without an electric supply cable, therefore, you will have to fit to it a supply cable with standard plug, suitable for the total electric load shown on the rating plate. The plug is to be inserted into a suitable wall socket. Ifconnectingthe appliance directlytothe electricsystem, a double pole switch must be installed between the appliance and the electricity supply, with a minimum gap of 3 mm. between the switch contacts and of a type suitable for the required load in compliance with the current rules. The earth wire must not be interrupted by the double switch pole. The connection cable has to be placed in order that, in each part, it cannot reach a temperature 50 °C higher than the room temperature. After the connection is carried out, test the heating elements for about 3 minutes. Suitable power supply cables are the following types, considering the respective necessary section of cable. H07 RN-F H05 RN-F H05 RR-F H05 VV-F Terminal block The oven has an easily accessible terminal block, which is meant to work with an electric single-phase rate of 230 V. The manufacturer disclaims any responsability should all the safety measures not be carried out.

T— GUARANTEE - SPARE PARTS (only for BENELUX) NN When calling for repairs during the period of guarantee ofthe appliance, the original invoice or receipt must be shown or sent together with the appliance to be repaired General conditions of guarantee 1 The manufacturer guarantees the appliance indicated on the relative invoice for a period of one year from the date of purchase. In case of a fault during this period if caused bya defect in materials and/or construction, the client is entitled to repair free of charge. Âa Concerning vacuum cleaners for domestic use, the total periodof guarantee is two years. Accessories are subject to a direct usage, consequently these articles are excluded from the guarantee. 2 The manufacturer guarantees technical assistance and repairsfor one year. Spare parts fitted during repair are also covered by a one year guarantee from the date of repair. In case of fault during this period, as a direct result of the repair work carried out or caused by the new parts fitted on such occasion, the client is entitled to repair free of charge. The execution of repairs does not prolong the total period of guarantee covering the appliance. 3 Technical Assistance at domicile will be provided only for large apparatus which are difficult to transport such as: washing machines, spin-driers, dishwashers, refrigerators, freezers (vertical or horizontal), ovens, cookers and built-in appliances. 3a The above-mentioned conditions are also valid for refrigerators for caravens on condition that they are situated within the national boundaries and are accessible by roads open to traffic. Furthermore, at the time of the intervention the appliance and its owner, or the person so authorized, must be present at the place agreed upon for the intervention 4 If, in the opinion of the manufacturer, the appliance as described in point 3 must be transported to a Technical Assistance laboratory, the transportation will be carried out as established by the manufacturer, at his expense and under his responsibility. 5 Al appliances not mentioned under points 3 and 3a, includingappliances having the same functional characteristics but whose transport is easy, must be sent to the Technical Assistance or taken to them Throughout the period of guarantee the cost of return transportation will be taken care by the manufacturer. 6 lfduringthe period of guarantee a disfunction occurs due to a defect which cannot be repaired, the appliance will be replaced free of charge. Extension of the guarantee 7 For motorcompressors of refrigerators/ freezers (excluding the starting device and thermal interrupter) a decreasing guarantee of 20% per year for a period of five years from the date of purchase ofthe appliance indicated on the relative invoice with repairs free of charge throughout the entire period under guarantee. On completion of the total period of guarantee the cost of travel, workmanship and eventual spare parts will be at the expense of the client. Exclusion from guarantee 8 Thefree execution ofworkfortherepair and/or substitution as set out above will not apply if. - The purchase invoice or receipt indicating the date of purchase and the identification of the appliance cannot be presented or was not sent with the appliance to be repaired; -__ The appliance is used for purposes other than those of the domestic nature for which it was made; - The appliance was not installed, handled or used in conformity with the indications in the instruction manual or in the modalities for use; -__ The appliance has been repaired or modified incorrectly by unqualified personnel.

If the appliance has been built-in, underinserted, suspendedor installed in such a waythatthe time required to move it and put it back in position exceeds thirty minutes in total, the extra expenditures occurred will be billed to the owner of the appliance. 8b In case of deterioration due to an irregular installation carried out in agreement with the owner of the appliance, the manufacturer and the technical assistance decline all responsibility. 8c Damage such as scratches, knocks or breakage of movable or dismountable units which were not notified to the manufacturer at the time of delivery are not covered by the guarantee. Important notice This appliance has been made to be safe. Inadequate repairs can nonetheless compromise this safety. To avoid such problems and to prevent any eventual damage we advise you to have repairs carried out exclusively by qualified personnel.We advise you to have repairs or maintenance carried out by the retailer or the Elgroep Service and to request only original spare parts. Belgium Repairing to customer's house: ELCROEP Fax: 02.3630400 SERVICE Spare parts: DISTRI Electric Household Appliances Tel: 02-3630555 PARTS Bergensesteenweg 719 Fax.: 02-3630500 B-1520 Halle (Lembeek)
