| Product type | Integrated stereo audio amplifier |
| Brand | AIWA |
| Model | AV-S17 |
| Dimensions (W × H × D) | 430 × 155 × 392.5 mm |
| Weight | 9.1 kg |
| Power supply | Mains 120 V, 60 Hz |
| Power consumption | 75 W during operation; ECO ON standby: 1 W, ECO OFF standby: 17 W |
| Output power | 100 W per channel RMS into 8 Ω, from 40 Hz to 20 kHz with ≤ 0.9 % THD |
| Speaker impedance | 8 Ω minimum |
| Audio inputs | PHONO (1.5 mV, 47 kΩ), CD, AUX, VIDEO 1/DVD/MD, VIDEO 2/LD/TV, VIDEO 3, TAPE MONITOR |
| Audio outputs | Speakers A and B, subwoofer (SUB WOOFER), headphones (PHONES) |
| FM tuner section | Range 87.5 – 108 MHz; sensitivity 13.2 dBμV (IHF); antenna 75 Ω |
| AM tuner section | Range 530 – 1710 kHz (10 kHz steps) or 531 – 1602 kHz (9 kHz steps); sensitivity 350 μV/m |
| Audio functions | Bass/treble adjustment, graphic equalizer (ROCK, POP, JAZZ, CLASSIC, BGM), T-BASS, balance, Muting |
| Timer | Adjustable sleep timer from 5 to 240 minutes |
| Number of radio presets | 32 stations |
| Remote control | Yes, with R6 (AA) batteries × 2 |
| Maintenance and cleaning | Soft, dry cloth; mild detergent if necessary. Do not use alcohol, benzene, or thinner. |
| Safety | Do not expose to water or moisture; do not block ventilation; unplug if not used for extended periods. |
| Repairability | Have any repair done by a professional. Do not open the device. |
Frequently Asked Questions - AV-S17 AIWA
User questions about AV-S17 AIWA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Audio Amplifier in PDF format for free! Find your manual AV-S17 - AIWA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AV-S17 by AIWA.
USER MANUAL AV-S17 AIWA
For assistance and information
call toll free 1-800-BUY-AIWA
(United States and Puerto Rico)
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user's right or authority to operate this product.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Explanation of Graphical Symbols:
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Owner's record
For your convenience, record the model number and serial number (you will find them on the rear of your unit) in the space provided below. Please refer to them when you contact your Aiwa dealer in case of difficulty.
| Model No. | Serial No. (Lot No.) |
| AV-S17 |
PRECAUTIONS
Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below.
Installation
1 Water and moisture — Do not use this unit near water, such as near a bathtub, washbowl, swimming pool, or the like.
2 Heat — Do not use this unit near heat sources, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5^ (41^) or higher than 35^ (95^) .
3 Mounting surface - Place the unit on a flat, even surface.
4 Ventilation — The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10cm (4 in.) clearance from the rear and the top of the unit, and 5cm (2 in.) from each side.
- Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings.
- Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded.
5 Objects and liquid entry — Take care that objects or liquids do not get inside the unit through the ventilation openings.
6 Carts and stands — When placed or mounted on a stand or cart, the unit should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall.
7 Wall or ceiling mounting — The unit should not be mounted on a wall or ceiling, unless specified in the Operating Instructions.
Electric Power
1 Power sources — Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit.
2 Polarization — As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it is not still inserted easily into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet.
3 AC power cord
- When disconnecting the AC power cord, pull it out by the AC power plug. Do not pull the cord itself.
- Never handle the AC power plug with wet hands, as this could result in fire or shock.
- Power cords should be firmly secured to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power socket.
- Avoid overloading AC outlets and extension cords beyond their capacity, as this could result in fire or shock.
4 Extension cord — To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug.
5 When not in use — Unplug the AC power cord from the AC power outlet if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.
Outdoor Antenna
1 Power lines — When connecting an outdoor antenna, make sure it is located away from power lines.
2 Outdoor antenna grounding — Be sure the antenna system is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANSI/NFPA70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals themselves.

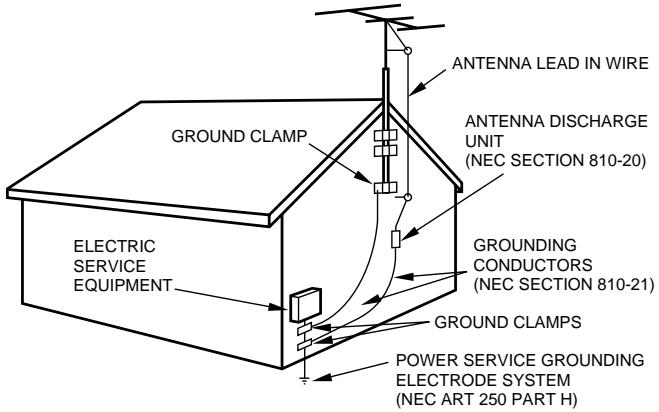

Antenna Grounding According to the National Electrical Code
NEC-NATIONAL ELECTRICAL CODE
Maintenance
Clean the unit only as recommended in the Operating Instructions.
Damage Requiring Service
Have the unit serviced by a qualified service technician if:
- The AC power cord or plug has been damaged
- Foreign objects or liquid have gotten inside the unit
- The unit has been exposed to rain or water
- The unit does not seem to operate normally
- The unit exhibits a marked change in performance
- The unit has been dropped, or the cabinet has been damaged
DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.
TABLE OF CONTENTS
PRECAUTIONS 1
PREPARATIONS
CONNECTIONS 3
SETTING THE CLOCK 6
BEFORE OPERATION 7
SOUND

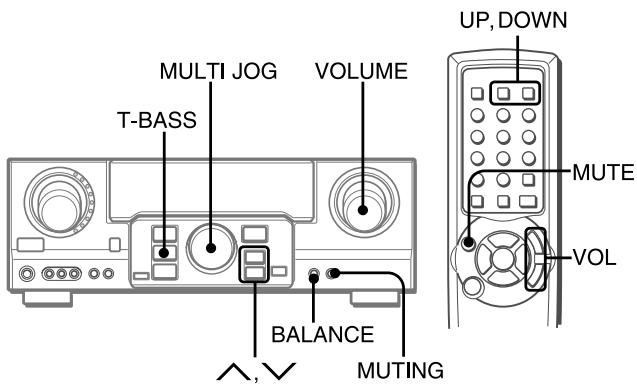

CUSTOM AUDIO ADJUSTMENT 8

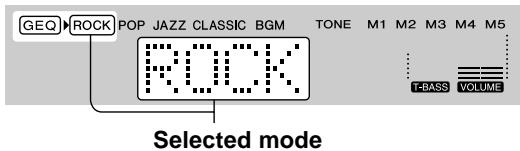

ELECTRONIC GRAPHIC EQUALIZER 9
BASIC OPERATIONS
SELECTION OF AUDIO/VIDEO SOURCE 9
RECORDING AN AUDIO SOURCE 10
RADIO RECEPTION
MANUAL TUNING 11
PRESETTING STATIONS 12
TIMER

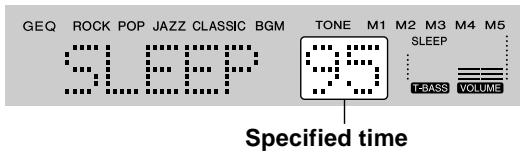

SETTING THE SLEEP TIMER 12
GENERAL
SPECIFICATIONS 13
CARE AND MAINTENANCE 14
TROUBLESHOOTING GUIDE 14
PARTS INDEX 14
Check your accessories
Remote control
FM antenna
Operating Instructions, etc.
AM antenna
CONNECTIONS
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is 120V AC. Check that the rated voltage matches your local voltage.
IMPORTANT
Connect the speakers, antennas, and all other external equipment first. Then connect the AC cord at the end.

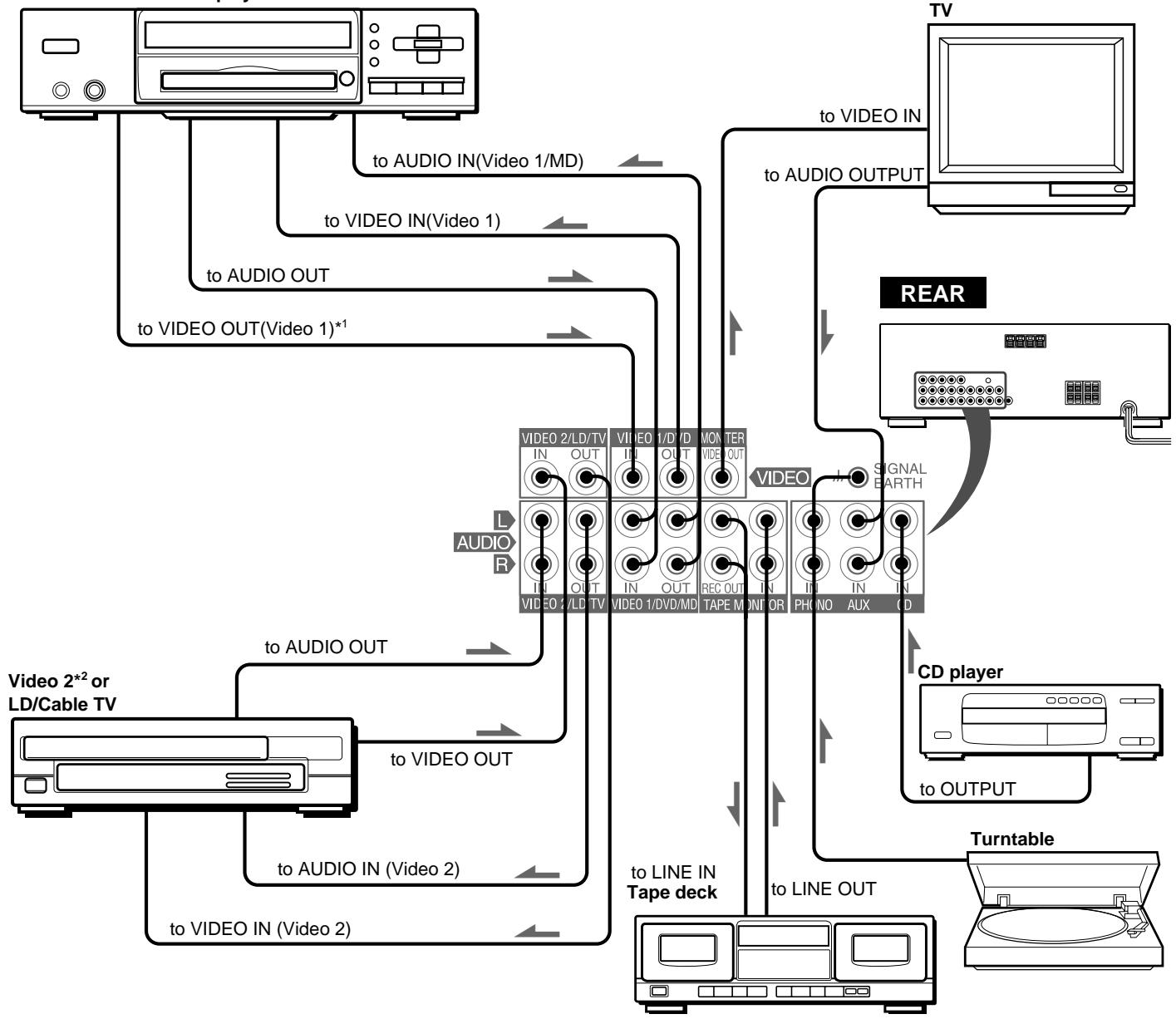

CONNECTING EQUIPMENT
Jacks and plugs of the connecting cord are color-coded as follows:
Red jacks and plugs : For the right channel of audio signals White jacks and plugs: For the left channel of audio signals Yellow jacks and plugs: For video signals
NOTE
Insert the plugs fully into the jacks. Loose connections may produce a humming sound or other noise interference.

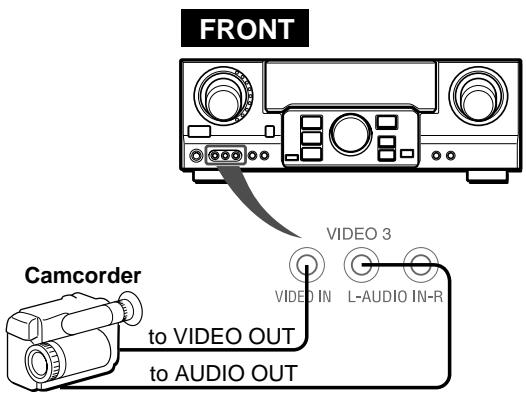

1 Be sure to connect the VIDEO OUT terminal of a DVD player directly to a TV set, not through this unit. Otherwise, the picture noise may appear when playing copy protected DVDs.
2 When connecting a monaural video, use a stereo-mono connecting cord (not supplied).
DVD or Video 1^*2 /MD player

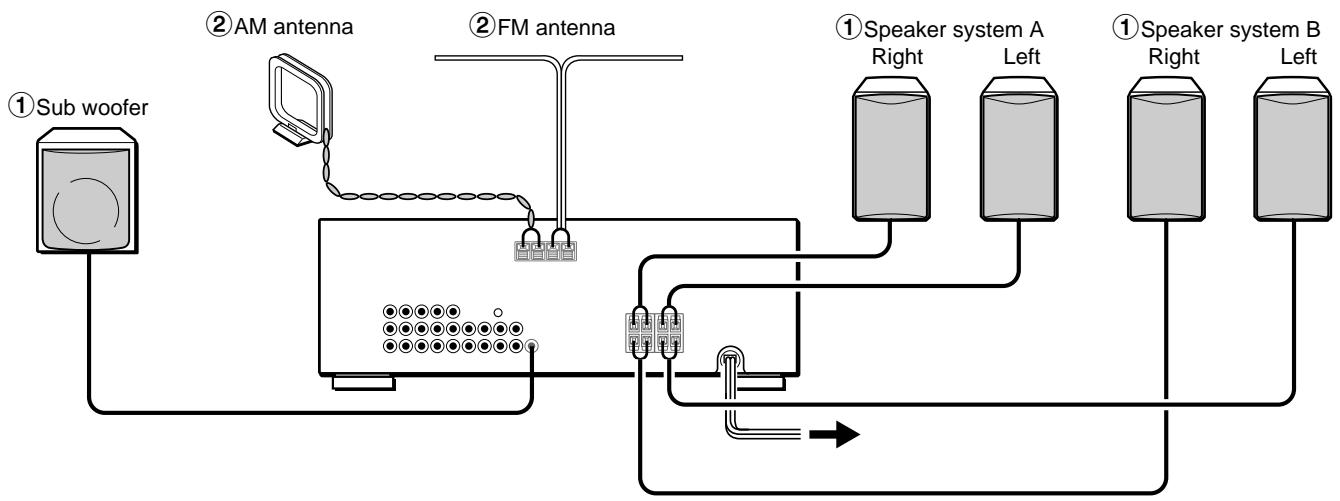

① and ② in the illustration correspond to the following details.
Connect front speakers (system A and/or B) and sub woofer to the corresponding speaker terminals on the unit:
- the front speaker cords to the SPEAKERS terminals
- for more powerful bass, the sub woofer (with a built-in amplifier) cord to the SUB WOOFER jack
Speaker impedance
For all speakers, use speakers of 8 ohms or more.
Connecting ^+ to +, -to- terminals
To get the proper sound effect, the speaker terminals on the unit and the speaker should be connected with proper polarity; the + terminal on the unit should be connected to the + terminal on the speaker (and - to -).
NOTE
- The subwoofer sound will be output only when the speaker system A (the front speakers connected to the SPEAKERS A terminals) is selected.
- Be sure to connect the speaker cords correctly as shown in the illustration on the right column. Improper connections can cause short circuits in the SPEAKERS terminals.
- Do not leave objects generating magnetism near the speakers.

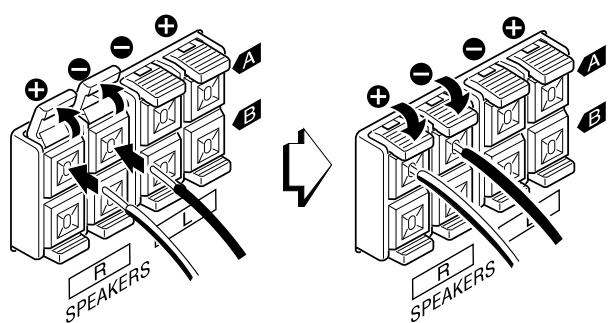

Lift up the terminal flap, insert the speaker cord lead into the terminal slot, then close the flap. Check that the cord is connected securely.
CONNECTING THE SUPPLIED ANTENNAS ②
Connect the FM antenna to the FM 75 terminals and the AM antenna to the AM LOOP terminals.
To stand the AM loop antenna on a surface
Fix the claw to the slot as shown in the illustration.
To position the antennas
FM feeder antenna:
Extend this antenna horizontally in a T shape and fix its ends to the wall.
AM loop antenna:
Position for the best reception.
NOTE
- Do not bring the FM antenna near metal objects or curtain rails.
- Do not bring the AM antenna near other external equipment, the unit itself, the AC power cord or speaker cords, as noise will be picked up.
- Do not unwind the AM loop antenna wire.

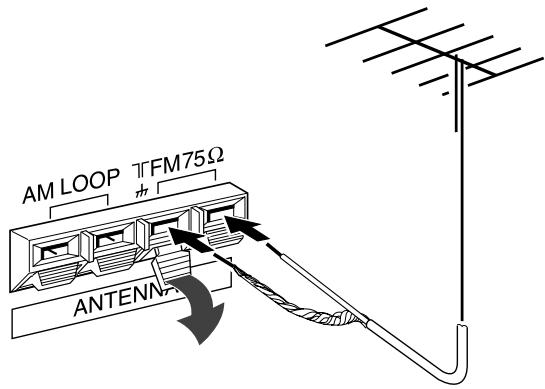

CONNECTING AN OUTDOOR ANTENNA
For better FM reception, use of an outdoor antenna is recommended. Connect the outdoor antenna to the FM 75Ω terminals.
ABOUT THE REMOTE CONTROL
Inserting batteries
Detach the battery cover on the rear of the remote control and insert two R6 (size AA) batteries.
When to replace the batteries
The maximum operational distance between the remote control and the sensor on the unit should be approximately 5 meters (16 feet). When this distance decreases, replace the batteries with new ones.
Using the remote control
The instructions in this manual refer mainly to the buttons on the main unit.
Some buttons have two functions.
- To use the function indicated on the button, or on the plate in black, simply press the button.
- To use the function indicated on the plate in green, press the button while pressing the SHIFT button.
Important
- The ENTER button on the remote control does not substitute for the ENTER button on the main unit. This button is for operating the DVD player only (see the next page.)
- In principal, the TUNING UP and DOWN buttons on the remote control substitute for (TUNING UP) and (TUNING DOWN) buttons on the main unit.
To select the function (audio source) with the remote control
Press the FUNCTION button repeatedly. The function changes cyclically.
NOTE
- If the unit is not going to be used for an extended period of time, remove the batteries to prevent possible electrolyte leakage.
-
The remote control may not operate correctly when:
-
The line of sight between the remote control and the remote sensor in the display window is exposed to intense light, such as direct sunlight.
- Other remote controls are used nearby (those of a television, etc.)

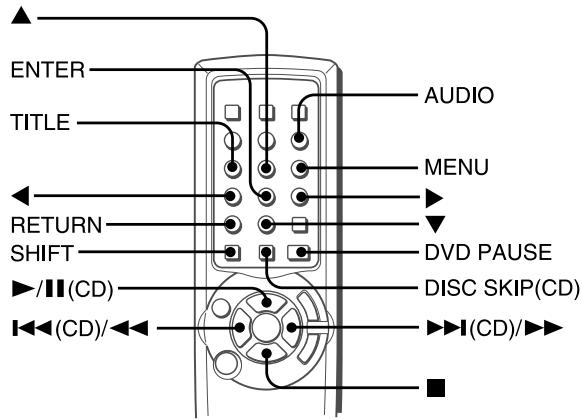

Operating AIWA CD or DVD players with the remote control
You can control the basic functions of AIWA CD or DVD players with the remote control. In principle, the buttons described below have the same function as those on the DVD or CD players.
For more details, refer to the operating instructions of the player.
Operating CD players
Press the following button.
/ (CD) - Starts or pauses playback.
- Searches a track. Hold the button down.
), () - Skips a track. Press the button repeatedly.
- Stops playback.
DISC SKIP(CD) - Skips a disc in the CD changer.
Operating DVD players
Press the following button while pressing the SHIFT button.
-
Starts playback.
-
Searches a track.
- Stops playback.
, , , (up, down, left or right) - Moves the cursor to select a program etc.
AUDIO - Changes an audio track (language etc.)
ENTER - Enters the selected program etc.
TITLE or MENU - Enters the title or menu screen.
RETURN - Returns to the previous mode etc.
DVD PAUSE - Pauses the playback of a DVD.
NOTE
There are some AIWA COMPACT DISC PLAYERS for which some of the functions of the remote control do not work.

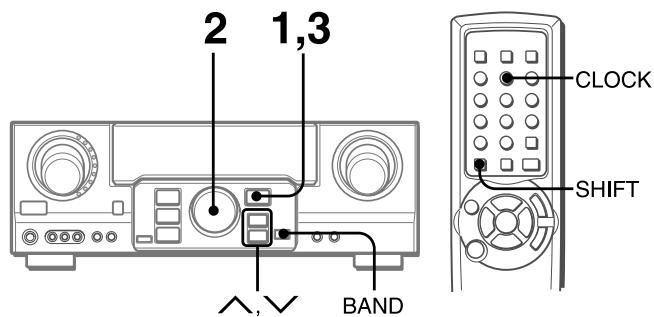

SETTING THE CLOCK
When the AC cord is connected for the first time, the clock on the display flashes.
Set the time as follows while the power is off.
1 Press the ENTER button.
The display becomes a little brighter.
2 Within 4 seconds, turn the MULTI JOG to designate the hour and the minute.
The time advances by turning it to the right, and decreases by turning it to the left.
The or button on the main unit is also available. Press the button repeatedly. To change the time rapidly in 10-minute steps, hold it down.
3 Press the ENTER button.
The clock starts from 00 seconds.
NOTE
When the clock is set for the first time after purchase
Everything on the display will clear.
This is because the power economizing mode of the unit is activated, and is not a malfunction.
The power economizing mode can be canceled. See page 7 for details.
To correct the current time
Press the POWER button to turn the unit off. Carry out steps 1 to 3 above.
To display the current time
Press the CLOCK button while pressing the SHIFT button on the remote control. The clock is displayed for 4 seconds.
When the power is off in the power economizing mode, pressing the ENTER button on the unit also display the current time for 4 seconds.
To switch to the 24-hour standard
Display the current time, and press the BAND button on the unit within 4 seconds.
Repeat the same procedure to restore the 12-hour standard. In the 12-hour standard, "AM 12:00" indicates midnight and "PM 12:00" indicates noon.

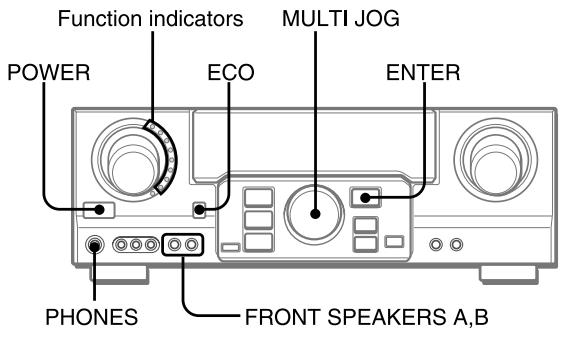

If the clock display flashes while the power is off
This is caused by a power interruption. The current time needs to be reset.
If power is interrupted for more than approximately 24 hours, all settings stored in memory after purchase need to be reset.
To turn the unit on
Press the POWER button.
Operation is possible after four seconds. The VOL (volume) level or function name is displayed one after the other for the first four seconds.
The selected function indicator lights up in red.
To change the brightness level of the display
1 Press the ECO button repeatedly until "DIM MODE" is displayed.
2 Within 4 seconds, press the ENTER button.
3 Within 4 seconds, turn the MULTI JOG to select the dimmer mode as below.
The mode will be automatically set after 4 seconds. It will also be set if the ENTER button is pressed within 4 seconds after step 3.
DIM-OFF: The normal display.
DIMMER 1: The illumination of the display is dimmer than usual.
DIMMER 2: The illumination of the display is dimmer than DIMMER 1. The function indicator turns off.
Using the headphones
Connect headphones to the PHONES jack with a standard stereo plug ( 6.3 ~mm, 1/4 inch). Be sure to set the FRONT SPEAKERS A and B buttons to OFF. Otherwise sound is output from the speakers.
To select the front speaker system
To use speaker system A: Set the FRONT SPEAKERS A button to ON.
To use speaker system B: Set the FRONT SPEAKERS B button to ON.
To use both speaker systems: Set both the buttons to ON.
Set the button(s) to OFF to turn off the speaker system(s).
NOTE
-
As the front speaker systems A and B are connected in series:
-
The sound will decrease slightly when using both speaker systems
- No sound can be heard if the FRONT SPEAKERS A and B buttons are set to ON when only one speaker system is connected
- The subwoofer sound will be output only when the speaker system A (the front speakers connected to the SPEAKERS A terminals) is selected.
To turn the unit off, press the POWER button.

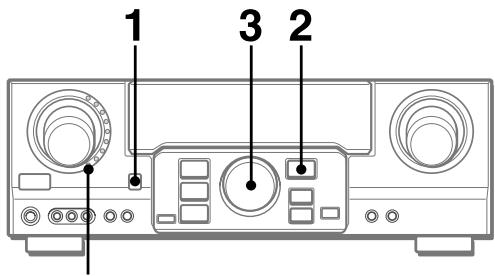

POWER ECONOMIZING (ECO) MODE
ECO indicator
Setting this unit to the ECO mode reduces power consumption as below.
Initial setting of the ECO mode is ON.
- When the current time is set, the clock display disappears immediately.
- While the power is off, all the display lights turn off, and only the ECO indicator lights in red.
To cancel the ECO mode
1 Press the ECO button to display ECO MODE while the unit is turned on.
2 Within 4 seconds, press the ENTER button.
3 Within 4 seconds, turn the MULTI JOG to select ECO OFF. The mode will be automatically set after 4 seconds. It will also be set if the ENTER button is pressed within 4 seconds after step 3.
CUSTOM AUDIO ADJUSTMENT
VOLUME CONTROL
Turn the VOLUME control on the unit, or press the VOL buttons on the remote control.
The volume level is shown on the display for four seconds. It can be adjusted between 0 and MAX (50). It flashes when set over the level of 44.
The volume level remains memorized even after the power is turned off. However, if the power is turned off when the volume is set to 21 or more, it is automatically set to 20 the next time the power is turned on.
To adjust the left/right balance of the front speakers
Press the BALANCE button to display "L/R 0dB". Then press the (UP) or (DOWN) button repeatedly or turn the MULTI JOG within four seconds.
To mute the sound temporarily
Press the MUTING (MUTE) button (-20 dB).
"MUTE ON" appears on the display for four seconds. While muting the sound, the selected function indicator flashes. Press the MUTING button again to restore the sound.
SUPER T-BASS SYSTEM
The T-BASS system enhances the realism of low-frequency sound.
Press the T-BASS button.
Each time it is pressed, the level changes. Select one of the three levels, or the off position to suit your preference.
NOTE
Low-frequency sound may be distorted when the T-BASS system is used for a disc or tape in which low-frequency sound is originally emphasized. In this case, cancel the T-BASS system.
SOUND ADJUSTMENT DURING RECORDING
The output volume and tone of the speakers or headphones may be freely varied without affecting the level of the recording.
TONE CONTROL
You can adjust the high and low range of the sound, and up to 5 adjusted sound modes can be stored as the preset numbers M1 to M5.
1 Press the TONE button.
2 Within 7 seconds, press the ENTER button.
3 Turn the MULTI JOG to adjust the high range of the sound.
4 Press the button and turn the MULTI JOG to adjust the low range of the sound. To re-adjust the high or low range, press the or button and turn the MULTI JOG.
In steps 3 and 4, the unit returns to normal mode when no operation is made for 4 seconds.
5 Press the ENTER button.
TONE M1 is displayed.
6 Turn the MULTI JOG to select preset number from M1 to M5.
7 Within 4 seconds, press the ENTER button.
The adjusted sound mode is stored in the selected preset number.
To adjust the sound temporarily
Follow the steps from 1 to 4 above. The adjusted sound remains before changing the FUNCTION or TONE.
To select the preset mode
Press the TONE button, and turn the MULTI JOG until the desired preset number is displayed. To cancel the selected mode, press the TONE button twice.
When operating with the remote control, press the TONE button repeatedly while pressing the SHIFT button. The preset modes M1 to M5 and "TONE OFF" can be selected.
ELECTRONIC GRAPHIC EQUALIZER
This unit provides the following five different equalization modes.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
JAZZ: Accented lower frequencies for jazz-type music
CLASSIC: Enriched sound with heavy bass and fine treble
BGM: Calm tone with suppressed bass and treble
Press the GEQ (Graphic Equalizer) button, and turn the MULTI JOG until the desired equalization mode is displayed.
The GEQ modes are displayed cyclically as follows.
The selected mode name is displayed for four seconds, and the selected GEQ indicator is enclosed.
To cancel the selected mode
Press the GEQ button to display the GEQ mode name, and press the button again within 4 seconds. "GEQ OFF" appears on the display.
To select with the remote control
Press the GEQ button repeatedly until the desired equalization mode is displayed.
Five preset modes and "GEQ OFF" can be selected.
SELECTION OF AUDIO/VIDEO SOURCE
1 Select the program source.
Turn the FUNCTION selector or press the TAPE MONITOR button. The selected function indicator lights in red.
| To listen to or watch | The indicator in red |
| Tape | TAPE MONITOR |
| Radio | TUNER |
| Record | PHONO |
| Compact disc | CD |
| Television, etc. | AUX |
| Video | VIDEO 1/DVD/MD, VIDEO 2/LD/TV, VIDEO 3 |
| LD or Cable TV | VIDEO 2/LD/TV |
| MD or DVD | VIDEO 1/DVD/MD |
The function to be selected (except PHONO) depends on the equipment connected to the input terminals on the rear panel of the unit.
To select with the remote control
Press the TAPE MONITOR button or the FUNCTION button repeatedly.
NOTE
When using a turntable with a built-in equalizer amplifier, set the switch of the equalizer amplifier to off. See the instructions of the turntable for further information.
2 Start the selected program source.
3 Adjust the sound.
About the video source to the monitor or TV
The selected video source is indicated on the display and the video signal through the MONITOR VIDEO OUT jack is output on the TV.
To select the video source
1 Turn the FUNCTION to select PHONO, CD or AUX.
2 Press the ENTER button to display VIDEO 1.
3 Turn the MULTI JOG to select VIDEO 2 or VIDEO 3.
To change a displayed name for the VIDEO 1 and VIDEO 2
When the VIDEO 1 function is selected,VIDEO 1 is displayed initially. It can be changed to DVD or MD.
Press the BAND button while pressing the ENTER button, then release the ENTER button first.
The displayed name for the VIDEO 2 function can be changed toVIDEO2, LD or TV; while theVIDEO 2 function is selected, press the BAND button while pressing the ENTER button, then release the ENTER button first.
To adjust the sound level of the connected source
The input sensitivity level of each function can be adjusted (except the TUNER and TAPE MONITOR).
When the sound level of the connected source is higher or lower than that of the TUNER, adjust it as follows.
1 Select the function to be adjusted.
Turn the FUNCTION and play the source.
2 Press the (UP) or (DOWN) button repeatedly.
The level can be adjusted between -6dB (MIN) and +8dB (MAX) in 2dB steps. Adjust the level so that the sound is output at the same level as the TUNER.
NOTE
The input sensitivity level of the TAPE MONITOR cannot be adjusted. Even if TAPE MONITOR is selected, pressing the or button will change the level of the selected function (except TUNER) displayed on the window.
RECORDING AN AUDIO SOURCE
1 Select the program source to be recorded.
Turn the FUNCTION.
2 Set the tape deck or MD recorder to the recording mode.
3 Start the selected program source.
To monitor recorded sound during recording (when the connected tape deck is a three-head system)
Press the TAPE MONITOR button. "TAPE ON" appears on the display for four seconds, and then the source name selected in step 1 comes back on. To cancel the tape monitor, press it again so that "TAPE OFF" appears.
NOTE
- Any sound control system has no effect on recording (see page 8).
- When recording audio sources by the MD recorder connected to the VIDEO 1/DVD/MD AUDIO OUT terminals, the selected video source (see left column) should be V2 or V3. Recording cannot be done while the V1 (VIDEO 1) is selected and displayed on the window.
- Input sound from the tape deck connected to the TAPE MONITOR IN terminals cannot be recorded.

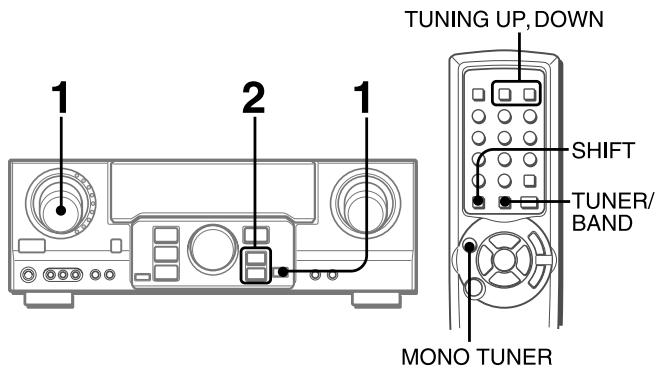

MANUAL TUNING
1 Turn the FUNCTION to select the TUNER function, and press the BAND button repeatedly to select the desired band.
The display changes to frequency indications after indicating band and video source (V1, V2 or V3) for two seconds.
2 Press the or button to select a station.
Each time the button is pressed, the frequency changes. When a station is received, "TUNE" is displayed for two seconds. During FM stereo reception, 1(0)1 is displayed.
When operating with the remote control
Press the TUNER/BAND button while pressing the SHIFT button in step 1, and the TUNING DOWN or UP button in step 2.
To search for a station quickly (Auto Search)
Keep the or button pressed until the tuner starts searching for a station. After tuning in to a station, the search stops.
To stop the Auto Search manually, press the or button. When operating with the remote control, keep the TUNING UP or DOWN button pressed.
- The Auto Search may not stop at stations with very weak signals.
When an FM stereo broadcast contains noise
Press the MONOTUNER button while pressing the SHIFT button on the remote control so that "MONO" appears on the display. Noise is reduced, although reception is monaural.
To restore stereo reception, repeat the above so that "STEREO" appears.
When the reception contains noise interference
Move the unit away from other electrical appliances, especially digital audio devices, or turn off the appliances that generate noise signals.

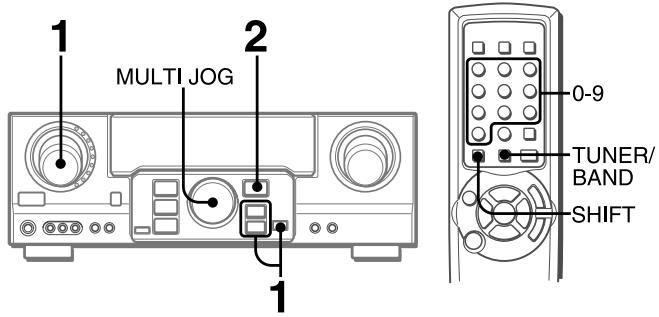

To change the AM tuning interval
The default setting of the AM tuning interval is 10kHz /step. If you use this unit in an area where the frequency allocation system is 9kHz /step, change the tuning interval.
Hold down the BAND button and press the POWER button. To reset the interval, repeat this procedure.
The unit can store a total of 32 preset stations. When a station is stored, a preset number is assigned to the station. Use the preset number to tune in to a preset station directly.
- Turn the FUNCTION to select the TUNER function, and press the BAND button repeatedly to select the desired band. Then press the or button to select a station.
2 Press the ENTER button to store the station.
A preset number assigned to the station, beginning from 1 in consecutive order for each band, appears in the display for two seconds.
3 Repeat steps 1 and 2.
No more stations will be stored and "FULL" appears if a total of 32 stations have already been stored for all the bands.
NOTE
When the AM tuning interval is changed, all preset stations are cleared. The preset stations have to be set again.
PRESET NUMBERTUNING
1 Turn the FUNCTION to select the TUNER function, and press the BAND button repeatedly to select a band.
2 Turn the MULTI JOG to select a preset number.
When operating with the remote control
Press the TUNER/BAND button while pressing the SHIFT button to select a band, then press the numbered buttons to select a preset number.
Example:
To select preset number 25, press 2 and 5.
To select preset number 7 press 0 and 7.
To clear a preset station
Select the preset number of the station to be cleared. Then, press the ENTER button, and press it again within four seconds.
The preset numbers of all other stations in the band with higher numbers are decreased by one.

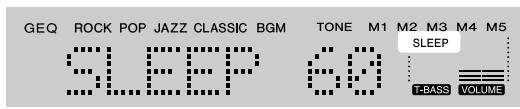

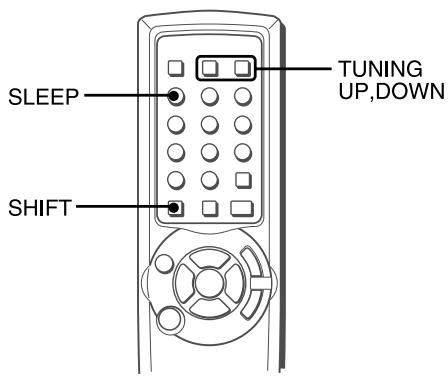

SETTING THE SLEEP TIMER
The receiver can be automatically turned off at a specified time.
Press the SLEEP button while pressing the SHIFT button on the remote control.
The unit will be turned off after about 60 minutes.
To specify the time until the power is turned off
Within 4 seconds after the above, press the TUNING DOWN or UP button repeatedly.
You can change the time between 5 and 240 minutes in 5-minute steps.
To check the time remaining until the power is turned off Press the SLEEP button once while pressing the SHIFT button. The remaining time is displayed for four seconds.
To cancel the sleep timer
Press the SLEEP button twice while pressing the SHIFT button so that "SLEEPoFF" appears on the display.
SPECIFICATIONS
FM tuner section
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity 13.2 dBf (IHF)
Antenna terminals 75 ohms (unbalanced)
AM tuner section
Tuning range 530 kHz to 1710 kHz (10 kHz step), 531 kHz to 1602 kHz (9 kHz step)
350 μV/m Antenna Loop antenna
Amplifier section
Power output 100 watts per channel, Min. RMS at 8 ohms, from 40 Hz to 20 kHz, with no more than 0.9% Total Harmonic Distortion
Total harmonic 0.08% (50 W, 1 kHz, 8 ohms, Front)
distortion
Inputs AUDIO IN
PHONO: 1.5mV adjustable (47 kohms)
SUB WOOFER: 2 V (47 kohms)
SPEAKERS IMP: 8Ω (front speakers
A and B): accepts speakers of 8 ohms or more.
PHONES (stereo jack): accepts
headphones of 32 ohms or more -20 dB
General
Power requirements 120 V AC, 60 Hz
Power consumption 75 W
Power consumption in ECO OFF: 17 W standby mode ECO ON: 1 W
Dimensions 430× 155× 392.5mm (W× H× D) (17× 6^1 / 8× 15^1 / 2 in.)
Weight 9.1 kg (20 lb 1 oz.)
Specifications and external appearance are subject to change without notice.
Occasional care and maintenance of the unit is needed to optimize the performance of your unit.
To clean the cabinet
Use a soft dry cloth.
If the surfaces are extremely dirty, use a soft cloth lightly moistened with mild detergent solution. Do not use strong solvents, such as alcohol, benzine or thinner as these could damage the finish of the unit.
TROUBLESHOOTING GUIDE
If the unit fails to perform as described in these Operating Instructions, check the following guide.
GENERAL
There is no sound.
- Is the AC cord connected properly?
- Is there an incorrect connection? ( page 3, 4)
- There may be a short circuit in the speaker terminals.
Disconnect the AC cord, then correct the speaker connections.
- Was an incorrect function button pressed?
- Was the TAPE MONITOR button pressed?
- Are the FRONT SPEAKERS A and B buttons set correctly? ( page 7)
Sound is emitted from one speaker only.
- Is the BALANCE set appropriately?
- Is the other speaker disconnected?
Sound is heard at a very low volume. - Has the MUTING button been pressed?
An erroneous display or a malfunction occurs.
Reset the unit as stated below.
TUNER SECTION
There is constant, wave-like static.
- Is the antenna connected properly? ( page 5)
- Is the FM signal weak?
Connect an outdoor antenna.
The reception contains noise interference or the sound is distorted.
- Is the system picking up external noise or multipath distortion?
Change the orientation of the antenna.
Move the unit away from other electrical appliances.
To reset
If an unusual condition in the display window or malfunction occurs, reset the unit as follows.
1 Press the POWER button to turn off the power.
2 Press the POWER button while pressing the ENTER button. Everything stored in memory after purchase is canceled.
If the power cannot be turned off in step 1 because of a malfunction, reset by disconnecting the AC cord and carry out step 2.
PARTS INDEX
Instructions about each part on the unit or remote control are indicated on the pages listed below.
| (in alphabetical order) | |
| AUDIO | 6 |
| BALANCE | 8 |
| CLOCK | 6 |
| BAND (TUNER/BAND) | 6, 10-12 |
| DISC SKIP (CD) | 6 |
| DVD PAUSE | 6 |
| ECO | 7 |
| ENTER | 5-8, 10, 12, 14 |
| FRONT SPEAKER A, B | 7 |
| FUNCTION | 5, 9-12 |
| GEQ | 9 |
| MENU | 6 |
| MONO TUNER | 11 |
| MULTI JOG | 6-10, 12 |
| MUTING (MUTE) | 8 |
| PHONES | 7 |
| POWER | 7, 11, 14 |
| RETURN | 6 |
| SHIFT | 6, 8, 11, 12 |
| SLEEP | 12 |
| TAPE MONITOR | 9, 10 |
| T-BASS | 8 |
| TITLE | 6 |
| TONE | 8 |
| TUNING (DOWN) | 5, 6, 8, 10-12 |
| TUNING (UP) | 5, 6, 8, 10-12 |
| VOLUME (VOL) | 8 |
AVERTISSEMENT
POUR REDUIRE LE RISQUE DE COURT-CIRCUIT OU DE CHOC ELECTRIQUE, NE PAS EXPOSER CET APPAREIL A LA PLUIE OU A L'HUMIDITE.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
"CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL."
SUB WOOFER: 2 V (47 kohms)
