USER MANUAL TWINTOUCH 720E GENIUS

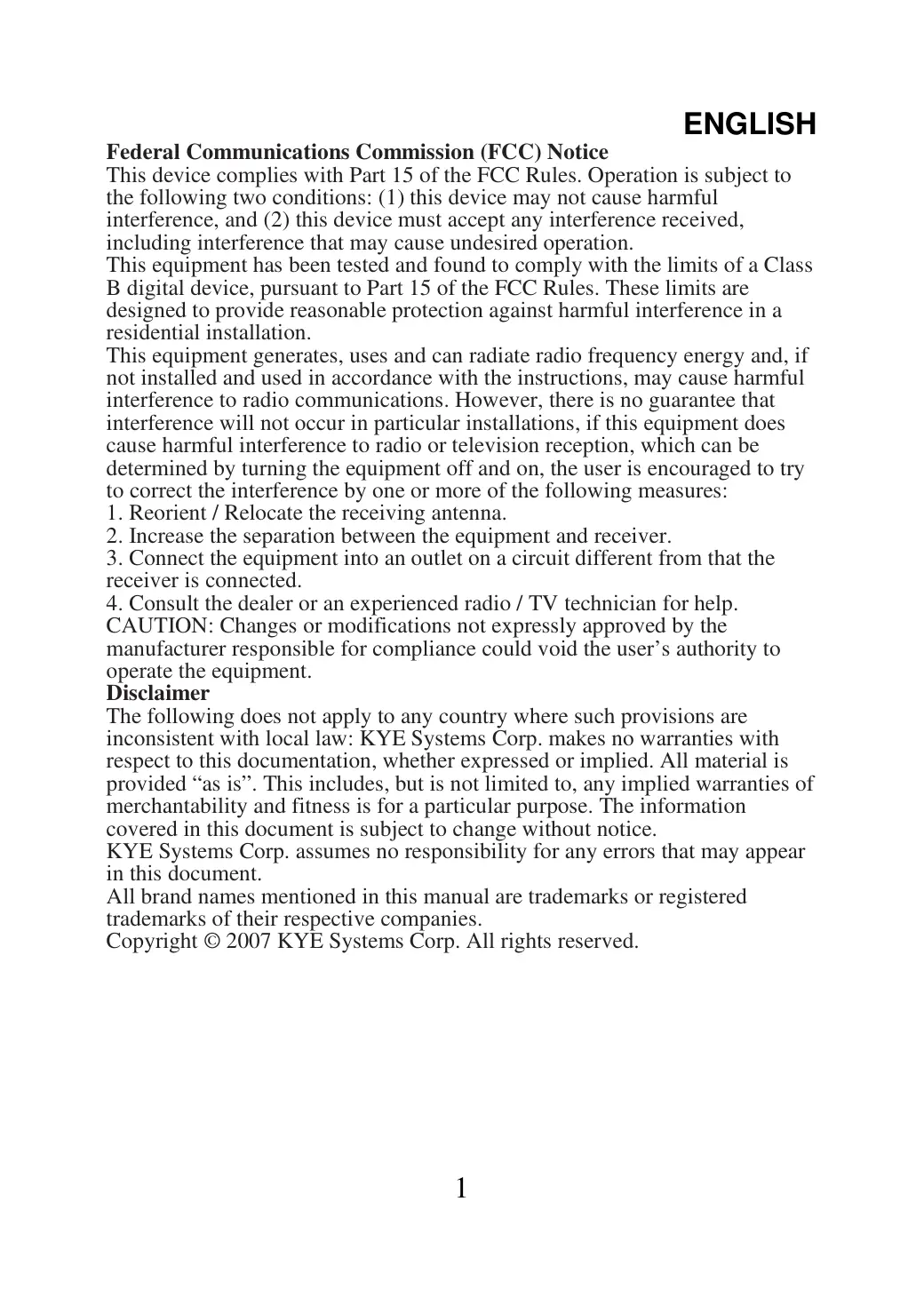

ENGLISH Federal Communications Commission (FCC) Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installations, if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient / Relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that the

receiver is connected.

4. Consult the dealer or an experienced radio / TV technician for help.

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. Disclaimer The following does not apply to any country where such provisions are inconsistent with local law: KYE Systems Corp. makes no warranties with respect to this documentation, whether expressed or implied. AI material is provided “as is”. This includes, but is not limited to, any implied warranties of merchantability and fitness is for a particular purpose. The information covered in this document is subject to change without notice. KYE Systems Corp. assumes no responsibility for any errors that may appear in this document. AI brand names mentioned in this manual are trademarks or registered trademarks of their respective companies. Copyright © 2007 KYE Systems Corp. AI rights reserved.

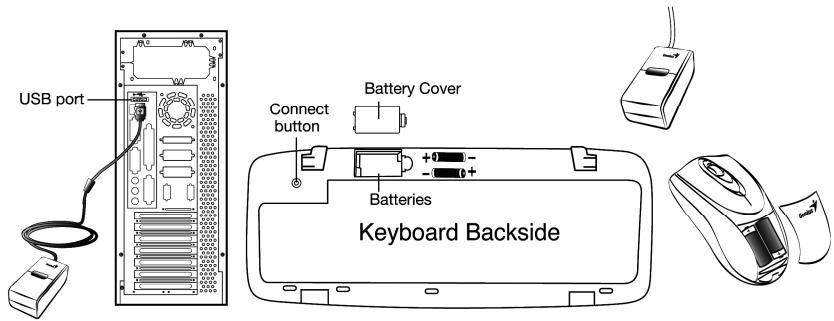

ENGLISH Hardware Installation

1. Install two AA batteries each into the mouse and keyboard.

2. Plug in your USB receiver to a USB port of your PC.

ls) Battery Cover Gonnect = San LU Batteries Keyboard Backside Software Installation

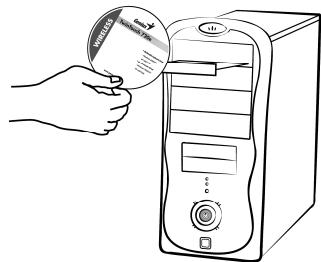

1. Place your CD driver in your PC drive for

software installation.

2. Follow the instructions on the screen to

finish the software installation. Replace Batteries If the mouse or keyboard does not work properly, then the batteries have lost their charge, so you need to replace them.

Warning: do not mix or use different types of batteries at the same time.

ID Channel Setting The channel ID is factory preset. The green LED (data transmission indicator) will be lit constantly when the wireless device is in normal operation. In case your wireless devices do not work, reset the ID channel by:

1. Press the connect button on the receiver and the LED will be blinking

2. Press the connect button on each wireless device within 20 seconds

and observe if the LED light on the receiver has gone off. If yes, it means the wireless device is ready for use.

ENGLISH “Warning (Trouble shooting)

1. The wireless desktop set provides 256 ID codes, and it selects the ID

# for your wireless devices. You can only set up one wireless desktop at a time. lf you have another 27Mhz wireless desktop set within 10 square meters, there may be interference between the wireless devices.

2. Some of keyboard buttons may not work until the driver has been

installed. We recommend you install the driver first before you use this product.

3. To re-program other media programs, software installation is

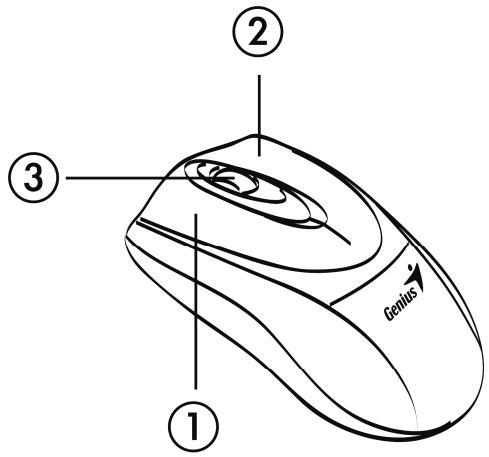

required. Mouse Button Assignments|

1. Left Button: Provides traditional mouse functions like click, double

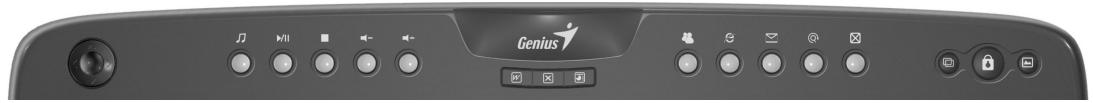

ENGLISH Keyboard hot key definition Hot key Description @ 4D pad: Press up/down/left/right to scroll J1 Control the playback of audio and video sources. CZAL Play and pause the audio or video sources. Stop play of audio or video CD. «+ Turn up the volume. «- Turn down the volume. Access to MS Office Word file. Access to MS Office Excel file. Access to MS Office Power Point file. Activate Messenger. Open browser in Netscape or IE. Open mail folder. Search for a file or folder. Close current Window. *Windows Vista - Open photo Gallery file. “Windows XP/2000 — Open my picture file. “Windows Vista - Turn the screen into 3D mode. “Windows XP/2000 — Application switch mode. Turn system into Screen Lock mode. 20 DR 9 RS |

ENGLISH Notes on Battery Usage When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below: Different battery types and surrounding temperatures may affect the battery performance. Avoid using batteries in extremely cold environments as low temperatures can shorten the battery life and reduce wireless device performance. If you are using a new rechargeable battery or rechargeable battery that has not been used for an extended period of time (batteries that pass the expiry date are exceptions) it might affect the period of time you can use this device. Therefore, to maximize their performance and lifetime, we recommend that you fully charge the batteries and discharge them for at least one complete cycle before use. The battery may feel warm when using the wireless device for an extended period of time. This is normal and not a malfunction. The wireless device may feel warm when being used continuously or for an extended period of time. This is normal and not a malfunction. If you will not be using the batteries for an extended period of time, remove them from the wireless device to prevent leakage or corrosion. Always keep the terminals in a clean state. Never use manganese batteries. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
