G-PEN F509 - Tablet GENIUS - Free user manual and instructions

Product Type	Graphics Tablet
Brand	GENIUS
Model	G-PEN F509
Main Functions	Handwriting input, navigation, macro key customization
Active Area	127 x 229 mm (approx)
Pressure Levels	1024
Resolution	4000 lpi
Connectivity	USB 2.0
Power Supply	Via USB port
Weight	300 g
Dimensions (L x W x H)	260 x 210 x 10 mm
Compatible Operating Systems	Windows 2000, XP, Vista
Stylus	Battery-free wireless stylus (electromagnetic technology)
Stylus Buttons	2 programmable side buttons
Macro Key Manager	Included macro key management software
Included Accessories	Stylus, USB cable, driver CD
Care and Cleaning	Clean with a soft, dry cloth
Repairability	Spare parts available by contacting customer service

Frequently Asked Questions - G-PEN F509 GENIUS

How to install Macro Key Manager software?

Insert the provided CD or download the driver from the GENIUS website. Run the installation program, then connect the tablet. The Macro Key Manager icon will appear in the taskbar.

How to create a new macro key profile?

Open Macro Key Manager, click New, give the profile a name. If you want to associate it with a specific software, click the browse icon to select the .exe. Confirm with OK.

How to customize a macro key?

In the chosen profile, click Setting to enable editing. Enter a key name, choose between keyboard shortcut (e.g., Ctrl+C) or hyperlink, then click Confirm.

How to adjust the stylus pressure?

Open the Pen Pad driver, Buttons tab. Move the Click Pressure slider from 0 (light) to 30 (heavy). Use the Test button to check.

How to configure the side buttons of the stylus?

In the Pen Pad driver, Buttons tab, select Side Button 1 or Side Button 2. By default, button 1 is a right-click and button 2 is a left-click. You can customize them.

Why does the Macro Key Manager icon change in the taskbar?

The icon becomes grayed out when the software is disabled or when the tablet is disconnected. To reactivate it, right-click the icon and choose Enable.

How to delete a macro key profile?

In Macro Key Manager, select the profile to delete in the profile area, then click the Delete button. Confirm the deletion.

How to set the macro key activation time?

Right-click the Macro Key Manager icon in the taskbar, choose Setting then Macro Key Time. Select 0, 1, 1.5, or 3 seconds. The stylus must remain pressed on the key for this duration to activate the macro.

How to calibrate the stylus after replacement?

In the Pen Pad driver, Buttons tab, uncheck Auto Setting. Click Adjust and follow the on-screen instructions. Once finished, confirm with OK and recheck Auto Setting for automatic detection on restart.

What to do if macros do not work correctly with software?

Check that the profile is associated with the software via the open.exe function when creating the profile. Make sure the active profile is selected in Macro Key Manager. Restart the software if necessary.

USER MANUAL G-PEN F509 GENIUS

Macro Key Manager User Manual

Introduction

Macro Key Manager is a kind of special tablet application software. Through Macro Key Manager, you can set up the keyboard events (Copy=“Ctrl+C”) or hyperlinks which you use mostly. And then, save it as your favorite macro key profile.

We have several default profiles. Part of macro keys are default macro keys which the settings are fixed already and can not be modified. Other macro keys are Non-default macro keys and the setting of which can be defined and modified. However, if these default profiles can not meet your requirements, you can create new profiles by yourself.

Due to the keyboard events are not unified in different software, we provide the function of "open.exe" to enable the macro key manager profile according to the right software. If you do not set the "open.exe", the macro key manager may work unexpectedly in different software.

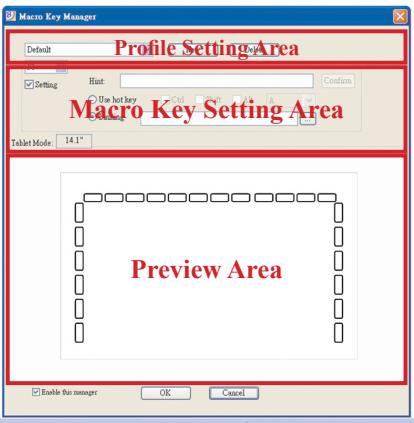

Macro Key Manager Control Panel Introduction

• Profile Setting Area

You can select, create or modify macro key profiles

Macro Key Setting Area

You can set the function of an individual Macro Key here. There are two kinds of setting. One is keyboard event setting and the other is hyperlink setting. Also, you have to name the hint as you like to finish setting process.

Preview Area

You can see the tablet image and the macro keys of your tablet. By hovering to the macro key, the macro key hint will pop up next to the key.

Installation

Once you install "Macro Key Manager" and plug the tablet

to your PC, the icon " 電 ” will be showed in System Tray. However, you can choose to disable the Macro Key Manager by click the right button. Once you disable Macro Key Manager or un Plug your tablet from PC, the original icon will

be changed into icon

How to Set up a New Profile

1. Click "New" and name the profile.
2. If a profile is set for particular software, click the browser icon . If not, please skip this process and click "OK" to finish setting a new profile.

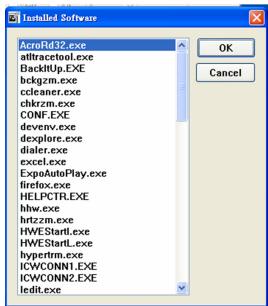

3. All installed software is showed. Click the right software. Click "OK"
4. Click "OK" to finish this setting.

How to Modify a Profile

1. select the profile you want to modify
2. following macro key setting steps to modify
3. click "OK"

How to Delete a Profile

1. select the profile you want to delete
2. click "Delete"

How to Set Up Macro Key Function

a. click "Setting" to enable the setting function
b. key-in the name you want to be as the macro key function hint (necessary)
c. define the function as hot key or hyperlink
d. click “Confirm ”

Setting:

Hover the cursor to the macro key manager icon in the system tray, and then click the right button.

Windows 2000/XP/Vista Basic

Above Windows Vista Premium

ABOUT

Showing Macro Key Manager Version , Driver Version and Firmware Version

Show

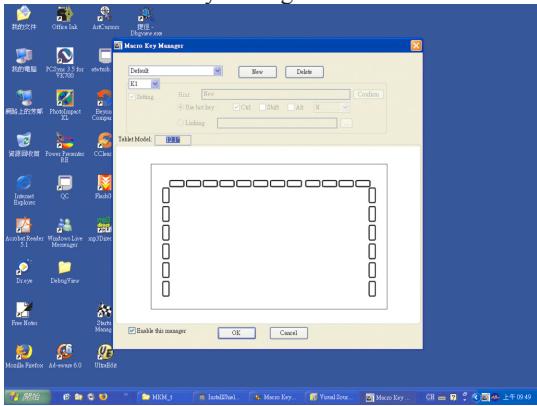

Show the Macro Key Manager User Interface.

Setting

Macro Key Time

You can set timer for how long macro key function will work. There are four different choices-- 0, 1, 1.5 and 3 seconds can be your alternatives which mean that only when you use a pen to point the macro key area for 0, 1, 1.5, or 3 seconds, the macro key works.

Pointing Sound:

You can choose to get the pointing sound or not while the pen tip is pointing on the tablet.

Pen Pad (only in Windows 2000/XP/Vista basic)

This is tablet driver. Please reference the driver usage with driver manual.

Start Use

After setting profiles process, you can start to use macro key manager now.

Please select the profile you want to use and click "OK" and then this selected profile will be the active profile always.

PEN PAD DRIVER

Using the pen

— Pen

The pen is used as a normal handwriting pen. On the "About" tab, make sure the "Tracking Mode" is set to "Pen".

Side Button

on the "Buttons" tab, click on "Side Button 1" to customize the side

button.

Default settings
Side Button 1 = right click
Side Button 2 = left clickThe
Pen Point = left click

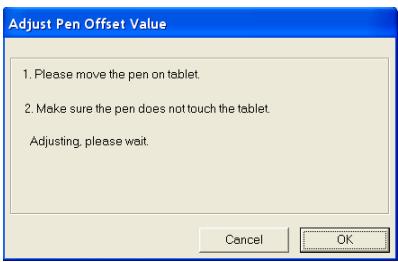

Pen Offset Value

When using the tablet, if you want to use a new pen without restarting the computer, you need to perform the "Pen Offset Value" setting.

1. On the "Buttons" tab, uncheck the "Auto Setting" box to remove the former value.
2. Click the "Adjust" button. Then follow the on-screen instructions for adjustment. Tap the "OK" button when the "OK" message appears.
3. Check the "Auto Setting" box for your computer to detect the new pen offset value automatically when restarted.

- Click Pressure

1. On the "Buttons" tab, move the slider up and down to adjust the pen pressure from 0 to 30 (0 is the lightest, and 30 is the heaviest).
2. Click the "Test" button to launch the "Click Pressure Test" writing area. Then you can test if the setting is correct.
