USER MANUAL GF-680 TEAC

OWNER'S MANUAL MANUEL DU PROPRIÉTAIRE

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Do not expose this apparatus to dripps or splashes.
• Do not place any objects filled with liquids, such as vases, on the apparatus.
• Do not install this apparatus in a confined space such as a book case or similar unit.
• The apparatus draws nominal non-operating power from the AC outlet with its POWER switch in the off position.

WARNING : TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

DO NOT REMOVE THE PROTECTIVE HOUSING USING SCREWDRIVER.
- USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
- IF THIS PRODUCT DEVELOPS TROUBLE, MAKE A CONTACT WITH OUR SERVICEMAN, AND DO NOT USE THE PRODUCT IN A TROUBLED STATE.

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the equipment and/or the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance will void the user's warranty.

For CANADA

AC POWER CORD CONNECTION

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Pour le CANADA

CORDE DE CONNEXION CA

ATTENTION:

POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRESE ET POUSSER JUSQU'AU FOND.

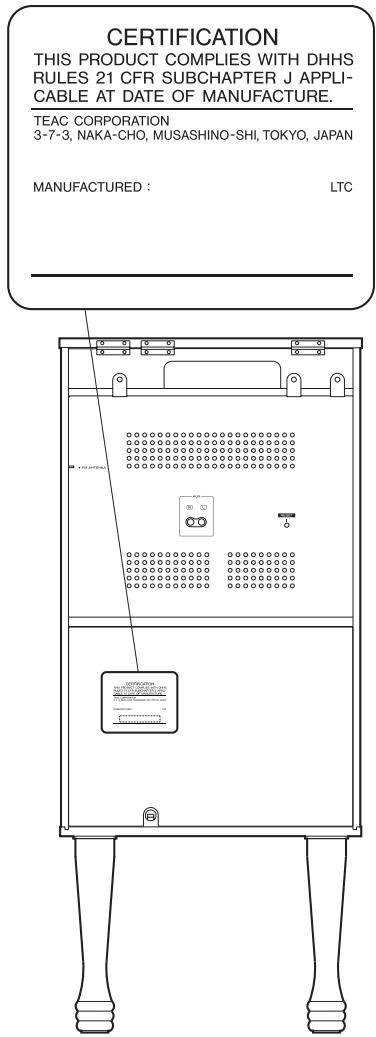

This product has been designed and manufactured according to FDA regulations "title 21, CFR, chapter 1, subchapter J, based on the Radiation Control for Health and Safety Act of 1968", and is classified as class 1 laser product. There is not hazardous invisible laser radiation during operation because invisible laser radiation emitted inside of this product is completely confined in the protective housings.

The label required in this regulation is shown ①.

① For U.S.A.

Optical pickup :

Type : SLD104u

Manufacturer : SONY Corporation

Laser output : Less than 0.5 mW on the objective lens

Wavelength : 760 - 800 nm

Contents

Thank you for choosing TEAC. Read this manual carefully to get the best performance from this unit.

Important Safety Instructions 2

Contents 4

Before Use. 4

Discs. 5

Cassette Tape. 6

Handling Records 7

How to Replace the Stylus 7

Connection 8

Remote Control Unit. 9

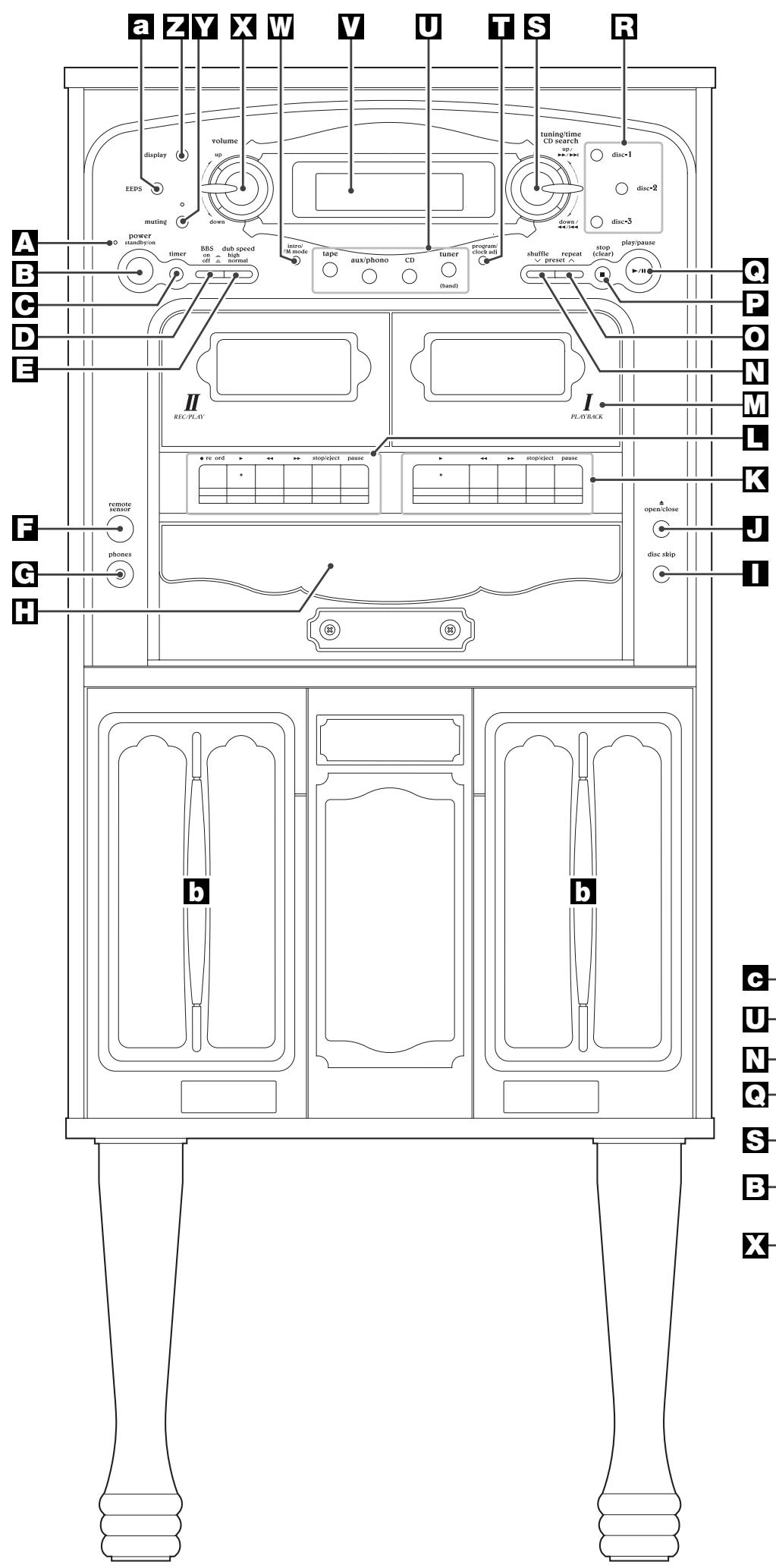

Names of Each Control (Front Panel/Remote Control Unit) 10

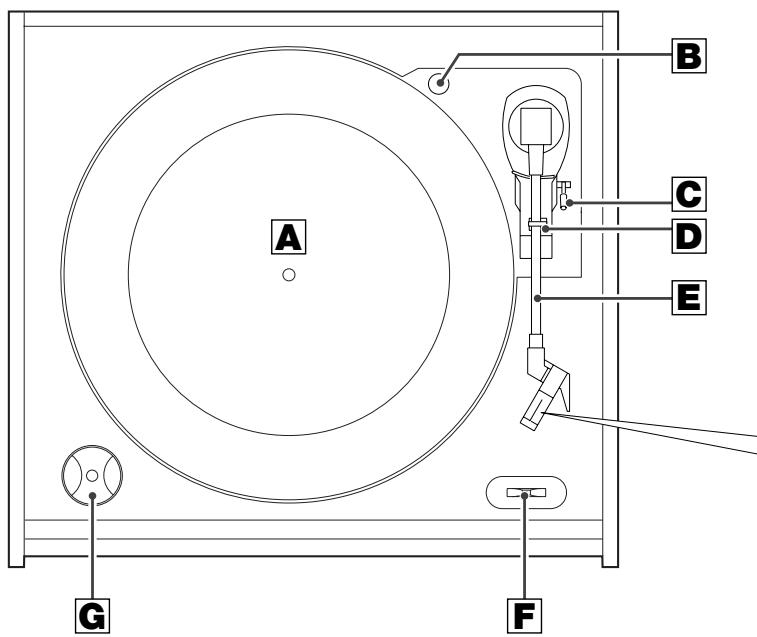

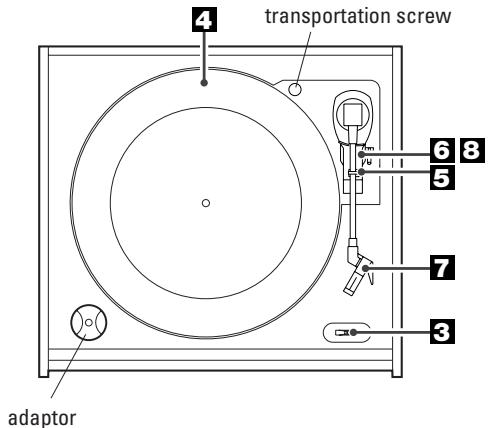

Names of Each Control (Turntable). 12

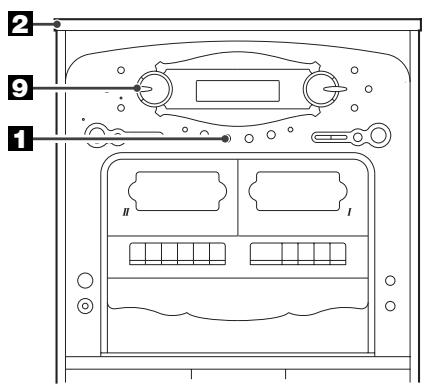

Basic Operation 13

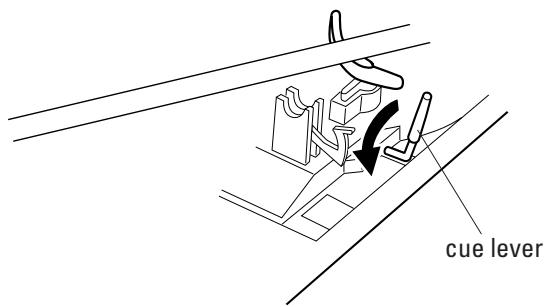

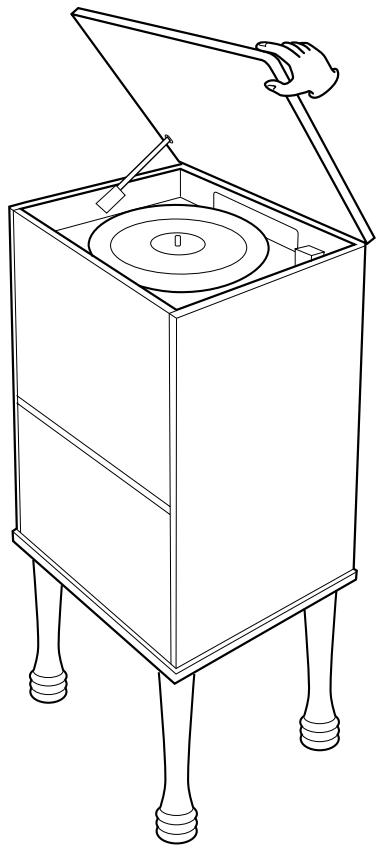

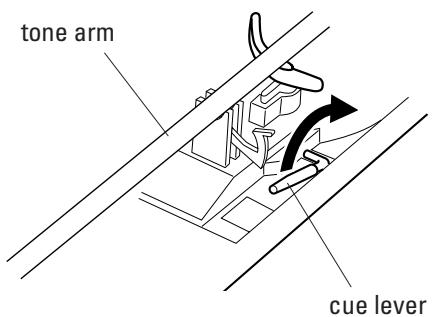

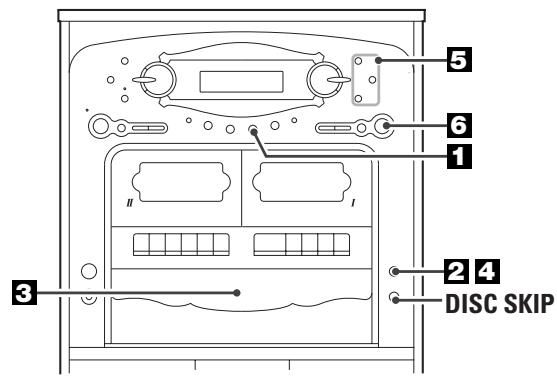

Listening to a Record. 14

Listening to CDs 16

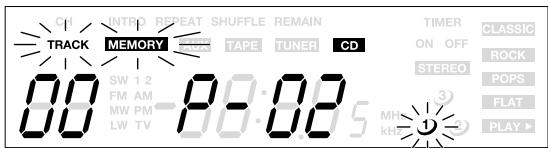

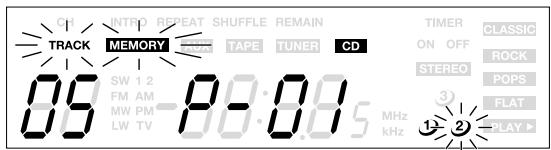

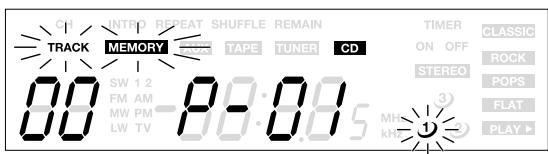

ProgrammedPlayback 18

Intro Check 19

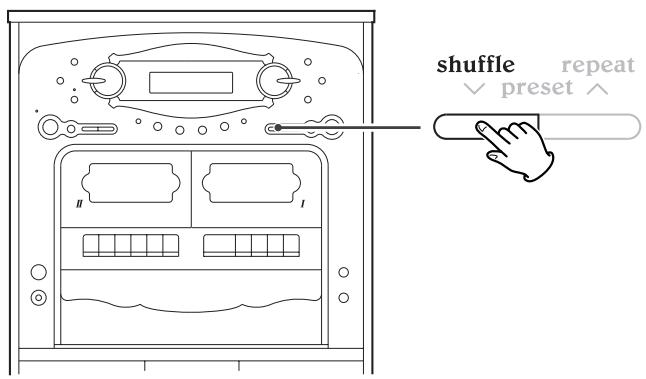

Shuffle Playback. 20

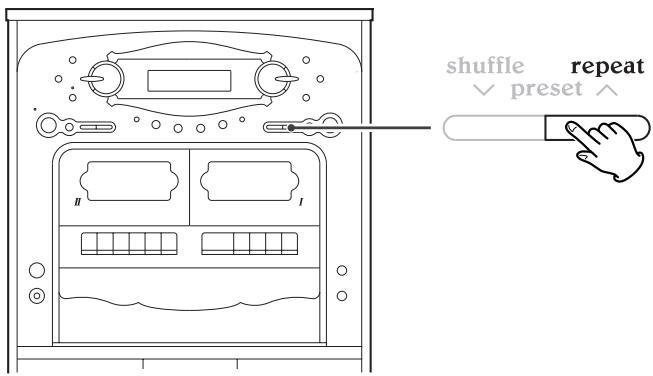

RepeatPlayback. 20

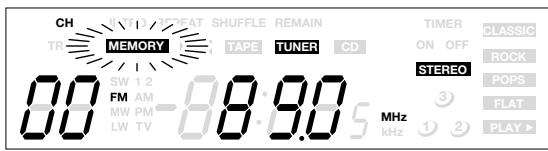

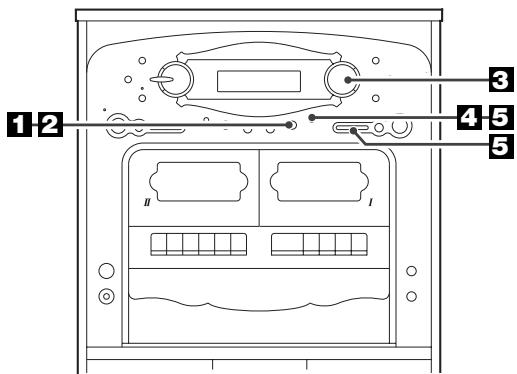

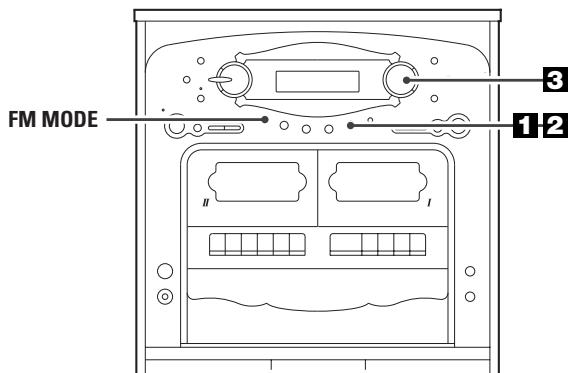

Listening to the Radio 21

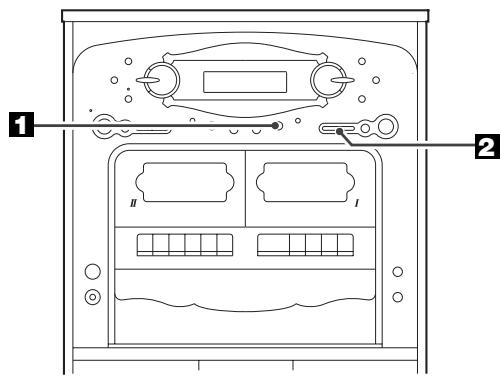

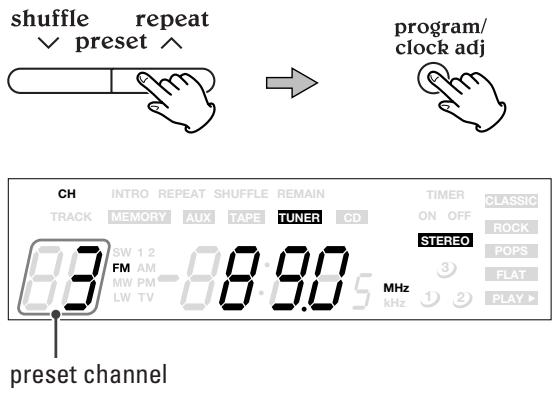

Preset Tuning 22

Listening to Tapes 23

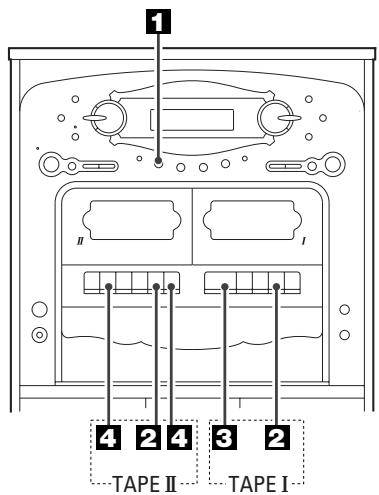

ExtendedPlayback. 24

Recording 24

Dubbing (Copy from TAPE I to TAPE II) 25

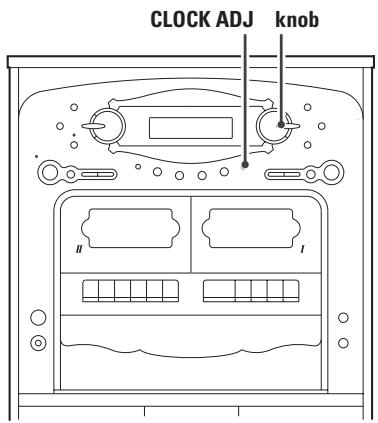

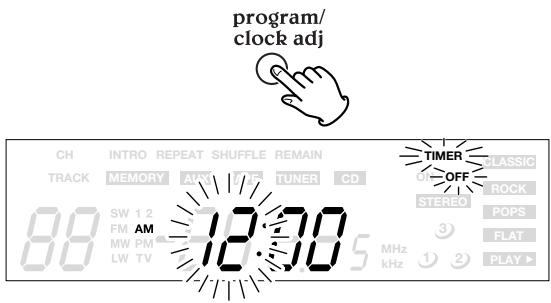

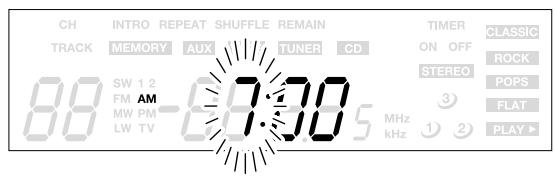

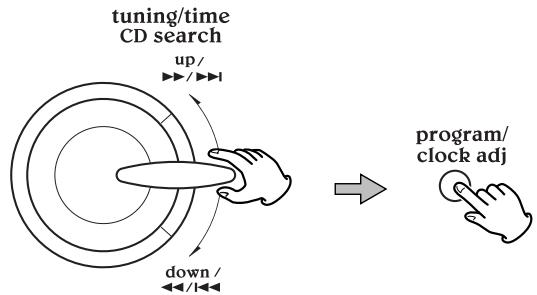

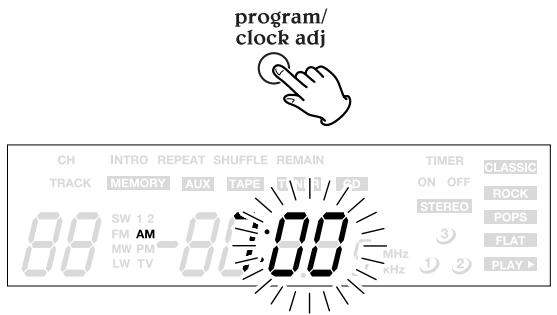

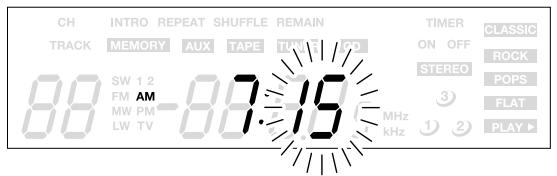

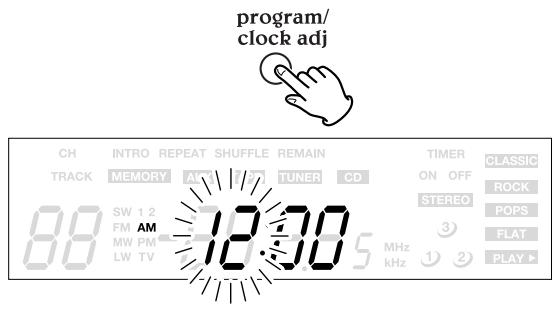

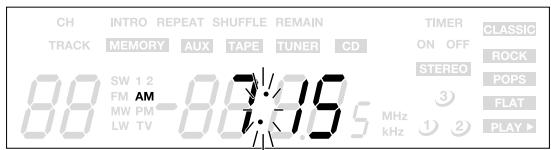

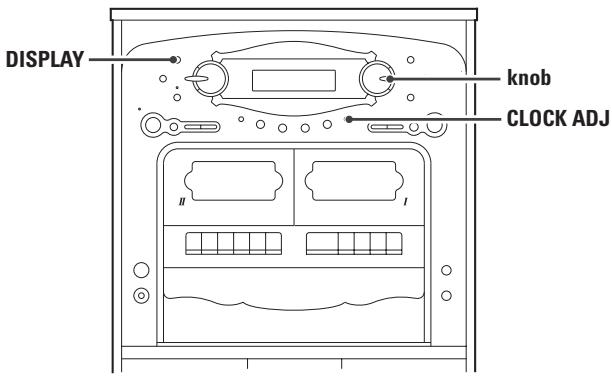

Setting the Clock 26

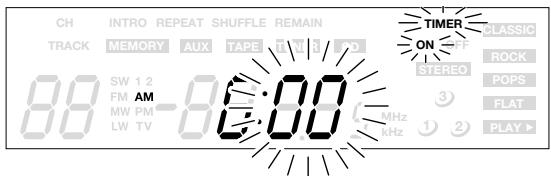

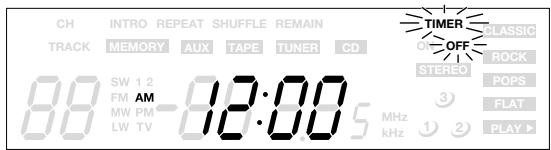

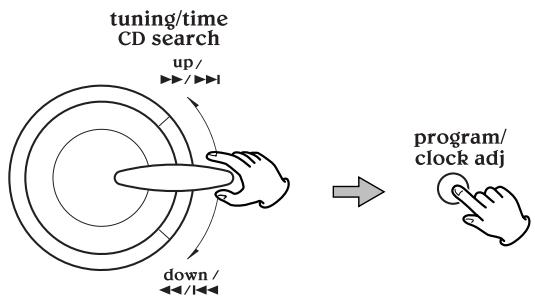

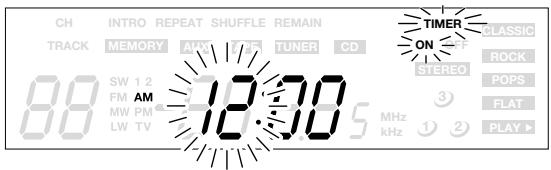

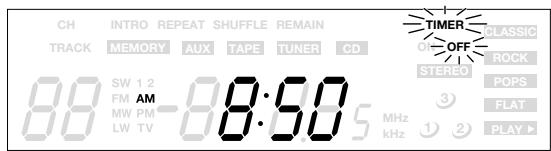

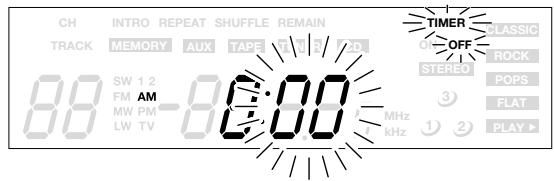

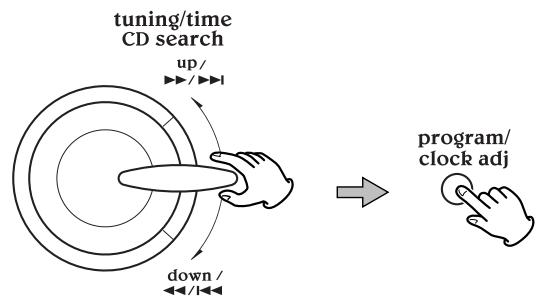

Setting the Timer 27

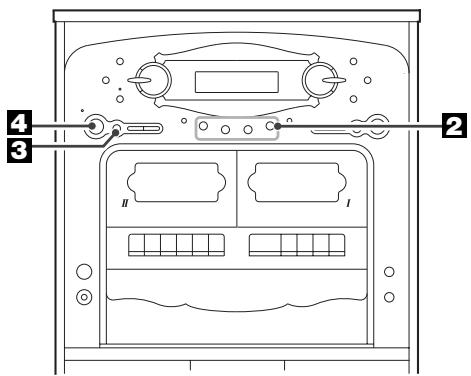

TimerPlayback 28

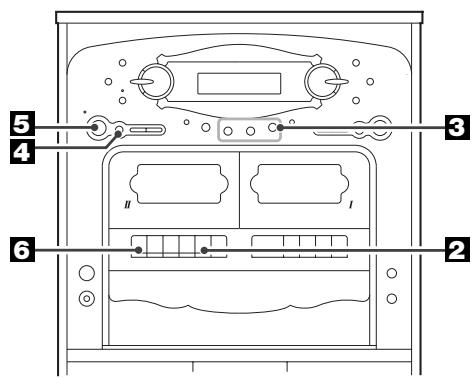

Timer Recording 29

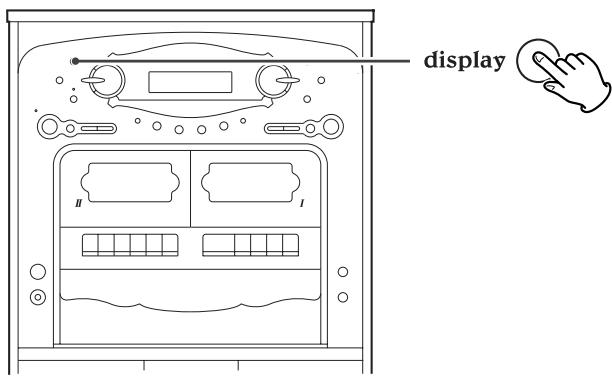

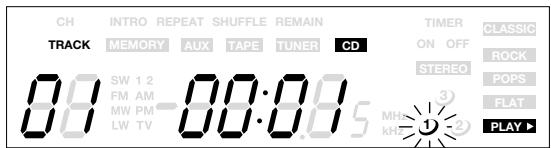

Display 29

Troubleshooting 30

Specifications. 31

Before Use

Read this before operation

• As the unit may become warm during operation, always leaves sufficient space around the unit for ventilation.
• The voltage supplied to the unit should match the voltage as printed on the rear panel. If you are in any doubt regarding this matter, consult an electrician.
• Choose the installation location of your unit carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, heat, cold or moisture.
• Do not place the unit on an amplifier/receiver or any other electronic device that generates heat.
• Do not open the sealed cabinet as this might result in damage to the circuitry or electrical shock. If a foreign object should get into the set, contact your dealer or service agency.
• When removing the power plug from the wall outlet, always pull directly on the plug, never yank the cord.
• To keep the laser pickup clean, do not touch it, and always close the disc tray.
• Do not attempt to clean the unit with chemical solvents as this might damage the finish. Use a clean, dry cloth.
• Keep this manual in a safe place for future reference.

DO NOT MOVE THE UNIT DURING PLAYBACK

During playback, the disc rotates at high speed. Do NOT lift or move the unit during playback. Doing so may damage the disc or the record.

WHEN MOVING THIS UNIT

When changing places of installation or packing the unit for moving, be sure to remove the disc and the record. Moving this unit with the disc or the record loaded may result in damage to this unit. If the unit is to be packed and moved a large distance, it is also advisable to tighten the turntable transport locking screw. See page 12 for instructions.

Beware of condensation

When the unit (or a disc) is moved from a cold to a warm place, or used after a sudden temperature change, there is a danger of condensation; vapor in the air could condense on the internal mechanism, making correct operation erratic or impossible. To prevent this, or if this occurs, leave the unit for one or two hours with the power turned on. The unit will stabilize at the temperature of its surroundings.

Maintenance

Always keep the turntable clean.

If the surface of the unit gets dirty, wipe with a soft cloth or use diluted mild liquid soap. Be sure to remove any excess completely. Do not use thinner, benzine or alcohol as they may damage the surface of the unit. Allow the surface of the unit to dry completely before using

CAUTION

Do not expose this unit to liquids of any kind. Keep any objects containing liquids such as vases, water glasses, potted plants, et cetera off the top of this unit.

Do not install this equipment in a confined space such as a book-case or similar unit.

Discs which can be played on this unit:

• Conventional audio CDs bearing the CD-DA logo on the label:

• Properly finalized CD-R discs

Note:

• Depending on the quality of the disc and/or the condition of the recording, some CD-R discs may not be playable.
• CD-RW discs cannot be played on this unit.
• Copy-protected discs and other discs which do not conform to the CD standard may not play back correctly in this player.

If you use such discs in this unit, TEAC Corporation and its subsidiaries cannot be responsible for any consequences or guarantee the quality of reproduction. If you experience problems with such non-standard discs, you should contact the producers of the disc.

• Always place the disc on the disc tray with the label side uppermost. (Compact discs can be played or recorded only on one side.)
• To remove a disc from its storage case, press down on the center of the case and lift the disc out, holding it carefully by the edges.

How to remove the disc

How to hold the disc

• Should the disc become dirty, wipe the surface radially with a soft, dry cloth.

• Never use such chemicals as record sprays, antistatic sprays or fluid, benzine or thinner to clean the discs. Such chemicals will do irreparable damage to the disc's plastic surface.
• Discs should be returned to their cases after use to avoid dust and scratches that could cause the laser pickup to "skip."
• Do not expose discs to direct sunlight or high humidity and temperature for extended periods. Long exposure to high temperatures will warp the disc.
• CD-R discs are more sensitive to the effects of heat and ultraviolet rays than ordinary CDs. It is important that they are not stored in a location where direct sunlight will fall on them, and which is away from sources of heat such as radiators or heat-generating electrical devices.
• Printable CD-R discs aren't recommended, as the label side might be sticky and damage the unit.
• Do not stick papers or protective sheets on the discs and do not use any protective coating spray.
• Use a soft oil-based felt-tipped pen to write the information on the label side. Never use a ball-point or hard-tipped pen, as this may cause damage to the recorded side.
• Never use a stabilizer. Using commercially available CD stabilizers with this unit will damage the mechanisms and cause them to malfunction.

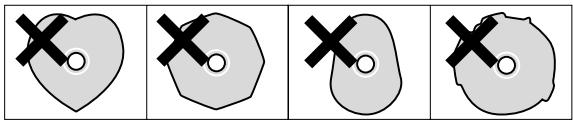

• Do not use irregular shape CDs (octagonal, heart-shape, etc.). CDs of this sort can damage the unit.

• If you are in any doubt as to the care and handling of a CD-R disc, read the precautions supplied with the disc, or contact the disc manufacturer directly.

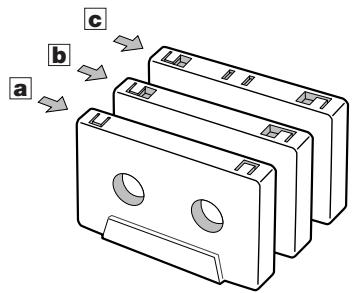

Tape Selection

Metal and chrome (cobalt) tapes have identification holes.

• This unit can play normal (TypeI) tape only.

a Normal (TypeI)
CrO_2 (TypeII)
Metal (TypeIV)

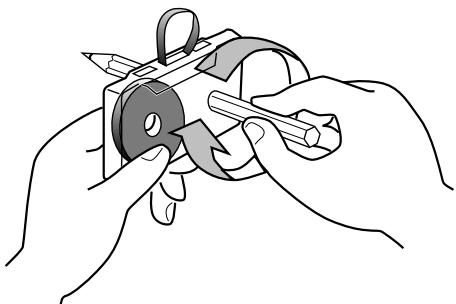

Tape Handling

Use your finger or a pencil to turn the cassette's hub and take up any slack tape.

• Avoid touching the tape. Fingersprints attract dust and dirt.

Do not store tapes in the following places:

• On top of heaters, exposed to direct sunlight or in any other places with high temperatures.
• Near speakers, on TV sets or amplifiers or where they would be exposed to strong magnetic fields.
• Where humidity is high and in dirty, dusty places.
• Avoid dropping or subjecting cassettes to excessive shocks.
• As C-120 tapes are physically weak and could become entangled in the transport mechanism, do not use them.

Maintenance

The heads and tape path should be cleaned and demagnetized periodically.

Cleaning Tape Path

• Apply head cleaning fluid to a cotton swab or soft cloth, and lightly rub the heads A, capstan B and all metal parts in the tape path.
• Also clean the pinch roller using rubber cleaning fluid.

Demagnetizing Heads

Be sure that the power is off, then demagnetize the heads using a demagnetizer. For details of its use, read its instructions.

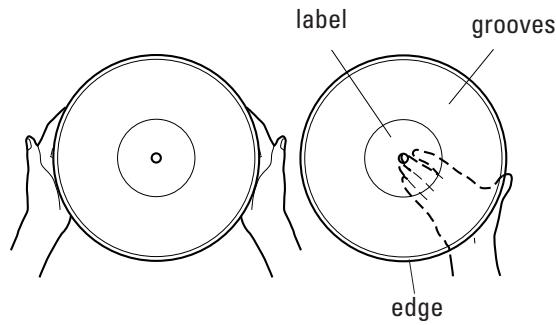

• Do not touch grooves. Handle records by the edges or the label only, with clean hands. Skin oils from even clean hands can leave a residue on the record surface that will gradually deteriorate the quality of your record.

• Keep your records away from dust. Keep them in a cool, dry place.
• To avoid dust and scratches, keep records in their sleeves and jackets when not in use.
• Store records upright on their edges. Records stored horizontally will eventually bend and warp.
• Do not expose records to direct sunlight or high humidity and temperature. Long exposure to high temperatures will warp the record.
• Do not store your records in the trunk of your car. The temperatures in a closed trunk can ruin your collection.
• Store records in an area with stable temperature and humidity.
• Should the record become dirty, gently wipe the surface in a circular motion, using a soft anti-static cloth.

Many commercial record cleaning systems are available from many retailers or on-line. TEAC does not endorse any specific product but, depending on the condition of your record collection, it may be advisable to look into one of these systems. Clean records protect your stylus from undue wear.

Stylus should last about 50 hours under normal use. However, it is recommended to replace the stylus as soon as you notice a change in sound quality.

Prolonged use of a worn-out stylus may damage the record. Wear and tear will accelerate when playing 78 RPM records. The higher speed of 78 RPM records wears the stylus more quickly.

Caution:

• Do not remove or bend stylus.
• To avoid injury, do not touch the needle.
• Turn off the power of the unit before you replace the stylus.
• Keep out of reach of children.
• Handle with care, as the stylus is delicate. Use of a bent or broken stylus may damage the record and cause mal-function.
• Do not expose stylus to extreme heat.
• Contact a qualified repair company if you experience difficulty in changing the stylus.

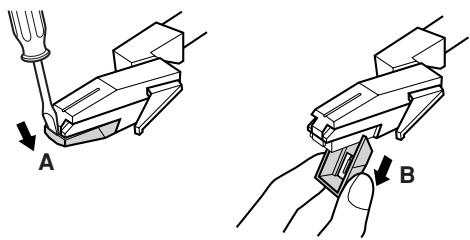

Removing old stylus

1. Set a screwdriver at the tip of stylus and push down to the direction "A".
2. Pull out to the direction "B".

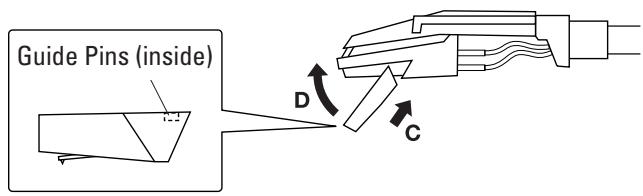

Installing new stylus

1. Hold the tip of stylus and insert the other edge to the direction "C".
2. Push up to the direction "D" until it locks at the tip.

The replacement stylus for this GF-600 is a STL-103. Please contact TEAC Parts at [phone], extension 840 to order. Or call our automated Service Agency Locator at: (800) 447-TEAC for the closest authorized repair company that can replace the stylus for you.

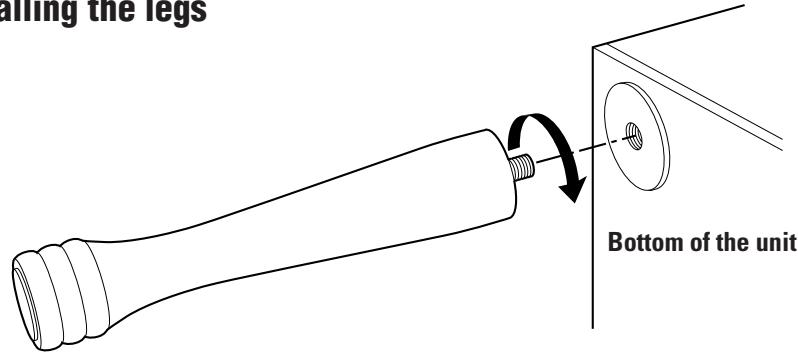

Installing the legs

CAUTION

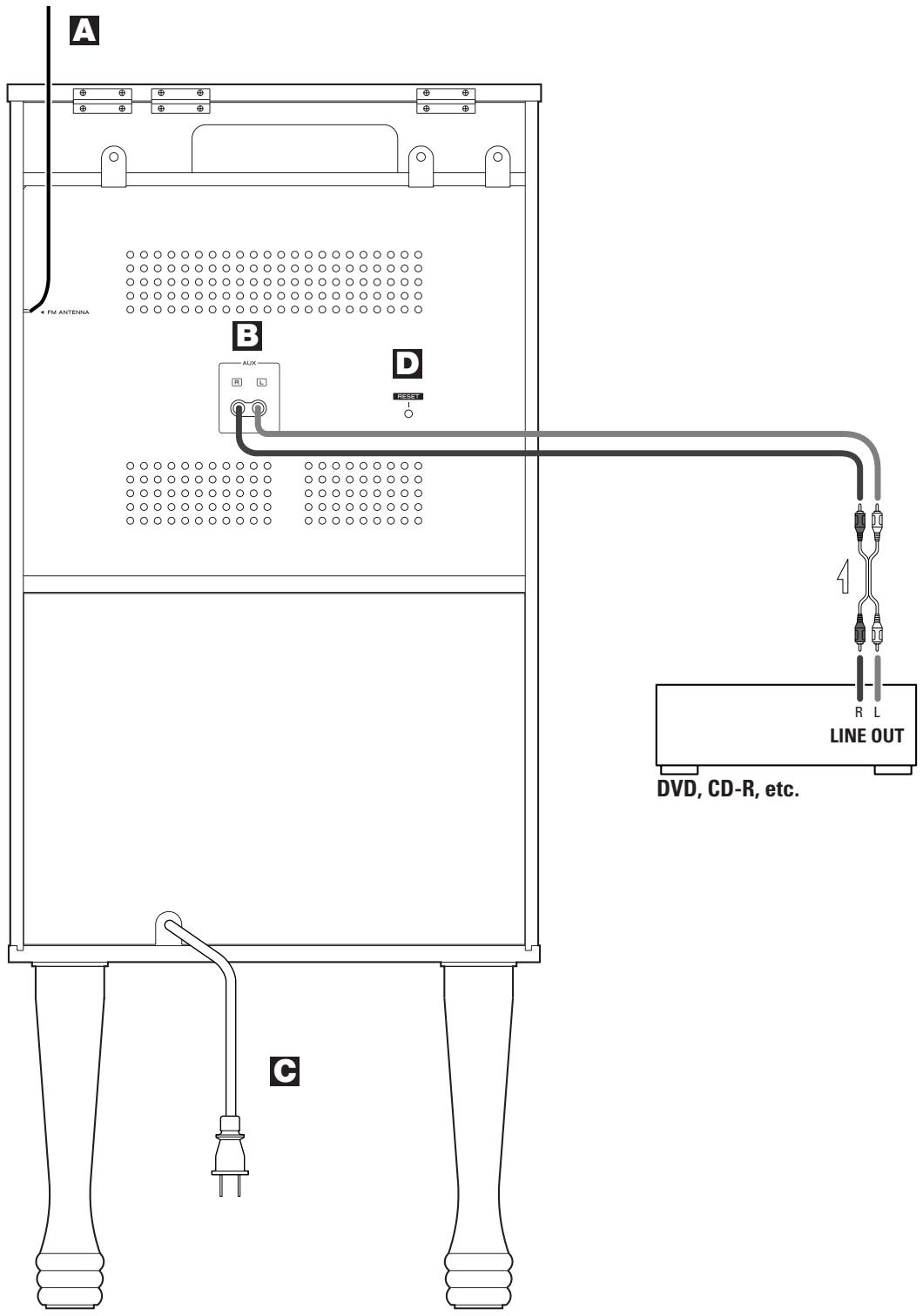

Turn off the power of all the equipment before making connections.

Read instructions of each component you intend to use with this unit.

• Be sure to insert each plug securely. To prevent hum and noise, do not bundle the connection cords with the power cord.

A FM antenna

While in FM mode, tune in an FM station and extend the lead to find the best position for reception. This antenna may need to be repositioned if you move your unit to a new location.

B AUX

You can connect a DVD player, VCR etc. to this unit.

Connect the component with RCA pin cords. Make sure to connect the white plug to the white jacks (Left) and the red plug to the red jacks (Right).

AC Power Cord

Plug this AC power cord into an AC wall socket.

RESET

In the following cases, function buttons may not work properly.

• When the system is damaged by some electrical shock.
• When the power is irregular or has electrical noises.

In these cases, press the RESET switch once or twice with a pencil or a ball-point pen lightly.

The provided Remote Control Unit allows the unit to be operated from a distance.

When operating the remote control unit, point it towards the REMOTE SENSOR on the front panel of the unit.

• Even if the remote control unit is operated within the effective range, remote control operation may be impossible if there are any obstacles between the unit and the remote control.
• If the remote control unit is operated near other products which generate infrared rays, or if other remote control devices using infrared rays are used near the unit, it may operate incorrectly. Conversely, the other products may operate incorrectly.

Battery Installation

1 Remove the battery compartment cover.
Insert two "AAA" (R03, UM-4) dry batteries. Make sure that the batteries are inserted with their positive "⊕" and negative "⊗" poles positioned correctly.
3 Close the cover.

Battery Replacement

If the distance required between the remote control unit and main unit decreases, the batteries are exhausted. In this case replace the batteries with new ones.

Precautions concerning batteries

• Be sure to insert the batteries with correct positive “⊕” and negative “ ” polarities.
• Use batteries of the same type. Never use different types of batteries together.
• Rechargeable and non-rechargeable batteries can be used. Refer to the precautions on their labels.
• When the remote control unit is not to be used for a long time (more than a month), remove the batteries from the remote control unit to prevent them from leaking. If they leak, wipe away the liquid inside the battery compartment and replace the batteries with new ones.
• Do not heat or disassemble batteries and never dispose of old batteries by throwing them in a fire.

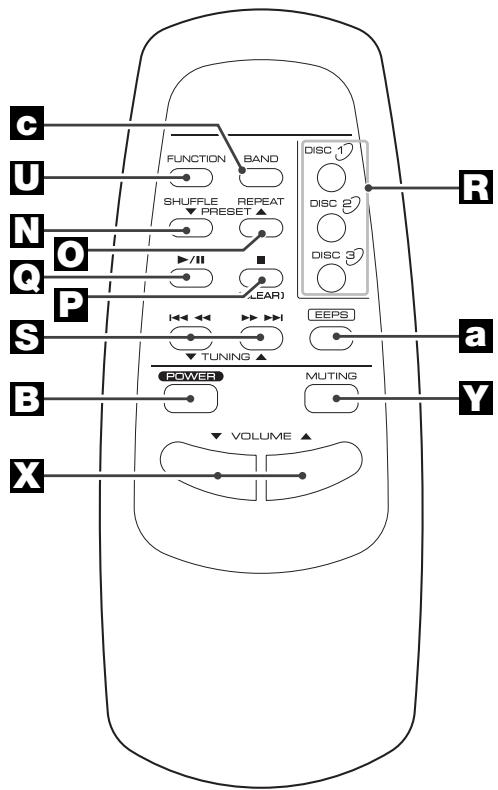

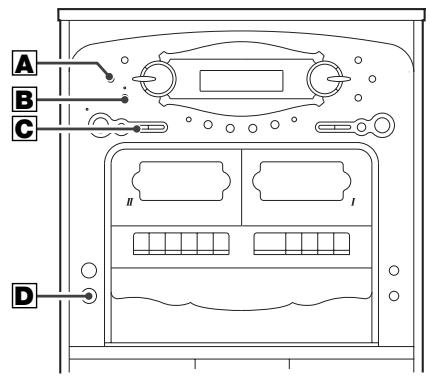

Remote control unit

A STANDBY indicator

This indicator lights when the unit is in the standby mode. When the unit is turned on, the light goes off.

POWER

Press this switch to turn the unit on or off (standby).

The equipment draws a nominal amount of power from the AC outlet even with its POWER switch in the OFF position.

TIMER

Use this button to set the timer.

BBS

Use this button to boost bass.

DUB SPEED

Use this button to select the dubbing speed.

REMOTE SENSOR

When operating the remote control unit, point it towards the REMOTE SENSOR.

PHONES

For private listening, insert the headphones plug into this jack, and adjust the volume by turning the VOLUME knob.

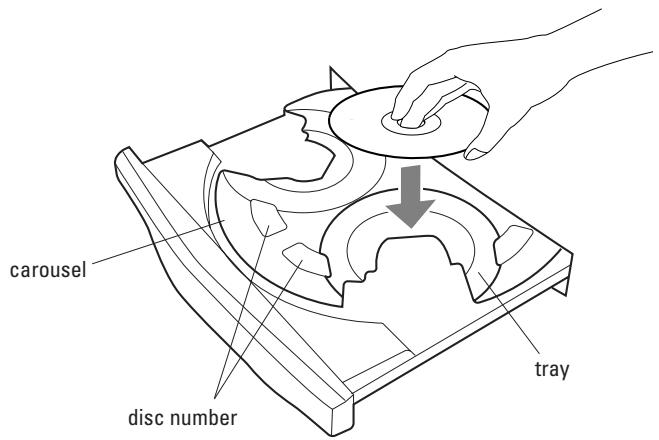

Disc tray

DISC SKIP

Use this button to rotate the carousel.

OPEN/CLOSE

Use this button to open and close the disc tray.

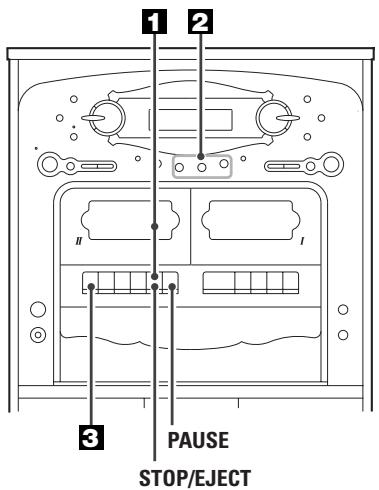

TAPEI operation buttons

TAPE II operation buttons

PLAY: Use this button to start playback of the tape.

SEARCH: Use these buttons to fast-forward or rewind the tape.

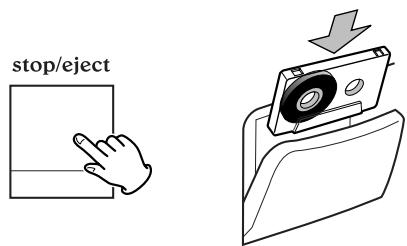

STOP/EJECT: Use this button to stop playback. In the stop mode, use this button to open the cassette holder.

PAUSE: Use this button to pause playback.

RECORD : Use this button to start recording.

Cassette holder

SHUFFLE/PRESET

In CD mode, use this button for shuffle playback. In TUNER mode, use this button to select preset stations.

REPEAT/PRESET

In CD mode, use this button for repeat playback. In TUNER mode, use this button to select preset stations.

STOP

Use this button to stop playback of CD.

PLAY

Use this button to start or pause playback of CD.

DISC1,2,3

Use these buttons to select a disc.

S CD SEARCH/TUNING/TIME (1<4 <4/>▶▶1)

In CD mode, momentarily turn this knob (or press the SKIP button of the remote control unit) to skip tracks. Hold up or down the knob (or press and hold the SKIP button) to search for a part of a track.

In TUNER mode, momentarily turn this knob to tune in stations.

PROGRAM/CLOCK ADJ

In CD mode, use this button to program tracks.
In TUNER mode, use this button to store preset channels into memory.
This button is also used for clock adjustment.

FUNCTION (TAPE, AUX/PHONO, CD, TUNER)

Use these buttons to select a source. In TUNER mode, press the TUNER (BAND) button to select FM or AM.

Display

INTRO/FM MODE

In CD mode, use this button to start intro check.
In FM TUNER mode, use this button to select stereo or monaural.

VOLUME

Turn this knob (or press the VOLUME buttons of the remote control unit) to adjust the volume.

MUTING

Use this button to mute the sound.

DISPLAY

Use this button to change the display.

a EEPS

Use this button to select a preset equalizer.

Speakers (stereo)

Note:

To simplify explanations, instructions refer to names of buttons and controls on the front panel, making no mention of the use of remote control unit.

Before use, detach the stylus guard (white plastic cover) by pulling it straight off the front of the cartridge in the direction of the arrow.

A turntable

B screw fixing the turntable for transportation

Before use, completely loosen the screw by turning it clockwise with a coin or screwdriver.

When you transport the unit, turn the screw counterclockwise to fix the turntable.

C cue-lever

Use this lever to lift the tone arm.

D tone arm holder

E tone arm

F speed selector

45 RPM adaptor

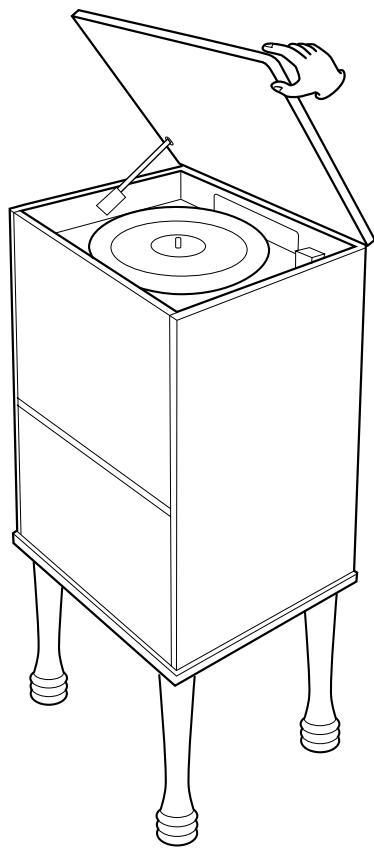

How to open/close the turntable cover

To Open:

1. Lift the turntable cover all the way up until it stops.
2. Lower the cover slowly until the latch engages.
3. The cover will now stay open. If the latch does not engage, repeat these steps again.

To Close:

1. Lift the cover all the way up until it stops.
2. The latch should disengage and you may now slowly lower the cover.
3. Make sure you grasp the cover by the edges to avoid pinching your fingers as it closes.

Press the POWER switch to turn the unit on.

power 0 standby/on

The standby indicator goes off.

• When the unit is turned on, the MUTING indicator lights momentarily. This is not a malfunction.

Select a source by pressing the corresponding button.

• When using the remote control unit, press the FUNCTION button repeatedly until the desired source appears on the display.
• To listen to an external source connected to AUX jacks, press the AUX/PHONO button.
• If you play an external source and a record simultaneously, the sound will be mixed.

Play the source, and adjust the volume by turning the VOLUME knob.

A EEPS (Electronic Equalizer Preset System)

Each time the EEPS button is pressed, the mode is changed as follows:

CLASSIC: A balanced sound; suitable for classical music.

ROCK: Provides a heavy powerful sound; suitable for rock music.

POPS: Emphasizes vocal tones; suitable for popular music.

FLAT: EEPS is off.

B Muting

To mute the sound temporarily, press the MUTING button. Press the MUTING button again to restore the sound.

• While muting is engaged, the muting indicator lights.
• The muting indicator also lights in the stop or pause mode of CD, even when the muting isn't selected. When the PLAY button is pressed, it goes off.

C Bass Boost System

To emphasize bass, press the BBS button. Press the button again to turn it off.

D Headphones

For private listening, insert the headphones plug into the PHONES jack, and adjust the volume by turning the VOLUME knob. The sound from the speakers is cut off while the headphone jack is inserted.

Before use, completely loosen the transportation screw by turning it clockwise with a coin.

Detach the stylus guard (white plastic cover).

Press the AUX/PHONO button.

aux/phono

tuner
(band)

Gently open the turntable cover. Be careful not to pinch your finger.

3 Select the speed.

Put the record on the turntable.
When playing a 45 RPM record, use the included adaptor.

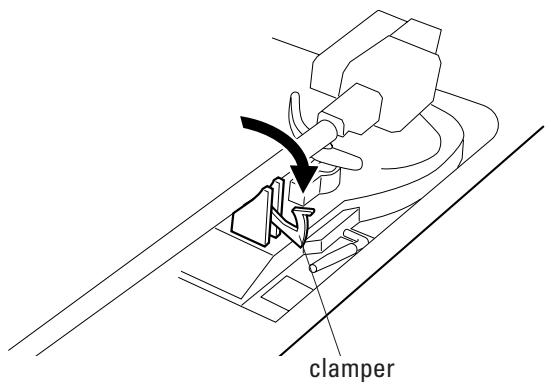

Gently push the clamper to the right to release the tone arm.

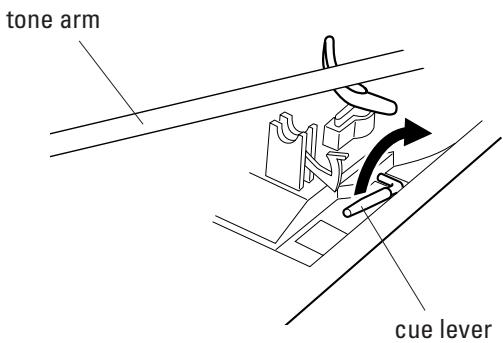

Raise the cue lever to lift the tone arm off the tone arm support.

7 Move the tone arm gently to the edge of the record (or the starting point of a track).

The turntable will begin to turn.

Gently lower the tone arm by slowly releasing the cue lever.

You can lower the tone arm manually if the cue lever has not been raised.

Turn the VOLUME knob to adjust the volume.

• Playing records with the turntable cover down will prevent dust from settling on the turntable.

Please do not place anything on top of the turntable cover, especially while playing a record.

When the playback has been finished, slightly lift the tone arm using the cue lever and return it to the tone arm holder.

The rotation stops.

Press the CD button (or the FUNCTION button of the remote control unit) to select "CD".

Press the OPEN/CLOSE button.

3 Place a disc on a tray with the printed label face up.

• Never place more than one disc on a tray.
• To place a disc on the hidden tray, press the DISC SKIP button.
• Do not touch the carousel while it is rotating.

Press the OPEN/CLOSE button to close the tray.

• It takes a few seconds for the unit to load the disc. No buttons will work during loading. Wait until the total number of the tracks and the total play time of the disc are displayed.
• When no disc is set, "NO DISC" blinks.

If you want to select other disc, press the corresponding button (DISC 1, 2 or 3) or the DISC SKIP button.

Playback starts automatically.

Press the PLAY/PAUSE button to start playback.

play/pause

Playback starts from the first track of the selected disc. When the playback of all the discs has finished, the unit stops automatically.

A To suspend playback temporarily (pause mode)

play/pause

Press the PLAY/PAUSE button during playback. Playback stops at the current position. To resume playback, press the PLAY/PAUSE button again.

B To stop playback

Press the STOP button to stop playback.

stop

(clear)

C To skip to the next or a previous track

tuning/time

CD search

During playback, tap the SKIP knob up or down repeatedly until the desired track is found. The selected track will be played from the beginning.

In the stop mode, hold up or down the SKIP knob (or tap the knob repeatedly) and release it when the track you want to listen to is found. Press the PLAY/PAUSE button to start playback from the selected track.

• When the SKIP knob is tapped up during playback, the track being played will be played from the beginning. To return to the beginning of the previous track, tap the knob up twice.
• During programmed playback, the next or previous track in the program is played.

D Search for a part of a track

During playback, hold up or down the SKIP knob and release it when the part you want to listen to is found.

tuning/time

CD search

HPV

up/

down/

E Change discs during playback

open/close

You can change discs that aren't being played, even if another disc is being played. Press the OPEN/CLOSE button to open the tray, change the disc, and press the OPEN/CLOSE button again to close the tray.

Up to 20 tracks from 3 discs can be programmed in the desired order.

Shuffle, Repeat and Intro check functions don't work during programmed playback.

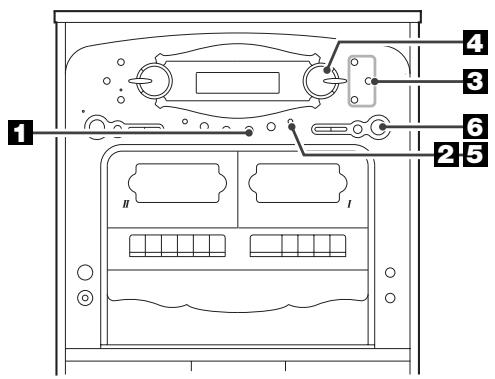

Press the CD button or the FUNCTION button to select "CD".

aux/phono

tuner (band)

Press the PROGRAM button.

"TRACK", "MEMORY", and the current disc number blinks on the display.

• To cancel the program mode, press the STOP button.
• When no button is pressed for 10 seconds, the program mode will be cancelled.

If you want to select another disc, press the corresponding button or the DISC SKIP button.

disc-3

4 Tap up or down the SKIP knob repeatedly to select a track.

Press the PROGRAM button.

program/ clock adj

The track is programmed, and "P-02" is displayed.

• Repeat step 3 to 5 to program more tracks.
• You can program up to 20 tracks.

6 When the selection of track numbers is completed, press the PLAY/PAUSE button to start program playback.

play/pause

• If the PLAY/PAUSE button isn't pressed within 10 seconds, the MEMORY indicator will go off. In that case, press the PROGRAM button and then press the PLAY/PAUSE button to start program playback.
• When the playback of all the programmed tracks has finished, or if one of the following buttons is pressed, the MEMORY indicator will go off and the program mode will be cancelled:

STOP, FUNCTION (TAPE, AUX/PHONO, TUNER), POWER DISC SKIP, DISC 1,2,3

But the programmed contents aren't lost. You can return to the programmed playback by pressing the PROGRAM button and the PLAY button. (If another source was selected, press the CD button beforehand.)

To check the programmed order

In the stop mode, press the PROGRAM button repeatedly. The track number and program number will be shown on the display.

To add a track to the end of the program

In the stop mode, press the PROGRAM button repeatedly until "00" appears on the display. Select a track number by tapping the SKIP knob and then press the PROGRAM button. The track is added to the end of the program.

To overwrite the program

In the stop mode, press the PROGRAM button repeatedly until the program number to be changed appears on the display. Select a new track number by tapping the SKIP knob and then press the PROGRAM button.

To clear program

To clear the programmed contents, press the PROGRAM and the STOP button in the stop mode.

• If the OPEN/CLOSE button is pressed, the programmed contents will also be cleared.
• If the unit is disconnected from the power supply, the programmed contents will be cleared.

Press the INTRO button in the stop mode. The beginning of all the tracks of all the discs is played for 10 seconds each. When a track you want to listen to is found, press the INTRO button to resume normal playback.

• To skip to the next or a previous track, tap the SKIP knob.
• To stop Intro Check function, press the STOP button.

The tracks can be played randomly. Press the SHUFFLE button during playback. (In the stop mode, press the SHUFFLE button and the PLAY/PAUSE button.)

When the shuffle playback of all the tracks of the currently selected disc has been finished, the unit goes to the next disc. When the shuffle playback of all the discs has been finished, the unit stops and the shuffle playback mode is cancelled.

• If you tap down the skip knob during shuffle playback, next track will be randomly selected and played. If you tap up the SKIP knob, the currently played track will be played from the beginning. A track cannot be replayed during shuffle playback.
• Shuffle playback doesn't work during programmed playback.
• If one of the following buttons is pressed, shuffle mode will be cancelled:

SHUFFLE, STOP, FUNCTION (TAPE, AUX/PHONO, TUNER), DISC SKIP, DISC 1,2,3, POWER, OPEN/CLOSE in the stop mode, INTRO in the stop mode

Repeat Playback

Every time the REPEAT button is pressed, the mode is changed as follows:

Repeat one track

Press the REPEAT button once during playback. The repeat indicator lights steadily.

The track being played will be played repeatedly. If you tap the SKIP knob and select another track, the track you selected will be played repeatedly.

It is also possible to select a track to be repeated in the stop mode. Press the REPEAT button, select a track by tapping the SKIP knob, and then press the PLAY/PAUSE button to start playback.

• Repeat playback doesn't work during programmed playback.
• If one of the following buttons is pressed, repeat mode will be canceled:

DISC SKIP, DISC 1,2,3, OPEN/CLOSE, SHUFFLE, INTRO in the stop mode

Repeat All the Tracks of All the Discs

All the tracks of all the discs will be played repeatedly.

Press the REPEAT button twice. The repeat indicator blinks.

• Repeat playback doesn't work during programmed playback.
• If one of the following buttons is pressed, repeat mode will be canceled:

STOP, FUNCTION (TAPE, AUX/PHONO, TUNER), DISC SKIP, DISC 1,2,3, OPEN/CLOSE, POWER

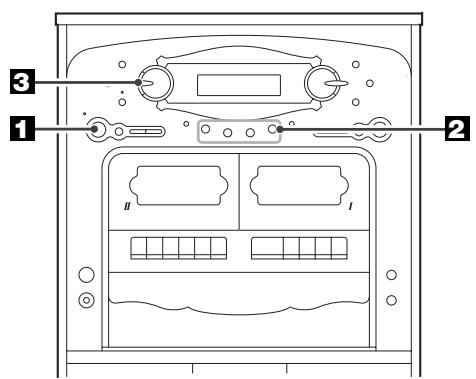

1 Select "TUNER" by pressing the TUNER(BAND) button or the FUNCTION button.

tuner

Select AM or FM by pressing the TUNER(BAND) button.

tuner

3 Select the station you want to listen to (auto selection).

tuning/time CD search

Hold the TUNING knob up or down until the frequency display begins to change. When a station is tuned in, the tuning process will stop automatically.

• Tap the TUNING knob to stop the auto selection.

Selecting stations which cannot be tuned automatically (manual selection)

When the TUNING knob is tapped momentarily, the frequency changes by a fixed step.

Tap the TUNING knob up or down repeatedly until the station you want to listen to is found.

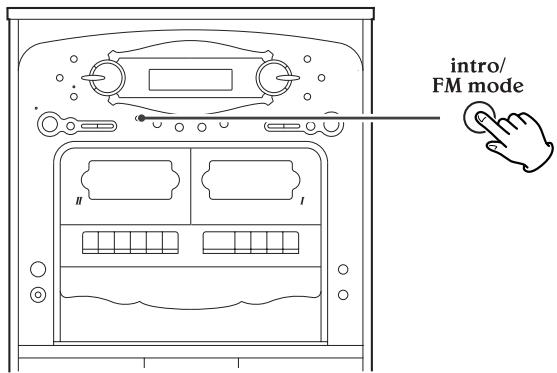

FM MODE button

intro/ FM mode

Pressing this button alternates between Stereo mode and Mono mode.

Stereo:

FM stereo broadcasts are received in stereo and the "STEREO" indicator will light.

Mono:

To compensate for weak FM stereo reception, select this mode. Reception will now be forced monaural, reducing unwanted noise.

If the reception is poor

AM broadcast:

The AM antenna is built within the cabinet. Reposition the unit to find the best position for AM stations.

FM broadcast:

Reposition the FM antenna until you get the best reception.

You can store FM and AM stations into preset channels 1 to 20 respectively.

Press the TUNER(BAND) button or the FUNCTION button to select "TUNER".

tuner

2 Select AM or FM by pressing the TUNER(BAND) button.

tuner

3 Select the station you want to listen to.

Press the PROGRAM button.

The MEMORY indicator blinks.

Within 5 seconds, select a preset channel to store the station using the PRESET buttons, and then press the PROGRAM button.

The station is stored and the MEMORY indicator goes off. To store more stations, repeat steps 2 to 5.

How to select preset stations

1 Select AM or FM by pressing the TUNER(BAND) button.

Press the PRESET button repeatedly until the desired preset station is found.

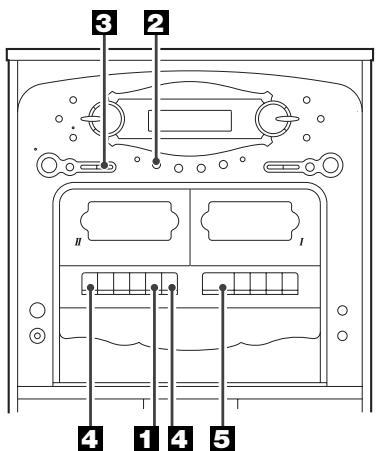

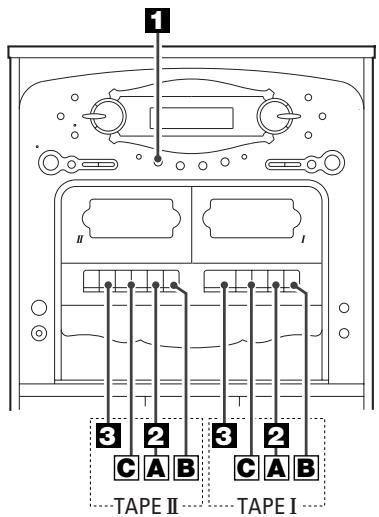

Press the TAPE button or the FUNCTION button to select "TAPE".

Load a pre-recorded cassette tape.

Press the STOP/EJECT button to open the cassette holder, load a cassette tape with its exposed side facing down, and close the holder.

• This unit can play normal (Type I) tape only.
• You can use either TAPE I or TAPE II for playback.

Press the PLAY button to start playback.

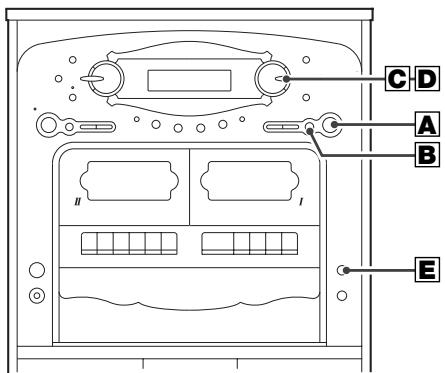

A To stop playback

Press the STOP/EJECT button to stop playback.

B To suspend playback temporarily (pause mode)

Press the PAUSE button. Playback stops at the current position. To resume playback, press the PAUSE button again.

C Fast forward and rewind

Press the or button. Press the STOP button to stop the fast forward or rewind operation.

• When the tape is wound up to the end, be sure to press the STOP button to stop the unit.

ExtendedPlayback

Press the TAPE button or the FUNCTION button to select "TAPE".

tape
aux/phono

CD

tuner
(band)

2 Load cassette tapes into TAPE I and TAPE II.

Press the PLAY button of TAPE I.

Press the PAUSE and the PLAY button of TAPE II.

When TAPE I stops, TAPE II starts playback automatically.

When TAPE II stops, the extended playback ends.

Recording (TAPE II only)

1 Load a recordable cassette tape into TAPE II.

• You can use normal (TypeI) tape only.
• If the safety tabs of the cassette tape have been broken off, cover the holes with adhesive tape.

Select the source to be recorded by pressing the corresponding button.

aux/phono

CD

tuner
(band)

• Do not select TAPE.
• Prepare the source to be recorded. When you select "TUNER", tune in a station.

Press the RECORD button to start recording.

When the RECORD button is pressed, the PLAY button is also pressed down automatically.

• When you select "CD", the playback of CD starts simultaneously.
• To stop recording temporarily, press the PAUSE button. To restart the tape, press the PAUSE button again.
• To stop recording, press the STOP button.

CD Synchronous Recording

1. Load a recordable cassette tape into TAPE II.
2. Press the CD button or the FUNCTION button to select "CD".
3. Select a disc to be recorded by pressing the corresponding button (DISC 1, 2 or 3) or the DISC SKIP button.
4. You can program tracks to be recorded.
5. Press the RECORD button to start recording. The playback of CD starts simultaneously.
6. To stop recording, press the STOP button.

1 Load a pre-recorded cassette tape into TAPE I and a recordable cassette tape into TAPE II.

• You can use normal (TypeI) tape only.

Press the TAPE button or the FUNCTION button to select "TAPE".

3 Select the dubbing speed by pressing the DUB SPEED button.

high:

Dubbing is performed at high speed.

(You may lose some fidelity during high speed dubbing.

Make a trial recording to verify the audio quality.)

normal:

Dubbing is performed at normal speed.

Press the PAUSE button and the RECORD button of TAPE II.

Press the PLAY button of TAPE I.

The dubbing starts.

• Do not select another source during dubbing, or the dubbing will be interrupted.
• To stop dubbing, press the STOP buttons of TAPE I and II.

• If the unit is on, press the POWER switch to turn it off, or press the DISPLAY button once or twice to display the clock (":" will blink).

Press the CLOCK ADJ button.

The "hour" value blinks.

Hold up or down the knob to set the current hour.

3 Press the CLOCK ADJ button.

The "minute" value blinks.

Hold up or down the knob to set the current minute.

Press the CLOCK ADJ button.

The clock starts.

Adjust the clock before setting the timer.

Press the DISPLAY button repeatedly until "TIMER ON" indicator appears on the display.

display

Within 5 seconds, press the CLOCK ADJ button.

program/

clock adj

The "hour" value starts flashing.

• When no button is pressed for 10 seconds, the timer setting mode will be cancelled.

Hold up or down the knob to set the start time(hour), and press the CLOCK ADJ button.

The "minutes" value starts flashing.

Hold up or down the knob to set the start time(minutes), and press the CLOCK ADJ button.

Press the DISPLAY button.

"TIMER OFF" indicator appears on the display.

display

③ Within 5 seconds, press the CLOCK ADJ button.

The "hour" value starts flashing.

Setting the Timer 2

Hold up or down the knob to set the stop time(hour), and press the CLOCK ADJ button.

The "minutes" value starts flashing.

Hold up or down the knob to set the stop time(minutes), and press the CLOCK ADJ button.

9 Press the DISPLAY button (or leave the unit for 5 seconds).

Now the timer setting is stored in memory.

display

TimerPlayback

Set the start time and stop time (see 27 page).
Select a source by pressing the corresponding button.

aux/phono

CD

tuner

(band)

• Prepare the source. When you select "TUNER", tune in a station.
  3 Press the TIMER button.

timer

"TIMER" indicator appears on the display.

Press the POWER switch to turn the unit off (standby).

power

standby/on

When "TAPE" is selected, press the PLAY button of TAPE I or II.

The unit will turn on and off at the specified time.

• The timer doesn't work when the unit is turned on manually.
• When you don't use timer, press the TIMER button to turn it off.

Timer Recording

Set the start time and stop time (see 27 page).
2 Load a recordable cassette tape into TAPE II.

3 Select a source to be recorded by pressing the corresponding button.

aux/phono

tuner
(band)

• Don't select "TAPE".
• When you select "TUNER", tune in a station.

4 Press the TIMER button.

timer

"TIMER" indicator appears on the display.

Press the POWER switch to turn the unit off(standby).

power 0 standby/on

Press the RECORD button of TAPE II.

Display

Each time the DISPLAY button is pressed, the display is changed as follows:

During playback of CD:

When the unit is on:

"clock", "timer on" or "timer off" is displayed for 5 seconds, and then returns to "source".

When the unit is off:

"timer on" or "timer off" is displayed for 5 seconds, and then returns to "clock".

If you have problems with your system, look through this chart and see if you can solve the problem yourself before calling your dealer or TEAC service center.

No power

Check the connection to the AC power supply. Check and make sure the AC source is not a switched outlet and that, if it is, the switch is turned on. Make sure there is power to the AC outlet by plugging another item such as a lamp or fan.

No sound from speakers.

Select the source by pressing the corresponding button or the FUNCTION button.
Adjust the volume.
Pull out the headphone's plug from the PHONES jack.
If the muting indicator is lit, press the MUTING button. (When "CD" is selected, press the PLAY button to start playback.)

The sound is noisy.

The unit is too close to a TV or similar appliances. Install the unit apart from them, or turn them off.

Remote control doesn't work.

Press the POWER switch to turn the unit on.
If the batteries are dead, change the batteries.
Use remote control unit within the range (5m /15ft) and point at the front panel.
Clear obstacles between the remote control unit and the main unit.
If a strong light is near the unit, turn it off.

CD Player

Cannot play.

Load a disc with the playback side facing down.
If the disc is dirty, clean the surface of the disc.
A blank disc has been loaded. Load a prerecorded disc.
This unit cannot play CD-RW discs.
Depending on the disc, etc. it may not be possible to play back CD-R discs. Try again with another disc.
You cannot play back unfinalized CD-R discs. Finalize such a disc in a CD recorder and try again.

Sound skips.

Place the unit on a stable place to avoid vibration and shock.
If the disc is dirty, clean the surface of the disc.
Don't use scratched, damaged or warped discs.

The SHUFFLE button doesn't work.

Shuffle playback won't work until you clear the programmed contents. If you want to clear the programmed contents, press the PROGRAM button and the STOP button.

Tuner

Cannot listen to any station, or signal is too weak.

Tune in the station properly.
Rotate the unit or FM antenna wire for the best reception position.

Though the broadcast is stereo, it sounds monaural.

Press the FM MODE button.

Cassette Tape Deck

The cassette holder cannot be closed.

The buttons don't work.

Insert a cassette tape securely.

Sound is distorted or noisy.

Clean and demagnetize the heads.
Use Normal tape.

Cannot record.

If the safety tabs of the cassette tape have been broken off, cover the holes with adhesive tape.
Clean and demagnetize the heads.

Record Player

Cannot play.

Loosen the screw, and detach the stylus guard. (The stylus guard is a white plastic cover that protects the stylus during transportation. Failing to remove this guard will not allow the needle to contact the groove of the record and no sound will be heard!)
If the stylus is worn-out, change the stylus.
Select the correct playback speed.

Sound skips.

Place the unit on a stable place to avoid vibration and shock. Make sure the unit is level both front to back and side to side.
Clean the surface of the record.
Don't use scratched, damaged or warped records.

If normal operation cannot be recovered, unplug the power cord from the outlet and plug it again.

If the unit is disconnected from the power supply, the settings kept in memory (clock, preset stations, timer setting) will be erased.

AMPLIFIER section

Output Power 15W+15W

Input Sensitivity 220mV

Frequency Response. 50 to 20,000 Hz

TUNER Section (FM)

Frequency Range 87.50 to 108.00 MHz

Sensitivity (S/N30dB) 20dBμV

TUNER Section (AM)

Frequency Range 530 to 1710kHz

Sensitivity (S/N20dB) 60dBμV/m

CD PLAYER Section

Frequency Response. 20 to 20,000Hz (±1dB)

Signal-to-Noise Ratio 55dB

Wow and Flutter Unmeasurable

CASSETTE DECK Section

Track System. 4 track, 2 channel stereo

Tape Speed. 4.8cm/sec

Wow and Flutter 0.35% (WRMS)

Frequency Response. 100 to 8,000 Hz

Signal-to-Noise Ratio 35dB

RECORD PLAYER Section

Motor. DC servo motor

Drive System Belt Drive

Speed 33-1/3 rpm, 45 rpm, 78 rpm

Wow and Flutter . less than 2.5% (WRMS)

S/N ratio. More than 50dB

Cartridge type . Ceramic Stereo Cartridge

Stylus STL-103

SPEAKER SYSTEM Section

Type 2-way bass reflex

Impedance 8 ohms

GENERAL

Power Requirements 120V, 60Hz

Power Consumption 50 W

Dimension (W x H x D) 15-5/16" x 35-1/8" x 14-13/16"

(389× 892.5× 377mm)

Weight. 43-1/4 lb (19.6 kg)

Standard Accessories

Remote Control Unit (RC-905) x 1

45 RPM adaptor x 1

Owner's Manual x 1

Warranty Card x 1

• Design and specifications are subject to change without notice.
• Weight and dimensions are approximate.
• Illustrations may differ slightly from production models.

Sommaire

Le copiage commence.

Section SYNTONISATEUR (FM)

Section SYNTONISATEUR (AM)

Vitesse 33-1/3 rpm, 45 rpm, 78 rpm

This appliance has a serial number located on the rear panel. Please record the model number and serial number and retain them for your records.
