USER MANUAL HG5700 HOMELITE

OFF Your generator has been engineered and manufactured to our high standard for dependability, ease of operation, and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.

You WILL be KILLED or SERIOUSLY HURT if you do not follow the instructions in this operator’s manual. Thank you for your purchase.

SAVE THIS MANUAL FOR FUTURE REFERENCE

Parts Ordering / Service..................................................................................................................................Back Page INTRODUCTION This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product, making it easy to maintain and operate.

Grounding the Generator To reduce the risk of shock or electrocution, generator must be properly grounded. The nut and ground terminal on the frame must always be used to connect the generator to a suitable ground source. The ground path should be made with #8 size wire. Connect the terminal of the ground wire between the lock washer and the nut, and tighten the nut fully. Connect the other end of the wire securely to a suitable ground source. The National Electric Code contains several practical ways in which to establish a good ground source. If a steel or iron rod is used, it should be at least 5/8 in. diameter, and if a nonferrous rod is used, it should be at least 1/2 in. diameter and be listed as material for grounding. Drive the rod or pipe to a depth of 8 ft. If a rock bottom is encountered less than 4 ft. down, bury the rod or pipe in a trench. All electrical tools and appliances operated from this generator must be properly grounded by use of a third wire or be “Double Insulated.” It is recommended to:

1. Use electrical devices with 3-prong grounded plugs.

2. Use an extension cord with a 3-pole receptacle and a 3-prong plug at opposite ends to ensure continuity of the

ground protection from the generator to the appliance. Check and adhere to all applicable federal, state, and local regulations relating to grounding specifications. Consult a qualified electrician or service personnel if the grounding instructions are not completely understood or if in doubt as to whether the generator is properly grounded. Page — English important safety instructions Keep all bystanders, children, and pets at least 10 feet away.

Carbon Monoxide. Using a generator indoors will KILL YOU IN MINUTES. Wear sturdy and dry shoes or boots. Do not operate while barefoot. Generator exhaust contains high levels of carbon monoxide (CO), a poisonous gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even if you cannot smell the exhaust, you could be breathing CO. Do not operate generator when you are tired or under the influence of drugs, alcohol, or medication. Keep all parts of your body away from any moving parts and all hot surfaces of the unit. Never use a generator inside homes, garages, crawlspaces, or other partly enclosed areas. Deadly levels of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply enough fresh air. Do not use generator with electrical cords which are worn, frayed, bare, or otherwise damaged. Before storing, allow the engine to cool and drain fuel from the unit. Do not operate or store the generator in rain, snow, or wet weather. Store the generator in a well-ventilated area with the fuel tank empty. Fuel should not be stored near the ­generator. ONLY use a generator outdoors and far away from open windows, doors, and vents. These openings can pull in generator exhaust. Even when you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air RIGHT AWAY. See a doctor. You could have carbon monoxide poisoning.

Read and understand all instructions. Failure to follow all instructions listed below may result in electrocution, fire, and/or carbon monoxide poisoning, which will cause death or serious injury.

National Electric Code requires generator to be grounded to an approved earth ground. Before using the ground terminal, consult a qualified electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the ­generator.

SAVE THESE INSTRUCTIONS

This manual contains important instructions for HG5700 that should be followed during installation and maintenance of the generator and batteries. Do not allow children or untrained individuals to use this unit. Never start or run the engine inside a closed or partially enclosed area. Breathing exhaust fumes will kill you. Wear eye protection which is marked to comply with ANSI Z87.1 as well as hearing protection when operating this equipment. Do not touch bare wire or receptacles. Empty fuel tank, close fuel valve, and restrain the unit from moving before transporting in a vehicle. Allow engine to cool for five minutes before refueling. To reduce the risk of fire and burn injury, handle fuel with care. It is highly flammable. Do not smoke while handling fuel. Store fuel in a container approved for gasoline. Position the unit on level ground, stop engine, and allow to cool before refueling. Loosen fuel cap slowly to release pressure and to keep fuel from escaping around the cap. Tighten the fuel cap securely after refueling. Wipe spilled fuel from the unit. Never attempt to burn off spilled fuel under any circumstances. Generators vibrate in normal use. During and after the use of the generator, inspect the generator as well as extension cords and power supply cords connected to it for damage resulting from vibration. Have damaged items repaired or replaced as necessary. Do not use plugs or cords that show signs of damage such as broken or cracked insulation or damaged blades. For power outages, permanently installed stationary generators are better suited for providing back-up power to the home. Even a properly connected portable generator can become overloaded. This may result in overheating or stressing the generator components, possibly leading to generator failure. Use only authorized replacement parts and accessories and follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of shock or injury. Page — English important safety instructions Maintain the unit per maintenance instructions in this Operator’s Manual. Inspect the unit before each use for loose fasteners, fuel leaks, etc. Replace damaged parts.

SPECIFIC SAFETY RULES

When this generator is used to supply a building wiring system: generator must be installed by a qualified electrician and connected to a transfer switch as a separately derived system in accordance with NFPA 70, National Electrical Code. The generator shall be connected through a transfer switch that switches all conductors other than the equipment grounding conductor. The frame of the generator shall be connected to an approved grounding electrode. Failure to isolate the generator from power utility can result in death or injury to electric utility workers. Exhaust contains poisonous carbon monoxide, a colorless, odorless gas. Breathing exhaust can cause loss of consciousness and can lead to death. If running in a confined or partially-enclosed area, the air may contain a dangerous amount of carbon monoxide. To keep exhaust fumes from building up, always provide adequate ventilation. Always use a battery-powered carbon monoxide detector when running the generator. If you begin to feel sick, dizzy, or weak while using the generator, shut it off and get to fresh air immediately. See a doctor. You may have carbon monoxide poisoning. Place the generator on a flat, stable surface. Operate in a well-ventilated, well-lit area isolated from working areas to avoid noise interference. Operating the generator in wet conditions could result in electrocution. Keep the unit dry. Keep the generator a minimum of 3 feet away from all types of combustible material. Do not operate generator near hazardous material. Do not operate generator at a gas or natural gas filling station. Do not touch the muffler or cylinder during or immediately after use; they are HOT and will cause burn injury. Do not connect to a building’s electrical system unless a transfer switch has been properly installed by a qualified electrician. Do not allow the generator’s gas tank to overflow when filling. Fill to 1 in. below the top neck of the gasoline tank to allow for fuel expansion. Check the ventilation hole inside the fuel tank cap for debris. Do not block the vent. Do not smoke when filling the generator with gasoline. Shut down the engine and allow to cool completely before adding gasoline or lubricant to the generator. Do not remove the oil dipstick or the fuel tank cap when the engine is running. Pay close attention to all safety labels located on the generator. Keep children a minimum of 10 feet away from the generator at all times. The unit operates best in temperatures between 23°F and 104°F with a relative humidity of 90% or less. Specific modifications for high-altitude performance are needed if the generator will always be operated at altitudes above 5,000 feet. Contact your nearest authorized service center for more information and to have these modifications performed. Operating voltage and frequency requirement of all electronic equipment should be checked prior to plugging them into this generator. Damage may result if the equipment is not designed to operate within a +/- 10% voltage variation, and +/- 3 hz frequency variation from the generator name plate ratings. To avoid damage, always have an additional load plugged into the generator if solid state equipment (such as a television set) is used. A power line conditioner is recommended for some solid state applications. Save these instructions. Refer to them frequently and use them to instruct others who may use this product. If you loan someone this product, loan them these instructions also. Page — English SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION

Quart Volume Wet Conditions Alert Do not expose to rain or use in damp locations. Read The Operator’s Manual To reduce the risk of injury, user must read and understand operator’s manual before using this product. Eye Protection Always wear safety goggles or safety glasses with side shields and, as necessary, a full face shield when operating this product. Safety Alert Precautions that involve your safety. Electric Shock Failure to use in dry conditions and to observe safe practices can result in electric shock. Toxic Fumes Running generator gives off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting, or death. Fire/Explosion Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. Hot Surface To reduce the risk of injury or damage, avoid contact with any hot surface. Lifting Hazard To reduce the risk of serious injury, avoid attempting to lift the generator alone. Ground Consult with local electrician to determine grounding ­requirements before operation. Electrocution Failure to properly ground generator can result in electrocution, especially if the generator is equipped with a wheel kit. Page — English SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in property damage. SERVICE Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service, contact your nearest authorized service center or call 1-800-242-4672. When servicing, use only identical replacement parts.

To avoid death or serious personal injury, do not attempt to operate this product until you read thoroughly and understand completely the operator’s manual. If you do not understand the warnings and instructions in the operator’s manual, do not use this product. Call Homelite customer service for assistance. Observe all normal safety precautions to avoid electrical shock.

The operation of any products can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and, when needed, a full face shield. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always wear eye protection which is marked to comply with ANSI Z87.1.

SAVE THESE INSTRUCTIONS

Page — English symbols SAFETY LABELS The information below can be found on the generator. For your safety, please study and understand all of the labels before starting the generator. If any of the labels come off the unit or become hard to read, contact an authorized service center for replacement. You WILL be KILLED or SERIOUSLY HURT if you do not follow the Operator’s Manual instructions. Risk of Fire. Do not add fuel while the product is operating. Generator is a potential source of electric shock. Do not expose to moisture, rain, or snow. Do not operate with wet hands or feet. Exhaust contains poisonous carbon monoxide gas that can cause unconsciousness or DEATH. Operate in well-ventilated, outdoor areas away from open windows or doors. Using a generator indoors WILL KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell. Failure to properly ground generator can result in electrocution, especially if the generator is equipped with a wheel kit. NEVER use inside a home or garage, EVEN IF doors and windows are open. Do not expose to rain or use in damp locations. Only use OUTSIDE and far away from windows, doors, and vents. Fuel warning No smoking when filling with gasoline. Do not overfill. Full level is 1 in. below the top of the fuel neck. Stop the engine for five minutes before refueling to avoid the heat from the muffler igniting fuel vapors. engine LUBRICANT warning You must add lubricant before first operating the generator. The oil reservoir capacity is 1.1 qt. Always check the lubricant level before each operation. The lubricant level should always register between the hatched areas on the dipstick. The unit is equipped with a sensor which will automatically shut off the engine if the lubricant level falls below a safe limit. grounding ­warning National Electric Code requires generator to be grounded to an approved earth ground. Hot SURFACE warning Do not touch the muffler or aluminum cylinder of the engine. They are very HOT and will cause severe burns. Don’t put any flammable or combustible materials in the direct path of the exhaust. Page — English electrical extension cord cable size Refer to the table below to ensure the cable size of the extension cords you use are capable of carrying the required load. Inadequate size cables can cause a voltage drop, which can burn out the appliance and overheat the cord. Load in Watts Current in Amperes At 120V At 240V

Maximum Allowable Cord Length #8 Wire #10 Wire #12 Wire #14 Wire #16 Wire

500 ft. 300 ft. 200 ft. 125 ft.

350 ft. 200 ft. 125 ft. 100 ft.

250 ft. 150 ft. 100 ft. 50 ft.

150 ft. 100 ft. 65 ft.

175 ft. 125 ft. 75 ft.

90 ft. electric motor loads It is characteristic of common electric motors in normal operation to draw up to six times their running current while starting. This table may be used to estimate the watts required to start “Code G” electric motors; however, if an electric motor fails to start or reach running speed, turn off the appliance or tool immediately to avoid equipment damage. Always check the requirements of the tool or appliance being used compared to the rated output of the generator. Motor Size (H.P.) Running Watts 1/8 Watts Required to Start Motor Repulsion Induction Capacitor Split Phase

Page — English electrical generator Capacity Make sure the generator can supply enough continuous (running) and surge (starting) watts for the items you will power at the same time. Follow these simple steps.

1. Select the items you will power at the same time.

2. Total the continuous (running) watts of these items. This

is the amount of power the generator must produce to keep the items running. See the wattage reference chart at right.

3. Estimate how many surge (starting) watts you will need.

Surge wattage is the short burst of power needed to start electric motor-driven tools or appliances such as a circular saw or refrigerator. Because not all motors start at the same time, total surge watts can be estimated by adding only the item(s) with the highest additional surge watts to the total rated watts from step 2. Example: CAUTION: Do not overload the generator’s capacity. Exceeding the generator’s wattage/amperage capacity can damage the generator and/or electrical devices connected to it. Tool or Appliance Light Bulb − 75 Watt

Refrigerator/Freezer

Electric Water Heater

   0 Heating/Cooling Surge (Starting) Watts Window AC, 10,000 BTU

Kitchen 1/3 HP Well Pump

2200 Highest Surge Watts Total Continuous (Running) Watts Plus Highest Additional Surge Watts

POWER MANAGEMENT Typical Surge* ­(Starting) Watts Essentials Continuous (Running) Watts Tool or Appliance Typical Continuous* ­(Running) Watts Furnace Fan − 1/2 HP Coffee Maker

   0 Family Room Other To prolong the life of the generator and attached devices, it is important to take care when adding electrical loads to the generator. There should be nothing connected to the generator outlets before starting its engine. The correct and safe way to manage generator power is to sequentially add loads as follows:

1. With nothing connected to the generator, start the engine

as described later in this manual.

2. Plug in and turn on the first load, preferably the largest

3. Permit the generator output to stabilize (engine runs

smoothly and attached device operates properly).

4. Plug in and turn on the next load.

5. Again, permit the generator to stabilize.

6. Repeat steps 4 and 5 for each additional load.

Never add more loads than the generator capacity. Take special care to consider surge loads in generator capacity as previously described.

Table Saw/Radial Arm Saw − 10 in.

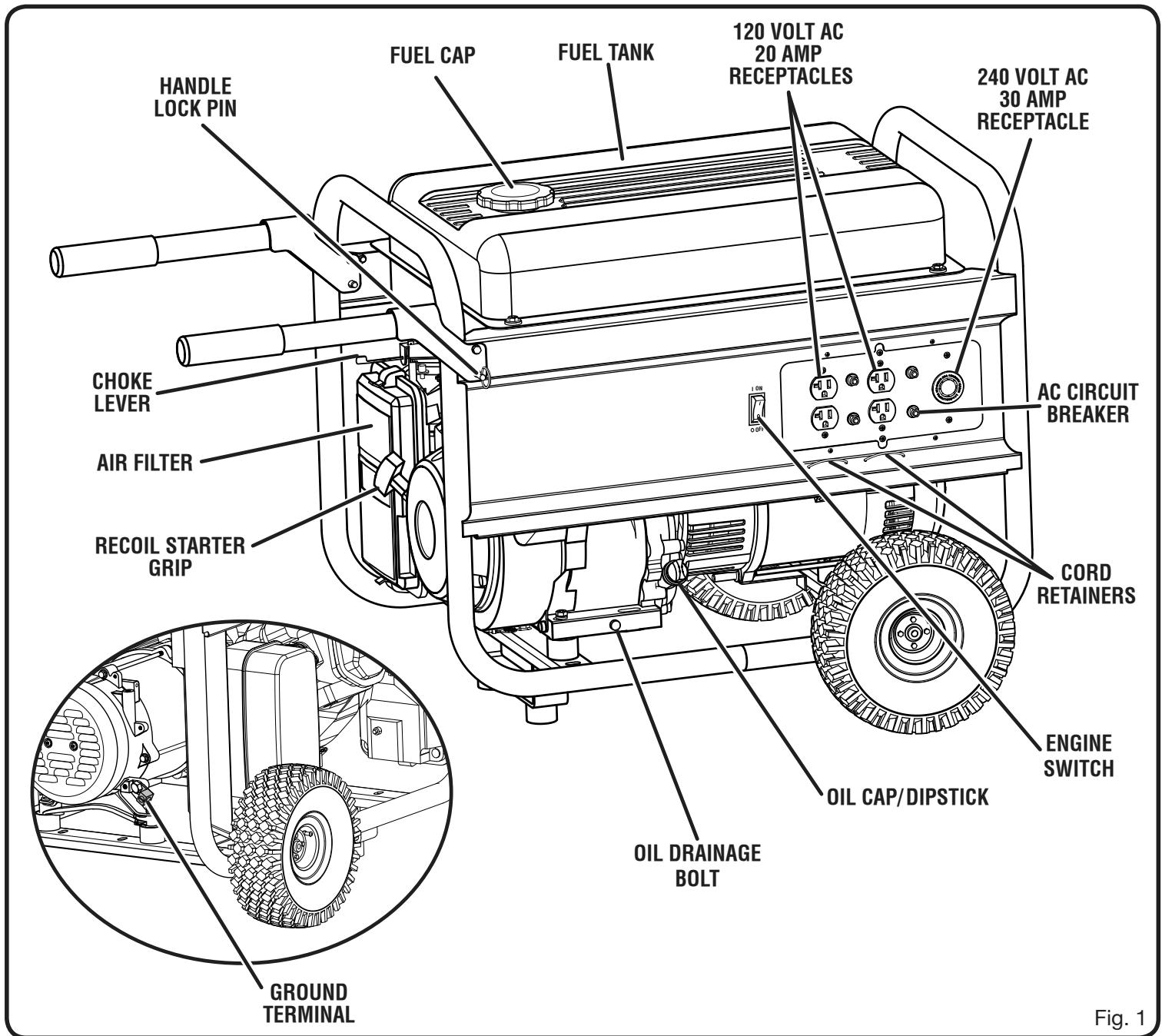

OFF air filter recoil starter grip cord retainers engine switch oil cap/ dipstick oil drainage bolt ground terminal Fig. 1 Page 10 — English FEATURES

ground terminal See Figure 1. The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all ­ operating features and safety rules. The ground terminal is used to assist in properly grounding the generator to help protect against electrical shock. Consult with a local electrician for grounding requirements in your area. oil cap/dipstick AC circuit breaker Remove the oil fill cap to check and add lubricant to the generator when necessary. The circuit breaker is provided to protect the generator against electrical overload. oil drainage bolt air filter When changing the engine lubricant, the oil drainage bolt is loosened to allow old engine lubricant to be drained. The air filter helps to limit the amount of dirt and dust drawn into the unit during operation. receptacleS cord retainers Your generator has the following single phase, 60 Hz outlets: four 120 Volt AC, 20 Amp receptacles, and one 240 Volt AC, 30 Amp receptacle. These can be used for operating appropriate appliances, electrical lighting, tools, and motor loads. Use the cord retainers to prevent plugs from being accidentally pulled out of the 120 volt receptacles. recoil starter grip choke lever The choke lever is used when starting the engine. fuel tank The recoil starter grip is used (along with the engine switch) to start the generator’s engine. The fuel tank has a capacity of 7 gallons. fuel valve The flow of fuel through the generator is controlled by the position of the fuel valve. Page 11 — English loose parts list The following items are included with the generator:

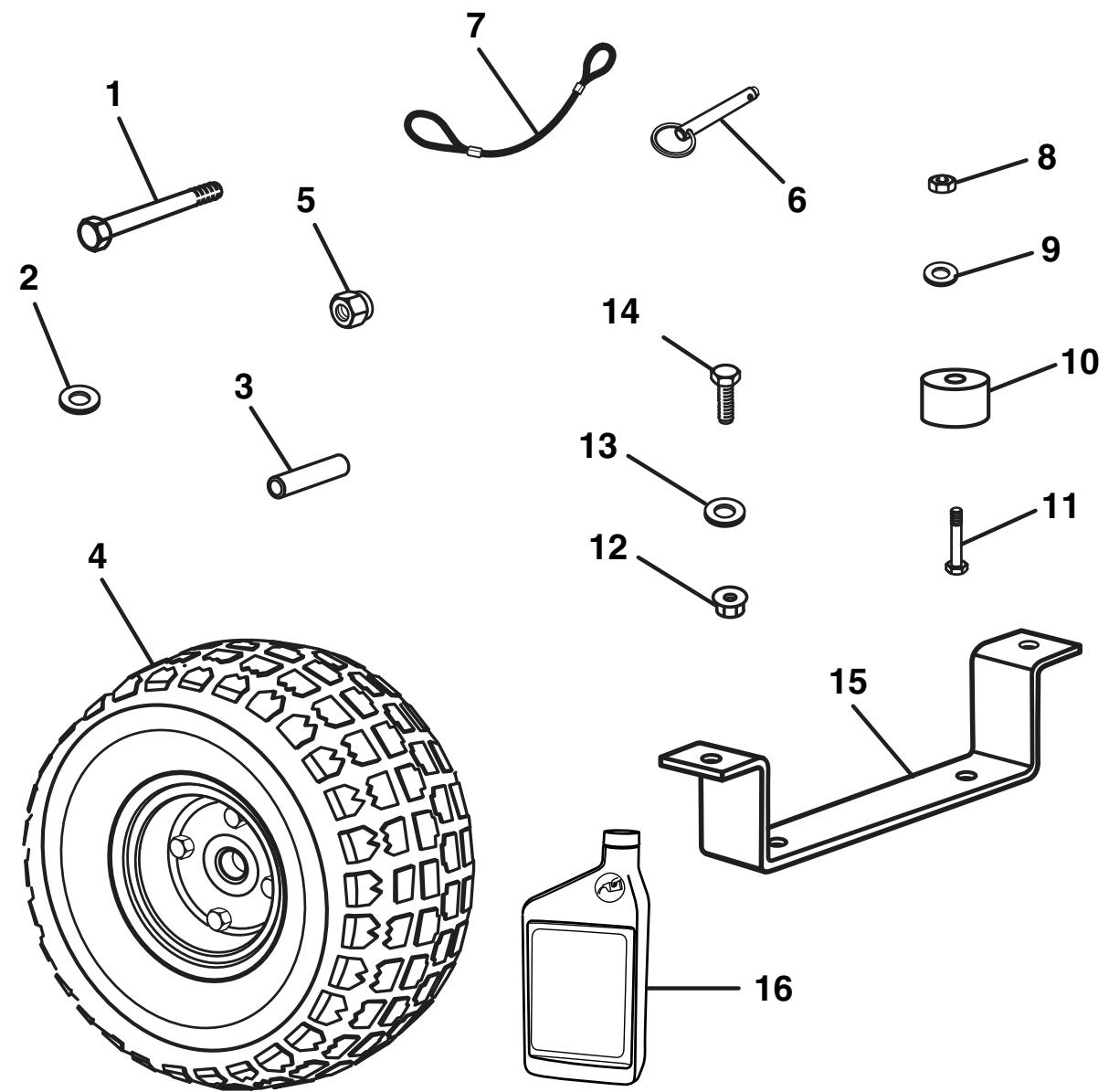

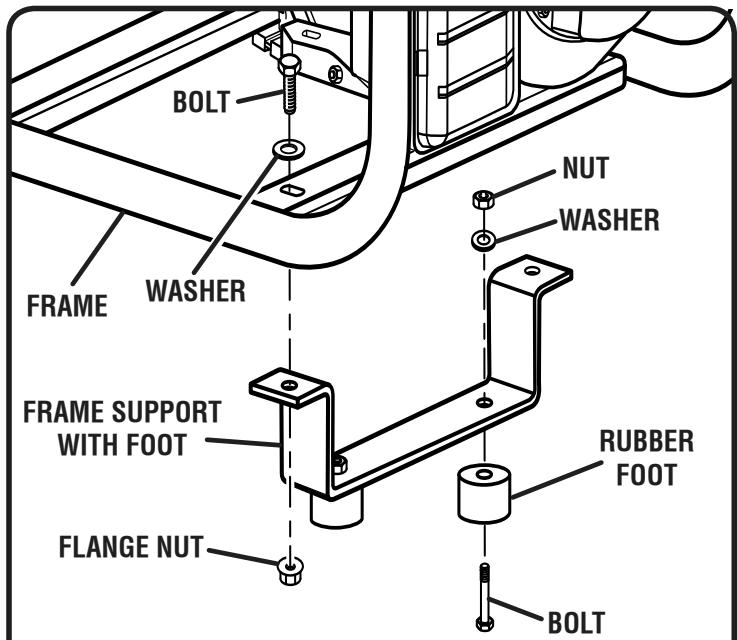

• Page 12 — English Description Qty. Rubber Foot p. 2
• Bolt (1/4-20 x 1-1/2 in.) p. 2
• Flange Nut (5/16-18) p. 2
• Washer (5/16 in.) p. 2
• Bolt (5/16-18 x 1 in.) p. 2
• Frame Support p. 1
• Engine Lubricant p. 1

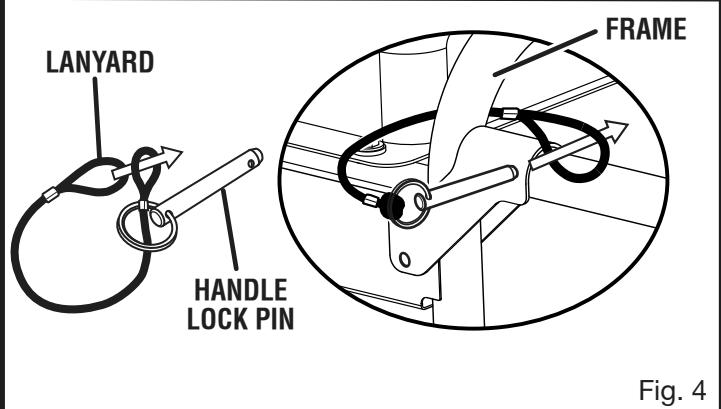

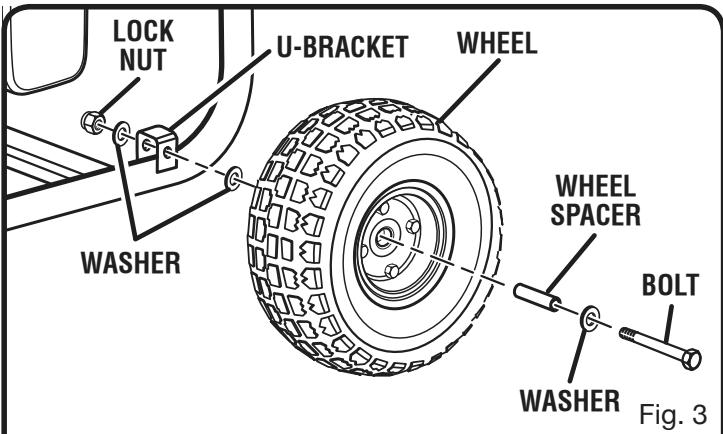

• Operator’s Manual (not shown) ASSEMBLY UNPACKING This product requires assembly. bolt Carefully cut the box down the sides then remove the machine and any accessories from the box. Make sure that all items listed in the packing list are included. NOTE: This machine is heavy and requires a minimum of two people to lift. To avoid back injury, lift with your legs and not your back. Inspect the unit carefully to make sure no damage occurred during shipping. Do not discard the packing material until you have ­carefully inspected and satisfactorily operated the ­product. If any parts are damaged or missing, please call 1-800-242-4672 for assistance. nut washer frame washer frame support WITH FOOT rubber foot flange nut p. 1

bolt If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to heed this warning could result in serious personal injury. Fig. 2 installing the frame support See Figure 2.

Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

Do not attempt to operate the generator until assembly is complete. Failure to comply could result in possible serious personal injury. NOTE: Do not put fuel or lubricant in the generator before installing the feet, frame support, and wheels. installing feet on the frame support See Figure 2. Locate the following items: 2 rubber feet 2 lock nuts (1/4-20) 2 washers (1/4 in.) 2 bolts (1/4-20 x 1-1/2 in.) Insert bolt through foot, then through frame support as shown. Slide a washer on the bolt, then install nut. Tighten nut securely. NOTE: Be careful not to overtighten so that foot material collapses. Repeat with remaining foot. Install the frame support on the bottom of the generator frame on the same side as the handle. Locate the following items: Frame support 2 flange nuts (5/16-18) 2 washers (5/16 in.) 2 bolts (5/16-18 x 1 in.) Raise the end of the generator where the recoil starter is located high enough to gain access to the frame bottom; securely position props underneath to support. Align the holes on the frame support with the holes on the generator frame. Slide a washer on the bolt, then insert the bolt through the hole in the generator frame so it extends down through the frame support. Install flange nut and tighten securely. Repeat on other side. Page 13 — English assembly installing the wheels See Figure 3. Wheels are provided to assist in moving the generator to the desired location and should be installed on the side opposite the handle. Locate the following items: 2 bolts (3/8-16 x 4-1/4 in.) 6 washers (3/8 in.) 2 spacers (.38 ID) 2 wheels 2 lock nuts (3/8-16) Raise the end of the generator opposite the handle high enough to gain access to the frame bottom; securely position props underneath to support. lock nut u-bracket wheel wheel spacer washer bolt washer Fig. 3 frame lanyard Insert a wheel spacer into the center of the wheel. Place a washer on the bolt, then slide bolt through the wheel. Thread another washer on the bolt, then slide the bolt through the U-bracket frame on generator. handle lock pin Place a washer on end of bolt. Install nut on bolt and tighten securely. Repeat the process on the other side to install second wheel. Fig. 4 frame securing the handle See Figures 4 - 5. Locate the following items: Handle lock pin Lanyard handle Attach the lanyard to the handle lock pin and the handle as shown in figure 4. Insert the pin through the hole in the handle and the generator frame to secure handle in place.

Do not attempt to lift the unit by the handle assembly. If it is necessary to lift the generator, always grasp by the frame. Use proper lifting techniques to avoid back injury. Page 14 — English handle lock pin hole Fig. 5 operation BEFORE OPERATING the UNIT

Carbon Monoxide. Using a generator indoors will KILL YOU IN MINUTES. Generator exhaust contains high levels of carbon monoxide (CO), a poisonous gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even if you cannot smell the exhaust, you could be breathing CO. Never use a generator inside homes, garages, crawlspaces, or other partly enclosed areas. Deadly levels of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply enough fresh air. ONLY use a generator outdoors and far away from open windows, doors, and vents. These openings can pull in generator exhaust. Even when you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air RIGHT AWAY. See a doctor. You could have carbon monoxide poisoning.

Failure to properly ground generator can result in electrocution, especially if the generator is equipped with a wheel kit. National Electric Code requires generator to be properly grounded to an approved earth ground. Call an electrician for local grounding requirements. Only use OUTSIDE and far away from windows, doors, and vents. NEVER use inside a home or garage, EVEN IF doors and windows are open. Always position the generator on a flat firm surface. CAUTION: Attempting to start the engine before it has been properly filled with lubricant will result in equipment failure. checking/adding lubricant See Figure 6. Engine lubricant has a major influence on engine performance and service life. For general, all-temperature use, SAE 10W-30 is recommended. Always use a 4-stroke motor lubricant that meets or exceeds the requirements for API service classification SJ. NOTE: Non-detergent or 2-stroke engine lubricants will damage the engine and should not be used. Unscrew the oil cap/dipstick and remove. Wipe dipstick clean and re-seat in hole; do not rethread. Remove dipstick again and check lubricant level. Lubricant level should fall between the hatched areas on the dipstick. If level is low, add engine lubricant until the fluid level rises to the upper portion of the dipstick. Replace and secure the oil cap/dipstick.

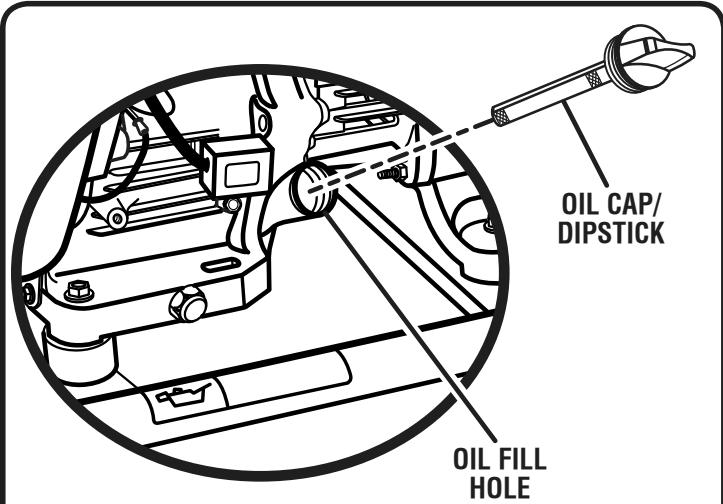

Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. oil cap/­ dipstick

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury. oil fill hole APPLICATIONS This generator is designed to supply electrical power for operating compatible electrical lighting, appliances, tools, and motor loads. Page 15 — English Fig. 6 operation checking/adding fuel fuel cap See Figure 7. Remove the fuel cap. fuel tank engine switch Fill the fuel tank to 1 in. below the top of the fuel neck. Replace and secure the fuel cap. NOTE: Always use unleaded gasoline with a pump octane rating of 86 or higher. Never use old, stale, or contaminated gasoline, and do not use an oil/gas mixture. Do not allow dirt or water into the fuel tank. using fuel stabilizer Fuel gets old, oxidizes, and breaks down over time. Adding a fuel stabilizer (not included) extends the usable life of fuel and helps prevent deposits from forming that can clog the fuel system. Follow fuel stabilizer manufacturer’s directions for correct ratio of stabilizer to fuel. Add stabilizer to fuel tank, then fill with gasoline following previous instructions.

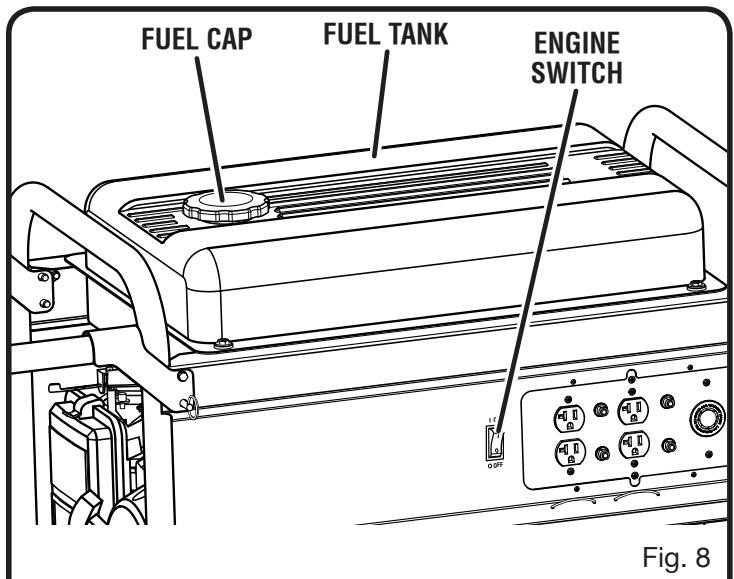

OFF Fig. 8 fuel valve NOTE: Fuel stabilizer and gasoline can be mixed prior to filling the tank by using a gas can or other approved fuel container and shaking gently to combine. Replace and secure the fuel tank cap. Start and run the engine for at least 5 minutes to allow stabilizer to treat the entire fuel system. OXYGENATED FUELS Some conventional gasolines are blended with alcohol or an ether compound. These gasolines are collectively referred to as oxygenated fuels. To meet clean air standards, some areas of the United States and Canada use oxygenated fuels to help reduce emissions. If using an oxygenated fuel, make sure it is unleaded and meets the minimum octane rating requirements. Before using an oxygenated fuel, try to confirm the fuel’s contents. Some states/provinces require this information to be posted on the pump. The following are the EPA approved percentages of oxygenates: Ethanol (ethyl or grain alcohol) 10% by volume. You may use gasoline containing up to 10% ethanol by volume. Gasoline containing ethanol may be marketed under the name “Gasohol.” Do not use E85 fuel. MTBE (methyl tertiary butyl ether) 15% by volume. You may use gasoline containing up to 15% MTBE by volume. Methanol (methyl or wood alcohol) 5% by volume. You may use gasoline containing up to 5% methanol by volume as long as it also contains cosolvents and corrosion inhibitors to protect the fuel system. Gasoline containing more than 5% methanol by volume may cause starting and/or performance problems. It may also damage metal, rubber, and plastic parts of the generator or your fuel system. If you notice any undesirable operating symptoms, try another service station or switch to another brand of gasoline. recoil startER Fig. 9 grip NOTE: Fuel system damage or performance problems resulting from the use of an oxygenated fuel containing more than the percentages of oxygenates stated previously are not covered under warranty. CAUTION: On a level surface with the engine off, check the lubricant level before each use of the generator. Starting the engine See Figures 8 - 10. NOTE: If location of generator is not level, the unit may not start or may shut down during operation. Unplug all loads from the generator. Turn the fuel valve to the ON position. Move the choke lever right to the START position. NOTE: If engine is warm or the temperature is above 50˚F, move the choke lever left to the RUN position. Put the engine switch in the ON ( I ) position. Pull the recoil starting grip until the engine runs (a maximum of 6 times). Page 16 — English operation NOTE: Do not allow the grip to snap back after starting; return it gently to its original place. Allow the engine to run for 30 seconds, then move the choke lever left to the RUN position. Stopping the engine See Figures 8 - 9. To stop the engine under normal operating conditions: Remove any load from the generator. Turn the fuel valve to the OFF position. Put the engine switch in the OFF ( O ) position. fuel valve To stop the engine in an emergency situation: Put the engine switch in the OFF ( O ) position. Fig. 9 move choke lever left to RUN move choke lever right to start Fig. 10 maintenance To clean the unit:

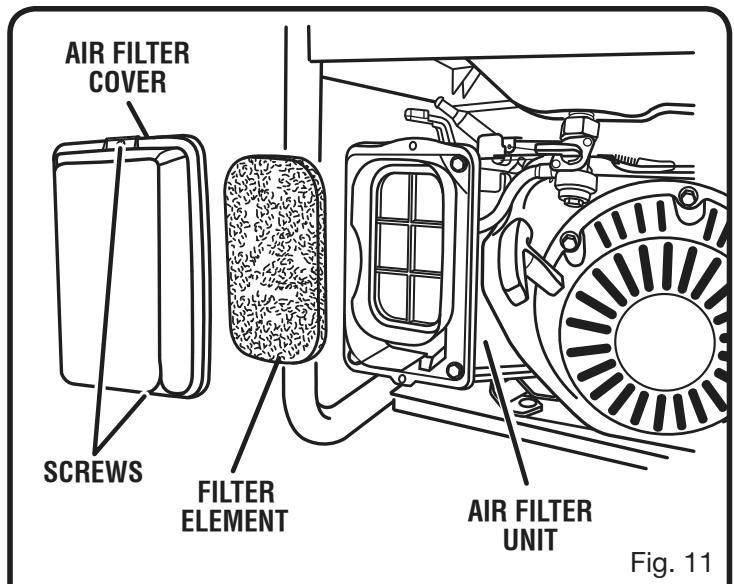

When servicing, use only identical Homelite replacement parts. Use of any other parts may create a hazard or cause product damage. Use a soft bristle brush and/or vacuum cleaner to loosen and remove dirt and debris. Clean air vents with low pressure air that does not exceed 25 psi. Only the parts shown on the parts list are intended to be repaired or replaced by the customer. All other parts should be replaced at an authorized service center. Wipe the exterior surfaces of the generator with a damp cloth. GENERAL MAINTENANCE See Figure 11. Keep the generator in a clean and dry environment where it is not exposed to dust, dirt, moisture, or corrosive vapors. Do not allow the cooling air slots in the generator to become clogged with foreign material such as leaves, etc. For proper performance and long life, keep air filter clean. Loosen the screws on the top and bottom of the air filter cover. Remove cover and set aside. Do not use a garden hose to clean the generator. Water entering the fuel system or other internal parts of the unit can cause problems that will decrease the life of the generator. If the filter element is dirty, clean with warm, soapy water. Rinse and let dry. checking/CLEANING AIR FILTER Remove the filter element. Apply a light coat of engine lubricant to the element, then squeeze it out. Page 17 — English maintenance Replace the element in the air filter unit. Replace the air filter cover and tighten screws to secure. air filter cover NOTE: Do not run the generator without the air filter. Rapid engine wear will result. changing engine lubricant See Figure 12. Remove the oil cap/dipstick. Place a container underneath the oil drainage bolt to collect used lubricant as it drains. Unscrew the oil drainage bolt and remove. Allow lubricant to drain completely. Reinstall the oil drainage bolt and tighten securely. screws Refill with lubricant following the instructions in the ­Checking/Adding Lubricant section. filter element air filter unit 120V AC/CA Reinstall the oil cap/dipstick. Note: Used lubricant should be disposed of at an approved disposal site. See your local oil retailer for more information. 120/240V AC/CA Fig. 11 120V AC/CA Cord Retainer

CIRCUIT BREAK DISYUNTOR Cord Retainer spark plug maintenance See Figure 13. The spark plug must be properly gapped and free of deposits in order to ensure proper engine operation. To check: Remove the spark plug cap. Clean any dirt from around base of spark plug. Remove spark plug using wrench (not included). Inspect spark plug for damage, and clean with a wire brush before reinstalling. If insulator is cracked or chipped, spark plug should be replaced. NOTE: If replacing, use the following recommended spark plug or equivalent: NGK BPR4ES. Measure plug gap. The correct gap is 0.028−0.031 in. (0.7-0.8 mm). To widen gap, if necessary, carefully bend the ground (top) electrode. To lessen gap, gently tap ground electrode on a hard surface. Seat spark plug in position; thread in by hand to prevent cross-threading. Tighten with wrench to compress washer. If spark plug is new, use 1/2 turn to compress washer appropriate amount. If reusing old spark plug, use 1/8 to 1/4 turn for proper washer compression. NOTE: An improperly tightened spark plug will become very hot and could damage the engine. oil drainage bolt oil CAP/ dipstick Fig. 12 spark plug spark plug cap Fig. 13 Page 18 — English MAINTENANCE

CLEANING THE EXHAUST PORT AND

MUFFLER Depending on the type of fuel used, the type and amount of lubricant used, and/or your operating conditions, the exhaust port and muffler may become blocked with carbon deposits. If you notice a power loss with your gas-powered products, you may need to remove these deposits to restore performance. We highly recommend that only qualified service technicians perform this service. spark arrestor See Figure 14. Inspect the spark arrestor for breaks or holes. Replace if necessary. To purchase a replacement spark arrestor contact Homelite customer service at 1-800-242-4672. Use a brush to remove carbon deposits from the spark arrestor screen as needed. draining fuel tank/carburetor Fig. 14 fuel line fuel valve See Figures 15 - 16. To help prevent gum deposits in the fuel system, drain the fuel from the tank and carburetor before storing.

DRAINING THE FUEL TANK

petcock Turn the engine switch off ( O ). Fig. 15 Turn the fuel valve to the OFF position. Remove the fuel line from the petcock by squeezing the ends of the retaining clip and sliding the fuel line off. Install one end of a drain line over the petcock, and place the other end in a fuel container large enough to catch the fuel being drained from the tank. Turn the fuel valve to the ON position. When the fuel has drained from the tank, close the fuel valve and reinstall fuel line on petcock. draining the carburetor Turn the engine switch off ( O ). Turn the fuel valve to the OFF position. Position a suitable container under the carburetor drain screw to catch fuel; loosen the screw. Allow fuel to drain completely into container. Retighten drain screw. NOTE: Consult hazardous waste management guidelines in your area for the proper way to dispose of used fuel. Transporting Turn engine switch OFF ( O ). Turn the fuel valve to the OFF position. Make sure engine and exhaust of unit is cool. Empty the fuel tank. Do not drop or strike unit or place under heavy objects. Page 19 — English carburetor drain screw Fig. 16 MAINTENANCE storage When preparing the generator for storage, allow the unit to cool completely then follow the guidelines below. storage time prior to storing Less than 2 months Drain gasoline from tank and dispose of in a suitable container according to state and local ­ordinances. 2 months to 1 year Drain fuel from carburetor. Drain gasoline from tank and dispose of in a suitable container according to state and local ­ordinances. 1 year or more Drain fuel from the carburetor. Remove spark plug. Drain gasoline from tank and dispose of in a suitable container according to state and local ­ordinances. Put a tablespoon of engine oil into the spark plug cylinder. Turn the engine slowly with the pull rope to distribute the oil. Reinstall spark plug. Change engine lubricant. After removal from storage: Fill with fresh gasoline. MAINTENANCE SCHEDULE Before each use Check Engine Lubricant Every 6 months or 100 hours of operation Every year or after 300 hours of operation

Change Engine Lubricant Check Air Filter After 1st month Every 3 months or 20 hours of or 50 hours of operation operation

Check/Adjust Spark Plug

Check/Adjust Idle Speed

Clean Fuel Tank and Filter*

• These items should only be carried out by an authorized service center. NOTE: Maintenance should be performed more frequently when generator is used in dusty areas. When generator has exceeded the maximum figures specified in the table, maintenance should still be cycled ­according to the intervals of time or hours stated herein. Page 20 — English troubleshooting PROBLEM POSSIBLE CAUSE Engine will not start. Engine switch is off. No fuel. Lubricant level is low. Engine lacks power. Fuel element clogged. AC receptacle does not work. Circuit breaker is off. Item plugged in is defective. SOLUTION Turn engine switch to ON. Fill fuel tank. Check engine lubrincant level and fill, if ­necessary. Fuel valve is off. Turn fuel valve on. Spark plug faulty, fouled, or improperly Replace spark plug. gapped. Choke lever is in RUN position. Move choke lever to START position. Engine stored without treating or Drain fuel and carburetor. Refuel with draining gasoline, or refueled with bad fresh gasoline. gasoline. Check air filter element. Clean or ­replace as needed. Engine stored without treating or Drain fuel and carburetor. Refuel with draining gasoline, or refueled with bad fresh gasoline. If problem continues, gasoline. contact your nearest authorized service center. Generator makes a “spark knock” or An occasional light “knocking” or “ping“pinging” noise. ing” under heavy load is not a cause for concern. However, if the knocking or pinging occurs under normal load at a steady engine speed, the problem may be with the brand of gasoline being used. Turn ON the AC circuit breaker. Try a different item. Switch to a different brand of gasoline, making sure that the octane rating is 86 or higher. If problem continues, contact your nearest authorized service center. If problem persists after trying the above solutions, contact your nearest authorized service center for assistance. The following symptoms may indicate problems that will affect the emissions level of the unit: Hard starting or stalling after starting Rough idle Misfiring or backfiring under load Afterburning (backfiring) Black exhaust smoke or high fuel consumption If you encounter any of these symptoms, have the unit inspected and repaired by the nearest authorized service ­center. Page 21 — English WARRANTY LIMITED WARRANTY WARRANTY COVERAGE Homelite Consumer Products, Inc., (the Company) warrants to the original retail purchaser that this Homelite Product is free from defects in material and workmanship and agrees to repair or replace, at the Company’s sole discretion, any defective Product free of charge within these time periods from the date of purchase: Two years, if the Product is used solely for personal, family, or household use; One year, if the Product is used for business or commercial use. This warranty applies only to Products sold within the United States of America, the District of Columbia, Canada, Mexico, the Commonwealth of Puerto Rico, the Virgin Islands, Guam, the Canal Zone, or American Samoa. This warranty is not transferable and does not cover damage resulting from defects other than in material or workmanship, or damage caused by unreasonable use, including the failure to provide reasonable and necessary maintenance. Other items not covered under this warranty include: Transportation charges for sending the product to the Company or its authorized service representative for warranty service, or for shipping repaired or replacement products back to the customer; these charges must be borne by the original retail purchaser. Engine. Your Product is equipped with an engine that is covered exclusively by a separate warranty from the engine manufacturer. Please refer to the engine manual included with the Product for warranty information related to the engine. Damages caused by abuse, accident, misuse, neglect, alteration, modification, the effects of corrosion, erosion, normal wear and tear or repairs by other than the Company or its authorized service representative. Warranty is voided if the customer fails to install, maintain and operate the product in accordance with the instructions and recommendations of the Company as set forth in the Product’s operator’s manual or if the Product is used as rental equipment. The Company will not pay for repairs or adjustments to the Product, or for any costs or labor, performed without the Company’s prior authorization.

SAVE YOUR SALES SLIP

Proof of purchase in the form of your dated sales receipt, cash register slip, etc. showing the serial number and the model of your Product will be required before the Company and/or its authorized service representatives can perform warranty service on the Product.

EXCLUSIONS AND LIMITATIONS

HOW TO OBTAIN WARRANTY SERVICE

For warranty service: Call toll free 1-800-242-7462, or write to Homelite Consumer Products, Inc., 1428 Pearman Dairy Road, Anderson, SC 29625. For warranty service outside the USA, please contact your local Homelite dealer. Page 22 — English WARRANTY Yamaha Motor Corporation USA Spark Ignited Small Off-Road Equipment (SORE) Limited and EPA Emissions Warranty Yamaha Motor Corporation, USA, hereby warrants that new Yamaha Spark Ignited Small Off Road Engines, hereafter called SORE engines, purchased from an authorized Yamaha SORE engine dealer in the continental United States will be free from defects in material and workmanship for the period of time stated herein, subject to certain stated limitations. Period of Warranty — Any new Yamaha SORE engine purchased for private, non-commercial use from an authorized Yamaha SORE engine dealer in the continental United States will be warrantied against defects in material or workmanship for a period of two (2) years from date of purchase, subject to exclusions noted herein. Any Yamaha SORE engine purchased and utilized for commercial applications will be warrantied for a period of one (1) year from the date of purchase, subject to exclusions noted herein. For Yamaha SORE engines used in a rental application, the warranty will be for ninety (90) days from the date of purchase, subject to the exclusions noted herein. During the period of warranty any authorized Yamaha SORE engine repair station will, free of charge, repair or replace, at Yamaha’s option, any part adjudged defective by Yamaha due to faulty workmanship or material from the factory. Parts used in warranty repairs will be warrantied for the balance of the product’s warranty period. All parts replaced under warranty become property of Yamaha Motor Corporation USA. Emissions warranty — emissions-related components will be warrantied for 2 years regardless of commercial or non­commercial use. General Exclusions from this warranty shall include any failures caused by: a. Installation of parts or accessories that are not qualitatively equivalent to genuine Yamaha parts. b. Abnormal strain, neglect, or abuse. c. Lack of proper maintenance. d. Accident or collision damage. Specific Exclusions from this warranty shall include parts replaced due to normal wear or routine maintenance. The Customer’s Responsibility under this warranty shall be to:

1. Operate and maintain the SORE engine as specified in the appropriate Owner’s Manual.

2. Give notice to an authorized Yamaha SORE engine repair station of any and all apparent defects within ten (10) days

after discovery, and make the unit available at time for inspection and repairs as requested by the Yamaha SORE repair ­station. An approved Yamaha SORE engine repair station may be found by phoning 1-866-788-7398. Warranty Transfer: To transfer the warranty from the original purchaser to any subsequent purchaser(s), please contact 1-866-788-7398 to find out the necessary procedures. In no case will the warranty be extended beyond the original period. Yamaha Motor Corporation, USA, makes no other warranty of any kind, expressed or implied. All implied warranties of merchantability and fitness for a particular purpose which exceed the obligation and time limits stated in this warranty are hereby disclaimed by Yamaha Motor Corporation, USA, and excluded from this warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Also excluded from this warranty are any incidental or consequential damages including loss of use. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Yamaha Motor Corporation, USA 1-866-788-7398 Page 23 — English 5700 WATT GENERATOR

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. CALIFORNIA PROPOSITION 65 Série HG5700 Serie HG5700 SERVICE For parts or service, contact your nearest Homelite authorized service dealer. Be sure to provide all relevant information when you call or visit. For the location of the authorized service dealer nearest you, please call 1-800-242-4672 or visit us online at www.homelite.com. REPAIR PARTS The model number of this product is found on a plate or label attached to the housing. Please record the serial number in the space provided below. MODEL NO.__________________________________
