AFH211B - Fan heater BESTRON - Free user manual and instructions

Product type	Fan heater
Maximum power	2,000 W
Heating levels	2 levels: 1,000 W and 2,000 W
Selector positions	4 (off, cool air, 1,000 W, 2,000 W)
Adjustable thermostat	Yes
Cool air fan function	Yes
Overheat protection	Yes
Tip-over protection	Yes
Power-on indicator light	Yes
Integrated carrying handle	Yes
Recommended surface	Up to 20 m²
Dimensions (L x W x H)	19 x 13 x 22 cm
Weight	0.85 kg
Cable length	1.13 m
Color	Black
Manufacturer reference	AFH211B
EAN code	8712184041565
Brand	Bestron
Manufacturer warranty	5 years

Frequently Asked Questions - AFH211B BESTRON

How do I adjust the heating power of the BESTRON AFH211B?

The 4-position selector allows you to choose between: off, cold air (fan only), 1,000 W (moderate heat) and 2,000 W (maximum power). Turn the knob to the desired position according to your needs. The 1,000 W position is ideal for maintaining an already warm room, the 2,000 W position for a rapid temperature rise.

Can the AFH211B be used as a simple fan in summer?

Yes. The 'cold air' position activates the fan without engaging the heating elements. This allows for fresh air circulation in summer without excessive electricity consumption. Simply turn the selector to this position.

Why did the heater stop suddenly?

The BESTRON AFH211B is equipped with an overheat protection that automatically shuts off the device if the internal temperature becomes too high. This often occurs when the ventilation grills are obstructed or too close to a wall. Unplug the device, let it cool for 10 to 15 minutes, clear the grills, then restart it.

For what room size is this fan heater suitable?

The BESTRON AFH211B is recommended for rooms up to 20 m². It is suitable as a supplementary heater in an office, bedroom, or a small well-insulated living room. For larger areas, it will be insufficient if used alone.

How does the adjustable thermostat work?

The thermostat allows you to set a target temperature. Once the room reaches the desired temperature, the heating automatically stops, then resumes if the temperature drops. Turn the thermostat knob to a higher value to increase the target and reduce shutdown cycles.

Is the device safe if it tips over?

Yes. The BESTRON AFH211B includes a tip-over protection that automatically cuts off the power in the event of a fall or accidental tip-over. This safety feature significantly reduces the risk of fire. However, never leave the device on unattended.

What is the length of the power cord?

The power cord is 1.13 m long. If this length is insufficient, use an approved extension cord capable of supporting at least 2,000 W. Avoid coiling the cord when the device is in operation, as this can cause overheating.

Can this heater be used in the bathroom?

No. The BESTRON AFH211B does not have a moisture protection rating. The manufacturer recommends using it in well-insulated areas and on a temporary basis. Using it in a bathroom or any damp space is dangerous and strongly discouraged.

How do I clean the BESTRON AFH211B?

Always unplug the device and let it cool completely before cleaning. Wipe the exterior with a dry or very slightly damp cloth. Do not use abrasive products or water directly on the device. Gently vacuum the grills to remove accumulated dust.

What is the power consumption of the AFH211B?

At 2,000 W, one hour of operation consumes about 2 kWh. At 1,000 W, consumption is halved to 1 kWh per hour. The adjustable thermostat limits heating cycles and thus reduces overall consumption.

What are the dimensions and weight of the device?

The BESTRON AFH211B measures 19 x 13 x 22 cm and weighs 0.85 kg. Its integrated handle makes it easy to transport from one room to another. Its compact size allows it to be placed on both a desk and the floor.

What is the warranty for the BESTRON AFH211B?

The BESTRON AFH211B comes with a manufacturer's warranty. The official Bestron website states a 5-year warranty on its products. Keep your proof of purchase and the original packaging to facilitate any service requests.

USER MANUAL AFH211B BESTRON

CONDITIONS DE GARANTIE

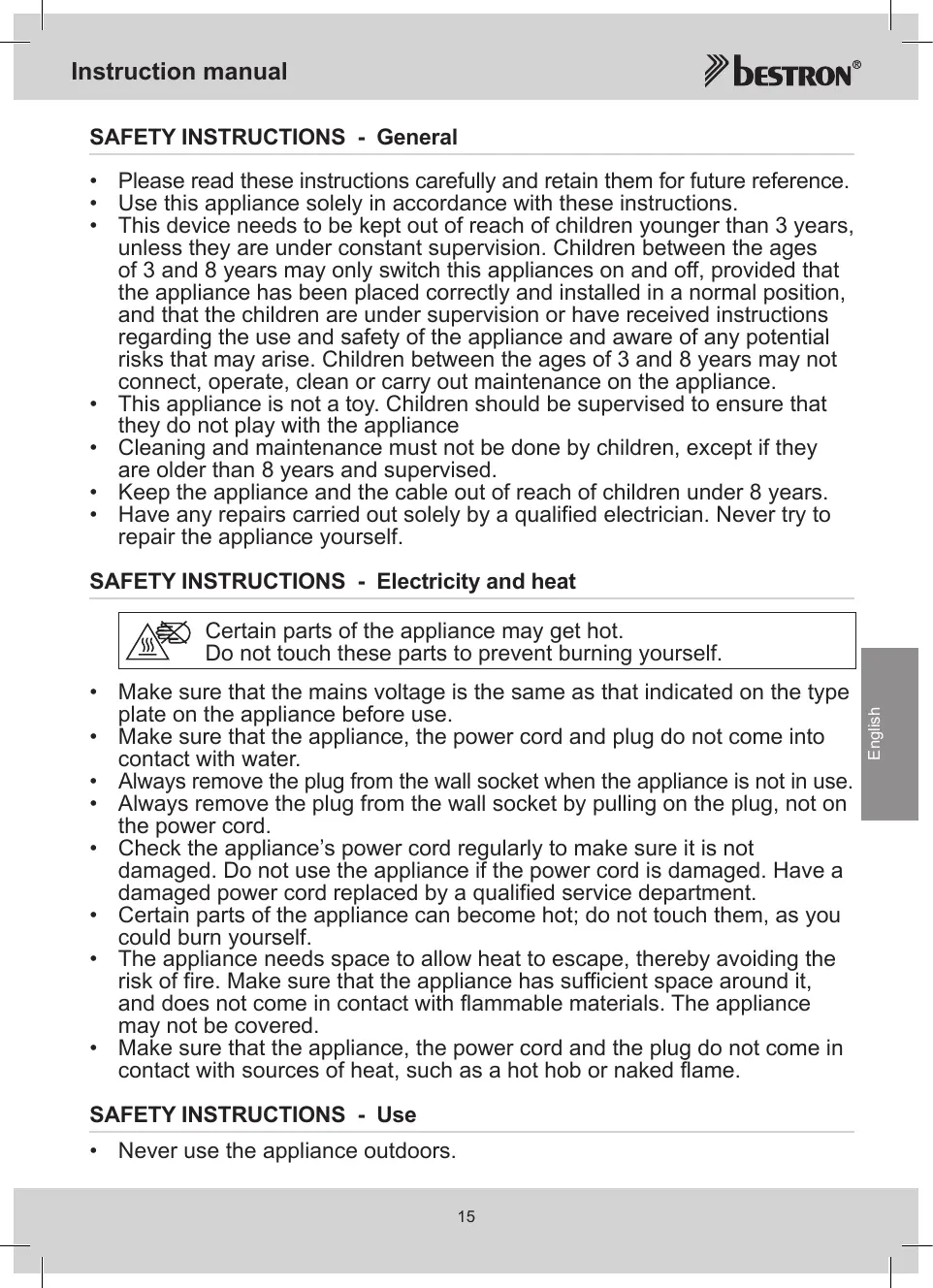

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully and retain them for future reference.
• Use this appliance solely in accordance with these instructions.
• This device needs to be kept out of reach of children younger than 3 years, unless they are under constant supervision. Children between the ages of 3 and 8 years may only switch this appliances on and off, provided that the appliance has been placed correctly and installed in a normal position, and that the children are under supervision or have received instructions regarding the use and safety of the appliance and aware of any potential risks that may arise. Children between the ages of 3 and 8 years may not connect, operate, clean or carry out maintenance on the appliance.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance
• Cleaning and maintenance must not be done by children, except if they are older than 8 years and supervised.
• Keep the appliance and the cable out of reach of children under 8 years.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

Certain parts of the appliance may get hot.

Do not touch these parts to prevent burning yourself.

• Make sure that the mains voltage is the same as that indicated on the type plate on the appliance before use.
• Make sure that the appliance, the power cord and plug do not come into contact with water.
  Always remove the plug from the wall socket when the appliance is not in use.
• Always remove the plug from the wall socket by pulling on the plug, not on the power cord.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified service department.
  Certain parts of the appliance can become hot; do not touch them, as you could burn yourself.
• The appliance needs space to allow heat to escape, thereby avoiding the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable materials. The appliance may not be covered.
• Make sure that the appliance, the power cord and the plug do not come in contact with sources of heat, such as a hot hob or naked flame.

SAFETY INSTRUCTIONS - Use

• Never use the appliance outdoors.

• Never use the appliance in humid rooms.

• Make sure that your hands are dry when you touch the appliance, the power cord or the plug.
• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before cleaning the appliance or storing it after use.
• Never immerse the appliance, the cord or the plug in water or any other fluid.
• Take care that inflammable objects do not get in touch with warm air of the fan heater.
• Do not insert objects through the grille.
• Use the appliance only in a vertical position.
• Do not place the fan heater directly beneath the wall socket or on deep ply carpet.
• Keep a free space of 50cm besides and above the appliance and 120cm in front of the appliance.
• This appliance may not be used through an external timer or by means of a remote control.
• Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately. Do not use the appliance any more.

In order to avoid overheating, do not cover the device.

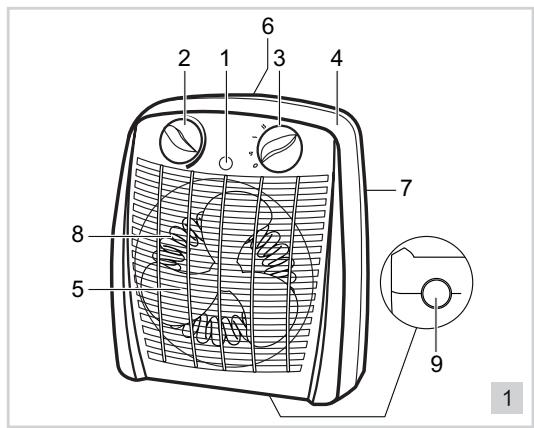

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

1. On/Off indication light
2. Thermostat dial
3. Function button
4. Housing
5. Air removal grille
6. Handle
7. Air supply opening
8. Heating element
9. Tip over protection

BEFORE FIRST USE

Remove the fan heater from the packaging and remove all the packaging materials.

USE

1. Place the fan heater on a stable surface and ensure that the grilles for the supply and removal of the air are unobstructed.
2. Insert the plug into the plug socket.
3. Use the function button to select one of the following functions:

0	Off
∑	Cold air
I	Warm air (1000 Watt)
II	Hot air (2000 Watt)

When the function button is set to "0", the appliance is turned off. In the other settings, the appliance is turned on and the On/Off indicator light will be lit.

1. Rotate the thermostat dial clockwise. A click will be heard to indicate that the appliance has been turned on. The temperature is adjusted by turning the thermostat dial clockwise further.

To find the ideal thermostat setting, rotate the thermostat dial clockwise as far as possible. Once the room has reached the desired temperature, slowly rotate the dial anticlockwise until a click is heard. The appliance will then turn itself off. The temperature control will ensure that the room remains at the set temperature.

Please do not cover the appliance.

CLEANING AND MAINTENANCE

1. Remove the plug from the wall socket and allow the appliance to cool.
2. Clean the exterior of the housing with a damp cloth and rub it dry with a clean cloth.

• Never immerse the appliance, plug or power cord in water.
• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

THE ENVIRONMENT

• Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.

• When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.
• The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.
• Contact your municipality for the address of the appropriate collection point in your neighbourhood.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.

2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).

3. All claims submitted under warranty must be accompanied by the original bill of sale.

4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.
5. The warranty is issued solely to the first purchaser and cannot be transferred.
6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.
b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.
c. Connection to a mains voltage other than the voltage specified on the type plate.
d. Unauthorized modifications.
e. Repairs carried out by third parties.
f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.
b. The removal or changing of the appliance's serial number.

1. The guarantee does not cover power cords, lamps or glass parts.
2. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.
3. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.
4. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department: www.bestron.com/service

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

EMC Directive
2014/30/EU
Low Voltage Directive
2014/35/EU
RoHS - Directive
2011/65/EU

R. Neyman

Quality control
