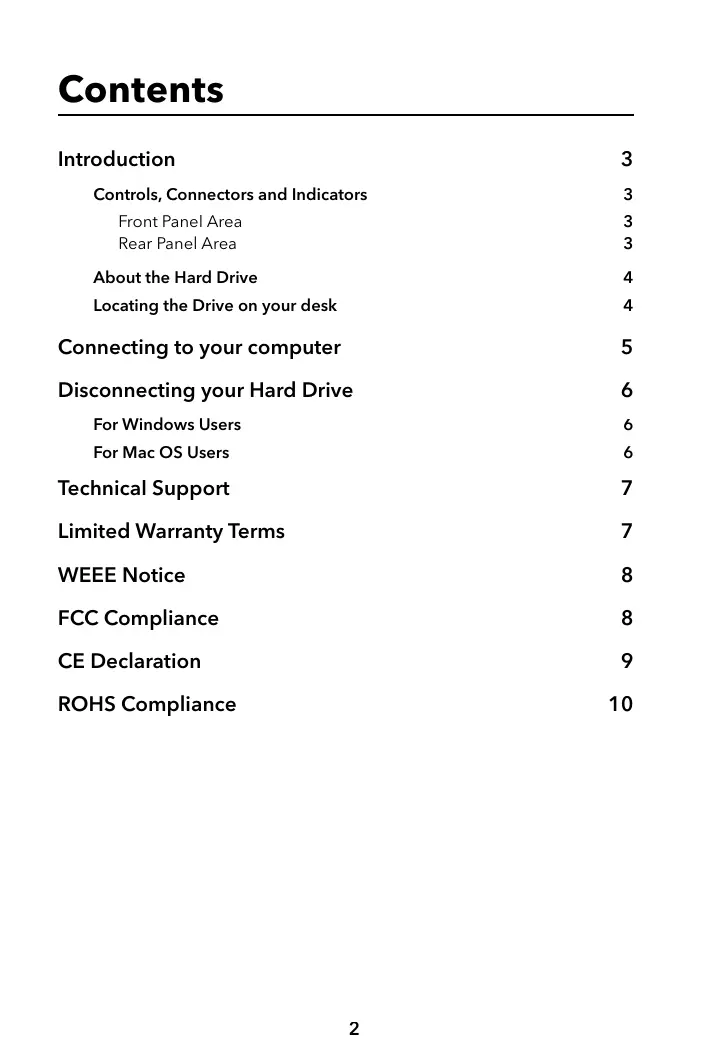

About the Hard Drive Locating the Drive on your desk

Connecting to your computer

Disconnecting your Hard Drive

For Windows Users For Mac OS Users

Technical Support Limited Warranty Terms WEEE Notice

OS © © ®@ NM NM oœ oœ ©

Before you begin to use the drive there are a few important things to learn about your new external hard drive.

Controls, Connectors and Indicators

First familiarize yourself with the features of the unit.

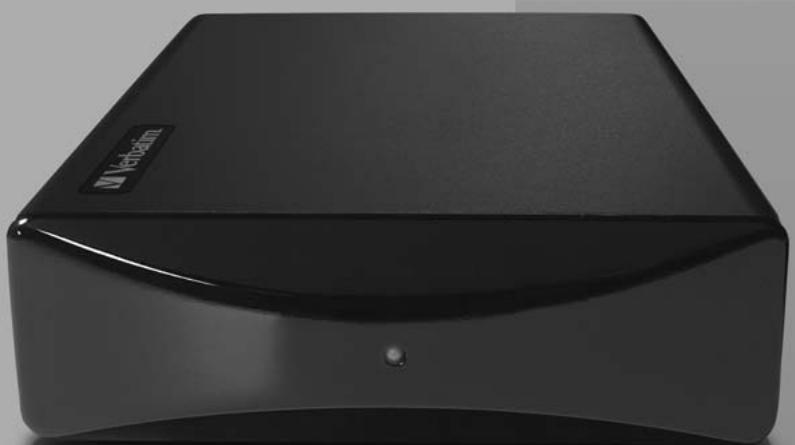

Front Panel Area The front panel contains only the Activating LED, as illustrated below. The green LED will come on to indicate the power-on state. The LED will flash during data access.

Along the rear panel you will find the ON/OFF button and interface connectors. Refer to the figure below.

. ON/OFF Button. Once the AC Adapter has been properly connected to the drive and an AC outlet, you can press the ON/OFF button to power on the drive. To turn off the drive, press the ON/OFF button again

. DC Input Connector. Connect the DC cable of your included AC Adapter to the DC Input Connector.

. USB Connector. Use this connector to attach the drive to your computer via USB.

4. eSATA connector. Use this connector to attach the drive to your computer via eSATA.

About the Hard Drive

The hard drive comes pre-formatted in FAT32 format. This format allows for operation with either Windows or Mac OS.

Note: Capacity dependent on model. 1 MB = 1,000,000 bytes/1 GB = 1,000,000,000 bytes/1 TB = 1,000,000,000,000 bytes. Some capacity

used for pre-loaded software, formatting and other functions, and thus is

not available for data storage. As a result, and due to differing calculation methods, your operating systems may report as fewer megabytes / gigabytes /'terabytes.

Locating the Drive on your desk

Place the drive on a sturdy desk or table that is free from clutter that could block airflow around the unit. The drive is designed to lie flat on its rubber feet, or may stand upright. In either orientation take care not to block any

Connecting to your computer

This Verbatim external hard drive provides both USB 2.0 and eSATA connections. You can connect your drive to a computer with either USB or eSATA, but not both at the same time.

To connect to your computer follow the steps below

Make sure your PC or laptop is switched off.

D Connect the included AC Adapter to the drive, and then to a wall outlet.

Connect the data cable. Connect the included USB cable from the USB port on the drive to an available USB port on your computer. For eSATA, connect the included eSATA cable from the eSATA port on the drive to an available eSATA port on your computer.

Next press the ON/OFF button on the back of the drive, and then switch on your PC or Laptop.

The hard drive will mount automatically, and a new icon will appear in My Computer (Windows) or a new icon will appear on the desktop (Mac)

Depending on your computer's operating system and the interface type you are using, the following special notes may apply:

Note 1: USB under Windows. If you are using a USB 1.1 port on your Windows computer, the following cautionary note may appear on your display: Hi-Speed USB Device plugged into non-Hi-Speed USB hub. This does not indicate a problem because the drive is compatible with both USB 1.1 and USB 2.0 ports. Simply close the message and proceed. However in this case the drive will operate only at USB 1.1 speeds.

Note 2: USB under Mac OS 9.2.x. Mac OS versions 9.2.x do not support USB 2.0 peed mode. For these Mac OS versions the drive will operate only at USB 1.1 speeds.

Note 3: USB or eSATA under Mac OS X 10.2. Mac OS X version 10.2 will not mount any single FAT32-formatted (MS-DOS) partition greater than 128GB. To work around this OS limitation, you may partition the drive into smaller FAT32 partitions, or you may reformat the drive to HFS+ format.

Note 4: eSATA. Though the eSATA interface standard provides for “hot- plugging” of the drive, some computers may not follow the standard precisely. If you find that your drive does not mount after attaching to a computer that is powered on, then shut down the computer, attach and power on the drive, and then boot up your computer.

Disconnecting your Hard Drive

Your External Hard Drive is hot-swappable. lt can be connected and disconnected without restarting your computer. To disconnect your drive at any time, perform the following steps. You can also disconnect your hard drive at any time while your computer is powered of.

Note: Please be careful to follow the correct procedure when disconnecting your unit. Simply unplugging the unit without first following the instructions below may result in damage to your unit and/or loss of data.

1. 1f you have files located on your drive open in any applications, close them

2. Click the Unplug or Eject Hardware button in the System Tray.

Unplug oe ect Hardware

3. Select your drive from the menu that appears.

4. After a moment, Windows will display a message that your hardware can be safely removed

1. 1f you have files located on your drive open in any applications, close them

2. Locate the icon for your drive on the desktop, and drag it to the trash
