( CE PRODUIT EST UNIQUEMENT RESERVE A LA CONSERVATION/STOCKAGE DU VIN)

TEMP °C/℉

Please read this Operating Instructions carefully before using your wine cooler.

PRODUCT DESCRIPTION......2

INSTALLATION ....3

THE DISPLAY CONTROL UNIT......4

CARE&MAINTENANCE......5

TROUBLE SHOOTING......6

THE CIRCUIT DIAGRAM......7

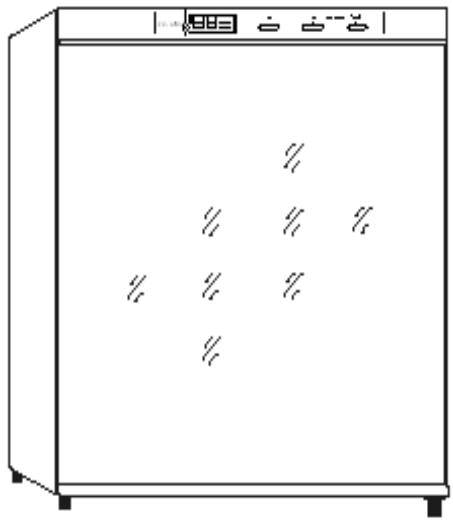

Diagram of a kitchen appliance with labeled compartments and control panel

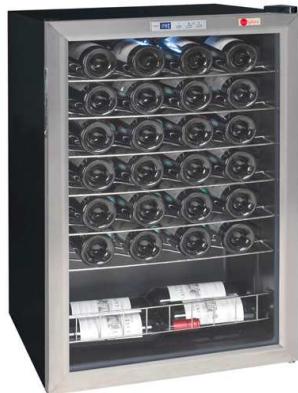

(THIS COOLER IS ONLY FOR WINE STORAGE)

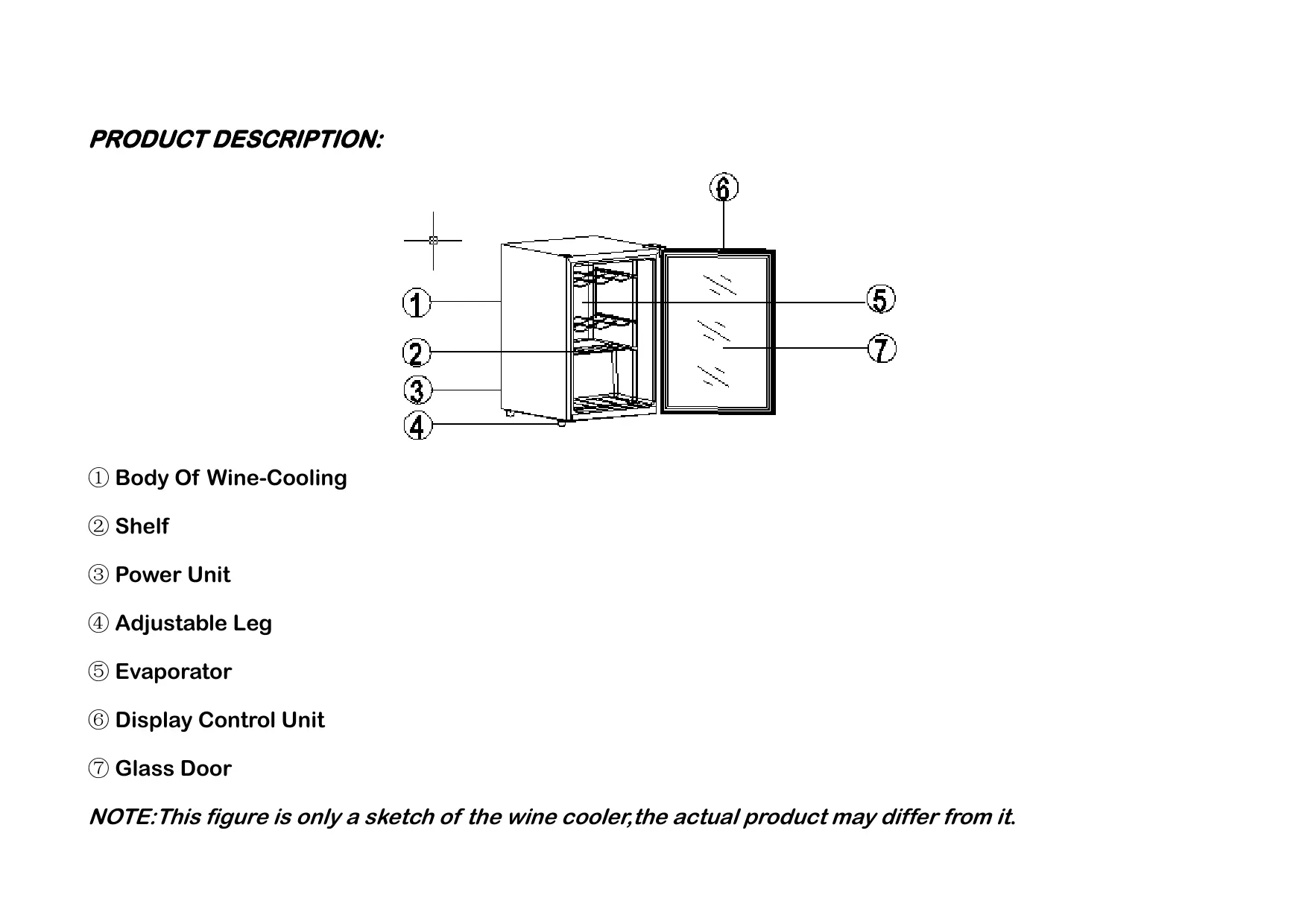

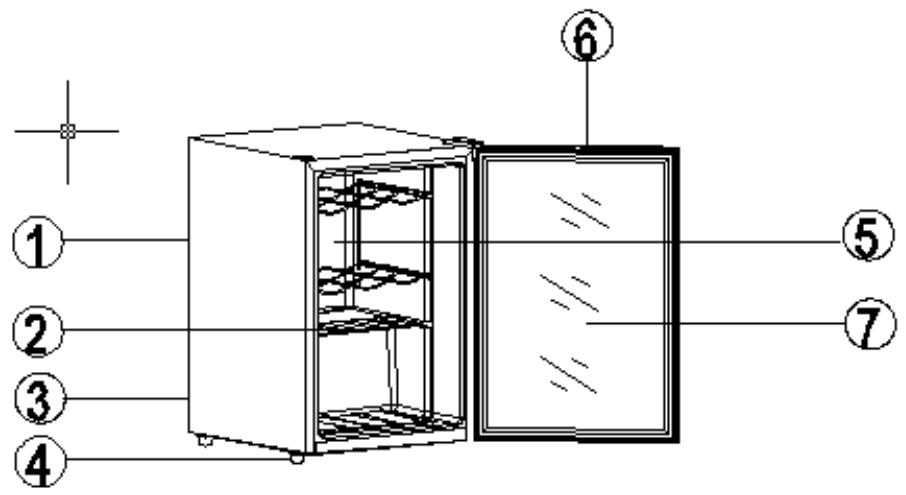

PRODUCT DESCRIPTION:

① ② ③ ④ ⑥ ⑤ ⑦

① Body Of Wine-Cooling
② Shelf
③ Power Unit
④ Adjustable Leg
⑤ Evaporator
⑥ Display Control Unit
⑦ Glass Door

NOTE: This figure is only a sketch of the wine cooler, the actual product may differ from it.

INSTALLATION:

1、Before using the wine cooler, remove all exterior and interior packaging materials.
2、Be sure that the wine cooler stays in the upright position during transportation.
3、Position the wine cooler firmly on flat surface and lever it by adjusting the adjustable leveling legs(3)
4、Maintain a minimum 50mm space between the back of the wine cooler and the wall for proper air circulation.
5、Avoid putting the wine cooler in a moist area.
6、Never wet or spray the wine cooler with water
7、Keep the wine cooler from direct sunlight
8、Keep the wine cooler from any hazardous or combustible agents

TEMP °C/℉

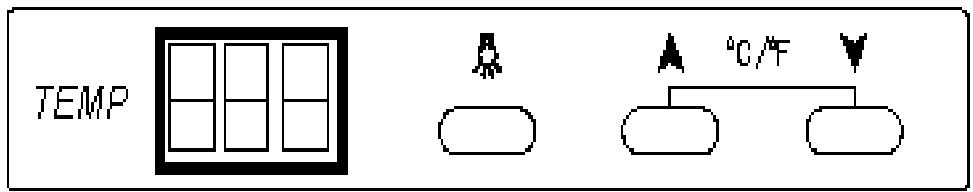

When the power is connected, the cooling system starts to work. The temperature is adjusted in the range of 40—180 in the cabinet.

When you press the display control unit's button, The LED display number gradually diminish, last to "40"; When you press the display control unit's button, The LED display number gradually largen, last to "180"; You can set on certain position, Which means that if the temperature in the wine-cooler reach the point set, self-control temperature system stops cooling system so the temperature in the cabinet rises gradually. When the inside temperature rises above the set point, Cooling self-control temperature stsrts to work again.

You can press the ▼ and ▲ button ,then the display can change from Celsius( O ) to Fahrenheit (Q).

You can press the 🎨 button ,then the lamp can change from lighten to go out.

CARE & MAINTENANCE

Cleaning your wine-cooling

Before cleaning, unplug the wine-cooling, and remove the bottles.

Clean your wine cooler once every two months.

Clean the inner and outer surface with a damp cloth.

If the wine-cooling is very dirty, clean it with a neutral detergent first, then use clean cloth to wipe off the detergent.

Care of plastic parts.

Be careful to protect the sealing rubber of the door, it should be kept clean at all time.

If the plastic parts in wine cooler remain contaminated by oil(animal or vegetable) for a long time, they will and crack easily, please clean them regularly.

NOTES:

Be sure to disconnect the wine cooler from the power supply before cleaning.

Do not sprey water on the wine cooker.

Do not use these items to clean the wine cooler: hot water,diluent,petrol,alcohol,kerosene,washing powder,cleanser,alkaline detergent,acid,chemical cloth,etc.

TROUBLE SHOOTING

You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for help.

Wine cooler does not operate.	Not plugged in.The circulit breaker tripped or fuse blown.
Wine cooler is too cold.	Check to be sure the temperature control setting is at “40”. External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.The wine cooler does not have the correct clearances at the back.
The defrosting water overflows inside the wine cooler and onto the floor.	Check if the drain pan is full.
Sound of flowing liquid.	It is the sound of refrigerant flowing, not a fault.
The cabinet side panel heat up.	It results from the dissipation of the heat from inside the cabinet.
Condensation forms on the outside of the wine cooler.	Condensation will form on the outside of the wine cooler if it operates in moist areas, simply wipe it dry.
The wine cooler seems to make too much noise.	It is not leveled or positioned properly.It is touching the wall.

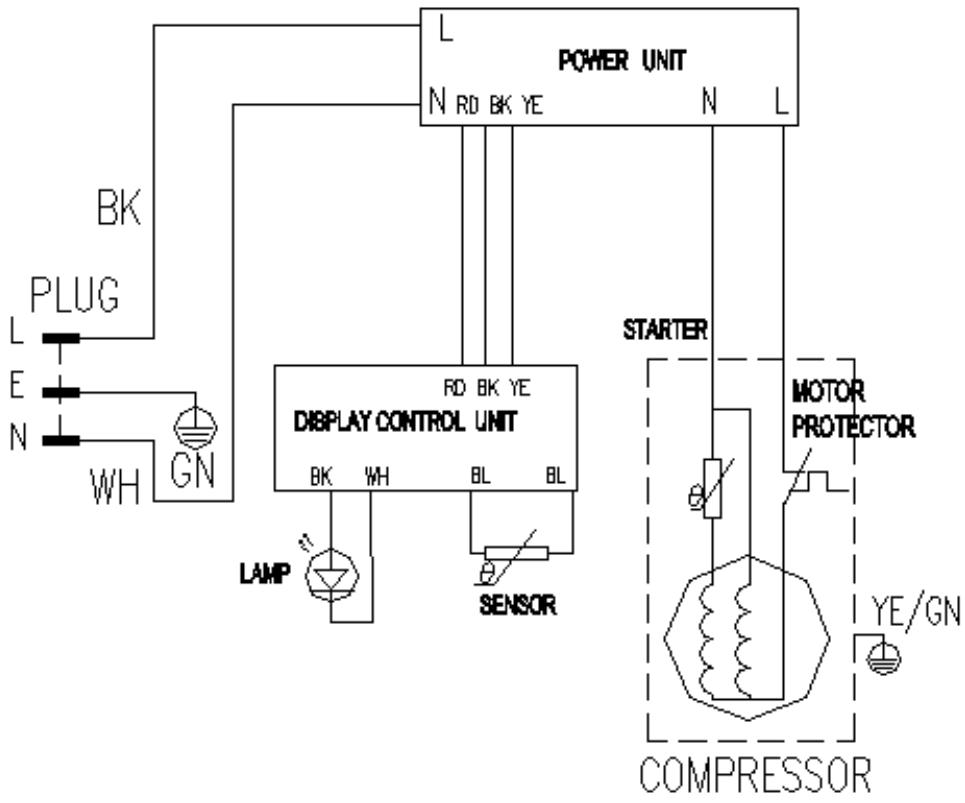

THE CIRCUIT DIAGRAM
