USER MANUAL CXT400C COBRA

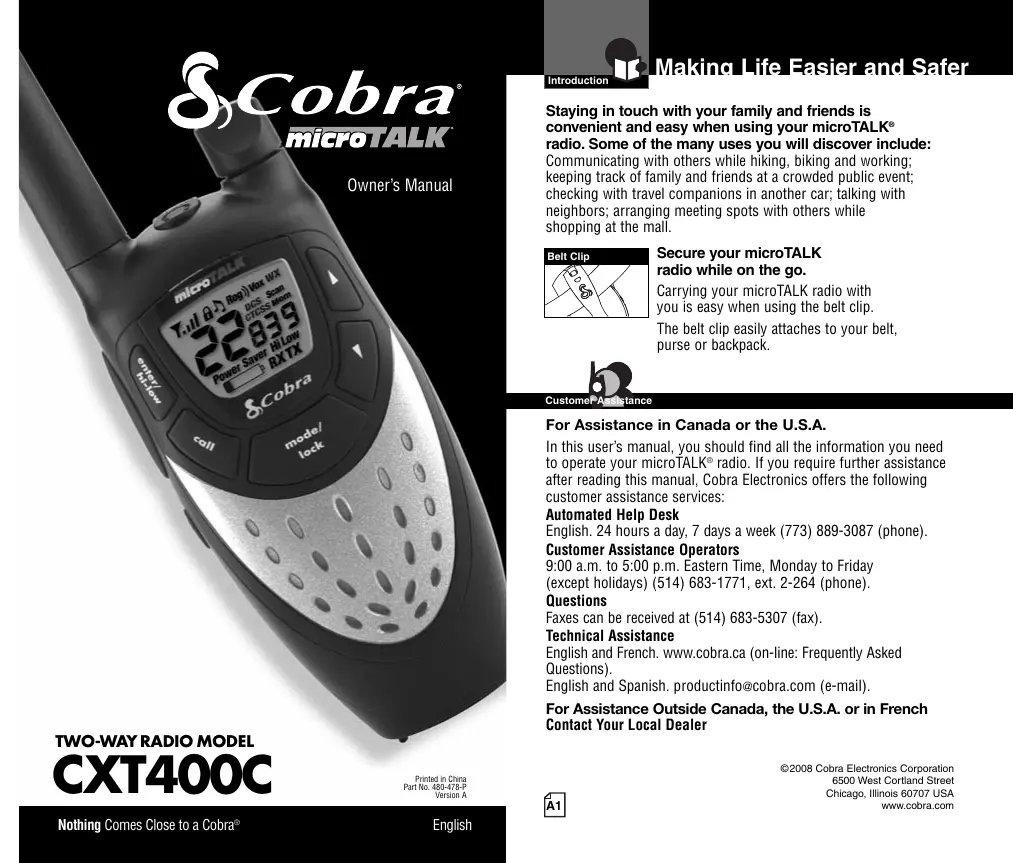

CXT400C MICFOTALK wners Manual Staying in touch with your family and friends is convenient and easy when using your micro TALK® radio. Some of the many uses you will discover include: Communicating with others while hiking, biking and working: Keeping track of family and friends at a crowded public event: checking with travel companions in another car: talking with neighbors; arranging meeting spots with others while shopping at the mall Secure your micro TALK radio while on the go. Carrying your microTALK radio with you is easy when using the belt clip. The belt clip easily attaches to your bel, purse or backpack

CustomePggtance For Assistance in Canada or the U.S.A. In this users manual, you should find all the information you need to operate your microTALK® radio. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: Automated Help Desk English. 24 hours a day, 7 days a week [phone] (phone) Customer Assistance Operators 2:00 a.m. to 5:00 p.m. Eastern Time, Monday to Friday {except holidays) [phone], ext. 2-264 (phone) Questions Faxes can be received at [phone] (fax). Technical Assistance English and French. www.cobra.ca (on-line: Frequently Asked Questions) English and Spanish. productinfoæcobra.com (e-mail) For Assistance Outside Canada, the U.S.A. or in French Contact Your Local Dealer 22008 Cobra Electronics Corporation 6500 West Corlland Seat

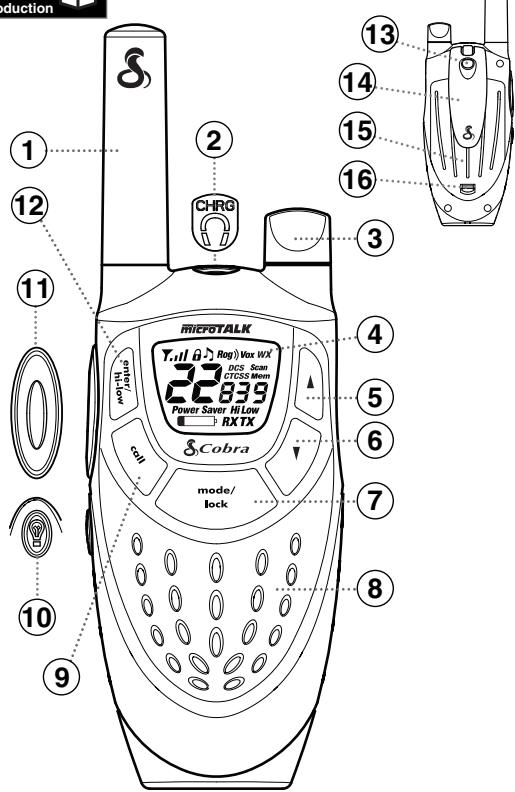

Antenna External Speaker/ MicrophonelCharge Jack On/Off Volume Knob Backlit LCD Display Channel Up Button Channel Down Button Mode/Lock Button Speaker/Microphone O6 ® ©

Call Button LightMax Range Buton ‘Talk Button Enter/Hi-Low Power Button Wrist Strap Connector Belt Clip Battery Compartment Battery Door Latch Introduction + 22 Channels Seven shared Backlit LCD Display with FRS/GMRS, seven FRS re ©0006 came À Q) (88 CTCSS codes/ > Yauil 8 D Rog)) vor x

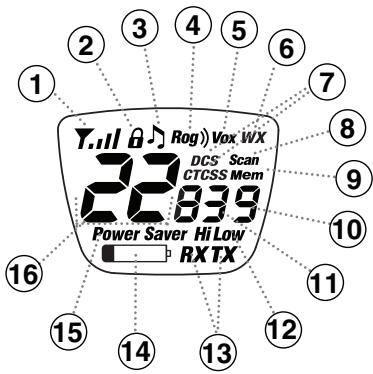

+ Call Alert 8. Scan Icon 10 seche ones + Speaker/ Madmum range may vary and is based on unobstucted line- l Es Eh Charge Jack

Introduction Caring for Your microTALK Radio Your microTALK radio will give you years of trouble-tree service if cared for properly. Hand the radio gent. Keep the radio away from dust. Never put the radio in water or in a damp place. Avoid exposure to extreme temperatures. Rechargeable Batteries and Desktop Charger To install or replace batteries:

1. Remove belt clip by releasing belt clip

latch and sliding cfip up.

2. Pull up on the battery door latch to

remove the battery compartiment cover.

3. Insert batteries according to

4. Replace battery compartment cover

and belt clip. Estimated operation time on full charge: 12 hours. These rechargeable batteries must be recycled or disposed of properly in compliance with all applicable laws. They may not be Ahrown in the trash Certain states or municipalities require recycling and have established collection programs. Please contact your local waste removal authority for instructions, or return to Cobra® for recycling Wrap batteries carefully and mail postage prepaid to: Cobra Electronics Corporation", 6500 West Cortland Street, Chicago, IL 60707 USA, Atin: Battery Recycling Do not put batteries into fire or expose to high heat. They may explode.

For charging microTALK radio(s) in desktop charger:

1. Insert radio(s) into desktop charger as shown

2. Insert round connector of 120-vo adapter

into jack on back of charger.

3. Plug 120-volt adapter into electrical outlet.

IF charging light is not on, check position of radio. Radio should be upright. The charge indicator light wil stay on as long as the radio is in the charging well, even after the batteries are fully charged. It normal takes about 15 hours to fully recharge batteries. Batteries will not be damaged if they stay in the charging well longer than that. Note: To charge a single radio, you can bypass the desktop charger and simply insert the wall adapter round connector directly into the speaker/microphone/charge jack located on the top of the radio. Use only the supplied rechargeable batteries and charger for recharging your Gobra microTALK radio. Cobra recommends your radio is turned off while being charged Non-rechargeable alkaline batteries can also be used in your radio. D Quick Start

1. Rotate the On/Off Volume knob to turn

2. Press the Channel Up or Channel Down

button to select a channel Both radios must be tuned to the same channel/privacy code to communicate and hold the Talk button while res peaking into the microphone

4. When finished talking, release the Talk

button and listen for à respont Eco Operation (OO Power To inches (5 em) from Houth Turning on Your microTALK Radio Rotate the On/Off Valume knob clockwise to turn on your radio and adjust the volume. A series of tones will indicate the radio is on. Your microTALK radio is now in Standby mode, ready to receive transmissions. The radio is always in Standby mode, except when the Talk, Call or Mode/Lock buttons are pressed Battery Low When battery power is low, the Battery Low icon will blink. Your batteries should be recharged or replaced if using alkaline batteries. Auto Battery Save Your microTALK radio has à unique circuit designed to extend battery life. If there are no transmissions for 10 seconds, the radio will automatically switch to Battery Save mode and the Power Saver icon will flash in the display. This wil not affect the radios ability to receive incoming transmissions. Communicating with Another Person

1. Press and hold the Talk button

2. With the microphone about 2 inches

5 cm) from your mouth, speak in à normal voice.

3. Release the Talk button when you are

finished talking and listen for a response You cannot receive incoming calls while pressing the Talk button: (C1) Both radios must be tuned to the same channel/privacy code to communicate.

(co Channels With the radio an, select any of the 22 channels by pressing the Channel Up or Channel Down button Both radios must be tuned to the same channel to communicate. Channels 1 through 7 are shared by FRS and GMRS. Channels 8 through 14 are FRS on. Channels 15 through 22 are GMRS only. See page 21 for FRS/GMRS frequency allocations and compatibilty charts. Listening for a Response Release the Talk button to receive incoming transmissions. Your microTALK radio is always in Standby mode while the Talk or Call buttons are not pressed Volume Rotate the On/Off Volume knob Call Button To alert another person that you are calling: Press and release the Call button. The other person will hear a two second call tone. This tone is used only to establish voice communications. See page 19 on how to select from 10 available call tone settings. Operation EnterHi-Low Button Selectable High-Low Power Output When in close proximity to another party or during favorable conditions, you can switch from High to Low Power to extend battery lite This feature applies to GMRS Channels 1 through 7 and 15 through 22 oniy. Channels 8 through 14 operate exclusively on low power. To toggle between high and low power:

Lou | | Press the Enter/HieLow button for two seconds. When using Channels 1 through 7 and 15 through 22 on high power, the Hi icon will be visible on the display. When using those channels on low power and on Channels 8 through 14, the Low icon will be visible on the display. EEE To Illuminate Displ: Press and release the Light/Max Range button to illuminate the display for 10 seconds. Auto Squelch/Maximum Range Your microTALK radio is equipped with Auto Squelch, which automatically shuts aff weak transmissions and unwanted noise due to terrain and conditions. This slight reduces the Maximum Range at which signals can be heard You can turn off auto squelch to allow all signals to be received and extend the maximum range of your radio

To briefly turn off auto squelch: Press the Light/Max Range button for less than five seconds. If you hear to beeps, you have turned the maximum range extender on (see below). To turn maximum range extender on: Press and hold the Light/Max Range button for at least five seconds until you hear two beeps which indicates the maximum range extender is on. To turn maximum range extender off: Press and release the Light/Max Range button or change channels. Lock Feature The Lock feature locks the Channel, Mode/Lock and Enter/HisLow Power buttons to prevent accidental operation DTESESE To turn the lock feature on or off: —— Press and hold the Mode/Lock button for two seconds: A double beep sound is used to confirm your lock an or aff request. When in Lock mode, the Lock icon will be displayed Dual Function Buttons Tivo of the buttons on the microTALK radio have Dual Functions; Mode/Lock + Press and release the button to scroll to the next mode function + Press and hold the button for two seconds or more to turn the lock function on or of. Enter/HieLow Power + Press and release the button to enter settings in Function mode. + Press and release to toggle between high and low power transmission in Standby mode

Operation Speaker/Microphone/Charge Jack Your microTALK radio can be fited with an external Speaker/Microphone freeing your hands for other tasks. This same jack also serves as the connecting point for a wall charger/adapter. Eoesertophaet ‘To attach a speaker/microphone: D 1. Open the speaker/microphone/charge tab on top of your microTALK radio

2. Insert the plug into the speaker/

microphone/charge jack. To connect a wall charger/adapter:

1. Open the speaker/microphone/charge

tab on top of your microTALK radio

2. Insert the wall charger/adapter plug

into the speaker/microphone/charge jack. Signal Strength Meter Your microTALK radio has a Signal Strength Meter that shows the strength of your incoming and outgoing transmissions. The ascending bars next to the signal strength indicate the strength of the signal. The greater Tail the number of bars visible, the stronger the signal. The fewer number of bars visible, the weaker the signal microTALK Range Your range will vary depending on terrain and conditions. In flat, open country your radio will operale at maximum range Buildings and foliage in the path of the Signal can reduce the range of the radio Dense foliage and hilly terrain will further reduce the range of the radio On FRS channels 8 through 14, your radio automatically switches to low power, which ill limit the range the radio can communicate. Remember, you can achieve maximum range by using maximum range extender. See page 6 for details. Nothing Comes Close to a Cobra

g through Mode Functions Operation Set CTCSS Privacy Codes By scrolling through the Mode Functions, you will be able to select or turn on/aff preferred features of your microTALK radio When scrolling through the Mode Functions, your radio features will be displayed in the following order: M 2 CTCSS Privacy Codes Set DCS Privacy Codes Set NOAA All Hazards Radio Channel Set VOX On/Of Set VOX Sensitivity Level Set Memory Locations Set Channel Scan Set CTCSS Privacy Code Scan Set DCS Privacy Gode Scan Set Memory Location Scan À Set Call Tones Set Roger Beep On/Off © set keystroke Tones OnOf Scrol through the mode functions using the Mode/Lock button: Each press and release of the Mode/Lack button will advance to the next mode function. Press the Talk button at any point to return the radio to Standby mode. Privacy Codes Your microTALK radio incorporates two advanced coded squelch systems that can help to reduce interference from other users on any given channel. CTCSS (Continuous Tone Coded Squelch System) provides 38 privacy codes and DCS (Digitally Coded Squelch) provides 83 privacy codes. This provides a total of 121 Privacy Codes. Either system can be used on all channels, but both systems cannot be used on the same channel at the same time. To successfully communicate using a privacy code, both the sending and receiving radios must be tuned to the same channel and to the same privacy code system (CTCSS or DOS) and privacy code number. Éach channel wil remember the last privacy code system and number you select. ‘The privacy code 00 is not a privacy code, but allows all signals to be heard on a channel that is set to 00 on both the CTCSS and DCS systems. Eroen “Channel Buttons KE?) SO 7 To select a CTCSS privacy code:

1. After selecting a channel, press the

Mode/Lock button until the small numbers next to the channel number flash on the display. 1 DCS is turned on at the channel selected, the display will flash the CTGSS icon and “OFF.” To switch from DCS to CTCSS, press the Channel Up or Channel Down button while the display is flashing “OFF” The display will then show the small numbers flashing and you will then be able to proceed to step 2.

2. Press using the Channel Up or Channel Down

button to select a privacy code. Vou can hold the Up or Down button for fast advance.

3. When your desired privacy code is displayed,

choose one of the following: a. Press the Mode/Lack button to enter the news setting and proceed to other functions b. Press the Enter/HisLow button to enter the news setting and return to Standby mode: £. Do not press any buttons for 15 seconds to enter the new setting and return to Standby mode.

To select a DCS privacy code:

1. After selecting a channel, press the Mode/Lock

button until the DCS icon appears and the small numbers flash on the display (Ot through 83) I CTCSS is turned on at the channel selected, the display will flash the DCS icon and “OFF” To switch from CTCSS to “Channel Buttons DGS, press the Channel Up or Channel À 7) Down button while the display is flashing

“OFF” The display will then show the small numbers flashing and you will then be able to proceed to step 2.

2. Press using the Channel Up or Channel Down button to select à

DCS privacy code. Vou can hold the Up or Down button for fast advance

3. When your desired DCS privacy code is displayed, choose one of

the following a. Press the Mode/Lock button to enter the new setting and proceed to other functions. b. Press the Enter/HisLow button to enter the new setting and return to Standby mode e. Do not press any buttons for 15 seconds to enter the new setting and return to Standby mode NOAA* All Hazards Radio Channels Operation

3. The All Hazards Radio icon will continue to

ut “be displayed when All Hazards Radio is on | Us | Choose one of the following LEZ 7) à press the Moderack button to proceet

Channel Buttons to other functions. RE) b. Press the Enter/Hi-Low button to exit S All Hazards Radio channel mode and return to Standby mode SMS €. Press Talk button to exit and start on NS | last used transmitting channel. Voice Activated Transmit (VOX) in VOX mode, your microTALK radio can be used “hands-free,” automatically transmitting when you speak. You can set the VOX Sensitivity level to fit the volume of your voice and avoid transmissions triggered by background noise To turn VOX mode on or off: \| 1. Press the Mode/Lock button until the VOX icon lashes on the display. The current on or off setting is displayed

2. Press the Channel Up or Channel Down

button to turn VOX on or of.

3. Choose one of the following

a. Press the Mode/Lock button to enter the “National Oceanographie and Aimospherie Administration You can use your microTALK radio to listen to NOAA AII Hazards Radio channels transmitting in your area. To listen to All Hazards Radio channels:

1. Press the Mode/Lock button until the

All Hazards Radio) icon, the currently selected All Hazards Radio channel, and signal strength are displayed

2. Use the Channel Up or Channel Down

button to change AÏl Hazards Radio channels. Mode/Lock Button Eroen selected on or off setting and proceed to other functions. b. Press the Enter/HisLow button to enter the selected on or off setting and return to Standby mode To set VOX sensitivity:

1. Press the Mode/Lock button until the VOX

icon lashes and the current sensitivity level is displayed

The current sensitivity level is displayed with letters "LE" and a Number 01 through 05, with Number 05 being the most sensitive level and Number 01 being the least sensitive level.

2. Press the Channel Up or Channel Down

button to change the setting.

3. Choose one of the following

a. Press the Mode/Lack button to enter the selected setting and proceed to other functions. b. Press the Enter/HisLow button to enter the selected setting and return to Standby mode 10 Memory Locations Your microTALK radio has 10 Memory Locations for storing your most frequentiy used channels and channel/privacy code combinations. These Memory Locations can be selected individually or can be scanned. (See page 18 for memory location scan.) To program a memory location:

1. Press the Mode/Lock button until the

Memory icon and the Memory Location flash on the display.

2. Press the Channel Up or Channel Down

button to select the memory location (0 through 9) If a location has been programmed before, its associated channel/privacy code will be shown on the display.

3. Press the Enter/HieLow button to enter

a new memory location or edit an already programmed memory location. The channel numbers will flash on the display.

4. Press the Channel Up or Channel Down

©] button to select a channel (1 through 22). 3 5. Press the Enter/HisLow button. The CTCSS icon and privacy code numbers vil flash on the display. Operation

6. Choose one of the following

a. Press the Channel Up or Channel Down button to select à CTCSS privacy code (01 through 38) for the channel b. Press the Enter/HisLow button to switch from CTCSS to DCS. The DCS icon and privacy code numbers will flash on the display. The Channel Up or Channel Down button can then be used to select a DCS privacy code (01 through 83) for the channel I “OFF” flashes in place of the privacy code numbers, a privacy code is already set in the opposite (CTCSS or DCS) system. Press the Channel Up or Channel Down button to cancel the opposite code and select a privacy code from the active system for the selected channel.

7. Choose one of the following

a. Press the Enter/HisLow button to enter the channel/privacy code in the selected memory location. Radio then proceeds 0 next memory location, which will blink. b. Press the Mode/Lock button to enter the channel/privacy code in the selected memory location and proceed to other functions on the channel/privacy code displayed before you entered mode functions. c. Press the Talk button to enter the channel/privacy code in the selected memory location and exit mode functions. Upon release of the Talk button, the radio will enter Standby mode on the channel/privacy code just entered ‘To recall a stored memory channel location:

1. Press the Mode/Lock button until the Memory

icon and the memory location number flash on the display.

2. Press the Channel Up or Channel Down

button to select a memory location {0 through 9). If a location has been programmed before, its associated channel/privacy code will be shown on the display.

CES 3. Press the Talk button to return to Standby mode on the selected memory location. / ©O À memory location can be reprogrammed at any time it is displayed. Press the Enter/HieLow button to begin. While recalling a stored memory location, if you do not press any buttons for 15 seconds, your radio will automatically return to Standby mode on the channel/privacy code displayed before you entered mode functions. To de-program a memory location:

1. Press the Mode/Lock button until the

Memory icon and the memory location flash on the display

2. Press the Channel Up or Channel Down

button to select the memory location (0 through 9). Ifa location has been programmed before, its associated channel/privacy code will be shown on the display.

8. Press the Enter/HisLow button. The channel

numbers will flash on the display.

4. Press the Channel Up or Channel Down

button to select Channel 0.

5. Choose one of the following:

a. Press the Enter/HieLow button to enter the channel/privacy code in the selected | memory location and return to the CCR beginning of memory location options. Press the Mode/Lack button to enter the channel/privacy code in the selected memory location and proceed to other functions on the channel/privacy code displayed before you entered mode functions. Eroen Operation While de-programming a memory location, if you do not press any buttons for 15 seconds, your radio will automatically return to Standby mode on the channel/privacy code displayed before you entered mode functions. Channel Scan Your microTALK radio can automatically scan channels. To scan channels:

1. Press the Mode/Lock button until the

Scan icon and the channel numbers flash on the display.

2. Press the Channel Up or Channel Down

button to begin scanning channels. The radio ignores specific privacy codes while scanning channels. The Scan icon will continue to be displayed when scan is on. Your radio will continue to scan all channels and stop if an incoming transmission is detected. Vour radio will remain on that channel for 10 seconds. While setting channel scan, i you do not press any buttons for 15 seconds, your radio will automatically return to Standby mode on the channel or channel/privacy code displayed before you entered mode functions. During channel scan (while receiving an incoming transmission), vou can choose from the following: a. Press and hold the Talk button to communicate on that channel. Vour radio vil remain on that channel and return to Standby mode b. Press the Channel Up or Channel Down button to resume scanning channels. If you press the Talk button while scanning, but more than 10 seconds after receiving a transmission, you will transmit on the channel on which you last received a transmission. This will return the radio to Standhy mode

If you do not press any button within 10 seconds after receiving a scanned transmission, your radio will automatically resume scanning channels: During channel scan (while not receiving a transmission), you can choose fram the following: a. Press and hold the Talk button to communicate on the channel or channel/privacy code that was displayed before you entered mode functions or the channel on which, during Scanning, vou last received a transmission. This will then return the radio to Standby mode Press the Mode/Lock button to proceed to set privacy code scan on the channel that was either displayed before you entered mode functions or on which, during channel Scanning, you last received a transmission (see below for further details . Press the Enter/HieLow button to return to Standby mode on the channel/privacy code that was displayed before you entered mode functions or the channel on which, during scanning, vou last received a transmission. Privacy Code Scan Your microTALK radio can automatically scan the Privacy Codes {either CTCSS 01 through 38 or DCS 0 through 83) within one channel. Only one set of privacy codes (CTCSS or DCS) can be scanned at à time. To scan privacy codes:

1. While in Standby mode, press the

Channel Up or Channel Down button to choose the channel on which you wish to scan privacy codes. . Press the Mode/Lock button until either the CTGSS or the DCS icon appears on the display and the Scan icon and the privacy code numbers flash on the display. Press the Channel Up or Channel Down button to begin scanning privacy codes within the channel you selected

Eroen The Scan icon will continue to be displayed when privacy code scan is on. Your radio will continue to Scan privacy codes and stop as an incoming transmission is detected. Vour radio will remain on that channel/privacy code for 10 seconds. While setting privacy code scan, if you do not press any buttons for 15 seconds, your radio will automatically return to Standby mode on the channel/privacy code that was displayed before you entered mode functions During privacy code scan (while receiving an incoming transmission), you can choose from the following: a. Press and hold the Talk button to communicate on that channel/privacy code. Your radio will remain on that channel/privacy code and return to Standby mode: b. Press the Channel Up or Channel Dawn button to resume scanning privacy codes. If you press the Talk button while scanning, but more than 10 seconds after receiving a transmission, you will transit on the channel/privacy code on which you last received a transmission. This will then return the radio to Standby mode I you do not press any button within 10 seconds, your radio will automatically resume scanning privacy codes. During privacy code scan (while not receiving a transmission), you can choose from the following: a. Press and hold the Talk button to communicate on the channel/privacy code that was displayed before you entered mode functions or the channel/privacy code on which, during scanning, you last received a transmission This will return the radio to Standby mode. . Press the Mode/Lack button to proceed to set memory location scan (see page 18 for further details) Press the Enter/HisLow button to return to Standby mode on the channel/privacy code that was displayed before you entered mode functions or the channel! privacy code on which, during scanning, you last received a transmission. Nothing Comes Close to a Cobra

Memory Location Scan Operation Your microTALK radio can automatically scan up to 40 programmed Memory Locations: Ifthere are one or fewer memory locations programmed in your radio, the scan memory locations option will not be available. To program at least two memory locations, see program memory locations on page 12. To scan memory locations:

1. Press the Mode/Lock button until the Scan

icon, Memory icon and the memory location number flash on the display.

2. Press the Channel Up or Channel Doun

button to begin scanning memory locations. The Scan icon and the Memory icon will continue to be displayed when memory location scan is on. Your radio will continue to scan memory locations and stop if an incoming transmission is detected. Your }] radio will remain on that memory location for 10 seconds. While setting memory location scan, if you do not press any buttons for 15 seconds, your radio will automatically return to Standby mode on the channel/privacy code displayed before you entered mode functions. During memory location scan (while receiving an Incoming transmission), you can chaose from the following: a. Press and hold the Talk button to communicate on that memory location. our radio wil remain on that memory location and after 10 seconds of no activity, radio will start memory location scan again. b. Press the Channel Up or Channel Down button to resume scanning memory locations Eroen If you press the Talk button while scanning, but more than 10 seconds after receiving a transmission, you will transmit on the memory location on which, during scanning, you last received a transmission. This will return the radio to Standby mode. If you do not press any button within 10 seconds, your radio will automatically resume scanning memory locations. During memory location scan (while not receiving a transmission), you can choose from the following: a. Press and hold the Talk button to communicate on the channel/privacy code that was displayed before you entered mode functions or memory location on which, during Scanning, you last received a transmission Press the Mode/Lock button to proceed to other functions. Press the Enter/HisLow button to return to Standby mode on the channel/privacy code that was displayed before you entered mode functions or the memory location on which. during scanning, you last received a transmission. To reduce the number of memory locations being scanned, you may de-program any unwanted locations. (See page 14 Lo de-program a memory location.) 10 Call Tone Settings You can choose from 10 different call tone settings to transmit à unique call alert. To change a call tone setting:

1. Press the Mode button until the letter “C” and

the current call tone number (01 through 10) is displayed

2. Press the Channel Up or Channel Down

button to hear the other call tone settings.

3. Choose one of the following

a. Press the Made/Lock button to enter the new setting and proceed to other functions b. Press the Enter/HisLow button to enter the /, news setting and return to Standby mode: Nothing Comes Close to a Cobra

Roger Beep Confirmation Tone Operation General Specifications Roger Beep is an audible tone that your listener will hear when you release the Talk button. This alerts ihe other party that you are finished talking and it is OK for them to speak. Mode/Lock Button To turn roger beep on or ff: \| 1. Press the Mode button until the Roger Beep icon flashes on the display. The current on or off setting is displayed

2. Press the Channel Up or Channel Down

button to select roger beep an or of

8. Choose one of the following

a. Press the Mode/Lack button to enter the new setting and proceed to other functions. b. Press the Enter/HisLow button to enter the new setting and return to Standby mode. Keystroke Tones With Keystroke Tones turned on, your radio wi sound beeps each time you press a button or change a setting Mode/Lock Button To change keystrake tones:

1. Press the Mode/Lock button until the

Keystroke Tanes icon flashes on the display. The current an or off setting is displayed

2. Press the Channel Up or Channel Down

button to turn keystroke tones an or aft.

8. Choose one of the following

a. Press the Mode/Lock button to enter the news setting and return to Standby mode: b. Press the Enter/HisLow button to enter the new setting and return to Standby mode. FRS/GMRS Frequency Allocation and Compa Important: Please note that Cobra GMRS models with 15 Channels may designate different channel numbers for the same frequency. For example, a Cobra 15 Channel GMRS model would need to be tuned to Channel 11 in order to communicate with a 22 Channel GMRS tuned to Channel 15. Please refer lo the chart below for channel frequency number compatillity. hannel No. for 22 Channel FRS/GMRS Models B = Channel No. for 15 Channel GMRS Models C= Type of Radio Service requency in MHz Power Output c D E 1 1 FRS/GMRS 462.5625 High or Low 2 2 FRS/GMRS 462.5875 High or Low 3 3 FRS/GMRS 462.6125 High or Low 4 4 FRS/GMRS 462.6375 High or Low 5 5 FRS/GMRS 462.6625 High or Low 6 6 FRS/GMRS 462.6875 High or Low 7 7 FRS/GMRS 462.7125 High or Low 8 FRS 467.5625 Low 9 FRS 467.5875 Low 10 FRS 467.6125 Low tt FRS 467.6375 Low 12 FRS 467.6625 Low 13 FRS 467.6875 Low 14 FRS 467.7125 Low 15 11 GMRS 462.550 High or Low 16 8 GMRS 462.5750 High or Low 17 12 GMRS 462.600 High or Low 18 9 GMRS 462.6250 High or Low 19 13 GMRS 462.650 High or Low 20 10 GMRS 462.6750 High or Low 2 14 GMRS 462.700 High or Low 2 15 GMRS 462.7250 High or Low

LICENSING Product Service For Products Used in Canada Industry Canada Notice Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device «IC» before the equipment certification number signifies that the Industry Canada technical spécifications were met. It does not guarantee that the certified product will aperate to the user's satisfaction. For Products Used in the U.S.A. FCC Licensing Required This two-way radio operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license, À user must be licensed prior to operating on channels 1 through 7 or 15 through 22, which comprise the GMRS channels of this radio. Serious penalties could result for unlicensed use of GMRS channels; operation of this radio is subject to additional rules specified in 47 C.FR. Part 95. Licensed users will be issued a call sign by the FCC, which should be used for station identification when operating this radio. GMRS users should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of their transmission time. For licensing information and application forms, please call the FCC Hotiine at 800-418-FORM. Request form #159 and form #605. Questions regarding the license application should be directed to the FCC at 888-CALL-FCC. Additional information is available on the FCC's website at www.fcc.gov.

D nn nn D, RÉ mener ne Eco For any questions about operating or installing this new Cobra product or if parts are missing... PLEASE CALL COBRA FIRST...do not return this product to the store. See customer assistance on page A1 For Products Purchased in Canada I your product should require factory service, please call AVS Technologies Inc. at 514-683-1771 ext. 2-264 before sending your radio. For out of warranty service, ship this product prepaid to: AVS Technologies Inc. {A Division of SYNNEX Canada Limited), 3300 Côte-Veru, Ste 310 Ville St-Laurent, Québec, CANADA HAR 287, www.cobra.ca. We reserve the right to repair or replace the radio with an equivalent product. Please include the following information: Date of Purchase, Model Number, Dealer Purchased From, Dealer Address, Dealer Phone Number. For Products Purchased in the U.S.A. I your product should require factory service, please call Cobra first before Sending your radio. This will ensure the fastest turn-around time on your repair. You may be asked to send your radio to the Cobra factory. I wi be necessary t furish the following to have the product serviced and returned

1) For warranty repair include some form or proof-of purchase, such as a

mechanical reproduction or carbon of a sales receipt. I you send the original receipt, it cannot be returned.

2) Send the entire product.

3) Enclose a description of what is happening with the radio. Include a

typed or clearly printed name and address of where the radio is to be returned

4) Pack radio securely to prevent damage in transit. f possible, use the

original packing material.

5) Ship prepaid and insured by way of a traceable carrier such as United

Parcel Service (UPS) or Priority Mail to avoid loss in transit to Cobra Factory Service, Cobra Electronics Corporation, 6500 West Cortland Street, Chicago, Ilinois 60707 U.S.A.

6) If ine radio is in warranty, upon receipt of your radio, it will either be

repaired or exchanged depending on the model. Please allow approximately three to four weeks before contacting Cobra for status. If the radio is out of warranty, a letter will automatically be sent informing you of the repair charge or replacement charge. If you have any questions, please call 773-889-3087 for assistance. For Products Purchased Outside Canada or he U.S.A. Please contact your local dealer for product service information.

°=. Safety and Trademark JM Acknowled t Safety Information for microTALK® Radios Limited One-Year Warranty on Radio(s) & Charger Your wireless handheld portable transceiver contains a low power transmitter. When the talk button is pushed, it sends out radio frequency (RF) signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1906, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for handheld wireless devices. Important: FCC RF Exposure Requirements: For body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Cobra accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmiter and may violate FCC regulations. Normal Position: Hold the transmitter approximately five cm (two inches) from your face and speak in a normal voice, with the antenna pointed up and away. Trademark Acknowledgement Cobra”, microTALK, Nothing Comes Close to a Cobra’, VibrAlert and the snake design are registered trademarks of Cobra Electronics Corporation, USA. Cobra Electronics Corporation” is a trademark of Cobra Electronics Corporation, USA. The Cobra line of quality products includes CB Radios + microTALK® Radios + Radar/Laser Detectors + Safety Alert° Trafic Warning Systems + HighGear® Accessories + CobraMarine® VHF Radios + Marine Chartplotters + Power Inverters + Accessories Eroen For Products Purchased in Canada Your new Cobra GMRS radios and charger are covered by a one-year replacement warranty. I any manufacturing defect becomes apparent in this product vithin one year from the original date of purchase, it vll be replaced Please return the GMRS radio or charger to your dealer with original or copy of dated proof of purchase. This warranty does not cover damages due to careless handling, negligence, accident, abuse or failure to follow operating instructions. Aleration of this product or defacing of the serial number cancels all obligations of this warranty. This warranty gives you specified legal rights. Additional warranty rights may be provided by law in some areas. For Products Purchased in the U.S.A. Gobra Electronics Corporation warrants that its Cobra GMRS radios and charger, and the component parts thereof, will be free of defects in Workmanship and materials for a period of one year from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is utlized within the U.S.A. Cobra wil, without charge, repair or replace, at its option, defective GMRS. radios, chargers, products or component paris upon delivery to the Cobra Factory Service department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt. You must pay any initial shipping charges required to ship the product for warranty service, but the relurn charges will be at Cobra's expense, if the product is repaired or replaced under warranty. This warranty gives you specific legal rights, and you may also have other rights which may vary rom state to state. Exclusions: This limited warranty does not apply: 1) To any product damaged by accident: 2) In the event of misuse or abuse of the product or as a result of unauthorized alerations or repairs; 3) I he serial number has been altered, defaced, or removed: 4) If the owner of the product resides outside the U.S.A. All implied warranties, including warranties of merchantability and fitness or a particular purpose are limited in duration to the length of this warranty. Cobra shall not be liable for any incidental, consequential or other damages; including, without limitation, damages resulting from Joss of use or cost of installation. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you For Products Purchased Outside Canada or the U.S.A. Please contact our local dealer for warranty information. 90-Day Warranty on Cobra Rechargeable Batteries For products purchased in the ULS.A. and Canada.
