USER MANUAL BASF40LM BIONAIRE

Holmes Products (Europe) Ltd

1 Francis Grove

London SW19 4DT

England

Fax: [phone]

Email: [e-mail]

Website address: www.bionaire.com

UK - Free phone Customer Service Helpline - 0800 052 3615

Holmes Products France

Norway [phone]

Poland [phone]

Russia [phone]

Spain [phone]

Sweden [phone]

© 2008 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved.

Distributed by Holmes Products (Europe) Ltd., 1 Francis Grove, London SW19 4DT, United Kingdom.

Modern office fan with metallic blades and a stand, no visible text or symbols

INSTRUCTION MANUAL

NOTICE D'UTILISATION

BETRIEBSANLEITUNG

MANUAL DE INSTRUÇÕES

HASZNÁLATI UTASÍTÁS

NÁVOD K OBSLUZE

English 2

Français/French 4

Deutsch/German 6

Español/Spanish 9

Nederlands/Dutch 11

Svenska/Swedish 13

Suomi/Finnish 15

Dansk/Danish 17

Norsk/Norwegian 19

Polski/Polish 21

ΕΛΛΗΝΙΚΑ/Greek 23

PYCCKNÑ/Russian 26

Italiano/Italian 28

Technical diagram of a fan assembly with labeled parts and exploded view, including fan blades, motors, and base components.

Figure 1A

Figure 2

H I → J ① K L ② M → ③ N ④

Figure 3

I ① U-(2) ② J

Figure 4

P O

Figure 5

Technical diagram of a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Figure 6

Technical diagram of a mechanical component with rotating shaft and gear mechanism (no text or symbols)

Figure 7

c ① ② D Q

Figure 8

GONARE A B O

ENGLISH

PLEASE READ AND SAVE THESE IMPORTANT INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken including the following:

- Use the fan only for purposes described in the instruction manual.

- To protect against electrical shock, do not immerse the fan, plug or mains cable in water or spray with liquids.

- Close supervision is necessary when any appliance is used by or near children.

- Unplug from the electrical outlet when not in use, when moving the fan from one location to another, before putting on or taking off parts and before cleaning.

- Avoid contact with any moving parts.

- Do not operate in the presence of explosives and/or flammable fumes.

- Do not place the fan or any parts near an open flame, cooking or other heating appliance.

- Do not operate any appliance with a damaged mains cable, plug, after the appliance malfunctions, or has been dropped/damaged in any manner.

- The use of attachments not recommended or sold by the appliance manufacturer may cause hazards.

- Do not let the mains cable hang over the edge of a table or counter, or come into contact with hot surfaces.

- To disconnect from the electrical supply, grip the plug and pull from the wall outlet. DO NOT pull on the mains cable.

• Always use on a dry, level surface.

- Do not operate without the fan grills properly in place.

- This product is intended for household use ONLY and not for commercial or industrial applications.

- Should the appliance stop working, first check the fuse in the plug (UK only) or fuse/circuit breaker at the distribution board is operating, before contacting the manufacturer or service agent.

- If the supply cord or plug is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid hazard.

- The appliance contains no user serviceable parts and should the product suffer damage or breakdown it must be returned to the manufacturer or its service agent.

• Do not use outdoors.
• The fan should not be operated without its base fitted.
  • The fan should not be operated laying on its side.
• NOTE: Use caution when adjusting the tilt angle of the fan head to ensure that your fingers do not get caught.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance

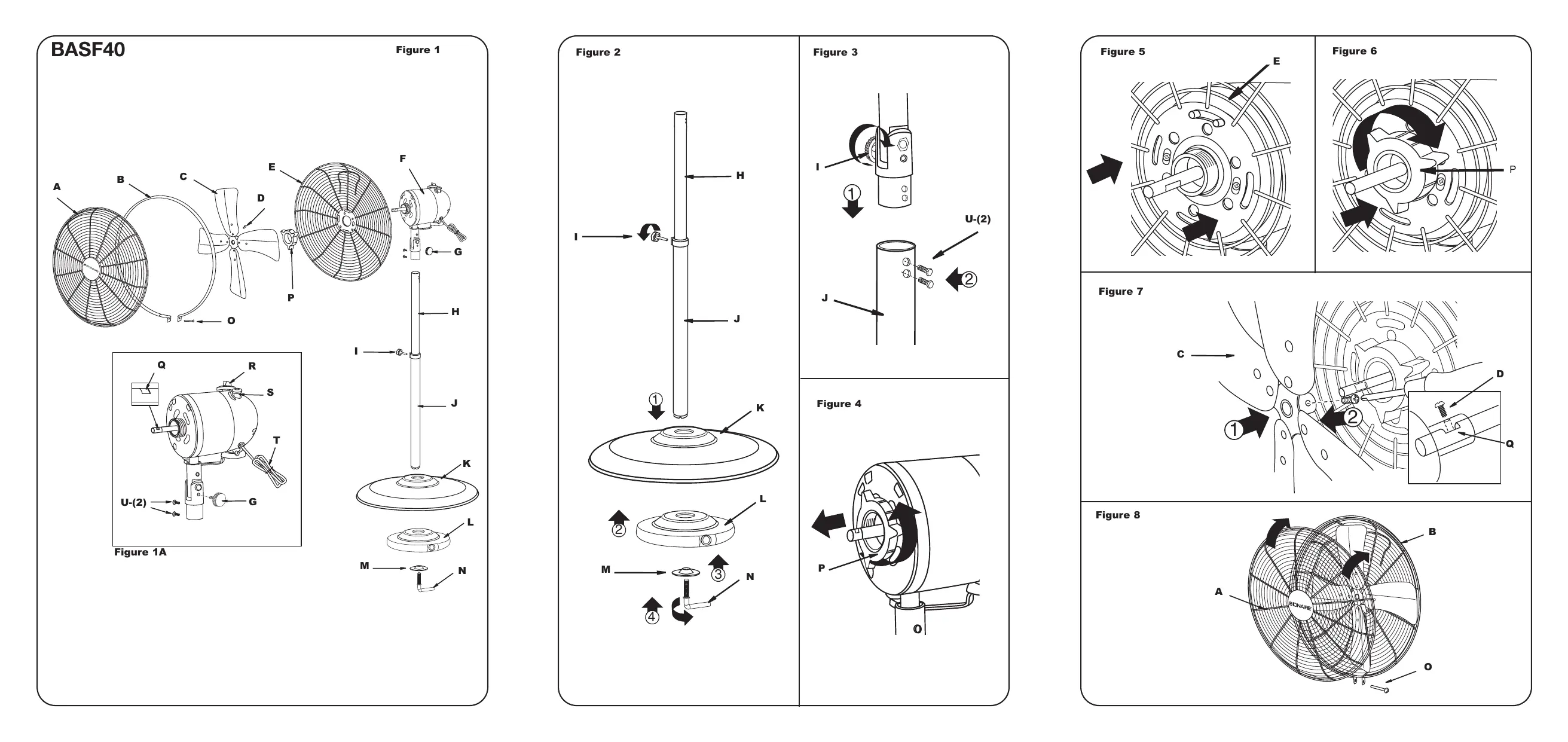

DESCRIPTIONS (See Fig. 1-8)

A. Front Grill

B. Grill Ring

C. Fan Blade

D. Locking Screw

E. Rear Grill

F. Motor Housing Assembly

G. Tilt-Adjustment Knob

H. Upper Extension Pole

I. Height Adjustment Knob

J. Lower Extension Pole

K. Base Cover

L. Base Weight

M. Weight Cover

N. L-Shaped Wrench Screw

O. Grill Ring Screw

P. Rear Grill Lock

Q. Notch on Motor Shaft

R. Speed Control Knob

S. Oscillation Control Knob

T. Neck Joint

U. Securing Screws (2)

MISSING A PART FOR YOUR FAN?

Please call 0800 052 3615 for assistance.

ASSEMBLY INSTRUCTIONS

Please see pictures on inside cover pages (Fig. 1 - 8)

Assembly Time: 10-15 Minutes.

Tools Required: Cross Head Screw Driver.

1. Carefully remove all parts and make sure that they are all present. Refer to Figure 1.

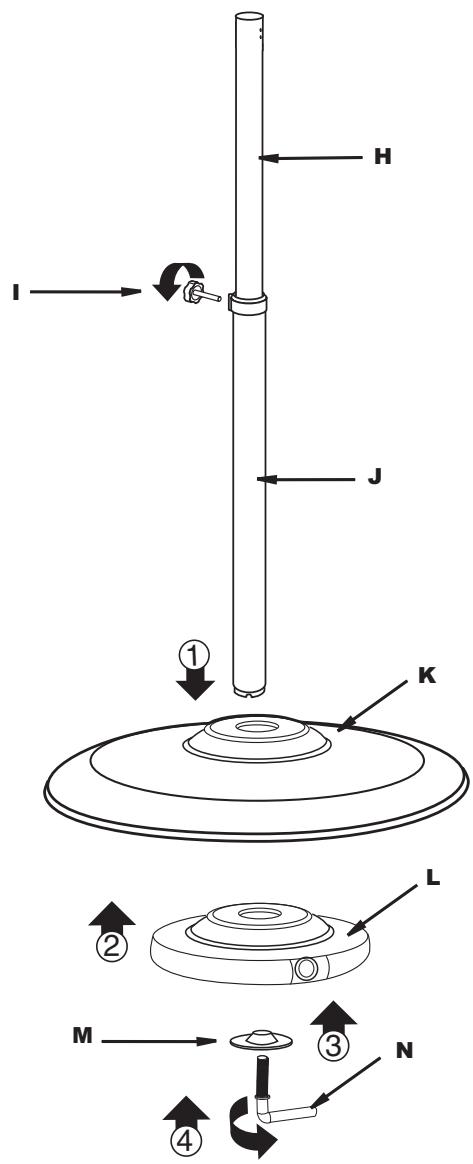

2. Secure the lower extension pole (J) to base cover (K) and base weight (L) using the wrench screw (N) and weight cover (M). Refer to Figure 2.

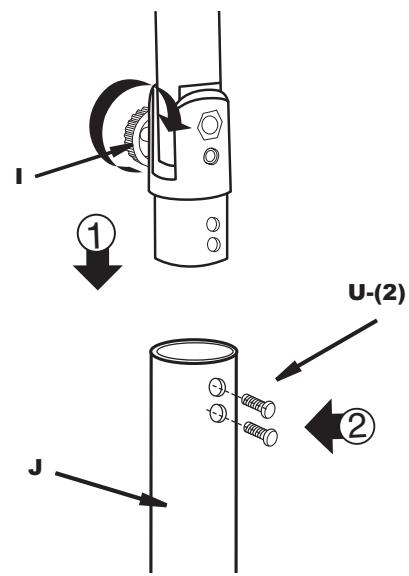

3. Using a cross head screw driver, remove the screws (U) from the neck joint (T) of the motor housing assembly. Slide the neck joint (T) into the upper extension pole (H). Align the screw holes of the neck joint (T) with the screw holes of the upper extension pole (H) and secure with the two screws (U) that you removed at the beginning of this step. Refer to Figure 3.

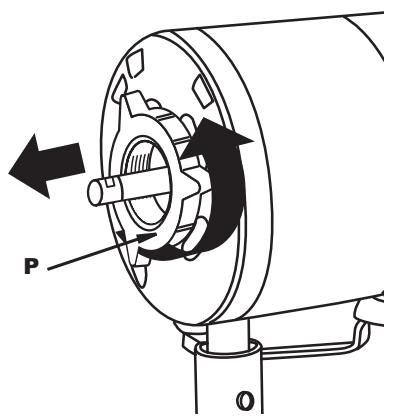

4. Remove the rear grill lock (P) from the motor housing assembly (F). Refer to Figure 4.

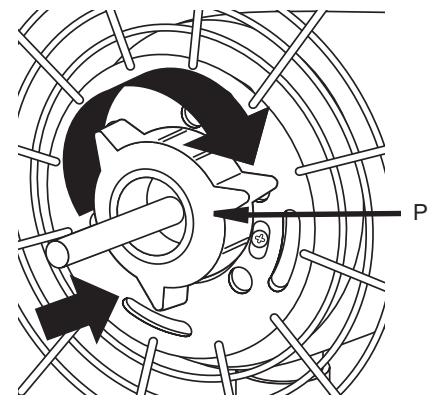

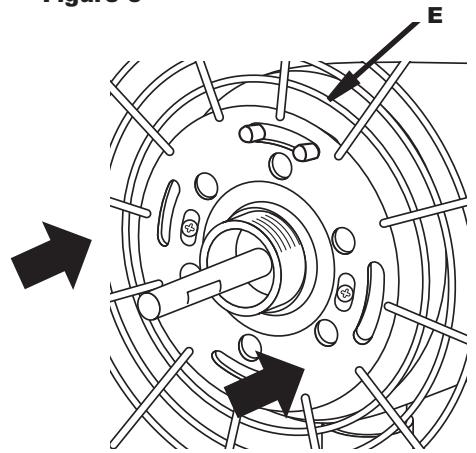

5. Secure the rear grill (E) to the motor housing (F) using the rear grill lock (P). Tighten the rear grill lock (P) until the rear grill (E) is secured to the motor housing (F). Refer to figures 5 and 6 for the proper alignment of the rear grill (E) to the motor housing (F).

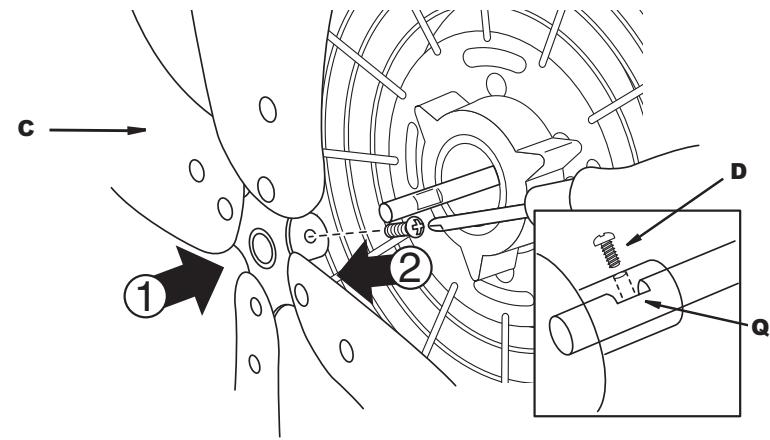

6. Secure the fan blade (C) to the motor shaft by tightening the locking screw (D) into the notch (Q) on the motor shaft. Refer to figure 7 for correct alignment of the fan blade (C) and locking screw (D) to the shaft.

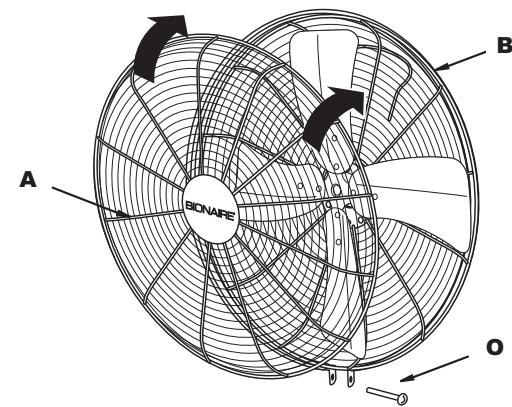

7. Snap the front grill (A) into the grill ring (B). Make sure the logo is properly aligned. Please note that you may need to unscrew the grill ring screw (O) with a cross head screw driver in order to place the front grill (A) into the grill ring (B). Refer to Figure 8.

OPERATING INSTRUCTIONS

Speed Control (R) =

0 - Off
I - Low
II - Med
III - High

ADJUSTMENT INSTRUCTIONS

Tilt Adjustment

Loosen Tilt-Adjustment Knob (G), move fan head to desired angle, and tighten Tilt Adjustment Knob (G) to lock in place.

Height Adjustment

Loosen height adjustment knob (I), adjust upper extension pole (H) to desired height and tighten height adjustment knob (I) to lock in place.

Oscillation Adjustment

Press, Pull Oscillation (S) = start, stop.

CLEANING AND MAINTENANCE

• Always unplug the fan before cleaning.
- Do not allow water to drip on or into the fan motor housing.

FITTING A REPLACEMENT PLUG FOR U.K. AND IRELAND ONLY

If the plug is not suitable for the socket outlets in your home, it can be removed and replaced by a plug of the correct type. Please refer to "Installation of a plug" below.

Installation of a plug Applicable to U.K. and Ireland.

WARNING - THIS APPLIANCE MUST BE EARTHED.

NOTE: If the terminals in the plug are not marked or if you are unsure or in doubt about the installation of the plug please contact a qualified electrician.

The wires in the mains lead are coloured as such: GREEN AND YELLOW - EARTH

BROWN - LIVE

BLUE - NEUTRAL

Please note that the colour of these mains wires may not correspond with the colour markings that identify the terminals in your plug.

Please proceed as follows:

The wire which is coloured GREEN AND YELLOW must be connected to the terminal which is marked with the letter 'E' or by the earth symbol ⏻ or coloured GREEN AND YELLOW.

The BROWN coloured wire must be connected to the terminal, which is marked with the letter "L" or is coloured RED.

The BLUE coloured wire must be connected to the terminal, which is marked with the letter "N" or is coloured BLACK.

If a 13A 3-pin plug is fitted, it must be an ASTA approved plug, conforming to BS1363 standard. Replacement 3A fuses must be BSI or ASTA BS1362 approved.

GUARANTEE

PLEASE KEEP YOUR RECEIPT AS THIS WILL BE REQUIRED FOR ANY CLAIMS UNDER THIS GUARANTEE.

• This appliance is guaranteed for 2 years after your purchase as described in this document.
• During this guaranteed period, if in the unlikely event the appliance no longer functions due to a design or manufacturing fault, please take it back to the place of purchase, with your till receipt and a copy of this guarantee.
• The rights and benefits under this guarantee are additional to your statutory rights which are not affected by this guarantee. Only Holmes Products (Europe) Ltd. (“Holmes”) has the right to change these terms.

- Holmes undertakes within the guarantee period to repair or replace the appliance, or any part of appliance found to be not working properly free of charge provided that

• you promptly notify the place of purchase or Holmes of the problem; and
• the appliance has not been altered in any way or subjected to damage, misuse, abuse, repair or alteration by a person other than a person authorised by Holmes.
• Faults that occur through, improper use, damage, abuse, use with incorrect voltage, acts of nature, events beyond the control of Holmes, repair or alteration by a person other than a person authorised by Holmes or failure to follow instructions for use are not covered by this guarantee. Additionally, normal wear and tear, including, but not limited to, minor discoloration and scratches are not covered by this guarantee.
• The rights under this guarantee shall only apply to the original purchaser and shall not extend to commercial or communal use

THIS PRODUCT IS MANUFACTURED TO COMPLY WITH THE E.E.C. DIRECTIVES 2006/95/EC AND 2004/108/EC.

Waste electrical products should not be disposed of with Household waste. Please recycle where facilities exist.

E-mail us at [e-mail].

for further recycling and WEEE information.

Holmes Products (Europe) Limited

1, Francis Grove London, SW19 4DT UK
