USER MANUAL BASF40 BIONAIRE

Holmes Products (Europe) Ltd

1 Francis Grove

London SW19 4DT

England

Fax: [phone]

Email: [e-mail]

Website address: www.bionaire.com

UK - Free phone Customer Service Helpline - 0800 052 3615

Holmes Products France

Norway [phone]

Poland [phone]

Russia [phone]

Spain [phone]

Sweden [phone]

© 2006 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All Rights Reserved.

9100010008920

BASF40B/WI06MLM1

BIONAIRE®

fan

BASF40B

BASF40W

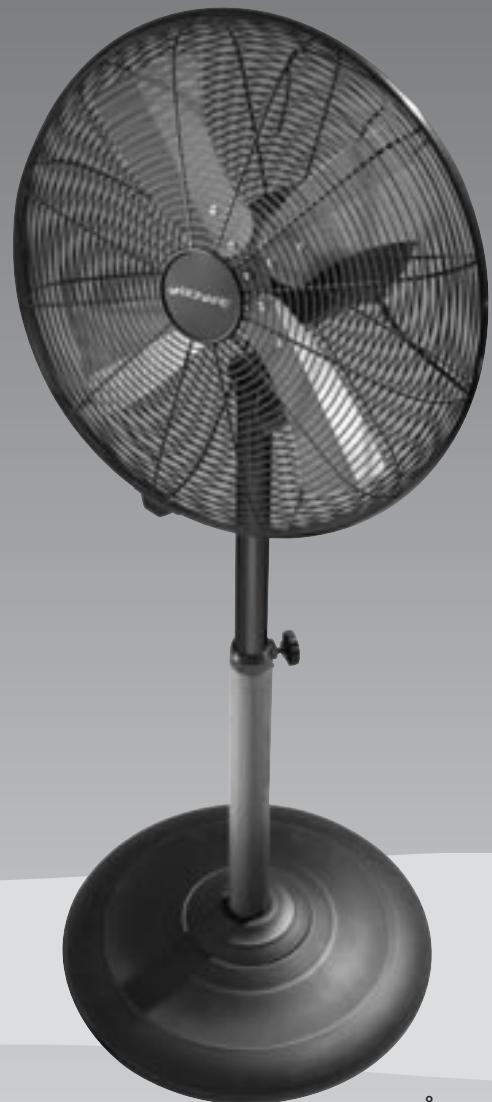

Black-and-white photo of a standard outdoor fan with visible blades and a stand (no text or symbols)

INSTRUCTION MANUAL

NOTICE D'UTILISATION

BETRIEBSANLEITUNG

MANUAL DE INSTRUÇÕES

HASZNÁLATI UTASÍTÁS

NÁVOD K OBSLUZE

English 2

Français/French 3

Deutsch/German 5

Español/Spanish 7

Nederlands/Dutch 8

Svenska/Swedish 10

Suomi/Finnish 11

Dansk/Danish 13

Norsk/Norwegian 14

Polski/Polish 15

ΕΛΛΗΝΙΚΑ/Greek 17

PYCCKNÑ/Russian 19

Italiano/Italian 20

Figure 1 Figure 1A P-(2) Y X Z J K D E G A F S Q R M L T V W U N I F G A H C B C

C-(4) Figure 2 Figure 2A A C-(4) B C-(4) Figure 3 Figure 4 ② D E G H A ③ F ① F ② A H B Figure 5 Figure 6 I J K I G

Figure 7 J ④ D ① G ② K ③ E Figure 8 L Figure 9 M P-(2) Figure 10 L Figure 11 Q ① Z N ② R Q Z N Figure 12 T M S

ENGLISH

PLEASE READ AND SAVE THESE IMPORTANT INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken including the following:

- Use the fan only for purposes described in the instruction manual.

- To protect against electrical shock, do not immerse the fan, plug or mains cable in water or spray with liquids.

- Close supervision is necessary when any appliance is used by or near children.

- Unplug from the electrical outlet when not in use, when moving the fan from one location to another, before putting on or taking off parts and before cleaning.

- Avoid contact with any moving parts.

- Do not operate in the presence of explosives and/or flammable fumes.

- Do not place the fan or any parts near an open flame, cooking or other heating appliance.

- Do not operate any appliance with a damaged mains cable, plug, after the appliance malfunctions, or has been dropped/damaged in any manner.

- The use of attachments not recommended or sold by the appliance manufacturer may cause hazards.

- Do not let the mains cable hang over the edge of a table or counter, or come into contact with hot surfaces.

- To disconnect from the electrical supply, grip the plug and pull from the wall outlet. DO NOT pull on the mains cable.

• Always use on a dry, level surface.

- Do not operate without the fan grills properly in place.

- This product is intended for household use ONLY and not for commercial or industrial applications.

- Should the appliance stop working, first check the fuse in the plug (UK only) or fuse/circuit breaker at the distribution board is operating, before contacting the manufacturer or service agent.

- If the supply cord or plug is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid hazard.

• The appliance contains no user serviceable parts and should the product suffer damage or breakdown it must be returned to the manufacturer or its service agent.
• Do not use outdoors.
• The fan should not be operated without its base fitted.
• The fan should not be operated laying on its side.
• NOTE: Use caution when adjusting the tilt angle of the fan head to ensure that your fingers do not get caught.

MISSING A PART FOR YOUR FAN?

Please call 0800 052 3615 for assistance.

ASSEMBLY INSTRUCTIONS

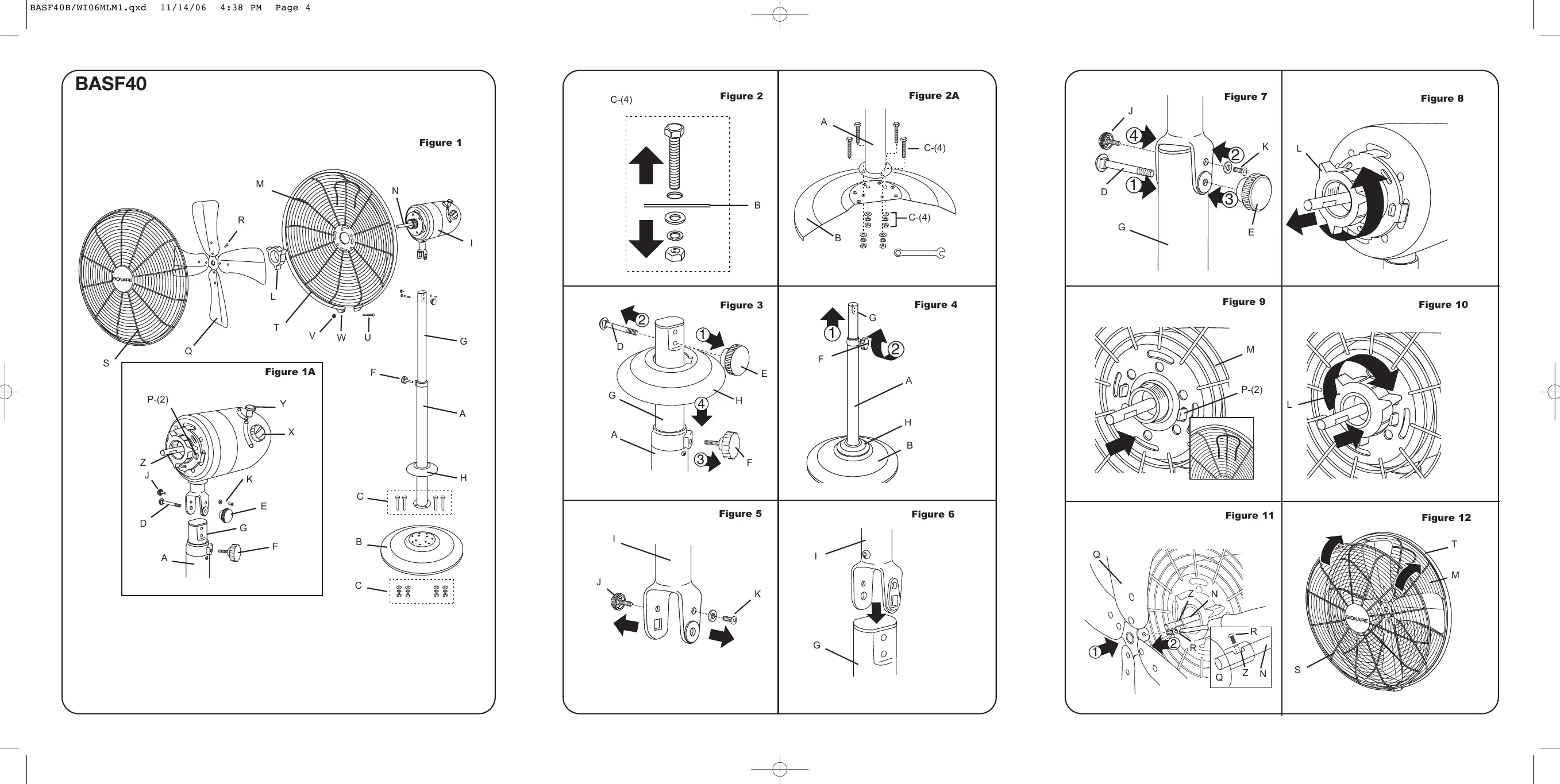

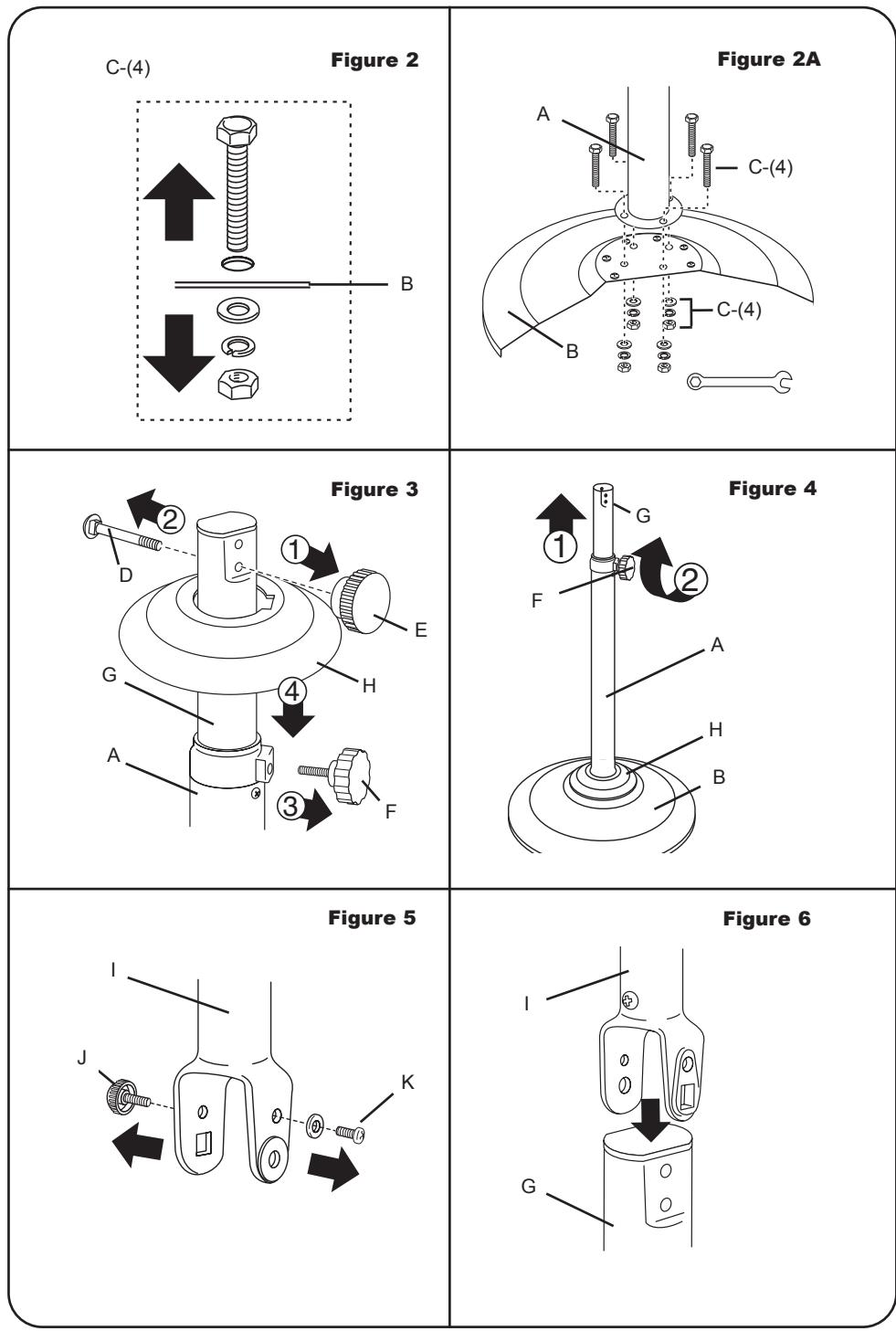

Please see pictures on inside cover pages (Fig. 1 - 12)

1. Assembly requires the use of a Phillips head screwdriver and wrench.

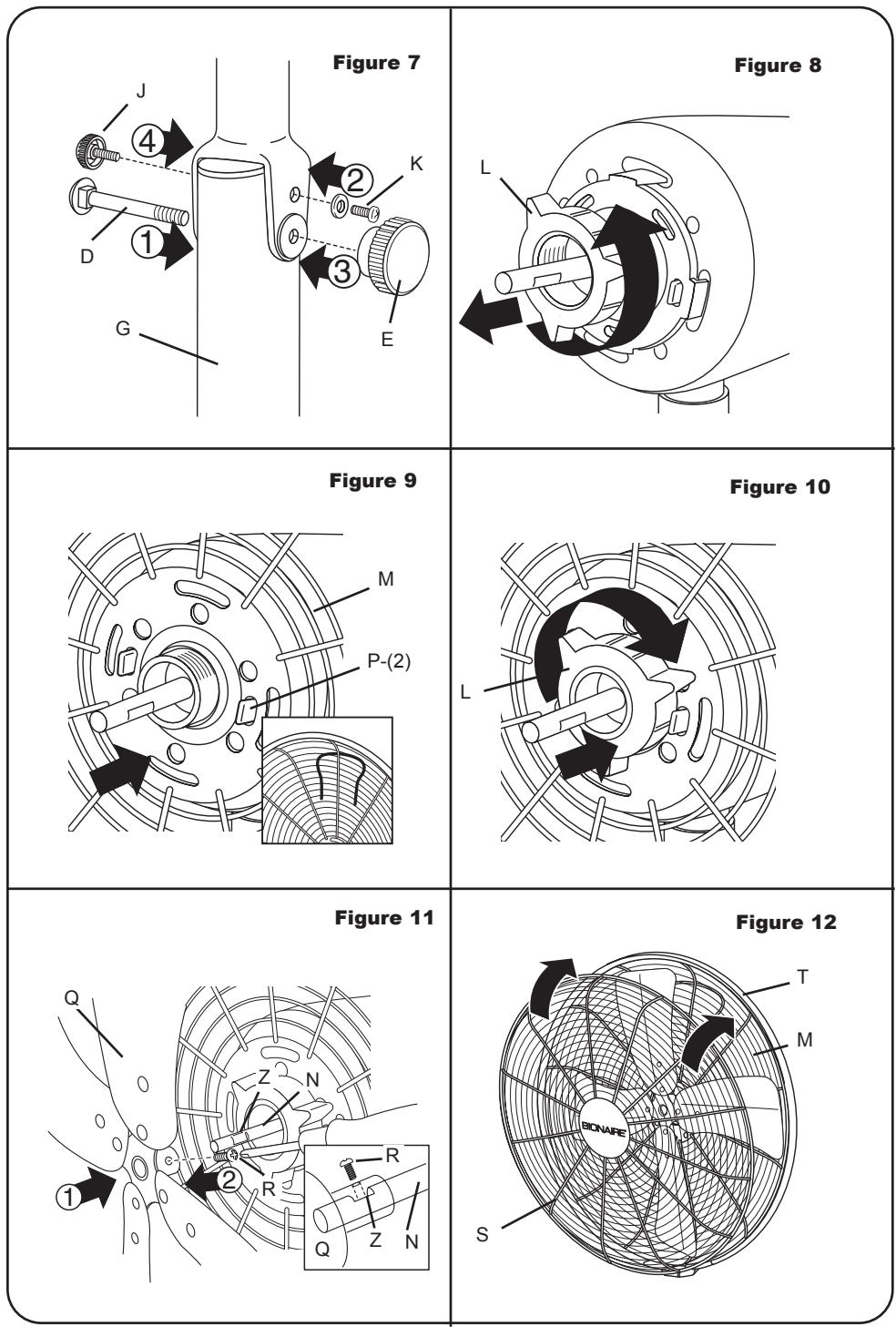

2. In Figure 7, insert Bolt (D) and attach Screw (K). Thread Tilt Adjustment (E) onto the end of (D). Secure Locking Screw (J) last.
3. Before proceeding with Figure 11, remove the protective sleeve from the motor shaft.
4. In Figure 12, there are 2 indentations in the Grill Ring (T). Make sure that the rear grill sits in the rear indentation and the Clip (W) is positioned at the bottom of the grill. Slide the bottom of the Front Grill (S) into the front indentation of the Grill Ring. Working from the bottom, snap the Front Grill into the Grill Ring. Verify that the grills fit evenly into the indentations in the Grill Ring and tighten Screw (U).

OPERATING INSTRUCTIONS (See Fig 1A & 1)

Speed Control (X) =

0 - Off
I - Low
II - Med
III - High

ADJUSTMENT INSTRUCTIONS

Tilt Adjustment

Loosen Tilt-Adjustment Knob (E), move fan head to desired angle, and tighten Tilt Adjustment Knob (E) to lock in place.

Height Adjustment

Loosen Pole Locking Knob (F), adjust Pole (G) to desired height, and tighten Pole Locking Knob (F) to lock in place.

Oscillation Adjustment

Press, Pull Oscillation (Y) = start, stop

CLEANING AND MAINTENANCE

• Always unplug the fan before cleaning.
- Do not allow water to drip on or into the fan motor housing.

FITTING A REPLACEMENT PLUG FOR U.K. AND IRELAND ONLY

If the plug is not suitable for the socket outlets in your home, it can be removed and replaced by a plug of the correct type. Please refer to "Installation of a plug" below.

Installation of a plug Applicable to U.K. and Ireland.

WARNING - THIS APPLIANCE MUST BE EARTHED.

The wires in the mains lead are coloured as such: GREEN AND YELLOW - EARTH

Please note that the colour of these mains wires may not correspond with the colour markings that identify the terminals in your plug.

Please proceed as follows:

The wire which is coloured GREEN AND YELLOW must be connected to the terminal which is marked with the letter 'E' or by the earth symbol ⏻ or coloured GREEN AND YELLOW.

The BROWN coloured wire must be connected to the terminal, which is marked with the letter "L" or is coloured RED.

The BLUE coloured wire must be connected to the terminal, which is marked with the letter "N" or is coloured BLACK.

NOTE: If the terminals in the plug are not marked or if you are unsure or in doubt about the installation of the plug please contact a qualified electrician. If a 13A 3-pin plug is fitted, it must be an ASTA approved plug, conforming to BS1363 standard. Replacement 3A fuses must be BSI or ASTA BS1362 approved.

GUARANTEE

PLEASE KEEP YOUR RECEIPT AS THIS WILL BE REQUIRED FOR ANY CLAIMS UNDER THIS GUARANTEE.

• This product is guaranteed for 3 years.
- In the unlikely event of breakdown, please take it back to the place of purchase, with your till receipt and a copy of this guarantee.

• The rights and benefits under this guarantee are additional to your statutory rights which are not affected by this guarantee.
• Holmes Products Europe undertakes within the specific period, to repair or replace free of charge, any part of the appliance found to be defective provided that:

• We are promptly informed of the defect.

• The appliance has not been altered in any way or subjected to misuse or repair by a person other than a person authorised by Holmes Products Europe.

• No rights are given under this guarantee to a person acquiring the appliance second hand or for commercial or communal uses.
• Any repaired or replaced appliance will be guaranteed on these terms for the remaining portion of the guarantee.

THIS PRODUCT IS MANUFACTURED TO COMPLY WITH THE E.E.C. DIRECTIVES 73/23/EEC, 89/336/EEC AND 98/37/EEC.

Waste electrical products should not be disposed of with Household waste.

Please recycle where facilities exist.

Check on the following website for further recycling and WEEE information:

www.bionaire.com or e-mail [e-mail]

FRANÇAIS

PRIÈRE DE LIRE ET DE CONSERVER CES INSTRUCTIONS IMPORTANTES

Ring 47 51 66 99 00 for assistance.

MONTERINGSANVISNINGER

DETTE PRODUKTET ER PRODUSERT I SAMSVAR MED EU-DIREKTIVENE 73/23/E∅F, 89/336/E∅F, 98/37/E∅F.

PROVOZNÍ POKYNY (viz Obr. 1A a 1)
