Product Type	UPS (Uninterruptible Power Supply)
Brand	SWEEX
Model	PP121
Capacity	1200 VA
Connectivity	USB 2.0
Display	3 LEDs (blue, orange, red)
Input Voltage	230 V (standard)
Charging Time	8 hours for full charge
Power Source	Mains
Management Software	PowerManagerLite
Main Functions	Protection against power outages, surge protection, USB management
Maintenance and Cleaning	Clean with a soft dry cloth. Do not open the device.
Safety	Do not expose to humidity, excessive dust, shocks, or direct sunlight.
Warranty	3 years (except batteries and software)
Weight	Approximately 5 kg (estimate)
Dimensions (W x D x H)	Approximately 30 x 15 x 20 cm (estimate)

Frequently Asked Questions - PP121 SWEEX

How to install the SWEEX PP121 UPS?

Turn off your computer, plug its power cord into the UPS output, then plug the UPS into a wall outlet. Turn on the UPS with the on/off button, then turn on the computer. For the USB connection, first install the software provided on CD-ROM, then connect the USB cable.

How long does it take to charge the UPS?

The UPS must be charged for 8 hours to provide its full backup capacity. Charging begins as soon as it is plugged into the mains, even when turned off.

What do the LEDs on the front panel mean?

The blue LED indicates that the mains voltage is normal. The orange LED means the UPS is charging. The red LED signals a power failure: the UPS then powers the connected devices.

Can I connect any device to the UPS?

The UPS is designed to protect computer systems. It is not recommended to connect other electronic devices, and doing so is at your own risk.

How to configure the UPS via the software?

After installing the PowerManagerLite software, double-click the icon in the taskbar to open the manager. You can then configure the UPS settings.

What is the battery runtime in case of a power outage?

The runtime depends on the connected load. The higher the power consumption, the shorter the runtime. The manual does not provide an exact value.

How to maintain the UPS?

Clean the device with a dry cloth. Do not expose it to dust, humidity, shocks, or direct sunlight. Never open the UPS, as this voids the warranty.

What is the serial number for software installation?

The serial number is on the CD-ROM case provided with the UPS. Enter it respecting uppercase letters and hyphens.

What to do if the UPS does not turn on?

Check that the UPS is properly plugged into a working wall outlet. Press the on/off button. If the problem persists, contact the point of sale.

What is the warranty period for the UPS?

Most SWEEX products come with a 3-year warranty. Graphics cards and consumer electronics have a 2-year warranty. Batteries and software are not covered.

USER MANUAL PP121 SWEEX

PP121 Sweex Manageable UPS 1200VA USB 2.0 with LED status

Introduction

• Do not expose the Sweex Manageable UPS to extreme temperatures. Do not place the device in direct sun light or close to heating elements.
• Do not use the Sweex Manageable UPS in extremely dusty or moist environments.
• Prevent hard shocks or impacts of the device, as this can cause damage to the internal electronics.
• Never try to open the device yourself, this voids the warranty.

Hardware Installation

1. Make sure that the computer you are going to connect to the UPS is turned off.
2. Connect the power supply of the computer with the power output of the Sweeex Manageable UPS
3. Put the plug of the UPS in the plug socket
4. Turn on the UPS by pressing the On/Off button on the device.
5. Turn the PC back on.

Pay attention:

• Connect the USB cable after the software is installed.
• The Sweeex Manageable UPS is designed to secure computer systems. Connecting other electronic devices is not recommended and entirely at your own risk.
• The UPS has to be charged for eight hours to be able to supply the entire back-up capacity.
• The amount of time the Sweex Manageable UPS can supply power to the connected devices after a power failure is always dependant on the load connected to the UPS.

LED's and Buttons

There are 3 LED's on the front side of the Sweeex Manageable UPS and one button.

1. Blue LED indicates that the mains voltage is OK.
2. Orange LED indicates that the UPS is charging.
3. Red LED indicates that there is a power failure. The UPS will now supply power to all connected devices.
4. On/Off button.

Software installation

1. Place the SweeX CD-ROM in the CD-ROM tray. A menu will appear automatically. Click "Drivers and Software". The installation procedure will be started.
2. In the first window click "Next".

Drivers and Software

1. Enter your details:
2. Enter your name or computer name. At "Company Name" enter any name. You must not leave this empty.

1. At "Serial Number" enter the code found on the case of the Sweex CD-ROM. Use capitals and stripes when needed as indicated.
2. Click "Next" and follow the steps to complete the installation.
3. After installing the software connect the USB from the computer to the Sweeex Manageable UPS. Windows will automatically install the UPS.

Charging the Sweex Manageable UPS

The UPS is being charged from the moment it is plugged in the plug socket. The orange LED will light up. The UPS is also charging up when it is turned on with the button.

Configuring the Sweex Manageable UPS

By using the PowerManagerLite you can configure the UPS. At the bottom right of your screen you will find the PowerManagerLite icon, use this to start the manager.

Double click the icon with your left mouse button or right click it and choose "Start Monitor(W)...".

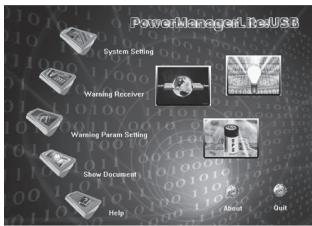

The main screen of the PowerManagerLite appears.

Click the icons to configure the UPS.

Additional tips and further information about the remaining functions of the PowerManagerLite can be found in the English manual on the CD-ROM.

Warranty

For most Sweeex products a warranty period of 3 years applies. On Graphics Cards and Consumer Electronics Sweeex offers 2 years of warranty. We do not give support or warranty on supplied software, rechargeable batteries and batteries. Transaction of warranty only takes place at the sales point where the product is bought.

All brand names and associated rights mentioned in this manual are and stay property of the rightful owner.
