USER MANUAL MO300 SWEEX

Wireless ADSL 2 / 2+ modem/router 300 Mbps Annex A

Introduction

Important! The Setup Wizard is located on the Sweex CD-ROM. This installation procedure will show you step by step how to setup the router.

• Do not expose the Sweex Wireless ADSL 2/2+ Modem/Router 54 Mbps Annex A to extreme temperatures. Do not place the device in direct sunlight or in the direct vicinity of heating elements.
• Do not use the Swee x Wireless ADSL 2/2+ Modem/Router 54 Mbps Annex A in extremely dusty or moist surroundings.
• Protect the device against powerful shocks or jolts - they may damage the internal electronics.
• Never attempt to open the device yourself - it will cause the warranty to lapse.

Front or top view of the modem

PWR

WLA

WPS

DSL

1

3

LED Indicators	Status	Indication
PWR	On	Indicates that the modem is on
1-4	On	Indicates that a computer is connected to the corresponding port
1-4	Blinking	Indicates that there is activity between the corresponding computer and the modem
WLAN	On	Indicates that the wireless connection of the router is activated
ADSL	On	There is a good connection with the ADSL line
ADSL	Regular blinking	The modem is busy establishing a good connection or there is no ADSL line connected to the RJ-11 port

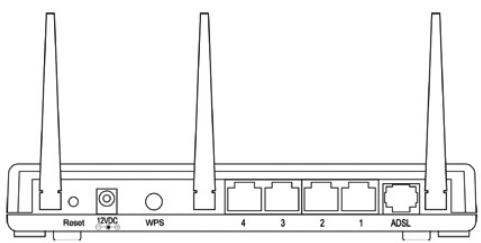

Rear view of the modem

From left to right on the rear side of the modem there are the following connections:

• Antenna connector type RP-SMA
• Reset button. Press this button for 2 to 3 seconds to restart and 10 seconds to restore default settings.
  Power port to connect the power adaptor.
• WPS button. Press this button for 2 seconds to activate WPS. WPS computer has 2 minutes to establish a connection.
• Antenna connector type RP-SMA.
• UTP Ethernet ports 1, 2, 3 and 4 to connect computers with an ethernet networking cable RJ-45.
• ADSL port to connect the ADSL line with the phone cable RJ-11.
• Antenna connector type RP-SMA.

The splitter

In order to separate the ADSL signal from the normal telephone signal, you need to use a splitter. This enables you to simultaneously make calls and surf the Internet using the same telephone line. The signal comes from the wall socket or the meter cupboard and enters the splitter. Two telephone cables are connected to the output of the splitter. One leads to the modem and the other to the telephone.

Note! The ADSL modem does not include a splitter. It can be obtained from various DIY stores.

Connecting the Sweex ADSL 2 Modem

1. Connect the power adaptor (included) to the rear of the modem and the mains socket. The LED under PWR is lit. In the event the LED is not lit, check the connections of the power adaptor to the ADSL modem and the mains socket.

2. Connect the telephone cable (RJ-11) carrying the ADSL signal to the ADSL port at the rear of the modem. The LED under ADSL will now start to blink. After approximately 30 seconds the LED will be lit continuously. In the event the LED is not lit, check whether the splitter is properly connected and/or whether the ADSL line is ok.

3. Switch on the computer and connect it to the rear of the modem using a network cable (UTP RJ-45). You can select any of the ports 1, 2, 3 and 4. The corresponding LED at the front of the modem will be lit. In the event the LED fails to light up, check whether the network cable is properly connected to the computer and the modem.

Configuring the computer to connect to the modem

Windows Vista

In the bottom left of your screen, go to "Start" (Start) "Control Panel" (Control Panel).

Click on "View network status and tasks" (View network status and tasks).

Left in the column, click on "Manage network connections" (Manage network connections).

Right-click "LAN Connection" (LAN Connection) or "Wireless Network connection" (Wireless Network connection) and select "Properties" (Properties). The following screen appears:

Now select "Internet Protocol Version 4 (TCP/IPv4)" and click "Properties" (Properties).

Select the options "Obtain an IP address automatically" (Obtain an IP address automatically) and "Obtain DNS server address automatically" (Obtain DNS server address automatically).

Confirm the settings by clicking "OK". The network settings have now been configured correctly for Vista. The correct settings for the Internet browser will be discussed later in this manual.

Windows XP

Go to "Start" (Start) ± "Control Panel" (Control Panel). Then go to "Network and Internet Connections" (Network and Internet Connections). Open "Network Connections" (Network Connections).

Or, if the Windows classic style is used:

"Start" (Start) Settings "Network Connections" (Network Connections).

Right-click "LAN Connection" (LAN Connection) or "Wireless Network connection" (Wireless Network connection) and select "Properties" (Properties). The following screen appears:

Under the tab "General (General) select TCP/IP and click "Properties" (Properties).

Select the options "Obtain an IP address automatically" (Obtain an IP address automatically) and "Obtain DNS server address automatically" (Obtain DNS server address automatically).

Confirm the settings by clicking "OK" (OK). The network settings for Windows XP have now been configured correctly. The correct settings for the Internet browser will be discussed later in this manual.

Internet browser settings for Windows 98SE, 2000 and XP

1. In order to properly access the modem, the browser settings must be correct. This is easy to check by starting up Internet Explorer and selecting "Tools" (Tools) from the menu bar and then selecting the option "Internet Options" (Internet Options).
2. In this window, go to "Connections" (Connections) and select "Never dial a connection" (Never dial a connection) or remove all connections listed in the field above.
3. At the bottom, click "LAN Settings" (LAN Settings), remove all ticks and click "OK" (OK).
4. Restart the computer.

Setting the wireless network

How does it work?

In order to create a wireless network, you need a wireless router, wireless modem or WiFi access point. The wireless router, modem or access point transmits the wireless network. The name of this network, also referred to asSSID, depends on your wireless router, modem or access point and often differs per model or brand. You can often determine the name yourself and thus recognise your own wireless network.

Protection

You could compare a wireless network to radio signals. However, the range of a wireless network at home is not as big. Your home wireless network often has a range of 20 to 30 metres. This means that neighbours and passers-by too can make use of your network. As a result they can get away with surfing on your Internet connection, and they may gain access to your shared folders and files on your network. That is why it is often recommended to secure your wireless network. This protection is set up on the device transmitting the network. In most cases that is the wireless router, modem or access point. By adding a WEP or WPA protection code, you secure the network. This code is also referred to as the network key. Enter this code on each computer that wants to connect to that secured network. You can only be part of that network if you enter this code. If you did not enter the network key into the router or modem yourself, ask the installer, manufacturer, supplier or provider for this code.

Connecting the computer to the wireless network

In the bottom left of your screen, go to "Start (Start) ± "Control Panel" (Control Panel).

Then go to "Network and Internet Connections" (Network and Internet Connections). Open "Network Connections" (Network Connections).

Or, if the Windows classic style is used:

"Start" (Start) "Settings" (Settings) "Network Connections" (Network Connections).

Right-click "LAN Connection" (LAN Connection) or "Wireless Network connection" (Wireless Network connection) and select "View Available Wireless Networks" (View Available Wireless Networks).

Always click "Refresh network list" (Refresh network list) top left in this window first, to obtain the most recent listing.

Select the name (also referred to as SSID) "Sweex M0300" by clicking it once. Now click "Connect (Connect). If it has successfully connected to the wireless network, the notification "Connected" (Connected) appears after a couple of seconds. You now have an active wireless network.

If you receive a notification saying the wireless connection cannot be configured because it is managed by another programme, disable that software and start again.

We recommend securing the wireless part of the modem. How to do this is described further down in this manual. Once secured, the network will show as "Sweex M0300" with a message below detailing "Security-enabled wireless network" (Security-enabled wireless network). When connecting to this secured network you will be prompted for the "Network key" (Network key). If the network key you have entered is incorrect, a notification saying "Limited or no network connection" appears after a couple of seconds. Your wireless connection is not satisfactory. Re-connect to the wireless network and check the network key.

If you change something in the wireless settings of the modem causing you to lose the wireless connection, then complete these steps again.

Modem access (Login)

Open your web browser. In this example we use 'Internet Explorer'.

The standard modem IP address is: 192.168.251.1. An IP address is a unique number required by each network device, including a computer or modem, in order to be active within that network. Without an IP address you are unable to make connections within a network.

Type the modem IP address 192.168.251.1 in the browser address bar. You can now access the modem.

The modem login screen appears. Fill out the login name and the corresponding password. The standard login is "sweex" and the corresponding password is "mysweex".

If this login screen fails to appear, recheck the settings of your Internet browser as described above. Also check the IP address of your computer. In this IP address, only the digits after the last dot may deviate from the IP address of the modem (e.g.: 192.168.251.xxx).

Do this as follows:

Win2000/WinXP: Click "Start" (Start) - "Run" (Run) - Type cmd - press ENTER - In the black window type ipconfig - press ENTER and your IP address is displayed.

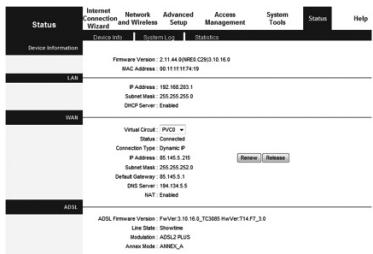

Once logged in, the main screen of the modem appears.

This screen displays the current Internet connection and a variety of system information.

Setting the Internet Provider (ISP)

Important! The Setup Wizard is located on the Sweex CD-ROM. This installation procedure will show you step by step how to setup the router.

In the event that your provider has not been listed, you can enter alternative settings via the "Config" option. In order to obtain these alternative settings, contact your Internet provider. In order to store the settings click "Apply" and then "Save All".

These settings only have to be configured once in the router. This means that no matter how many computers you connect to the router, the following settings only have to be done on one computer. This is because the settings are not stored on the computer but on the router.

To this end, go to the "Internet Connection Wizard". The following screen appears:

Click "Start Wizard".

Click "Next".

Enter a new password or use the default password "mysweeex". Click "Next".

Choose the correct region or leave it on the default setting. Click "Next".

Select the correct connection. Consult the list with provider settings (see underneath this manual) or contact your internet provider.

Click "Next".

If needed, enter the username and password you have received from your provider. Enter "VPI", "VCI" and "Connection Type". Consult the list with provider settings (see underneath) or contact your internet provider.

Click "Next".

Click "Next".

Click "Close".

To check if the right settings have been entered for your provider click "Status".

"Status: Connected" indicates that a successful connection has been established with your provider. You can now access internet.

Wireless settings and security

We always recommend setting the modem with a computer physically connected with the modem by means of a cable. This is because you will lose the wireless connection with the modem while storing these settings.

In the main menu click "Advanced" and then "Wireless".

At "Access Point" you can activate or deactivate the wireless network.

The standard SSID is "Sweex_M0300". At "SSID" you have the possibility to change this. We recommend that you never change this, this way you can always recognize the modem.

Securing the wireless network

Securing the wireless network in the Sweex Wireless Broadband Router 300 Mbps can be done in two ways. The trusted manual way (WEP, WPA and WPA2), where you determine and enter your own network key, or with the WPS (WiFi Protected Setup) function, where the router and the computer "agree" on a network key and use it automatically with one push of a button to secure the network.

It is not possible to use both ways at the same time. Therefore, if you have computers that do not support WPS we recommend you use the WPA or WPA2 security.

WPS (WiFi Protected Setup)

Securing a network fast and easy is done with WPS. This function only works with computers that use a wireless card or USB dongle that supports WPS.

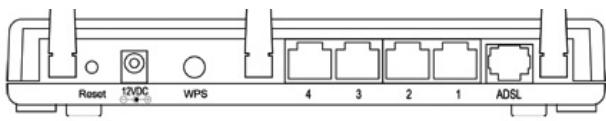

1. By pressing the WPS button on the rear side of the router for 2 seconds you can activate the WPS function. The light will start to blink.
2. A wireless computer that supports WPS can now scan for the router and use the automatically generated network key; the network is secured.

For future computers you want to add to the network, follow the same procedure. You can also read a PIN code from the router and enter it in the computers the "old" way.

WPA and WPA2 security

By scrolling down in the "Wireless" window you can secure the wireless network.

To activate WPA security, follow these steps:

1. At "Authentication Type" select the option "WPA-PSK/WPA2-PSK"
2. At "Pre-Shared Key" enter the network key. You can make this up yourself and it can be a number combination or a password.
3. Press "Save" at the bottom of the page to save the settings.

The modern is now secured. Reconnect your wireless computer.

Opening ports in the modem (Port Forwarding and DMZ)

We advise you to use a fixed IP address for the computers or consoles that you open ports for. So that these computers always have the same IP-address similar to the address they have in the router. It can occur that the router gives a different IP-address to the computer making the forwarding or DMZ assignment invalid for that computer.

How do you give a computer a fixed IP-address

This is only necessary for computers you want to open a port for using the Forwarding or DMZ function. Follow the steps in the chapter "Configuration computer to connect to the router". Instead of selecting "Obtain an IP address automatically" select Use the following IP address".

In our example the IP-address begins with (192.168.203.xxx). As last number enters a number that is unique in your network. We advice you to choose a number between 150 and 200. So a possible IP-address could be (192.168.203.150). The following computer has (192.168.203.151) etc.

As "Subnetmask" enter: 255.255.255.0

At both "Default gateway" and "Preferred DNS-server" you enter the IP-address you use to login to the router. In our example: 192.168.203.1

At "Alternative-DNS-server" you do not have to enter anything.

Click "OK" twice to save the settings and close the window.

In this modern the build-in firewall can not be activated. However, it is possible to open ports for programs and games that require this. By going to "Advanced Setup" "Firewall" you can change the port settings.

Leave the "Firewall" option set to "Disabled". Select "Enable" if you want to protect the modern against "Syn flooding", "Ping of death", "Teardrop" and "Land attack".

Click "NAT".

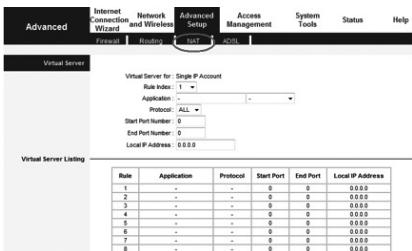

Thereafter click "Virtual Server"

The Sweex ADSL 2 Modem has a preprogrammed list with common programs and games.

1. At "Rule Index" choose a number that has not yet been used to make a new entry.
2. At "Application" select the program or the game in the list.
3. At "Local IP Address" enter the IP-address of the computer of which the port has to be opened.
4. Click "Save" at the bottom of the page to activate the settings.

If the program or game is not in the list you can also manually open ports.

1. At "Rule Index" choose a number that has not yet been used to make a new entry.
2. At "Name" enter a made up name.
3. At "Start Port Number" and "End Port Number" enter the respective port numbers. If you only want to open one port, enter it twice.
4. At "Local IP Address" enter the IP-address of the computer of which the port has to be opened.
5. Click "Save" at the bottom of the page to activate the settings.

In some situations, or when using a game console, you can choose to let the computer or game console pass the firewall entirely. This happens in the so called "demilitarized zone" ("DMZ"). This option is located in the main screen of the port settings "Port Forwarding" under "Advanced". Be aware that now you miss the security the firewall of the router has to offer. All ports are opened for the computer that you place in the DMZ. Only one computer can be placed in the DMZ.

Click "DMZ".

1. Click DMZ
2. Select the option "Enabled".
3. At "DMZ Host IP Address" enter the IP-address of the computer for which the ports have to be opened.
4. Click "Save".

Upgrading the modem firmware

To update the modem the so called 'firmware' has to be updated. This can be done by going to "System Tools" in the menu and then "firmware".

Here the firmware of the modem can be updated. New firmware can be downloaded from the Sweex website under the "Service and support" tab. When the firmware file is a ZIP-file, ensure you unzip it and place it where you can easily find it again on your computer.

Thereafter click "Browse" and select the unzipped firmware file. In many cases the name of the file will end with "...firmwareRos".

To start the firmware update click "Upgrade".

Do not interrupt this procedure. The modem can be damaged by this. Wait for the upgrade to be finished.

Resetting the modem to the factory settings

Resetting the Sweex ADSL 2 modem to the factory settings can be done in two ways.

Important! Afterwards all settings that are required for your connection and network have to be reconfigured.

After the reset the modem will restart. During the restart the factory settings will be restored and the computer will lose its connection to the modem for approximately 30 seconds. After that the modem is approachable by the default IP-address (192.168.203.1).

Way 1: At the back of the modem there is a reset button. Use a small item to press the button.

Hold the button for 10 seconds.

Way 2: In the menu of the modem go to "System Tools". Click "Sysrestart".

Choose "Factory Default Settings" and "Restart" to confirm.

Additional tips and further information about the remaining functions of the modern can be found in the advanced English manual on the CD-ROM.

List of Internet Providers and corresponding contracts.

Country	Internet Service Provider (ISP)	Connection Type	VPI	VCI	Encapsulation
Argentina	Argentine Telecom		0	33	1483 Bridged IP LLC
Austria	AON		8	48	PPPoeA VC-Mux
Australia	CountryWide		8	35	PPPoeE LLC
Belgium	Bulgacom		8	35	PPPoeA VC-Mux
	FullADSL		8	35	PPPoeA VC-Mux
	Scarlet		8	35	PPPoeE LLC
	Skynet		8	35	PPPoeE LLC
	Signpost		8	35	PPPoeE LLC
	Versatel PPP		8	35	PPPoeA VC-Mux
Czech	Cesky Telecom PPPoE		8	48	PPPoeE LLC SNAP
	Cesky Telecom PPPoA		8	48	PPPoeA VC MAXX
Denmark	Cybercity		0	35	PPPoeA VC-Mux
	Cybercity Bitstream		0	101	PPPoeA VC-Mux
	Tiscali		0	35	PPPoeA VC-Mux
Egypt	Mena Tel		8	35	PPPoeE VC-Mux
	TE Data		0	35	PPPoeE VC-Mux
	EGYNET		8	35	PPPoeE VC-Mux
Finland	Counttryside(Bridged)		0	33	1483 Bridged IP LLC
	Counttryside(PPP0A)		0	33	PPPoeA VC-Mux
	Helsinki		0	100	1483 Bridged IP LLC
France	France Telecom		8	35	PPPoeE LLC
Germany	AOL		1	32	PPPoeE LLC
	ARCOR		8	35	PPPoeE LLC
	Deutsche Telecom		1	32	PPPoeE LLC
	DTAG		1	32	PPPoe LLC
	Tscoli		1	32	PPPoe LLC
	T-Online		1	32	PPPoe LLC
Greece	OTENET		8	35	PPPoe LLC
	ALTEC		8	35	PPPoe LLC
	FORTHnet		8	35	PPPoe LLC
	HOL		8	35	PPPoe LLC
	TELLAS		8	35	PPPoe LLC
Hungary	Moltav Telecom		1	32	PPPoe LLC
Iceland	Iceland Telecom		8	48	PPPoe LLC
	1Islandssimi 1		8	48	PPPoa VC-Mux
	2Islandssimi 2		0	35	PPPoa VC-Mux
Indonesia	TELKOM 1		1	33	PPPoa VC-Mux
	TELKOM 2		8	35	PPPoa LLC
	TELKOM 3		0	35	PPPoa VC-Mux
	TELKOM 4		0	35	PPPoa LLC
Israel	Israel		8	48	PPPoa VC-Mux
Italy	Alice (T.I.)		8	35	PPPoa VC-Mux
	Libero (Wind)		8	35	PPPoa VC-Mux
	MCLink		8	75	PPPoa VC-Mux
	Tiscoli (Italy)		8	35	PPPoa VC-Mux
Luxembourg	Online ANALOGUE		8	35	PPPoa VC-Mux
	Online ISDN		8	35	PPPoa LLC
Malaysia	Streamyx		0	35	PPPoa LLC
Netherlands	ADSL KPN	PPPoe / PPPoa	8	48	PPPoa VC-Mux
	BabyXL	Dynamic IP Address	0	34	1483 Bridged IP LLC
	BBNed(Bismuss)	PPPoe / PPPoA	0	35	PPPoe VC-Mux
	BBNed(Economy)	Dynamic IP Address	0	35	1483 Bridged IP LLC
	Telfort / Tiscali	Dynamic IP Address	0	34	1483 Bridged IP LLC
	Versatel	Dynamic IP Address	0	32	1483 Bridged IP LLC
	Online Extra / Orange	Dynamic IP Address	8	35	1483 Bridged IP LLC
	XS-4ALL Only	PPPoe / PPPoA	8	48	PPPoe VC-Mux
	Online Basic	PPPoe / PPPoA	8	48	PPPoe VC-Mux
	Alice	PPPoe / PPPoA	0	35	PPPoe VC-Mux
	Let op: Voor Alice: username = [e-mail], password = userO
New Zealand	New Zealand Telecom		0	100	PPPoe VC-Mux
Norway	Telenor 1		0	100	PPPoe LLC
	Telenor 2		8	35	PPPoe LLC
Poland	Neostrada		0	35	PPPoe VC-Mux
	DichnetDSL		1	32	1483 Bridged IP LLC
	Net24		8	35	PPPoe LLC
Portugal	ONI		0	35	PPPoe LLC
	PT		0	35	PPPoe LLC
Russia	Stream		1	50	1483 Bridged IP LLC
Saudi Arabia	STC		0	35	PPPoe LLC
Slovakia	Slovak Telecom		1	32	PPPoe LLC
Spain	YA.COM ADSL		8	32	PPPoe LLC
	YA.COM ADSL + IP FUIA		8	32	1483 Routed IP LLC
	Telefonico		8	35	PPPoe VC-Mux
Sweden	Telenordia		8	35	PPPoe LLC
	Teia		8	35	1483 Bridged IP LLC
Syria	STE		0	33	PPPoe LLC
Taiwan	Hinet		0	33	PPPoe LLC
Thailand	ADC		0	35	PPPoe LLC
	CSLOXINFO		0	35	PPPoe LLC
	Qnet		0	40	PPPoe LLC
	Samart		0	35	PPPoe LLC
	TOT		1	32	PPPoe LLC
	True(Huawei)		0	100	PPPoe LLC
	True(Nokia)		0	100	PPPoa VC-Mux
	TT_T		0	33	PPPoe LLC
	TT_T(Hinet)		0	66	PPPoe LLC
	Ukom(Bblife)		0	100	PPPoe LLC
Tunisia	Global Net		0	35	PPPoe LLC
Turkey	Turkey Telecom (Alcatel)		8	35	PPPoe LLC
	Turkey Telecom (Nec)		8	35	PPPoa VC-Mux
UK	BT		0	38	PPPoa VC-Mux
	General-UK-ISP		0	38	PPPoa VC-Mux
	UK-Online		0	38	PPPoa VC-Mux
	AOL-PPPoaA		0	38	PPPoa VC-Mux
	AOL-PPPoe		0	38	PPPoe LLC
	Kirston		1	50	PPPoe LLC
	Kanoo		1	50	PPPoe LLC
Ukraine	Ukraine		0	32	PPPoe LLC
Venezuela	CANTV		0	33	1483 Bridged IP LLC
Vietnam	Viettel		8	35	PPPoe LLC
	VNN Mega		8	35	PPPoe LLC
	FPT		0	35	PPPoe LLC

Warranty

• For this Swee x product a three year warranty period applies, beginning from of the date of purchase.
• In case of defect, return the product to your reseller with failure description, proof of purchase and all accessories.
• Warranty will be void in case of opened products, physical damage, misuse, modification, repair by unauthorised persons and using the product for other purposes than its intended use.
• We do not give support or warranty on supplied software, rechargeable batteries and batteries. Transaction of warranty only takes place at the sales point where the product is bought.

All brand names and associated rights mentioned in this manual are and stay property of the rightful owner.
