USER MANUAL CHORUS 807 FOCAL

800 V serie / 700 V serie Thank you for choosing the Chorus V loudspeakers. We are pleased to share with you our philosophy : “the Spirit of Sound”. These high-performance speakers feature ïhe latest technical developments from Focal in terms of speaker design, whether it is for high fidelity or home theater systems. In order to (make the most of these speakers) enjoy the maximum of their. performance, we advise you to read this user's manual and to keep it carefully so that you can consult it later. Running-in period The drivers used in the Chorus V loudspedker are complex mechanical devices and require an runcin period before they deliver their best performance. They must get adapted lo he lemperaivre and humidity conditions of their environment. This bredking-in period depends on the encountered conditions and can lost several weeks. In order 1 shoren this period, we advise you to let your loudspedkers operaîe for about iwenty hours. Once the components of the loudspedkers are completely sta- bilzed, it is possible lo enjoy the real performance of your Chorus V loudspedkers Included inside: + 1 x loudspeaker + 1 x user manual + 1 x micro-fiber cloih (800 V) + 1 xkey for spikes (816, 826, 836 V) + 1 xaluminum base (816, 826, 836 V) + 4 screws for base + key (816, 826, 836 VI The Focal-JMlab guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase. FOCAL the Spirit of Sound

| SRB IT © CSSS PEN |

Specifications The _aluminum/magnesium alloy TNV inverted dome tweeter®: ihe iweeter of the Chorus V benefits from the invered dome technology, which is exclusive to Focal. I allows optimal energy transfer and wide dispersion The dluminum /magnesium _elloy making up of the dome guarantees exceplional performances in terms of stfiness and damping thus ensuring a subile blend of sofiness and dynamics Polyglass® cone woofer and midbass: impregnaied paper cones wih a fine layer of silica micro-balls for a fully dynamic bass impact, precise and dislortion-free. OPC (optimum phase crossover) phase oplimization for a precise, natural and stable soundstage and image. Braced precision MDF cabinets, non parallel inner wall structure: rigid cabinets without any internal resonance for lower coloration. Powerflow system (800 V: Powerful bass hly efficient acoustic wadding: excellent internal damping, deeper and fighter bass Highly reliable input sockets. Decoupling spikes.

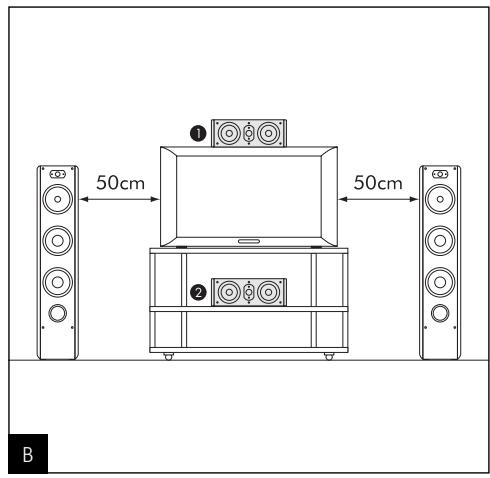

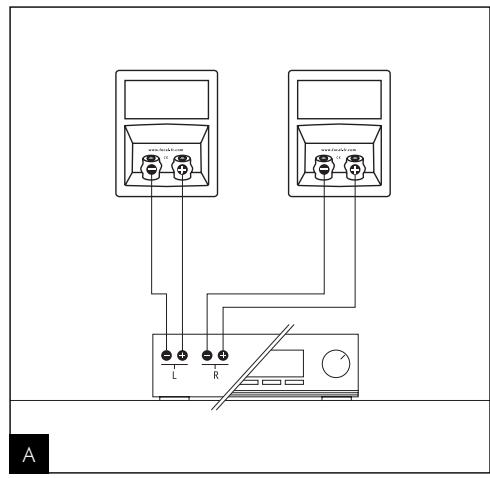

INSTALLATION Connections The Chorus input sockels ensure reliable _ muliipurpose connections for stipped cables os well as for plugs. The “banano” terminals are obstrucied in order 10 comply with electrical standards currently in force in several countries. Make sure not to remove the plostic safety lids. His imperative to respect the connector polarity of. boïh he loudspeaker and amplifier. The positive terminal “4 must be conneced to the corresponding (matching) amplifier's ferminal_and the negalive terminal “# to the negative terminal (fig. A) Stereo image, soundstaging and bass perception would be seriously compromised if these conditions were not respected. Magnetic disturbance In home heater systems, the magnetic radiation of the loudspeckers must be aken into consideration With_the exception of the center speakers which are fully magnetically shielded, ll oïher Chorus V loudspedkers generate a magnetic leak that can interfere with household appliances, some of which are sensitive to this phenomenon. If is strongly advised not to place front loudspedkers closer than 50cm to your TV screen Frame geometry as well as colours can be severely disiorted by a magnetic field if the loudspeaker is placed to close to the TV. In case of problems, some TV screens (or computer monitor) feature a degauss control, but not systematically (fig. B) notice chorus v gb 3 Positioning The Chorus V. loudspeakers have been engineered to deliver the most faithful sound reproduction, whether hey are used for music or home cinema. In order to enhance their performance, io guarantee a high quality of listening, sound image and lone balance, it is important to note the following basic rules The listening area must be located at the summit of an equilateral riangle whose io ofher points of inserion are determined by the position of each speaker. Neveriheless i is possible to modify Ihese distances lo find an ideal. compromise according to ihe particular disposition of the room (fig. C) Eoch loudspedker must be placed af ihe same height and on the same floor plan. The feeler should be at the same height as the listener's er, when the listener is in their usuol listening area (fig. D) Avoid_placing_the_loudspeakers 100 close to the room's corners or walls. This will induce some unwanted room resonance and arificielly increase bass response. On the contrary, iFthe bass level proves to be insuflicient, it is possible to move he speakers closer to the walls to dust the bass level (fig. E). Optimization To please the perfectionisis, we shall give an optimum posifioning formula if À is he distance from the boomer centre to the closest wall (floor or wall, 8 the intermediate distance and € he longest distance [A<B<C), the relation B2=AC delermines the ideol position of the speakers. + Example 1: The boomer centre is 60cm (24”) from the floor (B—60cm) {mini speaker on a fool), standing 50cm (20) from the back wall (A=50cm}, the side wall will be ideally 72cm (28") (C=BYA= 72cm) (fig. F) User instructions The sound rendifion of the Chorus loudspeaker depends strongly upon he listening rooms acousics, the place of the loudspeckers and the listening area. These factors can be modified in order to correct or enhance a desired effect Should the soundstage be i precise or not centred, try to move îhe loudspeakers closer to each other. Harsh or aggressive sound means {hat your listening room is probably 100 reflecive. Ty to use any obsorbing materials (such as tapestries, sofa, wall coverings, curlains.…) combined wilh refleciive materials to absorb or diffuse resonances. Should the sound be “flat” or muffled, ihere are oo many absorbing materials in the listening room. The sound appears to be closed-in, with a narrow stereophonic image. Ty lo find a beïter compromise between absorbing and refleciive materials within your listening room. Generally the wall to the rear of he speakers should be made up of refleclive materials so that the sound image exhibits satishing volume and widih. On the contrary the wall on he rear of îhe lisiener should be absorbing in order to avoid reflections damaging the perception of he slereo soundstage. These relections may limit he impression of depth of the sound image. Furnilure, such as bookshekes should be ideally placed along the side walls in order to diffuse sound waves and lo prevent some frequencies from being amplified, especially in vocal range (it removes “flvier echo”) 26/09/06, 10:42:35

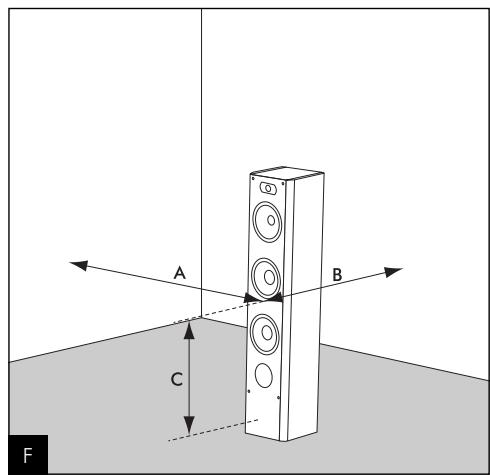

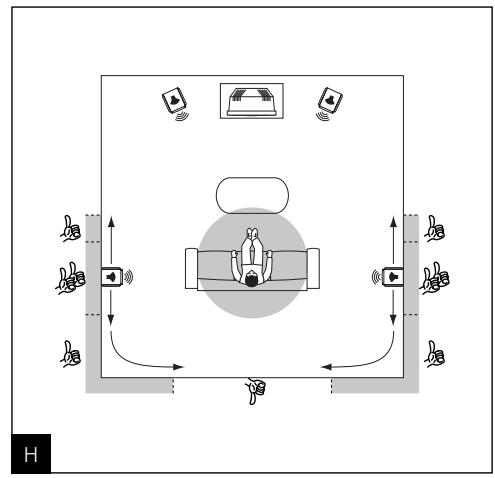

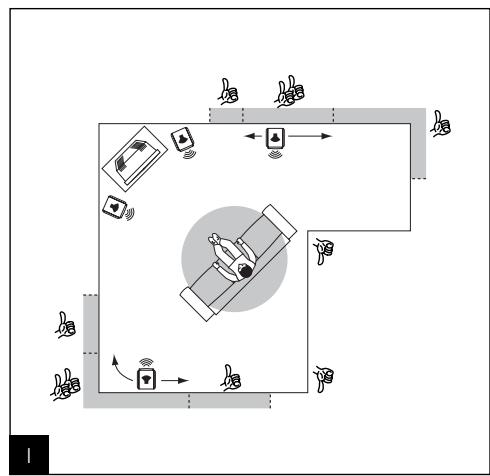

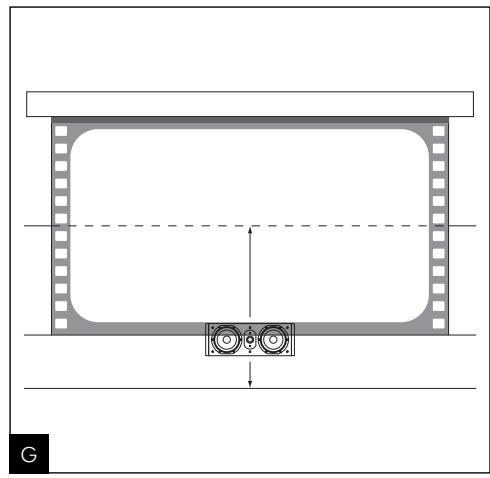

HOME THEATER Choice of speakers The Chorus loudspeakers have been engineered to work with stereo systems as well as with home ihegter systems If you already own a pair of stereo Chorus V loudspeakers and wish to purchase a complete home theater system, it is of 1he utmost importance ihat you use the central and effect loudspedkers of the same product line : Chorus V. I is the sole possible condition le bring to your system a perlec onal homogeneity and a realistic and coherent reproduction of tri-dimensional effects within the listening room Central channel placement Central channel speakers should be placed close to the TV-screen to obiain a proper placement and a realistic reproduction of the dialog They could be placed below or above he TVscreen if your TVsunit permits (fig. F) If a standart projection screen is used, he central channel speaker must be placed under the screen. If an acoustically transparent projection screen is used, ihe central channel speaker can be placed behind and at îhe botiom of the screen (fig. G) notice chorus v gb 5 Effect channel speakers's place The soundirack mix for a film or music encoded in muliichannel format is very complex and allows the listener 10 benefit from a wide range of special sound effects, which require the use of effect channel speakers. In order to obiain a realistic 3D soundstage, the placement of the speakers is decisive, even when confronted with a restrictive disposition of the listening room For enhanced performances, the following elements should be noted Avoid placing the effect speakers too far from the listening area otherwise the sound perception will be dltered. In order to obtain surround effects, with great sound density we advise you lo place the speakers against Îhe sidewalls on each side of îhe listening room (fig. H, 1) Bookshelf mounting (705 V, 706 V, 806 V) Fxing the bookshelf as indicated Surround mounting (SR 700/800 V) Polyfix wall bracket. + Place the wall rest on to he wall and dril. Use only plugs fiting your wall material + Ifthe loudspeaker cable is embedded in the wall, guide it through he wall mounted bracket's opening as indicated. + I the loudspeaker cable is fixed lo ihe wall slide it under the wall mounted brackeï as indicated + Guide the loudspeaker cable through the Polylix plate as indicated + Clip the plate on the loudspeaker to he wall mounted bracket as indicated (fig. K, L) Accessories The Chorus 700 V floorstanding loudspeaker systems include four decoupling spikes {cones and should be screwed, if necessary, into the four metal inseris situated on the base of the loudspeaker. These spikes ensure a beller stability for floorstanding speakers, particularly if the floor is not perfecily flat and smooth. The enclosed spikes are adiustable in height. After having adjusted the height of ihe spikes, don't forget to lock them with the locknut. The Chorus 800 V include four decoupling spikes (cones). The spikes are adjusteble in height with he supplied key. This key can be reserved for fuiure use in a small housing behind the grille after installation and opiimization Chorus 700 V| — 4 Chorus 800 V| Chorus 800 V| 26/09/06, 10:42:36

FINE TUNE Mounting the aluminum base (816, 826, 836 V) Fixing the 4 screws with Ihe supplied Key os indicated. User precautions The TNV ieeler is made up of a relatively_ soft aluminum/magnesium alloy and has a “shape memory” hat enables it to rapidly take is initial shope again afierslight_ impacts However we advise you not lo remove he speaker grille in order to keep the dome protected. If 1he dome surface is damaged, iwester_ pedormance may be compromised As ihe loudspeakers covering materials are strong, scraich- and slain-resistant, maintenance is easy and consists only in cleaning the covering with a dry cloih. IF the enclosure is siained, we simply recommend the use of a damp cloth Never use any solenis, detergents, alcohol or corrosive producis, scrap- pers or scouring powder lo clean he surface of the loudspeaker. Avoid placing the loudspeakers near a heat source.

mm in which ve all live notice chorus v gb 6 About amplifiers Contrary to what one might think, it is not a too powerul amplifier hat might damage a loudspedker, but rather a lack of power. Actually if the ouiput level of he amplifier is 100 high it will saturate and distort which will irremediably damage the Ieeter. The power handling and frequency response of the Chorus loudspeakers is good enough to highlight the qualities or wedk points of the amplifiers ihey are combined with. Let your relailer help you make the right choice, maïching your personal taste and budget Cable Don't underestimate the importance ofihe cable: make sure you chose the appropriate section and length. Let your relailer advise you: Installation of spike caps

Conditions of guarantee Al Focal loudspeakers are covered by guarantee drawn up by the official Focal-JMlab distributor in your country. Your distibutor can provide all details concerning the conditions of guarantee. Guarantes cover extends af least to that granted by the legal guarantee in force in the country where the original purchase invoice wes issued Your Focal product was developed and manufactured with high-quali materials and components which can be recycled and/or re-used, This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at 1he end of is operational lifetime.Please dispose of this product by bringing it lo your local collection point or recycling centre for such equipment. This will help to protect Ihe environment 26/09/06, 10:42:36

INTERNATIONAL GUARANTEE The Focal guarantee only appl returned to us within 10 days of purchase, to the following addres: x Focal-JMlab - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - FRANCE Model: Serial number: Name of dealer: Town: Date of purchase: Purchase price: Your name: Age Occupation: Your complete address: Your email address: Details of your installation (brand, model): = Cassette: «CD: = Tuner: » Satellite / cable: # DVD: « Amp. Preamp. Receiver: + » CD / DVD recorder: ___., Other elements: Your decision for purchasing this Focal model was made according to: CO Dealer's advice D Friend's advice CO Visit to an exhibition, show O Press article CO Listening in auditorium O Already own Focal products O Reliability / Quality [Documentation CO Reputation D French produce CO Guarantee D Quality / Price ratio O Design / Finishes D Other O Sound In case of purchase of new equipment, what were your former speakers ? Explain in a few words why you choose Focal. x Further comments: The information given on this page will remain confidential. 354405002036 SCOS-060308/5
