Product type	Built-in electric oven
Brand	TEKA
Model	HA-830 / HA-830 E
Power supply voltage	220-240 V / 50-60 Hz
Control type	Electronic with programmable clock
Display	Digital (clock)
Cooking functions	Grill, Convection (fan), Bottom heat, Defrost
Programming	Cooking time, End of cooking, Duration and end of cooking
Timer (buzzer)	Yes
Door	Hinged with seal
Interior	Side catalytic panels
Lighting	Interior light (on during any cooking function)
Cleaning	Easy-clean enamel on tray, catalytic panels
Included accessories	Rack, enameled tray, chrome support with telescopic guides
Safety	Door must remain closed during grill use
Installation	Built-in
Control panel	Stainless steel anti-fingerprint
Hob controls (HA-830 E)	Integrated into front panel (for model E)

Frequently Asked Questions - HA-830 TEKA

How do I set the clock on my TEKA HA-830 oven?

When you plug in the oven, the display '00:00' flashes. Press the + or - buttons to set the time, then confirm with OK. You will hear two beeps. To change the time later, press + or - until the time flashes, then press OK and adjust.

How do I use the timer (buzzer) function?

Press the button until the [s] symbol lights up, then press OK. Select the desired time with + or -. Two beeps confirm. When the time is up, an audible alarm sounds. Press any button to stop.

How do I program an automatic cooking duration?

Press + or - until the duration symbol lights up, then press OK. Choose the duration with + or -. Two beeps confirm. Then select a function and temperature. The oven turns off automatically at the end of the programmed time.

How do I program the end of cooking?

Press + or - until the end symbol lights up, then press OK. Set the end time with + or -. Two beeps confirm. Select a function and temperature. The oven turns off automatically at the set time.

How do I program a cooking with duration and end of cooking?

Press + or - until the duration and end symbols light up, then press OK. Set the duration first, then the end time. The oven starts automatically at the calculated time and turns off at the programmed end.

How do I use the grill function?

Set the function selector to the Grill position. The top element heats for gratinating or roasting. Caution: the door must remain closed during grill use.

What cooking functions are available?

The functions are: Grill, Convection with fan (even heat), Bottom heat (for warming or proofing dough) and Defrost (without heating).

How do I clean the oven interior?

Use the easy-clean enamel on the tray. The side catalytic panels help break down grease. Clean regularly with a damp cloth and avoid abrasive products.

What to do in case of a power cut?

All electronic clock programming is erased. The display flashes '00:00'. You must reset the clock and reprogram the cooking times.

How do I defrost food with this oven?

Select the Defrost function. The fan runs without heating, allowing gentle defrosting. Ideal for foods that should not be heated (creams, cakes, etc.).

USER MANUAL HA-830 TEKA

(*) Depending on the model

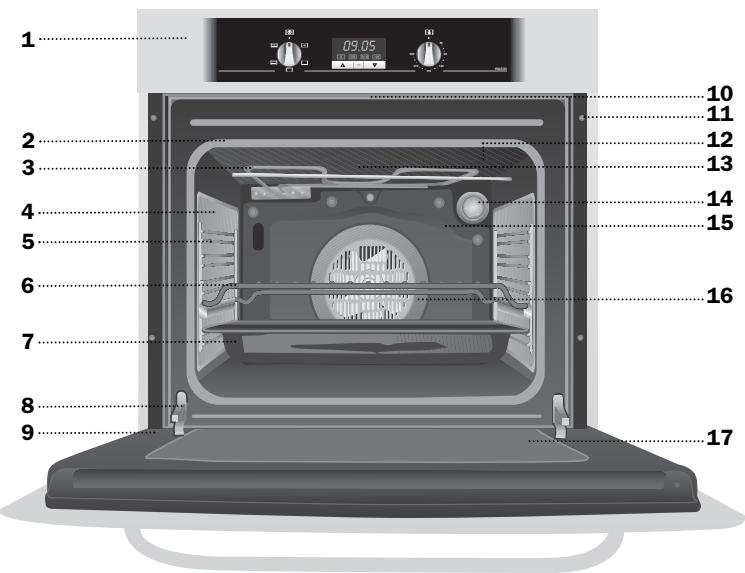

1 Stainless Steel Control Panel with anti finger-mark 2 Oven Seal 3 Grill Element 4 Catalytic Side Wall 5 Chrome Support + Telescopic Guide(*) 6 Grid 7 Tray with Easy-cleaning Enamel 8 Hinge 9 Door 10 Air Outlet 11 Fixing to Unit 12 Grill Screen 13 Smoke Outlet 14 Light 15 Back Wall Panel 16 Fan 17 Large Interior Glass Door

Control Panel

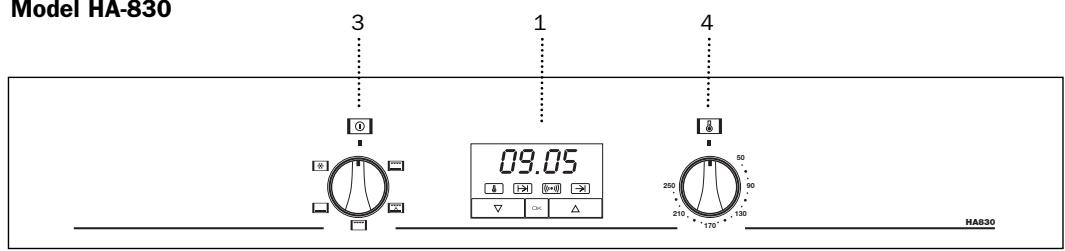

Model HA-830

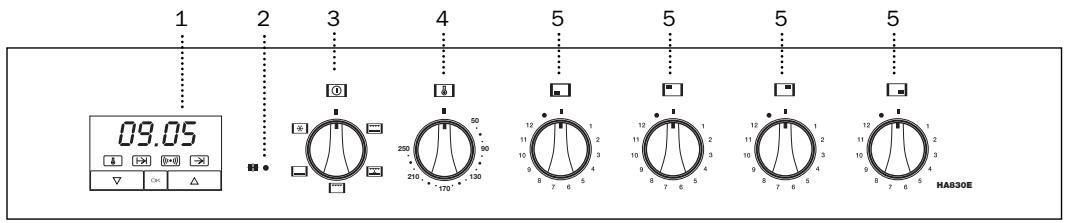

Model HA-830 E

1 Electronic clock. 2 Cooker indicator light. It indicates that one or more of the electric hotplates are on.

3 Function selector. 4 Temperature selector. 5 Control knobs for the hob.

Oven Functions

Switch off oven

Grill and Lower element

Special for roasts. It can be used for any piece, whatever its size.

Conventional with fan

Appropriate for roasts and cakes. The fan spreads the heat uniformly inside the oven.

Grill

For preparing dishes with superficial roasting. It allows the outer layer to be browned without affecting the inside of the food. Ideal for flat food, such as steaks, ribs, fish, toast.

Caution

While using the Grill the door must be kept closed.

Lower element

Heats only from beneath. Suitable for heating dishes and raising pastry and similar.

Defrosting

This cooking mode is suitable for gently defrosting of food. In special food to be consumed unwarmed, e.g.: cream, custard, pastry, tarts, cakes, fruit,...

Note

The pilot light remains on in any cooking function.

Use of the Oven

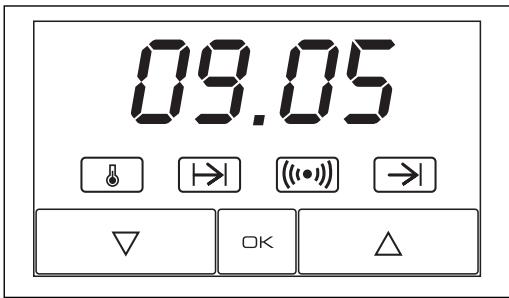

Setting the time on the Electronic Clock

When the oven is connected to the power supply, the indication 00:00 flash on the display. Press ▽ or △ to set the time on the clock. The clock beeps twice to confirm the selected time.

If you wish to modify the time, press ▽ or △ until the current time flash on the screen. Press □. Then press ▽ or △ to modify the time. The clock beeps twice to confirm the modification.

Manual Operation

The oven is ready to be used when the clock has been set. Select a cooking function and a temperature.

When you begin cooking, symbol lights up to indicate that the oven is heating the contents; the symbol goes out when the selected temperature is reached.

Set the controls to to turn the oven off.

Functions of the Electronic Clock

Alarm: Creates an alarm signal when the period of time finishes; the oven does not need to be in use in order to use this function.

Cooking Time: To cook for a selected length of time; the oven turns itself off automatically when the time finishes.

End Cooking Time: To cook until a set time; the oven turns itself off automatically when the time finishes.

Cooking time and End Cooking Time: To cook for a selected length of time and end at a set time. When this function is set, the oven comes on automatically at the time required in order to cook for the set length of time (Cooking time) and end automatically at the indicated time (End Cooking Time)

Programming the Alarm

1 Press until symbol ( ) lights up. Press K . 2 Set the period of time after which you wish the alarm to sound by pressing or . 3 The clock beeps twice, the current time is displayed and symbol (()) lights up permanently to indicate that the alarm has been set. 4 When the set period of time comes to an end, the alarm sounds and symbol (()) starts to flash. 5 Press any button to stop the alarm; symbol (( )) goes out.

You can consult the remaining time at any moment by pressing or until symbol ( ) flashes and then pressing K . You can also modify the set time at this point by pressing or . The clock beeps twice to confirm the change.

If you wish the remaining time to be displayed until the end of the set period of time, press or until symbol [(())] flashes and then press OK and keep it pressed in. Symbol [(())] flashes. Keep OK pressed in again to return to the real time.

Setting the Cooking Time

1 Press or until symbol → lights up. Press OK. 2 Select the period of time you wish to cook for by pressing or . 3 The clock beeps twice, the current time is displayed and symbol lights up permanently to indicate that the oven will turn itself off automatically.

nently to indicate that the oven will turn itself off automatically.

4 Select a cooking function and temperature. 5 When the cooking time comes to an end, the oven turns itself off, the alarm sounds and symbol 1→ 1 flashes. 6 Press any button to stop the alarm and turn the oven back on again. 7 Set the controls to to turn the oven off.

You can consult the remaining cooking time at any moment by pressing ∇ or △ until symbol □ flashes and then pressing OK. You can also modify the set time at this point by pressing ∇ or △. The clock beeps twice to confirm the change.

If you wish the remaining time to be displayed until the end of the set period of time, press \(\nabla\) or \(\triangle\) until symbol \(\boxed{\rightarrow}\) flashes and then press OK and keep it pressed in. Symbol \(\boxed{\rightarrow}\) flashes. Keep OK pressed in again to return to the real time.

Setting the End Cooking Time

1 Press \(\nabla\) or \(\triangle\) until symbol \(\rightarrow\) lights up. Press OK. 2 Select the time you wish the cooking process to finish at by pressing \(\nabla\) or \(\triangle\). 3 The clock beeps twice, the current time is displayed and symbol \(\rightarrow\) lights up permanently to indicate that the oven will turn itself off automatically. 4 Select a cooking function and temperature. 5 When the set time is reached, the oven turns itself off, the alarm sounds and symbol \(\rightarrow\) flashes. 6 Press any button to stop the alarm and turn the oven back on again. 7 Set the controls to \(\square\) to turn the oven off. You can consult the end cooking time at any moment by pressing \(\nabla\) or \(\triangle\) until symbol \(\rightarrow\) flashes and then pressing \(\square K\). You can also modify the end cooking time at this point by pressing \(\nabla\) or \(\triangle\). The clock beeps twice to confirm the change.

This function can be used even when you are already using the oven. To do this, follow the instructions indicated above except point number 4.

Setting the Cooking Time and the End Cooking Time

1 Press \(\nabla\) or \(\triangle\) until symbol \(\boxed{ \begin{array}{c}\text{灯}\ \text{光} \end{array} }\) lights up. Press OK. 2 Select the period of time you wish to cook for by pressing \(\nabla\) or \(\triangle\). 3 The clock beeps twice, the current time is displayed and symbol \(\boxed{1\rightarrow 1}\) lights up permanently. 4 Press \(\nabla\) or \(\triangle\) until symbol \(\rightarrow\) lights up. Press OK. 5 Select the time you wish the cooking process to finish at by pressing \(\triangledown\) or \(\triangle\). 6 The clock beeps twice, the current time is displayed and symbol \(\rightarrow\) lights up permanently. 7 Select a cooking function and temperature. 8 The oven remains off with symbols \(\boxed{1\rightarrow}\) and \(\boxed{\rightarrow}\) lit up. Your oven is set. 9 When the time to start cooking is reached, the oven starts up and cooks for the set period of time. 10 When the set end cooking time is reached, the oven turns itself off, the alarm sounds and symbols \(\boxed{1\rightarrow}\) and \(\boxed{\rightarrow}\) flash.

11 Press any button to stop the alarm and turn the oven back on again. 12 Set the controls to \(\square\) to turn the oven off.

You can modify the end cooking time by pressing \(\nabla\) or \(\triangle\) until symbol \(\rightarrow\) lights up and then pressing \(\square K\). You can now modify the end cooking time by pressing \(\nabla\) or \(\triangle\). The clock beeps twice to confirm the change.

Important

In the event of a power cut, all the electronic clock settings are deleted and the indication 00:00 flashes on the display. It is necessary to set the time and programme the clock again.

(*) Depending on the model
