Product type	Built-in electric oven
Brand	TEKA
Model	DHA-888
Category	Built-in oven
Main functions	Convection, Grill, MaxiGrill, MaxiGrill with fan, Defrost
Electronic clock	Programming of cooking duration, end time, and duration+end combination
Audible alarm	Programmable for end-of-cooking reminder or timer
Automatic shut-off	Yes, after programmed cooking end
Interior lighting	On during all cooking functions
Safety	Door must remain closed when using the Grill; automatic shut-off
Removable handle	Two handles (short and long) for baking tray and deep tray
Cleaning	Clean with a damp cloth and mild detergent; avoid abrasive products
Power supply	220-240 V, 50/60 Hz (standard estimate for built-in ovens)
Maximum power	Approximately 2500 W (standard estimate)
Heating indicator	Indicator light showing that the selected temperature has been reached
Repairability	Spare parts available through TEKA after-sales service

Frequently Asked Questions - DHA-888 TEKA

How to turn on the TEKA DHA-888 oven?

After plugging in the appliance, the clock flashes. Set the time using the ▽ and △ buttons, then press OK. Then select a cooking function and temperature using the selectors. The oven is ready.

How to set the timer (alarm)?

Press the △ button until the symbol ( ) lights up, then press OK. Set the desired time with ▽ or △, then confirm. The alarm will sound at the end of the programmed time.

How to use the grill function?

Select the Grill or MaxiGrill function with the function selector. The door must remain closed during use. Place the food on the grill and the drip tray underneath to collect the juices.

How to program automatic cooking with duration and end time?

Press ▽ or △ until the symbol ➞ lights up, press OK, set the duration. Then press ▽ or △ for the symbol →, press OK and set the end time. Select a function and temperature. The oven will start and stop automatically.

What to do if the clock flashes after a power cut?

In case of power cut, the clock displays flashing 00:00. Reset the time using the ▽ and △ buttons, then press OK. Any previous programming is cleared.

How to clean the inside of the oven?

Clean the inside with a damp cloth and mild detergent. Avoid abrasive products or metal scouring pads. For stubborn stains, use a baking soda paste.

What accessories are supplied with the oven?

The oven is supplied with a grill, a drip tray, and a removable handle for trays (short for baking tray, long for deep tray).

Can I open the door during grilling?

No, the door must remain closed when using the grill, maxigrill, or maxigrill with fan. This ensures proper cooking and safety.

How to use the defrost function?

Select the Defrost function on the selector. This function gently defrosts food without heating it. Ideal for cream, cakes, or fruit.

How to change the time during use?

Press the ▽ or △ buttons until the time flashes, then press OK. Change the time with ▽ or △. You will hear two confirmation beeps.

USER MANUAL DHA-888 TEKA

Exterior view of a stainless steel oven with digital display and control knobs (no visible text or symbols)

Frontal de Mandos

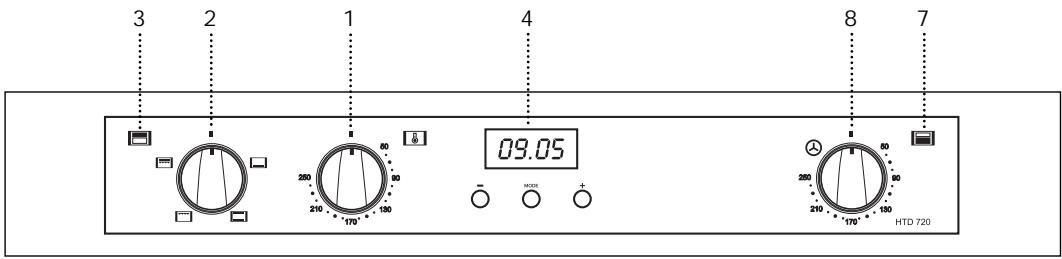

Modelo DHA-718

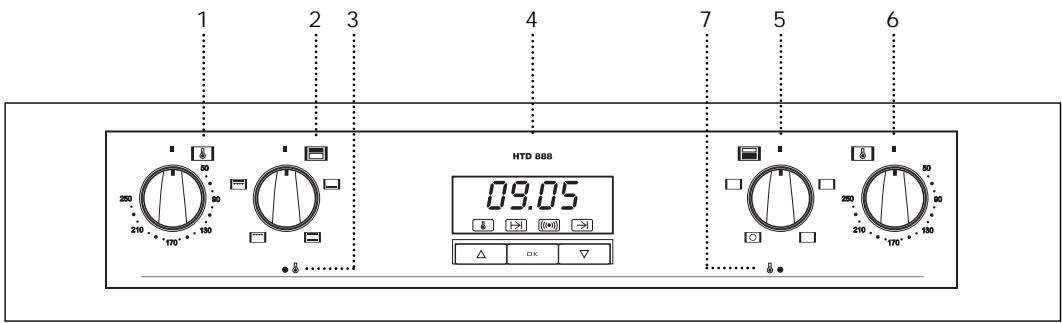

Modelo DHA-888

Cavidad superior

Modelo DHA-888

1 Temperature selector.
2 Function selector.
3 Heating indicator light. Indicates that the heat is going to the food and it goes out when the set temperature is reached.

Main cavity

4 Electronic clock.
5 Function selector.
6 Temperature selector.
7 Heating indicator light.
8 Fan oven + temperature selector.

Oven Functions

Model DHA-718

Top cavity: □ / ☐ / □ / ☐ /

Main cavity: 🏠

Model DHA-888

Top cavity: □ / ☐ / ☐ / ☐ / ☐

Main cavity: □ / 📄 / 🌐 / ⏱️ / ✉️

□ Switch off oven

Conventional

It is used for sponges and cakes where the heat received must be uniform to achieve a spongy texture.

Lower Element

Heats only from beneath. Suitable for heating dishes and raising pastry and similar.

MaxiGrill

Allows greater surfaces to be prepared, than with the grill, together with higher power reducing the time required for browning of the food.

Grill

For preparing dishes with superficial roasting. It allows the outer layer to be browned without affecting the inside of the food. Ideal for flat food, such as steaks, ribs, fish, toast.

MaxiGrill with fan

Allows uniform roasting at the same time as surface browning. Ideal for grills. Special for large volume pieces, such as poultry game etc. It is recommended to put the item on a rack with a tray beneath to collect the stock and juices.

Caution

While using the Grill, MaxiGrill or MaxiGrill with fan, the door must be kept closed.

Turbo

The fan distributes the heat produced by an element located at the rear of the oven. Due to the uniform heat distribution, it allows roasting and baking to take place on two levels at the same time.

Defrosting

This cooking mode is suitable for gentle defrosting of delicate food to be consumed unheated, e.g.: cream, custard, pastry, tarts, cakes, fruit,...

Note

The pilot light remains on in any cooking function.

Use of the Oven

Model DHA-718

Setting the Time on the Clock

On connecting the oven you will notice that daytime flashes on the display, starting from 0:00 and the auto symbol A flashes.

Press the "+" and "-" buttons simultaneously and then pressing the "+" or "-" buttons the correct time can be set on the display.

Manual Use

After setting the correct time, the oven is ready for use. The 📄 symbol is illuminated on the display. Select a temperature and a cooking function.

To switch off the oven, set the controls to the □ position.

Warning Function

This function generates a buzzer interval alarm signal at a specified time.

1 Press the MODE button until the 🔊 symbol begins to flash.
2 Choose the time when you want the alarm to sound, pressing the "+" or "-" buttons.

3 Subsequently, the 🔊 symbol will remain on indicating that the alarm is programmed.
4 At the end of the programmed time, an acoustic interval signal will sound and the ⏻ symbol will begin to flash.
5 Press any button to turn off the acoustic signal.

The buzzer signal frequency can be changed by MINUS in 3 circular steps. For listening to the actual valid signal, press “-” button for some seconds while the display reads the time of the day. Every new key press within the time window changes the buzzer signal. Now this tone is valid as program end alarm signal.

Programming the Cooking Time

This function allows to programme the oven to cook for a specified time, after which it will switch itself off.

1 Press the MODE button until the display automatically switches over between "dur" display and duration time setting mode. The symbol A is flashing.

2 Select the duration, pressing the "+" or "-" buttons.
3 Subsequently, the symbol A that was flashing will light, indicating that the oven will switch itself off automatically.
4 The display will then show the current time.
5 Select a temperature and cooking function.
6 When the set time has elapsed the oven will disconnect, the ☑ symbol will switch off, an acoustic interval signal will sound and the symbol A will begin to flash.
7 Press any button to switch off the acoustic signal, reconnecting the oven.
8 Set the controls in the position ☐ to switch off the oven.

Programming the End of Cooking Time for the Oven

This function allows to establish the exact hour, after which the oven will switch itself off.

1 Press the MODE button until the display automatically switches over between "End" display and end time setting mode. The symbol A is flashing.
2 Select the time that cooking is to finish, pressing the "+" or "-" buttons.
3 Subsequently, the symbol A that was flashing will light, indicating that the oven will switch itself off automatically.
4 The display will then show the current time.
5 Select a temperature and cooking function.
6 When the programmed time is reached the oven will disconnect, the ⚫ symbol will switch off, an acoustic interval signal will sound and the symbol A will begin to flash.
7 Press any button to switch off the acoustic signal and the oven will reconnect.
8 Set the controls to the position □ to switch off the oven.

This function may be used even though you are already cooking in your oven. To do so, follow the instructions given except N° 5.

Programming the Duration and Automatic Stop

This function is used to control the duration and the time at which the oven will turn itself off. This function allows the oven to start and stop automatically.

1 Press the MODE button until the display automatically switches over between "dur" display and duration time setting mode. The symbol A is flashing.
2 Select the duration, pressing the "+" or "-" buttons.
3 Subsequently, the symbol A that was flashing will light, indicating that the oven will switch itself off automatically.
4 Press the MODE button until the display automatically switches over between "End" display and end time setting mode. The symbol A is flashing.
5 Select the time that cooking is to finish, pressing the "+" or "-" buttons.
6 Subsequently, the symbol A that was flashing will light, the symbol 📋 will switch off and the oven will remain disconnected. Your oven is programmed.
7 Select a function and cooking temperature.
8 When the time to begin cooking is reached, the oven will switch itself on and will continue cooking during the programmed time.
9 When the programmed finishing time is reached, the oven will disconnect, an acoustic interval signal will sound and the symbol A will begin to flash.
10 Press any button to switch off the acoustic signal and the oven will reconnect.
11 Set the controls to the position ☐ to switch of the oven.

Caution

Pressing the MODE button the display on the screen shows any function programmed. It can be changed by pressing the "+" or "-" buttons.

Program times for automatic programs can be cleared by pressing "+" and "-" simultaneously. For clearing warning function, first you must be select the warning function in the display.

Model DHA-888

Setting the Time on the Electronic Clock

When the oven is connected to the power supply, the indication 00:00 flash on the display. Press or to set the time on the clock. The clock beeps twice to confirm the selected time.

If you wish to modify the time, press ∇ or △ until the current time flash on the screen. Press □K. Then press ∇ or △ to modify the time. The clock beeps twice to confirm the modification.

Manual Operation

The oven is ready to be used when the clock has been set. Select a cooking function and a temperature.

Set the controls to ☐ to turn the oven off.

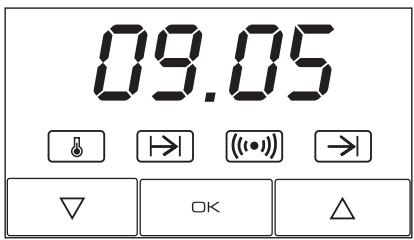

Functions of the Electronic Clock

Alarm: Creates an alarm signal when the period of time finishes; the oven does not need to be in use in order to use this function.

Cooking Time: To cook for a selected length of time; the oven turns itself off automatically when the time finishes.

End Cooking Time: To cook until a set time; the oven turns itself off automatically when the time finishes.

Cooking time and End Cooking Time: To cook for a selected length of time and end at a set time. When this function is set, the oven comes on automatically at the time required in order to cook for the set length of time (Cooking time) and end automatically at the indicated time (End Cooking Time)

Programming the Alarm

1 Press △ until symbol (<<•)) lights up. Press OK.

2 Set the period of time after which you wish the alarm to sound by pressing or .

3 The clock beeps twice, the current time is displayed and symbol (()) lights up permanently to indicate that the alarm has been set.

4 When the set period of time comes to an end, the alarm sounds and symbol (()) starts to flash.

5 Press any button to stop the alarm; symbol () goes out.

You can consult the remaining time at any moment by pressing or until symbol ([]) flashes and then pressing K . You can also modify the set time at this point by pressing or . The clock beeps twice to confirm the change.

If you wish the remaining time to be displayed until the end of the set period of time, press or until symbol ([()) flashes and then press K and keep it pressed in. Symbol ([()) flashes. Keep K pressed in again to return to the real time.

Setting the Cooking Time

1 Press ▽ or △ until symbol ➔ lights up. Press OK.
2 Select the period of time you wish to cook for by pressing or .
3 The clock beeps twice, the current time is displayed and symbol lights up permanently to indicate that the oven will turn itself off automatically.
4 Select a cooking function and temperature.
5 When the cooking time comes to an end, the oven turns itself off, the alarm sounds and symbol flashes.
6 Press any button to stop the alarm and turn the oven back on again.
7 Set the controls to ☐ to turn the oven off.

You can consult the remaining cooking time at any moment by pressing ▽ or △ until symbol ➔ flashes and then pressing □K. You can also modify the set time at this point by

pressing or . The clock beeps twice to confirm the change.

If you wish the remaining time to be displayed until the end of the set period of time, press ▽ or △ until symbol ➡ flashes and then press OK and keep it pressed in. Symbol ➡ flashes. Keep OK pressed in again to return to the real time.

Setting the End Cooking Time

1 Press ▽ or △ until symbol → lights up. Press OK.
2 Select the time you wish the cooking process to finish at by pressing or .
3 The clock beeps twice, the current time is displayed and symbol → lights up permanently to indicate that the oven will turn itself off automatically.
4 Select a cooking function and temperature.
5 When the set time is reached, the oven turns itself off, the alarm sounds and symbol → flashes.
6 Press any button to stop the alarm and turn the oven back on again.
7 Set the controls to ☐ to turn the oven off.

You can consult the end cooking time at any moment by pressing ▽ or △ until symbol → flashes and then pressing □K. You can also modify the end cooking time at this point by pressing ▽ or △. The clock beeps twice to confirm the change.

This function can be used even when you are already using the oven. To do this, follow the instructions indicated above except point number 4.

Setting the Cooking Time and the End Cooking Time

1 Press ∇ or △ until symbol ➔ lights up. Press OK.
2 Select the period of time you wish to cook for by pressing or .

3 The clock beeps twice, the current time is displayed and symbol lights up permanently.
4 Press ∇ or △ until symbol → lights up. Press OK.
5 Select the time you wish the cooking process to finish at by pressing or .
6 The clock beeps twice, the current time is displayed and symbol → lights up permanently.
7 Select a cooking function and temperature.
8 The oven remains off with symbols and lit up. Your oven is set.
9 When the time to start cooking is reached, the oven starts up and cooks for the set period of time.
10 When the set end cooking time is reached, the oven turns itself off, the alarm sounds and symbols and flash.
11 Press any button to stop the alarm and turn the oven back on again.
12 Set the controls to ☐ to turn the oven off.

You can modify the end cooking time by pressing or until symbol lights up and then pressing K . You can now modify the end cooking time by pressing or . The clock beeps twice to confirm the change.

Important

In the event of a power cut, all the electronic clock settings are deleted and the indication 00:00 flashes on the display. It is necessary to set the time and programme the clock again.

Tray Handle

The tray handle is used when you need to remove the tray to check the food. See figures. To lift the tray out of the oven, you need to use gloves to protect yourself.

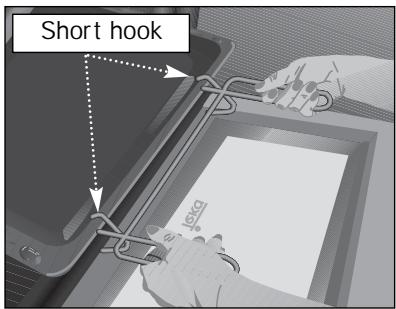

Cake tray handle position. You must put the short hook over the tray.

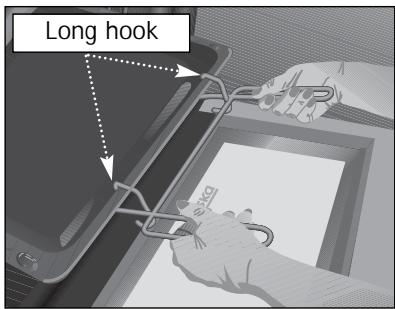

Roasting tray handle position. You must put the long hook over the tray.

Panneau Frontal de Commande

Modèle DHA-718

Modèle DHA-888

Four superieure

Modèle DHA-888

Arrêt du four

Tray Handle

The tray handle is used when you need to move the tray to check the cook. See figures. To handle the tray out the oven, you need to use gloves to protect yourself.

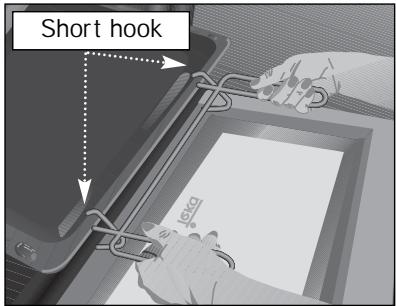

Cake tray handle position. You must put the short hook over the tray.

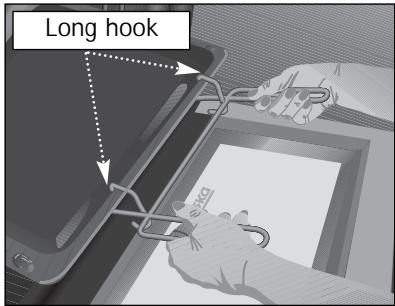

Roasting tray handle position. You must put the long hook over the tray.

Fabricante	Fabricante	Manufacturer	Fabricant	Hersteller	TEKA	TEKA
Modelo	Modelo	Model	Modèle	Modell	DHA-718	DHA-888
Clase de eficiencia energética, en una escala que abarca de A (más eficiente) a G (menos eficiente).Función de calentamiento.Calentamiento convencional.Convección forzada.	Classe de eficiência ener-gética, numa escala de A (eficiente) a G (ineficiente).Função de aquecimento.Convencional.Convecção forçada de ar.	Energy efficiency class on a scale of A (more efficient) to G (less efficient).Heating function.Conventional.Forced air convection.	Classement selon son efficacité énergétique sur une échelle allant de A (économie) à G (peu économe).Fonction chauffage.Classique.Convection forcée.	Energieeffizienz-klasse auf einer Skala von A (niedriger Verbrauch) bis G (hoher Verbrauch).Beheizung.Konventionelle Beheizung.Umluft / Heißluft.	A ←	A ←
Consumo de energía.Calentamiento convencional.Convección forzada.	Consumo de energía.Convencional.Convecção forçada de ar.	Energy consumption.Conventional.Forced air convection.	Consommation d'énergie.Classique.Convection forcée.	Energiever-brauch.Konventionelle Beheizung.Umluft / Heißluft.	---0,68 Kwh	---0,79 Kwh
Volumen neto (litros).	Volume útil (litros).	Usable volume (litres).	Volume utile (litres).	Netto-volumen (liter).	37	53
Tipo:Pequeño Medio Grande	Tipo:Pequeno Médio Grande	Size:Small Medium Large	Type:Faible volume Volume moyen Grand volume	Typ:Klein Mittel Groß	←	←
Tiempo de cocción con carga normal.Calentamiento convencional.Convección forzada.	Tempo de cozedura da carga-padrão.Convencional.Convecção forçada de ar.	Time to cook standard load.Conventional.Forced air convection.	Temps de cuisson en charge normale.Classique.Convection forcée.	Kochzeit bei Standardbela-dung.Konventionelle Beheizung.Umluft / Heißluft.	----39 min.	----43 min.
Superficie de cocción.	Zona de cozedura.	Baking area.	Surface de cuisson.	Backfläche	1250 cm^2	1250 cm^2
Ruido (dB (A) re 1 pW).	Nivel de ruído dB(A) re 1 pW.	Noise (dB (A) re 1 pW).	Bruit (dB (A) re 1 pW).	Geräusch (dB (A) re 1 pW).	---	---

COUNTRY	CITY	COMPANY	CC	PHONE	FAX
Australia	Victoria	TEKA AUSTRALIA Pty. Ltd.	61	3 9550 6100	3 9550 6150
Austria	Wien	KÜPPERSBUSCH GesmbH	43	1 866 800	1 866 8082
Belgium	Zellik	B.V.B.A. KÜPPERSBUSCH S.P.R.L.	32	2 466 8740	2 466 7687
Bulgaria	Sofia	TEKA BULGARIA EOOD.	359	2 9768 330	2 9768 332
Chile	Santiago de Chile	TEKA CHILE, S.A.	56	2 4386 000	2 4386 097
China (Pop. Rep.)	Shanghai	TEKA INTERNATIONAL TRADING (Shanghai)	86	21 511 688 41	21 511 688 44
Czech Republic	Libení	TEKA CZ S.R.O.	420	2 84 691940	2 84 691923
Ecuador	Guayaquil	TEKA ECUADOR, S.A.	593	4 2251174	342 250 693
France	Cergy Pontoise	TEKA FRANCE S.A.S.	33	1 343 01597	1 343 01598
Germany	Haiger	TEKA KÜCHENTECHNIK GmbH	49	27718141-0	771 814 110
Greece	Athens	TEKA HELLAS A.E.	30	210 9760283	210 9712725
Hungary	Budapest	TEKA HUNGARY KFT	36	1 3542110	1 3542115
Indonesia	Jakarta	PT TEKA BUANA	62	21 390 5274	21 390 5279
Italy	Frosinone	TEKA ITALIA S.P.A.	39	0775 898271	0775 294681
Korea (Rep. South)	Seoul	TEKA KOREA CO. LTD.	82	2 599 4444	222 345 668
Malaysia	Selangor Darul Ehsan	TEKA KÜCHENTECHNI (MALAYSIA) SDN.	60	3 7620 1600	3 7620 1626
Mexico	Mexico D.F.	TEKA MEXICANA S.A. de C.V.	52	555 133 0493	55 5762 0517
Pakistan	Lahore	KÜPPERSBUSCH-TEKA PAKISTAN Pvt. Ltd.	92	42 631 2182	42 631 2183
Poland	Pruszków	TEKA POLSKA SP. ZO.O.	48	22 7383270	22 7383278
Portugal	Ílhavo	TEKA PORTUGAL, S.A.	351	234 329 500	234 325 457
Russia	Moscow	TEKA RUS LLC	7	095 737 4690	095 737 4689
Singapore	Singapore	TEKA SINGAPORE PTE. LTD.	65	67342415	67346881
Spain	Santander	TEKA INDUSTRIAL, S.A.	34	942 355050	942 324499
Thailand	Bangkok	TEKA (THAILAND) CO. LTD.	66	2 6933237	2 6933242
Turkey	Istanbul	TEKA TEKNIK MUTFAK	90	212 288 3134	212 274 56 86
Ukraine	Kiev	TEKA UA	380	44 272 33 90	44 279 58 54
United Arab Emirates	Dubai	TEKA KÜCHENTECHNIK MIDDLE EAST FZE	971	4 887 2912	4 887 2913
United Kingdom	Milton Abingdon	TEKA PRODUCTS LTD.	44	1235 861916	1235 835107
USA	Tampa	TEKA USA, INC.	1	813 2888820	813 2888604
Venezuela	Caracas	TEKA ANDINA, S.A.	58	2 1229 12821	2 1229 12825

KÜCHENTECHNIK

Teka industrial, S.A.

C/ Cajo, 17

39011 Santander (Spain)

Tel.: 34 - 942 - 35 50 50

Fax: 34 - 942 - 34 76 94

http://www.teka.es

35708 Haiger (Germany)

Tel.: 49 - 2771 - 8141-0

Fax: 49 - 2771 - 8141-10

http://www.teka.com

Our contribution to environmental protection: we use recycled paper.
