USER MANUAL DI461131 GAGGENAU

Safety instructions	4
Delivery	4
Installation	4
In daily use	4
Children in the household	4
Door lock	4
Damage	5
Disposal	5

Getting to know your appliance	5
Control panel	5
Appliance interior	5
Overview of menu	6
Selecting language	6

Water softening system	7
Setting	7
Water hardness table	7

Special salt ⿱	8
Using special salt	8
Detergents with salt component	8
Switching off water softening system	8

Rinse aid *	9
Setting amount of rinse aid	9
Switching off rinse aid refill indicator	9

Utensils	10
Not suitable	10
Glass and utensil damage	10
Loading the dishwasher	10
Unloading the dishwasher	10
Cups and glasses	10
Pans	10
Cutlery basket	11

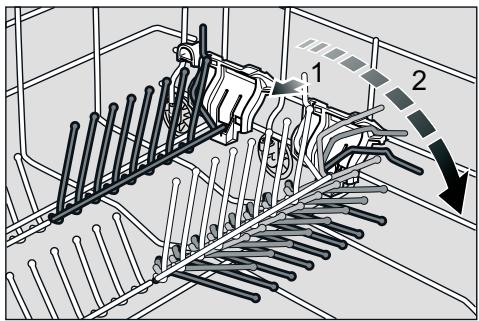

Folding spikes	11

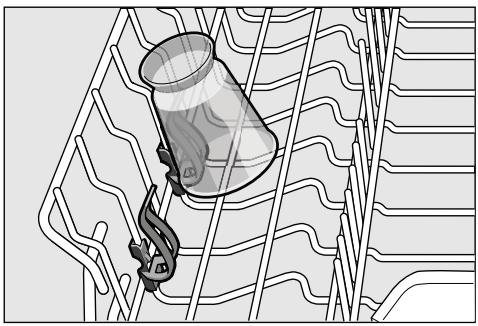

Small accessories holder	11
Knife shelf	11

Detergent	13
Adding detergent	13
Combination detergent	14

Overview of programmes	15
Programme selection	15
Information for test institutes	15

Additional options	16
Turbo	16
Half load	16
Hygiene	16

Intensive zone	16
Extra drying	16
Energy Save	16

Washing the dishes	16
Programme data	16
Aqua sensor	16
Zeolith drying	16
Switching on the appliance	17
Remaining running time display	17
Display window	17
Timer programming	17
End of programme	17
Automatic switch off / interior light	18
Switching off the appliance	18
Interrupting the programme	18
Terminating the programme	18
Changing the programme	19
Intensive drying	19

Maintenance and care	19
Overall condition of the machine	19
Special salt and rinse aid	19
Filters	20
Spray arms	20

Troubleshooting	21
Waste water pump	21
... when the appliance is switched on	21
... changing settings	22
... on the appliance	22
... during the wash cycle	22
... on the utensils	23

Customer service

24

Installation	24
Safety instructions	24
Delivery	25
Technical specifications	25
Installation	25
Waste-water connection	25
Fresh water connection	25
Warm water connection	26
Electrical connection	26
Removing the appliance	26
Transportation	27
Protection against frost (Emptying the appliance)	27

Waste disposal	27
Packaging	27
Old appliances	27

Delivery

1 Check the packaging and dishwasher immediately for damage caused in transit. Do not switch on a damaged appliance, but contact your supplier.
2 Please dispose of the packaging material in an environmentally friendly manner.
3 Do not let children play with packaging and its parts. There is a risk of suffocation from collapsible boxes and film.

Installation

Read the "Installation" chapter to learn how to install and connect the appliance correctly.

In daily use

Use the dishwasher only in the household and only for its designed purpose: for washing domestic dishes.
Children or people whose physical, sensory or mental abilities prevent them from using the appliance safely must not use this appliance without supervision or instruction by a responsible person.
- Do not lean or sit on the open door. The appliance could tip.
- Please note that free-standing appliances may tip over if the baskets are overloaded.
- Do not add any solvents to the washing chamber. Danger of explosion!
- Open the door carefully when the programme is still running. There is a risk of hot water spraying out of the appliance.
- To prevent injuries, e. g. caused by stumbling, open the dishwasher only briefly in order to load and unload the dishwasher.
- Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agents.

Warning

Knives and other utensils with sharp points must be placed in the cutlery basket with the points downwards or horizontally on the knife shelf *

• depending on model

Children in the household

If fitted, use the childproof lock. An exact description can be found in the back of the envelope.
- Do not allow children to play with or operate the appliance.
- Keep children away from detergents and rinse aid. These may cause chemical burns in the mouth, throat and eyes or asphyxiation.
- Keep children away from open dishwasher. The water in the rinsing compartment is not drinking water and could contain detergent residue.

Ensure that children do not place fingers in the tablet collecting tray 24. Small fingers could become caught in the slots.

• If the appliance is installed at eye-level, ensure when opening and closing the door that children are not caught or crushed between the appliance door and the cupboard door situated below.

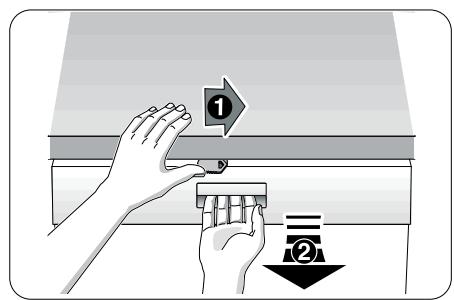

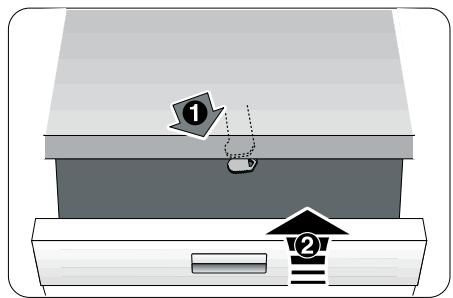

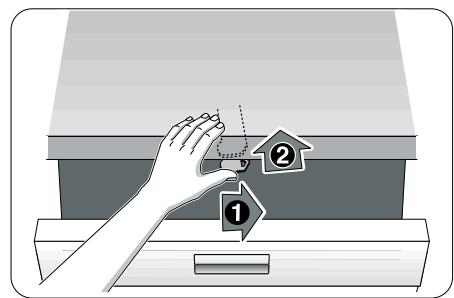

Childproof lock (door lock) *

The description of the childproof lock is at the back in the envelope.

• depending on model

Damage

The appliance may be repaired and opened up by a technician only. To do this, disconnect the appliance from the power supply. Pull out the mains plug or switch off the fuse. Turn off the tap.

Disposal

1 Make redundant appliances unusable to prevent subsequent accidents.
2 Dispose of the appliance in an environmentally friendly manner.

Warning

Children could become locked in the appliance (risk of suffocation) or find themselves in other dangerous situations.

Therefore: Pull out the mains plug, sever and dispose of the power cord. Destroy the door lock so that the door can no longer be closed.

Getting to know your appliance

Diagrams of the control panel and the interior of the appliance can be found in the envelope at the front.

Individual positions are referred to in the text.

Control panel

1 ON/OFF switch
2Programme buttons **
3 Digital display
4 Display "Check water supply"
5 Salt refill indicator
6Rinse aid refill indicator
7 Timer programming display
8 Timer programming
9 Additional options **
10 START button
11 Door opener
12 Display window

** Number depending on model

Appliance interior

20 Interior light *
21 Top basket
22Knife shelf *
23 Top spray arm
24 Tablet collecting tray
25 Intake opening
26 Blow opening (Zeolith container)
27 Bottom spray arm
Dispenser for special salt
29 Filters
30 Cutlery basket
31 Bottom basket
Dispenser for rinse aid
33 Detergent dispenser
34 Lock for detergent dispenser
35 Rating plate

• depending on model

Overview of menu

The settings can be found in the individual chapters.

H Water Hardness H:00 - H:07
d Intensive drying d:00 - d:01
Rinse aid r:00 - r:06
Hot water R:00 - R:01
b End of programme buzzing sound b:00 - b:03
L Language L:01-L:19
P Automatic disconnection P:00 - P:02
Onboard computer C:00 -C:01

Selecting language

The language in the display window 12 can be set from L:O I, to L:19. German L:O I (Deutsch) is the factory setting.

Language	Setting
Deutsch	L:01
English	L:02
François	L:03
Nederlands	L:04
Italiano	L:05
ЕλλHNIKA	L:06
Espanol	L:07
Português	L:08
Svenska	L:09
Norsk	L:10
Suomi	L:11
Dansk	L:12
Türkçe	L:13
RUSSKIN	L:14
Polski	L:15
Češ.	L:16
Magyar	L:17
Croatian	L:18
Slovenian	L:19

To change the language:

1 Open the door.
2 Switch on ON/OFF switch 1.
3 Hold down programme button A and press START button 10 until the digital display 3 H:O... is indicated.
4 Release both buttons.
5 Press programme button A until the factory set value L: is indicated on the digital display 3. "German" (Deutsch) is indicated in the display window 12.
6 Press programme button C.

Each time the button is pressed, the set value increases by one level; when the value of L:19 has been reached, the display jumps back to L:01

7 Press START button 10.
The set value is saved.
8 Close the door.

To ensure good washing results, the dishwasher requires soft water, i.e. containing low amounts of lime, otherwise white limescale will be deposited on the utensils and inner container.

Tap water above 9^ Clarke must be softened. The water is softened with salt (regeneration salt) in the water softening system of the dishwasher.

The setting and therefore the required amount of salt depends on the degree of hardness of your tap water (see table).

Setting

The amount of salt dispensed can be set from H:00 to H:07 .

Salt is not required at the set value H:00.

1 Find out about the hardness value of your tap water. Your water utility company will help you with this.
2 Set value can be found in the water hardness table.
3 Open the door.
4 Switch on ON/OFF switch 1.
5 Hold down programme button A and press START button 10 until H:Q.... is indicated on the digital display.
6 Release both buttons.

The LED for button A flashes and the digital display 3 displays the factory setting H:04.

To change the setting:

1 Press programme button C.
Each time the button is pressed, the set value increases by one level; when the value of H:07 has been reached, the display jumps back to H:00 (off).
2 Press START button 10.
The chosen setting has now been stored.
3 Close the door.

Water hardness table

Water hardness value °Clarke	Hardness range	mmol/l	Set value on the machine
0-8	soft	0-1.1	H:00
9-10	soft	1.2-1.4	H:01
11-12	medium	1.5-1.8	H:02
13-15	medium	1.9-2.1	H:03
16-20	medium	2.2-2.9	H:04
21-26	hard	3.0-3.7	H:05
27-38	hard	3.8-5.4	H:06
39-62	hard	5.5-8.9	H:07

Using special salt

Always refill with special salt immediately before switching on the appliance. This ensures that overrun special salt solution is immediately washed out and does not corrode the rinsing tank.

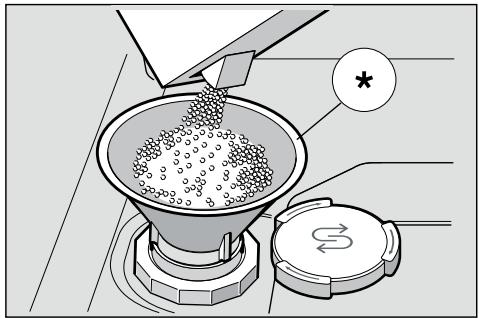

1 Open the screw-type cap of the compartment 28.
2 Fill the tank with water (only required when switching on the appliance for the first time).
3 Then add dishwasher salt (not table salt or tablets).

The water is displaced and runs out.

As soon as the salt refill indicator 5 on the fascia is lit, top up the salt.

* depending on model

Using detergents with salt component

If combined detergents with a salt component are used, salt can usually be omitted up to a water hardness of 21^ dH (37° fH, 26° Clarke, 3.7 mmol/l). If the water hardness is over 21^ dH, special salt must be used.

Switching off salt refill indicator/ water softening system

If the salt refill indicator 5 is impaired (e.g. when using combined detergents containing salt component), it can be switched off.

• Proceed as described under "Adjusting the water softening system" and set the value to H:00 . The water softening system and salt refill indicator are now switched off.

Warnings

• Never fill the salt dispenser with detergent. You will destroy the water softening system.
• To prevent corrosion, always refill with salt immediately before switching on the appliance.

As soon as the rinse-aid refill indicator 6 is lit on the fascia, there is still a rinse-aid reserve of 1 - 2 rinsing processes. Refill with rinse aid.

The rinse aid is required for stain-free utensils and clear glasses. Use only rinse aid for domestic dishwashers.

Combined detergents with rinse-aid component may be used up to a water hardness of 21^ dH (37^ fH, 26^ Clarke, 3.7 mmol/l) only. If the water hardness is over 21^ dH, rinse aid must be used.

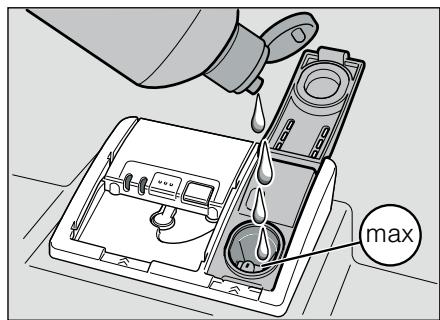

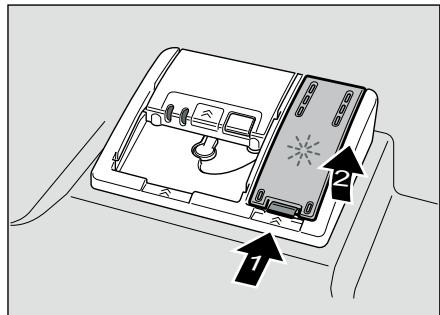

1 Open the dispenser 32 by pressing and lifting the plate on the cover.

2 Carefully pour rinse aid up to the max. mark in the filler opening.

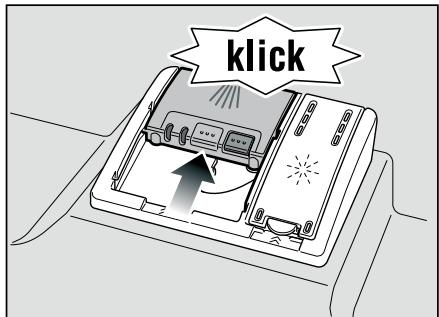

3 Close cover until it clicks shut.
4 To prevent excessive foam formation during the next rinse cycle, remove any rinse aid which has run over with a cloth.

Setting amount of rinse aid

The amount of rinse aid can be set from r:00 to r:05 . Please set rinse aid on r:05 to obtain very good drying results ( r:05 is already set in factory).

Change this setting, only if streaks (select lower setting) or water stains (select higher setting) are left on the utensils.

1 Open the door.
2 Switch on ON/OFF switch 1.
3 Hold down programme button A and press START button 10 until H:Q.... is indicated on the digital display.
4 Release both buttons.

The LED for button A flashes and the digital display 3 displays the factory setting H:04.

5 Press programme button A until the factory set value r:05 is indicated on the digital display 3.

To change the setting:

1 Press programme button C.
Each time the button is pressed, the set value increases by one level; when the value of r:05 has been reached, the display jumps back to r:05 (off).
2 Press START button 10.
The set value is saved.
3 Close the door.

Switching off rinse aid refill indicator

If the rinse-aid refill indicator 6 is impaired (e.g. when using combined detergents containing rinse aid component), it can be switched off.

• Proceed as described under "Setting amount of rinse aid" and set the value to r: .

The rinse aid refill indicator 6 is now switched off.

Not suitable

Cutlery and utensils made of wood.
- Delicate decorative glasses, craft and antique utensils. These decor are not dishwasher-proof.
- Plastic parts not resistant to heat.
Copper and tin utensils.
- Utensils which are soiled with ash, wax, lubricating grease or ink.

Aluminium and silver parts have a tendency to discolour and fade during the wash cycle. Even some types of glass (e.g. crystal glass objects) may turn cloudy after many wash cycles.

Glass and utensil damage

Causes:

Glass type and glass production process.
Chemical composition of the detergent.
Water temperature of the wash programme.

Recommendation:

Use only glasses and porcelain which the manufacturer designates as dishwasher-proof.
Use a detergent which protects utensils.
Take glass and cutlery out of the dishwasher as soon as possible after the programme ends.

Loading the dishwasher

1 Remove large food remnants. It is not necessary to prerinse utensils under running water.
2 Place the utensils so that

• they are secure and cannot tip over.
• all utensils with their openings face down.
  parts with curves or indentations are at an angle,thereby allowing water to drain.
  does not obstruct rotation of the two spray arms 23 and 27.

Very small utensils should not be washed in the machine, as they may fall out of the baskets.

Unloading the dishwasher

To prevent water from dripping off the upper basket onto the utensils in the lower basket, it is recommended to empty the appliance from the bottom up.

Hot utensils are sensitive to shock! Therefore, when the programme ends, leave the utensils to cool down in the dishwasher until they can be handled.

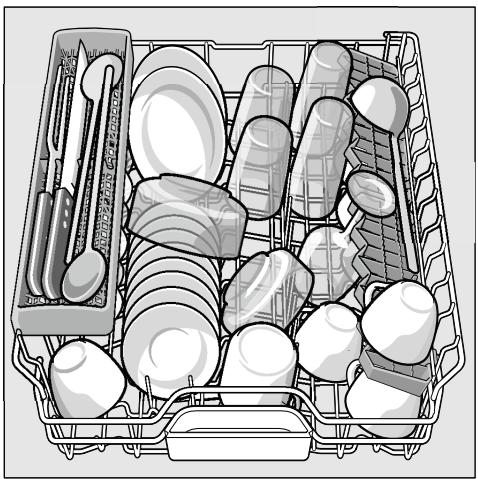

Cups and glasses

Top basket 21

Pans

Bottom basket 31

Tip

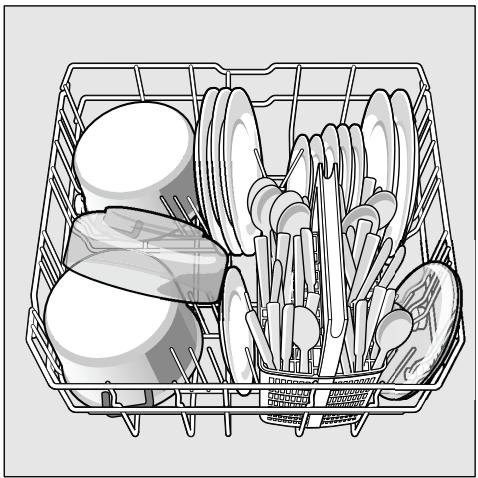

Heavily soiled utensils (pans) should be placed in the bottom basket. The more powerful spray jet provides a better dishwashing result.

Tip

Other examples, such as the best way of loading your dishwasher, can be found on our homepage as a free download. The corresponding Internet address can be found on the back page of these instructions for use.

Cutlery basket

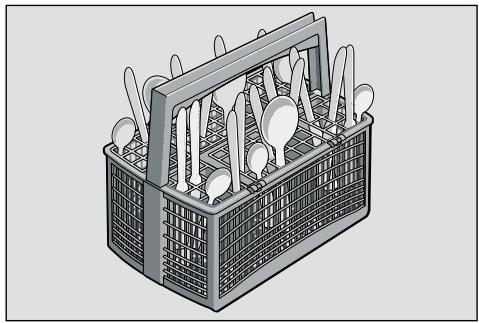

You should always place cutlery unsorted with the points downwards.

To prevent injuries, place long, pointed implements and knives on the knife shelf.

Folding spikes *

• depending on model

The spikes can be folded down to improve arrangement of pans, bowls and glasses.

Small accessories holder *

• depending on model

Light-weight plastic accessories, e.g. cups, lids, etc. can be held securely in the small accessories holder.

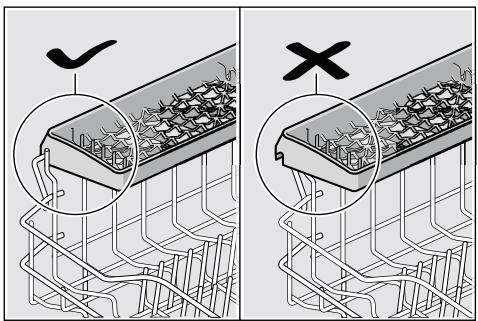

Knife shelf *

• depending on model

Long knives and other utensils can be arranged horizontally.

You can remove the knife shelf to wash taller utensils. Re-insert the knife shelf in the correct position.

Adjusting the height of the basket

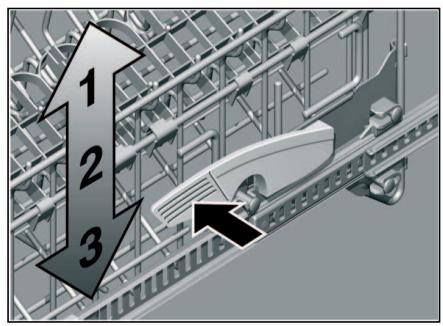

The height of the upper utensils basket 21 can be adjusted in 3 stages to create more space either in the upper or lower basket.

Appliance height 81.5 cm

	Top basket	Bottom basket
Setting 1 max. Ø	22 cm	30 cm
Setting 2 max. Ø	24.5 cm	27.5 cm
Setting 3 max. Ø	27 cm	25 cm

Appliance height 86.5 cm

	Top basket	Bottom basket
Setting 1 max. Ø	24 cm	33 cm
Setting 2 max. Ø	26.5 cm	30.5 cm
Setting 3 max. Ø	29 cm	28 cm

1 Pull out the top basket 21 out.
2 To lower the basket, press in the left and then the right lever on the outside of the basket. In doing so, hold the sides of the basket along the upper edge to prevent it from suddenly dropping.

3 To raise the basket, hold the basket on the sides of the upper edge and lift it up.
4 Before re-inserting the basket again, ensure that it is at the same height on both sides.

Otherwise, the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit.

Removing the upper basket

1 Pull out the top basket 21 all the way.
2 Lift the basket at the front and pull it over the front catch (1) on the rails.
3 Lower the basket again and pull it out forwards.

Installing the upper basket

1 Pull the rails all the way out.
2 Install the basket by inserting the rails between the two metal nubs (2) situated opposite each other on the left and right sides of the basket.
3 Lift the basket over the front catch (1) on the rails.
4 Then lower the basket and push it into the rear catch (3) on the rails.
5 Snap the basket into the front catch (1) and push in the basket all the way.

You can use tablets as well as powder or liquid detergents for dishwashers, but never use washing up liquid. The dosage can be individually adjusted with powder or a liquid detergent according to the degree of soiling. Tablets contain an adequately large amount of active ingredients for all cleaning tasks. Modern, powerful detergents predominantly use a low-alkaline formulation with phosphate and enzymes. Phosphates bond the lime in the water. Enzymes break down starch and remove protein. Phosphate-free detergents are less frequent. These have a slightly weaker lime bonding capacity and require a higher dosage. To remove coloured stains (e.g. tea, tomato sauce), oxygen-based bleaching agents are usually used.

Note

To ensure a good washing result, always follow the instructions on the detergent packaging!

If you have further questions, we recommend that you contact the detergent manufacturers' helpline.

Warning

Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agents.

Adding detergent

1 If the detergent dispenser 33 is still closed, press the lock 34 to open the detergent dispenser.

Pour detergent into the dry detergent dispenser 33 only (insert tablet flat, not on its edge). Dosage: see manufacturer's instructions on the packaging.

The graduated detergent dispenser 33 helps you add the correct amount of powder or liquid detergent.

Usually 20ml - 25ml are adequate for normal. soiling. If using tablets, one tablet is adequate.

2 Close the cover on the detergent dispenser by sliding it up until the lock engages without difficulty.

The detergent dispenser opens automatically at the optimum time depending on the programme. The powder or liquid detergent is distributed in the appliance and is dissolved, the tablet falls into the tablet collecting tray where it dissolves in doses.

Tip

If the utensils are only lightly soiled, slightly less than the indicated amount of detergent is usually adequate.

Suitable detergents and care products can be purchased online via our website or via customer service (see back page).

Combination detergent

Apart from conventional detergents (Solo), a number of products are offered with additional functions. These products contain not only the detergent but also rinse-aid and salt replacement substances (3in1) and, depending on the combination (4in1, 5in1, etc.), additional components such as glass protection or stainless steel cleaner. Combination detergents function only up to a specific degree of hardness (usually 26^ Clarke). Over this limit salt and rinse-aid must be added.

As soon as combined detergents are used, the rinse programme is adjusted automatically to ensure the best possible rinsing and drying result.

Warnings

• Do not place small parts for washing in the tablet collecting tray 24; this prevents the tablet from dissolving evenly.
• If you want to add more utensils after the programme has started, do not use the tablet collecting tray 24 as a handle for the upper basket. The tablet could already be there and you will touch the partially dissolved tablet.

Notes

• You will obtain optimum rinsing and drying results by using solo detergents and applying salt and rinse aid separately.
• If programmes are short, tablets may not have full cleaning effect due to different dissolving properties and there may even be undissolved detergent residue. It is recommended to use washing powder for these programmes.
• The Intensive programme (on some models) requires one tab only. When using washing powder, you can apply some of this cleaning agent to the inside of the appliance's door.
• Even if the rinse-aid and/or salt refill indicator is lit, the rinse programme will run correctly with combined detergents.
• If using detergents in a water-soluble protective cover: Take hold of the cover with dry hands only and put the detergent into an absolutely dry detergent dispenser only, otherwise the detergent may stick.
• If you switch from combined detergents to solo detergents, ensure that the water softening system and amount of rinse aid have been set to the correct value.

The max. possible number of programmes is illustrated in this overview. The corresponding programmes for your appliance can be found on the fascia.

Type of utensils	Type of soiling	Programme	Possible additional options	Programme sequence
pots and pans, non-sensitive utensils and cutlery	very adhesive burned-in or dried-on food remnants containing starch or protein	auto Auto 65° - 75°	all	Is optimised according to the soiling with the aid of sensors.
		auto Auto 45° - 65°
mixed utensils and cutlery	part dried, common household food remnants	/eco Eco 50°		Prerinse Clean 50° Intermediate rinse Final rinse Dry
sensitive utensils, cutlery, temperature-sensitive plas-tic and glasses	slightly adhesive, fresh food rem-nants	auto Auto 35° - 45°	Intensive zone Turbo Energy Save Half load Extra drying	Is optimised according to the soiling with the aid of sensors.
		Quick 45°	Extra drying	Clean 45° Intermediate rinse Final rinse 55°
all	cold rinsing, inter-miate cleaning	/Prerinse	none	Prerinse

Programme selection

You can select a suitable programme according to the type of utensils and degree of soiling.

Information for test institutes

Test institutes can request the conditions for running comparison tests by sending an e-mail to

[e-mail].

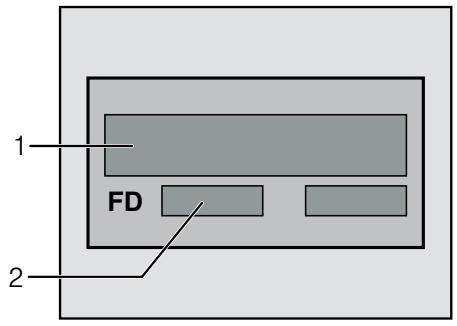

Quote the appliance number (E-Nr.) and the production date (FD) which you can find on the rating plate 35 on the appliance door.

• depending on model

Additional options can be set with the buttons 9.

>> Turbo *

The Turbo programme significantly reduces the programme running time. The energy consumption is increased by up to 30% due to more intensive heating. The time reduction affects the following programmes:

Auto: Time reduction up to 25%

Eco: Time reduction up to 58%

Half load *

If you have only a few items to wash (e.g. glasses, cups, plates), you can switch to "half load". This will save water, energy and time. It is recommended to put a little less detergent in the detergent dispenser than for a full load.

Hygiene \*

The temperature is increased during the cleaning process. This increases the hygiene status. This additional option is ideal for cleaning e.g. chopping boards and baby bottles.

Intensive zone *

Perfect for a mixed load. You can wash very soiled pots and pans in the lower basket together with normally soiled utensils in the upper basket. The spray pressure in the lower basket is intensified, the rinsing temperature is increased slightly.

l Extra drying

An increased temperature during the final rinse and an extended drying phase ensure that even plastic parts dry better. There is a slight increase in the energy consumption.

Energy Save

Water and energy consumption can be reduced with the "Energy Save" function. The running time is extended for optimum cleaning and drying results.

Programme data

The programme data (consumption values) can be found in the summary of instructions. They refer to normal conditions and the water hardness set value H:04 . Different influencing factors such as e.g. water temperature or line pressure may result in deviations.

Aqua sensor *

• depending on model

The Aqua sensor is an optical measuring device (light barrier) which measures the turbidity of the rinsing water.

The Aqua sensor is used according to the programme. If the Aqua sensor is active, "clean" rinsing water can be transferred to the next rinse bath and water consumption can be reduced by 3-6 litres. If the turbidity is greater, the water is drained and is replaced with fresh water. In the automatic programmes the temperature and running time can also be adjusted to the degree of soiling.

Zeolith drying

The appliance features a Zeolith container Zeolith is a mineral which can store moisture and heat energy and release them again.

During the washing step this heat energy is used to dry the mineral and heat up the rinsing water.

During the drying phase moisture from the washing compartment is stored in the mineral and heat energy is released. This released heat energy is blown into the washing compartment with dry air. This accelerates and improves drying.

These processes therefore save a great deal of energy.

Warnings

• Please ensure that the intake opening [25] is not obstructed and do not place any temperature-sensitive utensils in the lower basket at the rear right side above the blow opening [26].
• Do not touch the blow opening [26]. The blow opening becomes hot and, furthermore, any damage will result in a chargeable callout by customer service.

Switching on the appliance

1 Turn on the tap fully.
2 Open the door.
3 Switch on ON/OFF switch 1.

The display of the last selected programme flashes. This programme remains selected if no other programme button 2 is pressed. The expected programme duration flashes on the digital display 3.

4 Press the START button 10.
5 Close the door.

The programme starts running.

Remaining running time display

When the programme is selected, the remaining running time of the programme is indicated on the digital display 3.

The running time is determined during the programme by the water temperature, the number of utensils as well as the degree of soiling and may vary (depending on the selected programme).

Display window

Apart from information on the programme sequence, the display window 12 also indicates additional information on e.g. spray pressure.

If you would no longer like to have this additional information displayed, proceed as follows.

1 Open the door.
2 Switch on ON/OFF switch 1.
3 Hold down programme button A and press START button 10 until the digital display 3 H... is indicated.
4 Release both buttons.

The LED for button A flashes and the digital display 3 displays the factory setting H:04.

5 Press programme button A until the factory set value : is indicated on the digital display 3.

To change the setting,

1 By pressing the C button, you can switch the on board computer (additional programme information) off C:00 or on C:01.
2 Press START button 10.

The set value is saved.

3 Close the door.

Timer programming

You can delay the start of the programme in 1 hour steps up to 24 hours.

1 Open the door.
2 Switch on ON/OFF switch 1.
3 Press the button 8 + until 7 is flaching in the timer programming display 7 .
4 Press ^+ or - button until the 8 displayed time corresponds with your requirements.
5 Press START button 10, timer programming is activated.
6 To delete timer programming 8 , press the + or - button until is indicated on the digital display 7 .

You can change your programme selection at any time until the programme starts.

7 Close the door.

End of programme

The programme has ended when the value 0:00 is indicated on the numerical display 3.

The end of the programme is also indicated by an acoustic signal. This function can be changed as follows:

1 Open the door.
2 Switch on ON/OFF switch 1.
3 Hold down programme button A and press START button 10 until H:0.... is indicated on the digital display.
4 Release both buttons.

The LED for button A flashes and the digital display 3 displays the factory setting H:04.

5 Press programme button A until the factory set value b: is indicated on the digital display 3.

To change the setting,

1 Press programme button C. Each time the button is pressed, the set value increases by one level; when the value of b:03 has been reached, the display jumps back to b:00 (off).
2 Press START button 10, the set value is saved.
3 Close the door.

Automatic switch off after end of programme or interior light*

• depending on model

To save energy, the dishwasher can be automatically switched off 1 min or 120 min after the programme ends.

The setting can be selected from P: to P: .

P:00 Appliance does not switch off automatically.

The interior light 20 comes on when the door is opened irrespective of whether the ON/OFF switch 1 is switched on or off. When the door is closed the light is off. If the door is open for longer than 60min the light switches off automatically. The interior light 20 is lit only when the set value P:00 is selected.

P:O1 Appliance switches off after 1 min.

P:O2 Appliance switches off after 120 min.

1 Open the door.
2 Switch on ON/OFF switch 1.
3 Hold down programme button A and press START button 10 until H: ... is indicated on the digital display.
4 Release both buttons.

The LED for button A flashes and the digital display 3 displays the factory setting H:04.

5 Keep pressing programme button A until the value P:0... is indicated on the numerical display 3.

To change the setting:

1 Press programme button C.
Each time the button is pressed, the set value increases by one level; when the value of P:02 has been reached, the display jumps back to P:00 .
2 Press START button 10.
The set value is saved.
3 Close the door.

Switching off the appliance

Short time after the end of the programme:

1 Open the door.
2 Switch off ON/OFF switch 1.
3 Turn off the tap (not applicable if Aqua-Stop fitted).
4 Remove the utensils when they have cooled down.

Warning

At the end of the programme please open the door fully and not partially when emptying the dishwasher. Any escaping water vapour could damage sensitive worktops.

Interrupting the programme

1 Open the door.
2 Switch off ON/OFF switch 1.

The LEDs go out. The programme is saved.

If the door was opened on an appliance which has a warm water connection or is heated, first leave the door ajar for several minutes and then close. Otherwise, expansion (pressure) may cause the appliance door to spring open or water to run out of the appliance.

3 To continue the programme, switch on the ON/OFF switch 1 again.
4 Close the door.

Terminating the programme (Reset)

1 Open the door.
2 Press START button 10 for approx. 3 sec. The numerical display 3 indicates : I .
3 Close the door.

The programme sequence lasts approx. 1 min. On the digital display 3 is indicated 0:00.

4 Open the door.
5 Switch off ON/OFF switch 1.
6 Close the door.

Changing the programme

When the START button 10 has been pressed, the programme cannot be changed.

The only way a programme can be changed is by Cancel programme (Reset).

Intensive drying

The final rinse uses a higher temperature which improves the drying result. The running time may increase slightly. (Caution if utensils are delicate!)

1 Open the door.
2 Switch on ON/OFF switch 1.
3 Hold down programme button A and press START button 10 until H:Q.... is indicated on the digital display.
4 Release both buttons.

The LED for button A flashes and the digital display 3 displays the factory setting H:04.

5 Press programme button A until the factory set value d:00 is indicated on the digital display 3.

To change the setting,

1 Press the button to switch the Intensive drying on d:0 or off d:00 .
2 Press START button 10.

The set value is saved.

3 Close the door.

Maintenance and care

A regular inspection and maintenance of your machine will help to prevent faults. This saves time and prevents problems.

Overall condition of the machine

• Check spray arm for grease and limescale deposits.

If you find such deposits:

• Fill detergent dispenser with detergent. Start the appliance without utensils in the programme with the highest rinsing temperature.

Clean the appliance with detergents/appliance cleaners which are particularly suitable for use with dishwashers.

Regularly clean door seal with a damp cloth.

Never use a steam cleaner to clean your dishwasher. The manufacturer is not liable for any consequential damage.

Regularly wipe the front of the appliance and fascia with a damp cloth; water and a little washing up liquid are adequate. Do not use sponges with a rough surface or abrasive detergents, as these could scratch the surfaces.

Stainless steel appliances: To prevent corrosion, avoid using sponge cloths or wash them out thoroughly several times before using for the first time.

Warning

Never use other chlorinated household detergents! Health hazard!

Special salt and rinse aid

• Check the refill indicators 5 and 6. If required, refill salt and/or rinse aid.

Filters

The filters 29 keep large foreign objects in the rinsing water away from the pump. These foreign objects may occasionally block the filters.

The filter system consists of a coarse filter, a flat fine filter and a microfilter.

1 After each washing cycle check the filters for residue.

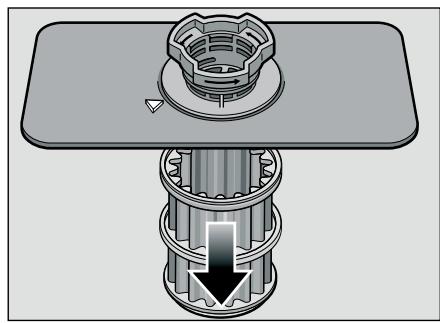

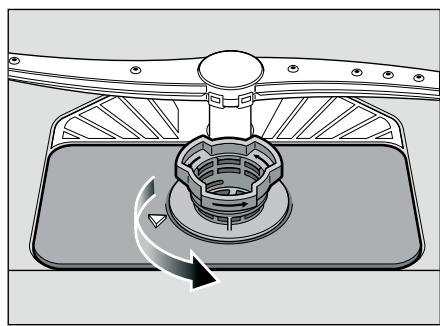

2 Unscrew filter cylinder as illustrated and take out filter system.

3 Remove any residue and clean filters under running water.
4 Re-install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system.

Spray arms

Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms [23] and [27].

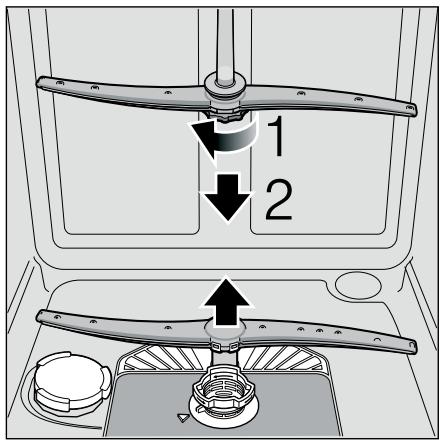

1 Check outlet nozzles on the spray arms for blockages.
2 Unscrew the upper spray arm 23.
3 Remove the lower spray arm 27 upwards.

4 Clean spray arms under running water.
5 Re-engage or screw on spray arms.

The majority of faults which could occur in daily operation can be rectified by the user. This ensures that the appliance is quickly available for use again. The following overview will help you locating the causes and gives helpful advise to eliminate them.

Note

If the appliance stops during dishwashing or does not start for no obvious reason, first run the Abort programme function (Reset).

(See chapter entitled "Dishwashing")

Warning

If on the digital display 3 an error code (E:0 to E:30), always disconnect the appliance from the power supply and then turn off the tap.

You can rectify certain faults yourself (see following fault description), for all other faults please contact customer service and state the indicated fault :

Warning

Don't forget: Repairs may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used. Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.

Waste water pump

Large food remnants in the rinsing water not retained by the filters may block the waste water pump. The rinsing water is then not pumped out and covers the filter.

In this case:

1 First disconnect the appliance from the power supply.
2 Remove the filters 29.
3 Scoop out water, use a sponge if required.

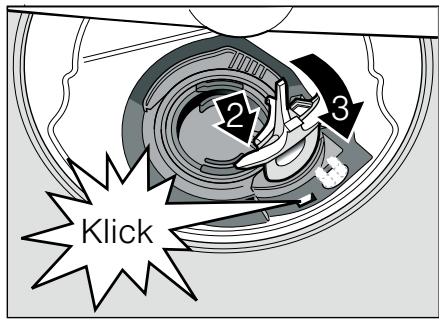

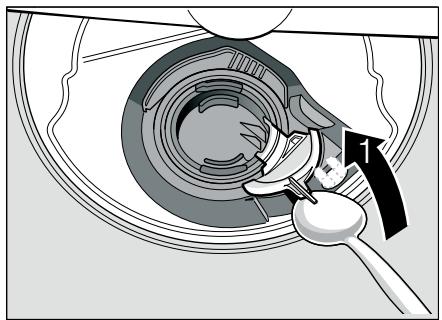

4 Using a spoon,rise off pump cover (as illustrated) until it clicks,then grip the cover by the lug and first pull it upwards until it resists and then pull it out forwards.

5 Check inner compartment and remove any foreign objects.
6 Place cover in the original position, press down and engage.

7 Install filters.

... when the appliance is switched on

The appliance does not start.

The mains fuse has tripped.
The appliance plug has not been inserted.
The appliance door has not been shut properly.

... changing settings

A setting cannot be changed, a programme starts.

• Wrong programme button pressed. Terminate the programme (see chapter entitled "Terminating the programme (Reset)") and start all over again.
• You did not wait until programme ended.

... on the appliance

Lower spray arm rotates negligibly.

Spray arm blocked.

The door is difficult to open. *

• Child-proof lock is activated. The deactivation instructions are at the back in the envelope.

• depending on model

Door cannot be closed.

• Door lock has been activated. To reset, close the door with greater force.

Cover on the detergent dispenser cannot be closed.

• Detergent dispenser overfilled or mechanism blocked by sticky detergent residue.

Detergent residue in the detergent dispenser.

Dispenser was damp when filled.

"Check water supply" display 4 lights up.

• Tap turned off.

Water supply interrupted.

Supply hose kinked.

- Filter in the water supply blocked.

1 Switch off the appliance and pull out the mains plug.
2 Turn off the tap.

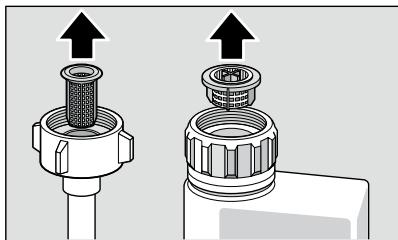

3 Clean filter in the supply hose.

4 Reconnect power supply.
5 Turn on the tap.
6 Switch on the appliance.

Water is left in the appliance at the end of the programme.

• (E:24) Waste water hose is blocked or kinked. Filters blocked.
• (E:25) Waste water pump blocked, cover on the waste water pump is not locked in position (see Waste water pump).
• Filters blocked.
• The programme has not yet ended. Wait until programme ends (digital display indicates 0:00) or implement the "Reset" function.

Error code E:22

• Filters [29] are soiled or blocked.

Refill indicator for salt 5 and/or rinse-aid 6 is not lit.

• Refill indicator/s switched off.
• Adequate salt/rinse-aid available.

Refill indicator for special salt 5 is lit.

No salt.

Refill with special salt.

• Sensor does not detect salt tablets.

Use different special salt.

... during the wash cycle

Unusual foam formation.

• Handwash liquid in the rinse aid dispenser. Spilled rinse aid causes excessive frothing, therefore please remove with a cloth.

Appliance stops during the wash cycle.

Power supply interrupted.
Water supply interrupted.

Filling valves making striking noises

• Caused by the installation of the water line and has no effect on the function of the machine. Remedial action is not possible.

Knocking/rattling noise during rinsing

Spray arm is striking utensils.
- Utensils not arranged correctly.

... on the utensils

Food residue on the utensils.

• Utensils placed too closely together, utensils basket overfilled.
  Too little detergent.
  Rinse programme too weak.
  Spray arm rotation obstructed.
  Spray arm nozzles blocked.
• Filters blocked.
• Filters incorrectly inserted.
• Waste water pump blocked.
• Top basket on right and left not set to same height.

Tea or lipstick residue is not completely removed.

The detergent has an inadequate bleaching effect.
- Too low rinsing temperature.
- Too little/unsuitable detergent.

White stains on the utensils/glasses remain milky.

If phosphate-free detergents are used with hard tap water, white deposits may be deposited more easily on utensils and the container walls.

• Too little/unsuitable detergent.
• Too weak programme selected.
  No/too little rinse aid.
  No/too little special salt.
  Water softening system set to the wrong value.
  Salt dispenser lock not fastened.

Contact the detergent manufacturer, in particular if:

the utensils are very wet at the end of the programme.
limescale forms.

Dull, discoloured glasses, film cannot be washed off.

Unsuitable detergent.
- Glasses not dishwasher-proof.

Streaks on glasses and cutlery, glasses have metallic appearance.

Too much rinse aid.

Plastic parts discoloured.

• Too little/unsuitable detergent.
• Too weak programme selected.

Rust spots on the cutlery.

Cutlery not rust-resistant.
Salt content in the rinsing water too high, as salt dispenser lock not fastened firmly or salt was spilled while being refilled.

Utensils not dry.

• Appliance door opened too early and utensils taken out too early.
  Programme selected without drying.
• Too little/unsuitable rinse aid.
  Activate intensive drying.
  The combined detergent used has a poor drying performance.

Use rinse aid (see Rinse aid chapter for setting).

If the advice given does not resolve your problem, please contact your customer service. Contact details can be found on the back cover of this instruction manual or in the enclosed customer service list. When calling, please quote the appliance number (1) and the production date (FD = 2) which can be found on the rating plate 35 on the appliance door.

Rely on the expertise of the manufacturer. Call us to ensure that the repair will be carried out by fully-trained service engineers, who are equipped with original spare parts for your appliance.

Installation

The dishwasher must be connected correctly, otherwise it will not function properly. The specifications for the inlet and outlet as well as the electrical connected loads must correspond with the required criteria as specified in the following paragraphs or in the installation instructions.

Install the appliance in the correct sequence:

1 Checking appliance on delivery
2 Installing the appliance
3 Waste water connection
4 Fresh water connection
5 Electrical connection

Safety instructions

Install and connect the appliance according to the installation and assembly instructions.
- Prior to installation, disconnect the dishwasher from the power supply.
- Ensure that the protective conductor system of the domestic supply has been correctly installed.
The electrical connection conditions must correspond with the specifications on the dishwasher rating plate 35.
- If the power cord of this appliance is damaged, it must be replaced with a particular power cord. To prevent injury, the power cord may be replaced by customer service only.
- If the dishwasher is installed in a high-sided unit, the unit must be secured properly.
Install built-under or integratable appliances only under continuous worktops which have been screwed to adjacent cupboards to ensure stability.
- Do not install the appliance near heat sources (radiators, heat storage tanks, cookers or other appliances which generate heat) and do not install under a hob.
After installing the appliance, ensure that the plug is easily accessible.
Some models:

The plastic housing on the water connection contains an electric valve, the connecting cables are in the supply hose. Do not cut through this hose, do not immerse the plastic housing in water.

Warning

If the appliance is not in a cavity and a side panel is accessible, the door hinge area must be covered at the side for reasons of safety (risk of injury). The covers are available as optional accessories from customer service or specialist outlets.

Delivery

Your dishwasher has been checked thoroughly in the factory to ensure that it is in working order. This may cause small water stains. These will disappear after the first wash cycle.

Technical specifications

Weight:

max. 60kg

Voltage:

220-240 V, 50 Hz or 60 Hz

Connected load:

2.0-2.4 kW

Fuse:

10/16 A

Water pressure:

at least 0.05MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead.

Inlet rate:

minimum 10 litres/minute

Water temperature:

cold water; hot water max. temperature 60^ .

Installation

The required installation dimensions can be found in the installation instructions. Level the appliance with the aid of the height-adjustable feet. Ensure that the appliance is situated securely on the floor.

• A built-under or integrated appliance which is installed subsequently as a free-standing appliance must be secured to prevent it from overturning, e.g. by screwing it to the wall or by installing it under a continuous worktop which is screwed to adjacent cupboards.
• The appliance can easily be installed in a fitted kitchen between wooden and plastic walls. If the plug is not freely accessible, an allpole disconnector with a contact opening of at least 3 mm must be fitted on the installation side to satisfy the relevant safety instructions.

Waste-water connection

1 The required work sequence can be found in the installation instructions. If required, fit a siphon with an drainage connection.
2 Connect the waste-water hose to the drainage connection of the siphon with the enclosed parts. Ensure that the drainage hose is not kinked, crushed or twisted and that there is no cover plate in the drainage to prevent the waste water from flowing out!

Fresh water connection

1 Connect the fresh-water connection to the tap according to the installation instructions with the enclosed parts.
Ensure that the fresh-water connection is not kinked, crushed or twisted.
2 When replacing the appliance, always use a new water supply hose.

Water pressure:

at least 0.05MPa (0.5 bar), maximum 1 MPa (10 bar). At a higher water pressure: connect pressure-reducing valve ahead.

Inlet rate:

minimum 10 litres/minute

Water temperature:

cold water preferred; hot water max. temperature 60^

Warm water connection *

• depending on model

The dishwasher can be connected to cold or hot water up to max. 60^ .

Connection to hot water is recommended if the hot water can be supplied by energetically favourable means and from a suitable installation, e.g. solar heating system with circulation line.

This will save energy and time.

The hot water setting R: allows you to adjust your appliance optimally to operation with hot water.

It is recommended to have a water temperature (temperature of the incoming water) of at least 40^ and no more than 60^ .

It is not recommended to connect the appliance to hot water if the water is supplied from an electric boiler.

Setting hot water:

1 Open the door.
2 Switch on ON/OFF switch 1.
3 Hold down programme button A and press START button 10 until H:... is indicated on the digital display.
4 Release both buttons.

The LED for button A flashes and the digital display 3 displays the factory setting H:04.

5 Press programme button A until the factory set value R:00 is indicated on the digital display 3.

To change the setting:

1 By pressing the C button, you can switch the hot water setting off R:O or on R:O I.
2 Press START button 10.

The set value is saved.

3 Close the door.

Electrical connection

• Connect the appliance to an alternating current only, ranging from 220 ~V to 240 ~V and 50 ~Hz or 60 ~Hz via a correctly installed socket with protective earth conductor. See rating plate for required fusing 35.
  The socket must be near the appliance and freely accessible following installation.
  The connection may be modified by technicians only.
  A power cord extension may be purchased from customer service only.
  Use only a residual current operated circuit-breaker which features the symbol . Only this extension guarantees compliance with the currently valid regulations.
• The appliance features a water damage protection system. Please note the system will not function unless the power supply is connected.

Removing the appliance

Also observe the sequence of worksteps here.

1 Disconnect the appliance from the power supply.
2 Turn off the water supply.
3 Disconnect the waste water and fresh water connections.
4 Loosen the fastening screws under the worktop.
5 If fitted, remove the base panel.
6 Pull out the appliance, carefully pulling the hose behind.

Transportation

Empty the dishwasher and secure loose parts.

Drain the appliance according to the following steps:

1 Turn on the tap.
2 Open the door.
3 Switch on ON/OFF switch 1. The displays of the last selected programme light up.
4 Select programme with the highest temperature. The expected programme duration is indicated on the numerical display 3.
5 Press START button 10.
6 Close the door. Programme sequence starts.
7 Open door after approx. 4 minutes.
8 Press START button 10 until : is indicated on the digital display.
9 Close the door.
10 Open door after approx. 1 minute. The numerical display indicates 0:00.
11 Switch the appliance off 1 and turn the tap off. Transport appliance upright only.

(This prevents residual water from running into the machine control and damaging the programme sequence.)

Protection against frost

If the appliance is in a room where there is a risk of frost (e.g. holiday home), empty the appliance completely (see Transportation).

• Turn off the tap, disconnect supply hose and drain water.

Waste disposal

Both the packaging of new appliances and the old appliances themselves contain valuable raw materials and recyclable materials.

Please dispose of the individual parts separated according to type.

Please ask your dealer or inquire at your local authority about current means of disposal.

Packaging

All plastic parts of the appliance are identified with internationally standardised abbreviations (e.g. >PS< polystyrene). Therefore, plastic waste can be sorted out when the appliance is being disposed of.

Please follow the safety instructions under "Delivery".

Old appliances

Please follow the safety instructions under "Disposal of your appliance".

This appliance is identified according to the European guideline 2002/96/EC on waste electrical and electronic equipment - WEEE. The guideline specifies the framework for an EU-wide valid return and re-use of old appliances.

Childproof lock (door lock) *

40

41

42

40 Activate the childproof lock.
41 Open the door with activated childproof lock.
42 Deactivate childproof lock.

Always close the appliance door completely when you leave the appliance.

This is the only way you can protect your children from potential dangers.

Baking sheet spray head *

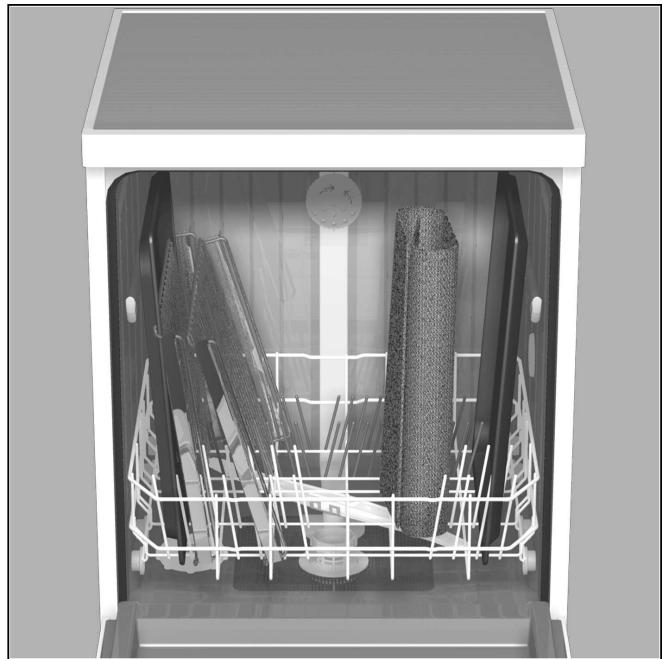

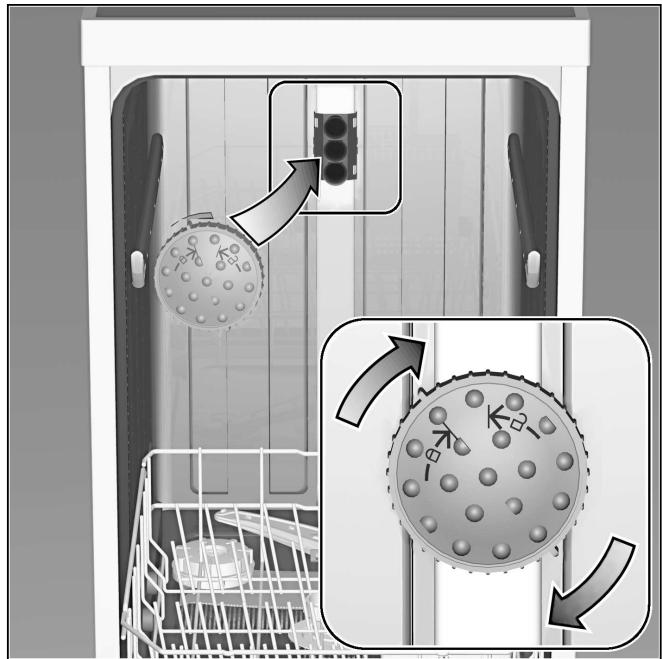

Large sheets or grilles and plates which have a diameter greater than 30~cm (gourmet plates, pasta plates, dinner plates) can be cleaned with the aid of the spray head. To do this, remove the top basket and insert the spray head as illustrated in the diagram.

To ensure that the spray jet can reach all parts, arrange the baking sheets as illustrated (max. 4 baking sheets and 2 grilles).

Never operate the dishwasher without the top basket or baking sheet spray head!

AQUA-STOP guarantee

en

(does not apply to appliances without Aqua-Stop)

In addition to warranty claims against the seller based on the purchase contract

and in addition to our appliance warranty we will pay damages under the following conditions:

1. If our Aqua-Stop system is defective and causes water damage, we will make good the damage for private users.

To ensure water damage protection, the appliance must be connected to the power supply.

1. This liability guarantee is valid for the service life of the appliance.

2. A prerequisite for the warranty claim is that the appliance has been correctly installed and connected with Aqua-Stop according to our instructions. This also includes the correct installation of the Aqua-Stop extension (original accessory).

Our warranty does not extend to defective feed lines or fittings up to the Aqua-Stop connection on the tap.

1. If your appliance is fitted with Aqua-Stop, you can leave your appliance unattended during operation and leave the tap turned on afterwards. The tap should only be turned off if you are absent from home for a prolonged period, e.g. several weeks holiday.

To book an engineer visit and product advice

GB 0844/8928988

Calls from a BT landline will be charged at up to 3 pence per minute.

A call set-up free of up to 6 pence may apply.

IE 014502655

Please find the contact data of all countries in the enclosed customer service list.

Internet: www.gaggenau.com
