Product type	Rotary floor burnisher
Brand	Truvox
Model	Orbis UHS Cordless Burnisher (OCB451500)
Product code	OCB451500
Power supply	24 V battery (2 x 12 V), 100-230 V / 50-60 Hz mains charger
Battery capacity	44 Ah (C5)
Motor power	480 W
Run time	Approximately 2 hours
Charging time	8 hours
Productivity rate	860 m²/h
Rotation speed	1500 rpm
Brush / pad diameter	43 cm
Ground pressure	3 g/cm²
Sound pressure level	62.1 dB(A)
Vibrations	Less than 2.5 m/s²
Dimensions (L x W x H)	70 x 45 x 86 cm
Weight with batteries	62.5 kg
Weight without batteries	22.5 kg
Use	Indoor only, commercial use (hotels, schools, hospitals, factories, shops, offices)
Maintenance	Clean after use, check the batteries, replace the brush if worn
Safety	Read the instructions, do not use outdoors, unplug before maintenance
Warranty	1 year subject to conditions

Frequently Asked Questions - OCB451500 Truvox

What is the run time of the Truvox OCB Issue 2?

The run time is approximately 2 hours of continuous operation, allowing you to cover large areas.

How do I charge the battery?

Plug the charger into a 100-230 V AC socket, connect it to the machine and let it charge for 8 hours for a full charge.

What types of flooring can this machine be used on?

This burnisher is designed for hard indoor floors: tiles, marble, polished concrete, natural stone. It is not suitable for carpets.

Is this machine suitable for domestic use?

No, it is intended for intensive commercial use: hotels, schools, hospitals, factories, shops, offices and rental companies.

What is the noise level of the machine?

The sound pressure level is 62.1 dB(A) measured at 1 meter, which is relatively quiet for a burnisher.

How do I maintain the machine?

After each use, clean the brush and the machine body, check the condition of the batteries and store in a dry place. See the manual for details.

Can the brush be replaced?

Yes, the 43 cm diameter brush is replaceable. Follow the instructions in the manual for the replacement procedure.

What is the weight of the machine with and without batteries?

The weight is 62.5 kg with batteries and 22.5 kg without batteries. The machine must be handled with care.

What are the dimensions of the machine?

The dimensions with the handle are 70 cm x 45 cm x 86 cm (length x width x height).

What is the warranty?

The warranty is 1 year subject to compliance with the operating and maintenance conditions described in the manual.

USER MANUAL OCB451500 Truvox

ORIGINAL INSTRUCTIONS

CAUTION – READ THESE INSTRUCTIONS BEFORE USING THE MACHINE

Orbis UHS Cordless Burnisher

Rotary Floor Burnishing Machine

USER MANUAL EN

The following instructions contain important information about the machine and safety advice for the operator. Equipment must be operated, serviced and maintained in accordance with the manufacturer's instructions. If in doubt contact the supplier of your machine.

Read all instructions before using the machine

PRODUCT INFORMATION

These commercial floor treatment machines are designed for the high speed polishing and burnishing of hard floors in indoor areas. A passive dust control system is supplied as standard with each model. This machine is for indoor use only. The machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices, rental businesses and other than normal housekeeping purposes.

TECHNICAL SPECIFICATIONS

Model		Orbis UHS Cordless Burnisher
Product Code		OCB451500
Charging Voltage AC (~)/ Frequency	V/Hz	100 - 230/50 - 60
Battery Voltage DC	V	24 (2 x 12V)
Battery Details	Ah	44 (C5)
Motor Power	W	480
Run Time	hrs	2
Charge Time	hrs	8
Productivity Rate	m2/h	860
Pad / brush speed	rpm	1500
Pad / brush pressure	g/cm2	3
Pad / brush diameter	cm	43
Sound pressure level	dB(A)	62.1
Dimensions (L x W x H) with handle	cm	70 x 45 x 86
Weight with batteries	kg	62.5
Weight without batteries	kg	22.5
Warranty		1 year subject to conditions

- Above dimensions are approx. Since the company's policy is to continuously improve the product, there could be changes without prior notice.

- Handle vibration does not exceed 2.5 m/s² when operating on a smooth hard surface.

- Noise levels measured at a distance of 1 metre from machine and 1.6 metres above floor, when operating on a hard floor. Measurements recorded using a hand held meter.

EC Declaration of Conformity

Machine Type: Rotary Floor Burnishing Machine Model: OCB451500...,

This machine is in conformity with the following EU directives:

• Machinery Directive
  2006/42/EC
  • The EMC Directive
  2014/30/EU

Applied harmonised standards:

Truvox International Limited

Unit C (East), Hamilton Business Park,

Manaton Way, Botley Road,

Hedge End, Southampton,

SO30 2JR, UK

Malcolm Eneas

Operations Manager

Southampton, 21/08/2018

WASTE ELECTRICAL & ELECTRONIC EQUIPMENT (WEEE)

DO NOT dispose of this device with unsorted waste. Improper disposal may be harmful to the environment and human health. Please refer to your local waste authority for information on return and collection systems in your area.

IMPORTANT SAFETY ADVICE

The safety information described in this manual provides basic precautions and supplements standards in force in the country where the machine is used.

This symbol warns the operator of hazards and unsafe practices which could result in severe personal injury or death.

WARNING - to reduce the risk of injury, electric shock or fire.

I. This machine must only be used for the manufacturer's approved application as described in this manual.
2. The machine must be unpacked and assembled in accordance with these instructions before connecting to the electrical supply.
3. Only genuine accessories and spare parts provided with the machine or those approved by the manufacturer should be used. The use of other accessories may impair the safety of the machine. All repairs must be performed by a qualified service agent.
4. DO NOT modify the machine from its original design.
5. Operators must be fully trained in the use of the machine in accordance with these instructions, able to perform regular user maintenance and the correct selection of accessories.
6. Operators should be physically capable to manoeuvre, transport and operate the machine.
7. Operators should be able to recognise unusual operation of the machine and report any problems.

1. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
2. Keep children and unauthorised persons away from the machine when in use. DO NOT use as a toy.
3. DO NOT use if it has been damaged, left outdoors or dropped in water.
   II. DO NOT use where hazardous dust is present.
4. DO NOT use in an explosive atmosphere.
5. DO NOT pick up or use near flammable or combustible fluids, hazardous dusts or vapours.
6. CAUTION - If it is suspected that there is hazardous dust or flammable/corrosive material, stop cleaning the area immediately and consult your superior.
7. DO NOT use to clean up any burning or lighted materials such as cigarettes, matches, ashes or other combustible objects.
8. Only use the machine on firm level surfaces. DO NOT use on a gradient or slope of more than 2%.
9. DO NOT use on rough uneven surfaces e.g. industrial or coarse concrete surfaces.
10. DO NOT use outdoors e.g. on patios, decks or rough surfaces.
11. CAUTION - This machine is for dry indoor use only and should not be used or stored outdoors in wet conditions.
12. Take care when using a machine near the top of stairs to avoid overbalancing.
13. DO NOT cover the machine when in use.
14. Let the machine do the work. Grip the handle as lightly as possible.
15. Stand with feet slightly apart to maintain good balance. Avoid twisting the body more than 45 degrees.
16. Normal movement of the machine is in a forward and backward direction.
17. Keep hair, loose clothing, hands, feet and all other parts of the body away from openings and moving parts.
18. DO NOT put any object into openings. DO NOT use with any opening blocked; keep free of dust, debris and anything that may reduce airflow.
19. DO NOT use volatile or combustible solvents (e.g. diesel/petrol/IPA/trichloromethane) nor any corrosive, toxic or highly irritant substances to wash floors, even if diluted. In the event of accidental contact with any such substances(e.g. due to spills) follow the decontamination procedures in force at the user site.If in any doubt about the condition of the machine, contact Truvox or the dealer/agent who supplied the machine.
20. Wear suitable footwear to avoid slipping.
21. WARNING Operating the machine while the machine is stationary could damage the machine or the floor.

CAUTION - Risk of electric shock

1. DO NOT operate the machine with a damaged charger power cord or plug, or after the machine malfunctions or is damaged in any way. Contact an authorised Service Agent for repair or adjustment.

2. The machine must be kept clean and in good condition with regular inspections of the charger power cord and plug for signs of any damage. If any parts are damaged they shall only be replaced by an approved part by the manufacturer, its service agent or a similar qualified person in order to avoid a hazard.

3. When unplugging, pull the plug, not the charger power cord.
4. WARNING: Keep the charger power cord clear of moving parts.
5. DO NOT kink or twist the charger power cord and keep cord away from heated surfaces.
6. DO NOT operate switches or touch the mains plug with wet hands as this may cause electric shock.
7. This machine should always be connected to a fully earthed power supply of the right voltage and frequency.
8. DO NOT pull or carry by the charger power cord. DO NOT use cord as a handle, close door on cord or pull cord around sharp edges or corners.
9. Unless charging, the plug of the charger power cord must be removed from the socket-outlet when not in use and before commencing cleaning of the machine or undertaking maintenance operations.
10. Opportunity / top up charging may damage the batteries. This may cause the run time to fall and overall battery life to be affected. AVOID TOP UP CHARGING.

SAFE DISPOSAL OF BATTERIES

- The batteries must be neutralised through an approved secondary treatment facility prior to disposal as waste. The battery can be recycled at an authorised facility, through a licensed waste carrier.

CLEANING AGENTS

1. When using cleaning and care agents, the manufacturer's danger wanings must be followed and protective goggles and clothing must be worn.
2. Only use low-foaming, non-combustible cleaning agents which do not contain generally health-hazardous substances.
3. Please ensure that after each use any chemical residue is rinsed out with clean water.

TRANSPORTING THE MACHINE

• Take extreme care when moving the machine up or down steps or stairs.
• Incorrect lifting techniques may result in personal injury. We advise that the manual handling regulations are followed. Carefully wrap the charger power cord and store in dry indoor location.
  • DO NOT expose the machine to rain or moisture.
• When transporting the machine the handle should be locked in the upright position.

STORAGE

• Always switch off the machine after use.
• Store the machine in a dry indoor area only.
- Never store the machine with a pad fitted as this causes distortion, and results in instability during operation.
- Always switch off, empty, wipe down and dry the machine after use.

MAINTENANCE

WARNING - Before undertaking maintenance operations or adjustments switch off machine, unplug from the electricity supply and disconnect the battery.

IMPORTANT – All other servicing and repairs should only be performed by a Truvox engineer or Authorised Service Agent.

IMPORTANT – Should the machine fail to operate please refer to the fault diagnosis section in the back of this instruction manual. If the problem / remedy is not listed please contact Truvox Customer Service Department for rapid attention.

The machine requires minimum maintenance apart from the following checks by the operator prior to use:

• Body of the machine - Clean with a damp cloth.
- Charger power cord - Regularly inspect sheath, plug and cord anchorage for damage or loose connection.
- Air vents - Check for dust accumulation around the air inlet and outlet vents of the motor cooling-air system and clean if necessary. Blocked vents will cause the motor to overheat, and may lead to premature failure. Warranty claims for this type of damage will not be accepted.

- Check the switch interlock for correct operation.

- Motor overload cut-out - All machines are fitted with an automatic reset motor overload cut-out. The cut-out will operate to protect the motor from overheating by switching the machine off when there is excessive friction/resistance to the cleaning head on the floor. This is usually caused by the stickiness of the pad or floor. Turn the cleaning pad over or if both sides are dirty replace with a clean pad. It is not possible to obtain a good finish on the floor using a dirty pad. Should the cut-out operate it will reset automatically when the motor has cooled sufficiently, usually after 15 - 30 mins.

- Drive boards, pads and brushes - Inspect for wear and replace worn brushes. Clean under running water.

AFTER SALES SERVICE

Truvox machines are high quality machines that have been tested for safety by authorised technicians. It is always apparent that after longer working periods, electrical and mechanical components will show signs of wear and tear or ageing. To maintain operational safety and reliability the following service interval has been defined: Every year or after 250 hours. Under extreme or specialised conditions and/or insufficient maintenance, shorter maintenance intervals are necessary.

Use only original Truvox spare parts. Use of other spare parts will invalidate all warranty and liability claims. Should you require after sales service please contact the supplier from whom you purchased the machine, who will arrange service. Repairs and servicing of Truvox products should only be performed by trained staff. Improper repairs can cause considerable danger to the user.

GUARANTEE

Your product is guaranteed for one year from the date of original purchase, or hire purchase, against defects in materials or workmanship during manufacture. Within the guarantee period we undertake at our discretion, to repair or replace free of charge to the purchaser, any part found to be defective, subject to the following conditions:

CONDITIONS

I. Claims made under the terms of the guarantee must be supported by the original invoice/bill of sale issued at the time of sale, or the machine Serial No.
2. For claims under this guarantee contact the supplier from whom you purchased the product who will arrange the appropriate action. Do not initially return the product as this could result in transit damage.
3. Neither Truvox nor its distributor shall be liable for any incidental or consequential loss.
4. This guarantee is governed by the laws of England.
5. This guarantee does not cover any of the following:
- Periodic maintenance, and repair or replacement of parts due to normal wear and tear.
- Damage caused by accident, misuse or neglect, or the fitting of other than genuine Truvox parts.
- Defects in other than genuine Truvox parts, or repairs, modifications or adjustments performed by other than a Truvox service engineer or authorised service agent.
- Costs and risks of transport relating directly or indirectly to the guarantee of this product.
- Consumable items such as power cords, brushes, drive discs, filters, belts, vacuum skirts and other similar items.

This guarantee does not affect your statutory rights, or your rights against the supplier arising from their sales or purchase contract. Truvox International Limited policy is one of continual product development and we reserve the right to alter specifications without prior notice.

RECOMMENDED SPARES & ACCESSORIES

	OCB451500
Replacement 12v 44Ah battery for Orbis Cordless Burnisher (2 required)	04-3948-0500
Spray System Kit, inc. mounting bracket & tubing.	05-4156-0000

FAULT DIAGNOSIS

The following simple checks may be performed by the operator. If the machine is still not working, please contact your local Service Agent:

Trouble	Reason	Remedy
No lights illuminated on charger module	Batteries aren't connected	Connect the batteries
Only red LED on charger module is illuminated	Fault with charger	Contact service agent
Yellow LED flashing	Battery fault	Contact service agent
	Battery not connected	Connect battery
	Unsuitable battery	Contact service agent
Machine not working and charger indicates the battery is fully charged	Switch interlock incorrectly operated	Check operating procedure instructions
	Current overload fuse blown*	Contact service agent
Machine wobbles or vibrates excessively	Pad worn or damaged	Replace pad
	Dirty pad	Clean the pad
	Loose pad	Tighten pad locking device
	Pad is off centre	Reposition pad

*If the fuse blows several times, the machine should be checked by an authorised Service Agent.

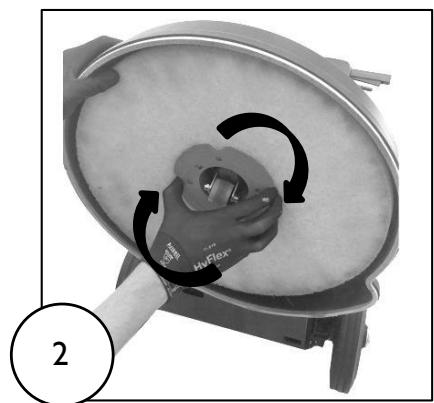

PLEASE REFER TO THE BACK OF THE MANUAL FOR PICTORIAL INSTRUCTIONS
