Vertus CLA 604A / CLA 208SA - Speaker FBT - Free user manual and instructions

Product Type	Active line array speaker system (CLA 604A satellite + CLA 208SA subwoofer)
Model	FBT Vertus CLA 604A / CLA 208SA
Amplifier	Class D: 400W RMS LF + 100W RMS HF (CLA 604A); 600W RMS (CLA 208SA)
Frequency Response	130Hz - 20kHz (CLA 604A); 50Hz - 180Hz (CLA 208SA)
Dispersion	100° H x 20° V (CLA 604A)
LF Drivers	6 x 4" woofers with 1" voice coil (CLA 604A); 2 x 8" woofers with 2" voice coil (CLA 208SA)
HF Drivers	4 x 1" neodymium dome tweeters on waveguide (CLA 604A)
Maximum SPL	122/125 dB cont/peak (CLA 604A); 125/129 dB half space cont/peak (CLA 208SA)
Input Impedance	22 kOhm
Crossover Frequency	2.5 kHz (CLA 604A); 0.12/0.18 kHz preset dependent (CLA 208SA)
Power Requirement	450 VA
Input Connectors	XLR with loop (CLA 604A); XLR stereo with loop/HP out (CLA 208SA)
Power Connectors	2 x Neutrik Powercon (blue input, grey loop output)
Enclosure	Extruded aluminum powder coated (CLA 604A); 0.59" birch plywood, anti-scratch paint (CLA 208SA)

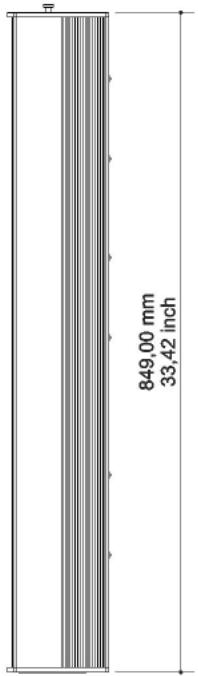

Net Dimensions (W x H x D)	CLA 604A: 130 x 849 x 133 mm; CLA 208SA: 550 x 283 x 500 mm
Net Weight	CLA 604A: 9.50 kg; CLA 208SA: 20.80 kg
DSP Processing	Digital processor with 4 equalization presets
Controls	Volume, preset selector, HP filter, mic/line switch, status LEDs
Mounting	Wall mount bracket, stand adapter, M20 socket on sub, stackable with safety pins
Safety	Protective earth connection; do not expose to rain or moisture; refer servicing to qualified personnel
Maintenance	Clean only with a dry cloth

Frequently Asked Questions - Vertus CLA 604A / CLA 208SA FBT

What is the FBT Vertus CLA 604A / CLA 208SA system?

The FBT Vertus CLA 604A / CLA 208SA is a professional line array speaker system consisting of the CLA 604A active column speaker and the CLA 208SA active subwoofer. It features tri-amplification, DSP processing, and a lightweight yet powerful design suitable for live and installed sound applications.

How do I connect the CLA 604A satellite to the CLA 208SA subwoofer?

Use the coupling pins and brackets supplied. The CLA 604A can be frontally mounted on the subwoofer or placed on a stand using the M20 socket on top of the sub. Ensure the holes left free from the brackets are absolutely closed with the relevant screws.

What presets are available on the Vertus CLA series?

Both devices have 4 DSP presets accessible via the PRESET switch. The presets include ORIGINAL for general purpose, PUNCH for rock and high SPL, and configuration-specific presets like 1SAT VERTICAL CONSTANT RELEASE, 1SAT MAX. SPL, 2SAT, and 3SAT for different column configurations.

Can I use the CLA 604A column speaker without the subwoofer?

Yes, the CLA 604A is a full-range column with a frequency response down to 130 Hz. It can be used alone for speech or applications where deep bass is not critical. For full-range live sound, adding the CLA 208SA subwoofer is recommended.

What preset is recommended when using the CLA 208SA with the CLA 604A?

It is recommended to use a preset with 180 Hz cut-off frequency when matching the CLA 208SA subwoofer with the CLA 604A satellite. This ensures a smooth crossover and a uniform frequency response.

How should I clean and maintain the speakers?

Clean the cabinets only with a dry cloth. Do not use water or solvents, and do not expose the equipment to rain or moisture. Avoid covering the ventilation slots and keep the device away from heat sources.

What are the power requirements and how do I daisy-chain multiple speakers?

The system uses Neutrik Powercon connectors. Connect the grey loop output of one speaker to the blue input of the next. For 230V versions, the maximum current is 16A; for 120V versions, it is 12A or 18A depending on the configuration. Never exceed the maximum rated current of the powercon connector.

How can I mount the Vertus CLA speakers on a wall or stand?

The system can be wall-mounted using the VT W604 directional wall mount bracket, or placed on a stand using the VT S604 adapter or VT SC59/SC114 column stands. The subwoofer has an M20 socket for stand mounting and front hardware to support the CLA 604A modules.

What does the PRT/LMT LED indicator mean?

The PRT/LMT LED indicates a system malfunction due to a faulty internal amplifier or the activation of limiting circuits to prevent thermal overload. If it lights, reduce the signal level and check for proper ventilation.

Is the Vertus CLA system expandable?

Yes, the system is modular. You can stack multiple CLA 604A columns and CLA 208SA subwoofers to increase SPL and coverage. Up to 3 satellites and 3 subwoofers can be combined, delivering a total power of 6600W in a stereo configuration.

USER MANUAL Vertus CLA 604A / CLA 208SA FBT

Line Array System

IMPORTANTI ISTRUZIONI DI SICUREZZA / IMPORTANT SAFETY INSTRUCTIONS 1

CARATTERISTICHE GENERALI / GENERAL FEATURES 2 - 3

ALIMENTAZIONE / POWER SUPPLY 4 - 5

CONNETTORI / CONNECTORS 6

DIMENSIONI / DIMENSIONS 7 - 8

ACCESSORI / ACCESSORIES 9 - 10 - 11 - 12

MODALITÀ DI INSTALLAZIONE / INSTALLATION MODE 13 - 14 - 15

CONTROLLI E FUNZIONI / CONTROLS AND FUNCTIONS 16 - 17

PRESET 18

ESEMPI DI UTILIZZO / USAGE EXAMPLES 19 - 20

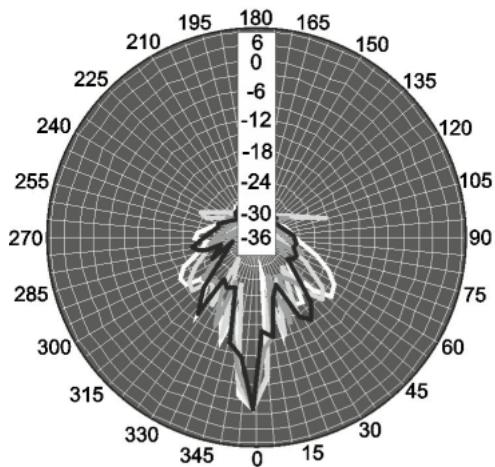

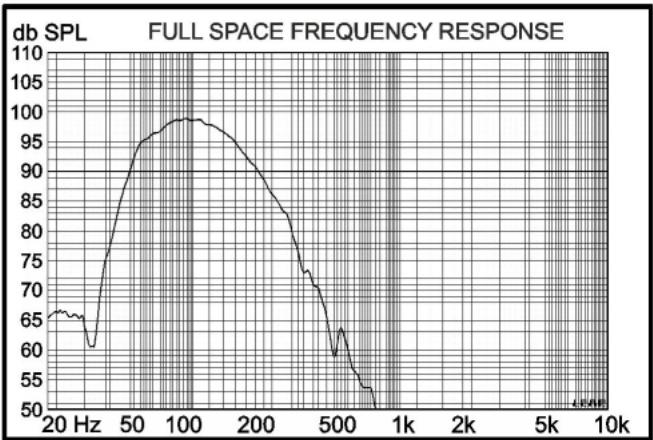

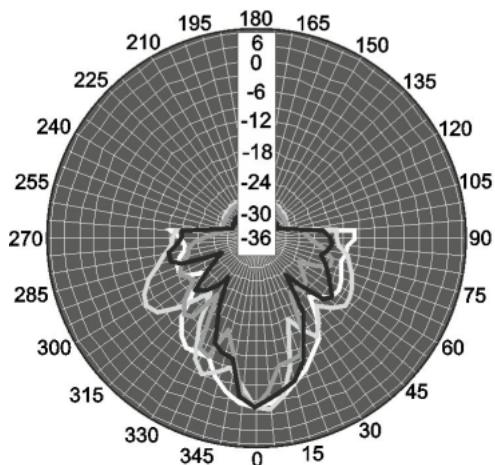

DIAGRAMMI / DIAGRAMS 21 / 22

SPECIFICHE TECNICHE / TECHNICAL SPECIFICATIONS 23

ATTENZIONE

RISCHIO DI SHOCK ELETTRICO NON APRIRE

PER EVITARE IL RISCHIO DI SHOCK ELETTRICO

NON APRIRE IL COPERCHIO

DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE

1) Read these instructions
2) Keep these instructions
3) Heed all warnings
4) Follow all instructions
5) Do not use this apparatus near water
6) Clean only with dry cloth
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources, such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

THE DEVICE MUST BE CONNECTED TO THE MAINS THROUGH A

POWER OUTLET WITH A PROTECTIVE EARTH CONNECTION.

This device features a power outlet; install the device so that the outlet for the power cord is easily accessible.

PRECAUTIONS

° For proper air ventilation please make sure to leave sufficient clearance (min 11 inc.) on all sides of the device.
° Please do not cover the ventilation slots with papers, table cloths, curtains, etc. in order not to prevent ventilation of the device.
° Please do not place any naked flame source, such as lighted candles, on the device.
° Please keep the device away from water springs and splashes and please do not place any objects containing liquids, such as vases, on the device.

AMPLIFICATORE PWM PWM AMPLIFIER

ALIMENTATORE SWITCHING SWITCH MODE POWER SUPPLY

PROCESSORE DIGITALE DIGITAL PROCESSOR

PREDISPOSIZIONE INSTALLAZIONE HARDWARE FOR PERMANENT INSTALLATIONS

LEGGERO LIGHTWEIGHT

VERTUS CLA was created with the thought of integrating professional line array technology in an extremely compact and elegant speaker column, with a refined and functional design, with uncompromised quality able to satisfy the requirements of the most demanding musicians and architectural installers. In respect to traditional two-way speakers, sound is distributed much more evenly throughout the audience, both in outdoor and in indoor environments acoustically difficult or reverberating as well. The CLA cylindrical wave front boasts the pleasant effect of present and precise forwardly projected sound, without reverberation typical of traditional speaker systems that often excite the ambient reflection, directing unnecessary acoustic energy, namely in ceilings and floor. Even acoustic feedback towards microphones is reduced, allowing a much higher gain margin. The very thin and long form allows for the integration of the speaker column in any environment in a discrete and non-invasive way.

The qualities of the CLA system can be summed up in the following:

- High-level sound quality from 50Hz to 20kHz expressly developed for live performance

• Long distance sound projection and better SPL distribution towards the audience
• Great and dynamic power performance thanks to tri-amplification system
• Lightweight and easy to carry
• Design and elegance for an easy integration even in the most demanding installations
• Very compact dimensions enable the listener to concentrate on sound and not on speakers
• High horizontal dispersion

VERTUS CLA comprised by two products:

• CLA 604A: bi-amp two-way active column speakers 400W + 100W
• CLA 208SA: active subwoofer 600W

CLA 604A is an extruded aluminum column speaker with a very appealing design, fitted with 6 x 4" custom woofers and 4 neodymium dome tweeters, each coupled to a wave guide. This configuration respects all the acoustic criteria of a real full-range line array up to 15kHz. The internal Class D amplification, 400W for woofers and 100W for tweeters with switch mode power supply and DSP processor with 4 equalization presets, allows for appropriate sound in any condition and provides unexpected dynamics in a system of these dimensions. The adopted rapid latching system with pins allows for the expansion of the system, doubling-up CLA604A modules to form a unified column with an absolute and coherent source integration and increase of SPL and low frequency directivity control.

CLA 208SA is a 2 x 8" active subwoofer in bass-reflex design and birch ply enclosure. The internal Class D amplifier delivers 600W and is matched with a switch mode power supply and a DSP processor with filtering functions, equalization and speaker protection. Created with the idea of extending the CLA 604A's low frequency performance in live applications, the CLA 208SA serves as the base support for the CLA 604A column speaker which can either be frontally mounted to the sub, as well as fixed upon the optional stand through the M20 socket on the upside of the sub. The CLA 208SA subwoofers are modular as well, and they can be stacked to enlarge and increase the maximum SPL.

The internal XLR signal link system and Neutrik Powercon power supply on both the sub and the satellite, allows for hiding wires and cables from open sight, preserving the system's clean aesthetics.

VERTUS CLA604A

• 2-way bi-amplified line array column
- 6 x 4" custom woofer with 1" voice coil
- 4 x 1" neodymium dome tweeter on waveguide
• 130Hz to 20kHz frequency response
- Class D 400W RMS amplifier for LF and 100W RMS for HF with switch mode power supply
- DSP processor with 4 available equalization presets
• Control panel with volume, preset, HP filter, mic-line, status led
- XLR input and Neutrik Powercon supply input at the lower part of the column; XLR link and Neutrik Powercon loop output at the higher part, in order to hide each connection cable
- 100° H × 20° V dispersion
- Extruded aluminum powder coated cabinet; superior as well as inferior latching system, enables the extension of the lenght of the line array adding CLA 604A modules for a greater modularity of the system
- Possibility to angle the columns of ± 30° on a horizontal plane
- Ideal for both live applications, assisted by the CLA 208SA active subwoofer, as well as for fixed installation
- Easily expandable for a total power of 6600W (stero system composed of 3 x CLA 604A and 3 x CLA 208SA)
• Very light and easy to carry

VERTUS CLA 208SA

• Active subwoofer in bass-reflex design
- 2 x 8" custom high excursion woofers with 2" voice coil
• 50Hz to150Hz frequency response
• Class D 600W RMS amplifier with switch mode power supply
- DSP processor with 4 available presets
- Control panel with combo XLR/Jack stereo input and link XLR Hipass out stereo, volume, preset, phase switch, status led
• Neutrik Powercon input and link
- 0,59" birch plywood enclosure with anti-scratch paint finish
- M20 stand adapter, 2 integrated handles, front hardware to sustain CLA 604A modules
- Suitable for low frequency extension and reinforcement on the CLA 604A array, especially for live performance

220-230V\~

For its power supply, the whole CLA series features two NEUTRIK powercon three-pole outlets with locking connectors. Use the grey outlet for connecting several speakers with one another, and the blue one for supplying power to the system through the connector supplied.

CAUTION: the cable supplied can be used alone, and only if the total current absorption is lower than 16A (see example 1)

CAUTION: never replace the plug of the power cord supplied since the power cord can only support a maximum current of 16A (see example 1)

CAUTION: if the absorbed current exceeds 16A and is lower than 20A, a power cord has to be manufactured by specialized staff using a H05VV-F cable with 2.5 sq.mm section and plug with rated current >=20A, where 20A is the maximum rated current of the powercon connector (see example 2).

• The power cord has to be assembled by specialized staff complying with national plant-engineering regulations
• Protect the mains cable when it is not used
• In case of «chain connection», connect the cable to the grey outlet of the first speaker and to the blue outlet of the second one, and so on, making sure the maximum current indicated on the «AC LOOP OUTPUT» is not exceeded.

CAUTION:

TO SWITCH OFF THE SYSTEM DISCONNECT THE MAINS SUPPLY PLUG FIRST AND THEN THE POWERCON CONNECTOR.

MAX. 16A

MAX. 20A

120V\~

For its power supply the whole CLA series features two NEUTRIK powercon three-pole outlets with locking connectors. Use the grey outlet for connecting several speakers with one another, and the blue one for supplying power to the system through the connector supplied.

CAUTION: If the total current demand does not exceed 12A, use the power cable supplied (see pic.1).

If the total current demand is between 12A and 18A, use the power cable AWG14SJT VW1 with plug rated current equal to 24A or lower (see pict. 2).

In both cases NEVER exceed the maximum current values shown in picture 1 and 2.

THE CABLE AND THE PLUG MUST HOLD THE UL OR CSA CERTIFICATION.

• The power cord has to be assembled by specialized staff complying with national plant-engineering regulations.
• Protect the mains cable when it is not used.
• In case of "chain connection" connect the cable to the grey outlet of the first speaker and to the blue outlet of the second one, and so on, making sure the maximum current indicated on the "AC LOOP OUTPUT" is not exceeded.

CAUTION:

TO SWITCH OFF THE SYSTEM DISCONNECT THE MAINS SUPPLY PLUG FIRST AND THEN THE POWERCON CONNECTOR.

MAX. 12A

MAX. 18A

Corrente nominale della spina / Plug rated current Courant nominal de la fiche / Nennstrom des Steckers

MAX. 3 BOX

MAX. 4 BOX

*

NOTE plug drawing is for indication only

The 3-pole XLR connectors are almost always used for conducting mono-balanced signals; the three poles correspond respectively to ground (1), the positive signal (2) and the negative signal (3).

SPEAKON is a connector which is specially adapted for connecting power terminals to loudspeakers; when inserted in an appropriate socket it locks so as to prevent accidental disconnection; moreover, it is equipped with protection against electrical shocks and guarantees the correct polarisation.

The JACKS are typical connectors for the transporting of two separate signals through two channels, left and right, using a single connector and therefore they can be either mono or stereo. Mono jacks (TS) also known as unbalanced jacks, are recognisable from stereo or balanced jacks (TRS) by their composition. The point of the mono jacks is divided into two parts, tip and ground Tip and Slave) to which the two poles are connected; the stereo or balanced jacks are divided in three parts, as they have a central ring (Ring) which is connected to a second wire, the third (negative) pole.

SIDE VIEW

FRONT VIEW

1 x CLA604A

2 x CLA604A

3 x CLA604A

SIDE VIEW

FRONT VIEW

TOP VIEW

CODE:35723 (B) / 37044 (W)		MODEL:VT S604
USE:VERTUS CLA 604		DESCRIPTION:STAND ADAPTER
WEIGHT:1.32 lb / 600 gr		COLOR:BLACK / WHITE
	All rights reserved, unauthorized reproduction,modification or production of any portion of thisdocument is forbidden.FBT products are continually improved. All specificationsare therefore subject to change without notice..

VT SC59

VT SC114

CODE:36879 (B) / 36833 (W)		MODEL:VT SC59
USE:VERTUS CLA 604		DESCRIPTION:STAND COLUMN
WEIGHT:		COLOR:BLACK / WHITE
	All rights reserved, unauthorized reproduction,modification or production of any portion of thisdocument is forbidden.FBT products are continually improved. All specificationsare therefore subject to change without notice..

CODE: 37041 (B) / 37042 (W)		MODEL: VT SC114
USE: VERTUS CLA 604		DESCRIPTION: STAND COLUMN
WEIGHT:		COLOR: BLACK / WHITE
	All rights reserved, unauthorized reproduction, modification or production of any portion of this document is forbidden. FBT products are continually improved. All specifications are therefore subject to change without notice..

UTILIZZO DEI SUPPORTI COLONNA VT-SC59 604 / VT-SC114 604

USE OF VT-SC59 604 / VT-SC114 604 STANDS

Stands can be used for positioning CLA604 modules higher in the configurations shown in the picture.

These accessories also allow to avoid visible wires, improving system appearance.

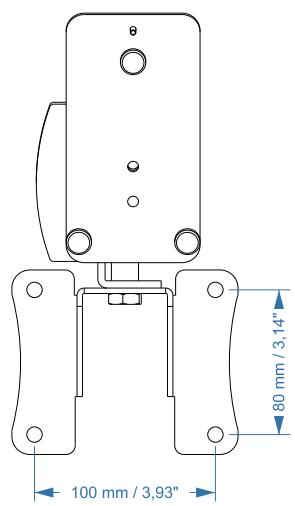

CODE:37053 (B) / 37054 (W)		MODEL:VT DS604
USE:VERTUS CLA 604		DESCRIPTION:STAND ADAPTER
WEIGHT:		COLOR:BLACK / WHITE
	All rights reserved, unauthorized reproduction,modification or production of any portion of thisdocument is forbidden.FBT products are continually improved. All specificationsare therefore subject to change without notice..

CODE:35722 (B) / 37043 (W)		MODEL:VT W604
USE:VERTUS CLA 604		DESCRIPTION:DIRECTIONAL WALL MOUNT BRACKET
WEIGHT:3,08 lb / 1.4 kg		COLOR:BLACK / WHITE
	All rights reserved, unauthorized reproduction,modification or production of any portion of thisdocument is forbidden.FBT products are continually improved. All specificationsare therefore subject to change without notice..

The speakers included in VERTUS series can be installed in the following ways:

a) wall-mounted
b) simply stacked with subwoofer on the ground and relevant satellite positioned through a stand
c) satellite connected to the subwoofer using the adequate coupling pin

WARNING: carefully select the area where to install the speakers and make sure that the structure is adequate to support the weight of boxes. When the subwoofer is installed on the ground position the system on a flat and non-slip surface.

FBT will not be held responsible for any damage to persons or property in case of failure to comply with these instructions or failure to check the safety factor of all components involved in the installation system.

AGGANCIO DI DUE COLONNE

CONNECTION OF TWO COLUMNS

Connect the two satellites to one another as shown in picture «A», making sure to insert the safety pin (3). For wall mounting use adequate anchor slots (picture «B»).

Use the same safety pin to rotate the speaker by ±30° to the horizontal plane (picture «C»).

AGGANCIO AL SUBWOOFER

CONNECTION TO THE SUBWOOFER

Connect to one another the CLA 208SA subwoofer and CLA 604A satellite, as shown in picture «A».

The two fixing brackets with slot (A) are used both for the ceiling mounting (pict. B) and the coupling of the subwoofer/s (pict. C). In both cases the holes left free from the brackets must be ABSOLUTELY closed with the relevant screws.

fig. C

fig. B

CLA 604A

ON: Indica l'accensione del sistema.

ON: Indicates the system is turned on.

PEAK: The lighting of this LED indicates that the signal level is close to saturation.

PRT/LMT: The lighting of this LED indicates a system malfunctioning due to faulty internal amplifier or to limiting circuits activation to prevent thermal overload.

SOURCES: Turn the switch to "MIC" if a microphone is connected; to "LINE" to connect high-level signal sources. Avoid sending a line signal (through mixer, etc.) while the SOURCES switch is positioned in MIC; failure to comply with this warning may cause damage or complete failure of speakers, woofer, high-frequency driver and internal power amplifiers. The SOURCES switch must be set to MIC only to connect a low impedance microphone.

HP FILTER: Switch to activate the "low cut" filter device, which lets out only frequencies higher than the cut-off one (ALWAYS TO BE ACTIVATED WHEN CONFIGURATION INVOLVES A SUBWOOFER IN ORDER TO OBTAIN GREATER SPL, MORE UNIFORM RESPONSE, LOWER LEVEL DISTORSION OF MID-FREQUENCIES AND GREATER MECHANICAL PROTECTION OF SATELLITE SPEAKERS).

VOLUME: Used to adjust the overall signal level.

PRESET: Select 4 presets, setting each to its corresponding and different equalization, according to personal preferences and the acoustics of listening area (see the relevant description in PRESETS section)

INPUT - LOOP: Balanced input/output plugs; "INPUT" allows connection of a pre-amplified signal such as, for example, the output one of a mixer. "LOOP" allows the connection of several speakers with the same signal.

CLA 208SA

ON: Indica l'accensione del sistema.

ON: Indicates the system is turned on.

PEAK: The lighting of this LED indicates that the signal level is close to saturation.

PRT/LMT: The lighting of this LED indicates a system malfunctioning due to faulty internal amplifier or to limiting circuits activation to prevent thermal overload.

PHASE: The Phase switch allows optimization of the alignment phase, which is to obtain a uniform frequency response in the area in which sub and satellite cross. When set to 0° the sub sound emission is in phase with the input signal; when set to 180° the sound emission is in anti-phase with the input signal; this switch allows getting additional flexibility in subwoofer tuning, while optimizing its performance.

HP FILT. OUT: Output to collect the filtered signal to be sent to an amplified satellite not fitted with HP filter (Please Note TO CONNECT "CLA" SERIES SATELLITES USE THE LINK OUTPUT); this prevents the two connected speakers from operating for a while at the same frequency range, thus obtaining a totally interference-free overall response.

IN - LINK: Balanced input/output plugs; "IN" allows connection of a pre-amplified signal such as, for example, the output one of a mixer. "LINK" allows the connection of several speakers with the same signal.

VOLUME: Used to adjust the overall signal level. PRESET: Select 4 presets, setting each to its corresponding, different speaker configuration according to personal preferences and the acoustics of listening area (see the relevant description in PRESETS section)

The presence of presets managed by DSP allows modifying the response and vertical dispersion characteristics of the speaker, to suit it to the configuration used. Presets can be chosen through the "PRESET" switch.

ORIGINAL: corresponds to typical FTB sound; it is the default preset when the system is used while on "general purpose", therefore suitable for most applications.

PUNCH: the sub emits a "drier" sound, less low frequency extension, but more energy; suitable for rock and high SPL applications.

These presets have different cut-off frequencies; this allows the sub to be configured even with any other.

Please Note FOR USE OF CLA 208SA SUBWOOFER WITH CLA 604A SATELLITE IT IS RECOMMENDED TO USE A PRESET WITH 180Hz CUT-OFF FREQUENCY.

1SAT VERTICAL CONSTANT RELEASE: preset to be used with the system consisting of a single column; the 3-way configured

internal DSP exerts a sequential filtering on 3 of 6 woofers, to obtain a very uniform vertical dispersion angle, slightly affecting the higher SPL level at mid-frequencies.

1SAT MAX. SPL: preset to be used with the system consisting of a single column; the internal DSP is 2-way configured, all woofers work with the same signal to get the highest SPL value possible, at the expense of vertical

dispersion uniformity at mid-frequencies.

2SAT: preset to be used with the system consisting of 2 overlapping columns; two different configurations are possible, with both trumpets addressed upwards or adjacent. The first configuration is preferable for "near-field" applications or in general when a widespread, instead of too directive, dispersion of high frequencies is required. The second one instead is preferred for "far-field" applications, where sound is meant to be projected at greater distance and with a very narrow vertical dispersion angle.

3SAT: preset to be used with the system consisting of 3 overlapping columns; two different configurations are possible, with all trumpets addressed upwards or with the trumpets of the two upper columns adjacent. The first configuration is preferable for "near-field" applications or in general when a widespread, instead of too directive, dispersion of high frequencies is required; the second one instead is preferred for "far-field" applications, where sound is meant to be projected at greater distance and with a very narrow vertical dispersion angle.

The signal internal recovery system, and the powering one through XLR and POWERCON on sub and satellite, allows preserving the aesthetic of the system, as cables are not in sight.

CLA 208SA

CLA 604A

HORIZONTAL POLAR DIAGRAMS

HORIZONTAL POLAR DIAGRAMS

VERTICAL POLAR DIAGRAMS

VERTICAL POLAR DIAGRAMS

VERTICAL POLAR DIAGRAMS

VERTICAL POLAR DIAGRAMS

		CLA 604A	CLA 208SA
CONFIGURAZIONE CONFIGURATION	vie way	2	1
AMPLIFICATORE INTERNO MAX. RMS LF/HF BUILT-IN AMPLIFIER MAX. RMS LF/HF	watt	400 / 100	600
AMPLIFICATORE INTERNO MAX. PEAK LF/HF BUILT-IN AMPLIFIER MAX. PEAK LF/HF	watt	800 / 200	1200
RISPOSTA IN FREQUENZA FREQUENCY RESPONSE	@-6dB	130Hz - 20kHz	50Hz - 180Hz
UNITÀ BASSE FREQUENZE LOW FREQUENCY WOOFER	mm inch	6 x 100 - bobina da 25 6 x 4" - 1" coil	2 x 200 - bobina da 50mm 2 x 8" - 2" coil
UNITÀ ALTE FREQUENZE HIGH FREQUENCY DRIVER	mm inch	4 x 25 - bobina da 25 4 x 1" - 1" coil	----
SPL MASSIMO CONT/PEAK MAX. SPL CONT/PEAK	dB	122 / 125	125 / 129 half space
DISPERSIONE DISPERSION	O x V H x V	100° x 20°	omnidirectional
IMPEDENZA DI INGRESSO INPUT IMPEDANCE	kOhm	22	22
FREQUENZA DI INCROCIO CROSSOVER FREQUENCY	kHz	2.5	0.12 / 0.18 dipendente da preset 0.12 / 0.18 preset dependant
ASSORBIMENTO RETE AC AC POWER REQUIREMENT	VA	450	450
CONNETTORI DI INGRESSO INPUT CONNECTORS		XLR con loop XLR with loop	XLR stereo con loop/uscita HP stereo XLR with loop/HP out
CAVO DI ALIMENTAZIONE POWER CORD	m inch	5 16.4	5 16.4
DIMENSIONI NETTE (LxAxP) NET DIMENSIONS (WxHxD)	mm inch	130 x 849 x 133 5.11 x 33.42 x 5.33	550 x 283 x 500 21.65 x 11.14 x 19.69
PESO NETTO NET WEIGHT	kg lb	9.50 20.94	20.80 45.85
DIMENSIONI DI TRASPORTO (LxAxP) TRANSPORT DIMENSIONS (WxHxD)	mm inch	245 x 930 x 220 9.65 x 36.61 x 8.66	695 x 380 x 630 27.36 x 14.96 x 24.80
PESO TRASPORTO TRANSPORT WEIGHT	kg lb	10.50 23.14	24 52.91

FBT

WARNING: where affixed on the equipment or package, the barred waste bin sign indicates that the product must be separated from other waste at the end of its working life for disposal. At the end of use, the user must deliver the product to a suitable recycling centre or return it to the dealer when purchasing a new product. Adequate disposal of the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes in preventing potentially negative effects on the environment and health and promotes the reuse and/or recycling of equipment materials. Abusive product disposal by the user is punishable by law with administrative sanctions.

All informations included in this operating manual have been scrupulously controlled; however FBT is not responsible for eventual mistakes. FBT Elettronica SpA has the right to amend products and specifications without notice.

CE UK CA
