Product Type	Commercial zero-turn riding lawn mower
Brand	Scag Power Equipment
Model	STT (Turf Tiger)
Cutting Width Options	52 inches, 61 inches, 72 inches
Engine Options	Kohler 25HP/27HP, Kawasaki 27HP/29HP, Briggs & Stratton 31HP
Engine Type	4-cycle, twin-cylinder gasoline, cast iron sleeves
Governed Engine Speed	3800 RPM
Transmission	Hydrostatic with two variable displacement pumps and two cast-iron motors
Travel Speed	Forward 0-10 mph (12 mph on 29DFI/31BV), Reverse 0-5 mph (6 mph)
Steering	Twin lever fingertip control with gas spring dampers
Cutting Height Range	1 inch to 6 inches in 1/4-inch increments
Blade Engagement	Electric clutch with dash switch
Blade Quantity	Three blades per deck
Fuel Tank Capacity	10 gallons, seamless polyethylene
Battery	12 volt, negative ground
Tire Pressure	Front caster 25 PSI, Drive 12 PSI
Hydraulic Fluid	SAE 20W50 motor oil, 3 quart reservoir
Deck Gearbox Lubricant	SAE 80W90 gear oil
Weight	1200 lbs (52"), 1298 lbs (61"), 1348 lbs (72")
Dimensions (STT61A)	Length 87.5 inches, Width 72 inches, Height 46 inches
Safety Features	Interlock system, seat belt, optional ROPS
Warranty	2-year major drive system, 3-year cutter deck, 90-day wear items

Frequently Asked Questions - STT Scag

What is the cutting width of the Scag STT?

The Scag STT is available with cutting widths of 52 inches, 61 inches, or 72 inches depending on the model. The STT52A uses three 18-inch blades, the STT61A uses three 21-inch blades, and the STT72A uses three 24.5-inch blades.

What engine options are available for the Scag STT?

The STT can be equipped with several engine options: Kohler 25HP or 27HP, Kawasaki 27HP or 29HP, and Briggs & Stratton 31HP. All engines are four-cycle, twin-cylinder gasoline engines with cast iron sleeves.

How do I adjust the cutting height?

The cutting height can be adjusted from 1 inch to 6 inches in 1/4-inch increments using the foot-operated lever from the operator's seat. To adjust, disengage the blades, press the foot pedal forward until it locks, insert the lanyard pin at the desired height, then release the pedal.

What type of transmission does the Scag STT use?

The STT uses a hydrostatic drive system with two variable displacement pumps and two cast-iron high torque motors. This allows smooth, infinite speed control in both forward and reverse.

How fast can the Scag STT travel?

The forward travel speed is 0 to 10 mph on standard models, and up to 12 mph on models with the 29DFI or 31BV engines. Reverse speed is 0 to 5 mph, or 0 to 6 mph on those high-speed models.

What is the fuel tank capacity and type?

The STT is equipped with a 10-gallon seamless polyethylene fuel tank with a large opening and a fuel gauge fill cap. Use clean, fresh unleaded gasoline with a minimum octane rating of 87.

What maintenance is required for the blades?

The blades should be inspected regularly for straightness and sharpness. If dull or nicked, they should be sharpened. Always replace bent or damaged blades with original Scag parts. Torque the blade mounting nut to 75 ft-lbs.

What safety features does the Scag STT have?

The mower includes a safety interlock system that prevents starting unless the deck is disengaged, parking brake is on, steering levers are in neutral, and operator is in the seat. A Roll Over Protection System (ROPS) is available as optional equipment, and a seat belt is included.

How often should I change the hydraulic oil?

The hydraulic oil should be changed after the first 10 hours, then every 500 hours or annually, whichever comes first. Use SAE 20W50 motor oil and also replace the hydraulic oil filter at each change.

What is the recommended tire pressure?

The drive tires should be inflated to 12 PSI and the front caster tires to 25 PSI. Proper tire pressure is essential for level cutting and avoiding scalping.

USER MANUAL STT Scag

THIS MANUAL CONTAINS THE OPERATING INSTRUCTIONS AND SAFETY INFORMATION FOR YOUR SCAG MOWER. READING THIS MANUAL CAN PROVIDE YOU WITH ASSISTANCE IN MAINTENANCE AND ADJUSTMENT PROCEDURES TO KEEP YOUR MOWER PERFORMING TO MAXIMUM EFFICIENCY. THE SPECIFIC MODELS THAT THIS BOOK COVERS ARE CONTAINED ON THE INSIDE COVER. BEFORE OPERATING YOUR MACHINE, PLEASE READ ALL THE INFORMATION ENCLOSED.

OPERATOR'S MANUAL

WARNING:

FAILURE TO FOLLOW SAFE OPERATING PRACTICES MAY RESULT IN SERIOUS INJURY.

* Keep all shields in place, especially the grass discharge chute.
* Before performing any maintenance or service, stop the machine and remove the spark plug wire and ignition key.
* If a mechanism becomes clogged, stop the engine before cleaning.
* Keep hands, feet and clothing away from power-driven parts.
* Read this manual completely as well as other manuals that came with your mower.
* Keep others off the tractor (only one person at a time)

Hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of the personnel involved in the operation, transport, maintenance, and storage of the equipment.

This manual covers the operating instructions and illustrated parts list for:

STT52A-27CH	with a serial number of A5900001 to A5999999
STT61A-27CH	with a serial number of A6000001 to A6099999
STT61A-27KA	with a serial number of A6200001 to A6299999
STT61A-29DFI-SS	with a serial number of A6500001 to A6599999
STT61A-31BV-SS	with a serial number of A6700001 to A6799999
STT61A-27CH-NS	with a serial number of B0000001 to B0099999
STT-27KA	with a serial number of A6800001 to A6899999
STT-29DFI-SS	with a serial number of A9500001 to A9599999
STT-31BV-SS	with a serial number of A9600001 to A9699999
SMT-52A	with a serial number of A7100001 to A7199999
SMT-61A	with a serial number of A7200001 to A7299999
SMT-61A (31BV)	with a serial number of A7300001 to A7399999
SMST-72A	with a serial number of A7600001 to A7699999

Always use the entire serial number listed on the serial number tag when referring to this product.

SCAG POWER EQUIPMENT®

TABLE OF CONTENTS

SUBJECT

PAGE

Section 1 - General Information

1.1 Introduction ...... 1
1.2 Directional Reference....1
1.3 Servicing the Engine and Drive Train Components .... 1
1.3 Symbols 2-3

Section 2 - Safety Information

2.1 Introduction 4
2.2 Signal Words 4
2.3 Considerations Before Operation 4
2.4 Operation Considerations 5
2.5 Roll Over Protection System (Optional) 7
2.6 Maintenance Considerations 8
2.7 Safety and Instructional Decals 9

Section 3 - Specifications ....10-11

Section 4 - Operating Instructions

4.1 Controls and Instrument Identification 12
4.2 Safety Interlock System 13
4.3 Initial Run-In Procedures 14
4.4 Starting the Engine 14
4.5 Ground Travel and Steering 14
4.6 Engaging the Deck Drive 15
4.7 Hillside Operation 16
4.8 Parking the Mower 16
4.9 After Operation 16
4.10 Removing Clogged Material 16
4.11 Moving Mower with Engine Stopped 17
4.12 Recommendations for Mowing 17
4.13 Adjusting Cutting Height 17
4.14 Towing 18

Section 5 - Troubleshooting Cutting Conditions.... 19-21

TABLE OF CONTENTS (CONT'D)

SUBJECT

PAGE

Section 6 - Adjustments

6.1 Parking Brake Adjustment 22
6.2 Travel Adjustments 22
6.3 Throttle Control and Choke Adjustments 24
6.4 Belt Adjustment 24
6.5 Belt Alignment 24
6.6 Cutter Deck Adjustments 25

Section 7 - Maintenance

7.1 Maintenance Chart 28
7.2 Lubrication Fitting Points 29
7.3 Hydraulic System 31
7.4 Engine Oil 32
7.5 Engine Fuel System 32
7.6 Engine Air Cleaner 33
7.7 Battery 34
7.8 Drive Belts 35
7.9 Cutter Blades 35
7.10 Tires 36
7.11 Cutter Deck Gearbox 36
7.12 Kawasaki Cooling System 37
7.13 Body, Deck, Hopper and Upholstery 38

Section 8 - Replacement Parts

Notes ......39
STT52A, STT61A Cutter Deck 40-41
STT72A Cutter Deck 42-43
Cutter Deck Controls 44-45
Sheet Metal Components 46-47

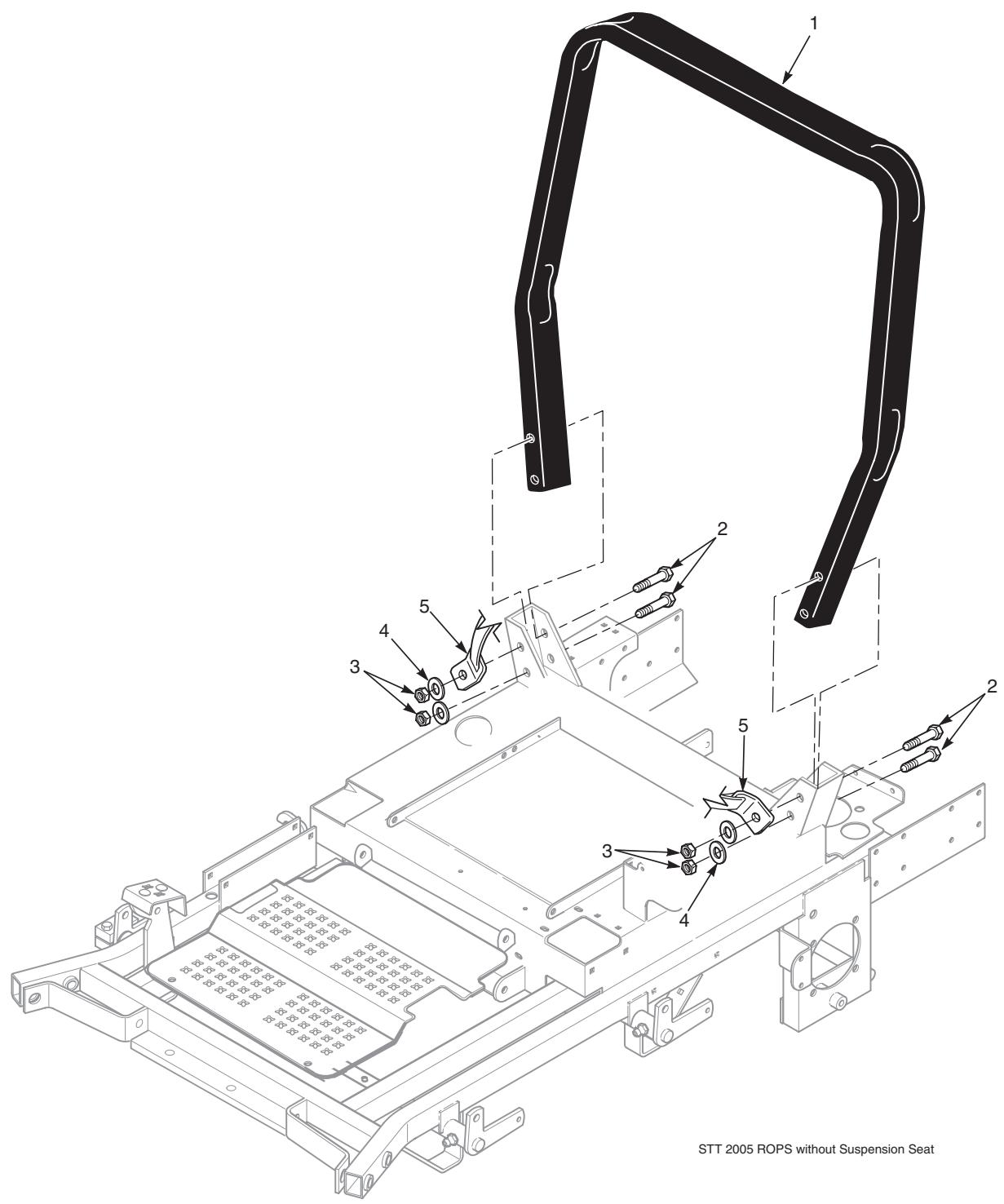

STT Roll Over Protection System without Suspension Seat 48-49
STT Roll Over Protection System with Suspension Seat 50-51
Deck Drive Components 52-53
Engine and Attaching Parts (Kohler).... 54-55
Engine and Attaching Parts (Kawasaki & Briggs & Stratton) 56-57
Brake and Steering Components 58-59
Fuel and Hydraulic System 60-61
Fuel and Hydraulic System (Kawasaki 29DFI) 62-63
Hydraulic Pump (BDP-16A) 64-65
Hydraulic Pump with Cooling Fan (BDP-16A) 66-67
Electrical System (Kohler & Briggs & Stratton) 68-69
Electrical System (Kawasaki 27HP) 70-71
Electrical System (Kawasaki 29DFI) 72-73
Replacement Decals 74-75
Electrical Schematic (Kohler) 76
Electrical Schematic (Kawasaki 27HP)....77
Electrical Schematic (Kawasaki 29DFI)....78
Electrical Schematic (Briggs & Stratton 31BV) ...... 79
Warranty Statement ...... following section 8

GENERAL INFORMATION

1.1 INTRODUCTION

Your mower was built to the highest standards in the industry. However, the prolonged life and maximum efficiency of your mower depends on you following the operating, maintenance and adjustment instructions in this manual.

If additional information or service is needed, contact your Scag Power Equipment Dealer.

We encourage you to contact your dealer for repairs. All Scag dealers are informed of the latest methods to service this equipment and provide prompt and efficient service in the field or at their service shop. They carry a full line of Scag service parts.

USE OF OTHER THAN ORIGINAL SCAG REPLACEMENT PARTS WILL VOID THE WARRANTY.

When ordering parts, always give the model and serial number of your tractor. The serial number plate is located where shown in Figure 1-1.

Figure 1-1 Tractor Serial Number Plate Location

USE ONLY SCAG APPROVED ATTACHMENTS AND ACCESSORIES.

Attachments and accessories manufactured by companies other than Scag Power Equipment are not approved for use on this machine.

Scag approved attachments and accessories:

GC-STT (p/n 9016, 9017, 9039)

GC-STT-CS (p/n 9019, 9020, 9041)

Mulch Plate (p/n 9260, 9261, 9262)

Hurricane Mulch (p/n 9265, 9266, 9267)

Cup Holder (p/n 9240)

STT Hitch (p/n 9242)

STT Bumper (p/n 9256)

STT - Suspension Seat (p/n 9270)

STT - Lights (p/n 9279)

Tiger Striper (p/n 9269)

Blade Buddy (p/n 9212)

WARNING:

For pictorial clarity, some illustrations and figures in this manual may show shields, guards or plates open or removed. Under no circumstances should your mower be operated without these devices in place.

All information is based upon product information available at the time of approval for printing. Scag Power Equipment reserves the right to make changes at any time without notice and without incurring any obligation.

1.2 DIRECTION REFERENCE

The “Right” and “Left”, “Front” and “Rear” of the machine are referenced from the operator’s right and left when seated in the normal operating position and facing the forward travel direction.

1.3 SERVICING THE ENGINE AND DRIVE TRAIN COMPONENTS

The detail servicing and repair of the engine, hydraulic pumps and gearboxes are not covered in this manual; only routine maintenance and general service instructions are provided. For service of these components during the limited warranty period, it is important to contact your Scag dealer or find a local authorized servicing agent of the component manufacturer. Any unauthorized work done on these components during the warranty period may void your warranty.

ISO Symbols

CE Mark

SYMBOL	DESCRIPTION	SYMBOL	DESCRIPTION
	Choke		Transmission
	Parking Brake		Spinning Blade
	On/Start		Spring Tension on Idler
	Off/Stop		Oil
Falling Hazard
	Fast		Slow
	Continuously Variable - Linear		Cutting Element - Basic Symbol
	Pinch Point		Cutting Element - Engage
[c2zD]	Hourmeter/Elapsed Operating Hours		Cutting Element - Disengage
	Thown Object HazardKeep Bystanders Away		Read Operator's Manual

SAFETY INFORMATION

2.1 INTRODUCTION

Your mower is only as safe as the operator.

Carelessness or operator error may result in serious bodily injury or death. Hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of the personnel involved in the operation, transport, maintenance and storage of the equipment. Make sure every operator is properly trained and thoroughly familiar with all of the controls before operating the mower. The owner/user can prevent and is responsible for accidents or injuries occurring to themselves, other people or property.

READ THIS OPERATOR'S MANUAL BEFORE ATTEMPTING TO START YOUR MOWER.

A replacement manual is available from your authorized Scag Service Dealer or by contacting Scag Power Equipment, Service Department at P.O. Box 152, Mayville, WI 53050 or contact us via the Internet at www.scag.com. Use the contact form to make your request. Please indicate the complete model and serial number of your Scag product when requesting replacement manuals.

2.2 SIGNAL WORDS

This symbol means “Attention! Become Alert! Your Safety is Involved!” The symbol is used with the following signal words to attract your attention to safety messages found on the decals on the machine and throughout this manual. The message that follows the symbol contains important information about safety. To avoid injury and possible death, carefully read the message! Be sure to fully understand the causes of possible injury or death.

Signal Word:

It is a distinctive word found on the safety decals on the machine and throughout this manual that alerts the viewer to the existence and relative degree of the hazard.

DANGER:

The signal word “DANGER” denotes that an extremely hazardous situation exists on or near the machine that could result in high probability of death or irreparable injury if proper precautions are not taken.

WARNING:

The signal word “WARNING” denotes that a hazard exists on or near the machine that can result in injury or death if proper precautions are not taken.

CAUTION:

The signal word “CAUTION” is a reminder of safety practices on or near the machine that could result in personal injury if proper precautions are not taken.

Your safety and the safety of others depends significantly upon your knowledge and understanding of all correct operating practices and procedures of this machine.

2.3 BEFORE OPERATION CONSIDERATIONS

1. NEVER allow children to operate this riding mower. Do not allow adults to operate this machine without proper instructions.
2. DO NOT mow when children and/or others are present. Keep children out of the mowing area and in the watchful care of a responsible adult other than the operator. Be alert and turn machine off if a child enters the area.
3. Clear the area to be mowed of objects that could be picked up and thrown by the cutter blades.
4. DO NOT carry passengers.
5. DO NOT operate the machine under the influence of alcohol or drugs.

2.3 BEFORE OPERATION CONSIDERATIONS (CONT'D)

1. If the operator(s) or mechanic(s) cannot read English or Spanish, it is the owner's responsibility to explain this material to them.
2. DO NOT wear loose fitting clothing. Loose clothing, jewelry or long hair could get tangled in moving parts. Do not operate the machine wearing shorts; always wear adequate protective clothing including long pants. Wearing safety glasses, safety shoes and a helmet is advisable and is required by some local ordinances and insurance regulations.
3. Operator hearing protection is recommended, particularly for continuous operation of the mower. Wear suitable hearing protection. Prolonged exposure to loud noise can cause hearing impairment or loss.
4. Keep the machine and attachments in good operating condition. Keep all shields and safety devices in place. If a shield, safety device or decal is defective or damaged, repair or replace it before operating the machine.

WARNING:

This machine is equipped with an interlock system intended to protect the operator and others from injury. This is accomplished by preventing the engine from starting unless the deck drive is disengaged, the parking brake is on, the steering control levers are in the neutral position and the operator is in the seat. The system shuts off the engine if the operator leaves the seat with the deck drive engaged and/or the steering control levers are not in the neutral position and the parking brake is not engaged. Never operate equipment with the interlock system disconnected or malfunctioning.

1. Be sure the interlock switches are functioning correctly.

2. Fuel is flammable; handle it with care. Fill the fuel tank outdoors. Never fill it indoors. Use a funnel or spout to prevent spillage. Clean up any spillage before starting the engine.

3. DO NOT add fuel to a running or hot engine. Allow the engine to cool for several minutes before adding fuel.

4. Keep flammable objects (cigarettes, matches, etc.), open flames and sparks away from the fuel tank and fuel container.
5. Equipment must comply with the latest requirements per SAE J137 and/or ANSI/ASAE S279 when driven on public roads.

-NOTE-

If the mower is driven on public roads, it must comply with state and local ordinances as well as SAE J137 and/or ANSI / ASAE S279 requirements. Contact your local authorities for regulations and equipment requirements.

1. DO NOT operate without the side discharge chute installed and in the down position or with an optional grass catcher or mulch plate completely installed.
2. Check the blade mounting bolts at frequent intervals for proper tightness.
3. Make sure all hydraulic fluid connections are tight and all hydraulic hoses and lines are in good condition before starting the machine.

2.4 OPERATION CONSIDERATIONS

1. Know the function of all controls and how to stop quickly.
2. Reduce speed and exercise extreme caution on slopes and in sharp turns to prevent tipping or loss of control. Be especially cautious when changing directions on slopes.

WARNING:

DO NOT operate on steep slopes. To check a slope, attempt to back up it (with the cutter deck down). If the machine can back up the slope without the wheels slipping, reduce speed and use extreme caution. ALWAYS FOLLOW OSHA APPROVED OPERATION.

2.4 OPERATION CONSIDERATIONS (CONT'D)

1. To prevent tipping or loss of control, start and stop smoothly, avoid unnecessary turns and travel at reduced speed.
2. When using any attachment, never direct the discharge of material toward bystanders or allow anyone near the machine while in operation.
3. Before attempting to start the engine, with the operator in the seat, disengage power to the cutter deck, place the steering control levers in the neutral position and engage the parking brake.
4. If the mower discharge ever plugs, shut off the engine, remove the ignition key, and wait for all movement to stop before removing the obstruction.

WARNING:

DO NOT use your hand to dislodge the clogged discharge chute. Use a stick or other device to remove clogged material.

1. Be alert for holes, rocks, roots and other hidden hazards in the terrain. Keep away from any dropoff. Beware of overhead obstructions (low limbs, etc.), underground obstacles (sprinklers, pipes, tree roots, etc.). Cautiously enter a new area. Be alert for hidden hazards.
2. Disengage power to cutter deck before backing up. Do not mow in reverse unless absolutely necessary and then only after observation of the entire area behind the mower.
3. DO NOT turn sharply. Use care when backing up.
4. Disengage power to cutter deck before crossing roads, walks or gravel drives.
5. Mow only in daylight or good artificial light.

6. NEVER raise the deck with the blades engaged.

7. Take all possible precautions when leaving the machine unattended, such as disengaging the mower, lowering the attachments, setting the parking brake, stopping the engine, and removing the key.

8. Disengage power to the attachments when transporting or when not in use.
9. The machine and attachments should be stopped and inspected for damage after striking a foreign object, and damage should be repaired before restarting and operating the machine.

CAUTION:

DO NOT touch the engine or the muffler while the engine is running or immediately after stopping. These areas may be hot enough to cause a burn.

WARNING:

DO NOT run the engine inside a building or a confined area without proper ventilation. Exhaust fumes are hazardous and could cause death.

1. Keep hands and feet away from cutter blades and moving parts. Contact can injure.
2. Use care when loading or unloading the machine onto a trailer or truck.
3. Use care when approaching blind corners, shrubs, trees, or other objects that may obscure vision.

2.5 ROLL OVER PROTECTION SYSTEM

WARNING:

Seat belt must be securely fastened during operation. Failure to do so could cause serious injury or loss of life.

This mower has been designed for good traction and stability under normal mowing conditions. However, caution must be used when traveling on slopes, especially when the grass is wet. Do not mow on wet grass. Wet grass reduces traction and steering control.

Any or all parts of the Roll Over Protection System MUST NOT be removed. Failure to adhere to this guideline could result in injury or death.

The potential exposure of this seat belt to severe environmental conditions make it crucial to inspect the seat belt system regularly.

It is recommended that the seat belt be inspected on a daily basis for signs of damage. Any seat belt system that shows cuts, fraying, extreme or unusual wear, significant discoloration due to UV exposure, dirt or stiffness, abrasion to the seat belt webbing, or damage to the buckle, latch plate, hardware or any other obvious problem should be replaced immediately.

WARNING:

Failure to properly inspect and maintain the seat belt can cause serious injury or loss of life.

1. Check the full length of the seat belt webbing for cuts, wear, fraying, dirt and stiffness. See Figure 2-1.

2. Check the seat belt webbing in areas exposed to ultra violet rays from the sun or extreme dust or dirt. If the original color of the webbing in these areas is extremely faded and/or is packed with dirt, the physical strength of this webbing may have deteriorated. If this condition exists, replace the seat belt system.

3. Check the buckle and latch for proper operation and determine if the latch plate is excessively worn, deformed, or of the buckle is damaged or cracked. See Figure 2-1.

Figure 2-1 Seat Belt Inspection

WARNING:

Reduce speed when turning, operating on slopes, slick or wet surfaces. Allow extra distance to stop.

Stay off of slopes too steep for safe operation. To check a slope, attempt to back up it (with the cutter deck down). If the machine can not back up the slope without the wheels slipping, do not operate the machine on this slope.

ALWAYS travel up or down the slope whenever possible. Never across the slope.

DO NOT mow near drop-offs, ditches or embankments. The machine could suddenly roll over if a wheel goes over the edge or if the edge caves in.

Operate the machine smoothly, no sudden turns, starts or stops on a slope.

NEVER tow on slopes. The weight of the towed equipment may cause loss of traction and loss of control.

DO NOT permit untrained personnel to operate the machine.

Figure 2-2. STT With Roll Over Protection System.

2.6 MAINTENANCE CONSIDERATIONS & STORAGE

1. Never make adjustments to the machine with the engine running unless specifically instructed to do so. If the engine is running, keep hands, feet, and clothing away from moving parts.
2. Disengage drives, lower implement, set parking brake, stop engine and remove key or disconnect spark plug wire to prevent accidental starting of the engine when servicing or adjusting the machine. Wait for all movement to stop before adjusting, cleaning or repairing.
3. Disconnect battery or remove spark plug wire before making any repairs. Disconnect the negative terminal first and the positive last. Reconnect the positive first and the negative last.
4. Keep all nuts, bolts and screws tight, to ensure the machine is in safe working condition. Check blade mounting bolts frequently to be sure they are tight.

5. Do not change the engine governor settings or overspeed the engine. See the engine operator's manual for information on engine settings.

6. To reduce fire hazard, keep the cutting units, drives muffler and engine free of grass, leaves, excessive grease, oil and dirt.

7. Park the machine on level ground and engage the parking brake.
8. NEVER allow untrained personnel to service the machine.
9. Use care when checking blades. Wrap the blade(s) or wear gloves and use caution when servicing blades. Only replace blades. NEVER straighten or weld blades.
10. Keep all parts in good working condition. Replace all worn or damaged decals.
11. Use jack stands to support components when required.
12. Carefully release pressure from components with stored energy.

WARNING:

Hydraulic fluid is under high pressure. Keep body and hands away from pinholes or nozzles that eject hydraulic fluid under high pressure. If you need service on your hydraulic system, please see your authorized Scag dealer. If hydraulic fluid is injected into the skin, it must be surgically removed within a few hours by a doctor or gangrene may result.

1. Let the engine cool before storing.
2. DO NOT store the machine near an open flame.
3. Shut off fuel while storing or transporting.
4. DO NOT store fuel near flames or drain indoors.
5. Charge batteries in an open well ventilated area, away from spark and flames. Unplug charger before connecting or disconnecting from battery. Wear protective clothing and use insulated tools.

2.7 SAFETY AND INSTRUCTIONAL DECALS

DANGER

SPINNING BLADE

KEEP CLEAR

CONTACT CAN INJURE

482285

482285

WARNING

ROTATING BLADES AND BELTS

* Keep hands, feet & clothing clear
* Keep all guards in place
* Shut off engine & disengage blade clutch before servicing
* Use caution in directing discharge
* Read instruction manual before operating

DO NOT OPERATE UNLESS GRASS

CATCHER, MULCHING KIT OR DISCHARGE CHUTE IS INSTALLED

482286

WARNING

INSTALL BELT COVER BEFORE OPERATING MACHINE

READ OPERATOR'S MANUAL

481039

481039

FORWARD

F

R

REVERSE

481568

IMPORTANT

Operation on slopes can be hazardous.

See your Scag

dealer for

available Roll-Over

Protective Systems

482834

CAUTION

Avoid injury from burns. Shut off engine before removing fuel tank cap. 482290

482834

482290

START/DRIVE PROCEDURE

• Engage parking brake
  • Disengage mower deck drive
• Move control handles to neutral lock position
• Start engine
  • Release parking brake
  • Select forward or reverse with hyrdo control handles

WARNING

AVOID SERIOUS INJURY OR DEATH

• Read the Operator's Manual
• Operate only on slopes you can back up
  • If machine stops going uphill, stop blades and back down slowly
• Avoid sudden turns
  • Do not mow when children or others are around
  • Never carry children even with blades off
• Look down and behind before and while backing
• Keep safety devices (guards, shields, switches, etc.) in place and working
• Remove objects that could be thrown by the blades
• Trained operators only 483046

483046

WARNING

SERIOUS INJURY

OR DEATH MAY RESULT FROM

Failure to follow these

Instructions could result in serious injury or death

Do not operate machine on

steep slopes or near drop offs

Avoid sharp and/or quick turns

Do not exceed the machine weight rating of the ROPS

Always use seat belt

Do not Jump if machine tips

If ROPS Is foldable:

Always keep ROPS fully extended

WHEN ROPS MUST BE DOWN.

Do not use the seat belt Drive with extra care

If equipped with seat platform,

seat platform pin in place

286304

IMPORTANT ADJUSTMENT PROCEDURES

READ OPERATOR'S MANUAL FOR MORE DETAILS

Check tire pressure - (Drive tires-12 psi, Caster tires-25 psi)

NEUTRAL ADJUSTMENT

With an operator in the seat, engine running, control levers

in neutral and the parking brake disengaged - adjust control

linkage. Loosen jam nuts. If wheel rotates forward, adjust

turnbuckle CCW. If wheel rotates rearward, adjust turnbuckle CW. Adjust until drive wheel steps, turning Tighten iam puts

Repeat for opposite side.

TRACKING ADJUSTMENT

If the machine pulls to the right, adjust LH control linkage

CCW to slow left wheel. If the machine pulls to the left,

linkage ccw to slow m neutral if necessary.

To move machine without running the engine, rotate both dump

valves located at the LH side of the pumps CCW 1/2 turn to

"freewheel" positions. Return dump valves to original position to operate the mower. Tighten to 7-10 ft-lbs.

HYDRAULIC FLUID LEVEL

Check hydraulic fluid level while fluid is cool. Fluid

while fluid is cool. Fluid level should be 3" below top

level should be 3 below top of fillen neck. Fill with

SAE 20W50 motor oil only.

IMPORTANT

Do not overfill. Room for

hot fluid expansion must

be allowed or resulting expansion may cause leaks

expansion may cause leaks in the system

in the system.

Gearbox Lubricant:

SAE 80W90 gear oil

IMPORTANT

DRIVESHAFT MAINTAINANCE

Grease yokes 3-4 pumps

Every 200 hours

Grease spline 8-10 pumps

Every 50 hours

482710

482710

390S0150E- Rev 1

SPECIFICATIONS

3.1 ENGINE

General Type ...... Heavy Duty Industrial/Commercial Gasoline
Brand ....Kohler 25HP (Spec. #PS-CH730-0066)
Kohler 27HP (Spec. #PS-CH740-0021)
Kawasaki, 27HP (Spec. #FD750D-AS04)
Kawasaki, 29HP (Spec. #FD791D-AS03)
Briggs & Stratton, 31HP (5434770113-E1)
Model....Kohler Command, Kaw. FD671D, Kaw. FD750D, Kaw. FD791D
Horsepower 25 HP at 3800 RPM (Model STT52A-25CH, STT61A-25CH)
27 HP at 3800 RPM (Model STT61A-27KA, STT61A-27CH, STT72A-27KA)
29HP at 3800 RPM (Model STT61A-29DFI-SS, STT72A-29DFI-SS)
31HP at 3800 RPM (Model STT61A-31BV-SS, STT72A-31BV-SS)
Type 4 Cycle Gasoline, Twin Cylinder, Horizontal Shaft
Displacement 25HP Kohler 725cc., 27hp Kohler 725cc.
23HP Kaw. 745cc., 27HP Kaw. 745cc., 29HP Kaw. 745cc.
31HP Briggs & Stratton 895cc.
Cylinders 2 with Cast Iron Sleeves
Governor .... Mechanical Type with Variable Speed Control Set At 3800 RPM
Idle Speed 1400 RPM Kohler & Kawasaki, 1750 RPM Briggs & Stratton
Kohler Fuel Pump Group .... Mechanical Type Fuel Pump with In-Line Fuel Filter, Fixed Jet
Carburetor with Smart-Choke™ and Fuel Shutdown Solenoid
Kawasaki Fuel Pump Group .... Electric Fuel Pump with In-Line Fuel Filter, Fixed Jet Downdraft Carburetor
Briggs & Stratton Fuel Pump Group...... Mechanical Type Fuel Pump with In-Line Fuel Filter, Fixed Jet Sidedraft Carburetor
Fuel ...... Non-Leaded Gasoline with a Minimum Octane Rating of 87
Oil Pump Group ...... Positive Displacement Gerotor™ Oil Pump with Remote Oil Filter
Starter .... Electric Starting with Solenoid Shift Starter
Belts: Kevlar cord. Self-adjusting, Self-tightening
Deck Drive Belt Scag Part Number - 481460
Pump Drive Belt Scag Part Number - 482641
Kawasaki Fan Belt .... Part Number - Mitsubishi 59011-2056 (Avail. Through Kawasaki)

3.2 ELECTRICAL

Battery 12 Volt

Charging System ...... Alternator

Charging Output 12 Volt, 15 Amp

System Polarity ...... Negative Ground

Starter 12 Volt Electric Ring Gear Type, Key and Solenoid Operated Interlock

Switches....Seat, Neutral Control, Mower Engagement (BBC), Parking Brake

Instrument Panel .... Ammeter, Key Switch, Throttle Lever, Manual Choke, BBC Switch, .... Fuses and Safety Start module, Temp. gauge (KA), Check Engine .... Indicator (DFI)

Fuses Two (2) 20 Amp

3.3 TRACTOR

Drive System.... Hydraulic Drive with Two Variable Displacement Pumps and Two .... Cast-iron High Torque Motors

Hydrostatic Pumps .... Two Hydro-Gear™ BDP 16A Pumps with Dump Valves for movement without running the engine and pressure relief valves

Drive Wheel Motors .... Two Ross Model TG 15 cu. inch Cast-iron High Torque Motors

Steering/Travel Control.... Twin Lever Fingertip Steering Control with Individual Control to Each Wheel with Gas Spring Dampers

Parking Brake .... Lever Actuated Linkage to Brakes on Both Drive Wheel Axles

Wheels:

(2) Front Caster 13 X 5.00 Four-Ply, 52". 13 X 6.00 Four Ply, 61" & 72"

(2) Drive 23 X 10.5 X 12 Four-Ply Pneumatic Tubeless, Radius Edge, 52"

24X12.0X12 Four-Ply Pneumatic Tubeless, Radius Edge, 61" & 72"

Fuel Tank 10-Gallon Seamless Polyethylene Tank with Large opening and Fuel Gauge Fill Cap

3.3 TRACTOR (CONT'D)

Tire Pressure:

Front Caster 25 PSI

Drive 12 PSI

Seat ...... Padded, Thick Cushion with tall back rest

Travel Speed:

Forward 0-10 MPH, 0-12 MPH for 29DFI, 31BV Only

Reverse 0-5 MPH, 0-6 MPH for 29DFI, 31BV Only

-NOTE-

The machine will travel at 10-12mph for transport purposes.

For best cutting performance the forward travel speed should

be adjusted depending upon the cutting conditions.

3.4 CUTTER DECK

Type: Floating, Adjustable, Anti-scalping, Hybrid Design Combines

Out-front and Belly-mount Designs

Construction: 10-gauge steel reinforced with 7-gauge (3/16") Support Plate.

7-gauge (3/16") deck skirt.

True Cutting Width: 52"(132.0cm),61"(155.0cm),71.5"(181.6cm)

Cutting Height Adjustment: Foot Operated Lever Adjustment from Operator's Seat, 1.00" to

6.00" in 1/4" increments

Cutter Blades:....197 or .250 Thick, Milled Edge, Wear Resistant Marbain™

SMT 52A: Three (3) 18" blades

SMT 61A: Three (3) 21" blades

SMT 72A: Three (3) 24-1/2" blades

Blade Engagement: Electric Blade Engagement Clutch with Control Panel Switch

Connected to the Cutter Deck Gearbox through a Drive Shaft.

Discharge Opening: .... Extra Wide 11.5" Discharge Opening with Spring Loaded

Discharge Chute

Discharge Chute....Black, Polypropylene (Plastic), Flexible

Caster Wheels: 13x 5.00 Four-Ply (52"), 13 X 6.00 Four-Ply (61" & 72")

Spindles: Heavy-duty 1-1/8" Top Dimension Spindle Shaft, Cast Housing,

Taper Roller Bearing, Low Maintenance with Top Access Grease

Fitting and Grease Overfill Relief Poppet

Spindle Pulleys: .... Split Steel with Easily Removed Taper Hubs

Cutter Deck Belts: ...... B-section with Kevlar Cord. Self-adjusting, Self-tightening

SMT52 Scag Part Number -482281

SMT61 Scag Part Number-481558

SMT72 Scag Part Number-481980

Electric Clutch Type ...... Ogura Electric Clutch

Drive Shaft .... Clamp Yoke Shaft With Two High Speed U-Joints

3.6 HYDRAULIC SYSTEM

Hydraulic Oil Filter 10 Micron Spin-on Element Type

Hydraulic Reservoir ....Nylon; 3 Quart Capacity

3.7 WEIGHTS AND DIMENSIONS

Length	82.5"	87.5"	90"
Tracking Width	52"	55"	55"
Overall Width	62"	72"	83.5"
Overall Height	46"	46"	46"
Operating Weight	1200#	1298#	1348#

SMT52A	SMT61A	SMT72A
82.5"	87.5"	90"
52"	55"	55"
62"	72"	83.5"
46"	46"	46"
1200#	1298#	1348#

3.8 PRODUCTIVITY

The following chart will aid you in determining how many acres your Scag mower will cut per day.

The chart is an estimate based on 8 hours per day cutting time at 7 MPH with an allowance for overlap and turns.

Cutting Width: 52" 61" 72"

Acres Per Day: 23 27 32

OPERATING INSTRUCTIONS

CAUTION:

Do not attempt to operate this mower unless you have read this manual. Learn the location and purpose of all controls and instruments before you operate this mower.

4.1 CONTROLS AND INSTRUMENT IDENTIFICATION

Before operating the mower, familiarize yourself with all mower and engine controls. Knowing the location, function and operation of these controls is important for safe and efficient operation of the mower.

1. Ignition Switch (Figure 4-1). The ignition switch is used to start the engine and has three positions; OFF, ON, and START.
2. Mower Deck Switch (Figure 4-1). Used to engage and disengage the mower drive system. Pulling up on the switch will engage the deck drive. Pushing down on the switch will disengage the deck drive.
3. Engine Choke Control (Figure 4-1). Used to start a cold engine. Not used on the 29DFI.
4. Engine Throttle Control (Figure 4-1). Used to control the engine speed. Pushing the lever forward increases engine speed. Pulling the lever back decreases engine speed. Full back position is the IDLE position. Full forward is the cutting position.

Figure 4-1 Controls and Hour Meter Instruments

1. Ammeter (Figure 4-1). Indicates the condition of the charging system. When the engine is running the needle should be toward the positive end of the meter. If the needle is toward the negative end of the meter, this indicates a discharge condition and the machine should be taken in for service.
2. Hourmeter (Figure 4-1). Indicates the number of hours the engine has been operated. It operates whenever the ignition key switch is in the ON position. It can be used to keep track of maintenance intervals and the amount of time required to perform various tasks.
3. Fuse Holders (Figure 4-1). Two 20-amp fuses protect the mower's electrical system. To replace fuses, pull fuse out of the socket and install a new fuse.
4. Left Steering Control (Figure 4-1). Used to control the mower's left wheel when traveling forward or reverse.
5. Right Steering Control (Figure 4-1). Used to control the mower's right wheel when traveling forward or reverse.
6. Parking Brake Control (Figure 4-1). Used to engage and disengage the parking brakes. Pull the lever back to engage the parking brakes. Push the lever forward to disengage the parking brakes.
7. Fuel Tank Gauge (Figure 4-1). Indicates the amount of fuel in the fuel tank.
8. Dump Valve Control Levers (Figure 4-2). Located on the hydraulic pumps, used to “free-wheel” the mower. Rotating the valves clockwise until they stop allows the unit to move under hydraulic power. The valves must be in this position and torqued to 10ft/lbs during operation of the mower. Rotating the valves counter-clockwise allows the mower to be moved by hand (free-wheeling).
9. Deck Lift Foot Lever (Figure 4-1). Used to raise and lower the cutter deck.
10. Cutting Height Adjustment (Figure 4-1). Used to set the cutter deck at the desired cutting height.

Figure 4-2 Dump Valve Control

1. Deck Release Lever (Figure 4-1). Used to lock the cutter deck in the transport position. Push the foot pedal forward and lift up on the release lever to release the cutter deck for normal mowing.
2. Temperature Gauge (Figure 4-1). Indicates the operating temperature of the engine. Used on mowers with the Kawasaki liquid cooled engine only.
3. Check Engine Light (Figure 4-1). Indicates the operation of the engine sensors on the Kawasaki Digital Fuel Injection (DFI). Light will flash once at initial start up. If a problem occurs with a sensor on the engine, the light will flash a code. See your authorized Scag Dealer for diagnosis and repair.
4. Seat Belt (Figure 4-1). Used to secure the operator. Seat belt must be worn at all times during operation.

4.2 SAFETY INTERLOCK SYSTEM

The mower is equipped with a safety interlock system that prevents the engine from starting unless the deck drive is disengaged, the parking brake is engaged, the steering control levers are in the neutral position and the operator is in the seat. The interlock system shuts off the engine if the operator leaves the seat with the steering control levers not in the neutral position and/or the cutter blades engaged and/or the parking brake not engaged.

WARNING:

Never operate the mower with the interlock system disconnected or malfunctioning. Do not disengage or bypass any switch; injury to yourself and others or property damage could result.

4.3 INITIAL RUN-IN PROCEDURES (First Day of Use or Approximately 10 Hours)

1. Check all belts for proper alignment and wear at 2, 4 and 8 hours.
2. Change the engine oil and oil filter after the first 5 hours of operation. (See Section 7.4.)
3. Check oil level in the hydraulic system reservoir. (See Section 7.3.)
4. Check for loose hardware. Tighten as needed.
5. Check interlock system for proper operation. (See Section 4.2.)
6. Check tire pressure. Adjust pressure if necessary. (See Section 7.10.)

4.4 STARTING THE ENGINE

CAUTION:

DO NOT USE STARTING FLUIDS. Use of starting fluids in the air intake system may be potentially explosive or cause a “runaway” engine condition that could result in engine damage and/or personal injury.

1. Be sure the fuel shutoff valve, located behind the operator's seat, is completely open. (See section 7.5.)
2. Sit in the operator's seat, fasten seat belt and place the steering control levers in the neutral position.
3. Engage the parking brake.
4. If the engine is cold, choke the engine as needed.
5. Move the engine throttle control to about half engine speed.

6. Turn the ignition key to the START position and release the key as soon as the engine starts. Do not hold the key in the START position for more than 15 seconds at a time. Allow at least 60 seconds between each cranking attempt to prevent overheating of the starter motor. Prolonged cranking can damage the starter motor and shorten battery life.

7. Allow engine to warm before operating the mower.

4.5 GROUND TRAVEL AND STEERING

-IMPORTANT-

If you are not familiar with the operation of a machine with lever steering and/or hydrostatic transmissions, the steering and ground speed operations should be learned and practiced in an open area, away from buildings, fences, or obstructions. Practice until you are comfortable with the handling of the machine before attempting to mow. Learn the operation on flat ground before operating on slopes.

-IMPORTANT-

Start practicing with a slow engine speed and slow forward travel.

Learn to feather the steering controls to obtain a smooth operating action.

Practice operating the mower until you are comfortable with the controls before proceeding to mow.

Forward Travel

To travel forward with the mower, disengage the parking brake and slowly push the steering control levers forward an equal distance. The further the steering control levers are pushed forward the greater the forward speed will be. To increase the speed, push the steering control levers further forward and to decrease the speed, pull the steering control levers back.

To stop the forward travel, pull the steering control levers back to the neutral position.

To steer the mower left while traveling forward, pull the left steering lever back. The further the lever is pulled back, the quicker the mower will turn left.

To steer the mower right while traveling forward, pull the right steering control lever back. The further the lever is pulled back, the quicker the mower will turn right.

-NOTE-

Smooth operation of the steering levers will produce smooth mower operation. While learning the operation of the steering controls, keep the travel speed low.

-IMPORTANT-

Do not travel forward over a curb. The mower will hang up on the curb. Raise the deck and travel backwards over the curb at a 45 degree angle. (See section 4.13 for cutter deck raising instructions)

Reverse Travel

CAUTION:

Disengage power to the mower before backing up. Do not mow in reverse unless absolutely necessary and then only after observation of the entire area behind the mower.

CAUTION:

Before backing up, observe behind the mower for persons and obstructions. Clear the area before backing up. Possible injury or property damage could occur.

To travel in reverse, pull both handles back. Keep the travel speed low while traveling in reverse.

-NOTE-

The mower may not travel straight in reverse. Slight adjustments may need to be made using the steering controls.

To steer left while traveling in reverse, allow the left steering control lever to move forward. The further the control is allowed to move forward, the quicker the mower will turn left.

To steer right while traveling in reverse, allow the right

steering control lever to move forward. The further the control is allowed to move forward, the quicker the mower will turn right.

To stop the reverse travel, allow the steering control levers to return to the neutral position. If the mower is to be parked, engage the parking brake.

4.6 ENGAGING THE DECK DRIVE (CUTTER BLADES)

1. Set the throttle at about 3/4 speed. Do not attempt to engage the deck drive at high speed as this shortens the electric clutch life — use only moderate engine speed when engaging the deck drive.
2. Engage the deck drive by pulling out on the yellow switch, located on the instrument panel, (Figure 4-3) to the engage position.

PULL UP TO ENGAGE
PUSH DOWN TO DISENGAGE
STT99CES

Figure 4-3 Cutter Engage Switch

-NOTE-

A squealing noise may be heard when engaging or disengaging the deck drive. It is caused by the electric clutch plates meshing as the mower comes up to speed. This is normal.

1. To disengage the deck drive, push the switch in to the disengage position.
2. Always operate the engine at full throttle to properly maintain cutting speed. If the engine starts to lug down, reduce the forward speed and allow the engine to operate at maximum RPM.

DO NOT operate on steep slopes. To check a slope, attempt to back up it (with the cutter deck down). If the machine can back up the slope without the wheels slipping, reduce speed and use extreme caution. ALWAYS FOLLOW OSHA APPROVED OPERATION.

1. This mower has been designed for good traction and stability under normal mowing conditions. However, caution must be used when traveling on slopes, especially when the grass is wet. Wet grass reduces traction and steering control. The Roll Over Protection System is standard equipment for this machine. See Section 2.5, page 7 of this manual for further details.
2. To prevent tipping or loss of control, do not start or stop suddenly, avoid unnecessary turns and travel at reduced speed. If tires loose traction, disengage blades and proceed slowly off the slope.
3. Avoid sudden starts when mowing uphill. Sudden starts may cause the machine to tip backwards.
4. Loss of traction may occur when traveling down hill. Weight transfers to the front of the machine and may cause the drive wheels to slip causing loss of braking or steering.
5. Keep tires properly inflated.

4.8 PARKING THE MOWER

1. Park the machine on a flat, level surface only. Do not park the machine on an incline.
2. Place the steering control levers in the neutral position.
3. Disengage the cutter blades
4. Slow the engine to idle speed.
5. Engage the parking brake.
6. Turn the ignition key to the OFF position and remove the key.

4.9 AFTER OPERATION

1. Wash the entire mower after each use. Do not use high pressure spray or direct the spray onto electrical components.

-IMPORTANT-

Do not wash a hot or running engine. Cold water will damage the engine. Use compressed air to clean the engine if it is hot.

1. Keep the entire mower clean to inhibit serious heat damage to the engine or hydraulic oil circuit.
2. Check the drive belts for proper alignment and any signs of wear. Correct and adjust if necessary.

CAUTION:

To avoid injury from burns, allow the mower to cool before removing the fuel tank cap and refueling.

1. After the mower has cooled down, fill the fuel tank with fresh, clean fuel at the end of every day of operation.
2. Check the tire pressure. Adjust pressure if necessary.

4.10 REMOVING CLOGGED MATERIAL

DANGER: ROTATING BLADES

NEVER PUT YOUR HANDS INTO THE DISCHARGE CHUTE FOR ANY REASON! Shut off the engine and remove the key and only then use a stick or similar object to remove material if clogging has occurred.

1. If the discharge chute becomes clogged, shut off the engine and remove the ignition key. Using a stick or similar item, dislodge the clogged material. Then resume normal mowing.

4.11 MOVING MOWER WITH ENGINE STOPPED

To “free-wheel” or move the mower around without the engine running, place the dump valve levers in the FREE-WHEEL position (Figure 4-2, Page 12). Disengage the parking brake and move the mower by hand. The dump valve levers must be returned to the DRIVE position and torqued to 7-10ft/lbs to drive the mower.

4.12 RECOMMENDATIONS FOR MOWING

1. Do not mow with dull blades. A dull blade will tear grass, resulting in poor lawn appearance and require extra power.
2. The discharge chute must not be removed and must be kept in the lowest position to deflect grass clippings and thrown objects downward. Direct the side discharge away from sidewalks or streets to minimize cleanup of clippings. When mowing close to obstacles, direct the discharge away from the obstacles to reduce the chance of property damage by thrown objects.

WARNING

DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING KIT, OR ENTIRE GRASS CATCHER INSTALLED

1. Cut grass when it is dry and not too tall. Do not cut grass too short (cut off 1/3 or less of existing grass for best appearance). Mow frequently.
2. Keep mower and discharge chute clean.
3. When mowing wet or tall grass, mow the grass twice. Raise the mower to the highest setting for the first pass and then make a second pass to the desired height.
4. Use a slow travel speed for trimming purposes.

5. Operate the engine at full throttle for best cutting. Mowing with a lower RPM causes the mower to tear the grass. The engine is designed to be operated at full speed.

6. Use the alternate stripe pattern for best lawn appearance. Vary the direction of the stripe each time the grass is mowed to avoid wear patterns in the grass.

4.13 ADJUSTING CUTTING HEIGHT

The mower deck can be adjusted from a height of 1-inch to 6 inches at 1/4-inch intervals. To adjust the cutting height:

WARNING:

Do not adjust the cutting height with the mower blades rotating. Disengage the power to the cutter blades, put levers in the neutral lock position, apply the brake and then adjust cutting height.

1. Disengage the power to the cutter blades.
2. Push the cutting height adjustment foot pedal all the way forward using your right foot until it locks in place. (Figure 4-6).
3. Insert the lanyard pin into the cutting height index at the desired cutting height. Push forward on the deck lift foot lever, hold in place and lift up on the deck release lever, (Figure 4-7, Page 17). Slowly release the foot pedal. A deck height decal is located on the cutting height index as an aid in adjusting the deck to the desired height. (Figure 4-6).

Figure 4-6 Adjusting Cutting Height

Figure 4-7 Deck Release Lever

4.14 Towing (optional hitch accessory)

1. Never allow children or others in or on towed equipment.
2. Tow only with a machine that has a hitch designed for towing. Do not attach towed equipment except at the hitch point.
3. Follow manufacturer's recommendations for weight limit for towed equipment. 250lbs. maximum towing weight.
4. Never tow on slopes. The weight of the towed equipment may cause loss of traction and loss of control.
5. Travel slowly and allow extra distance to stop.
6. Zero turning with a trailer attached, could cause damage to the trailer or mower.

TROUBLESHOOTING CUTTING CONDITIONS

CONDITION	CAUSE	CURE
Stringers - Occasional Blades of Uncut Grass	Low engine RPM	Run engine at full RPM
	Ground speed too fast	Slow speed to adjust for conditions
	Wet grass	Cut grass after it has dried out
	Dull blades, incorrect sharpening	Sharpen blades
	Deck plugged, grass accumulation	Clean underside of deck
	Belts slipping	Adjust belt tension
Streaking - Strips of Uncut Grass in Cutting Path	Dull, worn blades	Sharpen blades
	Incorrect blade sharpening	Sharpen blades
	Low engine RPM	Run engine at full RPM
	Belt slipping	Adjust belt tension
	Deck plugged, grass accumulation	Clean underside of deck
	Ground speed too fast	Slow speed to adjust for conditions
	Wet grass	Cut grass after it has dried out
	Bent blades	Replace blades
Streaking - Strips of Uncut Grass Between Cutting Paths	Not enough overlapping between rows	Increase the overlap of each pass

TROUBLESHOOTING (CONT'D)

CONDITION	CAUSE	CURE
Uneven Cut on Flat Ground - Wavy High-Low Appearance, Scalloped Cut, or Rough Contour	Lift worn from blade	Replace blade
	Blade upside down	Mount with cutting edge toward ground
	Deck plugged, grass accumulation	Clean underside of deck
	Too much blade angle (deck pitch)	Adjust pitch and level
	Deck mounted improperly	See your authorized SCAG dealer
	Bent spindle area	See your authorized SCAG dealer
	Dull blade	Sharpen blade
Uneven Cut on Uneven Ground - Wavy Appearance, High-LowScalloped Cut, or Rough Contour	Uneven ground	May need to reduce ground speed, raise cutting height, and/or change direction of cut
Width of Deck SGB021
Sloping Ridge Across Width of Cutting Path	Tire pressures not equal	Check and adjust tire pressure
	Wheels uneven	Check and adjust tire pressure
	Deck mounted incorrectly	See your authorized SCAG dealer
	Deck not level side-to side	Check for level and correct
Width of Deck SGB023

TROUBLESHOOTING (CONT'D)

CONDITION	CAUSE	CURE
Scalping - Blades Hitting Dirt or Cutting Very Close to the Ground	Low tire pressures	Check and adjust pressures
	Ground speed too fast	Slow speed to adjust for conditions
	Cutting too low	May need to reduce ground speed, raise cutting height, change direction of cut, and/or change pitch and level
	Rough terrain	May need to reduce ground speed, raise cutting height, and/or change direction of cut
	Ground speed too fast	Slow speed to adjust for conditions
	Wet grass	Cut grass after it has dried out
Step Cut - Ridge in Center of Cutting path	Blades not mounted evenly	Adjust pitch and level
	Bent blade	Replace blade
	Internal spindle failure	See your authorized SCAG dealer
	Mounting of spindle incorrect	See your authorized SCAG dealer
Slope Cut - Sloping Ridges Across Width of Cutting Path	Bent spindle mounting area	See your authorized SCAG dealer
	Internal spindle failure	See your authorized SCAG dealer
	Bent deck housing	See your authorized SCAG dealer

ADJUSTMENTS

6.1 PARKING BRAKE ADJUSTMENT

WARNING:

Do not operate the mower if the parking brake is not operable. Possible severe injury could result.

The parking brake linkage should be adjusted whenever the parking brake lever is placed in the “ENGAGE” position and the parking brake will allow the mower to move. If the following procedures do not allow you to engage the parking brake properly, contact your Scag dealer for further brake adjustments.

1. Position a floor jack under the rear of the machine. Raise the machine and support it to prevent it from falling. Block the caster wheels to prevent the machine from moving. Remove the drive wheels.
2. With the brake lever in the disengaged position, check the distance between the top of the frame tube and the bottom of the brake handle. The distance should be 2" to 2-1/4" (See Figure 6-1).
3. If the distance is not at the specified measurement, adjust by loosening the jam nuts at both ends of the brake control rod and turning the rod until the proper distance is achieved. (See Figure 6-1). Tighten the jam nuts.
4. With the brake in the engaged position, check the distance between the lower nut on the brake actuator rod and the brake actuator lever on the LH side of the machine. The distance should be 1/8" (See Figure 6-2).
5. If the distance is not at the specified measurement, loosen the jam nut at the clevis on the top of the brake actuator rod (See Figure 6-2).

6. Turn the bolt at the bottom of the brake actuator lever until the 1/8" measurement is achieved and tighten the jam nut at the clevis on the brake actuator rod. (See Figure 6-2).

7. Repeat steps 4 though 6 on the RH side of the machine.

8. Replace the drive wheels and test the brake.

-NOTE-

If this procedure does not achieve proper brake adjustment, please contact your authorized Scag dealer.

Figure 6-1. Brake Adjustment

Figure 6-2. Brake Rod Adjustment

6.2 TRAVEL ADJUSTMENTS

Neutral or tracking adjustments will need to be made if:

A. The steering control levers are in the neutral position and the machine creeps forward or backward. (Neutral Adjustment, See Page 22).

B. The steering control levers are in the full forward position and the mower pulls to one side or the other when traveling in a forward direction. (Tracking Adjustment, See Page 23).

Neutral Adjustment

1. Be sure the dump valve levers are in the run position and the steering control levers are in the neutral lock position.
2. With an operator in the seat, start the engine and disengage the parking brake.
3. Run the engine at full operating speed and check if the machine creeps forward or backwards.

1. Adjust the RH wheel by loosening the jam nuts on the steering control rod and turning the rod until the drive wheel turns in the forward direction. Turn the rod back until the drive wheel stops moving. Turn the rod an additional 1/2 turn. (See Figure 6-3).
2. Tighten the jam nuts and repeat for the LH wheel. (See Figure 6-4).
3. Actuate the steering control levers forward and reverse several times and return them to the neutral position.
4. Check that the drive wheels remained in neutral and readjust if necessary.
5. Check that the steering control levers hit the stop before the pumps reach full stroke. Adjust as needed.

Figure 6-3. RH Steering Control Rod Adjustment

Figure 6-4. LH Steering Control Rod Adjustment

Tracking Adjustment

CAUTION:

Stop the engine and remove the key from the ignition before making any adjustments. Wait for all moving parts to come to a complete stop before beginning work.

CAUTION:

The engine and drive unit can get hot during operation causing burn injuries. Allow engine and drive components to cool before making any adjustments.

-NOTE-

Before proceeding with this adjustment, be sure that the caster wheels turn freely and that the tire pressure in the drive wheels is correct. If the tire pressure is not correct, the machine will pull to the side with the lower pressure.

1. If at full speed the mower pulls right, it is an indication that the left wheel is turning faster than the right wheel. To adjust this condition, proceed as follows:

A. Stop the machine and place the steering control levers in the neutral position. Loosen the lock nuts securing the ball joints at each end of the LH steering control rod. Rotate the control rod to lengthen the rod and tighten the lock nuts. This will cause the control rod to stroke the LH pump less, slowing down the LH wheel. (See Figure 6-4)

-NOTE-

If after making the adjustment as outlined in step 1A, the machine creeps forward or backward, the neutral adjustment must be made as described on page 22.

1. If at full speed the mower pulls left, it is an indication that the right wheel is turning faster than the left wheel. To adjust this condition, proceed as follows:

A. Stop the machine and place the steering control levers in the neutral position. Loosen the lock nuts securing the ball joints at each end of the RH steering control rod. Rotate the control rod to lengthen the rod and tighten the lock nuts. This will cause the control rod to stroke the RH pump less, slowing down the RH wheel. (See Figure 6-3)

-NOTE-

If after making the adjustment as outlined in step 2A, the machine creeps forward or backward, the neutral adjustment must be made as described on page 21.

6.3 THROTTLE CONTROL AND CHOKE ADJUSTMENTS

These adjustments must be performed by your Scag dealer to ensure proper and efficient running of the engine. Should either need adjustment, contact your authorized Scag service center.

6.4 BELT ADJUSTMENT

WARNING:

Before removing any guards, shut the engine off and remove the ignition key.

All drive belts and cutter deck belts are spring loaded and self-tensioning. The belts should be checked periodically for proper alignment and wear.

6.5 BELT ALIGNMENT

Belt alignment is important for proper performance of your Scag mower. If you experience frequent belt wear or breakage, see your authorized Scag service center for belt adjustment.

6.6 CUTTER DECK ADJUSTMENTS

Cutter deck level, pitch and height are set at the factory. However, if these adjustments should ever need to be made, the following procedures will aid in obtaining the proper cutter deck adjustment.

-NOTE-

Before proceeding with the cutter deck adjustments, be sure that all tires are properly inflated.

Cutter Deck Level

The cutter deck should be level from side-to-side for proper cutting performance. To check for level, be sure that the mower is on a flat, level surface, the tires are properly inflated and the cutter deck is set at the most common cutting height that you will use. On the RH side of the machine, check the distance from the bottom of the cutter deck to the floor. Next check the distance from the bottom of the cutter deck to the floor on the LH side of the machine. Both measurements should be the same. If the two measurements are different, the cutter deck level must be adjusted as follows:

1. On the front LH side of the cutter deck locate the cutter deck adjusting bolt.

Figure 6-5. Cutter Deck Adjustment

1. Loosen the serrated flange hex nut and move the bolt up or down in the slot to adjust the cutter deck until the distance from the bottom of the cutter deck to the floor is the same as the measurement on the RH side of the machine.

2. Tighten the serrated hex nut to secure the cutter deck in the proper position.

Cutter Deck Pitch

The pitch of the cutter deck should be equal between the front and rear of the cutter deck for proper cutting performance. To check for proper deck pitch, be sure that the mower is on a flat, level surface and the tires are properly inflated.

Check the distance from the bottom of the cutter deck to the floor at the rear RH side of the cutter deck directly behind the cutter deck hanging chains. Next check the distance from the bottom of the cutter deck to the floor at the front RH side of the cutter deck directly in front of the cutter deck hanging chains. The measurement at the front of the cutter deck should be equal to the measurement at the rear of the deck. Make these measurements at the LH side of the cutter deck also. If the measurement at the front of the deck is not equal, the cutter deck pitch must be adjusted as follows:

1. Loosen the jam nut on both adjusting rods. (See Figure 6.5)
2. Using a wrench on the jam nut (See Figure 6.5) turn the adjusting rods until the proper pitch is obtained on both the RH and the LH side of the cutter deck. Tighten both jam nuts.

-NOTE-

To prevent the cutter deck from teetering, all four cutter deck hanging chains must have tension on them. If all four chains do not have tension on them and the deck teeters, you must readjust the cutter deck as outlined in the procedures above.

Cutter Deck Height

The cutter deck height adjustment is made to ensure that the cutter deck is cutting at the height indicated on the cutting height index gauge. To check for proper deck height, be sure that the mower is on a flat, level surface and the tires are properly inflated.

1. Place the cutter deck in the transport position. Loosen the jam nuts on both ends of the deck height control rod. (See Figure 6.6)

Figure 6-6. Cutter Deck Height Adjustment

1. Turn the control rod (See Figure 6.6) until there is a 1/4" space between the rear deck stop and the top of the cutter deck. (See Figure 6.7). Tighten the jam nuts on the control rod.

Figure 6-7. Cutter Deck Stop

1. Check the cutter deck cutting height by placing the lanyard pin in the 3" position on the cutting height index. Release the deck from the transport position and allow the deck to move to the 3" cutting height position.
2. Check the measurement from the floor to the cutter blade tip. If the measurement is not at 3", an adjustment can be made using the deck height control rod. (See Figure 6.6).

-NOTE-

If an adjustment had to be made, be sure that the cutter deck can easily be locked into the transport position.

Custom-Cut Baffle Adjustment

The Custom-Cut Baffle is designed to deliver optimum airflow and superior cutting performance in any type of grass. The Custom-Cut Baffle can be raised or lowered to precisely tailor the deck's performance for the type of grass being cut. The baffle can be set in three (3) different positions for optimum performance.

A. 3" Position - baffle is installed using the top set of holes on the front baffle welded inside the cutter deck. (See Figure 6.9, Page 26). The Advantage cutter deck will deliver the best quality-of-cut in very tall, wiry, tough-to-cut grass.
B. 3-1/2" Position (factory setting) - baffle is installed using the middle set of holes on the front baffle welded inside the cutter deck. (See Figure 6.10, Page 26). For general purpose cutting, place the Custom Cut Baffle in the 3-1/2" position. This gives the best mix of cutting performance in all types of grass.
C. 4" Position - baffle is installed using the bottom set of holes on the front baffle welded inside the cutter deck. (See Figure 6.11, Page 26). Placing the baffle in the 4" setting will enhance fall cutting (leaf pickup) and reduce cutter deck "blowout".

To adjust the Custom-Cut Baffle height:

1. Place the cutter deck in the transport position.
2. Remove the hardware securing the Custom-Cut Baffle to the cutter deck. (See Figure 6.8).

-NOTE-

Hardware location used in the illustrations are for reference only. Location of hardware may vary depending on cutter deck size.

Figure 6-8. Custom-Cut Baffle

1. Move the Custom-Cut Baffle to desired position. (See Figures 6.9 through 6.11 for position).

2. Reinstall the mounting hardware as shown. (See Figures 6.10 though 6.11). Torque hardware to 39ft-lbs.

Figure 6-9. 3" Custom-Cut Baffle Position

Figure 6-10. 3-1/2" Custom-Cut Baffle Position

Figure 6-11. 4" Custom-Cut Baffle Position

MAINTENANCE

7.1 MAINTENANCE CHART - RECOMMENDED SERVICE INTERVALS

HOURS						Procedure	Comments
Break-In(First 10)	8	40	100	200	500
X						Check all hardware for tightness
X						Check hydraulic oil level	See paragraph 7.3
X						Check all belts for proper alignment	See paragraph 7.8
X(First 5)						Change engine oil and filter	See paragraph 7.4
X						Check hydraulic hoses for leaks	Use extreme caution when checking the hydraulic hoses See paragraph 2.5
X						Check coolant level (Kawasaki only)	See paragraph 7.12
	X					Check engine oil level	See paragraph 7.4
	X					*Clean mower	See paragraph 7.13
	X					Check condition of blades	See paragraph 7.9
	X					Apply grease to fittings	See paragraph 7.2
	X					Check tire pressure	See paragraph 7.10
	X					Check coolant level (Kawasaki only)	See paragraph 7.12
		X				Check battery electrolyte level, clean battery posts and cables	See paragraph 7.7
		X				Check belts for proper alignment	See paragraph 7.8
			X			Apply grease to fittings	See paragraph 7.2
			X			Change engine oil	See paragraph 7.4
			X			*Clean air cleaner element	See paragraph 7.6
			X			Check lubricant in cutter deck gearbox	See paragraph 7.11

* Perform these maintenance procedures more frequently under extreme dusty or dirty conditions

MAINTENANCE CHART - RECOMMENDED SERVICE INTERVALS (CONT'D)

HOURS						Procedure	Comments
Break-In(First 10)	8	40	100	200	500
				X		Apply grease to fittings	See paragraph 7.2
				X		Check hardware for tightness
				X		Change engine oil filter	See paragraph 7.4
				X		Check hydraulic oil level	See paragraph 7.3
					X	Replace engine fuel filter	See paragraph 7.5
					X	Drain hydraulic system and replace hydraulic oil	See paragraph 7.3Use SAE 20W50Motor Oil
					X	Replace hydraulic oil filter	See paragraph 7.3
					X	Replace cutter deck gearbox lubricant	See paragraph 7.11
					X	Change coolant (Kawasaki only)	See paragraph 7.12

7.2 LUBRICATION - GREASE FITTING LUBRICATION CHART (SEE FIGURE 7-1, PAGE 27)

	LOCATION	LUBRICATION		NO. OF PLACES
		INTERVAL	LUBRICANT
1	Caster Wheel Pivot *	500 Hours/Yearly	Chassis Grease	2
2	Caster Wheel Bearings	100 Hours/Monthly	Chassis Grease	2
3	Brake Actuator	200 Hours/Monthly	Chassis Grease	2
4	Cutter Deck Bellcranks	100 Hours/Bi-Weekly	Chassis Grease	4
5	Cutter Deck Pusharms	100 Hours/Bi-Weekly	Chassis Grease	2
6	PTO Spindle	40 Hours/Weekly	+Lithium MP White Grease 2125	1
7	Cutter Deck Spindle	40 Hours/Weekly	+Lithium MP White Grease 2125	3
8	Brake Handle	200 Hours/Monthly	Chassis Grease	1
9	Cutter Deck Drive Shaft U-Joints	200 Hours/Monthly	Chassis Grease	2
10	Cutter Deck Drive Shaft Slip Sleeve	40 Hours/Weekly	Chassis Grease	1

* PROCEDURE: Remove grease cap, part number 481559. Remove plug, part number 482028-01, and install standard grease zerk (p/n 48114-06). Apply grease to the fitting until new grease appears at the top of the caster extension. Remove the grease zerk and reinstall the plug. Reinstall the grease cap. Special tool, part number 47007, is recommended for use in the installation of the grease cap.
+ Compatible Greases: Mobilix #2 found at Mobil Service Stations
Ronex MP found at Exxon Service Stations
Super Lube MEP #2 & Super Stay-M #2 found at Conoco Stations
Shell Alvania #2 found at Shell Service Stations
Lidok EP #2 found at industrial shops

LITHIUM MP WHITE GREASE 2125 (40 HOURS / WEEKLY)
○ CHASSIS GREASE (100 HOURS / BI-MONTHLY)
CHASSIS GREASE (200 HOURS / MONTHLY)
CHASSIS GREASE (500 HOURS / YEARLY)

Figure 7.1 Lubrication Fitting Points

7.3 HYDRAULIC SYSTEM

A. Checking Hydraulic Oil Level

The hydraulic oil level should be checked after the first 10 hours of operation. Thereafter, check the oil after every 200 hours of machine operation or monthly, whichever occurs first.

-IMPORTANT-

If the oil level is consistently low, check for leaks and correct immediately.

1. Wipe dirt and contaminants from around the reservoir cap. Remove the cap from the hydraulic oil reservoir.
2. Visually check the level of hydraulic oil. Hydraulic oil must be at least 3" inches from top of the filler neck. If the level cannot be determined visually, use a clean tape measure to check the level. If the fluid is low, add 20W50 motor oil. DO NOT overfill; (overfilling the oil reservoir may cause oil seepage).
3. Clean the fill cap and install it onto the reservoir.

B. Changing Hydraulic Oil

Figure 7-2 Hydraulic Oil Reservoir

The hydraulic oil should be changed after every 500 hours or annually, whichever occurs first. The oil should also be changed if the color of the fluid has become black or milky. A black color and/or a rancid odor usually indicates possible overheating of the oil, and a milky color usually indicates water in the hydraulic oil.

-NOTE-

The hydraulic oil should be changed if you notice the presence of water or a rancid odor to the hydraulic oil.

1. Park the mower on a level surface, stop the engine and remove the ignition key.
2. Place a suitable container under the hydraulic oil filter. Remove the fill cap from the reservoir. Remove the drain plug from the fitting on the oil filter base. (See Figure 7-2). Allow the fluid to drain into the container and properly discard it.
3. Re-install the drain plug into the fitting on the oil filter base and be sure it is tight.

-NOTE-

Before refilling the hydraulic oil reservoir the hydraulic oil filter should be changed as outlined in section C on the next page.

1. Fill the reservoir to 3" inches from the top of the filler neck with 20W50 motor oil.
2. Replace the reservoir fill cap. Start the engine and drive forward and backward for two minutes. Check the oil level in the reservoir. If necessary, add oil to the reservoir.

C. Changing Hydraulic Oil Filter Element

Figure 7-3 Hydraulic Oil Filter

The hydraulic oil filter should be changed after every 500 hours of operation or annually, whichever occurs first.

1. Remove the oil filter element (Figure 7-3) and properly discard it. Fill the new filter with clean oil and install the filter. Hand tighten only.
2. Run the engine at idle speed with the speed control lever in neutral for five minutes.
3. Check the oil level in the hydraulic tank. It must be 3" inches from the top of the filler neck. If necessary, add SAE 20w50 motor oil.

7.4 ENGINE OIL

Figure 7-4 Engine Fill Stick

A. Checking Engine Crankcase Oil Level

The engine oil level should be checked after every 8 hours of operation or daily as instructed in the Engine Operator's Manual furnished with this mower.

B. Changing Engine Crankcase Oil

After the first 5 hours of operation, change the engine crankcase oil and replace the oil filter. Thereafter, change the engine crankcase oil after every 100 hours of operation or monthly, whichever occurs first. Refer to the Engine Operator's Manual furnished with this mower for instructions.

Figure 7-5 Drain Plug and Oil FilterLocation

C. Changing Engine Oil Filter

After the first 5 hours of operation, replace the engine oil filter. Thereafter, replace the oil filter after every 200 hours of operation or every month, whichever occurs first. Refer to Engine Operator's Manual for instructions.

7.5 ENGINE FUEL SYSTEM

CAUTION:

To avoid injury from burns, allow the mower to cool before removing the fuel tank cap and refueling.

A. Filling the Fuel Tank

Fill the fuel tank at the beginning of each operating day to within 1 inch below the filler neck. Do not overfill. Use clean, fresh unleaded gasoline with a minimum octane rating of 87.

To avoid personal injury or property damage, use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive.

1. Extinguish all cigarettes, cigars, pipes and other sources of ignition.
2. Use only an approved gasoline container.
3. Never remove the gas cap or add fuel with the engine running. Allow the engine to cool before fueling.
4. Never fuel the machine indoors or in an enclosed trailer.
5. Never store the machine or fuel container where there is an open flame, spark or pilot light such as on a water heater or other appliances.
6. Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.
7. Remove the machine from the truck or trailer and fuel on the ground. If this is not possible, then refuel the machine with a portable container, rather than from a gasoline dispenser nozzle.
8. Keep the nozzle in contact with the rim of fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.
9. If fuel is spilled on clothing, change clothing immediately.
10. Replace gas cap and tighten securely.

Figure 7-6 Fuel Filter

B. Replacing In-Line Fuel Filter Element

The in-line fuel filter (Figure 7-6) should be replaced after every 500 hours of operation or annually, whichever occurs first.

1. Close the shutoff valve. Remove the two clamps securing the fuel filter to the fuel hose. Remove the fuel filter.
2. Install a new fuel filter. Be sure it is installed in the proper direction. Secure to the fuel hose using the two clamps.

7.6 ENGINE AIR CLEANER

A. Cleaning and/or Replacing Air Cleaner Element

For any air cleaner, the operating environment dictates the air cleaner service periods. Inspect and clean the air cleaner element after every 100 hours of operation or monthly, whichever occurs first and replace the element if required. See Engine Owner's Manual for service information.

-NOTE-

In extremely dusty conditions it may be necessary to check the element once or twice daily to prevent engine damage.

1. Unhook the clamps securing the air cleaner cover to the air filter canister. Remove the air cleaner cover and set aside.
2. Remove the air cleaner and inspect.
3. Clean or replace the air cleaner as recommended by the engine manufacturer.

7.7 BATTERY

WARNING:

Lead-acid batteries produce flammable and explosive gases. To avoid personal injury when checking, testing or charging batteries, DO NOT use smoking materials near batteries. Keep arcs, sparks and flames away from batteries. Provide proper ventilation and wear safety glasses.

WARNING:

Electric storage battery fluid contains sulfuric acid which is POISON and can cause SEVERE CHEMICAL BURNS. Avoid contact of fluid with eyes, skin, or clothing. Use proper protective gear when handling batteries. DO NOT tip any battery beyond 45° angle in any direction. If fluid contact does occur, follow first aid suggestions below.

BATTERY ELECTROLYTE FIRST AID

EXTERNAL CONTACT — Flush with water.

EYES — Flush with water for at least 15 minutes and get medical attention immediately.

INTERNAL — Drink large quantities of water. Follow with Milk Of Magnesia, beaten egg, or vegetable oil. Get medical attention immediately. In case of internal contact, DO NOT give fluids that would induce vomiting.

Charging the Battery

Refer to the battery charger's manual for specific instructions.

Under normal conditions the engine's alternator will have no problem keeping a charge on the battery. If the battery has been completely discharged for a long period of time, the alternator may not be able to recharge the battery, and a battery charger will be required.

DO NOT charge a frozen battery. It may explode and cause injury. Let the battery warm before attaching a charger.

Whenever possible, remove the battery from the mower before charging and make sure the electrolyte covers the plates in all cells.

WARNING:

BATTERIES PRODUCE EXPLOSIVE GASES. Charge the battery in a well ventilated space so gases produced while charging can dissipate.

Charging rates between 3 and 50 amperes are satisfactory if excessive gassing or spewing of electrolyte does not occur or the battery does not feel excessively hot (over 125° F). If spewing or gassing occurs or the temperature exceeds 125° F, the charging rate must be reduced or temporarily stopped to permit cooling.

C. Jump Starting

1. The booster battery must be a 12 volt type. If a vehicle is used for jump starting, it must have a negative ground system.
2. When connecting the jumper cables, connect the positive cable to the positive battery post, then connect the negative cable to the negative battery post.

7.8 DRIVE BELTS

All drive belts are spring-loaded and self-tensioning, however after the first 2, 4, 8 and 10 hours of operation, the belts should be checked for proper alignment and wear. Thereafter, check the belts after every 40 hours of operation or weekly, whichever occurs first.

7.9 CUTTER BLADES

A. Blade Inspection

1. Remove the ignition key before servicing the blades.
2. Raise the mower deck to the highest position. Place the lanyard pin in the highest cutting height positon to prevent the cutter deck from falling.

WARNING:

Always wear proper hand and eye protection when working with cutter blades.

1. Check the cutter blades for straightness. If the cutter blades appear bent, they will need to be replaced.

WARNING:

Do not attempt to straighten a bent blade, and never weld a broken or cracked blade. Always replace it with an original Scag cutter blade to assure safety.

1. If a blade cutting edge is dull or nicked, it should be sharpened. Remove the blades for sharpening. See "Blade Replacement."

-NOTE-

Keep the blades sharp. Cutting with dull blades not only yields a poor mowing job, but slows the cutting speed of the mower and causes extra wear on the engine and the blade drive.

B. Blade Sharpening

-NOTE-

If possible, use a file to sharpen the blade. Using a wheel grinder may burn the blade.

-NOTE-

DO NOT sharpen the blades beyond 1/3 of the width of the blade.

1. Sharpen the cutting edge at the same bevel as the original. See Figure 7-7. Sharpen only the top of the cutting edge to maintain sharpness.

Figure 7-7 Blade Sharpening

1. Check the balance of the blade. If the blades are out of balance, vibration and premature wear can occur. See your authorized Scag dealer for blade balancing or special tools, if you choose to balance your own blades.

C. Blade Replacement

WARNING:

Always wear proper hand and eye protection when working with cutter blades.

1. Remove the ignition key before replacing the blades.

2. Raise the mower deck to the highest position. Place the lanyard pin in the highest cutting height positon to prevent the cutter deck from falling.

3. Secure the cutter blades to prevent them from rotating, (use the optional Blade Buddy tool, P/N 9212, to assist in securing the cutter blades), remove the nut from the blade attaching bolt. Remove the cutter blade, bolt and spacer from the spindle shaft. (Figure 7-8).

-NOTE-

The front of the machine will have to be raised slightly to remove the blade bolt from the cutter spindle.

1. To install the new cutter blade, put the flat washer onto the blade bolt and slide the bolt into the hole in the cutter blade.

-NOTE-

Be sure that the blade is installed with the lift wing pointing toward the top of the deck.

Figure 7-8 Blade Replacement

1. Install the spacer onto the blade bolt and insert the bolt into the cutter spindle shaft.
2. Install the hex nut to the blade bolt at the top of the cutter spindle. Secure the blades from rotating and torque to 75 ft-lbs. (See Figure 7-8)

7.10 TIRES

Check the tire pressures after every 8 hours of operation or daily.

Caster Wheels 25 PSI

Drive Wheels 12 PSI

7.11 CUTTER DECK GEARBOX

A. Checking Lubricant Level

CAUTION:

The cutter deck gearbox can reach high operating temperatures. Allow the cutter deck gearbox to cool before servicing.

Figure 7-9 Cutter Deck Gearbox

The fluid level in the cutter deck gearbox (Figure 7-9) should be checked after every 100 hours of operation or bi-weekly, whichever occurs first.

1. Lower the cutter deck to its lowest position to gain access to the cutter deck gearbox.
2. Clean and remove the check plug from the side of the gearbox (See Figure 7-9). Visually check that the lubricant level is up to the bottom edge of the check plug hole. If lubricant is low, add SAE 80W90 lubricant through the check plug hole in the gearbox until it is level with the bottom of the check plug hole. Install the check plug and tighten securely.

B. Changing Lubricant

The lubricant in the cutter deck gearbox should be changed after every 500 hours of operation or yearly, whichever occurs first.

1. Place a suitable container beneath the cutter deck gearbox and locate the gearbox drain plug.
2. Remove the drain plug, drain the lubricant into the container and properly discard it.
3. Re-install the drain plug and add SAE 80W90 lubricant through the check plug hole in the gearbox until it is level with the bottom of the check plug hole. Install the check plug and tighten securely.

To avoid burns, always allow the engine to cool before removing the radiator cap.

A. Checking Coolant Level

The coolant level should be checked before each day of operation.

1. Remove the radiator cap by turning it slowly counterclockwise to the first stop and allow any pressure to be released. Push down on the cap and turn counterclockwise to remove.
2. Visually check the coolant level. The coolant level should be up to the bottom of the filler neck as shown in Figure 7-10. Add a mixture of coolant and soft water as needed.

-NOTE-

Refer to the coolant manufacturer's instructions for the proper coolant mixture ratio.

Figure 7-10 Coolant Level

1. Replace the radiator cap. Push down on the cap and turn clockwise until it stops.

-NOTE-

The cooling system should be flushed and the coolant replaced every 500 hours of operation or annually. See your Scag dealer for proper coolant replacement.

B. Cleaning the Radiator Debris Screen

After each day of operation, remove and clean the radiator debris screen.

CAUTION:

To avoid personal injury, always wear safety glasses when using compressed air.

1. Pull the debris screen up to remove.
2. Clean the debris screen with compressed air or a water hose.

-NOTE-

Check the radiator for excessive debris and clean with compressed air. Never spray a hot engine with water, use only compressed air to remove debris.

1. Re-install the debris screen to the radiator.

C. Checking The Fan Belt Tension

Periodically check the fan belt tension. The belt should deflect 1/2" with 10 pounds of pressure. See your Scag dealer if the belt is in need of adjustment or replacement.

7.13 BODY, DECK, AND UPHOLSTERY

CAUTION:

Do not wash any portion of the equipment while it is hot. Do not wash the engine; use compressed air.

1. After each use, wash the mower and cutter deck. Use cold water and automotive cleaners. Do not use pressure cleaners.
2. Do not spray electrical components.
3. Use a mild soap solution or a vinyl/rubber cleaner to clean the seat.
4. Repair damaged metal surfaces using Scag touch-up paint (P/N 48521) available from your authorized Scag dealer. Wax the mower with an automotive paint wax for maximum paint protection.

NOTES

NOTES

52A & 61A CUTTER DECKS

52A & 61A CUTTER DECKS

Ref. No.	Part No.	Description	52 61	Ref. No.	Part No.	Description	52 61
1	461652	Cutter Deck Advantage	x	40	43296	Spacer, Inside	x x
	461657	Cutter Deck Advantage	x	41	481025	Seal, Bottom	x x
2	04003-04	Bolt, Carriage 5/16-18 x 1"	x x	42	43297	Spindle Bushing, Bottom	x x
3	04019-04	Nut, Hex Serrated Flange 3/8-16	x x	43	481035	Nut, Special 1 - 1/16-18	x x
4	481625-01	Wing nut, 3/8-16	x x	44	48114-04	Grease Fitting	x x
5	481632	Anti-Scalp Wheel	x x	45	48677	Relief Fitting, Tapered Spindle	x x
6	04003-26	Bolt, Carriage 3/8-16 x 4"	x x	46	482245	Spring, Discharge Chute	x x
7	422478	Anti-Scalp Wheel Bracket	x x	47	482295	Wheel, Anti-Scalp	x x
8	04017-27	Bolt, Hex Serrated Flange 3/8-16 x 1"	x x	48	482878	Cutter Blade, 18"	x
9	04043-06	Flatwasher, 5/8" Hardened	x x		482879	Cutter Blade, 21"		x
10	04021-05	Locknut, 3/8-16 Center Lock	x x		482881	Cutter Blade, 21" (31BV Only)		x
11	461295	Discharge Chute Advantage - Small	x	49	482486	Gearbox Assembly, Deck Drive	x x
	461296	Discharge Chute Advantage - Large	x	50	482281	Belt, Cutter Deck Drive	x
12	04001-11	Bolt, Hex Head 5/16-18 x 1-3/4" - Front	x x		481558	Belt, Cutter Deck Drive		x
	04001-12	Bolt, Hex Head 5/16-18 x 1-1/2" - Rear		51	45944	Roller Shaft	x x
13	04021-22	Nut, Hex Elastic Stop 5/16-18 Grade 8	x x	52	48926	Tapered Hub, 1-1/8" Bore	x x
14	04020-09	Nut, 5/8-11 UNC	x x	53	48141	Tapered Hub, 1" Bore	x x
15	451240	Push Arm Shaft	x x	54	461174	Idler Arm, Cutter Deck	x x
16	04001-41	Bolt, Hex Head 5/8-11 x 9-1/2"	x x	55	48224	Bearings, Ball	x x
17	04003-12	Bolt, Carriage 5/16-18 x 3/4"	x x	56	482416	Pulley, Idler	x x
18	04001-108	Bolt, Hex Head 5/16-18 x 4-1/2"	x x	57	422713	Base, Idler Pivot	x x
19	04063-08	Key, 1/4 x 1/4 x 2"	x x	58	482744	Pulley, 5.75 O.D. (52')	x
20	04063-01	Key, 1/4 x 1/4 x 1-1/4"	x x		482745	Pulley, 6.35 O.D. (61")		x
21	04043-04	Flatwasher,3/8-.39 x .938 x .105 HD	x x	59	422426	Mounting Plate, Gearbox	x x
22	04001-176	Bolt, Hex Head 5/16-18 x 1-3/4"	x x	60	422412	Belt, Cover	x
23	04019-03	Nut, Hex Serrated Flange 5/16-18	x x		422413	Belt, Cover		x
24	04001-172	Bolt, Hex Head 1/4-20 x 1" Grade 8	x x	61	461516	Pusharm (incl. items 44, 63 & 64)	x x
25	48100-15	Bushing, .376 I.D. Oilite	x x	62	43590	Spacer, Spindle Bottom	x x
26	04030-03	Lockwasher, 5/16"	x x	63	04020-16	Nut, Hex Head 5/8-18 UNF	x x
27	04040-15	Flatwasher, 5/16" (.375 x .875 x .083)	x x	64	48763	Rod End, 5/8" Male RH Thread	x x
28	04041-07	Flatwasher, 3/8" (.391 x .938 x .105)	x x	65	04001-79	Bolt, Hex Head 5/8-11 x 4-1/2"	x x
29	04021-09	Nut, Hex Elastic Stop 3/8-16	x x	66	481597	Spring, Cutter Deck	x x
30	04001-62	Bolt, Hex Head 3/8-16 x 3-1/4"	x x	67	482747	Pulley, 6.95 O.D.	x
31	04001-31	Bolt, Hex Head 3/8-16 x 2-1/2"	x x		482746	Pulley, 6.75 O.D.		x
32	04001-20	Bolt, Hex Head 3/8-16 x 1-1/2"	x x	68	04110-03	U-Nut, 3/8-16	x x
33	04001-136	Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8	x x	69	04021-13	Nut, Hex Elastic Stop 5/8-11	x x
34	461663	Spindle Assembly	x x	70	423956	Discharge Baffle 52"	x
35	43589	Spindle Shaft	x x	71	423957	Discharge Baffle 61"
36	481024	Seal, Top	x x	72	43503	Pivot, Idler - Short	x x
37	481022	Bearing Assembly	x x	73	423803	Baffle, Custom Cut 52A	x
38	43644	Spindle Housing	x x		423792	Baffle, Custom Cut 61A		x
39	43312	Spacer, Outside	x x	74	04003-23	Bolt, Carriage 3/8-16 x 1"	x x

72A CUTTER DECK

72A CUTTER DECK

Ref. No.	Part No.	Description	Ref. No.	Part No.	Description
1	461659	Cutter Deck, 72" Advantage (Includes Decals)	42	43297	Spindle Bushing, Bottom
2	04003-04	Bolt, Carriage 5/16-18 x 1"	43	481035	Nut, Special 1 - 1/16-18
3	04019-04	Nut, Hex Serrated Flange 3/8-16	44	48114-04	Grease Fitting
4	481625-01	Wing Nut, 3/8-16	45	48677	Relief Fitting, Tapered Spindle
5	481632	Anti-Scalp Wheel	46	482245	Spring, Discharge Chute
6	04003-26	Bolt, Carriage 3/8-16 x 4"	47	48038	Guide, Roller
7	422478	Anti-Scalp Wheel Bracket	48	482882	Cutter Blade, 24.5" 72"
8	04017-27	Bolt, Hex Serrated Flange 3/8-16 x 1"	49	482486	Gearbox Assembly, Deck Drive
9	04043-06	Flatwasher, 5/8" Hardened	50	481980	Belt, Cutter Deck Drive, 72"
10	04021-05	Locknut, 3/8-16 Center Lock	51	45944	Roller Shaft
11	461296	Discharge Chute, 61" & 72" Adv.	52	48926	Tapered Hub, 1-1/8" Bore
12	04001-12	Bolt, Hex Head 5/16-18 x 1.75" (Front)	53	48141	Tapered Hub, 1" Bore
	04001.11	Bolt, Hex Head 5/16-18 x 1.50" (Rear)	54	461174	Idler Arm, Cutter Deck
13	04021-22	Nut, Hex Elastic Stop 5/16-18 Grade 8	55	48224	Bearings, Ball
14	04020-09	Nut, 5/8-11 UNC	56	482416	Pulley, Idler
15	451240	Push Arm Shaft	57	422713	Base, Idler Pivot
16	04001-41	Bolt, Hex Head 5/8-11 x 9.50"	58	482747	Pulley, 6.95 O.D. - 72"
17	04003-12	Bolt, Carriage 5/16-18 x .75"	59	422426	Mounting Plate, Gearbox
18	04001-154	Bolt, Hex Head 5/16-18 x 4.75"	60	422677	Belt Cover, LH - 72"
19	04063-08	Key, 1/4 x 1/4 x 2"		422708	Belt Cover, RH - 72"
20	04063-01	Key, 1/4 x 1/4 x 1.25"	61	461516	Pusharm (includes items 44, 63 & 64)
21	04043-04	Flatwasher,3/8-.39 x .938 x .105 HD	62	423795	Baffle, Custom Cut 72A
22	04001-11	Bolt, Hex Head 5/16-18 x 1-3/4"	63	04020-16	Nut, Hex Head 5/8-18 UNF
23	04021-10	Nut, Hex Serrated Flange 5/16-18	64	48763	Rod End, 5/8" Male RH Thread
24	04001-172	Bolt, Hex Head 1/4-20 x 1" Grade 8	65	04001-79	Bolt, Hex Head 5/8-11 x 4-1/2"
25	48100-15	Bushing, .376 I.D. Oilite	66	481597	Spring, Cutter Deck
26	04030-03	Lockwasher, 5/16"	67	482745	Pulley, 6.35 O.D. - 72"
27	04040-15	Flatwasher, 5/16" (.375 x .875 x .083)	68	04110-03	U-Nut, 3/8-16
28	04041-07	Flatwasher, 3/8" (.391 x .938 x .105)	69	04021-13	Nut, Hex Elastic Stop 5/8-11
29	04021-09	Nut, Hex Elastic Stop 3/8-16	70	423958	Discharge Baffle 72"
30	04001-62	Bolt, Hex Head 3/8-16 x 3.25"	71	482295	Wheel, Anti-Scalp
31	04001-31	Bolt, Hex Head 3/8-16 x 2.50"	72	43590	Spacer, Spindle Bottom
32	43503	Pivot, Idler - Short	73	04003-23	Bolt, Carriage 3/8-16 x 1"
33	04001-136	Bolt, Hex Head 3/8-16 x 1.50" Grade 8
34	461663	Spindle Assembly
35	43589	Spindle Shaft
36	481024	Seal, Top
37	481022	Bearing Assembly
38	43644	Spindle Housing
39	43312	Spacer, Outside
40	43296	Spacer, Inside
41	481025	Seal, Bottom

CUTTER DECK CONTROLS

CUTTER DECK
STT2002CDC

CUTTER DECK CONTROLS

Ref. No.	Part No.	Description
1	04041-07	Flatwasher, 3/8"
2	481764	Link, Deck Lift
3	481765	Rod End, Female - 1/2-20 RH
4	481766	Rod End, Female - 1/2-20 LH
5	04020-27	Nut, Jam 1/2-20 RH
6	04020-28	Nut, Jam 1/2-20 LH
7	04021-09	Nut, 3/8-16 Elastic Stop
8	482429	Slide Weldment, Height Adjustment
9	43391	Spacer, Decklift Pedal
10	43487	Pin, Decklift
11	43526	Swivel Joint, LH
12	43527	Swivel Joint, RH
13	45904	Bellcrank Weldment, LH Rear
14	45905	Bellcrank Weldment, RH Rear
15	04021-05	Locknut, 3/8-16 Center Lock
16	422381	Guide, Short
17	423509	Guide, Long
18	422346	Lockplate, Decklift
19	46975	Deck Latch (Includes items 20& 21)
20	48100-14	Bushing, .502 ID.
21	481428	Grip, Deck Latch
22	481598	Spring, Helper (61" & 72" Cutter Decks Only)
23	422451	Foot Pedal, Height Adjustment
24	04020-09	Nut, Hex 5/8-11
25	04019 -03	Nut, Hex Serrated Flange 5/16-18
26	04040-09	Flatwasher, 5/8" (.656 x 1.312 x .095)
27	04041-14	Flatwasher, 1" (1.062 x 1.50 x .048)
28	48114-04	Grease Fitting
29	04061-07	Cotter Pin, 3/16 x 1"
30	04021-10	Nut, Hex Elastic Stop 5/16-18
31	04004-44	Stud, 5/8-11 x 22.0"
32	04067-09	Ring Pin, 1/2 x 3.06"
33	04050-08	Ring, Retaining 1" External "E"
34	04021-07	Nut, Hex Elastic Stop 1/2-13
35	04003-11	Bolt, Carriage 3/8-16 x 1-1/4"
36	423463	Bracket, Cutting Height Adjustment
37	04014-03	Screw, Cap 5/16-18 x 3" FHHS
38	481547	Lanyard, Deck Height Pin
39	48540	Chain
40	04001-20	Bolt, Hex Head 3/8-16 x 1-1/2"
41	04019-04	Nut, Hex Serrated Flange 3/8-16
42	04050-10	Ring, Retaining 1/2" External "E"
43	04001-74	Bolt, Hex Head 1/2-13 x 3"
44	04003-04	Bolt, Carriage 5/16-18 x 1"
45	04009-02	Bolt, Shoulder 1/2 x 3/4"

SHEET METAL COMPONENTS

STT 2005 SMC

SHEET METAL COMPONENTS

Ref. No.	Part No.	Description	Ref. No.	Part No.	Description
1	451481	Fender Weldment, RH	43	482625	Rim Assembly, 52A (Includes item 55)
2	04001-09	Bolt, Hex Head, 5/16-18 x 1, Zinc		482620	Rim Assembly, 61A & 72A (Inc. item 55)
3	43606	Spacer	44	04041-07	Flatwasher, 3/8"-.391 x .938 x .105
4	04041-07	Flatwasher, 3/8-.391 x .938 x .105	45	481284	Bumper, Rubber
5	451650	Seat Plate Weldment	46	48566	Cable, Seat Stop
6	482597	Seat Assembly w/armrest	47	04001-59	Bolt, Hex Head 1/4-20 x 1-1/4"
7	04001-45	Bolt, Hex Head 3/8-16 x 2.0"	48	04019-02	Nut, Hex Serrated Flange 1/4-20
8	04021-09	Nut, Elastic Stop 3/8-16	49	482502	Seat Adjustment, Track Set
9	48015	Battery	50	461453	Caster Wheel Assy (Inc. 31 thru 43)
10	48903	Pad, Battery Cover			52A (RH)
11	421274	Cover, Battery		461446	Caster Wheel Assy (Inc. 31 thru 43)
12	04003-12	Bolt, Carriage 5/16-18 x 3/4"			52A (LH)
13	423308	Plate, Battery Box		461447	Caster Wheel Assy (Inc. 31 thru 43)
14	04029-01	Wing Nut, 1/4-20 x 3/4"			61A (LH)
15	04019-03	Nut, Hex Serrated Flange 5/16-18		461448	Caster Wheel Assy (Inc. 31 thru 43)
16	04003-01	Bolt, Carriage 1/4-20 x 6"			61A (RH)
17	48661	Rubber Pad		461449	Caster Wheel Assy (Inc. 31 thru 43)
18	43584	Spacer, Caster Wheel			72A (LH)
19	04003-04	Bolt, Carriage 5/16-18 x 1"		461450	Caster Wheel Assy (Inc. 31 thru 43)
20	482622	Seal			72A (RH)
21	04021-09	Lock Nut, 3/8-16, Elast. Stop	51	482614	Back Cushion Cover
22	461702	Main Frame	52	482615	Seat Cushion Cover
23	04019-04	Nut, Hex Serrated Flange 3/8-16	53	482618	Arm Rest, Right Hand
24	04017-27	Screw, Hex Serrated Flange 3/8-16 x 1"		482617	Arm Rest, Left Hand
25	451480	Fender Weldment, LH		482616	Arm Rest Cover
26	423489	Foot Plate	54	482621	Bearing w/ Race
27	04021-09	Nut, Hex Elastic Stop 3/8-16	55	48114-07	Grease Fitting
28	04001-19	Bolt, Hex Head 3/8-16 x 1"	56	481389	Spring, Seat
29	04001-125	Bolt, Hex Head 5/8-11 x 4"	57	43462	Pin Retainer, Spring
30	04021-13	Nut, Hex Elastic Stop 5/8-11	58	04060-01	Roll Pin, Spring 5/32 x 3/4"
31	481559	Cap, Grease	59	9270	Suspension Seat Assembly
32	04021-20	Nut, Hex Elastic Stop 1.0-14	60	482950	Armrest Only
33	481657	Bearing W/Race		482945	Armrest Assembly Kit, LH
34	482028-01	Plug, 1/4-28 THD Form		482946	Armrest Assembly Kit, RH
35	451449	Extension Weldment, Caster 52A (LH)	61	482941	Seat Cusion Kit
	451450	Extension Weldment, Caster 52A (RH) & 61A (LH)	62	482944	Seat Drain Kit (Included with Seat Cusion)
	451451	Extension Weldment, Caster 61A (RH)		482948	Weight Adjustment Kit
	451452	Extension Weldment, Caster 72A (LH)	63	482952	Knob Kit
	451453	Extension Weldment, Caster 72A (RH)	64	482942	Seat Adjustment, Track Set
36	481025	Seal, 2.00 OD. x 1.625 Bore	65	482943	Shock Absorber Kit
37	04021-07	Nut, Hex Elastic Stop 1/2-13		482948	Lumbar Kit
38	45934	Yoke Weldment, Caster (52A)	66	482940	Knob Kit
	451416	Yoke Weldment, Caster (61A & 72A)	67	9240	Back Cusion Kit
39	04001-134	Bolt, Hex Head 1/2-13 x 7-1/2" (52A)	68	423674	Cup Holder Assembly
	04001-167	Bolt, Hex Head 1/2-13 x 9-1/2" (61A & 72A)	69	04001-01	Mounting Bracket, STT Cup Holder
40	43581	Sleeve, Caster Wheel (52A)	70	04021-08	Bolt, Hex Head 1/4-20 x 3/4"
	43583	Sleeve, Caster Wheel (61A, 72A)			Nut, Elastic Stop 1/4-20
41	482503	Wheel Assy, 52A (Inc.items 20, 42, 43, 54, 55)
	482504	Wheel Assy, 61A, 72A (Inc. 20, 42, 43, 54, 55)
42	481613	Tire, 13 x 5.00 4-Ply (52A)
	482619	Tire, 13 x 6.50 4-Ply (61A, 72A)

STT ROLL OVER PROTECTION SYSTEM - WITHOUT SUSPENSION SEAT

STT 2005 ROPS without Suspension Seat

STT ROLL OVER PROTECTION SYSTEM - WITHOUT SUSPENSION SEAT

Ref. No.	Part No.	Description
1	461817	STT, ROPS
2	04001-82	Bolt, Hex Head 1/2-13 x 4-1/2”
3	04021-19	Nut, Center Lock 1/2-13
4	04040-13	Flatwasher, 1/2-.562 x 1.375 x .109
5	483150	Seat Belt

STT ROLL OVER PROTECTION SYSTEM - WITH SUSPENSION SEAT

STT ROLL OVER PROTECTION SYSTEM - WITH SUSPENSION SEAT

Ref. No.	Part No.	Description
1	461817	STT, ROPS
2	04001-82	Bolt, Hex Head 1/2-13 x 4-1/2”
3	04021-19	Nut, Center Lock 1/2-13
4	04001-178	Bolt, Hex Head 7/16-20 x 1”
5	04040-11	Flatwasher, 7/16-.500 x 1.25 x .083
6	483150	Seat Belt
7	04001-45	Bolt, Hex Head 3/8-16 x 2”
8	04041-07	Flatwasher, 3/8-.391 x .938 x .105
9	43606	Sleeve, Seat Base Mounting
10	04021-09	Nut, Elastic Stop 3/8-16
11	04001-09	Bolt, Hex Head 5/16-18 x 1”
12	461821	Bracket, Seat Hold Down with Decal
13	04030-05	Lockwasher, 7/16
14	04019-03	Nut, Serrated Flange 5/16-18
15	04040-13	Flatwasher, 1/2-.562 x 1.375 x .109

DECK DRIVE COMPONENTS

DECK DRIVE COMPONENTS

Ref. PartNo. No.		Description	Ref. PartNo. No.		Description
1	423925	Belt Guard, Rear	38	482424	Driveshaft (Air Cooled Engine)
2	481531	Hinge, Belt Guard		482438	Driveshaft (Liquid Cooled Engine)
3	481309	Latch, Hood	39	04012-08	Set Screw, 3/8-16 x 3/4" Torx Socket
4	482845	Rod Assembly, Clutch Anti-Rotation	40	04011-11	Screw, #10-32 x .56
5	48030-09	Clamp, Cable	41	04041-07	Flatwasher, 3/8-.391 x .938 x .105
6	461661	Clutch, Ogura GT-3.5	42	04069-01	Pin, Rue Cotter 3/8 Dia.
	461662	Clutch, Ogura GT-5 (31BV)	43	43507	Stud, Anti Rotation
7	482876	Belt, Deck Drive		43651	Stud, Anti Rotation (BV only)
8	483088	Spring, Transmission Idler	44	451696	Pump Mounting Plate Weldment (Air Cooled)
9	48181	Pulley, Idler 5" Dia.		451684	Pump Mounting Plate Weldment (Liquid Cooled)
10	481536	Tapered Hub, 1" Bore	45	04019-04	Nut, Serrated Flange 3/8-16
11	482949	Pulley, 6.70 Tapered Bore	46	04019-02	Nut, Serrated Flange 1/4-20
12	481884	Tapered Hub, 17mm Bore	47	04003-07	Bolt, Carriage 1/4-20 x 1/2"
13	483085	Belt, Pump Drive STT	48	04021-22	Nut, Elastic Stop 5/16-18 Grade 8
	483086	Belt, Pump Drive (29DFI, 31BV)	49	04001-176	Bolt, Hex Head 5/16-18 x 1-3/4" Grade 8
14	482655	Pulley, Idler 4" Dia.	50	04063-06	Key, 1/4 x 1/4 x 1-1/2"
15*	483082	Pulley, 4.55 Dia. - 1.125 Bore	51	04001-171	Bolt, Hex Head 3/8-16 x 4-1/2" Grade 8 Black
	483083	Pulley, 5.35 Dia. - 1.125 (29DFI)	52	04043-04	Washer, 3/8 Hardened
16	43631	Spacer, Idler Bearing	53	04001-135	Bolt, Hex Head 3/8-16 x 1-3/4" Grade 8 Black
17	04063-14	Key, 5.0 x 5.0 x 25mm	54	04001-136	Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black
18	48224	Ball Bearing	55	04001-170	Bolt, Hex Head 3/8-16 x 2-1/2" 1.5 Thread Grd.8
19	481284	Bumper, Rubber	56	04021-05	Nut, Center Lock 3/8-16
20	482752	Pulley, 6.25 OD Tapered Bore	57	04001-136	Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black
	482745	Pulley, (29DFI & 31BV Only)	58	04021-09	Nut, Elastic Stop 3/8-16
21	482667	Spring, PTO	59	04001-45	Bolt, Hex Head 3/8-16 x 2"
22	461609	Idler Arm Weldment, PTO Drive	60	04001-109	Bolt, Hex Head 1/4-20 x 1-3/8"
23	43632	Pivot, Idler PTO	61	04030-02	Lockwasher, 1/4 Spring
24	461697	Spindle Assembly, Deck Drive	62	04001-101	Bolt, Hex Head 7/16-20 x 2-1/2" UNF
25	481035	Nut, 1.06-18 Thread	63	04030-05	Lockwasher, 7/16 Spring
26	43297	Spindle Bushing, Bottom	64	04041-28	Flatwasher, 7/16-.469 x 1.75 x .25
27	481025	Seal, 2.0 OD x 1.625 Bore	65	04001-172	Bolt, Hex Head 1/4-20 x 1" Grade 8
28	481022	Roller Bearing Tapered	66	04001-21	Bolt, Hex Head 3/8-16 x 1-3/4"
29	43312	Spacer, Outside	67	04019-03	Nut, Serrated Flange 5/16-18
30	43296	Spacer, Inside	68	04021-09	Nut, Elastic Stop 3/8-16
31	48114-04	Grease Fitting, 1/4-28	69	04001-19	Bolt, Hex Head 3/8-16 x 1"
32	48677	Relief Fitting	70	04021-05	Nut, Center Lock 3/8-16
33	43644	Spindle Housing	71	04001-21	Bolt, Hex Head 3/8-16 x 1-3/4"
34	481022	Roller Bearing Tapered	72	04063-02	Key, 1/4 x 1/4 x 2-1/4"
35	481024	Seal, 2.0 OD x 1.5 Bore	73	04063-20	Key, 1/4 x 1/4 x 1"
36	43534	Shaft, Deck Drive	74		Bracket
37	461608	Idler Arm Weldment, Pump Drive	75		Spacer
			76		Bolt

15* For Briggs & Stratton Big Block Vanguard Engine, reference Service Parts Information Sheet found on the following page.

SERVICE PARTS INFORMATION SHEET 11

Part #: 485866 & 485867

Issue Date: 1/1/2017

PARTS AFFECTED: 485866 - Pulley, 5.35" Dia. - 1.125" Bore (STT) 485877 - Pulley, 5.67" Dia. - 1.125" Bore (STTII)

SITUATION: We have made a change to the pump drive pulley used on all STT (Turf Tiger) and STTII (Turf Tiger II) models equipped with the Briggs & Stratton Big Block Vanguard engine.

SOLUTION: When replacing the pump drive pulley on units equipped with the Briggs & Stratton Big Block Vanguard engine, use the part number listed below by machine serial number range.

SERIAL NUMBER RANGE: All new and sold machines with a serial number in the following ranges:

MODEL NO.	SERIAL NUMBER	PULLEY PART NUMBER
STT61A-31BV-SS	A6700001 to A6799999	485866
STT61A-35BV-SS	A8900001 to A8999999	485866
STT-35BV-SS	A9000001 to D8299999	485866
STT-31BV-SS	A9600001 to A9699999	485866
STT61V-35BV-SS	B7000001 to C8099999	485866
STT61V-35BVAC-SS	C0200001 to E5401775	485866
STT-35BVAC-SS	E5500001 to E5599999	485866
STT61V-35BVAC	F6300001 to K2299999	485866
STT-35BVAC	F6700001 to J0499999	485866
STT72V-35BVAC	K2700001 to K2799999	485866
STTII-61V-35BV	M0500001 to M0599999	485867
STTII-72V-35BV	M0900001 to M0999999	485867

ENGINE AND ATTACHING PARTS - KOHLER

ENGINE AND ATTACHING PARTS - KOHLER

Ref. No.	Part No.	Description
1	422593	Muffler Guard
2	04017-05	Screw, Hex Serrated Flange 1/4-20 x 3/4"
3	*	Muffler, Part Of Engine (Available only through Kohler)
4	482510	Oil Drain Extension
5	04110-01	U-Nut, 1/4-20
6	424063	Rear Cover
7	483072	Hour Meter
8	482890	Engine, Kohler 27 CH (Available only through Kohler, Eng. Spec. PS-CH740-0041)
9	04001-19	Bolt, Hex Head 3/8-16 x 1"
10	04030-04	Lockwasher, 3/8" Spring
11	04001-21	Bolt, Hex Head 3/8-16 x 1-3/4"
12	04021-09	Nut, Hex Elastic Stop 3/8-16
13	04001-32	Bolt, Hex Head 3/8-16 x 1-1/4"
14	451459	Plate, Engine Mounting
15	04003-12	Bolt, Carriage 5/16-18 x 3/4"
16	04019-03	Nut, Hex Serrated Flange 5/16-18

ENGINE & ATTACHING PARTS - 27HP, 29HP-DFI KA & 31BV

STT 2005 EAPKA

ENGINE & ATTACHING PARTS - 27HP, 29HP-DFI KA & 31BV

Ref. No.	Part No.	Description
1	451378	Muffler Guard (Kawasaki)
	422593	Muffler Guard (31BV Briggs & Stratton)
2	04017-05	Screw, Hex Serrated Flange 1/4-20 x 3/4"
3	482699	Muffler (Kawasaki)
	482860	Muffler (31BV Briggs & Stratton)
4	451421	Screen Weldment, Radiator (Kawasaki Only)
5	04110-01	U-Nut, 1/4-20
6	483072	Hour Meter
7	482351	Oil Drain, 2.6" (Kawasaki Only)
	483017	Oil Drain, (BV Only)
8	482809	Engine, Kawasaki 27KA (Available only through Kawasaki)
	482810	Engine, Kawasaki 29KA-DFI (Available only through Kawasaki)
	482801	Engine, Briggs & Stratton 31HP V-Twin Air Cooled (Avail. only through B & S)
9	04002-18	Bolt, M10-1.50 x 25 Grade 8.8
10	04030-04	Lockwasher, 3/8" Spring
11	04001-21	Bolt, Hex Head 3/8-16 x 1-3/4"
12	04021-09	Nut, Hex Elastic Stop 3/8-16
13	04001-32	Bolt, Hex Head 3/8-16 x 1-1/4"
14	451454	Plate, Engine Mounting
15	04003-12	Bolt, Carriage 5/16-18 x 3/4"
16	04019-03	Nut, Hex Serrated Flange 5/16-18
17	424063	Rear Cover

BRAKE AND STEERING COMPONENTS

BRAKE AND STEERING COMPONENTS

Ref. No.	Part No.	Description	Ref. No.	Part No.	Description
1	482340	Grip, Handle Bar	43	481548	Grip, Parking Brake
2	461386	Handle Bar (Includes item 1)	44	04001-22	Bolt, Hex Head 3/8-16 x 2-3/4"
3	04001-32	Bolt, Hex Head 3/8-16 x 1-1/4"	45	04019-04	Nut, Hex Serrated Flange 3/8-16
4	04030-04	Lockwasher, 3/8"	46	48343-04	Clevis, Traction Control
5	04041-07	Flatwasher. 3/8" (.391 x .938 x .105)	47	04064-02	Pin, Clevis 3/8-16 x 1-1/16"
6	422372	Bar, Control Lever	48	04061-02	Pin, Cotter 3/32 x .75
7	451483	Control Lever Weldment, LH	49	04004-34	Rod, Parking Brake
	451484	Control Lever Weldment, RH	50	48544	Rod End, LH Thread
8	04001-17	Bolt, Hex Head 5/16-18 x 2"	51	48796	Bushing, Self Align
9	04021-10	Nut, Hex Elastic Stop 5/16-18	52	04001-08	Bolt, Hex Head 5/16-18 x 3/4"
10	04001-45	Bolt, Hex Head 3/8-16 x 2"	53	04001-147	Bolt, Hex Hd 3/8-24 x 5-1/4", 23/4" Thrd
11	04021-09	Nut, Hex Elastic Stop	54	481637	Switch
12	423488	Mount, Control Linkage	55	04010-12	Screw, Hex SLTD WSHR Head #10 32 x 3/4"
13	48224	Ball Bearings, Neutral Return	56	461471	Brake Linkage, LH
14	43607	Spacer		461472	Brake Linkage, RH
15	04069-01	Pin, Rue Cotter 3/8 Dia.	57	45953	Bellcrank, Brake Actuator
16	04001-13	Bolt, Hex Head, 5/16-18 x 2.75 Zinc.	58	48807	Spring
17	04021-13	Nut, Hex Elastic Stop 5/8-11	59	04001-163	Bolt, Hex Head 1/2-13 x 3-3/4"
18	461601	Bracket, Control Lever LH	60	04021-19	Locknut, Hex 1/2-13 Center Lock
	461602	Bracket, Control Lever RH	61	04001-52	Bolt, Hex Head 1/2-13 x 2-1/2"
19	04003-04	Bolt, Carriage 5/16-18 x 1"	62	482639	Wheel Motor, Ross
20	43600	Spacer, Bearing	63	04001-12	Bolt, Hex Head, 5/16-18 x 1.75, Zinc
21	04003-12	Bolt, Carriage 5/16-18 x 3/4"	64	481601	Brake Band Assembly
22	04019-03	Nut, Hex Serrated Flange 5/16-18	65	04064-16	Pin, Clevis 3/8" Dia. x 1.93"
23	04050-01	Ring, Retaining 5/8" External "E"	66	43063	Spacer
24	43602	Spacer	67	461438	Wheel Hub/Brake Drum Assembly
25	45918	Bracket, Neutral Return	68	04063-25	Key, Woodruff 5/16 x 1"
26	04003-02	Bolt, Carriage 1/4-20 x 3/4"	69	481552	Wheel Assembly 23 x 10.5-12 (52" Only)
27	04040-14	Flatwasher, 1/4" (.312 x .750 x .065)		481659	Rim W/Valve Stem (52" Only)
28	04021-08	Nut, Hex Elastic Stop 1/4-20		481660	Tire, 23 x 10.5-12 (52" Only)
29	43477	Pin, Retaining Spring		481850	Wheel Assembly 24 x 12-12 Turf Master
30	481389	Spring		481851	Rim W/Valve Stem
31	04060-01	Roll Pin, Spring 5/32 x 3/4"		481852	Tire, 24 x 12-12 Turf Master
32	04061-06	Pin, Cotter 9/16 x 1-1/2"	70	04028-02	Lug Nut, 1/2-20
33	482586	Rod End, Male 3/8-24 RH Thread	71	48680	Nut, Hex Castle
34	04020-25	Nut, 3/8-24 RH Thread	72	422373	Threaded Plate
35	43629	Tube, Control Link Air Cooled Engine	73	04001-20	Bolt, Hex Head 3/8-16 x 1-1/2"
	43624	Tube, Control Link Liquid Cooled Engine	74	423279	Plate Weldment, Motor Backing
36	04020-26	Nut, Hex 3/8-24 LH Thread	75	423491	Actuator Switch
37	482585	Rod End, Male 3/8-24 LH Thread	76	04017-16	Bolt, Hex Serrated Flange 5/16-18 x 3/4"
38	04021-10	Locknut, 5/16-18, Elastic Stop	77	04003-36	Bolt, Carriage 3/8-16 x 4-3/4"
39	482794	Gas Damper	78	04001-19	Bolt, Hex Head 3/8-16 x 1"
40	04001-31	Bolt, Hex Head 3/8-16 x 2-1/2"	79	481638	Switch
41	48114-04	Grease Fitting	80	04001-168	Bolt, Hex Head 3/8-16 x 1-1/4" Grade 8
42	461082	Lever, Parking Brake (Includes item 43)

FUEL AND HYDRAULIC SYSTEM

FUEL AND HYDRAULIC SYSTEM

Ref. PartNo. No.		Description	Ref. PartNo. No.		Description
1	04110-01	U-Nut 1/4-20	34	48350-05	Elbow, 90 Degree, 7/8-14 THD
2	48136-13	Hose Clamp, 0.69 dia.	35	48938-02	Bushing, 7/8-14 JIC x 3/4-16 O-Ring
3	04001-03	Bolt, Hex Head 1/4-20 x 2.0"	36	423701	Support Bracket, Fuel Tank
4	48811	Hose, 3/8" ID Pushlock - (order by inch)	37	04019-03	Nut, 5/16-18 Serrated Flange
5	48136-07	Clamp, Hose 1/2"	38	04003-02	Bolt, Carraige 1/4-20 x 3/4"
6	482266-01	Elbow, 90 Degree - 9/16 O-ring x 3/8 Hose	39	482574	Elbow, 90 Degree
7	482266-02	Elbow, 90 Degree - 3/4 O-ring x 3/8 Hose		482573	Bushing, .78 Dia. Viton
8	482417	Oil Filter Base	40	423513	Strap, Hydraulic Tank
9	482606	Hose Assembly, 1/2" ID (Tank to Filter Base)	41	423485	Support Bracket, Hydraulic Tank
10	**	Fuel Hose to Carb.	42	481611	Hose Assembly, Pump
11	**	Fuel Filter	43	48572-04	Union, 3/4-16 JIC x 3/4-16 O-ring
12	48058	Fuel Hose, 1/4" ID. (order by inch)	44	04001-59	Bolt, Hex Head, 1/4-20 x 1-14"
13	481308	Valve, Shutoff Kawasaki	45	04030-02	Lockwasher, 1/4" Spring
	481753	Valve, Shutoff Kohler	46	04060-09	Roll Pin, Spring 3/16 x 3/4"
14	48059-01	Clamp, Fuel Hose	47	04017-05	Bolt, Hex Serrated Flange, 1/4-20 x 3/4"
15	48058	Fuel Hose, 1/4" ID. (order by inch)	48	48136-13	Clamp, .69 Dia.
16	481602	Hose Fitting	49	422694	Clamp Plate, Pump Control Block,
17	48309	Bushing	50	481793	Pump Control
18	04001-09	Bolt, Hex Head 5/16-18 x1.0" Zinc	51	482695	Pump, Left Hand, BDP-16A-410
19	04019-03	Nut, Serrated Flange 5/16-18		483100	Pump, Left Hand, BDP-16A (29DFI & 31BV)
20	48758	Oil Filter	52	04021-09	Nut, Hex, Elastic Stop 3/8-16
21	482483	Tee, 3/4 O-ring x JIC x 1/2" Hose	53	04001-32	Bolt, Hex Head, 3/8-16 x 1-1/4
22	04021-08	Nut, Hex Elastic Stop 1/4-20	54	482696	Pump, Right Hand, BDP 16A-307
23	481164	Cap, Hydraulic Tank		483101	Pump, Right Hand, BDP-16A (29DFI & 31BV)
24	481507	Insert, Filler Neck	55	482497	Cap, FuelTank W/Guage
25	48603-02	O-Ring	56	04021-09	Nut, Hex Elastic Stop 3/8-16
26	461451	Oil Reservoir Assembly (includes 24, 27, 39)	57	04043-04	Flatwasher, 3/8" (.391 x .938 x .105) Grade 8
27	482572	Elbow, 90 Degree .38 Hose	58	423524	Mounting Bracket - LH, Oil Cooler
	482571	Bushing, .56 Dia. Viton		423944	Mounting Bracket - LH, Oil Cooler (31BV Only)
28	48136-13	Hose Clamp, 0.69 dia.		423525	Mounting Bracket - RH, Oil Cooler
29	48811	Hose, 3/8" ID, Pushlock (order by inch)		423945	Mounting Bracket - RH, Oil Cooler (31BV Only)
30	04010-10	Screw, Phillips Head, 1/4-20	59	04001-08	Bolt, Hex Head 5/16-18 x 3/4"
31	48571-02	Cap	60	482505	Cooler, Oil
32	461751	Fuel Tank Assembly (includes items 23 & 24)
33	48136-05	Clamp, Hose

** Available through the individual engine manufacturer.

Ref. PartNo. No.		Description	Ref. PartNo. No.		Description
1	04110-01	U-Nut 1/4-20	35	48938-02	Bushing, 7/8-14 JIC x 3/4-16 O-Ring
2	48136-13	Hose Clamp, 0.69 dia.	36	423701	Support Bracket, Fuel Tank
3	04001-03	Bolt, Hex Head 1/4-20 x 2.0"	37	04019-03	Nut, 5/16-18 Serrated Flange
4	48811	Hose, 3/8" ID Pushlock - (order by inch)	38	04003-02	Bolt, Carraige 1/4-20 x 3/4"
5	48136-07	Clamp, Hose 1/2"	39	482574	Elbow, 90 Degree
6	482266-01	Elbow, 90 Degree - 9/16 O-ring x 3/8 Hose		482573	Bushing, .78 Dia. Viton
7	482266-02	Elbow, 90 Degree - 3/4 O-ring x 3/8 Hose	40	423513	Strap, Hydraulic Tank
8	482417	Oil Filter Base	41	423485	Support Bracket, Hydraulic Tank
9	482606	Hose Assembly, 1/2" ID (Tank to Filter Base)	42	481611	Hose Assembly, Pump
10	48136-05	Clamp, .87 max Dia.	43	48572-04	Union, 3/4-16 JIC x 3/4-16 O-ring
11	**	Fuel Filter, Kawasaki (p/n 49019-1055)	44	04001-59	Bolt, Hex Head, 1/4-20 x 1-14"
12	481178	Fuel Hose, 5/16" ID. (order by inch)	45	04030-02	Lockwasher, 1/4" Spring
13	481308	Valve, Shutoff Kawasaki	46	04060-09	Roll Pin, Spring 3/16 x 3/4"
14	48059-01	Clamp, Fuel Hose	47	04017-05	Bolt, Hex Serrated Flange, 1/4-20 x 3/4"
15	481178	Fuel Hose, 5/16" ID. (order by inch)	48	481178	Fuel Hose, 5/16" ID. (order by inch)
16	481312	Hose Fitting	49	422694	Clamp Plate, Pump Control
17	48309	Bushing	50	481793	Block, Pump Control
18	04001-09	Bolt, Hex Head 5/16-18 x1.0" Zinc	51	483100	Pump, Left Hand, BDP-16A
19	04019-03	Nut, Serrated Flange 5/16-18	52	04021-09	Nut, Hex, Elastic Stop 3/8-16
20	48758	Oil Filter	53	04001-32	Bolt, Hex Head, 3/8-16 x 1-1/4
21	482483	Tee, 3/4 O-ring x JIC x 1/2" Hose	54	483101	Pump, Right Hand, BDP 16A
22	04021-08	Nut, Hex Elastic Stop 1/4-20	55	482497	Cap, Fuel Tank W/Guage
23	481164	Cap, Hydraulic Tank	56	04021-09	Nut, Hex Elastic Stop 3/8-16
24	481507	Insert, Filler Neck	57	04043-04	Flatwasher, 3/8" (.391 x .938 x .105) Grade 8
25	48603-02	O-Ring	58	423524	Mounting Bracket - LH, Oil Cooler
26	461451	Oil Reservoir Assembly (includes 24, 27, 39)		423525	Mounting Bracket - RH, Oil Cooler
27	482572	Elbow, 90 Degree .38 Hose	59	04001-08	Bolt, Hex Head 5/16-18 x 3/4"
	482571	Bushing, .56 Dia. Viton	60	482505	Cooler, Oil
28	48136-13	Hose Clamp, 0.69 dia.	61	48136-13	Clamp, .69 Dia.
29	48811	Hose, 3/8" ID, Pushlock (order by inch)	62	482702	Hose, Fuel Line (order by inch)
30	04010-10	Screw, Phillips Head, 1/4-20	63	**	Adapter, 1/2" - 5/16" (p/n 59071-2141)
31	48571-02	Cap	64	48058	Hose, 1/4" Fuel Line (order by inch)
32	461586	Fuel Tank Assembly (incl. items 16, 17, 65, 66)	65	482703	Fitting, Hose
33	48136-05	Clamp, Hose	66	48309	Bushing
34	48350-05	Elbow, 90 Degree, 7/8-14 THD	67	**	Fuel Pump, Kawasaki 29DFI
			68	481178	Fuel Hose, 5/16" ID. (order by inch)

** Available through the individual engine manufacturer.

BDP-16A HYDRAULIC PUMP ASSEMBLY

BDP-16A HYDRAULIC PUMP ASSEMBLY

Ref. No.	Part No.	Description
1	HG70740	Overhaul Seal Kit
2	HG51455	Valve Plate
3	HG70735	Cylinder Block Kit - 16cc
4	HG51462	Thrust Ball Bearing Assembly
5	HG51436	Variable Swashplate
6	HG2000015	Slot Guide
7	HG2000014	Trunnion Arm
8	HG2000025	Block Spring
9	HG2000024	Block Thrust Washer
10	HG2000032	Shaft Ball Bearing
11	HG2000023	Spacer
12	HG2000038	Retaining Ring
13	HG51092	Seal
14	HG70581	Kit, Pump Shaft
15	HG70738	Housing Kit
16	HG70739	Trunnion Seal Kit
17	HG50641	Pin
18	HG51437	O-Ring
19	HG9005110-7500	Straight Thread Plug
20	HG70743	Shock Valve Kit (.031 Orifice)
21	HG70742	Shock Valve Kit (.024 Orifice)
22	HG9005200-7500	Straight Thread Plug
23	HG70736	End Cap Kit
24	HG2513030	Bypass Valve Kit
25	HG9004100-1430	O-Ring
26	HG50406	Gerotor Assembly (.19 cu.in./rev.)
27	HG50173	Socket Head Cap Screw (M8 x 1.25-25mm)
28	HG2510071	Charge Pump Kit (.19 STD. Splined)
29	HG51457	Hex Screw, Flanged Head (M10 x 1.50-65mm)
30	HG70402	Charge Relief Kit

BDP-16A HYDRAULIC PUMP ASSEMBLY WITH COOLING FAN (29DFI & 31BV ONLY)

BDP-16A HYDRAULIC PUMP ASSEMBLY WITH COOLING FAN (29DFI & 31BV ONLY)

Ref. No.	Part No.	Description
1	HG70740	Overhaul Seal Kit
2	HG51455	Valve Plate
3	HG70735	Cylinder Block Kit - 16cc
4	HG51462	Thrust Ball Bearing Assembly
5	HG51436	Variable Swashplate
6	HG2000015	Slot Guide
7	HG2000014	Trunnion Arm
8	HG2000025	Block Spring
9	HG2000024	Block Thrust Washer
10	HG2000032	Shaft Ball Bearing
11	HG2000023	Spacer
12	HG2000038	Retaining Ring
13	HG51092	Seal
14	HG70578	Kit, Pump Shaft (keyed thru taper)
15	HG70738	Housing Kit
16	HG70739	Trunnion Seal Kit
17	HG50641	Pin
18	HG51437	O-Ring
19	HG9005110-7500	Straight Thread Plug
20	HG70743	Shock Valve Kit (.031 Orifice)
21	HG70742	Shock Valve Kit (.024 Orifice)
22	HG9005200-7500	Straight Thread Plug
23	HG70736	End Cap Kit
24	HG2513030	Bypass Valve Kit
25	HG9004100-1430	O-Ring
26	HG50406	Gerotor Assembly (.19 cu.in./rev.)
27	HG50173	Socket Head Cap Screw (M8 x 1.25-25mm)
28	HG70924	Charge Pump Kit (.19 STD. Splined)
29	HG51457	Hex Screw, Flanged Head (M10 x 1.50-65mm)
30	HG70402	Charge Relief Kit
31	HG70916	Fan Kit (incl. items 32, 33, 34, 35, 36, 37)
32	HG51348	Hub
33	HG52016	Bracket, Shroud
34	HG52014	Fan
35	HG51389	Washer
36	HG50108	Nut
37	HG52029	Shroud

ELECTRICAL SYSTEM (KOHLER & 31BV)

ELECTRICAL SYSTEM (KOHLER & 31BV)

Ref. No.	Part No.	Description
1	483055	Wire Harness, STT Air Cooled
2	48298	Fuse, 20 AMP
3	48017-02	Key & Ring Assembly
4	48017-04	Nut, Hex 5/8-32
5	48017-03	Lockwasher, 5/8" Internal
6	424027	Instrument Panel, Top w/Decals
7	48798	Key Switch
8	481687	Switch, PTO
9	483013	Relay
10	04031-01	Lockwasher, #10 External Tooth
11	04020-01	Nut, Hex #10-32
12	481755	Ammeter
13	451081	Base, Instrument Panel
14	04030-02	Lockwasher, 1/4"
15	04001-01	Bolt, Hex Head 1/4-20 x 3/4"
16	04110-01	U-Nut, 1/4-20
17	481544	Throttle And Choke Controls (Kohler)
	481662	Throttle And Choke Controls (31BV Briggs & Stratton)
18	04010-01	Screw, Phillips Washer Head #10-32 x 1/2"
19	481638	Switch, Interlock-Seat
20	04001-44	Bolt, Hex Head 1/4-20 x 1/2"
21	48029-22	Cable, Battery - Red
22	04020-02	Nut, Hex 1/4-20
23	48029-11	Cable, Battery - Black
24	48030-09	Clamp, Cable 1/2" ID.
25	48136-05	Clamp, Cable 3/4" ID.
26	483029	Electronic Module
27	04002-12	Bolt, Hex Head M8-1.25 x 20
28	04031-03	Lockwasher, 5/16" External Tooth
29	48430	Fuse Holder w/Fuse and Connector
	482588	Clip, Fuse Holder
30	482849	Wire Harness Adapter 31BV (Briggs & Stratton Only)

1

2

5

4

3

481568

6

8

9

10

11

14

REPLACEMENT DECALS AND INFORMATION PLATES

Ref. No.	Part No.	Description
1	482285	Decal, Danger-Spinning Blades
2	482286	Decal, Warning-Rotating Blades
3	481954	Decal, 52 Advantage
	481955	Decal, 61 Advantage
	481956	Decal, 72 Advantage
4	482290	Decal, Fuel Tank
5	483044	Decal, Patents
6	481568	Decal, Traction Control
7	481971	Decal, Heavy Duty Commercial
8	48404	Decal, Metalcraft-Made In USA
9	481039	Decal, Belt Cover
10	482515	Decal, Instrument Panel-Upper (Air Cooled)
11	482508	Decal, Instrument Panel-Upper (Kawasaki)
12	482983	Decal, Instrument Panel-Lower
13	482565	Decal, Cutting Height - Lower
14	483046	Decal, Start/Drive Procedure
15	482710	Decal, Seat Support
16	482577	Decal, Turf Tiger
17	481570	Decal, Turf Tiger
18	481664	Decal, Stripes-RH
19	481663	Decal, Stripes-LH
20	481694	Decal, Tiger
21	482165	Decal, Warning
22	482493	Decal, Cutting Height - Upper
23	482984	Decal, Instrument Panel - Lower (Kawasaki 29HP-DFI only)
24	482834	Decal, ROPS

IMPORTANT ADJUSTMENT PROCEDURES

READ OPERATOR'S MANUAL FOR MORE DETAILS

Check tire pressure - (Drive tires-12 psi, Caster tires-25 psi)

NEUTRAL ADJUSTMENT

-Loosen jam nuts-7

With an operator in the seat, engine running, control levers in neutral and the parking brake disengaged - adjust control linkage. Loosen jam nuts. If wheel rotates forward, adjust turnbuckle CCW. If wheel rotates rearward, adjust turnbuckle CW. Adjust until drive wheel stops turning. Tighten jam nuts. Repeat for opposite side.

TRACKING ADJUSTMENT

If the machine pulls to the right, adjust LH control linkage CCW to slow left wheel. If the machine pulls to the left, adjust RH control linkage CCW to slow right wheel. Readjust neutral if necessary.

To move machine without running the engine, rotate both dump valves located at the LH side of the pumps CCW 1/2 turn to "freewheel" positions. Return dump valves to original position to operate the mower. Tighten to 7-10 ft-Lbs.

HYDRAULIC FLUID LEVEL

Check hydraulic fluid level while fluid is cool. Fluid level should be 3" below top of filler neck. Fill with SAE 20W50 motor oil only.

IMPORTANT

Do not overfill. Room for hot fluid expansion must be allowed or resulting expansion may cause leaks in the system.

Gearbox Lubricant:

SAE 80W90 gear off

482710

15

16

17

! WARNING

DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING KIT, OR ENTIRE GRASS CATCHER INSTALLED 482165

21

IMPORTANT

Operation on slopes can be hazardous. See your Scag dealer for available Roll-Over Protective Systems 482834

24

SCAG

20

2004 STT Decals Page2

STT ELECTRICAL SCHEMATIC (KOHLER)

Any part of the Scag commercial mower manufactured by Scag Power Equipment and found, in the reasonable judgment of Scag, to be defective in materials or workmanship, will be repaired or replaced by an Authorized Scag Service Dealer without charge for parts and labor. This warranty is limited to the original purchaser and is not transferable. Proof of purchase will be required by the dealer to substantiate any warranty claims. All warranty work must be performed by an Authorized Scag Service Dealer.

This warranty is limited to the following specified periods from the date of the original retail purchase for defects in materials or workmanship:

* Wear items including drive belts, blades, hydraulic hoses and tires are warranted for ninety (90) days.
* Batteries are covered for ninety (90) days.
* Frame and structural components including oil reservoir, fittings, and oil coolers are warranted for 2 years (Parts and labor 1st year; Parts only 2nd year).
* Cutter decks are warranted against cracking for a period of three (3) years. (Parts and labor 1st year; Parts only 2nd and 3rd year) The repair or replacement of the cutter deck will be at the option of Scag Power Equipment. We reserve the right to request components for evaluation. This warranty does not cover any mower that has been subject to misuse, neglect, negligence, or accident, or that has been operated in any way contrary to the operating instructions as specified in the Operator's Manual.
* Engines and electric starters are covered by the engine manufacturer's warranty period.
* Major drive system components are warranted for two (2) years by Scag Power Equipment. (Parts and labor 1st year; Parts only 2nd year) (Two year warranty exclude fittings, hoses, drive belts). The repair or replacement of the hydraulic pump or hydraulic motor will be at the option of Scag Power Equipment. This warranty does not cover any mower that has been subject to misuse, neglect, negligence, or accident, or that has been operated in any way contrary to the operating instructions as specified in the Operator's Manual.
* Electric clutches have a Limited Warranty for 2 year (Parts and labor 1st year; Parts only 2nd year).
* Cutter Spindle Assemblies 46631 have a Limited Warranty for three years (Parts and labor 1st year; Parts only 2nd and 3rd year).
* Any Scag product used for rental purposes is covered by a 90 day warranty.

The Scag mower, including any defective part must be returned to an Authorized Scag Service Dealer within the warranty period. The expense of delivering the mower to the dealer for warranty work and the expense of returning it to the owner after repair will be paid for by the owner. Scag's responsibility is limited to making the required repairs and no claim of breach of warranty shall be cause for cancellation or rescission of the contract of sale of any Scag mower.

This warranty does not cover any mower that has been subject to misuse, neglect, negligence, or accident, or that has been operated in any way contrary to the operating instructions as specified in the Operator's Manual. The warranty does not apply to any damage to the mower that is the result of improper maintenance, or to any mower or parts that have not been assembled or installed as specified in the Operator's Manual and Assembly Manual. The warranty does not cover any mower that has been altered or modified, changing performance or durability. In addition, the warranty does not extend to repairs made necessary by normal wear, or by the use of parts or accessories which, in the reasonable judgment of Scag, are either incompatible with the Scag mower or adversely affect its operation, performance or durability.

Scag Power Equipment reserves the right to change or improve the design of any mower without assuming any obligation to modify any mower previously manufactured. All other implied warranties are limited in duration to the two (2) year warranty period or ninety (90) days for mowers used for rental purpose. Accordingly, any such implied warranties including merchantability, fitness for a particular purpose, or otherwise, are disclaimed in their entirety after the expiration of the appropriate two year or ninety day warranty period. Scag's obligation under this warranty is strictly and exclusively limited to the repair or replacement of defective parts and Scag does not assume or authorize anyone to assume for them any other obligation. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Scag assumes no responsibility for incidental, consequential or other damages including, but not limited to, expense for gasoline, expense of delivering the mower to an Authorized Scag Service Dealer and expense of returning it to the owner, mechanic's travel time, telephone or telegram charges, rental of a like product during the time warranty repairs are being performed, travel, loss or damage to personal property, loss of revenue, loss of use of the mower, loss of time or inconvenience. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

3.3 TRACTOR (CONTINUATION)

10

61"y72"

Contral de direction/despl

1400 RPM Kohler Y Kawasaki, 1750 RPM Briggs & Station

23HP Kaw, 745 cc., 27HP Kaw, 745 cc., 29HP Kaw, 745 cc.

25HP Kohler 725 cc., 27 HP Kohler 725 cc.

4 ciclos, gasolina, dos cihindros, eye horizontal

31HP a 3800 RPM (Modeles STT61A-31BV-SS, STT72A-31BV-SS)

29HP a 3800 RPM (Modelos STT61A-29DFI-SS, STT72A-29DFI-SS)

STT2A-27KA)

27 HP a 3800 RPM (Modeles STT61A-27KA, STT61A-27CH,

25 HP a 3800 RPM (Modelos STT52A-25CH, STT61A-25CH)

Kohler Command, Kaw. FD671D, Kaw. FD750D, Kaw. FD791D

Briqgs & Station 31HP (5434770113-EI)

Kawasaki, 29HP (Espec. #FD791D-AS03)

Kawasaki, 27HP (Espec. #FD750D-AS04)

Kohler 27HP (Espec. #PS-CH740-0021)

Kohler 25HP (Espec. #PS-CH730-0066)

Exhibit 105 (Figure 3)

empinadas ni cerca de decisives

sa was said, was a scheme

NO permita que personal sin entrenamento opere la maguinia.

control de direction.

1.1 Introduction....1

Secicion 1 - Information general

PAGINA

TEM A

TABLA DE CONTENIDO

SCAG POWER EQUIPMENT®

MODEL STT

POWER EQUIPMENT SCAG
