HYPERPEN 8000U PRO - Graphic tablet AIPTEK - Free user manual and instructions

Product Type	Graphics Tablet
Brand	AIPTEK
Model	HYPERPEN 8000U PRO
Dimensions (approx.)	200 x 150 x 10 mm
Weight (approx.)	300 g
Stylus Power	1 AAA battery (approx. 1 year life)
Tablet Power	USB
Connectivity	USB
Active Area	Approx. 152 x 114 mm (6 x 4.5 inches)
Included Software	Tablet Manager, NetMeeting, CADIX, Pen Soft, Free Notes, Office Ink, Art Dabbler
Operating Systems	Windows (Mac OS 9.0 only)
Pressure Function	Yes, adjustable
Mouse/Stylus Mode	Selectable
Side Buttons	2 customizable buttons
Maintenance	Clean with a dry cloth, avoid chemicals
Safety	Do not wet, do not disassemble, repairs by qualified personnel
Repairability	Refer to a qualified technician

Frequently Asked Questions - HYPERPEN 8000U PRO AIPTEK

Stylus not working on Mac?

The product is only compatible with Mac OS 9.0. For newer versions, the driver is not supported.

Mouse cursor does not move on screen.

Remove the wireless stylus from the tablet. If it is too close, it can block the standard mouse.

Tablet does not work with other peripherals.

Update the existing driver by downloading the latest version from the AIPTEK website.

What is the proximity function?

It is the height between the wireless stylus and the tablet. The stylus remains active up to a few centimeters from the surface.

Which objects should not be placed on the tablet?

Avoid heavy objects and devices operating at frequency (e.g. smartphones), which can cause interference.

The tablet causes interference on the screen.

Leave sufficient space between the tablet and the screen to reduce disturbances.

Stylus does not display all information (information leak).

Access the tablet icon, click on Button then select Pen offset value to test the stylus.

No connection to the computer.

Unplug and replug the USB cable. Ensure the USB port is working.

How to customize the stylus side buttons?

Click on the tablet icon in the taskbar, then on Buttons to assign actions like double-click or right-click.

What is the battery life of the stylus?

The AAA battery lasts approximately one year under normal use. Replace it by opening the stylus compartment.

USER MANUAL HYPERPEN 8000U PRO AIPTEK

The product provides you with good-quality writing and drawing convenience. It offers you 7 kinds of software, including Tablet Manager, NetMeeting, CADIX, Pen Soft, Free Notes, Office Ink and Art Dabbler. With those applications, it's easier for you to interact with your PC and to do more creative works. To make the best use of the product, please read the contents carefully.

Safety Information

Avoid

• Dampening the products.
• Using volatile chemicals to clean the products.
• Dropping the products off the table or to the ground.
• Strongly bumping the products into hard stuffs.
• Stepping on the products.
• Putting heavy stuffs on the products.
• Disassembling the products.

If you find any problems, please have the device repaired by qualified personnel. Do not repair this device by yourself.

Chapter 1: Installation

Hardware

Step 1 Connect the Product with Your PC

Plug the USB cable into the USB port of your PC.

Step 2 Check the Power

Check the small square on the tablet. If the small square shows blinking light, your product is successfully powered.

Step 3 Insert the Battery

Unwind your pen and insert one AAA battery into the compartment, positioning the + and-ends as shown below. Then wind your pen.

Two black cylindrical objects with internal structures, one marked with a plus sign and the other with a minus sign (no text or symbols on the objects themselves)

* The battery life span is around one year.

□ Software

Step 1 Placing the CD driver

Place the installation CD in your CD drive.

Step 2 Showing Tablet

The screen shows the Tablet.

OR

If the screen doesn't show the Tablet, click Start and choose Run. Type "d" or where your CD drive is located and click OK.

Step 3 Choosing the Application You Want

There are7 applications on the Tablet. They are Tablet Driver, Cardix Signature, Net Meeting 3.01, Free Notes, Office Ink and Pen Soft. To use Art Dabbler, please insert the other Art Dabbler CD driver. To choose the application, click the icon beside each application. Please follow the directions on the screen to install.

Note

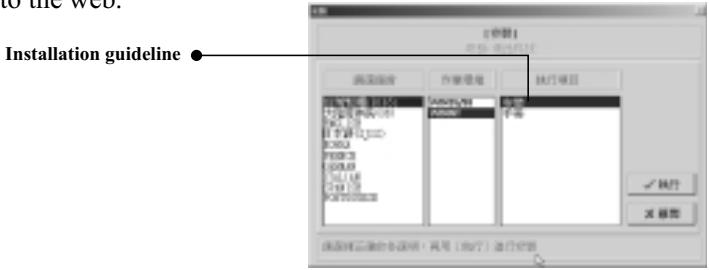

The guidelines of Cardix Signature, Net Meeting 3.01, Pen Soft, Free Notes, Office Ink and Art Dabbler are not included in this user guide. To see more information of the applications, go to the Tablet. As you click the AP icon, the next screen shows the installation guideline icon on the right. This would be ineffective if your PC is unable to connect to the web.

Application	Use
Tablet Driver	Adjusts functions of the tablet and the pen in the Tablet.
Cardix Signature	Supports handwriting signature recognition when opening screen saver.
Net Meeting 3.01	Supports on-line handwriting talk.
Pen Soft	Supports handwriting recognition & annotation functions.
Art Dabbler (in the other CD)	Supports a variety of drawing functions.
Free Notes	Shows your real handwriting and drawing in Email.
Office Ink	Special handwriting inking in any software.

Chapter 2: Getting Started

Step 1 Click on the tablet icon at the bottom right of the tool bar (The tablet icon appears when the cable is plugged in.)

Step 2 You enter the Tablet screen. To select functions, click on buttons on the tool bar.

Using the Pen

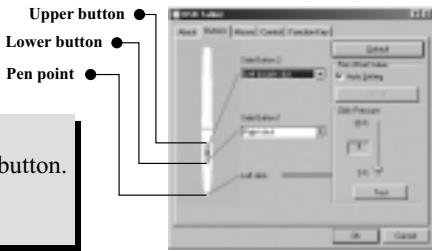

Side buttons/

Click on Buttons to customize side buttons.

Default settings

The upper button = left double-click mouse button.

The lower button = right mouse button.

The pen point = left mouse button.

Pressure/

Move the slide up and down to adjust the pen pressure.

Mouse/

The pen is used as normal handwriting pen or mouse. To change mode, select

"Pen" or "Mouse".

Please put your pen on the hollow of the tablet while idle. If you place the pen on the tablet, the mouse is seriously affected.

Using the Tablet

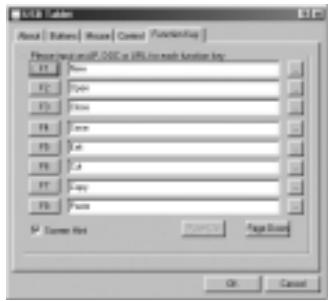

☐ Selecting the function keys

Steps

1. Click on the Function Key icon on the tool bar.
2. Key in the path name or URL.
3. Click "OK".

□ Adjusting the workspace

The workspace of your tablet is in proportion to the size of the screen. To reduce the scope of the workspace, click "Control" and customize the size.

Chapter 3: Q & A

No	Question	Answer
1.	Does Mac support the product?	Only for OS 9.0 version.
2.	Standard mouse can't move on the screen.	Remove the wireless pen from the tablet.
3.	The tablet can't work with the other PC peripherals.	Please go to upgrade new driver.
4.	What is proximity?	It's the height between the wireless pen and the tablet. Within a certain height, the wireless pen is effective on the tablet.
5.	What can't be put on the tablet?	Heavy stuffs or stuffs with frequency.
6.	PC screen is interfered when the tablet placed aside.	Move the tablet away from the PC screen.
7.	The pen has leaking problem	Go to the Tablet icon and click "Button". Then select "Pen offset value" to test the pen.
8.	No connection to the computer	Re-plug in the cable.
