USER MANUAL TKO 115 PEAVEY

Intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: Risk of electrical shock - DO NOT OPEN!

CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture. Before using this appliance, read the operating guide for further warnings.

Used for most electric basses. It is 6 dB louder than the Low Gain Input.

LOW GAIN INPUT (2)

Provided for instruments that have extremely high outputs, which can result in overdriving (distorting) the High Gain Input. If both inputs are used simultaneously, the output levels are the same (both are High Gain).

PRE GAIN (3)

Controls the input gain of the preamplifier.

BRIGHT SWITCH (4)

Provides a preset boost (+10dB) to treble frequencies. To activate, depress the switch to its "in" position.

CONTOUR SWITCH (5)

Defeats the preset special EQ curve when pushed in.

LOW FREQUENCY EQ (6)

An active tone control (shelving type, ± 15 dB) that varies the low frequency boost or cut.

OPERATION NOTE: Excessive EQ boost, especially of the low frequencies, increases the possibility of speaker damage, and sacrifices valuable headroom.

HIGH EQ CONTROL (7)

An active tone control (shelving type, ± 15 dB) that varies the high frequency boost or cut.

GRAPHIC SELECT (8)

The "in" position of this switch routes the instrument signal through the 7-band equalizer. The "out" position removes the graphic equalizer from the signal path.

GRAPHIC EQUALIZER (9)

This seven-band, one octave equalizer provides ± 15 dB of boost or cut at each center frequency.

MASTER VOLUME (10)

Controls the overall volume level of the amplifier. The final level adjustment should be made after the desired sound has been achieved.

CHORUS/EFFECTS SEND (11)

High pass output above 200Hz for supplying signals to external effects or signal processing equipment.

EFFECTS RETURN (12)

Provided for patching an effects device output back into the mixer. May also be used as an independently variable auxiliary input.

PREAMPOUT/POWER AMP IN (13)

These jacks are provided for in-line patching of effects devices. To patch an effects unit, connect the Preamp Output to the Input of the device. Next, connect the output of the device to the Power Amp Input (high-quality shielded cables must be used for these connections). The Preamp Output can also be used to route the amplified signal to a mixing console, tape recorder, etc. Connect the Preamp Output, using a shielded cable, to an input of the tape recorder, mixer, etc. This patch does not affect the operation of the amplifier.

NOTE: The preamp output level is approximately 1 volt RMS and is of relatively low impedance (600 ohms). Any effects device used in this effects loop must be capable of receiving 1 volt input and providing 1 volt output in order to properly drive the power amp. The Power Amp Input has an internal switch which disconnects the internal preamp.

HEADPHONE JACK (14)

This stereo jack allows signal to flow to both sides of any stereo headset.

POWERLED(15)

Illuminates when AC power is being supplied to the amp.

POWER SWITCH (16)

Depress to "On" position to turn on.

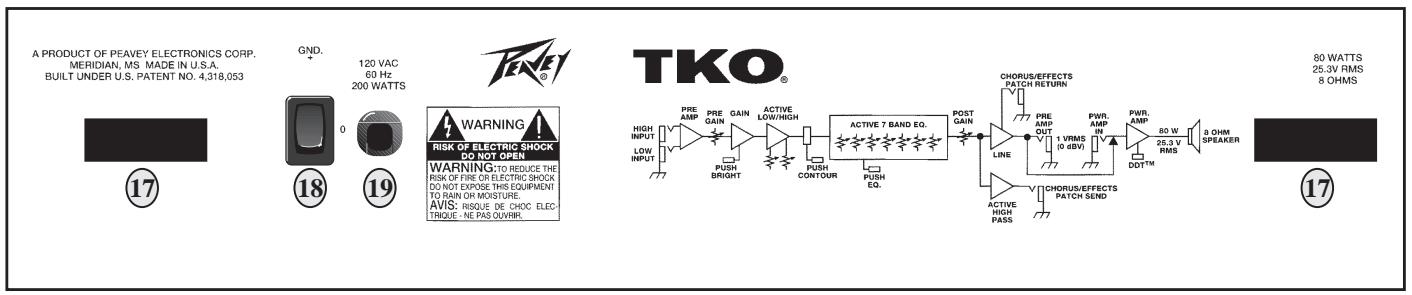

LINE (MAINS) CORD RETAINERS (17)

Allow storage of mains cable for travel.

GROUND SWITCH (18)

Three position rocker-type switch which, in most applications, should be operated in its center or zero position. There may be some situations when audible hum and/or noise will come from the loudspeaker. If this situation arises, position the ground switch to either positive or negative (+ or -) or until the noise is minimized.

NOTE: Should the noise problem continue, consult your Authorized Peavey Dealer, the Peavey Factory, or a qualified service technician. THE GROUND SWITCH IS NOT FUNCTIONAL ON 220/240 VOLT MODELS.

LINE CORD (120 V PRODUCTS ONLY) (19)

For your safety, we have incorporated a three-wire line (mains) cable with proper grounding facilities. It is not advisable to remove the ground pin under any circumstances. If it is necessary to use the equipment without proper grounding facilities, suitable grounding adaptors should be used. Less noise and greatly reduced shock hazard exists when the unit is operated with the proper grounded receptacles.

TONE SETTINGS

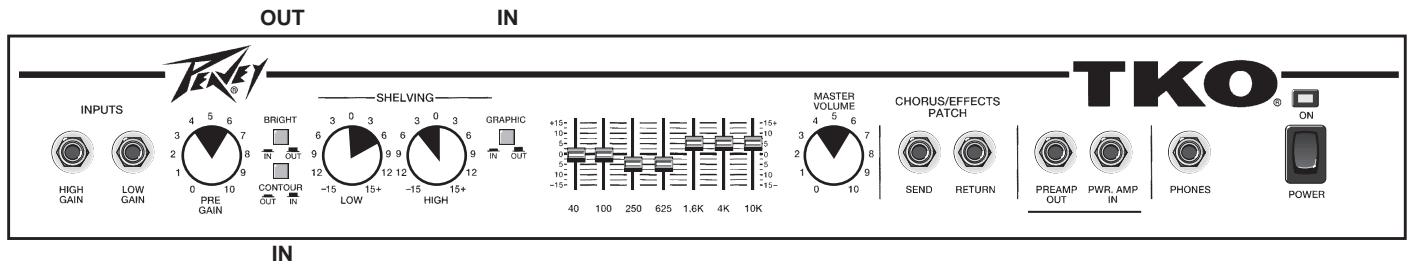

ROCK

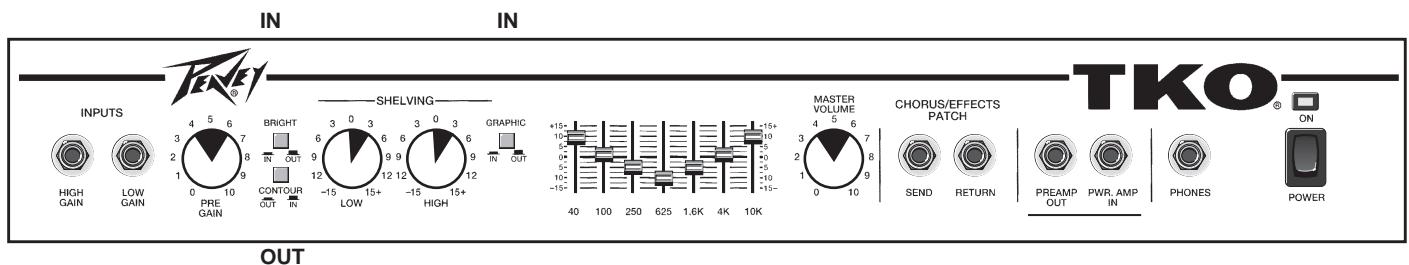

FUNK

COUNTRY

Tone settings given are general and will vary according to type of guitar, type and gauges of strings, type of pickup, and even type of pick. Personal taste, playing style, and type of music greatly contribute to desired tonality.

SPECIFICATIONS

POWER AMP SECTION

Rated Power & Load:

75 WRMS into 8 ohms with

DDT^TM compression

Power @ Clipping: (Typically)

(1 kHz, 120 V AC line)

76 WRMS into 8 ohms @ 1% THD

84 WRMS into 8 ohms @ 5% THD

Frequency Response:

+0, -2 dB, 20 Hz to 20 kHz @ 70 W

RMS into 8 ohms

Total Harmonic Distortion:

Less than 0.2% , 100mW to 70W

RMS, 20Hz to 10kHz , 8 ohms

(typically below 0.1% )

DDT™ Dynamic Range:

Greater than 20 dB

DDT™ Maximum THD:

Below 0.6% THD for 6 dB overload

Below 1% THD for 16 dB overload

Hum & Noise:

Greater than 90 dB below rated power

Power Consumption:

Domestic: 200 watts @ 120 V AC, 60 Hz

Export: 200 watts @ 220-230/240

VAC, 50 / 60Hz

PREAMP SECTION

The following specs are measured @ 1 kHz with the Low, High & Graphic EQ @ 0 dB; Contour Out; Push Bright Out (off); and Post Gain @ 10. Nominal levels are with Pre Gain @ 5; minimum levels are with Pre Gain @ 10.

Preamp High Gain Input:

Impedance: High Z, 220 K ohms

Nominal Input Level: -20 dBV, 100 mV RMS

Minimum Input Level: -40 dBV, 10 mV RMS

Maximum Input Level: +10 dBV, 3 V RMS

Preamp Low Gain Input:

Impedance: High Z, 44 K ohms

Nominal Input Level: -14 dBV, 200 mV RMS

Minimum Input Level: -34 dBV, 20 mV RMS

Maximum Input Level: +16 dBV, 6 V RMS

Effects Patch Send:

(High Pass Output)

Load Impedance: 10K ohms or greater

Nominal Output Level: -12 dBV, 0.25 V RMS

Maximum Output Level: +8 dBV, 2.5 V RMS

Effects Patch Return:

Impedance: High Z, 22 K ohms

Designed Input Level: -12 dBV, 0.25 V RMS

(Remixes with Main Full Range

Signal; designed for Low Level chorus or flange)

Preamp Output:

Load Impedance: 1 K ohm or greater

Nominal Output Level: 0 dBV, 1 V RMS (at the DDT limit of 75 W RMS Output)

Maximum Output Level: +18 dBV, 8 V RMS

Power Amp Input:

Impedance: High Z, 22 K ohms

Designed Input Level: 0 dBV, 1 V RMS

(Switching jack providing preamp output to power amp input connections when not used)

Headphone Output:

Load Impedance: 4 ohms or greater

Nominal Power Output: 100mW into 4 ohms

(Stereo jack, monaural signal, disconnects internal speaker when phone plug is inserted)

System Hum & Noise

@ Nominal Input Level:

(20 Hz to 20 kHz unweighted)

85 dB below rated power

Equalization:

Low & High: ± 15 dB @ 20Hz &8 kHz, shelving

7 Band Graphic: ± 15 dB @ 40, 100, 250, 625, 1.6 K, 4 K, 10 K

PEAK/NOTCH

Push Bright: +10 dB @ 8 kHz

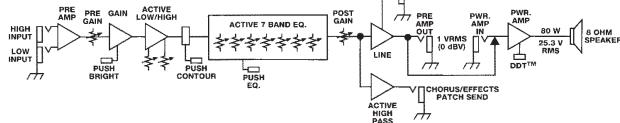

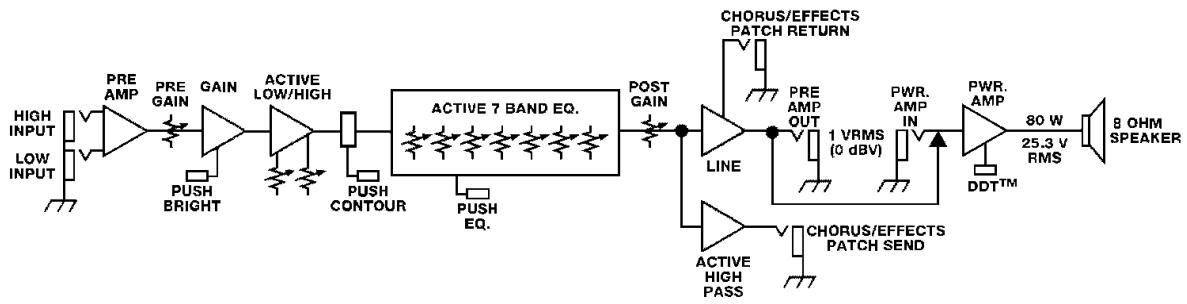

BLOCK DIAGRAM

This block diagram shows signal flow within the unit. In order to thoroughly understand the unit's functions, please study the block diagram carefully.

ESPAÑOL

PEAVEY ELECTRONICS CORPORATION ("PEAVEY") warrants this product, EXCEPT for covers, footswitches, patchcords, tubes and meters, to be free from defects in material and workmanship for a period of one (1) year from date of purchase, PROVIDED, however, that this limited warranty is extended only to the original retail purchaser and is subject to the conditions, exclusions, and limitations hereinafter set forth:

PEAVEY 90-DAY LIMITED WARRANTY ON TUBES AND METERS

If this product contains tubes or meters, Peavey warrants the tubes or meters contained in the product to be free from defects in material and workmanship for a period of ninety (90) days from date of purchase; PROVED, however, that this limited warranty is extended only to the original retail purchaser and is also subject to the conditions, exclusions, and limitations hereinafter set forth.

CONDITIONS, EXCLUSIONS, AND LIMITATIONS OF LIMITED WARRANTYES

These limited warranties shall be void and of no effect, if:

a. The first purchase of the product is for the purpose of resale; or
b. The original retail purchase is not made from an AUTHORIZED PEAVEY DEALER; or
c. The product has been damaged by accident or unreasonable use, neglect, improper service or maintenance, or other causes not arising out of defects in material or workmanship; or
d. The serial number affixed to the product is altered, defaced, or removed.

In the event of a defect in material and/or workmanship covered by this limited warranty, Peavey will:

a. In the case of tubes or meters, replace the defective component without charge.

b. In other covered cases (i.e., cases involving anything other than covers, footswitches, patchcords, tubes or meters), repair the defect in material or workmanship or replace the product, at Peavey's option; and provided, however, that, in any case, all costs of shipping, if necessary, are paid by you, the purchaser.

THE WARRANTY REGISTRATION CARD SHOULD BE ACCURATELY COMPLETED AND MAILED TO AND RECEIVED BY PEAVEY WITHIN FOURTEEN (14) DAYS FROM THE DATE OF YOUR PURCHASE.

In order to obtain service under these warranties, you must:

a. Bring the defective item to any PEAVEY AUTHORIZATION DEALER or AUTHORIZATION PEAVEY SERVICE CENTER and present therewith the ORIGINAL PROOF OF PURCHASE supplied to you by the AUTHORIZATION PEAVEY DEALER in connection with your purchase from him of this product.

If the DEALER or SERVICE CENTER is unable to provide the necessary warranty service you will be directed to the nearest other PEAVEY AUTHORIZED DEALER or AUTHORIZED PEAVEY SERVICE CENTER which can provide such service.

OR

b. Ship the defective item, prepaid, to:

PEAVEY ELECTRONICS CORPORATION

International Service Center

326 Hwy. 11 & 80 East

MERIDIAN, MS 39301

including therewith a complete, detailed description of the problem, together with a legible copy of the original PROOF OF PURCHASE and a complete return address. Upon Peavey's receipt of these items:

If the defect is remedial under these limited warranties and the other terms and conditions expressed herein have been complied with, Peavey will provide the necessary warranty service to repair or replace the product and will return it, FREIGHT COLLECT, to you, the purchaser.

Peavey's liability to the purchaser for damages from any cause whatsoever and regardless of the form of action, including negligence, is limited to the actual damages up to the greater of (500.00 or an amount equal to the purchase price of the product that caused the damage or that is the subject of or is directly related to the cause of action. Such purchase price will be that in effect for the specific product when the cause of action arose. This limitation of liability will not apply to claims for personal injury or damage to real property or tangible personal property allegedly caused by Peavey's negligence. Peavey does not assume liability for personal injury or property damage arising out of or caused by a non-Peavey alteration or attachment, nor does Peavey assume any responsibility for damage to interconnected non-Peavey equipment that may result from the normal functioning and maintenance of the Peavey equipment.

UNDER NO CIRCUMSTANCES WILL PEAVEY BE LIABLE FOR ANY LOST PROFITS, LOST SAVINGS, ANY INCIDENTAL DAMAGES, OR ANY CONSEQUENTIAL DAMAGES ASING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

THESE LIMITED WARRANTY ARE IN LIEU OF ANY AND ALL WARRANTYES, EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE; PROVIDED, HOWEVER, THAT IF THE OTHER TERMS AND CONDITIONS NECESSARY TO THE EXISTENCE OF THE EXPRESSED, LIMITED WARRANTY, AS HEREINABOVE STATED, HAVE BEEN COMPLIED WITH, IMPLIED WARRANTY ARE NOT DISCLAIMED DURING THE APPLICABLE ONE-YEAR OR NINETY-DAY PERIOD FROM DATE OF PURCHASE OF THIS PRODUCT.

SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THESE LIMITED WARRANTYES GIVE YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

THESE LIMITED WARRANTY ARE THE ONLY EXPRESSED WARRANTY ON THIS PRODUCT, AND NO OTHER STATEMENT, REPRESENTATION, WARRANTY, OR AGREEMENT BY ANY PERSON SHALL BE VALID OR BINDING UPON PEAVEY.

In the event of any modification or disclaimer of expressed or implied warranties, or any limitation of remedies, contained herein conflicts with applicable law, then such modification, disclaimer or limitation, as the case may be, shall be deemed to be modified to the extent necessary to comply with such law.

Your remedies for breach of these warranties are limited to those remedies provided herein and Peavey Electronics Corporation gives this limited warranty only with respect to equipment purchased in the United States of America.

INSTRUCTIONS — WARRANTY REGISTRATION CARD

1. Mail the completed WARRANTY REGISTRATION CARD to:

PEAVEY ELECTRONICS CORPORATION

a. Keep the PROOF OF PURCHASE. In the event warranty service is required during the warranty period, you will need this document. There will be no identification card issued by Peavey Electronics Corporation.
2. IMPORTANCE OF WARRANTY REGISTRATION CARDS AND NOTIFICATION OF CHANGES OF ADDRESSES:
a. Completion and mailing of WARRANTY REGISTRATION CARDS — Should notification become necessary for any condition that may require correction, the REGISTRATION CARD will help ensure that you are contacted and properly notified.
b. Notice of address changes - If you move from the address shown on the WARRANTY REGISTRATION CARD, you should notify Peavey of the change of address so as to facilitate your receipt of any bulletins or other forms of notification which may become necessary in connection with any condition that may require dissemination of information or correction.
3. You may contact Peavey directly by telephoning [phone].

A PRODUCT OF PEAVEY ELECTRONICS CORP. 1985, 2000, 367 pages. BUILT UNDER U.S. PATENT NO. 43,318,053
