PT3546SD - Lawn mower PARTNER - Free user manual and instructions

Brand	PARTNER
Model	PT3546SD
Product type	Gas lawn mower
Cutting width	46 cm
Start	Electric and manual (recoil start)
Engine	4-stroke, gasoline
Fuel tank capacity	Not specified in manual, estimated 1-2 liters
Engine oil	0.6 liter (add before first use)
Cutting height adjustment	By levers (number of positions not specified)
Blade type	Rotary blade, bolted
Drive system	Automatic (clutch) or manual push
Grass catcher	Yes (grass bag)
Deflector	Yes, for rear discharge
Safety	Engine brake (safety handle), immediate stop when releasing handle
Battery (electric start)	Lead-acid (Pb) battery, initial charge 2-3 h, maintenance charge 24-36 h
Maintenance	Check oil level, clean under chassis, lubricate wheel axles, inspect blade
Cleaning	Remove grass and debris from housing, engine and muffler
Weight	Not specified, estimated approx 35-40 kg
Dimensions (L x W x H)	Not specified
Spare parts	Blade, battery, spark plug, filters (refer to engine manual)
Repairability	Consult a specialized service; blade removal possible by user
Warranty	Not specified

Frequently Asked Questions - PT3546SD PARTNER

What engine oil to use and what quantity?

Use a quality 4-stroke engine oil (SAE 30 or 10W-30). The required quantity is 0.6 liter. Add oil before first use and check the level regularly.

How to start the PT3546SD lawn mower?

Two methods: electric start (connect battery, turn key) or manual start (pull recoil starter). In both cases, hold the brake handle (14) pressed against the handlebar.

How to adjust the cutting height?

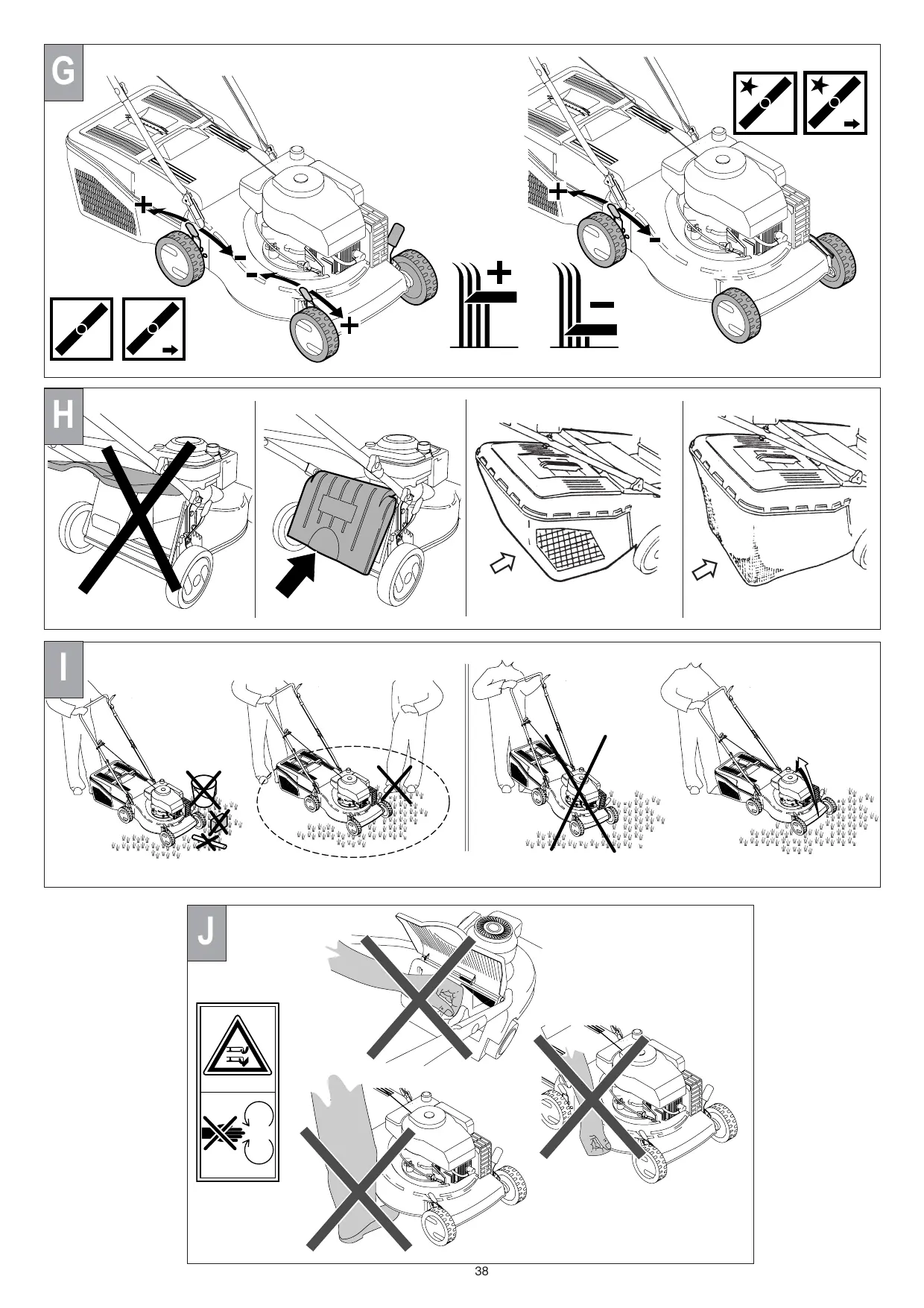

Use the cutting height adjustment levers (mark 8) located on the chassis. There are several positions. Stop the engine before adjusting the height.

What to do if the mower does not start?

First check the oil level and fuel tank. For electric start, make sure the battery is charged (initial charge 2-3 h). For manual start, operate the choke (lever on START) or the primer depending on the engine.

How to use the automatic drive?

Lift and hold the clutch handle (mark 18) to engage the drive. Release it to stop. Only engage it when the engine is running.

What are the important safety instructions?

Never put hands or feet under the mower while engine is running. Keep children and pets away. Wear sturdy shoes and trousers. Stop the engine before removing the bag or adjusting the cutting height. Wait for the blade to come to a complete stop.

How to maintain the blade?

Check the blade condition regularly. To remove it, unscrew the bolt (24). If worn or damaged, replace it. After sharpening, balance it to avoid vibrations. The tightening torque of the bolt is 5.34 kgm (52.4 Nm).

How to store the mower in winter?

Drain the fuel tank outdoors. Clean the mower, especially the engine and chassis. Store it in a dry place protected from frost. For the battery, recharge it periodically (24-36 h) if removed.

What to do if the starter battery is flat?

Charge the battery for a maximum of 24 hours. Do not attempt to start for more than 5 seconds per try. If the problem persists, check the connections or replace the battery.

How to dispose of a used battery?

Do not throw the battery in the trash. Take it to a waste recycling center or return it to a dealer. Lead-acid batteries have the crossed-out wheelie bin symbol and the Pb mark.

USER MANUAL PT3546SD PARTNER

Lawn mower with petrol engine - 46 cm blade

Rasenmacher with Explosionsmotor - Messer 46 cm

Self-propelled lawn mower

We wish to thank you for choosing our lawn mowers. We are confident that the high quality of our machine will meet with your satisfaction and appreciation and that your lawn mower will give you long-lasting service.Before starting to use your machine, make sure to read with care this manual, which has been purposely drawn up to provide you with all the necessary information for proper use, in compliance with basic safety requirements.

Risk of explosion! Do not top up with fuel with engine running.

Caution! Hot surface

Before carrying out any operations on the cutting tool, disconnect the plug
