KH 910 - Alarm clock radio EBENCH - Free user manual and instructions

Product type	Radio alarm clock
Brand	EBENCH
Model	KH 910
Frequency ranges	AM (MW) and FM (VHF)
Power supply	220-230 V ~ 50 Hz
Backup battery	9 V (type 6LR61/6F22)
Display	Digital LED
Main functions	AM/FM radio, alarm by buzzer or radio, sleep timer, snooze, 24-hour alarm
Controls	Band selector, function switch (OFF/ON/AUTO/ALARM), hour, minute, sleep, alarm setting, volume, tuning
FM antenna	Retractable wire antenna
AM antenna	Built-in ferrite antenna
Housing material	Plastic
Care and cleaning	Clean with a soft, dry cloth; do not use cleaning agents
Safety	Do not expose to moisture or heat sources; do not open the housing
Sleep timer	Programmable up to 1 hour 59 minutes
Snooze	9 minutes
Maximum alarm duration	1 hour 59 minutes
General information	Conforms to EC directives (low voltage, electromagnetic compatibility)

Frequently Asked Questions - KH 910 EBENCH

How to set the time on the KH 910 radio alarm clock?

Press and hold the TIME SET button (④) while pressing HOURS (⑤) or MINUTES (⑥) until the correct time is displayed.

How to set the alarm?

Press the ALARM button (⑨) while holding HOURS (⑤) or MINUTES (⑥) until the desired time is displayed.

How to choose the alarm mode (buzzer or radio)?

For alarm by buzzer, set the function switch (②) to ALARM. For alarm by radio, first turn the device to ON, select the station and volume, then set the switch to AUTO.

How to use the sleep timer?

With the function switch (②) in AUTO or OFF position, press SLEEP (⑦) to set the listening duration (0:59 default). Press and hold SLEEP and press MINUTES to decrease time, or HOURS to increase it up to 1:59.

How to deactivate the sleep timer?

Press the SNOOZE button (⑧) to stop the sleep timer or reset the time to 0:00.

How to temporarily stop the alarm?

Press SNOOZE (⑧). The alarm will automatically reactivate after approximately 9 minutes, up to a maximum of 1 hour 59 minutes.

What to do in case of a power outage?

Insert a 9 V battery into the battery compartment (②). The battery keeps the settings in memory but the display and radio do not work. When power is restored, the time will be displayed again.

How to clean the radio alarm clock?

Unplug the device, then clean the housing with a soft, dry cloth. Never use cleaning agents or abrasives.

What to do if the device does not turn on?

Check that the power plug is properly connected and that the voltage matches (220-230 V ~ 50 Hz). In case of a power failure, a 9 V battery backs up the settings but does not allow operation.

How to set the frequency band (AM/FM)?

Use the band selector (①) to choose MW (AM) or VHF (FM). Adjust the frequency with the TUNER button (⑩). For FM, extend the wire antenna.

USER MANUAL KH 910 EBENCH

MHz 100 1400 1000 1400 1000 1800 100 700 600 340 5/16 24h 12:30 TWO SET HOLD PICKS AUTO TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO SET TWO NET

Operating instructions and safety advice

Page

② ③ 12:34 .100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100

① ② CAUTION THE PROTECTION BE IT & IN STOCK HAZARDEN WITH OPEN ATTENTION PROCES OF CACO ELECTRIQUE BY FID DEVIRE ⑪ ⑩ ⑫

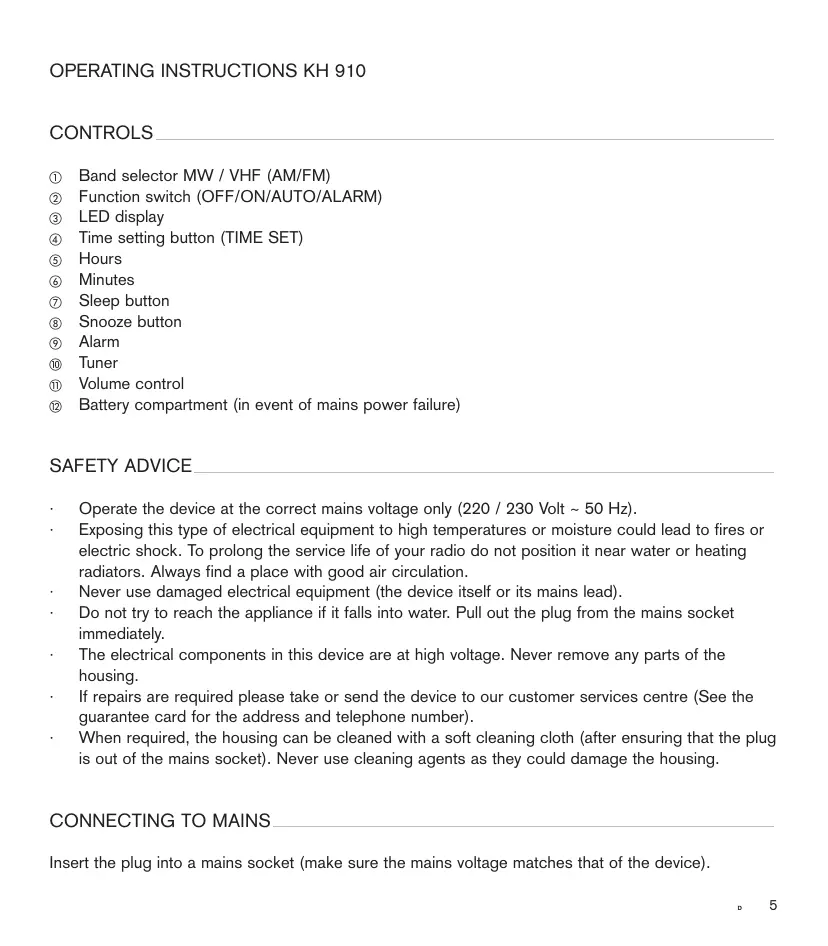

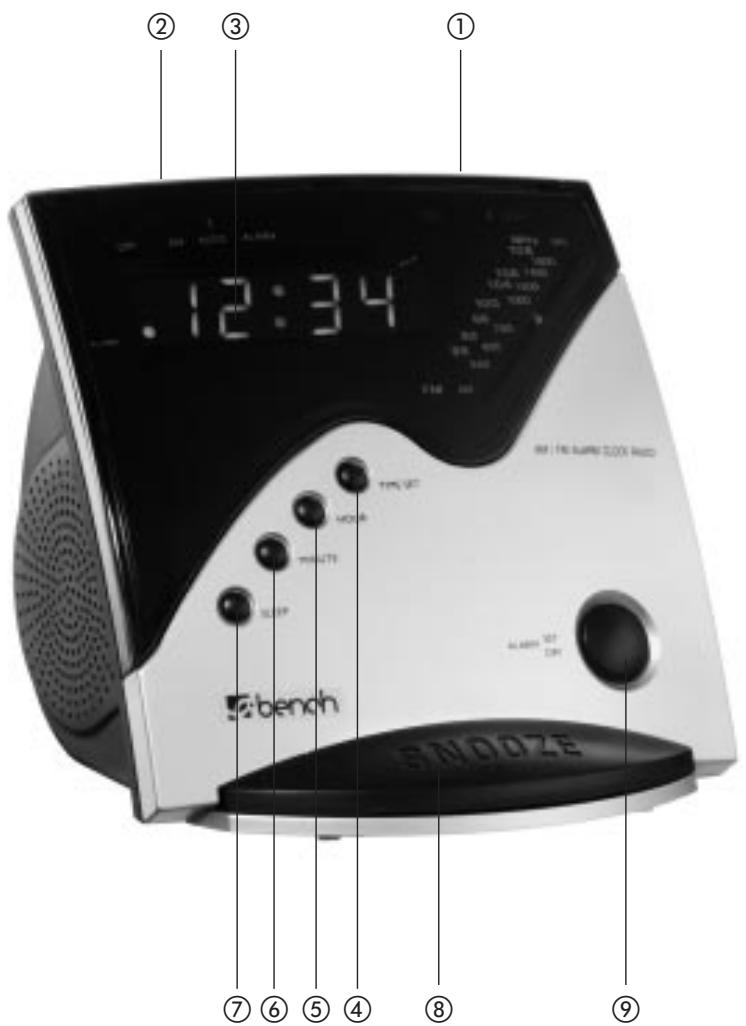

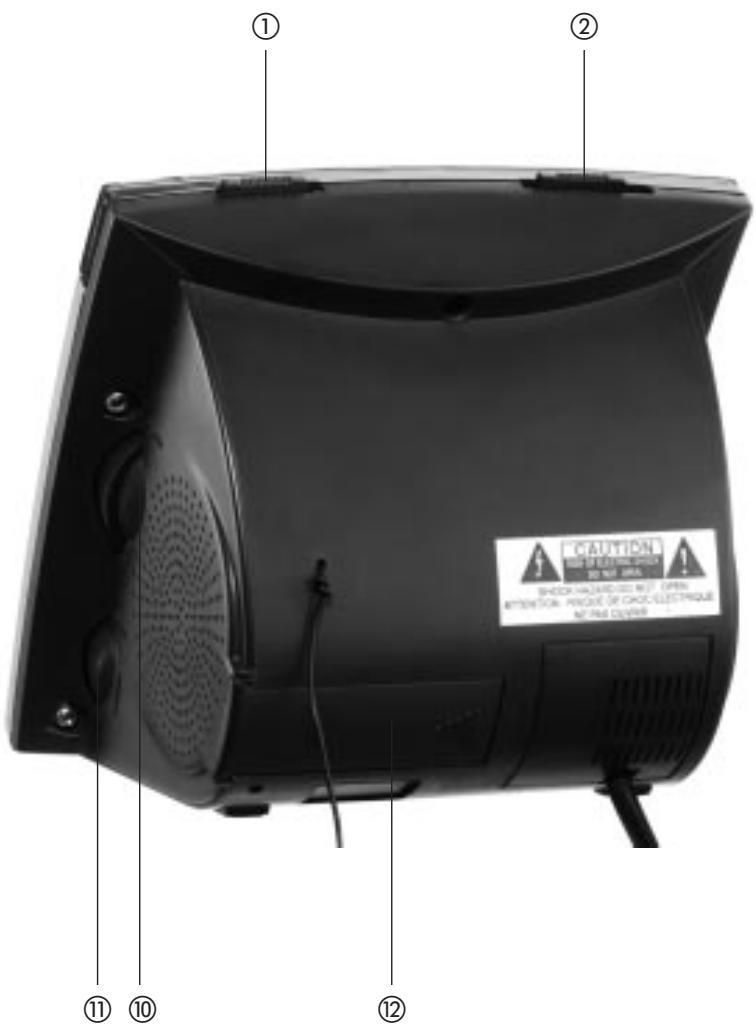

CONTROLS

① Band selector MW / VHF (AM/FM)
② Function switch (OFF/ON/AUTO/ALARM)
③ LED display
④ Time setting button (TIME SET)
⑤ Hours
⑥ Minutes
⑦ Sleep button
⑧ Snooze button
⑨ Alarm
⑩ Tuner
⑪ Volume control
⑫ Battery compartment (in event of mains power failure)

SAFETY ADVICE

• Operate the device at the correct mains voltage only (220 / 230 Volt \~ 50 Hz).
• Exposing this type of electrical equipment to high temperatures or moisture could lead to fires or electric shock. To prolong the service life of your radio do not position it near water or heating radiators. Always find a place with good air circulation.
• Never use damaged electrical equipment (the device itself or its mains lead).
• Do not try to reach the appliance if it falls into water. Pull out the plug from the mains socket immediately.
• The electrical components in this device are at high voltage. Never remove any parts of the housing.
• If repairs are required please take or send the device to our customer services centre (See the guarantee card for the address and telephone number).
• When required, the housing can be cleaned with a soft cleaning cloth (after ensuring that the plug is out of the mains socket). Never use cleaning agents as they could damage the housing.

CONNECTING TO MAINS

Insert the plug into a mains socket (make sure the mains voltage matches that of the device).

RADIO RECEPTION

Switch on the radio by moving the function switch ② into the ON position. Set the band selector switch to the required position (VHF or MW) ①. Set the volume using the volume control ⑩.

Set the radio to the VHF or medium wave frequency of your choice using the tuner ⑩.

AERIALS

FM (VHF): Unwind and position the wire aerial for best reception of VHF

AM /MW: The radio has a sensitive ferrite aerial.

SETTING THE TIME

Press and hold down the TIME button ④ (TIME / TIME-SET) whilst pressing the HOURS ⑤ or MINUTES ⑥ button until you see the correct time in the display.

SETTING THE ALARM TIME

Press the ALARM ⑨ and HOURS ⑤ or MINUTES ⑥ button until the required alarm time appears in the display.

SETTING THE ALARM MODE

1 First set the required alarm time as explained above.
2 If you wish to be woken by the buzzer set the FUNCTION SWITCH ② to ALARM. The activated alarm mode is then shown in the display.
3 If you wish to be woken by the radio, set the FUNCTION SWITCH ② to ON and select the desired station/frequency and the volume ⑪.
4 Then set the FUNCTION SWITCH ② to AUTO. The activated alarm mode is then shown in the display.

The appropriate alarm sounds when the alarm time is reached. The alarm sound switches off automatically after 1 hour 59 minutes.

The alarm sound can be temporarily interrupted by pressing the SNOOZE button ⑥. After approximately 9 minutes the alarm sound automatically switches itself on again. This process can be repeated for a maximum of 1 hour 59 minutes. You can cut short the alarm period by setting the FUNCTION SWITCH ② to OFF.

AUTOMATIC 24 HOUR ALARM

After the alarm is switched off, if you set the FUNCTION SWITCH ② to AUTO again the alarm will sound on the next day at the same time.

GOING TO SLEEP WITH THE SLEEP FUNCTION

This setting allows you to go to sleep whilst listening to the radio. With the FUNCTION SWITCH ② in the AUTO or OFF position the radio plays for a maximum of 1 hour 59 minutes.

1 Press the Sleep button ⑤ to set the time for which the radio will play. The display shows 0:59.
2 If you wish the radio to stop playing earlier just press and hold down the Sleep button ⑦ whilst pressing the MINUTES ⑥ button until the desired playing time is displayed.
3 If you wish the playing time to be extended to 1:59, press and hold down the Sleep button ⑦ whilst pressing the HOURS ⑤ button.
4 To switch off the Sleep function ⑦ or to set the sleep time to 0:00 press the SNOOZE button ⑧.

NOTE: Pressing the Sleep button ⑦ again after setting the sleep time will automatically reset the sleep time to 0:59. Press the SNOOZE ⑧ button to switch off the Sleep function.

MAINS POWER FAILURE

To guard against losing your settings in the event of a mains power failure insert a 9-volt battery into the battery compartment. The battery ensures that the radio alarm clock will function in emergency mode even during a mains power failure. In these circumstances the LED display ③ will not be illuminated. Once mains power is restored the correct time will be automatically displayed again.

Note: The alarm, radio and LED ③ display do not function during battery operation.

• Insert the battery into the battery compartment (see Fig. 12).
  – Replace the battery annually.

STATEMENT OF CONFORMITY

We, Kompernaß Handelsgesellschaft mbH, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that this product conforms with the following EC regulations:

EC low voltage regulations, Electromagnetic compatibility, Applicable harmonised standards.

Type/Description: Radio alarm clock KH 910

Bochum, 30.11.2002

Kommens

Hans Kompernaß

- Managing Director -
