USER MANUAL KH 31 EBENCH

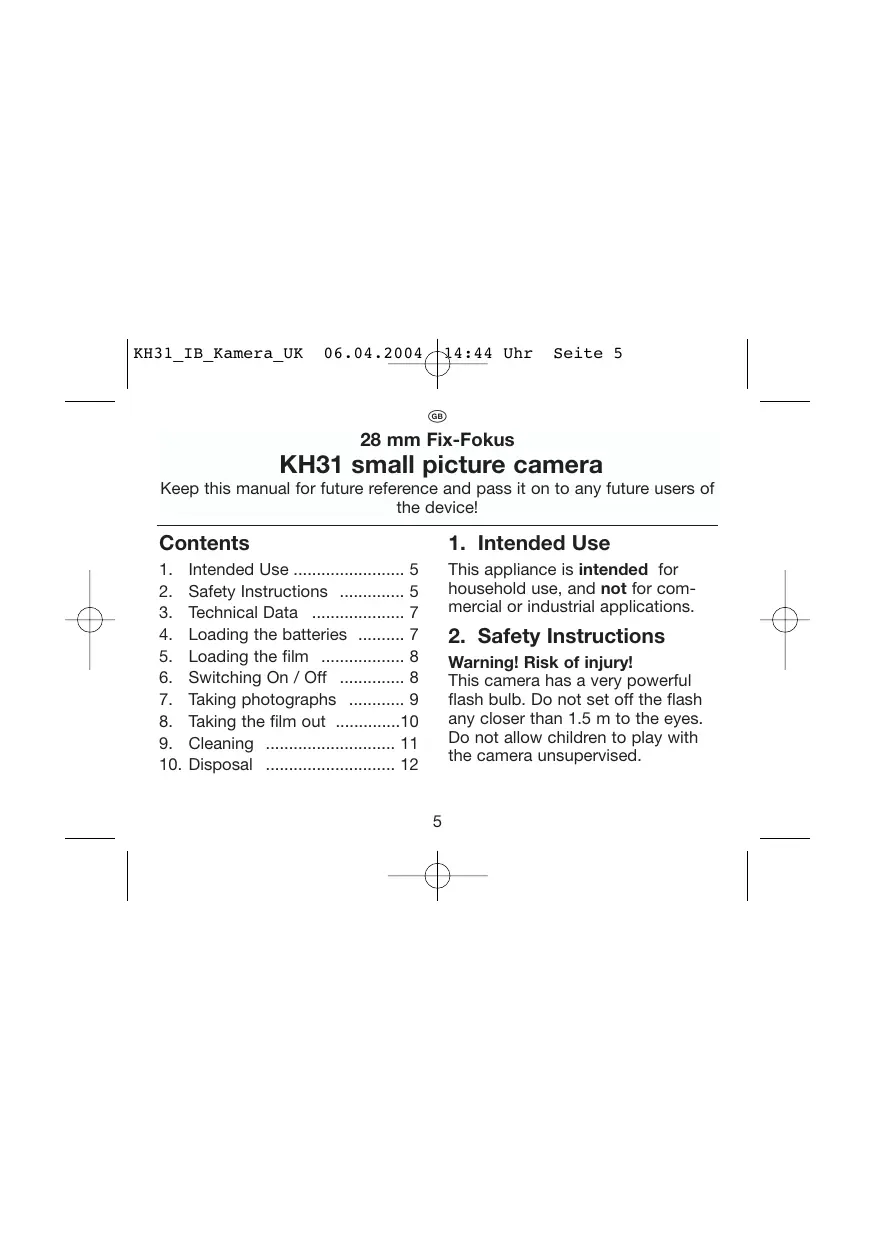

28 mm Fix-Fokus KH31 small picture camera Keep this manual for future reference and pass it on to any future users of the device! Contents intended Use Safety Instructions . Technical Data . Loading the batteries Loading the film Switching On / Off . Taking photographs Taking the film out Cleaning . Disposal .

This appliance is intended for household use, and not for com- mercial or industrial applications. À

2. Safety Instructions

Warning! Risk of injury! This camera has a very powerful flash bulb. Do not set off the flash any closer than 1.5 m to the eyes. Do not allow children to play with the camera unsupervised.

KH31_IB_Kamera UK 06.04.2004/j4:44 Uhr Seite 6

The numbers in brackets refer to the numbered sections in these instructions.

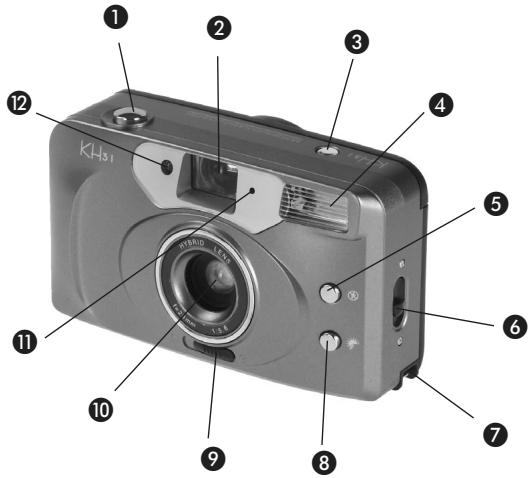

@ 666800000000 Release button (7) Viewfinder (7) Photograph counter (7) Flash bulb (7) Disable flash (7) Open back panel (5,8) Attachment for wrist strap Force flash (7) Switch onvoff (6) Lens (8) Sensor for automatic flash "Red eye" reduction (7) Winder direction switch (6, 8)

Le] @ Battery compartment (4) ©® ‘Flash ready" indicator (7) © ‘Film loaded" window

to sources of heat or flames. Do not short-circuit them, or take them apart. This could cause them to explode and cause serious injury. @ Open the battery compartment and insert two batteries, as shown.

Note: Old batteries should not be Otherwise, the new film is pulled disposed of with the household back into the cartridge. waste. Take them to your dealer or oh to a suitable battery recycling cen- 6- Switching On / Off ter. © With the sliding switch on the front under the lens, switch the

5. Loading the film camera...

© Open the back panel and load - On: The lens is opened. a film, as shown. - Off: The lens is closed. @ Make sure that the teeth on the winder wheel engage in the corresponding perforations in the film. © ® Make sure that the switch for the direction of winding is posi- tioned as shown.

When you have a subject in focus on the viewfinder © press the release button. The film is wound on by the motor. © The window in the counter shows how may photos have already been taken. Note: If a new film has been loa- ded, the counter is not yet positio- ned at number "1". Press the release button as often as necessary till the counter shows the number "1". 4 Uhr Seite 9 a) "Red eye" reduction Due to the intensity of the flash, the eyes of people in photographs often appear with a striking red colour. This is because the light from the flash is reflected on the inside of the eyes. © t you lightly press and hold the release button, … @ a red LED is lit on the front of the camera. This causes the pupils of the person being photographed to contract, so that the flash is not reflected so strongly.

KH31_IB_Kamera UK 06.04 © Press the release button fully in only after about 1 or 2 seconds, so that the red LED can take effect. b) Flash The flash is switched on automati- cally, if the light conditions so require. © The green "flash ready" indica- tor lights up as soon as the flash is sufficientiy charged. If a flash has just been set off, this can take up to 8 seconds. c)_ Disabling / forcing the flash If you do not want the flash to be set off automatically when you are 4 Uhr Seite 10 taking the photograph, press and hold the … © ‘Disable flash" button, if you do not want the flash to go off; @ ‘Force flash" button, if you want the flash to go off, even though there may be sufficient light.

8. Taking the film out

After the last photograph on the film has been used, no more photos can be taken: © Move the winder direction switch up to the cartridge sym- bol. The film is wound back into the cartridge. © Open the back panel and take out the film, once the film has

veecbye 44 Uhr Seite 11 completely re-wound into the cartridge. Note: After opening the back panel, check that the winding direction switch has returned auto- matically. If necessary, move it back to the normal film advance position (see Section 5). Otherwise, the new film will be immediately wound back into the cartridge.

Danger: Never open the casing.

There are no operating controls inside. If the casing is opened, there is a risk of severe injury from electric shock. Never touch the lens with the fin- gers or hard objects. These can easily scratch the lens! Only clean the device with a soft, dry cloth. Do not use cleaning agents or abrasive materials that could leave scratches on the casing, and especially on the vie- Wing glass.

If you are going to dispose of this appliance, first take out the batte- ries. Used batteries should not be disposed of with the household waste. Return these to your retailer or to an appropriate collection site for disposal. Tip: Care for the environment. If you wish to dispose of this applian- ce, take it to a recycling center for electronic equipment
