Product type	Radio alarm clock with digital display
Brand	EBENCH
Model	KH 2273
Dimensions (approx.)	20 x 15 x 10 cm
Weight (approx.)	0.5 kg
Mains power supply	230 V / 50 Hz
Backup power	9V battery (not included)
Radio bands	FM and AM
Alarm functions	Radio or buzzer alarm
Sleep timer	Yes, adjustable up to 59 minutes
Alarm repeat (Snooze)	Yes, 9 minutes
Display	Digital with active alarm indicator
Time setting	Manual using HOUR and MINUTE buttons
Alarm setting	Manual using HOUR and MINUTE buttons with ALARM key
Volume control	Rotary knob
Tuning control	Rotary knob (TUNING)
Housing material	Plastic
Care	Soft dry cloth, no cleaning products
Safety	Do not expose to moisture, unplug before cleaning
Repairability	No user-serviceable parts, do not open housing
Disposal	Follow WEEE and used battery regulations

Frequently Asked Questions - KH 2273 RADIO ALARM EBENCH

How to set the time on the KH 2273 alarm clock?

Press and hold the TIME button, then press HOUR for hours and MINUTE for minutes.

How to set the alarm time?

Press and hold the ALARM button, then set the hours and minutes using the HOUR and MINUTE buttons.

Why does the alarm not sound?

Check that the slide switch is in the AUTO position and the volume is sufficient. If the volume is at minimum, the buzzer alarm is activated.

How to use the sleep timer function?

Set the switch to the AUTO position and press SLEEP. The radio will turn off after 59 minutes. To reduce the duration, press and hold SLEEP and adjust with MINUTE.

How to stop the alarm in the morning?

Press the SNOOZE button to repeat it after 9 minutes, or set the switch to the OFF position to stop it completely.

What battery is needed for time backup?

A 9V square battery (type 6LR61) to be inserted in the compartment at the back or under the device.

How to clean the device?

Always unplug the mains plug before cleaning. Use only a soft, dry cloth. Never use chemical products or solvents.

What to do if the device does not turn on?

Check that the mains plug is properly connected and the outlet is powered. If using the backup battery, make sure it is correctly installed and not discharged.

Are there any electromagnetic risks?

The device complies with standards. For more safety, place it at least one meter from the bed to reduce exposure to electromagnetic fields.

How to dispose of the device at end of life?

Do not throw the device or the battery in household waste. Dispose of the device at a WEEE collection point and the battery at a retailer or recycling center.

USER MANUAL KH 2273 RADIO ALARM EBENCH

Blurred grayscale image with indistinct shapes and no visible text or symbols

Operating Instructions

o z budzikiem cja obsługi obudík k obsluze obudík na obsluhu P Radio-despe Manual de instruča GB Radio alarm Operating Instructi 8:30 KHz 1650 1200 900 700 600 530 AM MHz 108 106 102 96 92 88 FM

MAX MINUTE AM BAND FM TUNING ⑦ ⑧

ALABR SIDE OFF ON AUTO • • • SUTZ VOLT ⑤ ⑥

1 2 3 4 5 6 7 8 9 SNOOZE ALABE SLEEP TIME HOURS MUTE

8:30 KHz 1650 1200 900 700 600 530 AM MHz 108 106 102 96 92 88 FM

1. Verwendungszweck

This appliance is intended for household use. It is not intended for commercial or industrial use.

2. Technical Data

Mains voltage ......: 230 V / 50 Hz

Time memory ......: 9 V block battery

Frequency bands .....: VHF / MW

Alarm functions......: Radio, alarm signal

3. Safety Instructions

a) To avoid the danger of electric shocks:

• Make sure that the power cord never becomes wet or damp during operation. Lay the cord so that it will not be pinched or otherwise damaged.
  If the power cord becomes damaged, obtain a replacement from customer service before continuing to use the appliance.
• Use the appliance only in dry rooms.
• Never allow fluids or other objects to get into the appliance.

b) To prevent the risk of burns or other injuries:

- Set up the appliance in an open and well-ventilated area, so that there are no heat pockets.

Never cover the ventilation openings!

• Protect the appliance from sources of heat, such as direct sunshine, heaters, and other appliances.
• Do not allow children or elderly persons to play with the appliance unsupervised, as they are not always able to assess the possible dangers correctly.

c) Electromagnetic fields

This appliance comes within the legal limits for electromagnetic pollution. However, if you still have doubts about installing it in the bedroom:

- You will be quite safe if you place the appliance about half a meter from the bed.

At this distance, there will be no effect even on persons sensitive to electromagnetic fields.

4. Connecting the appliance

Before oeprating the appliance, make sure that it is in perfect condition. Do not use it otherwise.

Open the battery compartment at the back or underneath, and insert a 9V battery pack.
Insert the power plug into the power socket.

Choose a power socket that is accessible at any time, so that you can pull out the plug from the socket quickly if there is a fault.

5. Setting the clock

If you are setting up the appliance for the first time after inserting a new battery:

① Press and hold the TIME button and:
② Press the HOUR button to set the hour.
③ Press the MINUTE button to set the minutes.

6. Setting the alarm time

If the clock is set correctly, as described above:

4 Press and hold the ALARM button and:
② Press the HOUR button to set the hour.
③ Press the MINUTE button to set the minutes.

7. Radio reception

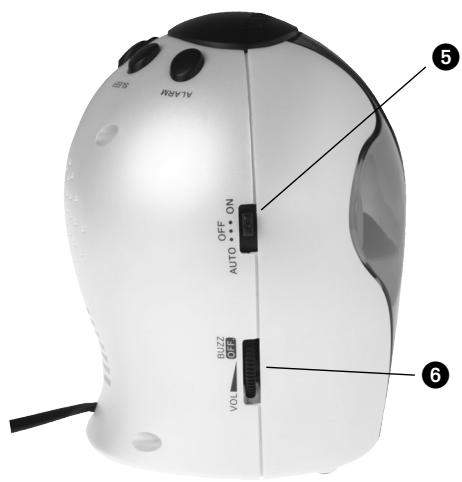

⑤ Move the sliding switch to the ON position.
6 Turn the volume control VOL to the centre position.

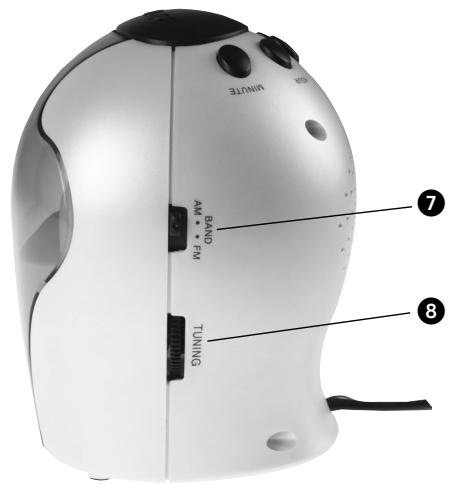

⑦ Select the frequency band with the AM / FM sliding switch.
⑧ Select the desired station with the TUNING control.

8. Switching on the alarm

If the clock and alarm time are set correctly, as described above:

5 Set the sliding switch to the AUTO position. The alarm is now switched on. This is confirmed by a dot at the bottom left of the display.

You will be awakened by the radio if ...

⑥ the volume control VOL is set to a level high enough to awaken you.

You will be awakened by the alarm signal if ...

⑥ the volume control VOL is turned quietly until it switches off with an audible click, and goes into the BUZZ setting.

9. Switching off the alarm

9 Press the SNOOZE button and the alarm will sound again after 9 minutes.
⑤ Move the sliding switch to the OFF positioin, to switch off the alarm altogether.

10. Sleep timer

If you would like to listen to the radio for a while before going to sleep and would like the radio to switch off by itself:

⑤ Move the sliding switch to the AUTO position, and ...
10 press the SLEEP button. The radio will remain on for 59 min.

You can shorten the time remaining till switch-off time by ...

10 pressing and holding the SLEEP button
③ then pressing the MINUTE button to set the remaining time.

11. Cleaning and Care

Warning: Danger of electric shock!

Before cleaning the appliance:

→ Disconnect the power plug from the power socket.
→ Never open the casing. There are no operating controls inside.

→ Clean the appliance using a clean dry cloth only.
Do not use cleaning agents or solvents. These can damage the plastic surfaces.

12. Disposal

Before disposing of the appliance,...

Take out the batteries, as described at point 4. Old batteries should not be disposed of with the household waste:
Return old batteries to your dealer, or take them to an appropriate disposal point.
Protect the environment! Take the appliance to a recycling point for electronic equipment.
