KH 2270 RADIO ALARM - Radio alarm EBENCH - Free user manual and instructions

Product Type	Clock Radio
Brand	EBENCH
Model	KH 2270
Main Power Supply	Mains 230 V / 50 Hz
Backup Power Supply	9 V block battery (type 6LR61)
Radio Reception	FM and AM
Alarm Functions	Radio, Alarm, Snooze, Sleep Timer
Time Setting	TIME button + HOUR / MINUTE buttons
Alarm Setting	ALARM button + HOUR / MINUTE buttons
Volume	Rotating VOL knob
Band Selection	AM / FM slide switch
Alarm Activation	Switch in AUTO position
Alarm Off	Switch in OFF position or SNOOZE key
Sleep Timer	SLEEP button, max duration 59 minutes
Display	Screen with alarm activation indicator
Care and Cleaning	Soft dry cloth, no cleaning products
Safety	Do not open the casing, avoid moisture
Disposal	Recycle the device and batteries according to regulations

Frequently Asked Questions - KH 2270 RADIO ALARM EBENCH

How do I set the time on the KH 2270 clock radio?

Press and hold the TIME button, then press HOUR for the hour and MINUTE for the minutes. Release TIME once set.

How do I set the alarm time?

Press and hold the ALARM button, then use HOUR and MINUTE to set the desired alarm time.

How do I listen to the radio?

Set the slide switch to ON. Adjust the volume with VOL. Select the AM or FM band with the switch, then search for a station with the TUNING knob.

How do I activate the alarm function?

After setting the alarm, place the slide switch in the AUTO position. A light dot appears at the bottom left of the screen to confirm activation.

How do I stop the alarm in the morning?

Press the SNOOZE key to repeat the alarm after 9 minutes, or set the switch to OFF to completely deactivate the alarm.

How do I use the snooze function?

When the alarm sounds, press the SNOOZE key. The alarm stops and triggers again after 9 minutes.

How do I use the sleep timer?

Set the switch to the AUTO position, then press SLEEP. The radio stays on for 59 minutes. You can reduce the duration by pressing SLEEP while setting the minutes with MINUTE.

How do I clean the clock radio?

First unplug the device. Clean with a soft dry cloth. Never use cleaning products or solvents, they could damage the plastic.

What to do in case of a power outage?

The clock radio retains the time thanks to the backup 9 V battery. Make sure it is installed and functional.

How to dispose of the device at the end of its life?

Remove the battery and dispose of it at a suitable collection point. The device must be recycled at a specialized collection point for electronic waste.

USER MANUAL KH 2270 RADIO ALARM EBENCH

Operating Instructions

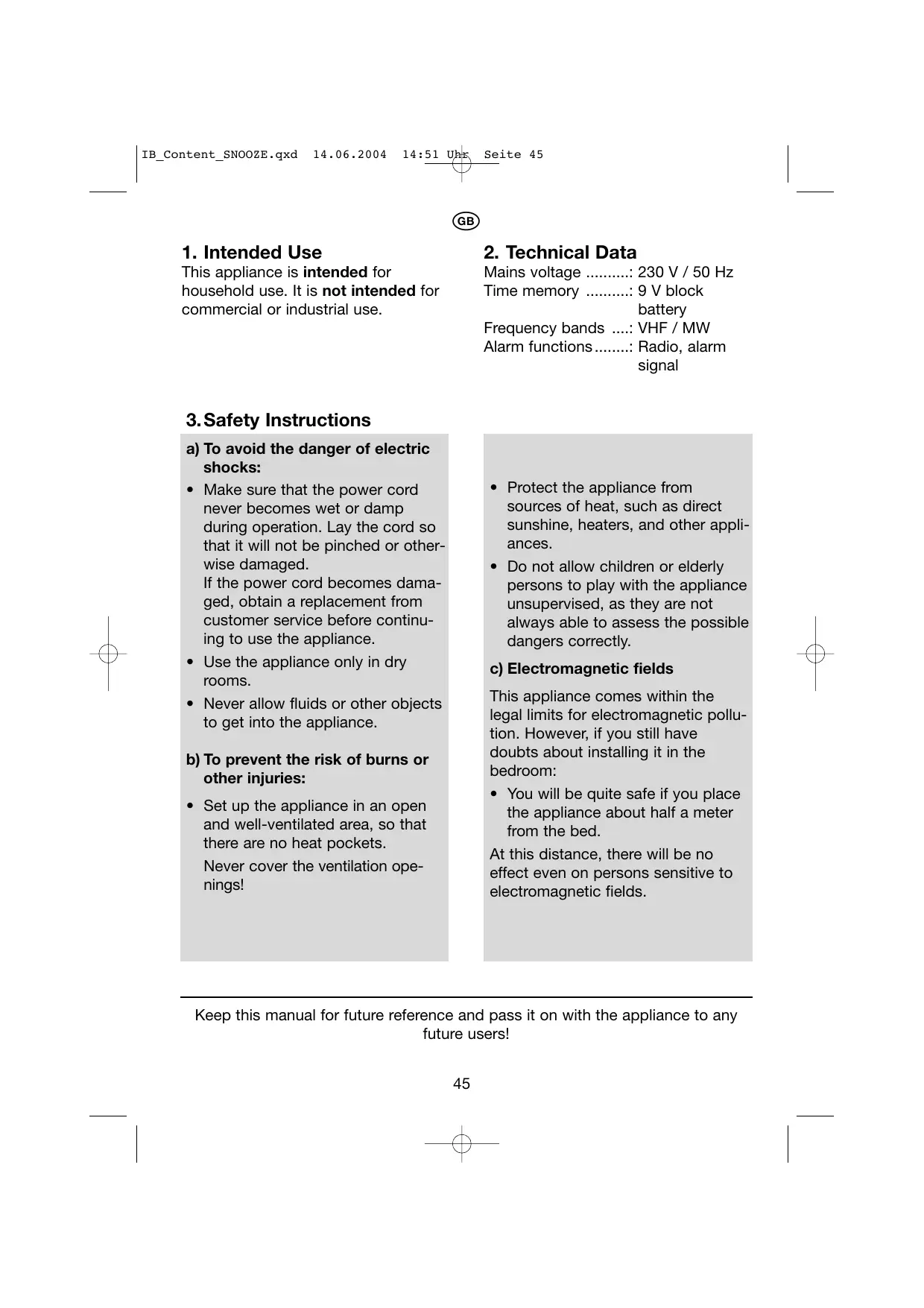

1. Verwendungszweck

This appliance is intended for household use. It is not intended for commercial or industrial use.

2. Technical Data

Mains voltage 230 V / 50 Hz Time memory 9 V block battery

Frequency bands ....: VHF / MW

Alarm functions: Radio, alarm signal

3. Safety Instructions

a) To avoid the danger of electric shocks:

• Make sure that the power cord never becomes wet or damp during operation. Lay the cord so that it will not be pinched or otherwise damaged.
• If the power cord becomes damaged, obtain a replacement from customer service before continuing to use the appliance.
• Use the appliance only in dry rooms.
• Never allow fluids or other objects to get into the appliance.

b) To prevent the risk of burns or other injuries:
- Set up the appliance in an open and well-ventilated area, so that there are no heat pockets.

Never cover the ventilation openings!

• Protect the appliance from sources of heat, such as direct sunshine, heaters, and other appliances.
• Do not allow children or elderly persons to play with the appliance unsupervised, as they are not always able to assess the possible dangers correctly.

c) Electromagnetic fields

This appliance comes within the legal limits for electromagnetic pollution. However, if you still have doubts about installing it in the bedroom:

• You will be quite safe if you place the appliance about half a meter from the bed.

At this distance, there will be no effect even on persons sensitive to electromagnetic fields.

4. Connecting the appliance

Before oegrating the appliance, make sure that it is in perfect condition. Do not use it otherwise.

Open the battery compartment at the back or underneath, and insert a 9V battery pack.
Insert the power plug into the power socket. Choose a power socket that is accessible at any time, so that you can pull out the plug from the socket quickly if there is a fault.

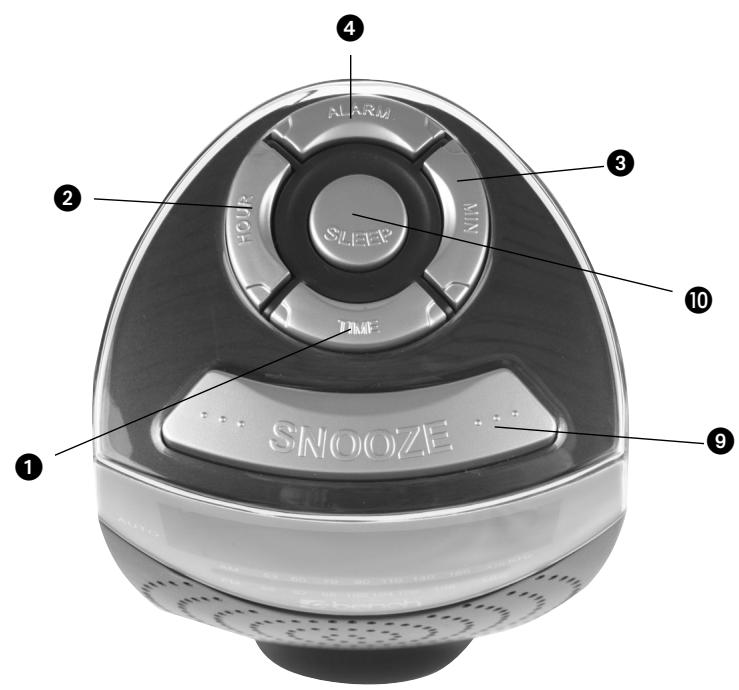

5. Setting the clock

If you are setting up the appliance for the first time after inserting a new battery:

Press and hold the TIME button and:
Press the HOUR button to set the hour.
Press the MINUTE button to set the minutes.

6. Setting the alarm time

If the clock is set correctly, as described above:

Press and hold the ALARM button and:
Press the HOUR button to set the hour.
Press the MINUTE button to set the minutes.

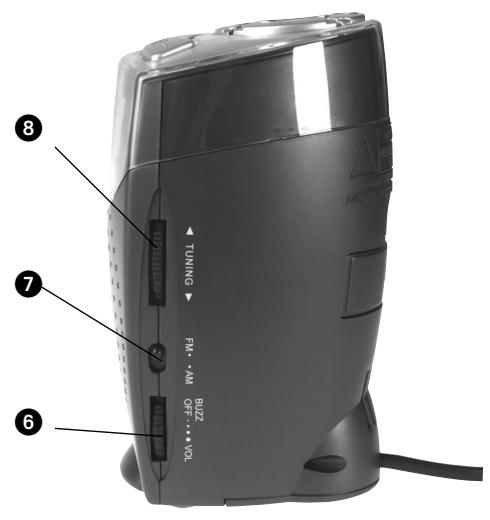

7. Radio reception

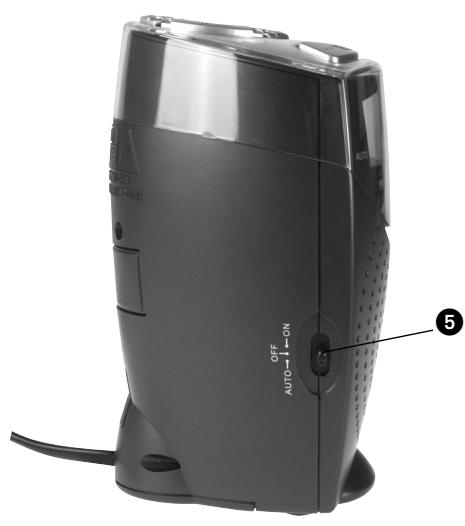

Move the sliding switch to the ON position.
Turn the volume control VOL to the centre position.
Select the frequency band with the AM / FM sliding switch.
Select the desired station with the TUNING control.

8. Switching on the alarm

If the clock and alarm time are set correctly, as described above:

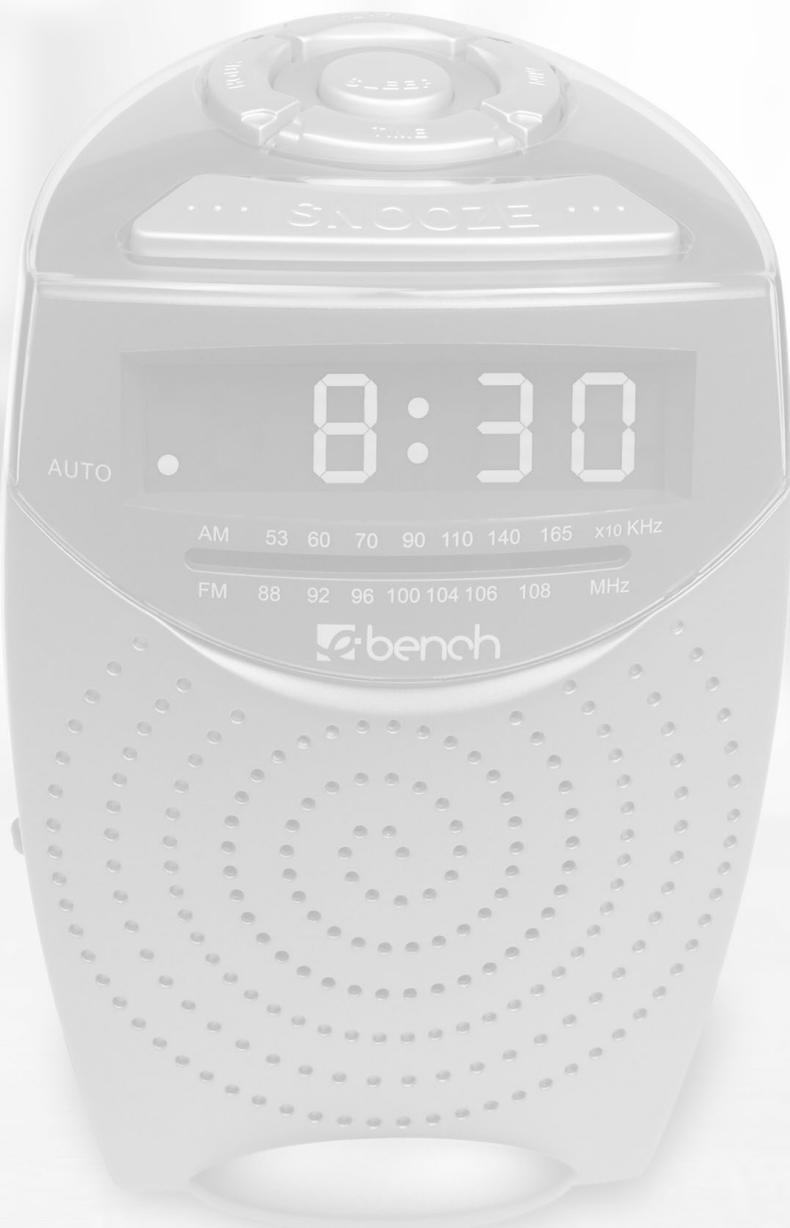

Set the sliding switch to the AUTO position. The alarm is now switched on. This is confirmed by a dot at the bottom left of the display.
You will be awakened by the radio if ...
the volume control VOL is set to a level high enough to awaken you.
You will be awakened by the alarm signal if ...
the volume control VOL is turned quietly until it switches off with an audible click, and goes into the BUZZ setting.

9. Switching off the alarm

Press the SNOOZE button and the alarm will sound again after 9 minutes.
Move the sliding switch to the OFF positioin, to switch off the alarm altogether.

10. Sleep timer

If you would like to listen to the radio for a while before going to sleep and would like the radio to switch off by itself:

Move the sliding switch to the AUTO position, and ...
10 press the SLEEP button. The radio will remain on for 59 min.

You can shorten the time remaining till switch-off time by ...

10 pressing and holding the SLEEP button
3 then pressing the MINUTE button to set the remaining time.

11. Cleaning and Care

Warning: Danger of electric shock!

Before cleaning the appliance:

Disconnect the power plug from the power socket.
Never open the casing. There are no operating controls inside.

Clean the appliance using a clean dry cloth only.
Do not use cleaning agents or solvents. These can damage the plastic surfaces.

12. Disposal

Before disposing of the appliance,...

Take out the batteries, as described at point 4. Old batteries should not be disposed of with the household waste:
Return old batteries to your dealer, or take them to an appropriate disposal point.
Protect the environment! Take the appliance to a recycling point for electronic equipment.
