USER MANUAL BSG540XL BREVILLE

On the purchase of your new Breville Panini Press

CONTENTS

4 Breville recommends safety first
6 Know your Breville Panini Press
8 Operating your Breville Panini Press
12 Care & cleaning your Breville Panini Press
14 Recipes
22 One year limited warranty

BREVILLE RECOMMENDS SAFETY FIRST

We at Breville are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions:

IMPORTANT SAFEGUARDS

BREVILLE BSG540XL - IMPORTANT SAFEGUARDS - 1

READ ALL INSTRUCTIONS

  • Carefully read all instructions before operation and save for future reference.
  • Remove any packaging material and promotional stickers before using the panini press for the first time.
  • To eliminate a choking hazard for young children, remove and safely discard the protective cover fitted to the power plug of this appliance.
  • Do not place the panini press near the edge of a bench or table during operation. Ensure that the surface is level, clean and free of water.
  • Keep the panini press clear of walls, curtains and other heat or steam sensitive materials.
  • Do not place the Breville Panini Press on or near a hot gas or electric burner, or where it could touch a heated oven. Use the panini press well away from walls.
  • Provide adequate space above and on all sides for air circulation around the panini press.
  • Do not place the panini press on any surface that may be affected by heat. The use of a heat resistant matt is recommended on these surfaces.
  • Do not use on a sink drain board.
  • Always use the panini press on a dry, level surface.

  • Do not touch hot surfaces. Use the handle to lift and open the top plate. Take care when using the Adjustable Height Control.

  • Do not leave the panini press unattended when in use.
  • Do not place anything on top of the panini press when the lid is closed, when in use and when stored.
  • Always remove the plug from the wall outlet and allow to cool if the appliance is not in use, before cleaning, before attempting to move the appliance, disassembling, assembling and when storing the appliance.
  • Do not use harsh abrasives, caustic cleaners or oven cleaners when cleaning the panini press.
  • Keep the exterior housing and the non-stick cooking plates clean. Follow the cleaning instructions provided in this book. Refer to care and cleaning (Page 12)
  • If the appliance is of the grounded type, the extension cord should be a grounding 3-wire cord.
  • The use of accessory attachments not recommended by Breville may cause injuries.
  • Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

BREVILLE RECOMMENDS SAFETY FIRST

FOR ALL ELECTRICAL APPLIANCES

  • Fully unwind the cord before use.
  • To protect against electric shock, do not immerse the cord, plug or appliance in water or any other liquid.
  • Do not allow the cord to hang over the edge of a table or bench, touch hot surfaces or become knotted.
  • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • It is recommended to regularly inspect the appliance. Do not use the appliance if the power supply cord, plug or appliance becomes damaged in any way. Return the entire appliance to the nearest authorized Breville Service Center for examination and/or repair.
  • Any maintenance other than cleaning should be performed at an authorized Breville Service Center.
  • This appliance is for household use only. Do not use in moving vehicles or boats. Do not use outdoors. Do not use this appliance for anything other than its intended use. Misuse may cause injury.

NOTE:

Your Breville appliance comes with the unique Assist Plug™, conveniently designed with a finger hole in the power plug, for easy and safe removal from the outlet. For safety reasons it is recommended you plug your Breville appliance directly into the power outlet.

DO NOT use in conjunction with a power strip or extension cord.

ELECTRIC CORD STATEMENT

Your panini press has a short cord as a safety precaution to prevent personal injury or property damage resulting from pulling, tripping or becoming entangled with the cord. Do not allow children to be near or use this appliance without close adult supervision.

If you must use a longer power cord or an extension cord when using the appliance, the cord must be arranged so it will not drape or hang over the edge of a countertop, tabletop or surface area where it can be pulled on by children or tripped over.

To prevent electric shock, personal injury or fire, the electrical rating of the extension cord you use must be the same or more than the wattage of the appliance (wattage is marked on the underside of the appliance).

SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY

KNOW

your Breville Panini Press

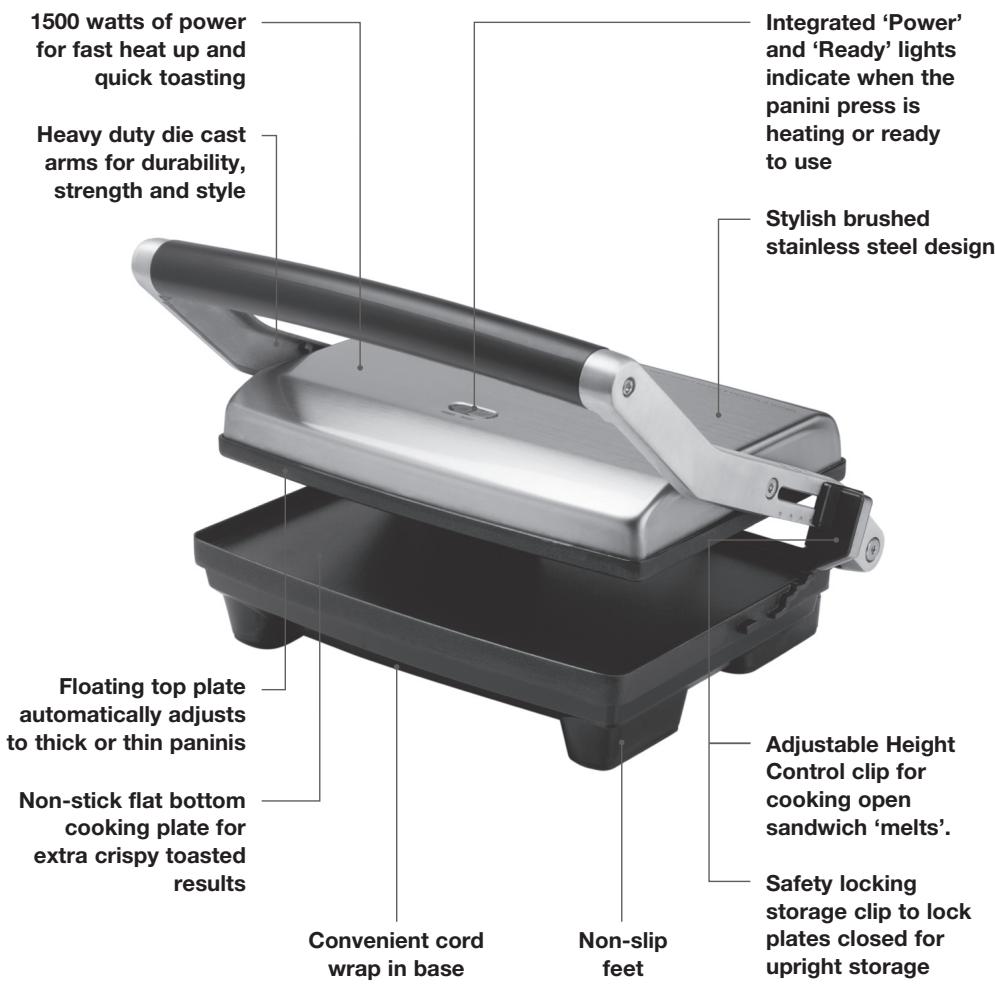

KNOW YOUR BREVILLE PANINI PRESS

BSG520XL / BSG540XL

BREVILLE BSG540XL - BSG520XL / BSG540XL - 1

OPERATING

your Breville Panini Press

OPERATING YOUR BREVILLE PANINI PRESS

Before first use

Remove any promotional materials and packaging materials before use. Check that the cooking plates are clean and free of dust. If necessary, wipe with a soft, damp cloth.

When using the panini press for the first time you may notice a fine smoke haze. This is caused by the heating of some of the components. There is no need for concern.

  1. Toasting should take approximately 5-8 minutes. Exact toasting time will be a matter of taste. It will also depend on the type of bread and type of filling used.
  2. When the panini is cooked, use the handle to open the panini press and raise the top cooking plate. Remove the panini with the help of a plastic or wooden spatula. Never use metal tongs or a knife as these can cause damage to the non-stick coating.

To use as a panini press

  1. Insert the power plug into a 110/120 volt power outlet. The Red power 'On' light will illuminate.
  2. Allow the panini press to pre-heat with the top cooking plate in the closed position until the green 'READY' light illuminates.
  3. During this time, prepare the panini. When the green 'Ready' light illuminates, place the panini onto the bottom cooking plate. Always place panini towards the rear of the bottom cooking plate.

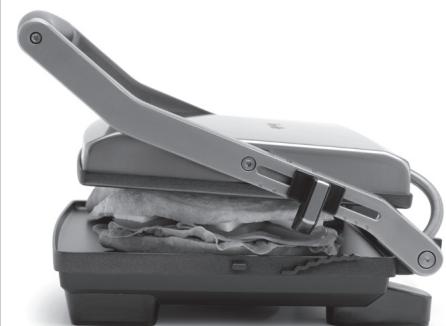

  4. Close the top cooking plate. The top cooking plate has a floating hinge that is designed to evenly press down on the panini (see Fig. 1).

BREVILLE BSG540XL - To use as a panini press - 1
Fig. 1

NOTE:

Always allow the panini press to pre-heat until the green 'READY' light illuminates.

NOTE:

The locking storage clip should not be used to clamp down the top cooking plate when the paninis are in the panini press. The weight of the top cooking plate will gradually press down the sandwich during the cooking process.

NOTE:

When using the panini press for the first time you may notice a fine smoke haze. This is caused by the heating of some of the components. There is no need for concern.

BREVILLE BSG540XL - NOTE: - 1

THE TEMPERATURE OF ACCESSIBLE SURFACES MAY BE HIGH WHEN THE APPLIANCE IS OPERATING.

FULLY UNWIND THE CORD FROM THE CORD STORAGE FACILITY BEFORE USE.

OPERATING YOUR BREVILLE PANINI PRESS

TOASTING OPEN SANDWICH 'MELTS'

Your panini press has an Adjustable Height Control feature which allows you to fix the top plate to a range of positions above the bottom plate. This allows your panini press to be used as an open toaster ideal for toasting open sandwich style 'melts'.

It can also be used for toasting sandwiches and snacks where you don't need to apply the weight of the top plate.

Open sandwich melts

  1. Allow the panini press to pre-heat until the green 'READY' light illuminates.
  2. Place sandwich to be melted on bottom plate.

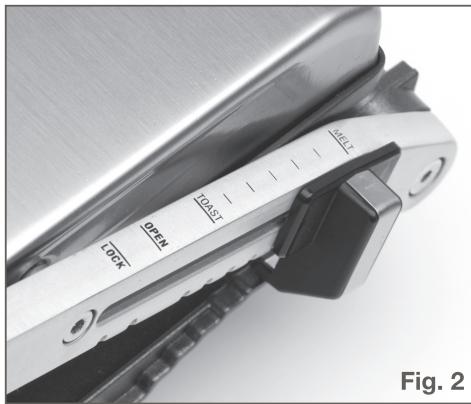

  3. Move the Adjustable Height Control clip on the right hand side of the panini press to the desired height (see Fig. 2).
  4. Slowly lower the top plate until it rests on the Adjustable Height Control clip.
  5. The top plate will radiate the desired heat to melt ingredients such as cheese.
  6. Toasting 'melts' should take approximately 3-4 minutes. However exact toasting time will be a matter of taste. It will also depend on the height of the top plate.

NOTE:

The panini press should be used to heat sandwich fillings and deli meats or reheat pre-cooked fillings. Always ensure uncooked meats are cooked before using them as sandwich fillings in toasted sandwiches.

BREVILLE BSG540XL - NOTE: - 1

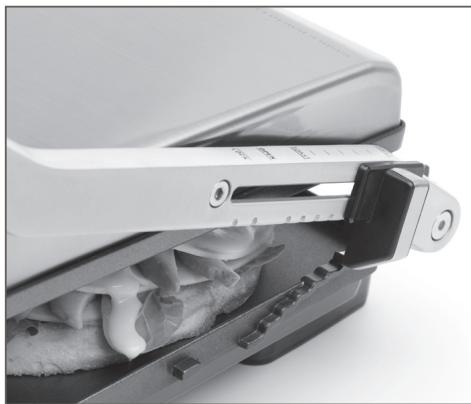

Adjustable Height Control

Toasts or melts any bread thickness in minutes.

BREVILLE BSG540XL - Adjustable Height Control - 1

NOTE:

The Adjustable Height Control can be moved to accommodate thick or thin melts by sliding the clip forwards or backwards along the arm.

OPERATING YOUR BREVILLE PANINI PRESS

HINTS FOR BEST RESULTS

Bread

Most types of bread can be used; white, wholemeal, kibbled wheat, wholegrain, raisin loaf and so on. The panini press is ideal for toasting focaccia, Turkish bread, baguette as well as bread rolls. Raisin bread, brioche or other sweet breads which contain a high sugar content will tend to brown quicker.

Filings

Try to use canned or pre-cooked fruit as fresh fruit may give off excessive juices when heated. Be careful when biting into paninis containing fillings such as cheese and tomato or jam as they retain heat and can burn if eaten too quickly.

Versatility

The flat bottom plate design makes the panini press ideal for toasting plain bread and Turkish bread without any fillings or spreads. The flat bottom plate is also perfect for cooking breakfast items such as eggs and pancakes.

Fat free snacks

Due to the non-stick flat plate design, it is not necessary to use any butter or margarine on the outside of your toasted snacks.

NOTE:

When using the flat bottom plate to cook breakfast items, move the Adjustable Height Control clip so that the top plate floats above the food. The top plate will radiate heat onto the food, shortening the cooking time.

CARE & CLEANING

your Breville Panini Press

CARE & CLEANING YOUR BREVILLE PANINI PRESS

Before cleaning, remove the plug from the power outlet. Allow your panini press to cool before cleaning.

The appliance is easier to clean when slightly warm.

Always clean your panini press after each use to prevent a build up of baked-on foods.

Wipe cooking plates with a soft cloth. If cooked on food is not removed by this method, reheat the unit for 1-2 minutes, then brush with a little oil or melted butter. Allow to stand for five minutes then wipe with a damp cloth.

NOTE:

The cooking plates are coated with a non-stick surface, do not use abrasives.

Storage

To store your panini press:

  1. Unplug from the power outlet.
  2. Allow the panini press to fully cool.
  3. Slide the Adjustable Height Control clip towards the front handle to the LOCK position so that the top and bottom cooking plates are locked together (See Fig 3).

  4. Wrap the cord in the cord storage area below the appliance (See Fig 4).

  5. The panini press can be stored upright or flat on a dry, level surface.

BREVILLE BSG540XL - Storage - 1
Fig. 4

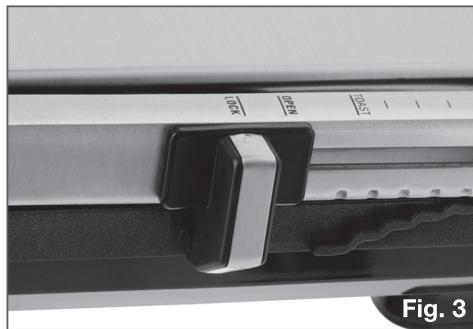

NOTE:

The storage clip should not be used to clamp down the top plate when paninis are in the panini press.

BREVILLE BSG540XL - NOTE: - 1

DO NOT IMMERSE ANY PART OF THE BREVILLE PANINI PRESS IN WATER OR ANY OTHER LIQUID.

BREVILLE BSG540XL - NOTE: - 2

RECIPES

RECIPES - FLAVORFUL PANINIS & SANDWICHES

HERBED OMELETTE PANINI

Serves 2

3 bacon rashers, thinly sliced

1 tablespoon extra virgin olive oil

3.5oz (100g) button mushrooms, sliced

13 cup shallots, thinly sliced

Freshly ground black pepper

3 × 20z (60g) eggs, lightly beaten

1 tablespoon freshly chopped herbs

14 cup thinly sliced roasted bell peppers

1 large focaccia, halved

4oz (125g) sliced Swiss cheese

  1. Pre-heat the panini press until the green "READY" light illuminates.

  2. Meanwhile, fry bacon in a non-stick frypan until crisp. Remove from pan and set aside. Sauté mushrooms and shallots in frypan until any liquid has evaporated. Remove from heat.

  3. Beat eggs lightly adding pepper and herbs. Pour mixture over mushrooms in pan. Return to medium heat and cook until eggs are set but soft in the center, approximately 3-5 minutes.

  4. Remove omelette from frypan and roughly chop.

  5. Cut focaccia in half to form a sandwich. Fill focaccias with omelette, bell pepper, cheese and bacon.

  6. Cook focaccia until golden, crisp and heated through, approximately 8 minutes.

Serve with salad greens.

CHAR GRILLED CHICKEN LAVOSH WITH MANGO & PINENUT MAYONNAISE

Serves 2-3

114 cup mayonnaise

12 tablespoon chilli salsa

1 teaspoons grated lime rind

12 tablespoon lime juice

4oz (125) canned mango pieces, drained

112 tablespoon toasted pinenuts

1 char-grilled chicken breast, sliced thinly

2 sheets lavash bread

1 avocado, sliced

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Combine mayonnaise, salsa, rind, juice, mango, pinenuts and chicken.
  3. Spread chicken mixture over each lavash. Top with avocado and roll tightly.
  4. Cook lavash rolls until golden, crisp and heated through, approximately 8 minutes.

Serve sliced on an angle with salad greens.

TUNA AND ARTICHoke

Serves 2

2 large crusty round rolls

3.5oz (100g) black olive paste

7oz (200g) can tuna, drained

6 marinated baby artichokes

4oz (125g) Brie cheese, thinly sliced

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Cut rolls in half and spread with olive paste. Fill with tuna, artichokes and cheese.
  3. Cook until golden, crisp and heated through, approximately 8 minutes.

RECIPES - FLAVORFUL PANINIS & SANDWICHES

ROAST BEEF KEBABS

Serves 2-3

2 round Pita bread
2.5oz (70g) cream cheese
3 teaspoons seeded mustard
13 tablespoon lemon juice
14 cup grated canned beets, drained
3.5oz (100g) shaved rare roast beef
2.5oz (70g) marinated roasted eggplant

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Combine cream cheese, mustard and lemon juice. Spread each Pita bread with cream cheese mixture. Top with beets, roast beef and eggplant. Roll tightly.
  3. Cook Pita bread until golden, crisp and heated through, approximately 10 minutes.

Serve Sliced.

SPICY LAMB IN PITA

Serves 2-3

1 tablespoons oil
4oz (125g) ground lamb mince
2 tablespoons finely chopped onion
12 cup diced tomato
1 tablespoons freshly chopped mint
14 teaspoon ground cilantro
Pinch ground ginger
12 teaspoon ground cumin
14 teaspoon turmeric
Salt and freshly ground black pepper, to taste
3 pita breads
3 slices Swiss cheese
Tatziki dip, for serving

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Heat oil in a non-stick frypan, sauté lamb mince, onions, tomato, mint, spices and seasonings until browned and cooked. Drain.
  3. Splititas open to form pockets. Fill with lamb mixture and insert a cheese slice into each pocket.
  4. Cook pitas until golden, crisp and heated through, approximately 10 minutes.

Serve with tatziki dip.

WARM CAESAR SANDWICH

Serves 2

3 bacon rashers, thinly sliced

2 round Turkish breads

1 char-grilled chicken breast fillet, thinly sliced

1 hard boiled egg, peeled and sliced

13 cup prepared garlic croutons

1oz (30g) baby spinach leaves

2oz (60g) freshly grated Parmesan cheese

Caesar salad dressing, for serving

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Meanwhile heat a non-stick frypan and fry bacon until crispy. Cut Turkish bread in half to form a sandwich. Fill with bacon, chicken, eggs, croutons, spinach and cheese.
  3. Cook Turkish bread until golden, crisp and cooked through, approximately 6 minutes.
    Serve drizzled with Caesar salad dressing.

RECIPES - FLAVORFUL PANINIS & SANDWICHES

MEDITERRANEAN LAYERED TWISTS

Serves 2-3

2 twist or cob bread rolls
2 tablespoons pesto
3.5oz (100g) marinated roasted eggplant
4oz (125g) marinated roasted red bell pepper
2oz (60g) char-grilled sliced sweet potato
3.5oz (100g) marinated semi-dried tomatoes, drained
2oz (60g) mushrooms, sliced
3.5oz (100g) sliced Swiss cheese

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Cut bread rolls in half and spread with pesto. Fill with eggplant, bell pepper, sweet potato, dried tomato, mushrooms and cheese.
  3. Cook bread rolls until golden, crisp and heated through, approximately 8 minutes.

GORGONZOLA PANINI

Serves 2

1oz (30g) herb and garlic butter
4 slices crusty country-style bread
1.5oz (50g) English spinach leaves
2oz (60g) Gorgonzola cheese, crumbled
2oz (60g) marinated roasted bell pepper

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Spread herb and garlic butter over bread slices and fill with spinach, cheese and bell pepper.
  3. Cook until golden, crisp and heated through approximately 6 minutes.

Serve cut in half.

ANTIPASTO RYE BREAD

Serves 2-3

4 slices rye bread

12 tablespoon extra virgin olive oil

1 tablespoon sun-dried tomato paste

2oz (60g) hummus

4 stuffed vine leaves

7oz (200g) artichoke hearts, drained & sliced

4 slices Swiss cheese

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Combine oil and tomato paste. Spread rye bread with tomato mixture then hummus. Fill with vine leaves, artichokes and cheese to make 2 sandwiches.
  3. Cook until golden, crisp and heated through, approximately 8 minutes

Serve cut in half.

PROSCIUTTO BAGUETTE

Serves 2

2 small-medium baguette rolls
2.75oz (80g) Italian prosciutto, thinly sliced
2.5oz (75g) bocconcini cheese, thinly sliced
4 basil leaves

Freshly ground black pepper

1 tablespoons extra virgin olive oil

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Cut baguette in half. Fill with layers of prosciutto, cheese and basil. Season to taste and drizzle with oil.
  3. Cook baguettes until golden, crisp and heated through, approximately 6-8 minutes.

Serve cut in half.

RECIPES - FLAVORFUL PANINIS & SANDWICHES

GOAT'S CHEESE AND ROASTED PEPPER

Serves 2

1 large round foccacia

3oz (90g) softened goat's cheese

12 tablespoon roughly chopped Italian parsley

12 tablespoon roughly chopped basil

1 clove garlic, thinly sliced

1 tablespoons drained capers

1 tablespoons lemon juice

12 tablespoon sweet Thai chilli sauce

2oz (60g) marinated roasted zucchini

2oz (60g) semi dried tomatoes

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Cut focaccia in half to form a sandwich. Combine goat's cheese, parsley, basil, garlic, capers, lemon juice and chilli sauce. Spread focaccia with goat's cheese mixture. Fill with zucchini and tomatoes.
  3. Cook focaccias until golden, crisp and heated through, approximately 8 minutes.

PRAWN AND WATERCRESS SANDWICHES

Serves 2

4 slices wholegrain bread
2.5oz (70g) cream cheese, softened
2oz (60g) herb & garlic butter
2.5oz (75g) watercress
13.5oz (400g) medium cooked king prawns, peeled and de-veined

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Spread bread with combined cream cheese and garlic butter. Fill with watercress and prawns to make 2 sandwiches.
  3. Cook until golden, crisp and heated through, approximately 8 minutes.

ITALIAN FONTINA TOAST

Serves 2

4 slices white bread
3.5oz (100g) Italian fontina cheese, sliced
3.5oz (100g) marinated roasted red bell pepper
3.5oz (100g) sliced marinated mushrooms Freshly ground black pepper, to taste

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Fill bread with layers of cheese, bell pepper and mushrooms. Season with pepper. Make into 2 sandwiches.
  3. Cook until golden, crisp and heated through, approximately 6-8 minutes.

NOTE:

Fontina cheese may be substituted with Parmesan or Romano cheese.

RECIPES - FLAVORFUL PANINIS & SANDWICHES

CHAR-GRILLED CHICKEN AND SALSA VERDE

Serves 2

1 char-grilled chicken breast fillet, sliced
1 clove garlic, thinly sliced
1/3 cup chopped parsley
1 tablespoon finely chopped sage
14 cup stuffed pimento green olives, chopped
1 tablespoons drained capers
1 tablespoon extra virgin olive oil
12 teaspoon freshly grated lime rind
12 tablespoon lemon juice
4 large slices Ciabatta bread
4 large slices Swiss cheese

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Combine chicken, garlic, parsley, sage, olives, capers, oil, rind and juice. Fill bread with chicken mixture and sliced cheese to make 2 sandwiches.
  3. Cook until golden, crisp and heated through, approximately 8-10 minutes.

CRISPY SWORDFISH SANDWICHES

Serves 2

8oz (250g) fresh swordfish fillets thinly sliced
1 12 tablespoons extra virgin olive oil
2 tablespoons freshly chopped herbs (basil, garlic chives, thyme, dill)
1 / 2 teaspoon paprika

Salt and freshly ground black pepper, to taste

1 large focaccia
2 tablespoons mayonnaise
4 tomato slices
12 tablespoon drained capers
6 baby English spinach leaves

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Brush fish fillets with half the olive oil. Coat fillets with combined herbs, paprika and seasonings.
  3. Heat remaining oil in a frypan. Fry fish until golden. Remove and drain.
  4. Cut focaccia in half to form a sandwich and spread mayonnaise. Fill with fish, tomato, capers and spinach.
  5. Cook focaccias until golden, crisp, and heated through, approximately 5 minutes.

NOTE:

Large focaccia may need to be cut in half to fit into the panini press.

RECIPIES - DESSERT STYLE PANINIS & SANDWICHES

TOASTED CHOCOLATE PANINI

Serves 2

2.75oz (80g) cream cheese, softened

4 slices textured Country style bread

8.5oz (250g) bittersweet chocolate, coarsely grated

Vanilla ice-cream, for serving

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Spread cream cheese over bread slices and sprinkle with grated chocolate. Sandwich together.
  3. Cook until golden, crisp and heated through, approximately 6 minutes.

Serve with vanilla ice-cream.

CRISP BERRY AND MASCARPONE SANDWICHES

Serves 2

3.5oz (100g) Mascarpone cheese

4 slices Country styled bread

12 punnet strawberries, hulled and sliced

12 punnet raspberries

1 tablespoons honey

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Spread cheese over bread slices. Fill with berries and drizzle with honey to make 2 sandwiches.
  3. Cook until golden, crisp and heated through, approximately 8 minutes.

CRISPY BRIOCHE WITH BERRIES AND ICE-CREAM

Serves 2

12 punnet strawberries, hulled

12 punnet blueberries

12 punnet raspberries

14 cup port

1 loaf brioche

Vanilla ice-cream, for serving

icing sugar, for serving

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Puree berries and port until smooth. Set aside. Cut 4 slices from brioche and cook until toasted, approximately 5 minutes.
  3. Arrange toasted brioche on 2 large, white plates. Top with ice-cream and drizzle with berry sauce.

Dust with icing sugar and serve immediately.

SWEET NECTARINE SANDWICH

Serves 2

1.5oz (40oz) unsalted butter, softened
4 slices soy and linseed grain bread
2 nectarines, peeled and sliced
1 teaspoon ground cinnamon
2 tablespoons caster sugar

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Spread butter over bread slices. Fill with sliced nectarine and sprinkle with combined cinnamon and sugar to make 2 sandwiches.
  3. Cook until golden, crisp and heated through, approximately 8 minutes.

RECIPIES - DESSERT STYLE PANINIS & SANDWICHES

SWEET FIG FOCACCIA

Serves 2

2 small plain rounds of focaccia
2.75oz (80g) fresh ricotta cheese
3 fresh figs, thinly sliced
6 small fresh mint leaves
1 tablespoon caster sugar

  1. Pre-heat the panini press until the green "READY" light illuminates.
  2. Cut focaccias in half to form a sandwich. Spread with ricotta cheese. Fill with figs, mint leaves and sprinkling of caster sugar.
  3. Cook until golden, crisp and heated through, approximately 8 minutes.

ONE YEAR LIMITED WARRANTY

Breville®* warrants this Breville® appliance against defects that are due to faulty material or workmanship for a period of one (1) year from the date of original consumer purchase. This warranty does not cover damage from abuse, neglect, use for commercial purposes, or any other use not found in the printed "Instructions for use" booklet. There is no warranty for glass parts, glass containers, filter basket, blades and agitators. HWI Breville® expressly disclaim all responsibility for consequential damages for incidental losses caused by use of this appliance. Some states or provinces do not allow this exclusion or limitation for incidental or consequential losses, so the foregoing disclaimer may not apply to you.

ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD.

Some states or provinces do not allow disclaimer of the implied warranty with respect to consumer goods, so the foregoing disclaimer may not apply to you.

This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state or province to province.

If the appliance should become defective within the warranty period, do not return the appliance to the store. Please contact our Customer Service Center.

Toll free phone number:

1-866-BREVILLE (1-866-273-8455)

Internet email:

AskUs@BrevilleUSA.com (in USA)

AskUs@Breville.ca (in Canada)

*HWI Breville® products are distributed in Canada by Anglo Canadian Housewares, L.P. and in USA by Metro/Thebe Inc.

FÉLICITATIONS

2 pains turcs rounds

PANINI AU GORGONZOLA

2 portions

Breville Customer Service Center

US Customers

Mail: 19400 S.Western Ave Torrance CA 90501-1119

Canada Customers

Mail: Anglo Canadian 2555, Avenue de l'Aviation Pointe-Claire (Montreal) Quebec H9P 2Z2

Phone: Customer Service 1 (866) BREVILLE

Email: Customer Service askus@brevilleusa.com

Phone: Customer Service: 1 (866) BREVILLE

Email: Customer Service askus@breville.ca

www.breville.com

Breville is a registered trademark of Breville Pty Ltd, A.B.N. 98000 092 928, USA: 19400 S.Western Ave, Torrance, CA90501-1119, Tel: 1 866 BREVILLE. CANADA: 2555, Avenue de l'Aviation, Pointe-Claire (Montreal) Quebec, H9P2Z2, Tel: 1 866 BREVILLE

Copyright Breville Pty Ltd 2008. Due to continued product improvement, the products illustrated/photographed in this brochure may vary slightly from the actual product.

Model BSG520XL / BSG540XL Issue NA-1/09

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : BREVILLE

Model : BSG540XL

Category : Electric grill
