BSC560XL - Centrifuge BREVILLE - Free user manual and instructions

USER MANUAL BSC560XL BREVILLE

One year limited warranty

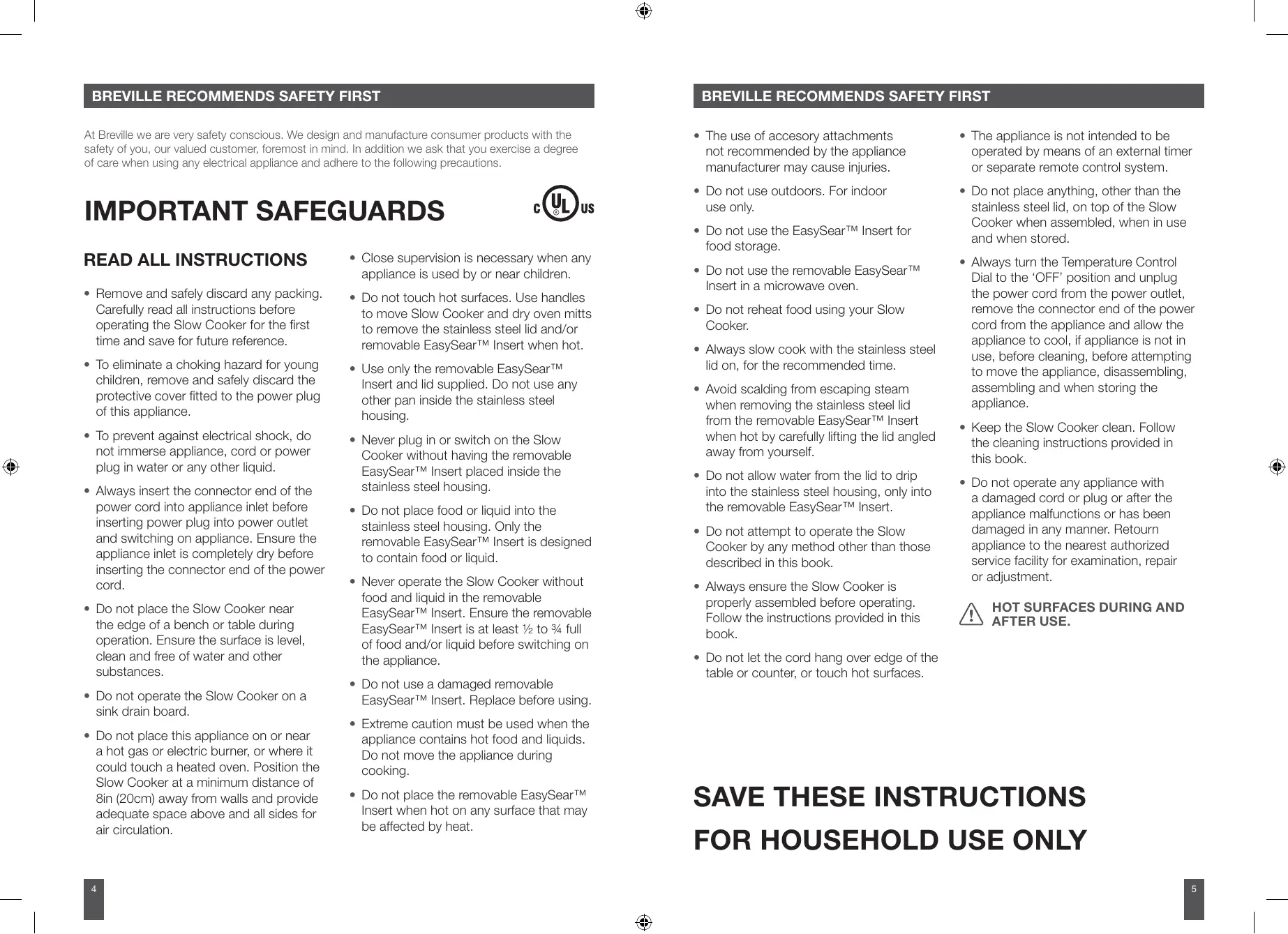

BREVILLE RECOMMENDS SAFETY FIRST

At Breville we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions. IMPORTANT SAFEGUARDS read all instructions

• Close supervision is necessary when any appliance is used by or near children.

• Remove and safely discard any packing. Carefully read all instructions before operating the Slow Cooker for the first time and save for future reference.

• Do not touch hot surfaces. Use handles to move Slow Cooker and dry oven mitts to remove the stainless steel lid and/or removable EasySear™ Insert when hot.

• To eliminate a choking hazard for young children, remove and safely discard the protective cover fitted to the power plug of this appliance.

• Use only the removable EasySear™ Insert and lid supplied. Do not use any other pan inside the stainless steel housing.

• To prevent against electrical shock, do not immerse appliance, cord or power plug in water or any other liquid.

• Never plug in or switch on the Slow Cooker without having the removable EasySear™ Insert placed inside the stainless steel housing.

• Always insert the connector end of the power cord into appliance inlet before inserting power plug into power outlet and switching on appliance. Ensure the appliance inlet is completely dry before inserting the connector end of the power cord.
• Do not place the Slow Cooker near the edge of a bench or table during operation. Ensure the surface is level, clean and free of water and other substances.
• Do not operate the Slow Cooker on a sink drain board.
• Do not place this appliance on or near a hot gas or electric burner, or where it could touch a heated oven. Position the Slow Cooker at a minimum distance of 8in (20cm) away from walls and provide adequate space above and all sides for air circulation.

• Do not place food or liquid into the stainless steel housing. Only the removable EasySear™ Insert is designed to contain food or liquid.
• Never operate the Slow Cooker without food and liquid in the removable EasySear™ Insert. Ensure the removable EasySear™ Insert is at least ½ to ¾ full of food and/or liquid before switching on the appliance.
• Do not use a damaged removable EasySear™ Insert. Replace before using.

BREVILLE RECOMMENDS SAFETY FIRST

• The use of accesory attachments not recommended by the appliance manufacturer may cause injuries.

• The appliance is not intended to be operated by means of an external timer or separate remote control system.

• Do not use outdoors. For indoor use only.

• Do not place anything, other than the stainless steel lid, on top of the Slow Cooker when assembled, when in use and when stored.

• Do not use the EasySear™ Insert for food storage.
• Do not use the removable EasySear™ Insert in a microwave oven.
• Do not reheat food using your Slow Cooker.
• Always slow cook with the stainless steel lid on, for the recommended time.
• Avoid scalding from escaping steam when removing the stainless steel lid from the removable EasySear™ Insert when hot by carefully lifting the lid angled away from yourself.
• Do not allow water from the lid to drip into the stainless steel housing, only into the removable EasySear™ Insert.
• Do not attempt to operate the Slow Cooker by any method other than those described in this book.
• Always ensure the Slow Cooker is properly assembled before operating. Follow the instructions provided in this book.

• Always turn the Temperature Control Dial to the ‘OFF’ position and unplug the power cord from the power outlet, remove the connector end of the power cord from the appliance and allow the appliance to cool, if appliance is not in use, before cleaning, before attempting to move the appliance, disassembling, assembling and when storing the appliance.
• Keep the Slow Cooker clean. Follow the cleaning instructions provided in this book.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Retourn appliance to the nearest authorized service facility for examination, repair or adjustment.

HOT SURFACES DURING AND

• Do not let the cord hang over edge of the table or counter, or touch hot surfaces.

• Extreme caution must be used when the appliance contains hot food and liquids. Do not move the appliance during cooking.
• Do not place the removable EasySear™ Insert when hot on any surface that may be affected by heat.

SAVE THESE INSTRUCTIONS

for household use only

ELECTRIC cord INSTRUCTIONS Your Breville appliance is fitted with a short power supply cord as a safety precaution to prevent personal injury or property damage resulting from pulling, tripping or becoming entangled with a longer cord. Do not allow children to use or be near this appliance without close adult supervision. Extension cords may be used if care is exercised in their use. If an extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, (2) the cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally and (3) the extension cord must include a 3-prong grounding plug.

KNOW your new Breville Slow Cooker Know Your Breville SLOW COOKER Domed Stainless Steel Lid suitable for use in the oven Removable Die-Cast EasySear™ Insert designed for searing on the stovetop, slow cooking and roasting in the oven Quantanium Non-Stick for easy cleaning Temperature Control Dial for ease and simplicity Brushed Stainless Steel Housing Extra Large 7-qt (6.5 L) Capacity for family sized meals Silicon Handle Covers for heat protection Wrap Around Element ensures an even temperature throughout the cooking process Stainless Steel Rack for Roasting Removable Cord for serving at the table and easy storage (not shown)

Before first use, remove all promotional labels and packing materials. Wash the removable EasySear™ Insert and stainless steel lid in hot, soapy water, rinse and dry thoroughly. Wipe the inside and the outside of the stainless steel housing with a soft, damp cloth, then dry thoroughly.

3. Heat the EasySear™ Insert on a

stovetop over medium to high heat.

stainless steel Slow Cooker housing and place onto a large burner or hotplate on the gas, electric or ceramic stovetop.

4. Place food to be seared into the

EasySear™ Insert in batches. OIL OIL

5. When finished searing, use oven mitts

and carefully place the EasySear™ Insert back into the stainless steel Slow Cooker housing. Proceed to ‘How to

CUISINIÈRE AU GAZ OU ÉLECTRIQUE

2. Place the stainless steel lid into

The base of the EasySear™ Insert may cause scratching on glass/ceramic or halogen cooktops.

Stir food in the EasySear™ Insert often, when cooking on the stovetop.

Do not use metal utensils because they will scratch the non-stick coating on the EasySear™ Insert.

Do not heat the EasySear™ Insert when empty for prolonged periods of time as it may damage the cooking surface. OIL The EasySear™ Insert is suitable for use on most electric, gas and ceramic stovetops, however it is not suitable for use on induction stovetops.

5. When cooking is complete, turn the

Temperature Control Dial to the ‘OFF’ position, remove the power plug from

CUISINIÈRE AU GAZ OU ÉLECTRIQUE

Do not place EasySear™ Insert in an oven that is hotter than 480°F (250°C).

While silicone handles are heat

resistantFEU toMOYEN 480°FÀ(250°C) it is not ÉLEVÉ recomended to use for extended periods above 390°F (200°C).

3. With the Temperature Control Dial

turned to the ‘OFF’ position, insert the connector end of the power cord into the appliance inlet and plug the power cord into a 110/120V power outlet. IMPORTANT

Never operate the Slow Cooker without the removable EasySear™ Insert positioned in the stainless steel housing.

Never operate the Slow Cooker without food and liquids in the removable EasySear™ Insert.

Always have the stainless steel lid firmly in position on the removable EasySear™ Insert throughout the operation of the Slow Cooker unless it is stated in a recipe to have it removed.

Do not place the removable EasySear™ Insert or stainless steel lid when hot on any surface that may be affected by heat.

into the stainless steel housing, add ingredients into EasySear™ Insert, ensuring denser foods are spread evenly across the bottom of the pan and not heaped to one side.

ALWAYS LIFT AND REMOVE

4. Turn the Temperature Control Dial to the

desired setting. NOTE: Use of the stainless steel lid in a conventional oven may cause discoloration. This is normal and will not affect the cooking performance.

BEGGINERS GUIDE to Slow Cooking a begginers guide to Slow CookING The Breville Slow Cooker with EasySear™ Insert is designed specifically for flavor layering. A technique professional chefs use to enhance and deepen the taste of meals by using the same pan for browning onions, searing meats and creating casseroles, curries, soup, stock and bolognaise. For this reason, Breville has now developed a Slow Cooker with EasySear™ Insert. Simply remove the EasySear™ Insert from the Slow Cooker and use on the gas, electric or ceramic stovetop to caramelized vegetables and sear meats before placing back into the appliance and commencing the Slow Cooker function. The following is a guide to help simplify the process of slow cooking, allowing you to obtain optimum results from your Slow Cooker. We have also included helpful hints and recipes for successful slow cooking.

PREPARING MEAT AND POULTRY

Select the leanest cuts when purchasing meat. Trim the meat or poultry of any visible fat. If possible, purchase chicken portions without the skin. Otherwise, the slow cooking process will result in extra liquid being formed from the fat as it melts. For casserole type recipes, cut the meat into cubes, approximately 1in - 1.5in (2.5cm - 3 cm). Slow cooking allows less tender cuts of meat to be used. The bones can be left on meat or poultry if liked and will help to keep meat tender during cooking.

SLOW COOKING Beef Beef chuck, skirt, round steak, boneless shin (Gravy) beef, bone-in-shin (Osso Bucco). Lamb Lamb shanks, drumsticks (frenched shanks), neck chops, boned out forequarter or shoulder. Veal Veal diced leg, shoulder/ forequarter chops and steaks, neck chops, knuckle (osso bucco) Pork Pork leg steaks, diced belly, Diced shoulder, Boneless loin chops PREPARING VEGETABLES Vegetables should be cut into even-sized pieces to ensure more even cooking. Frozen vegetables must be thawed before adding to other foods cooking in the Slow Cooker.

PREPARING DRIED BEANS

AND PULSES If time permits, overnight soaking of dried beans and pulses is preferable. After soaking, drain and place in the Slow Cooker and cover with sufficient water to reach double their volume. Cook beans on the High setting for 2 to 4 hours or until tender. Pre-soaked beans and pulses will cook a little faster.

a begginers guide to slow cooking

SEARING AND BROWNING

Searing and browning in the EasySear™ Insert on the stovetop may take a little extra time and whilst not strictly necessary, the rewards are evident in the end result. The EasySear™ Insert keeps the heat stable and uniform allowing the meat to brown and form an even crust. Plus searing and browning seals in the moisture, intensifies the flavor and provides more tender results. Once searing and browning is complete, return the EasySear™ Insert to the stainless steel housing with all the tasty caramelized ingredients inside.

USING THE TEMPERATURE

CONTROL SETTINGS This Slow Cooker has three settings: LOW, HIGH and DUAL. Use the recommended guidelines offered in the recipe to determine cooking time and heat setting. Dishes can be prepared well in advance of mealtime and cooking time regulated so that food is ready to serve at a convenient time. It is almost impossible to overcook in the Slow Cooker particularly when using the LOW setting. A general rule of thumb for most slow cooked meat and vegetable recipes is: setting cooking time LOW 6 to 10 hours HIGH 3 to 4 hours DUAL 4 to 6 hours Your favorite traditional recipes can also be easily adapted to this Slow Cooker. Simply halve the amount of liquid and increase the cooking time. The following is a guide to adjusting your favorite recipes:

TRADITIONAL COOKING TIME a begginers guide to slow cooking SLOW COOKER COOKING TIME LOW HIGH DUAL 35-60 minutes 6-10 hours 3-4 hours 4-6 hours 1-3 hours 4-6 hours 6-8 hours 8-10 hours NOTE: These times are approximate. Times can vary depending on ingredients and quantities in recipes. NOTE: High humidity, altitude, cold tap water and ingredients may slightly affect the cooking times in the Slow Cooker. Low Setting The LOW setting gently simmers food for an extended period of time without overcooking or burning. No stirring is required when using this setting. The addition of liquid is not required for roasting. Elevate the meat to be cooked on the provided stainless steel rack. This will assist in keeping the surface of the meat dry and free from any fat released throughout the cooking process. High Setting The HIGH setting is used when cooking dried beans or pulses and will cook food in half the time required for the Low setting. Some foods may boil when cooked on the high setting, so it may be necessary to add extra liquid. This will depend on the recipe and the amount of time in which it is cooked. Occasional stirring of stews and casseroles will improve flavor distribution. The High setting in this Slow Cooker cooks considerably faster than the DUAL or LOW settings and can be used if time is a constraint. Simply place your favorite meal on High for 3 to 4 hours and you will have a slow cooked meal in a fraction of the time. suitable meat cuts for roasting Beef Beef Blade, Rump, Rib Roast, Sirloin, Fresh Silverside, Chuck, Topside. Lamb Lamb Leg, Mid Loin, Rack, Crown Roast, Shank, Shoulder, Mini Roasts. Veal Veal Leg, Loin, Rack, Shoulder/Forequarter. Pork Pork Loin, Neck, Leg, Racks (remove skin & fat). DUAL Setting The DUAL setting will begin cooking on High and then will shift to Low after approximately 2 hours of cooking time for added ease and simplicity. ROASTING IN THE Slow Cooker Roasting meats in the Slow Cooker creates tender, flavorsome results. The long, slow, covered cooking process breaks down and softens the connective and muscle tissue within the meat, making it easier to slice. Cheaper cuts of meat can be used to provide perfect results cooked by this method. Meat will not brown during the Slow Cooking process, so for browner results sear in the EasySear™ Insert on the stovetop first before placing back into the stainless steel housing for cooking.

a begginers guide to slow cooking

Slow Cooker The addition of liquid is required for pot roasting. Place sufficient liquid into the removable EasySear™ Insert to cover up to a third of the meat. Meat will not brown during the pot roasting process, so for browner results sear in the EasySear™ Insert on the stovetop first before placing back into the stainless steel housing for cooking. suitable meat cuts for pot roasting Beef Topside, Blade, Silverside Roasts, Chuck, Rolled Brisket. Lamb Forequarter, Shank, Shoulder. Veal Shoulder/Forequarter. Pork Loin, Neck.

This Slow Cooker is equipped with a diecast removable EasySear™ Insert and Stainless Steel Lid to withstand temperature extremes. It can be used for browning and searing on a gas, electric or ceramic stovetop or as a traditional roasting pan for use in the oven. The removable EasySear™ Insert and lid are safe for use on stovetops and in conventional ovens up to 480ºF (250ºC). hints and tips

Trim all visible fat from meat or poultry. DONT’S

If a recipe calls for browning the meat, it may be browned in the EasySear™ Insert on the gas, electric or ceramic stovetop.

Do not operate the Slow Cooker without the EasySear™ Insert in position.

Meat and poultry require at least 6 to 7 hours of cooking on LOW setting or 3 to 4 hours on High setting. Do not cook with frozen meats or poultry.

Do not remove the stainless steel lid from the Slow Cooker unnecessarily as this will result in major heat loss.

Stirring is not necessary when Slow Cooking. However, if cooking on the High setting, stirring occasionally will help to distribute flavors throughout the recipe.

Do not use HIGH setting if you intend on being away from home for more than 3 hours.

With proper use and maintenance, these products will give many years of service and help to make this Slow Cooker a convenient, reliable and versatile meal maker. NOTE: Use of the stainless steel lid in a conventional oven may cause discoloration. This is normal and will not affect the cooking performance. Ensure that the food or liquid to be cooked fills half to ¾ of the EasySear™ Insert. If after cooking the liquid quantity is excessive, remove the lid and operate the Slow Cooker on the HIGH setting for 30 to 45 minutes or until the liquid reduces by the desired amount. Alternatively, the liquid can be thickened by adding a mixture of cornflour and water and cooking on High setting without the lid until sauce has thickened. NEVER

Place water or other liquids into the stainless steel housing of the Slow Cooker.

Immerse the base, cord, or plug of the Slow Cooker in water or any other liquid.

Touch hot surfaces with bare hands.

Always thaw frozen meat and poultry before cooking.

Use dry oven mitts when lifting the stainless steel lid or removable EasySear™ Insert after searing or slow cooking.

Place the EasySear™ Insert onto a heat proof mat if serving from the EasySear™ Insert at the table.

To keep foods warm for serving, turn the Temperature Control dial to the LOW setting until ready to serve. NOTE: For more hints, tips and recipe inspirations, please visit www.breville.com

Before cleaning the Slow Cooker, switch the Temperature Control Dial to ‘OFF’, remove the power plug from the power outlet and remove the connector end of the power cord from the appliance inlet.

Remove the the EasySear™ Insert and allow to cool completely.

To remove stubborn, cooked-on foods in the removable the EasySear™ Insert, soften by filling ¾ with water, bring to a slow boil on medium heat on the stove top, add detergent and simmer for 15 minutes. Remove by lightly scrubbing with a soft nylon kitchen brush.

To extend the life of your EasySear™ Insert, we do not recommend that it be placed in the dishwasher. To help maintain the non-stick coating, it is recommended to wash the EasySear™ Insert in hot, soapy water using mild household detergent. Rinse and dry thoroughly.

Do not use abrasive cleaners, steel wool, or scouring pads as these can damage the surfaces and non-stick coating.

The brushed stainless steel housing can be wiped over with a soft, damp cloth and then dried thoroughly.

CORD IN WATER OR ANY

Breville ®* warrants this Breville ® appliance against defects that are due to faulty material or workmanship for a period of one (1) year from the date of original consumer purchase. This warranty does not cover damage from abuse, neglect, use for commercial purposes, or any other use not found in the printed “Instructions for use” booklet. There is no warranty for glass parts, glass containers, filter basket, blades and agitators. HWI Breville ® expressly disclaim all responsibility for consequential damages for incidental losses caused by use of this appliance. Some states or provinces do not allow this exclusion or limitation for incidental or consequential losses, so the foregoing disclaimer may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state or province to province.

ANY WARRANTY OF MERCHANTABILITY

OR FITNESS WITH RESPECT TO THIS

If the appliance should become defective within the warranty period, do not return the appliance to the store. Please contact our Customer Service Center. US Customers Mail: Breville USA 19400 S. Western Ave Torrance CA 90501-1119 Phone: Customer Service: 1(866) BREVILLE Email: Customer Service: [e-mail]
