800CPXL - Centrifuge BREVILLE - Free user manual and instructions

Brand	Breville
Model	800CPXL
Product type	Citrus juicer
Juice collector capacity	2 liters
Juice collector material	Stainless steel
Extraction cone material	Molded stainless steel
Included filters	Two stainless steel filters: wide openings (for more pulp) and narrow openings (for less pulp)
Motor	Powerful, automatic start by pressing on the cone
Power supply	120 V, 60 Hz
Switch	Illuminated with ON/OFF positions
Spout	Anti-drip, removable for cleaning
Pressure arm	Articulated, with fruit dome moving vertically
Safety	Only operates when properly assembled; automatic stop when raising the arm; Assist Plug™ plug
Care and cleaning	Removable parts dishwasher safe (top rack); motor base wiped with a damp cloth
Warranty	1 year limited
Usage	Household use only; do not use for more than 10-15 minutes continuously
Distribution countries	Canada and United States
Customer service	1-866-BREVILLE (1-866-273-8455); [e-mail] / [e-mail]

Frequently Asked Questions - 800CPXL BREVILLE

How to properly assemble the Breville 800CPXL citrus juicer?

Follow the steps: 1. Raise the pressure arm. 2. Place the juice collector on the shaft, engaging the spout in the groove. 3. Insert the chosen filter (wide or narrow). 4. Put the extraction cone. 5. Attach the fruit dome under the arm by aligning the tab. 6. Lower the anti-drip spout. 7. Place a glass under the spout. The appliance only operates if properly assembled.

Why does the motor not start?

Check that the switch is ON, the pressure arm is lowered, and the cone and dome are correctly assembled. If the motor hesitates, raise the arm and lower it slowly during the first seconds.

How to choose the appropriate filter?

Use the filter with wide openings for juice with more pulp, and the filter with narrow openings for clearer juice.

Can the juicer operate continuously?

No, the appliance should not operate for more than 10 to 15 minutes at a time. Let it cool down between uses.

How to clean the parts after use?

Rinse the removable parts immediately with warm water to remove pulp. Then wash them in soapy water or on the top rack of the dishwasher. Wipe the motor base with a damp cloth. Dry all parts before reassembly.

What to do if the stainless steel filter fills too much?

Turn off the appliance, remove the cone and filter, empty the pulp, then reassemble. Do not let the filter overfill to prevent malfunction or damage.

Can I use an extension cord with this appliance?

It is not recommended to use an extension cord. If necessary, it must be grounded and have a power rating at least equal to the appliance. Prefer a direct outlet.

Which fruits are recommended for extraction?

Use fresh citrus fruits with firm skin. Valencia oranges are ideal. Medium-sized grapefruits, lemons, and limes work well. Store fruits at room temperature for more juice.

How to prevent the motor from stopping during use?

Lower the pressure arm slowly at first to allow the motor to gain speed. If the motor stops, raise the arm and try again gently.

What to do if the anti-drip spout does not work?

Make sure the spout is pushed down to the pouring position. For cleaning, you can pull it up. Check that it is not obstructed by pulp.

USER MANUAL 800CPXL BREVILLE

Breville Customer Service Center

US Customers

Mail: 19400 S Western Ave Torrance CA 90501-1119

Phone: Customer Service: 1(866) BREVILLE

Email Customer Service [e-mail]

www.brevilleusa.com

Canada Customers

Mail: Anglo Canadian 2555, Avenue l'aviation Pointe-Claire (Montreal) Quebec H9P 2Z2

Phone: Customer Service: 1(866) BREVILLE

Email Customer Service [e-mail]

Breville is a registered trademark of Breville Pty Ltd. A.B.N. 98 000 092 928
19400 S Western Ave, Torrance, CA 90501-1119 USA
Tel 1 866 BREVILLE
2555, Avenue Aviation, Pointe-Claire (Montreal) Quebec, H9P 2Z2 CANADA
Tel 1 866 BREVILLE

Model 8ooCPXL Issue 4/09

Copyright Breville Pty Ltd 2009

Due to continual improvements in design or otherwise, the product you purchase may differ slightly from the one illustrated in this booklet.

PRINTED ON RECYCLED PAPER

Breville®

CITRUS PRESS

CITRUS PRESS

CONTENTS

4 Congratulations
5 About your Breville Die Cast Citrus Press
6 Breville recommends safety first
8 Know your Breville Die Cast Citrus Press
9 Assembling your Breville Die Cast Citrus Press
13 Operating your Breville Die Cast Press
16 Disassembling your Breville Die Cast Citrus Press
19 Care and cleaning
20 Trouble shooting guide
21 Tips on juicing

Breville

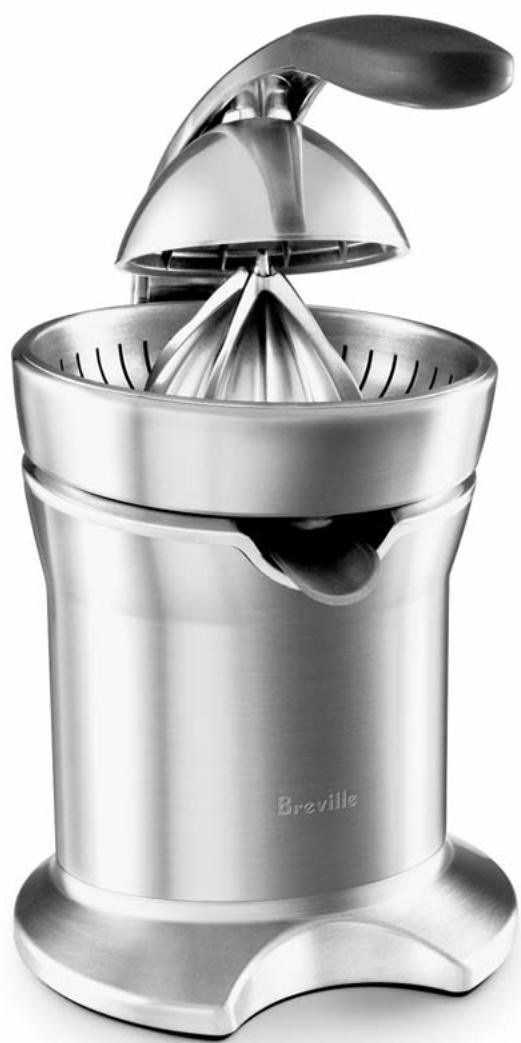

Congratulations

on the purchase of your new Breville Die Cast Citrus Press

From its superbly crafted and ultra-quiet motor right through to its professionally styled casing, your Die Cast Citrus Press represents a perfect balance of functionality, reliability and absolute style.

In developing this booklet our goal was to provide you with the perfect point from which you can start exploring the fabulous benefits of the innovative 8ooCPXL. We hope each page of this booklet helps you gain enormous pleasure from a new world of fresh citrus juicing.

We would just like to say thank you and...

enjoy.

BREVILLE RECOMMENDS SAFETY FIRST

IMPORTANT SAFEGUARDS

We at Breville are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions:

• Carefully read all instructions before operating and save for future reference.
• Remove any promotional stickers before using the Citrus Press.
  Always make sure the Citrus Press is properly and completely assembled before connecting to power outlet and operating. The unit will not turn ON' unless properly assembled.
  Always use the Citrus Press on a dry, level surface.
• Always switch the Citrus Press 'OFF', then unplug from the power outlet if the appliance is to be left unattended, - if not in use, - before cleaning, - before attempting to move the appliance, disassembling, assembling and when storing the appliance.

• Regularly inspect the supply cord, plug and actual appliance for any damage. If found damaged in any way, immediately cease use of the appliance and call Breville Customer Service at 1-866-BREVILLE.

• The use of accessory attachments not recommended by Breville may cause a risk of injury to persons, fire or electric shock.

• When using this appliance, provide adequate air space above and on all sides for circulation.
• If the appliance is of the grounded type, the extension cord should be a grounded type and its electrical rating must be the same or more wattage as the appliance.
• To protect against fire, electrical shock and injury to persons do not immerse the appliance, motor base, cord or plug in water or any other liquid. Do not use a water jet to clean the power cord or motor base.
• Do not leave the appliance unattended when in use.

• Close supervision is necessary when any appliance is used by or near children.

• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces or become knotted.

• Do not place this appliance on or near a hot gas or electric burner, or where it could touch a heated oven.
• For any maintenance other than cleaning, call Breville Customer Service at 1-866-BREVILLE.
• Do not use this appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors.
• Strictly follow cleaning and care instructions.
• To disconnect, turn all controls to 'OFF', then remove plug from power outlet.
• Use caution when operating the appliance - do not place hands or fingers near moving or rotating parts.

SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY

• Portable - Unplug from outlet when not in use before putting on or taking off parts. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Return appliance to the nearest authorized service center/facility for examination, repair, electrical or mechanical adjustment.
• Avoid contact with moving parts.

ELECTRIC CORD STATEMENT

Your Die Cast Series Citrus Press has a short cord as a safety precaution to prevent personal injury or property damage resulting from pulling, tripping or becoming entangled with the cord. Do not allow children to be near or use this appliance without close adult supervision. If you must use a longer cord or an extension cord when using the appliance, the cord must be arranged so it will not drape or hang over the edge of a countertop, tabletop or surface area where it can be pulled on by young children or tripped over. To prevent electric shock, personal injury or fire, the electrical rating of the extension cord if you must use one must be the same or more than the wattage of the appliance (wattage is marked on the underside of the appliance).

WARNING: AVOID PLACING HANDS OR FINGERS NEAR JUICING PRESS ARM MECHANISM AT REAR OF MOTOR BASE WHEN MOVING JUICING PRESS ARM INTO THE UPRIGHT POSITION

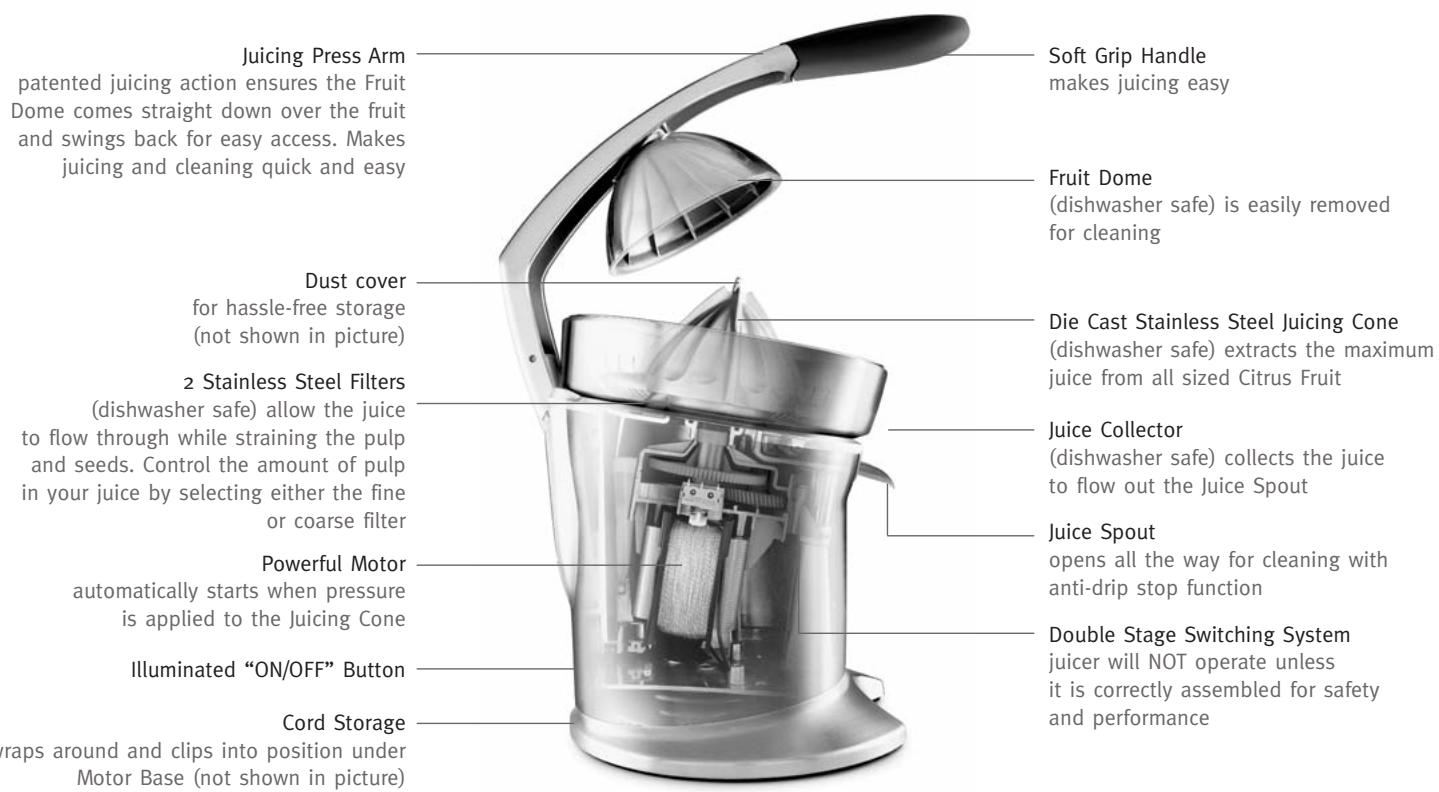

KNOW YOUR BREVILLE DIE CAST CITRUS PRESS

ASSEMBLING YOUR BREVILLE DIE CAST CITRUS PRESS

Step 1.

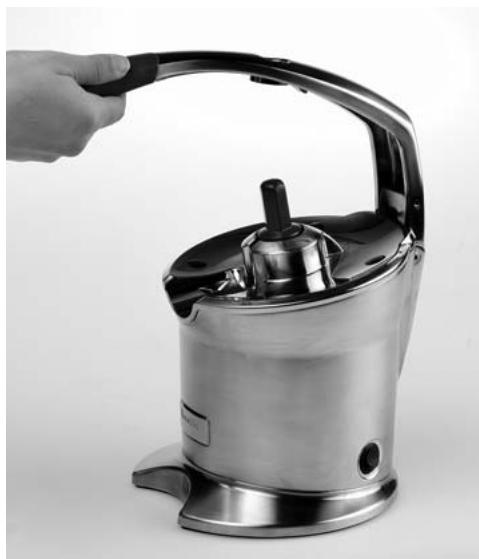

Pull the Juicer Press Arm up and backwards, away from the Motor Base, until fully extended.

Step 2.

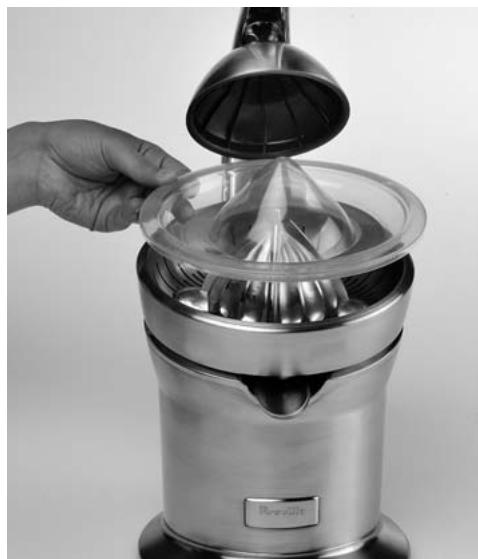

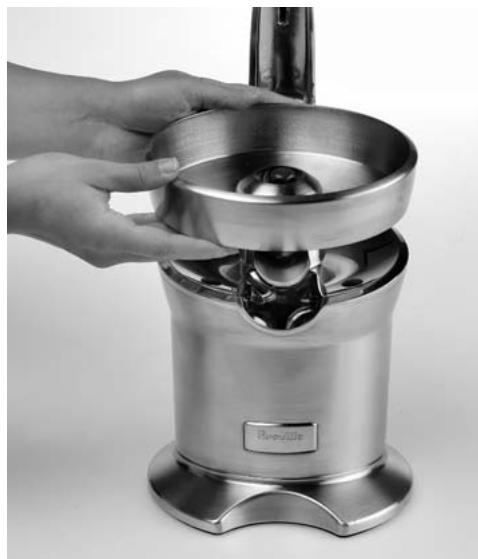

Place the Juice Collector onto the Drive Shaft on top of the Motor Base. Ensure the Juice Spout fits into the semi-circular groove at the front of the Motor Base.

Step 3.

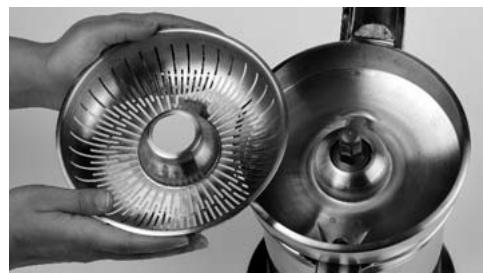

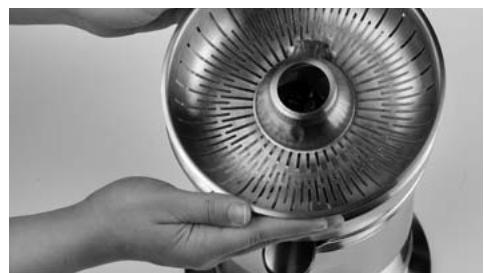

Insert the selected Stainless Steel Filter (fine or coarse) into the Juice Collector, aligning the indent with the arrow in the bottom of the Filter over the corresponding tab with arrow in the Juice Collector. Use the Coarse Filter for maximum pulp content in the juice and the Fine Filter to decrease the pulp content in the juice.

Step 4.

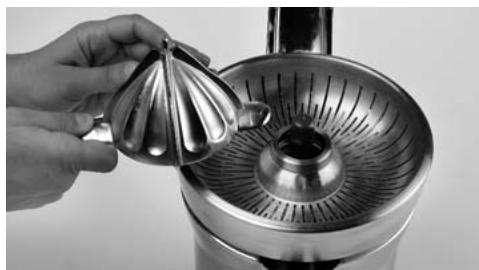

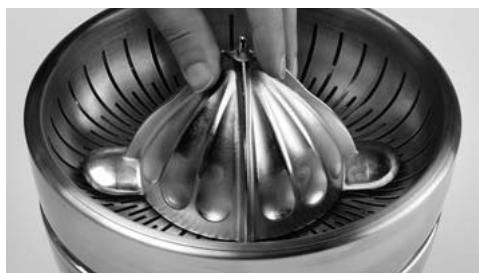

Place the Juicing Cone onto the Drive Shaft and press down lightly to lock the Cone into position.

Step 5.

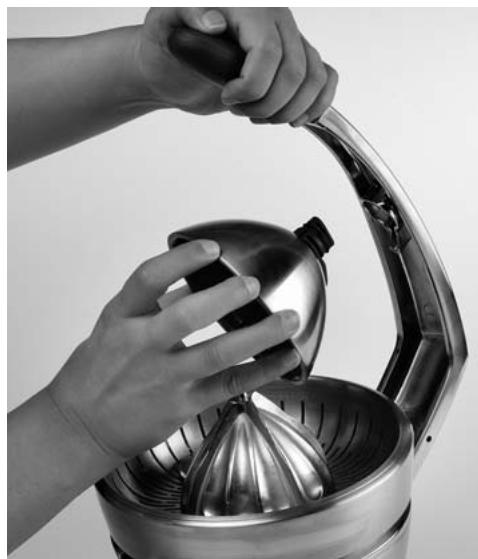

Insert the Fruit Dome onto the underside of the Juicing Press Arm by aligning the tab on top of the Fruit Dome with the hole in the Juicing Press Arm. Hold onto the Juicing Press Arm and press the Fruit Dome up and backwards until the Dome locks into position.

Note: The Fruit Dome is keyed, and can only be inserted in one way (this will ensure that it does not rotate through operation).

Step 6.

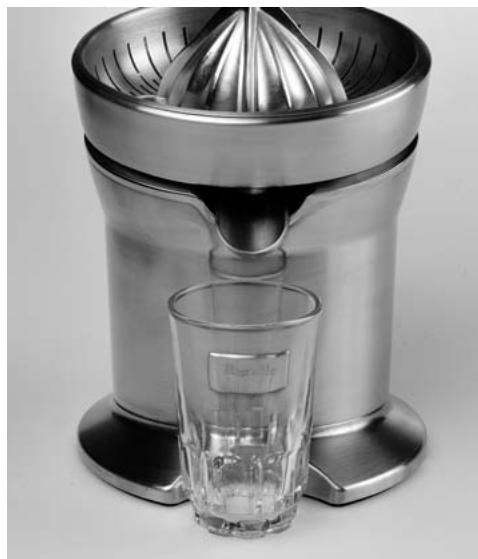

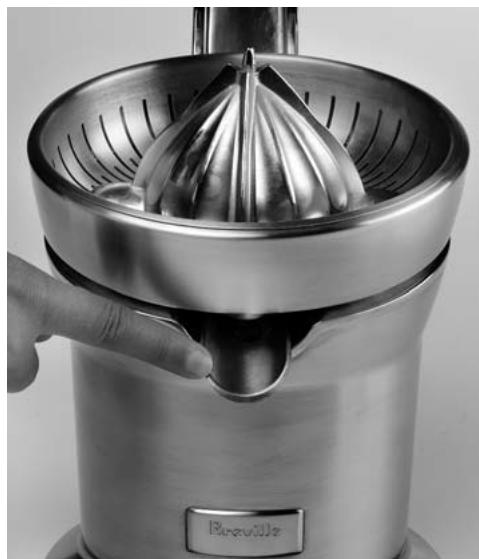

Ensure the Anti-drip Juice Spout is pushed down into the pouring position.

Step 7.

Place a suitable sized glass or jug underneath the Juice Spout.

OPERATING YOUR BREVILLE DIE CAST CITRUS PRESS

Step 1.

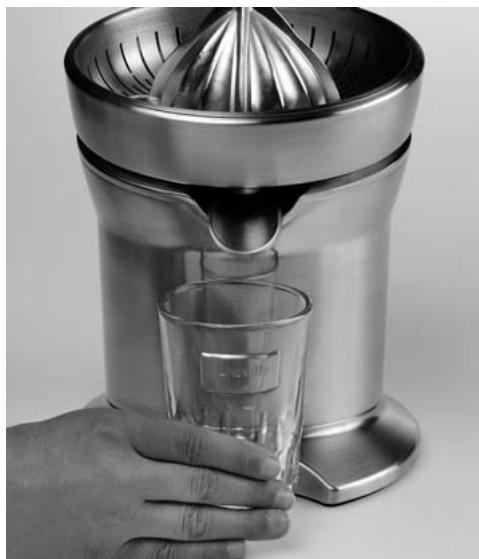

Ensure the Die Cast Citrus Press is correctly assembled with a glass or jug, placed under the Juice Spout before juicing commences.

Step 2.

Cut the citrus fruit in half by cutting across the fruit segments, rather than across the tip ends, to ensure more efficient juicing.

For the best contact with the Fruit Dome, smooth the outside of the fruit by trimming any knobby tip ends such as the ends of a lemon or tangelo.

Step 3.

Plug the power cord into a 120v power outlet and then switch the On/Off button to ON. This begins operation of the Citrus Press.

Step 4.

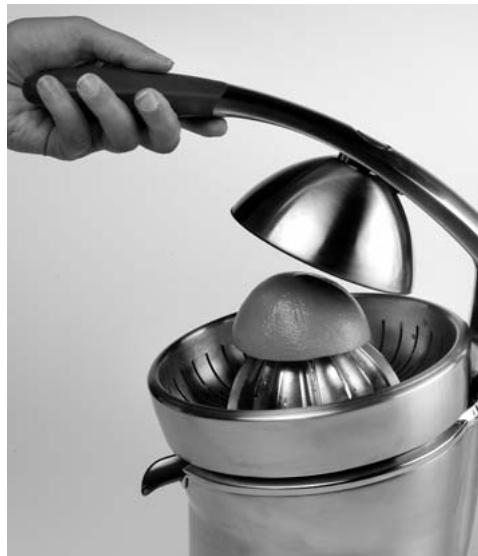

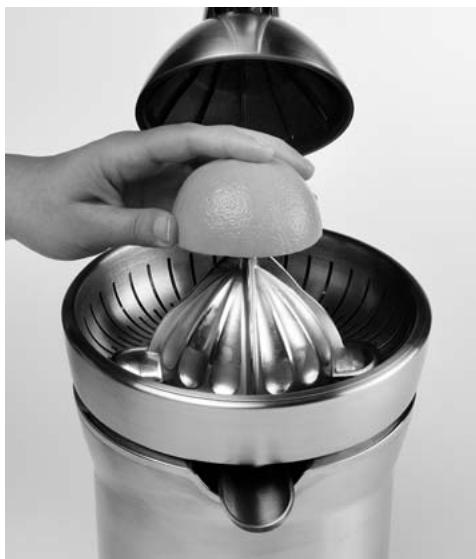

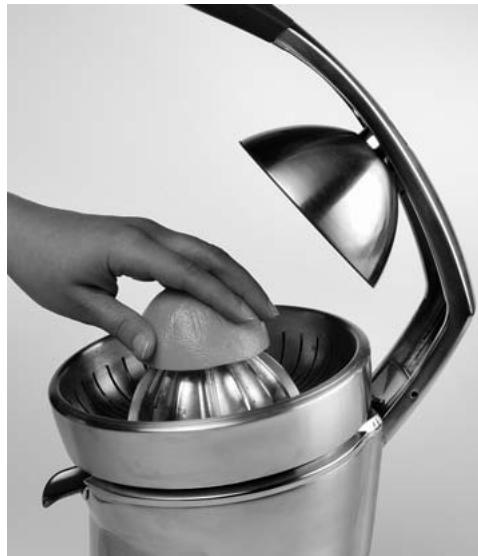

Place a citrus fruit half, cut side down, onto the Juice Cone.

Step 5.

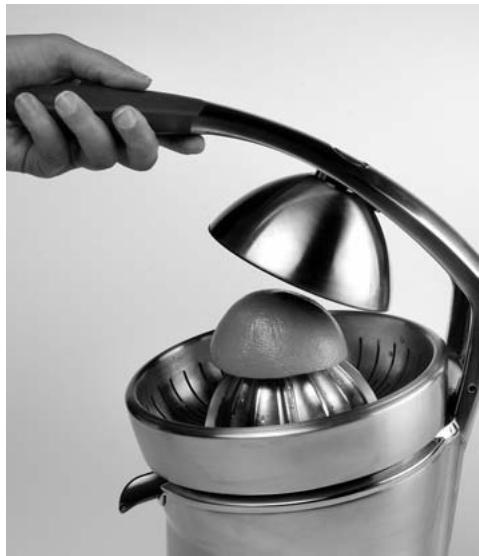

Grasp the Soft Grip Handle and slowly lower the Juicing Press Arm and press down firmly until the Fruit Dome is in contact with the fruit skin. The motor will automatically start and the Juicing Cone will begin to rotate. The juice will be extracted from the fruit and flow through the Juice Spout into the glass. The pulp and seeds will collect in the Stainless Steel Filter.

TIP: Do not lower the Juicing Press Arm too quickly or the motor will hesitate and the Juicing Cone will not spin.

This is because the Diecast Series Citrus Press is fitted with a motor that increases in strength as the motor spins. It is therefore better to push down lightly for the first few seconds to allow the motor to start spinning. The motor can then generate the strength necessary to cut through tough pulp.

Step 6.

The Die Cast Citrus Press juices very quickly so each fruit half will be juiced in a few seconds. To automatically stop the motor, lift the Juicing Press Arm up and backwards to its extended position.

Step 7.

Remove the used fruit from the Juicing Cone. Empty excess pulp and seeds from Stainless Steel Filter as required.

Repeat Steps 4-7 to continue juicing.

NOTE: The Stainless Steel Filter should be emptied when full with pulp and seeds. The Filter can be emptied during juicing by switching the Citrus Press "OFF" at the On/Off button and carefully removing the Juicing Cone and Filter. Clean and replace Stainless Steel Filter and Juicing Cone before continuing to juice.

Do not allow the Stainless Steel Filter to overfill as this may prevent correct operation or damage the unit.

DISASSEMBLING YOUR BREVILLE DIE CAST CITRUS PRESS

Step 1.

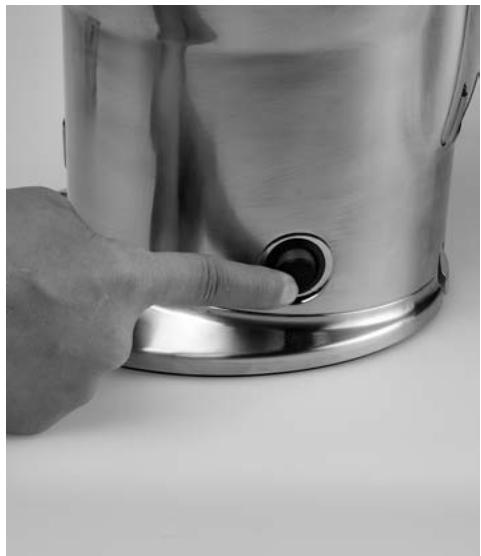

Switch the Citrus Press "OFF" at the On/Off button and unplug the unit from the power outlet.

Step 2.1

Pull the Juicing Press Arm up and backwards, away from the Motor Base, until fully extended.

Step 2.2

Step 3.

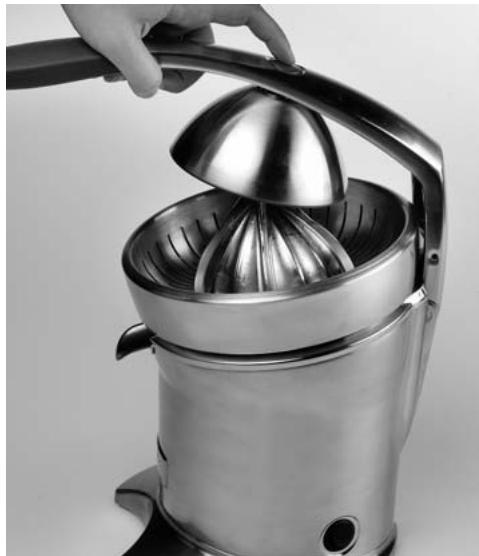

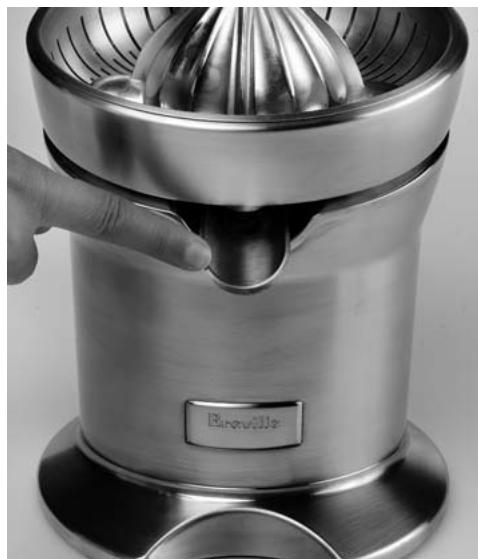

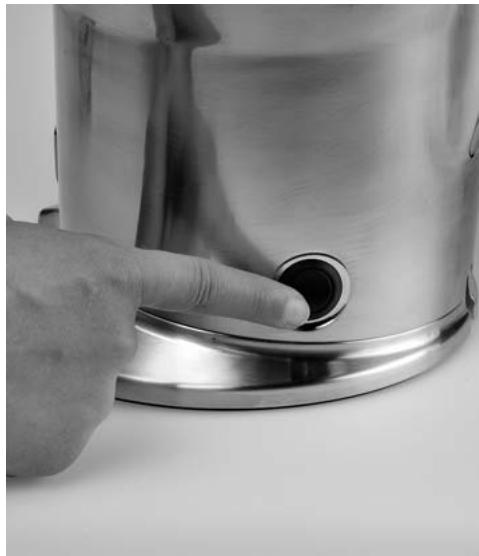

Remove the Fruit Dome by pressing the button marked "PRESS" on the Juicing Press Arm.

Close the anti drip spout by pulling to upper position.

Step 4.

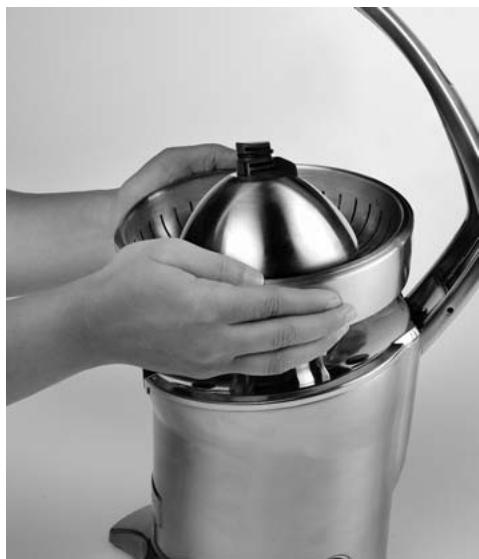

Lift the Juice Collector from the Motor Body with the Stainless Steel Filter and Juicing Cone still in place. Remove the Cone and Filter from the Juice Collector over a sink for easier cleaning.

Step 5.

Follow recommended Care and Cleaning guidelines and insert the Dust Cover before storing.

CARE, CLEANING AND STORAGE

• Always ensure that the Die Cast Citrus Press is switched OFF at the On/Off button and the plug is removed from the power outlet before cleaning, disassembling, assembling and storing the appliance.

• Follow these instructions to clean all surfaces or parts that come into contact with food during juicing:--

• For easy cleaning - immediately after each use rinse removable parts under warm water to remove wet pulp. Allow parts to air dry before reassembling.

• For thorough cleaning - after disassembling the appliance, all removable parts should be washed in hot soapy water or on the top shelf of the dishwasher. The Motor Base and Juicing Press Arm should be wiped with a soft, damp cloth. All parts should be dried thoroughly before reassembling.
• Store the cleaned and reassembled Citrus Press in an upright position in a cool, dry place. Never place any items on top of the Citrus Press.

NOTE: Rinse or wash all removable parts immediately after use. Dried citrus pulp is difficult to remove and may stain. If any staining does occur, wipe the affected part/s with undiluted dishwashing liquid, rinse and dry thoroughly.

NOTE: Do not soak the Stainless Steel Filters or other removable parts in bleach.

Never immerse the motor base in water or any other liquid. Do not use harsh abrasives.

TROUBLE SHOOTING GUIDE

POSSIBLE PROBLEM	EASY SOLUTION
Machine will not work	Switch not ‘On’
	Arm not lowered
	Cone or Dome not assembled properly
Motor stalls, the juicing cone will not spin	Raise the Juicing Press Arm. Re-lower slowly for the first few seconds, then press down firmly.
Machine stops working during operation	To ensure long motor life, the 800CPXL is fitted with thermal overload protection sensors. If juicing large amounts of fruit in a short period of time, the protection may operate to ensure that no damage is done to the motor. The sensors will automatically reset in about an hour when the machine has fully cooled down.

TIPS ON JUICING

Although juice drinks are usually developed with flavor, texture and aroma at the forefront, the health benefits certainly add to the pleasurable taste experience.

95% of the nutrient content of fruit and vegetables is found in the juice. Liquids are an important part of a well balanced diet. Fresh juice is an easy source of vitamins and minerals. Juices are rapidly absorbed into the blood stream therefore being the quickest way in which the body can digest nutrients.

Citrus juice is renowned for its high content of Vitamin C and cold and flu fighting capabilities.

Freshly extracted juices should be consumed just after they have been made to avoid vitamin content loss.

PURCHASING AND STORAGE OF FRUIT AND VEGETABLES

Always use fresh fruit for juicing.
- Select fruit with firm, smooth skins and free of blemishes.
- Valencia oranges are ideal for juicing.
- Select medium sized grapefruits, lemons and limes for easier juicing.
- Other citrus fruits such as mandarins, also known as tangerines, and grapefruit will yield very little juice.
- Citrus fruits can be stored at room temperature in a dry area.
- More juice is obtained from fruit stored at room temperature.

ONE YEAR LIMITED WARRANTY

Breville® warrants this Breville® appliance against defects that are due to faulty material or workmanship for a period of one (1) year from the date of original consumer purchase. This warranty does not cover damage from abuse, neglect, use for commercial purposes, or any other use not found in the printed "Instructions for use" booklet. There is no warranty for glass parts, glass containers, filter basket, blades and agitators. HWI Breville® expressly disclaim all responsibility for consequential damages for incidental losses caused by use of this appliance. Some states or provinces do not allow this exclusion or limitation for incidental or consequential losses, so the foregoing disclaimer may not apply to you.

ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD. Some states or provinces do not allow disclaimer of the implied warranty with respect to consumer goods, so the foregoing disclaimer may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state or province to province.

If the appliance should become defective within the warranty period, do not return the appliance to the store. Please contact our Customer Service Center.

Toll free phone number:

1-866-BREVILLE (1-866-273-8455)

Internet email:

[e-mail]

[e-mail] (in Canada)

^a HWI Breville® products are distributed in Canada by Anglo Canadian Housewares, L.P. and in USA by Metro/Thebe Inc.

NOTES
