USER MANUAL BKE820XL BREVILLE

On the purchase of your new

Breville Variable Temperature Kettle™

CONTENTS

4 Breville recommends safety first
8 Know your Breville Variable Temperature Kettle™
10 Features of your Breville Variable Temperature Kettle™
13 Variable temperature control table
14 Operating your Breville Variable Temperature Kettle™
18 Care and cleaning
20 One year limited warranty

We at Breville are very safety conscious and design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition, we ask that you exercise a degree of care when using any electrical appliance and adhere to the following instructions.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS

• Carefully read all instructions before operation and save for future reference.
• Remove and safely discard any packaging material and promotional labels before using the appliance for the first time.
• To eliminate a choking hazard for young children, remove and safely discard the protective cover fitted to the power plug of this appliance.
• This appliance has been designed specifically for the purpose of heating and boiling drinking quality water only. Under no circumstances should this product be used to heat or boil any other liquids or foodstuffs.
• Do not place the kettle near the edge of a bench or table during operation. Ensure that the surface is level, clean and free of water.
• Do not place the kettle on or near a hot gas burner, electric element or where it could touch a heated oven.
• Keep the kettle clear of walls, curtains and other heat or steam sensitive materials. Minimum 8 inch distance.
• Do not operate the kettle on a sink drain board.
• Always ensure the kettle is properly assembled before connecting to a power outlet and operating. Follow the instructions provided in this book.

• The kettle must be used only with the power base supplied.
• The kettle is not intended to be operated by means of an external timer or separate remote control system.
• Do not touch hot surfaces. Use the handle for lifting and carrying the kettle.
• Do not place anything on top of the lid.
• Always ensure the START/CANCEL button has been pressed to CANCEL, then remove the power plug from the power outlet before attempting to move the appliance, when the appliance is not in use and before cleaning and storing.
• Use caution when pouring water from the kettle, as boiling water and steam will scald. Do not pour the water too quickly.
• To protect against electric shock, do not immerse the kettle base, power base, power cord or power plug in water or allow moisture to come in contact with these parts.
• Do not remove the kettle from the power base during operation. Ensure the kettle has switched off after the water has boiled or reached the selected temperature, before removing the kettle from the power base. If the kettle is removed from the power base during the Hold Temp function, the kettle will automatically switch off.

• Do not move the appliance while it is switched on.

• Do not open the lid during operation as scalding may occur.

• Keep the appliance clean. Refer to care and cleaning (page 15).
• The use of accessory attachments not recommended by Breville may result in fire, electric shock or injury to persons.

FOR ALL ELECTRICAL APPLIANCES

• Unwind the power cord fully before use.
• Do not let the cord hang over the edge of a table or counter, touch hot surfaces or become knotted.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with this appliance.

• It is recommended to inspect the appliance regularly. Do not use the appliance if power supply cord, plug or appliance becomes damaged in any way. Return the entire appliance to the nearest authorized Breville Service Center for examination and/or repair.

• Any maintenance other than cleaning should be performed at an authorized Breville Service Center.

• This appliance is recommended for household use only. Do not use this appliance for other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors.

WARNING: DO NOT OPERATE THE KETTLE ON AN INCLINED SURFACE. DO NOT MOVE THE APPLIANCE WHILE IT IS SWITCHED ON.

ELECTRIC CORD STATEMENT

Your kettle has a short cord as a safety precaution to prevent personal injury or property damage resulting from pulling, tripping or becoming entangled with the cord.

Do not allow children to be near or use this appliance without close adult supervision. If you must use a longer power cord or an extension cord when using the appliance, the cord must be arranged so it will not drape or hang over the edge of a countertop, tabletop or surface area where it can be pulled on by children or tripped over.

To prevent electric shock, personal injury or fire, the electrical rating of the extension cord you use must be the same or more than the wattage of the appliance (wattage is marked on the underside of the appliance).

CALIFORNIA PROPOSITION 65: (Applicable to California residents only). This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

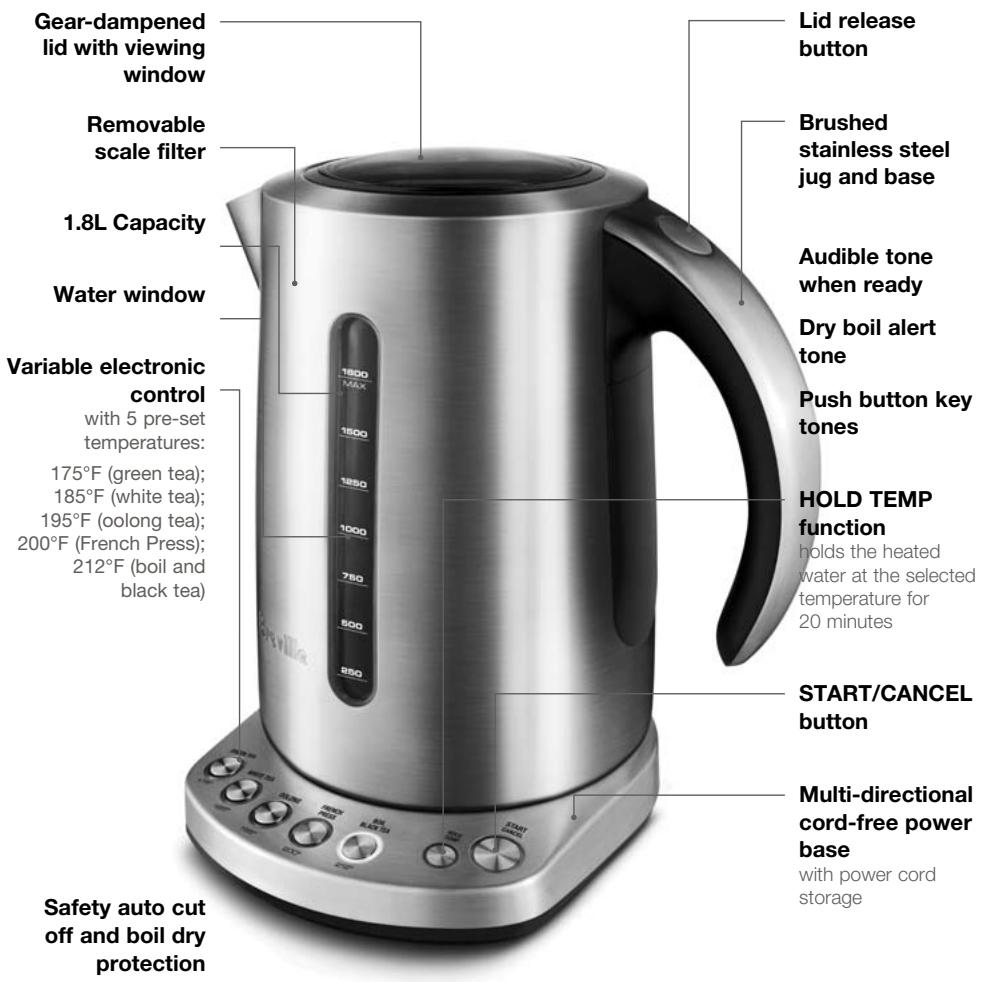

KNOW

Your Breville Variable Temperature Kettle™

FEATURES

Of your Breville Variable Temperature Kettle™

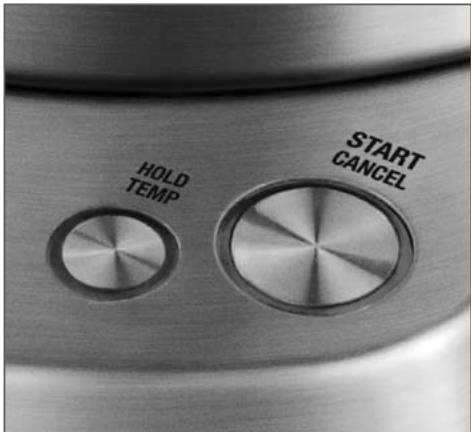

Hold Temp Function

The Variable Temperature Kettle™ offers a convenient HOLD TEMP function that can be used before, during or on completion of the water heating cycle.

When the water has reached the selected temperature, the HOLD TEMP function will hold the selected temperature for 20 minutes.

If the 212^ button is selected when using the HOLD TEMP function, the boiled water will remain at approximately 200^ Fahrenheit for 20 minutes.

To activate the HOLD TEMP function, first press the desired water temperature button from the five options on the control panel. Then press the HOLD TEMP button, followed by the START/ CANCEL button to commence heating the water.

Alternatively, the HOLD TEMP button can be activated at any time during the heating cycle and/or within one minute after the heating cycle has completed.

If the kettle is removed from the power base during the HOLD TEMP function the kettle will automatically switch off.

NOTE:

If temperature is changed during the HOLD TEMP function, the START/CANCEL button surround will illuminate in red.

Variable Temperature Control

The variable electronic control panel offers five different Fahrenheit temperatures for optimal tea and coffee brewing: 175^ , 185^ , 195^ , 200^ , and 212^ .

NOTE:

This product is not calibrated for commercial or scientific use. Temperatures may vary ± 10^ (5^) , however still within range for optimal brewing for each type of tea or coffee.

Optimal Brewing

Tea varieties are grown and produced in different environments and require specific water temperatures to allow their unique flavor and aroma to develop during brewing. To bring out the optimal quality and taste of more delicate tea leaves, a lower temperature will produce a better flavored cup of tea. For example, steeping green, white or oolong teas in boiling water may scald the tea leaves and result in a bitter, astringent brew.

Brewing the tea for too long may also result in a bitter, unpleasant taste, while brewing for too short a period may leave the tea bland. For best results always follow the specific directions on the tea/coffee packet.

To bring out the optimal taste and quality of your favorite tea or coffee, we recommend that you use your Breville Variable Temperature Kettle™ at the suggested temperature for your selected tea or coffee.

The Variable Temperature Control Table on Page 12 provides a guide to a range of tea and coffee varieties and the recommended temperature to select on the control panel of the Variable Temperature Kettle™.

Green Tea (Suited to 175°)	White Tea (Suited to 185°)	Oolong Tea (Suited to 195°)	French Press (Suited to 200°)	Boil / Black Tea (Suited to 212°)
Arabian Night	Apple	Most Oolong Teas	Coffee/ Decaffeinated Coffee	Assam
Asatsuyu	Black Cherry		Instant Coffee Granules	Ancient Tree
Bancha	Blackcurrent		Plunger Coffee	Bagged Tea
Ceylon Green	China Yin Zhen		Suggested Teas (Suited to 200°)	Chai
China Chun Mee	Coconut		Ceylon	Chamomile
Darjeeling Green	Elderflower		China Lapsang Souchong	Cinnamon
Dragon Well	Ginger		China Rosa	Golden Yunnan
Genmaicha	Lemon		China Yunnan	Herbal
Gunpowder	Lychee		Darjeeling	Hua
Gyokuro	Mango		Earl Grey	Lapsang Souchong
Jasmine	Orange		English Breakfast	Lemongrass
Nepal Green Tea	Strawberry		Indian Chai	Kenya
Peach			Irish Breakfast	Peppermint
Sencha			Keeman	Pu-errh
Shincha			Nilgiri	Red
			Orange Pekoe	Rooibos
			Passionfruit	Spearmint
			Russian Samovar	Whole Leaf
			Vanilla	Wulong
			Viennese Blend

NOTE:

This table is a recommended guideline only and may vary depending on preference, brand and age of tea/coffee used. Experiment with your favorite tea/coffee and adjust the temperatures and times to suit personal taste.

OPERATING

Your Breville Variable Temperature Kettle™

Before First Use

Remove and safely discard any packaging material or promotional labels attached to your kettle. It is recommended that before first use to fill the kettle to the maximum level with cold tap water, bring to the boil by selecting the BOIL 212^ button, then discard the water. Your kettle will only operate when positioned on the power base. The kettle will automatically switch off when the water has reached the selected temperature.

Operation Of Your Kettle

1. To fill the kettle, remove the kettle from the power base and open the lid by pressing the lid release button. Fill with the desired amount of water. Always fill the kettle between the minimum (500) and maximum (MAX 1800) marks on the water window. Too little water will result in the kettle switching off before the water has boiled or reached the selected temperature.
2. Ensure the lid is closed and locked firmly into place. Position the kettle securely onto the power base. Insert the power plug into a 110/120V power outlet. The START/CANCEL and 212^ BOIL button surrounds will illuminate in white for one minute. A beep will sound for two seconds. The START/CANCEL button surround will automatically switch off after one minute if not selected.

NOTE:

If the START/CANCEL button is pressed (before selecting a temperature button), the START /CANCEL button surround will illuminate in red and the 212^ button surround will illuminate in white and the kettle will start heating.

1. Select the desired water temperature by pressing one of the five variable temperature buttons (175°, 185°, 195°, 200°, 212°). The selected button and the START/ CANCEL button surround will illuminate in white.

NOTE:

The HOLD TEMP function can be selected before, during or on completion of the water heating cycle (refer page 9).

1. Press the START/CANCEL button and the surround will illuminate in red, the selected temperature button surround will illuminate in white and the kettle will start heating. Do not remove the kettle from the power base during operation. Ensure the kettle has switched off after the water has boiled or the selected temperature has been reached before removing the kettle from the power base. If the kettle is removed from the power base during the HOLD TEMP function the kettle will automatically switch off.
2. When the kettle has heated the water to the selected temperature, 3 beeps will sound, the START/CANCEL button surround illumination will switch off, and the selected temperature button surround will illuminate for 1 minute before switching off.
3. If the HOLD TEMP function has been selected, the HOLD TEMP button surround will remain illuminated in red, the selected temperature button surround will remain illuminated in white, and the kettle will continue to cycle on and off for 20 minutes.
4. If further heating of the kettle is not required, unplug the power cord and empty the water from the kettle. Replace the kettle onto the power base and close the lid.

NOTE:

Through regular use over time, scale build-up in the kettle can affect the performance and the life of the kettle. Lime and phosphate are common forms of scale that can damage your kettle.

Lime scale, a harmless mineral, comes in the appearance of white-colored or rusty looking build up on the inner walls of the kettle.

Phosphate scale can't be seen, however, it can cause the water to appear cloudy when heated.

To prevent scale from damaging your kettle, ensure that the kettle is de-scaled regularly - refer to Care and Cleaning (Page 18). To avoid scale build-up, empty the kettle after use and do not allow water to stand in the kettle overnight.

NOTE:

The default temperature setting of the kettle when switched on at the power outlet is 212^ .

When the kettle is unplugged at the power outlet and plugged back in, it will automatically default to the 212^ temperature setting.

When the kettle remains plugged in at the power outlet and different temperature settings have been selected, the kettle will default to the last selected temperature setting.

WARNING: DO NOT OPEN THE LID DURING AND AFTER OPERATION. THIS MAY RESULT IN BOILING WATER SPLASHING FROM THE KETTLE. POUR ALL THE HOT WATER FROM THE KETTLE BEFORE OPENING THE LID TO REFILL.

NOTE:

This kettle must be used only with the power base supplied. Use caution when pouring water from your kettle, as boiling / heated water and steam will scald. Do not pour the water too quickly.

NOTE:

Always fill the kettle to between the minimum (500) and maximum (MAX 1800) marks on the water window on the kettle. Too little water will result in the kettle switching off.

Filling above the maximum mark on the water window of the kettle may result in boiling / heated water splashing from the kettle..

Safety Boil Dry Protection

The Variable Temperature Kettle™ is fitted with a safety device, which protects against overheating should the appliance be operated with insufficient water. If this occurs, the kettle will stop heating and a continuous tone will sound, indicating a dry boil error has occurred.

The START/CANCEL and HOLD TEMP button surrounds will also flash in red. Unplug the Variable Temperature Kettle™ from the power outlet and allow it to cool before refilling. The safety device will automatically reset when the kettle has cooled sufficiently.

For additional safety your kettle is fitted with an additional thermal cut out. In the event of severe overheating the kettle will automatically shut down to prevent further damage. Should this occur, take your kettle to an authorized Breville Service Center.

WARNING: THIS APPLIANCE IS DESIGNED FOR BOILING OR HEATING OF DRINKING QUALITY WATER ONLY.

NEVER USE IT TO HEAT OR BOIL ANY OT HER LIQUIDS OR FOOD STUFFS.
NEVER INSERT TEA OR COFFEE INTO THE KETTLE. THE LID SHOULD ALWAYS BE LOCKED SECURELY INTO THE CLOSED POSITION BEFORE USE.

WARNING: USE THE HANDLE FOR LIFTING AND CARRYING THE KETTLE AS THE SURFACE MAY BE HOT.

CARE & CLEANING

Your Breville Variable Temperature Kettle™

CARE & CLEANING YOUR BREVILLE VARIABLE TEMPERATURE KETTLE™

Always unplug the appliance from the power outlet before cleaning.

Removable Filter

The Breville Variable Temperature Kettle™ features a removable mesh filter to remove scale deposits for cleaner water. To clean the scale deposits from the filter, remove the filter by opening the lid and sliding the filter up and out of the kettle.

The filter can be cleaned by placing under running hot water and rubbing with a cleaning cloth or brush. To replace the filter, simply slide the filter down into the slot behind the spout of the kettle and push back into position.

Removal Of Mineral Deposits

Mineral deposits in tap water may cause the kettle interior and water window to discolor over time. Mineral deposits may be removed by using a proprietary kettle descaler available from most leading supermarkets, department stores and hardware stores.

Alternatively:

1. Fill the kettle until two-thirds full with 1 part vinegar and 2 parts water. Boil and allow to stand overnight.
2. Empty the solution from the kettle. Fill the kettle with clean water, bring to boil and discard the water. Repeat and the kettle will be ready for use.

To Clean The Exterior

The outside of the kettle should be wiped with a damp cloth then polished with a soft, dry cloth.

NOTE: The scale filter could become damaged with time, so please check regularly and replace if found damaged.

NOTE: Do not use chemicals, steel wool, or abrasive cleaners to clean the inside or outside of the kettle.

WARNING: TO PREVENT DAMAGE TO THE APPLIANCE, DO NOT USE ALKALINE CLEANING AGENTS WHEN CLEANING. USE A SOFT CLOTH AND MILD DETERGENT.
WARNING:DO NOT REMOVE THE DIFFUSER RING LOCATED ON THE BASE INSIDE THE KETTLE.
WARNING: NEVER IMMERSE THE KETTLE BASE, POWER BASE, POWER CORD OR POWER PLUG IN WATER, OR ALLOW MOISTURE TO COME IN CONTACT WITH THESE PARTS.

Storage

Ensure the kettle is switched off, cleaned and dried before storing. Ensure that the lid is closed and locked securely into place. Wrap the power cord around the power cord storage under the power base. Stand the kettle upright on the power base. Do not store anything on top.

ONE YEAR LIMITED WARRANTY

Breville®* warrants this Breville® appliance against defects that are due to faulty material or workmanship for a period of one (1) year from the date of original consumer purchase. This warranty does not cover damage from abuse, neglect, use for commercial purposes, or any other use not found in the printed "Instructions for use" booklet. There is no warranty for glass parts, glass containers, filter basket, blades and agitators. HWI Breville® expressly claim all responsibility for consequential damages for incidental losses caused by use of this appliance. Some states or provinces do not allow this exclusion or limitation for incidental or consequential losses, so the foregoing disclaimer may not apply to you.

ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD.

Some states or provinces do not allow disclaimer of the implied warranty with respect to consumer goods, so the

foregoing disclaimer may not apply to you.

This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state or province to province.

If the appliance should become defective within the warranty period, do not return the appliance to the store. Please contact our Customer Service Center.

Toll free phone number:

1-866-BREVILLE (1-866-273-8455)

Internet email:

[e-mail]

[e-mail] (in Canada)

*HWI Breville® products are distributed in Canada by Anglo Canadian Housewares, L.P. and in USA by Metro/Thebe Inc.

NOUS VOUS FÉLICITONS

Breville Customer Service Center

US Customers

Mail: 19400 S.Western Ave Torrance CA 90501-1119

Phone: Customer Service 1 (866) BREVILLE

Email: Customer Service [e-mail]

Canada Customers

Mail: Anglo Canadian 2555, Avenue de l'Aviation Pointe-Claire (Montreal) Quebec H9P 2Z2

Phone: Customer Service: 1 (866) BREVILLE

Email: Customer Service [e-mail]

www.breville.com
