USER MANUAL 800BLXL BREVILLE

Breville recommends safety first

One year limited warranty

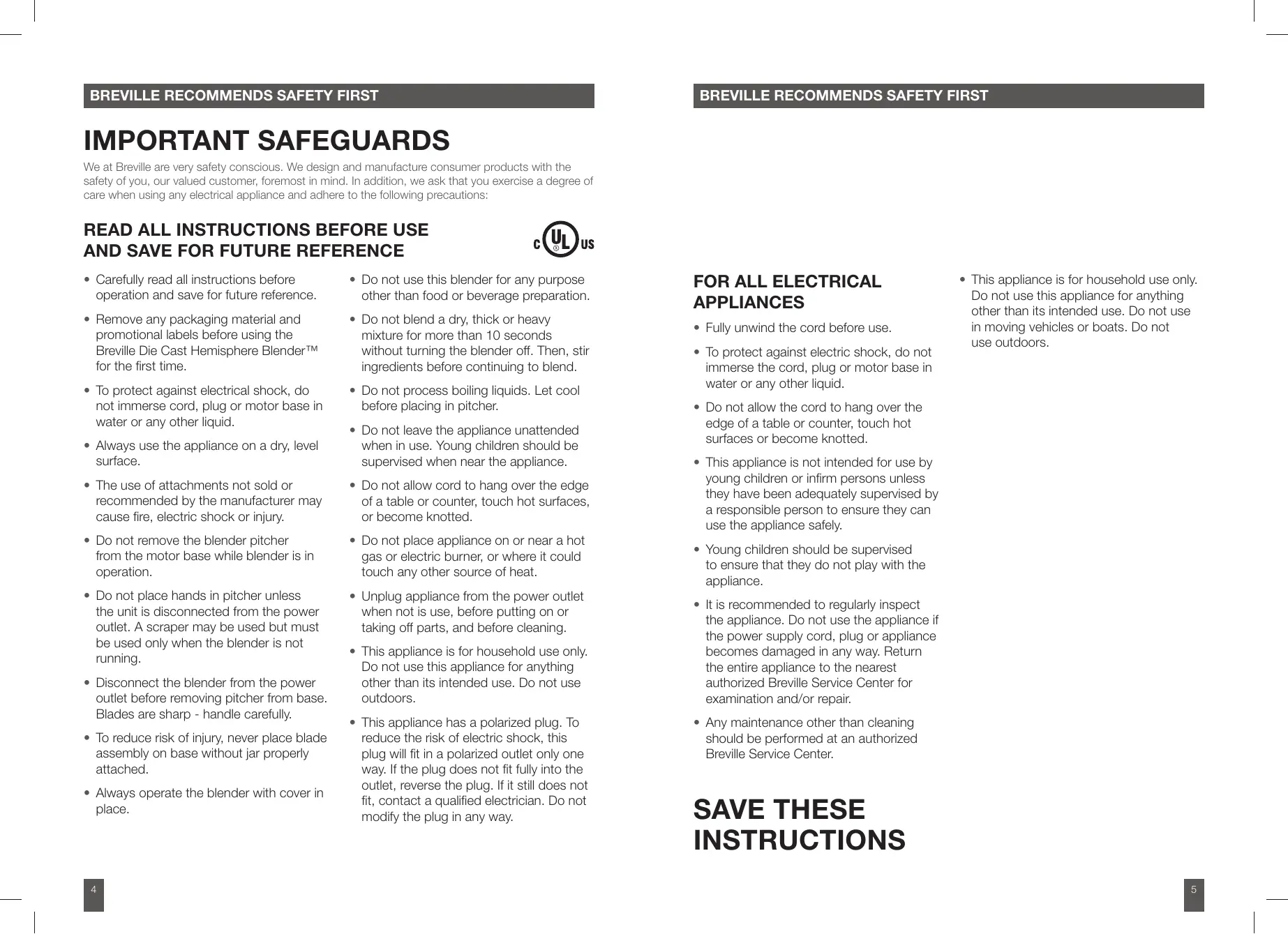

IMPORTANT SAFEGUARDS We at Breville are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition, we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions:

READ ALL INSTRUCTIONS BEFORE USE

• Carefully read all instructions before operation and save for future reference.

• Do not use this blender for any purpose other than food or beverage preparation.

• Remove any packaging material and promotional labels before using the Breville Die Cast Hemisphere Blender™ for the first time.

• Do not blend a dry, thick or heavy mixture for more than 10 seconds without turning the blender off. Then, stir ingredients before continuing to blend.

• To protect against electrical shock, do not immerse cord, plug or motor base in water or any other liquid.

• Do not process boiling liquids. Let cool before placing in pitcher.

• Always use the appliance on a dry, level surface.

• Do not leave the appliance unattended when in use. Young children should be supervised when near the appliance.

• The use of attachments not sold or recommended by the manufacturer may cause fire, electric shock or injury.

• Do not allow cord to hang over the edge of a table or counter, touch hot surfaces, or become knotted.

• Do not remove the blender pitcher from the motor base while blender is in operation.

• Do not place appliance on or near a hot gas or electric burner, or where it could touch any other source of heat.

• Do not place hands in pitcher unless the unit is disconnected from the power outlet. A scraper may be used but must be used only when the blender is not running.

• Unplug appliance from the power outlet when not is use, before putting on or taking off parts, and before cleaning.

• Disconnect the blender from the power outlet before removing pitcher from base. Blades are sharp - handle carefully.
• To reduce risk of injury, never place blade assembly on base without jar properly attached.
• Always operate the blender with cover in place.

• This appliance is for household use only. Do not use this appliance for anything other than its intended use. Do not use outdoors.
• This appliance has a polarized plug. To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

• Fully unwind the cord before use.
• To protect against electric shock, do not immerse the cord, plug or motor base in water or any other liquid.

• This appliance is for household use only. Do not use this appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors.

• Do not allow the cord to hang over the edge of a table or counter, touch hot surfaces or become knotted.
• This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure they can use the appliance safely.
• Young children should be supervised to ensure that they do not play with the appliance.
• It is recommended to regularly inspect the appliance. Do not use the appliance if the power supply cord, plug or appliance becomes damaged in any way. Return the entire appliance to the nearest authorized Breville Service Center for examination and/or repair.
• Any maintenance other than cleaning should be performed at an authorized Breville Service Center. SAVE THESE INSTRUCTIONS

your Breville Die-Cast Hemiphere Blender™ BPA Free 2L Jug Breville Assist™ Lid Constructed from heavy-duty BPA Free Copolyester materials, provides optimal toughness with commercial volume and style. The professional grade, shatter resistant jug is remarkably strong and lightweight. Reliable leak free lid with one finger leverage removal ensures the lid is sealed tight during operation yet simple to remove. Easy Clean, Dishwasher Safe Intelligent design means easy to clean surfaces and fewer components that dismantle in seconds and are dishwasher safe. Intelligent Engineering High torque, powerful motor, highly efficient blades and precision engineered components allow the blender to operate at speeds up to half as fast as other blenders. Lower speeds mean quieter operation and a longer lasting motor. Die-Cast Design Bold design with professional grade die-cast surfaces for durability and long lasting performance. Speed Control Pre-programmed electronic settings automatically alter speeds to optimize blending results. Capped buttons illuminate for clarity when selected. Hemisphere™ System Blade Removal Revolutionary blade technology with extra wide blades which hug the bowl to eliminate food being trapped. The serrated blades are engineered from surgical grade stainless steel for durability that ensures the blade stays sharp. The one piece blade removal system is ergonomically designed for ease of cleaning.

• Due to continued product improvement, the products illustrated/photographed in this brochure may vary slightly from the actual product.

Before first use Assembling the Blender Before using your Breville Die-Cast Hemisphere Blender™ for the first time, remove any packaging material and promotional labels. Ensure the appliance is switched off at the power outlet and the power cord is unplugged.

1. To assemble the blender jug, place the

silicon seal onto the blade assembly. Wash the lid, inner lid, blender jug and blade assembly (refer to Disassembling the blender on page 12) of the Breville Die-Cast Hemisphere Blender™ in warm, soapy water with a soft cloth. Rinse and dry thoroughly. Do not place parts in the dishwasher (with the exception of the blender jug, lid and inner lid). The blender jug, lid and inner lid may be washed in the dishwasher. Ensure the blade assembly has been removed from the blender jug before placing the blender into the dishwasher. The motor base can be wiped with a damp cloth.

2. Upturn the blender jug and insert the

blade assembly into the jug base. Dry thoroughly.

counterclockwise until firmly screwed into position. Using the blender

1. To turn the blender on press the ‘Power’

button on the far left of the control panel. The ‘Power’ button will illuminate and flash indicating the blender is powered on. When the jug is placed on the base all lights will illuminate signalling the blender is ready for use. NOTE: When using your Breville Die-Cast Hemisphere Blender™ for the first time, you may notice an odor coming from the motor. This is normal and will dissipate with use.

4. Place the motor base on a flat, dry

surface such as a bench top. Ensure that the motor base is switched off at the power outlet and the power cord is unplugged. Turn the blender jug upright and insert on to the motor base. The handle of the blender jug can be positioned to the left or right hand side of the appliance.

OPERATING YOUR BREVILLE DIE-CAST HEMISPHERE BLENDER™

NOTE: When the blender jug is filled at or near the ‘MAX’ line, place one hand on the blender lid to avoid displacement of the lid during operation. Do not blend hot ingredients, allow to cool before placing into the blender jug. The Breville Die-Cast Hemisphere Blender™ features a patent pending assist lid. This allows the lid to fit tightly onto the blender jug, avoiding displacement during operation. The ring pull design allows the user to easily remove the lid with a simple leverage action.

2. Add food or liquid into the blender jug

ensuring not to exceed the ‘MAX’ mark.

3. Place the blender lid firmly into position

on the top of the blender jug. If not already in place, insert the clear inner lid into the blender lid and turn clockwise or counterclockwise to lock into position.

The speed can be changed at any time during the blending process. Each time a new speed is selected its button will illuminate and the previous speed button illumination will go out.

5. For ice-crushing or ingredients that

require short bursts of power, select the Ice/Auto Pulse button. The blender will start to operate and the Ice/Auto Pulse button will illuminate. The 'Power' button will continue to flash. The pre-programmed functions have been designed to run for a specific time.

4. Select the required speed (Blend,

Smoothie or Ice/Auto Pulse) by pressing the corresponding speed button. The blender will start to operate and only the selected speed button will illuminate. The ‘Power’ button will continue to flash.

5. Plug the power cord into a 110/120v

power outlet. NOTE: Operate the blender only for the appropriate amount of time required. The Die-Cast Hemisphere Blender™ will automatically stop blending on the Blend function and on the Smoothie and Ice/Auto Pulse functions to avoid over processing. Function Programmed Time Blend 60 Seconds (1 minute) Smoothie 60 Seconds (1 minute) Ice/Auto Pulse 60 Seconds (1 minute) NOTE: The smoothie function has a unique processing technique that blends the denser ingredients at a lower speed, then increases as ingredients thicken. This may happen several times while blending smoothies.

6. To stop blending at any time, press the

selected speed button. The ‘Power’ button can also be pressed.

OPERATING YOUR BREVILLE DIE-CAST HEMISPHERE BLENDER™

7. At the end of use, always ensure the

Breville Die Cast Hemisphere Blender is turned off by pressing the ‘Power’ button on the control panel. Then unplug the cord. Ensure the motor and blades have completely stopped before attempting to move the appliance, or when the Breville Die-Cast Hemisphere Blender™ is not in use and before disassembling, cleaning and storing. NOTE: During the blending process, ingredients may stick to the sides of the blender jug. To push the food back onto the blades, press the ‘Power’ button on the control panel and remove the power cord. Remove the lid and use a plastic spatula to scrape down the sides of the jug. Replace the lid before recommencing blending. NOTE: If the blades become stuck, the blender will automatically turn off. To reset, turn the blender off at the power outlet, clean the jug and blades with a spatula and then turn back on. The blender will be reset. NOTE: The Die-Cast Hemisphere Blender™ features a motor overload protection feature. If the motor is being overloaded, the motor will stop and the key LED's will illuminate and flash. To restart the blender again, unplug from the mains let it cool down for 30 minutes or longer.

OPERATING YOUR BREVILLE DIE-CAST HEMISPHERE BLENDER™

3. Remove the silicon seal from the blade

assembly. Dissassembling the blender

1. Always ensure the Breville Die-Cast

Hemisphere Blender™ is switched off by pressing the ‘Power’ button on the control panel. Then unplug the power cord.

2. Remove the blender jug from the motor

base by grasping the handle and lifting the jug in an upward direction. Remove the blade assembly by upturning the blender jug and twisting the Blade Removal System clockwise, then lift upwards and away from the base of the blender. If any moisture or liquid appears on top of the motor base during blending, press the ‘Power’ button on the control panel, and remove the power plug. Remove the blender jug. Wipe the motor base immediately with a dry cloth or paper towelling to absorb the liquid. Check the blender jug is correctly assembled.

CLEANING YOUR BREVILLE DIE-CAST HEMISPHERE BLENDER™

Cleaning the motor base

1. Wipe the motor base with a soft, damp

cloth then dry thoroughly.

2. Wipe any excess food particles from the

power cord. NOTE: Do not use abrasive scouring pads or cleaners when cleaning the parts or motor base as they may scratch the surface. Cleaning the blender jug, lid, inner lid and blade assembly

1. Wash all parts in warm soapy water with

a soft cloth. Use a kitchen bottle brush to dislodge stubborn foods. Rinse and dry thoroughly. NOTE: The blender jug, lid and inner lid can be washed in the dishwasher on a standard wash setting. Ensure the blade assembly has been removed from the blender jug before placing the blender into the dishwasher. Removing stubborn or strong food stains and odors Strong smelling foods such as garlic, fish and some vegetables such as carrots may leave an odor or stain on the blender jug and lid. To remove, soak blender jug and lid for 5 minutes in warm soapy water. Then wash with a mild detergent and warm water, rinse well and dry thoroughly. Storage Store your Breville Die-Cast Hemisphere Blender™ upright with the blender jug, lid and inner lid assembled and inserted on the motor base or beside it. Do not place anything on top. NOTE: The blending blades are extremely sharp. Avoid any contact with fingers and hands. Use caution when handling and storing. NOTE: The blender jug is made from BPA Free Copolyester materials. NOTE: It is recommended that you periodically fill the jug 1/3 full with warm soapy water and run a blending cycle to help clean and dislodge any buildup in the blade assembly.

Preparation & Usage Quantity Function Time Lean meat/ poultry Trim excess fat and sinew, cut into ¾ in cubes. 9 oz Blend or Auto Pulse 10-20 secs 10½ oz Blend or Auto Pulse 10-15 secs 7 oz Blend or Auto Pulse 10-30 secs

• Use a combination of the Blend and Ice/ Auto Pulse functions to suit the foods being processed. 7 oz Auto Pulse 10-30 secs

• Use the Smoothie function to blend fruits, ice cream and yoghurts into thick smoothies, whips and milkshakes. 3½ oz Auto Pulse 10-30 secs

• Use the Ice/Auto Pulse function for foods that only require short bursts of power such as chopping nuts and crushing ice. 4½ oz Blend 10-15 secs then 30-60 secs

• Use the Ice/Auto Pulse function with short bursts of power, when blending drinks containing ice cubes or frozen fruit. Use: Mince Fish/seafood Remove skin and bones and cut into ¾ in cubes. Use: Mince Raw veg. Peel and cut into ¾ in cubes. Use: Stuffing, fillings, puree, soup Nuts Remove shells. Use: Cakes, toppings, pastes Bread or biscuit crumbs Cut bread into ¾ in pieces, break up biscuits. Use: Cheesecake crust Mayonnaise Mix the egg yolk and vinegar. Add the oil. Use: Dressings Whipped cream Add sugar or vanilla if desired Herbs/spices Whole or halved 10 fl oz Blend/Auto Pulse 10 secs 1-2 times 1 cup Blend or Auto Pulse 20-30 secs Smoothie 20-60 secs Use: Topping Use: Pastes, sauces Smoothie Milk, whole fresh fruits, yoghurt, ice cream Max 27 fl oz Use: Milkshakes, frappes Fresh fruit Whole, chopped berries. 9 oz Blend 20-30 secs 10½ oz Auto Pulse 20-30 secs Use: Dessert sauce Dried fruit Chopped dry fruit. Use: Fruit mince Ice Crush 9 oz Use: Mixed drinks, cocktails NOTE: This blending chart should be used as a guide only.

• Use the Blend function for for drinks or cocktail making, emulsions such as mayonnaise, dressings, marinades and foods that require mixing until just combined, such as batters, also for pureeing soups and aerating liquids.

• Ensure all foods are cut into cubes (approx. 1 inch square) where appropriate to achieve an even result.
• Do not put more than 2 cups of warm ingredients into the Breville Die-Cast Hemisphere Blender™ before blending commences. After the blending process has begun and the blades are turning you may slowly add another 1½ cups of ingredients through the opening in the lid if desired.
• Thick mixtures puree more efficiently if the Breville Die-Cast Hemisphere Blender™ is ¼ to ½ full.
• When using several ingredients, place liquid ingredients in the blender jug before solid ingredients, unless specified in the recipe. When blending thick or dry mixtures it may be necessary to stop the Breville Die Cast Hemisphere Blender™ and scrape down the sides of the blender jug with a plastic or rubber spatula, once or twice during blending. Do not use metal utensils as they may damage the blades or blender. Don’t
• Do not operate a heavy mixture for more than 10 seconds. For normal blending tasks, for example, mayonnaise, dressings etc., do not operate for longer than 2 minutes at one time without turning off the Breville Die-Cast Hemisphere Blender™ and stirring the ingredients, and then continue blending.
• Do not operate the Breville Di- Cast Hemisphere Blender™ without having the blender lid in position. To add additional ingredients whilst blending, remove the inner lid and place ingredients through the opening in the lid.
• Do not place any objects, other than food or liquid, into the Breville Die-Cast Hemisphere Blender™ whilst the motor is running.
• Do not use the blender jug to store food.
• The blender will not knead dough or mash potatoes.
• Do not remove the blender jug while the Breville Die-Cast Hemisphere Blender™ is operating. Always make sure the blender is switched off by pressing the ‘Power’ button, switch off the power at the power outlet and unplug the power cord from the power outlet.
• Do not overload the Breville Die-Cast Hemisphere Blender™ with more than the specified quantity of ingredients as doing so could cause the motor to stall. Turn the Breville Die Cast Hemisphere Blender off by pressing the ‘Power’ button on the control panel, switch off the power at the power outlet and

unplug the cord. Remove a portion of the mixture from the blender jug before continuing.

• Do not place hot or boiling ingredients into the Breville Die-Cast Hemisphere Blender™; allow to cool before placing into the blender jug.
• Do not place the Breville Die-Cast Hemisphere Blender™ near the edge of a bench or table during operation. Ensure that the surface is level, clean and free of water, flour and other substances. Vibration during operation may cause the appliance to move. TROUBLESHOOTING POSSIBLE PROBLEM EASY SOLUTION
• Check that the blender jug and lid are securely locked into position. Motor doesn’t start or blade doesn’t rotate

• Check that the blade assembly is correctly attached to the base of the blender jug.
• Check that the ‘Power’ button and selected function or speed setting is illuminated.
• Check that the power plug is securely inserted into the power outlet and switched on
• Either too much food is being blended at one time or the pieces are too large. Food is unevenly chopped Try cutting food into smaller pieces of even size and processing a smaller amount per batch. For best results, the food should be chopped into pieces no larger than ¾ inch.

Food is chopped too fine or is watery

• The food is over processed. Try using the Auto Pulse function or process for a shorter time. Food sticks to blades and jug

• The mixture may be too thick. Try adding more liquid to the mixture and/or use another function. LEDs start to flash and buttons do not respond

• The motor is being overloaded. Unplug the blender from the power outlet and wait 30 minutes or longer.

Breville ®* warrants this Breville ® appliance against defects that are due to faulty material or workmanship for a period of one (1) year from the date of original consumer purchase. This warranty does not cover damage from abuse, neglect, use for commercial purposes, or any other use not found in the printed “Instructions for use” booklet. There is no warranty for glass parts, glass containers, filter basket, blades and agitators. HWI Breville ® expressly disclaim all responsibility for consequential damages for incidental losses caused by use of this appliance. Some states or provinces do not allow this exclusion or limitation for incidental or consequential losses, so the foregoing disclaimer may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state or province to province. If the appliance should become defective within the warranty period, do not return the appliance to the store. Please contact our Customer Service Center. Toll free phone number: 1-866-BREVILLE (1-866-273-8455) Internet email: AskUs@BrevilleUSA.com AskUs@Breville.ca (in Canada)

ANY WARRANTY OF MERCHANTABILITY

OR FITNESS WITH RESPECT TO THIS

PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD. Some states or provinces do not allow disclaimer of the implied warranty with respect to consumer goods, so the foregoing disclaimer may not apply to you.
