USER MANUAL BC 545 TANITA

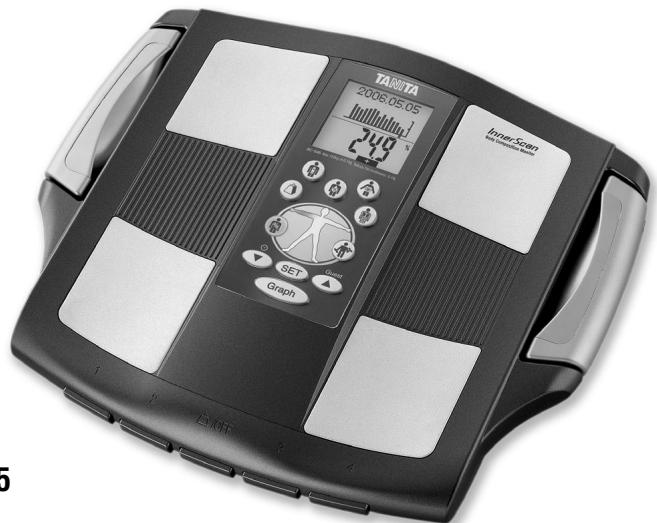

Body Composition Monitor

Model:BC-545

GB Instruction Manual

Read this Instruction Manual carefully and keep it for future reference.

Bedienungsanleitung

EP 0545014
U.S.Patent No.5,415,176
U.S.Patent No.6,473,641
U.S.Patent No.6,477,409
U.S.Patent No.6,480,736
U.S.Patent No.6,487,445
U.S.Patent No.6,532,385
U.S.Reissue Patent No.37,954
Other patents pending

Tanita UK Ltd.

The Barn, Philpots Close, Yieldsley,

Middlesex, UB7 7RY UK

Tel: [phone]

Fax: [phone]

www.tanita.co.uk

Tanita Corporation

14-2, 1-Chome, Maeno-Cho

Itabashi-Ku, Tokyo, Japan 174-8630

Tel: [phone]

Fax: [phone]

www.tanita.co.jp

ISO 9001 Certified

Tanita Europe GmbH

Dresdener Strasse 25

D-71065 Sindelfingen

Germany

Tel: [phone]

Fax: [phone]

www.tanita.de

Tanita Corporation of America Inc.

2625 South Clearbrook Drive

Arlington Heights, IL 60005 USA

Tel: [phone]

Fax: [phone]

www.tanita.com

Tanita France S.A.S

Villa Labrouste

68 Boulevard Bourdon

92200 Neuilly-Sur-Seine France

Tel: [phone]

Fax: [phone]

www.tanita.fr

Tanita Health Equipment H.K. Ltd.

Unit 301-303 3/F Wing On Plaza

62 Mody Road, Tsimshatsui East

Kowloon, Hong Kong

Tel: [phone]

Fax: [phone]

Table of Contents

Introduction 1

Features And Functions 1

Preparations Before Use 2

Getting Accurate Readings 2

Automatic Shut-Down Function 2

Switching The Weight Mode 3

Setting (Resetting) Date And Time.... 3

Setting And Storing Personal Data In Memory... 4

Taking Body Composition Readings....5

Programming The Guest Mode 8

Taking Weight Measurement Only. 8

Trouble Shooting 8

Thank you for selecting a Tanita Body Composition Monitor. This monitor is one in a wide range of home healthcare products produced by Tanita.

This Instruction Manual will guide you through the setup procedures and outline the key features. Please keep it handy for future reference. Additional information on healthy living can be found on our website

www.tanita.com.

Tanita products incorporate the latest clinical research and technological innovations.

All data is monitored by our Tanita Medical Advisory Board to ensure accuracy.

Note: Read this Instruction Manual carefully and keep it handy for future reference.

Safety Precautions

Note that people with an electronic medical implant, such as a pacemaker, should not use a Body Composition Monitor as it passes a low-level electrical signal through the body, which may interfere with its operation.

Pregnant women should use the weight function only. All other function are not intended for pregnant women.

Do not place this monitor on slippery surfaces such as a wet floor.

Recorded data may be lost if the monitor is used incorrectly or is exposed to electrical power surges. Tanita takes no responsibility for any kind of loss caused by the loss of recorded data. Tanita takes no responsibility for any kind of damage or loss caused by the monitor, or any kind of claim made by a third person.

Important Notes for Users

This Body fat monitor is intended for adults and children (ages 5-17) with inactive to moderately active lifestyles and adults with athletic body types.

Tanita defines "athlete" as a person involved in intense physical activity of approximately 10 hours per week and who has a resting heart rate of approximately 60 beats per minute or less. Tanita's athlete definition includes "lifetime of fitness" individuals who have been fit for years but currently exercise less than 10 hours per week. The body fat monitor function is not intended for pregnant women, professional athletes or bodybuilders.

Recorded data may be lost if the unit is used incorrectly or is exposed to electrical power surges. Tanita takes no responsibility for any kind of loss caused by the loss of recorded data.

Tanita takes no responsibility for any kind of damage or loss caused by these units, or any kind of claim made by a third person.

Note: Body fat percentage estimates will vary with the amount of water in the body, and can be affected by dehydration or over-hydration due to such factors as alcohol consumption, menstruation, illness, intense exercise, etc.

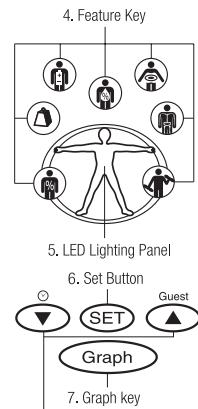

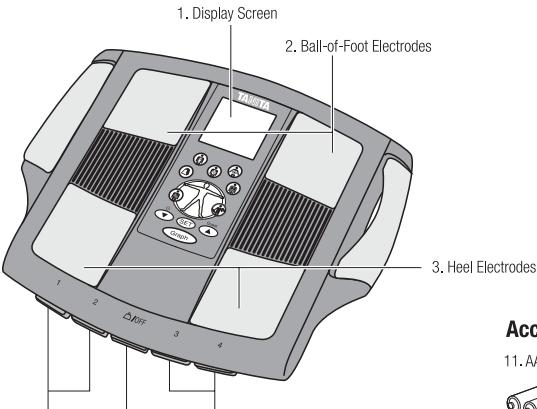

FEATURES AND FUNCTIONS

Measuring Platform
8. Arrow (Select) Buttons

9. Personal Keys
0.Weight-Only Key
9. Personal Keys
Accessories

11.AA-Size Batteries (4)

PREPARATIONS BEFORE USE

Inserting the Batteries

Open the battery cover on the back of the measuring platform. Insert the supplied AA-batteries as indicated.

Note: Be sure that the polarity of the batteries is set properly. If the batteries are incorrectly positioned the fluid may leak and damage floors. If you do not intend to use this unit for a long period of time, it is advisable to remove the batteries before storage.

Please note that the included batteries from factory may have decreased energy levels over time.

Positioning the Monitor

Place the measuring platform on a hard, flat surface where there is minimal vibration to ensure safe and accurate measurement.

Note: To avoid possible injury, do not step on the edge of the platform.

Handling Tips

This monitor is a precision instrument utilizing state-of-the-art technology.

To keep the unit in the best condition, follow these instructions carefully:

• Do not attempt to disassemble the measuring platform.
• Store the unit horizontally, and place it so that the buttons will not be pressed accidentally
• Avoid excessive impact or vibration to the unit
• Place the unit in an area free from direct sunlight, heating equipment, high humidity, or extreme temperature change.
• Never submerge in water. Use alcohol to clean the electrodes and glass cleaner (applied to a cloth first) to keep them shiny; avoid soaps.
• Do not step on the platform when wet.
• Do not drop any objects onto the platform.
• Do not carry the unit by holding the hand-electrodes.
• Do not release the hand-electrodes until the cable is completely retracted into the unit.
• Do not pull the cable more than red mark.

GETTING ACCURATE READINGS

Heels centered on electrodes

Toes may overhang measuring platform

Note: An accurate reading will not be possible if the soles of your feet are not clean, or if your knees are bent or you are in a sitting position.

To ensure accuracy, readings should be taken without clothing and under consistent conditions of hydration. If you do not undress, always remove your socks or stockings, and be sure the soles of your feet are clean before stepping on the measuring platform. Be sure that your heels are correctly aligned with the electrodes on the measuring platform. Don't worry if your feet appear too large for the unit accurate readings can still be obtained if your toes overhang the platform.

It is best to take readings at the same time of day. Try to wait about three hours after rising, eating, or hard exercise before taking measurements.

While readings taken under other conditions may not have the same absolute values, they are accurate for determining the percentage of change as long as the readings are taken in a consistent manner. To monitor progress, compare weight and body fat percentage taken under the same conditions over a period of time.

AUTOMATIC SHUT-DOWN FUNCTION

The automatic shutdown function shuts off the power automatically in the following cases:
- If you interrupt the measurement process. The power will shut down automatically within 10 to 20 seconds,
- depending upon the type of operation.
- If an extreme weight is applied to the platform.
- During programming, if you do not touch any of the keys or buttons within 60 seconds.
After you have completed the measuring process
Note: If the power shuts off automatically, repeat the steps from "Setting and Storing Personal Data in Memory" (p.3).

SWITCHING THE WEIGHT MODE

Note: For use only with models containing the weight mode switch

You can switch the unit indication by using the switch on the back of the scale as shown in the figure.

Note: If weight mode is set to pounds or stone-pounds, the height programming mode will be automatically set to feet and inches. Similarly, if kilograms is selected, height will be automatically set to centimetres.

lb (pounds)

kg (kilograms)

st-lb (stone pounds)

SETTING (RESETTING) DATE AND TIME

1. Set Year

Press and hold the /Down button for 3 seconds to turn on the unit.

Press the or buttons to set year and then press SET button.

The unit will beep once to confirm.

(Applicable year: 2006-2050)

2. Set Month

Press the or buttons to set month and then press the SET button.

The unit will beep once to confirm.

3. Set Day

Press the or buttons to set day and then press the SET button.

The unit will beep once to confirm.

4. Set Hour

Press the or buttons to set hour and then press the SET button.

The unit will beep once to confirm.

5. Set Minute

Press the or buttons to set minute and then press the SET button.

The unit will beep twice to confirm the programming.

The unit will then shut down automatically.

Note :

• If you change the date to a date prior to the current date, all tracking data for all users will be lost.

• After you replace the batteries, repeat step 1 - 5 on "SETTING (RESETTING) DATE AND TIME Replacing the batteries will cause the loss of date and time settings.

• 60 seconds or more of inactivity will cause automatic shut off during this process. No data will be saved as a result.
• If you make a mistake or wish to turn the unit off before you complete the programming, press the OFF button to turn the unit off. No data will be saved as a result.
• If you press (not press and hold) the /Down button, you can see the current date and time on the display.

SETTING AND STORING PERSONAL DATA IN MEMORY

You will receive readings only if data has been programmed into one of the personal data memories or the Guest mode.

The monitor can store personal details for up to 4 people.

1. Turn on the Power

Press the Set button to turn on the unit (once programmed, tapping a Personal Key turns on the unit.) The unit will beep to confirm activation, the Personal Key numbers (1,2,3,4) will be displayed, and the display will flash.

Note: If you don't operate the unit for sixty seconds after the unit has been turned on, the unit will turn off automatically.

Note: If you make a mistake or want to turn the unit off before you have finished programming it, press the Weight-Only Key (△) to force quit.

2. Select a Personal Key Number

Press the Up/Down buttons to select a Personal Key. Once you reach the Personal Key number you wish to use, press the Set button. The unit will beep once to confirm.

3. Set your Birthday

Set the date of your birthday (Year / Month / Day) using or buttons. Press the SET button to confirm at each programming.

The unit will beep once to complete the programming.

Note: The age range is 5-99 years old.

4. Select Female or Male

Use the Up/Down buttons to scroll through Female (♂) or Male (♀), Female/Athlete

(♂/♀) and Male/Athlete (♂/♀) settings, then

press the Set button.

The unit will beep once to confirm.

Athlete Mode: See explanation for use on P.1.

5. Specify the Height

The display defaults to 5^7.0^ (170cm) (range of user is from 3^ - 7^3.0^ or 90cm-220cm).

Use the Up/Down buttons to specify Height and then press the Set button.

The unit will beep twice and your programmed data will be displayed to confirm.

The power will then shut down automatically.

Note: When you change the birthday and/or gender, the unit will show "CLEAR". If you select "YES" using Up/Down buttons, the existing personal data and tracking data will be deleted. If you select "NO" using Up/Down buttons, no new data will be saved (existing data will be unchanged) then the unit will be shut off.

TAKING BODY COMPOSITION READINGS

1. Select Personal Key and Step On

Using your toe, tap your pre-programmed Personal Key.

The unit will beep and the display will show the programmed data.

The unit will beep again and the display will show "0.0". Now pull out the hand-electrodes, hold with arms straight down and step onto the platform.

Note: Remember no shoes or socks.

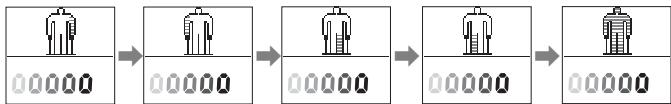

The display will show in the order below during the body fat % measurement.

The unit will beep twice to complete the measurement.

Note:

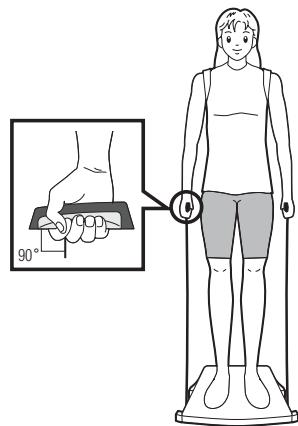

• Please grip the hand-electrode as shown.

• Place your hands on your side, and do not move until measurement is completed.

• If you step onto the platform before "0.0" appears, the display will show "Error" and you will not obtain a reading.

Furthermore if you do not step onto the platform within about 60 seconds after "0.0" appears, the power is shut off automatically.

2. Get Your Readings: Auto Display Process

After the measurement is taken, the display will automatically show the current result with the date and LED icon guide displaying Total Body Fat % and Weight (alternately 6 times)

(Pleases refer "Daily, Weekly and Monthly Graph Function" about the graph.)

Please step off from the scale.

Note: After displaying result. The unit will automatically shut off.

If you press button(s) while the current result is being displayed, the following information will appear.

Note: If there is significant difference between the current and previous results, "SAVE?" will be displayed. You can select "YES" or "NO" using arrow buttons.

YES: The current result will be stored.

NO: The current result will not be stored.

Note: If your age reaches 100 years old or more, the only weight result will be displayed

And the "AGE ERROR" will appear on the display when you press feature buttons except the weight button.

Note: For children (age 5-17), the unit will only display the Weight and the Body Fat %.

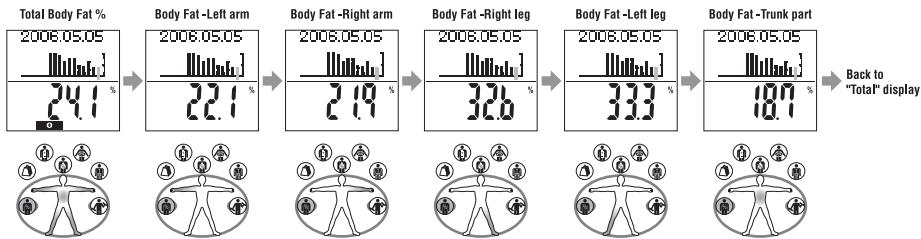

Body Fat %

Applicable age: 5-99.

Press icon botton continually to display, reading in the order listed below.

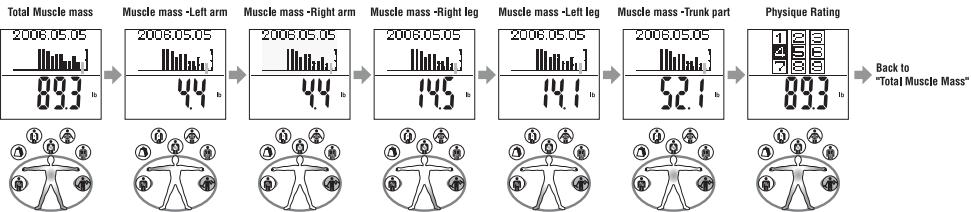

Muscle Mass:

Applicable age: 18-99

Press icon button continually to display, reading in the order listed below.

Weight

Applicable age: 5 or over.

Body Water %

Applicable age: 18-99.

Bone mass

Applicable age: 18-99.

Visceral Fat

Applicable age: 18-99

BMR & Metabolic Age

Applicable age: 18-99

You press this button then automatically display in the order below for the first time. You may press same button again to obtain each reading.

BMR

2006.05.05

Metabolic Age

3. Daily, Weekly and Monthly graph Function

• During the current result is being displayed...

After completion of measurement, current result and daily graph will be displayed.

If you press the "GRAPH" button while current result is displayed, the display will change to Daily Weekly Monthly Graph. Use or button to go back to the past result.

While the scale is off...

If you press your personal number button and then the "GRAPH" button while the scale is off, the display will show the daily graph with the most recent result.

If you press the "GRAPH" button again, the display will change to Daily Weekly Monthly Graph and go back to Daily Graph.

Use or button to go back to the past result.

Daily Graph

Weekly Graph

Monthly Graph

Note:

The Graph will be shown Calendar date for Daily Graph, 52 weeks for Weekly Graph, and 36 months for Monthly Graph.
- If there is no tracking data, the GRAPH button is not available.
- If you wish to turn the unit off before automatic shut off, press the OFF button.
- If you change your birthday and gender in personal data, your tracking data will be deleted.

PROGRAMMING THE GUEST MODE

Guest mode allows you to program the unit for a one-time use without resetting a

Personal data number. Press button to activate the unit.

Then follow the steps: Set Age, Select Female or Male, and Specify Height.

Note: If you step onto the platform before "0.0" appears the display will show "Error" and you will not obtain a reading.

Note: Applicable age: 5-99

Select Weight-Only Key

Using your toe, tap the Weight-only key. After 2 or 3 seconds, "0.0" will appear in the display and the unit will beep. When "0.0" appears in the display, step onto the platform. The body weight value will appear. If you remain on the platform, the display will flash for about 30 seconds, and then the power will automatically turn off. If you step off the platform, the weight will continue to show for about 30 seconds then the unit will shut off automatically.

TROUBLE SHOOTING

If the following problems occur ...then...

• A wrong weight format appears followed by kg, lb, or st-lb.

Refer to Switching the Weight Mode on p.3.

• "Lo" appears on the display, or all the data appears and immediately disappears.

Batteries are low. When this message appears, be sure to replace the batteries immediately, since weak batteries will affect the accuracy of your measurements. Change all the batteries at the same time with new AA-size batteries.

Note: Your settings will not be erased from the memory when you remove the batteries.

• “NO RECORD” appears on the display.

Your personal data has not been programmed. Please follow programming instructions on p.4.

• "Error" appears while measuring.

Please stand on the platform keeping movement to a minimum.

The unit cannot accurately measure your weight if it detects movement.

The Body Fat Percentage is more than 75% , readings cannot be obtained from the unit.

• The Body Fat Percentage reading does not appear or "-----" appears after the weight is measured.

Make sure socks or stockings are removed, and the soles of your feet are clean and properly aligned with the guides on the measuring platform.

• "Loading..." appears on the display.

The data is being loaded. Please wait for a moment.

• "OL" appears while measuring.

Reading cannot be obtained if the weight capacity is exceeded.

• "AGE ERROR" appears on the display.

If you program the wrong date and your age becomes negative years old, "AGE ERROR" will appear on the display after you press the personal key.

If your age reaches 100 years old or more, the only weight result will be displayed.

EINLEITUNG

Age applicable: 5-99.

Age applicable: 18-99.

Age applicable: 18-99.

Masse osseuse

Age applicable: 18-99

Graisse viscérale

Age applicable: 18-99.

Age applicable: 18-99.
