M 319 AQUA CLEAN - Vacuum Cleaner DIRT DEVIL - Free user manual and instructions
Find the device manual for free M 319 AQUA CLEAN DIRT DEVIL in PDF.
| Device type | Universal steam cleaning appliance |
| Brand | DIRT DEVIL |
| Model | M 319 AQUA CLEAN |
| Model number | M319 (-0/-1/..-8/-9) |
| Voltage | 230 V~, 50 Hz |
| Power | 1500 W |
| Water tank capacity | Approximately 1.0 liter |
| Disinfectant tank capacity | Approximately 0.25 liter |
| Heating time | Approximately 7 minutes |
| Maximum operating time per fill | Approximately 40 minutes (depending on steam power setting) |
| Power cord length | Approximately 6 meters |
| Weight (empty tanks) | Approximately 3.8 kg |
| Protection class | I, IPX4 (protected against water splashes) |
| Use | Household only |
| Main functions | Steam cleaning, optional disinfection, refreshing carpets and furniture |
| Included accessories | Steam hose, adapters, brushes, nozzles, microfiber cloths, carpet glider, extension tubes, universal nozzle |
| Child safety | Lock on handle |
| Overheat protection | Yes, automatic shut-off |
| Maintenance | Descale every 6 months, wash covers at 60°C |
| Warranty | 24 months from date of purchase |
Frequently Asked Questions - M 319 AQUA CLEAN DIRT DEVIL
User questions about M 319 AQUA CLEAN DIRT DEVIL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual M 319 AQUA CLEAN - DIRT DEVIL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. M 319 AQUA CLEAN by DIRT DEVIL.
USER MANUAL M 319 AQUA CLEAN DIRT DEVIL
Universal steam cleaner
Mode d'emploi
Operating Manual 16-27
B
Mode d'emploi 28-39
E
Bedieningshandleiding 40-51
Thank you for buying the universal steam cleaner 'AquaClean' and for your confidence in us. Your new 'AquaClean' is a versatile steam cleaner that will help you do a great many household jobs quickly and effectively.
Scope of delivery
(Fig.1):
1 Release catch of the accessory compartment window
2 Accessory compartment with three storage points
3 Mains control light
4 Steam ready indicator
5 On/off switch
6 Steam power control
7 Steam hose connection nozzle on the appliance
8 Accessory compartment with four storage points
9 Release catch of the accessory compartment window
10 Carrying handle
11 Water tank cap with safety valve
12 Parking bracket
13 Power cord with plug
14Funnel, optional
15Disinfectant, optional (only for use in the disinfectant tank)
16 Steam hose adapter
17 Release catch of the steam hose adapter (on both sides)
18 Steam hose
19 Disinfectant tank
20 Disinfectant tank cap
21 Steam button
22 Child safety device/Latch
23 Control to add disinfectant
24 Release catch to release attached accessory
25Refilling container, optional
26 Accessory adapter
27 Jet nozzle
28 Small, round plastic brush
29 Large, round plastic brush
30 2-in-1 combi attachment with scraper lip
31 Cotton cover (100% cotton) for the 2-in-1 combi attachment
32 Crevice brush
33 Spatula attachment
34 Floor nozzle
35 Foot pedal to release the floor nozzle
36 Micro-fibre cleaning cloth (90% polyester, 10% polyamide)
37 Carpet glider base
38 Parking hook
39 Steam foot with collar brush
40 Upper extension tube
41 Lower extension tube
42 Middle extension tube
43 Rotatable cable storage hook
44 Rigid cable storage hook
45 Extension tube release catches
46 Operating manual
47Cleaning needle, optional
^* i. e. in the scope of delivery depending on model and features
Depending on field of use you can also optionally add disinfectant to the hot steam if this is included in the scope of delivery or if you have acquired it from us separately.
Technical data
| Type of appliance | : Universal steam cleaner |
| Model name | : Universal steam cleaner AquaClean |
| Model number | : M319 (-0/-1/..-8/-9) |
| Voltage | : 230 V~, 50 Hz |
| Power | : 1500 W |
| Steam availability | : after approx. 7 minutes |
| Max. operating time per full water tank | : approx. 40 minutes (depending on the position of the steam power control) |
| Water tank capacity | : approx. 1.0 litre |
| Disinfectant tank capacity: | : approx. 0.25 litres |
| Power cord length | : approx. 6 m |
| Weight (when tanks are empty) | : approx. 3.8 kg |
Technical and design specifications may be changed in the course of continuous product improvement. © Royal Appliance International GmbH
Designations
| : WARNING! Hot steam! Danger of scalding! ▷Chapter 2.3 | |
| : WARNING! Disinfectant! Hazardous to health! ▷Chapter 2.4 | |
| : Satisfies the applicable European directives | |
| : Protection class I, IPX4 (splash-proof) |
Table of Contents
Overview drawing 3
1 Overview 16
Scope of delivery 16
Technical data 16
Designations 16
2 Safety instructions 18
2.1 About the operating manual 18
2.2 About certain groups of persons 18
2.3 About hot steam and hot parts of the appliance 18
2.4 Concerning the optionally supplied disinfectant 18
2.5 About the power supply 19
2.6 About appropriate use 19
3 Preparing for use 20
3.1 Unpacking 20
3.2 Attaching the steam hose 20
3.3 Preparing to steam-clean small surfaces 20

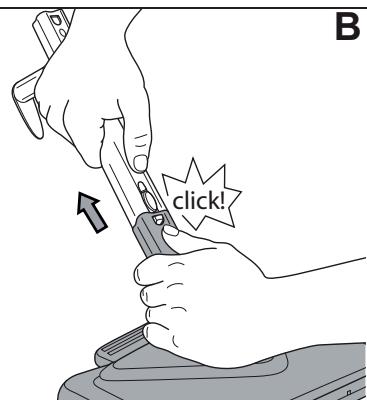

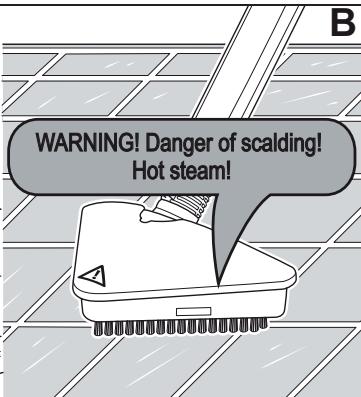

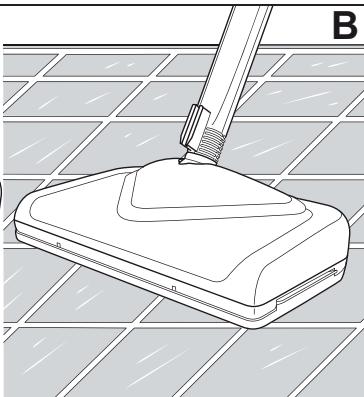

3.4 Preparing to steam-clean floors 21
3.5 Filling the water tank 22
3.6 Filling the disinfectant tank 22
4 Steam cleaning 23
4.1 Safety when steam-cleaning 23

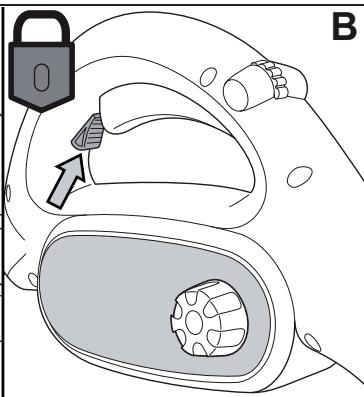

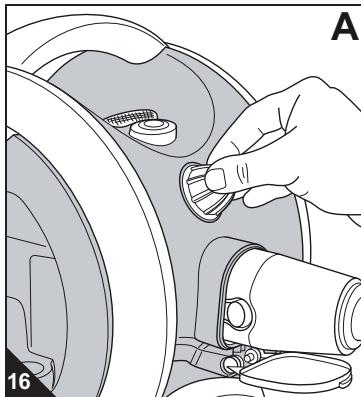

4.2 Steam cleaning procedure 23
4.3 Steam cleaning using disinfectant 24

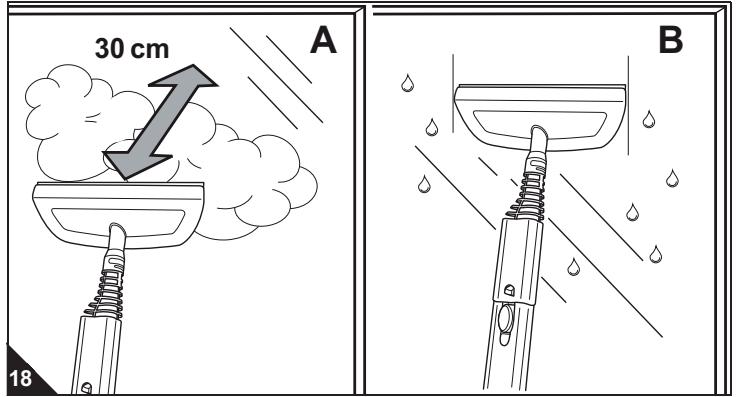

4.4 Steam-cleaning glass surfaces 24

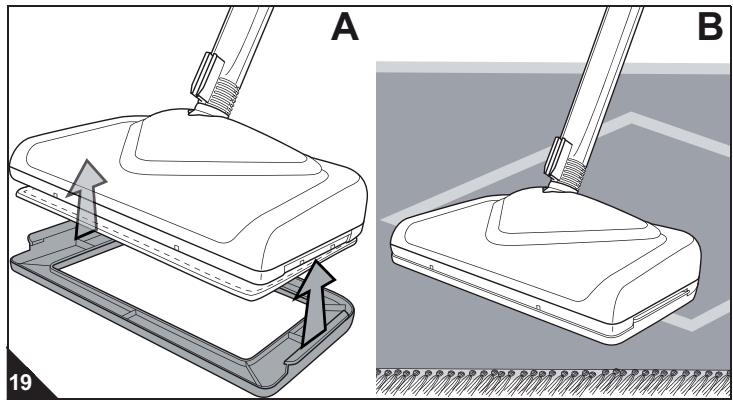

4.5 Refreshing carpets 24
4.6 Refreshing upholstery and clothing 24
5 Storage and care 25
5.1 After use 25
5.2 Putting away accessories 25

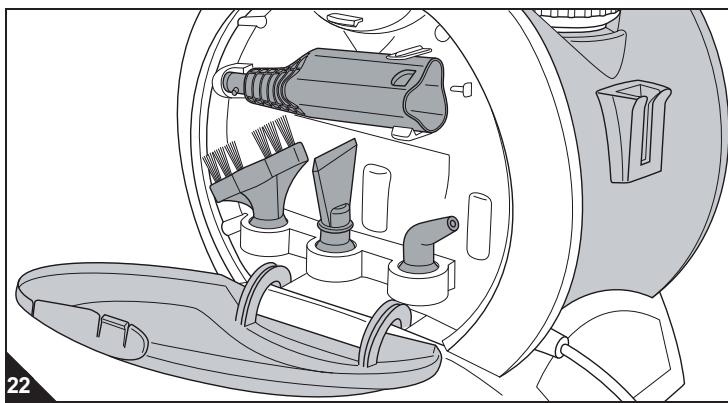

5.3 Storing the device 25
5.4 If required: wind up the power cord 26
5.5 If required: look after cleaning cloths 26
5.6 If required: decalcify the appliance 26
5.7 Spare parts and accessories 26
6 Troubleshooting 27
6.1 Before you send in the appliance 27
6.2 If the appliance is defective 27
6.3 Disposal 27
6.4 Warranty 27
2.1 About the operating manual
Violation of these instructions may cause injury or damage to the appliance. We take no responsibility for damage due to violation of these operating instructions.
Read this operating manual completely before working with the appliance. Keep the operating manual in a safe place.
- Include the operating manual if you pass the appliance on to someone else. Non-compliance with these instructions can lead to serious injuries or damage to the appliance.
Important notes are marked as shown on the right.
WARNING:
Warns you of possible health hazards.
ATTENTION:
Indicates possible hazards to material assets.
NOTE:
Highlights tips and information for you.
2.2 About certain groups of persons
This appliance is not intended to be used by persons (including children) with impaired physical, sensory or mental abilities or insufficient experience or knowledge, unless they are supervised by a person responsible for their safety or have been instructed in the proper use of the appliance by this person. Keep the appliance out of reach of people of these groups.
Children should be supervised in order to make sure that they do not play with the appliance and its accessories.
Children must not be allowed to stand or sit on the appliance.
Packing material must not be used to play with. There is danger of suffocation.
Therefore, keep the disinfectant inaccessible to children in particular. If they swallow any, there is a danger of poisoning!
People with sensory problems, especially with reduced sensitivity to temperature differences, must use great caution when working with this appliance.
2.3 About hot steam and hot parts of the appliance
Never direct the steam jet at persons, animals or plants. Always point the steam jet downwards towards the surface to be cleaned. Even then, take care that parts of your body never get into the steam jet. Never lay the steam pistol on its side when it's running. There is a danger of scalding.
- Do not direct the steam jet at electrical appliances, plug sockets, cables, etc. There is a risk of electric shock.
Never use the device without the tank cap screwed on correctly. Never try to open the water tank cap when the appliance is running. Before opening the tank cap, always switch off the appliance, disconnect it from the mains, discharge any remaining steam and let the appliance cool off for at least 30 minutes.
The appliance produces steam under pressure for cleaning purposes. Even after you have switched off the appliance, hot steam will be available for approx. 30 more minutes. This may escape, e.g. when the steam button is pressed accidentally. So, release excess steam right after switching off by pressing the steam button.
- Do not use the appliance to clean pressure containers, containers which are filled with liquids, or containers if you do not know what they contain. There is danger of them bursting or exploding.
Let the hot appliance and its accessories cool off before touching them. Carry the appliance by its handle only.
Take care not to use the steam cleaner on one spot for too long. Otherwise, the surface might be damaged. Provide adequate ventilation during and after your cleaning work.
2.4 Concerning the optionally supplied disinfectant
-
Keep the disinfectant inaccessible to children. If they swallow any, there is a danger of poisoning!
The disinfectant is harmful to health. Keep it away from the eyes and mucous membranes in particular. Carefully pour it into the disinfectant tank. If supplied, use the refilling container provided to do so. If you have sensitive skin, wear gloves when filling. -
Wash your hands after handling the disinfectant.
Also observe the instructions on the disinfectant bottle. - Do not clean surfaces which come into contact with food with the appliance or the disinfectant.
Never pour the disinfectant into the water tank.
What to do in an emergency, i.e. after the disinfectant has not been used properly:
If the disinfectant has got into your eyes,
- if you are wearing contact lenses, remove them immediately.
- Rinse out your eyes immediately and thoroughly in clean water for at least 10 minutes.
- Consult a doctor if your eyes remain irritated.
If you have swallowed the disinfectant,
- first rinse out your mouth with plenty of water.
- Dilute the content of your stomach with plenty of water.
- Do not induce vomiting!
- Consult a doctor as a precaution.
If you have inhaled the vapours,
- go into the open air.
- If you have trouble breathing, consult a doctor immediately!
If the disinfectant has come into contact with skin or clothes, - immediately wash the affected skin with water.
- Take off the relevant pieces of clothing and wash them before wearing them again.
2.5 About the power supply
- Keep the jet of steam away from the power cord of the appliance when in operation. Power cords must not come into contact with any sources of heat or damp. Otherwise there is a danger of the power cord getting damaged which could lead to an electric shock.

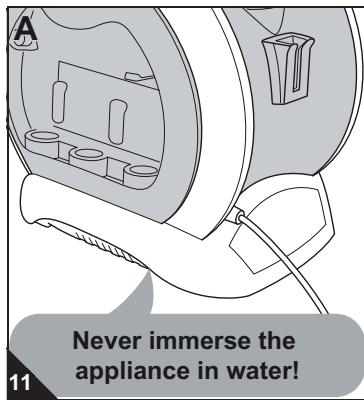

- Never touch the plug with wet hands. Never immerse the appliance in water or other liquids.
Only fill up the water tank after completing cleaning and when the mains plug is pulled out. Always fill the water tank carefully using a refilling container and a funnel. Keep the other parts of the appliance dry.
Never carry the appliance by its power cord. Always completely uncoil the power cord before use. Always pull directly on the plug if you want to disconnect the appliance from the mains. Never pull on the cable as this could damage it.
Take care that the power cord is not bent, pinched, or rolled over and ensure it does not come into contact with the steam jet or any other heat sources. Also take care that it does not become a stumbling hazard.
Before connecting to the power supply, make sure that the voltage stated on the type plate matches the voltage of your plug socket. Only use sockets with a ground/safety contact.
If possible, do not use extension cords. If you must use an extension cord, use only safety-certified, water-protected single extension cords (no multi-socket distributors) designed for the power consumption of the appliance.
Always check the power cord for possible damage before using the appliance. Pull the plug from the socket immediately after use. Before cleaning or performing maintenance on the appliance, ensure that the plug has been removed from the socket.
2.6 About appropriate use
This appliance may only be used in households. It is not suitable for industrial or commercial use.
Only use the steam cleaner in the home to clean regular dirt from surfaces that can withstand the high temperature, pressure and moisture of hot steam.
Used with due care and skill, the steam cleaner can also be used to refresh carpets, drapes, clothing, etc.
Any other use is considered inappropriate and is prohibited. It is especially forbidden:
To use the appliance near explosive or easily flammable substances or on pressurized containers. There is a risk of fire or explosion or of the container bursting.
To fill the water tank with liquids other than cold water. Additives in the water tank, such as the disinfectant, make using the appliance unsafe.
Filling the disinfectant tank with liquids other than those supplied and disinfectant that has been ordered from us. Other products make using the appliance unsafe.
Use as a humidifier or as a space-heating system.
To operate the appliance when the water tank is empty or without the tank lid.
To stick objects into the appliance's openings.
To modify or repair the appliance on your own.
To use accessories not supplied by the original manufacturer.
To clean:
- Persons, animals or plants, including clothing that is still being worn.
- Surfaces which contain materials that are hazardous to health. The hot steam might release these materials.
- Surfaces which come into contact with food.
- Leather, furniture, unsealed, lacquered, oiled or waxed wood or parquet flooring, or surfaces made of soft or shiny plastic material. These might be damaged.
- Textiles made from acrylic fibre, dralon, velvet or linen. These might be damaged.
3.1 Unpacking
ATTENTION:
Always transport/send the appliance in its original packaging to avoid transport damage. Keep the packaging for such an event. However, dispose of no-longer-needed packaging material properly.
3.2 Attaching the steam hose
- Unpack the appliance and its accessories (fig. 1).
- Check the contents for completeness and possible damage.
NOTE:
Immediately contact your dealer if you have found damage resulting from transport.

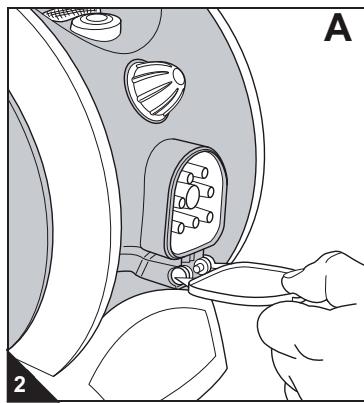

- Open the lid of the steam hose connection nozzle (Fig. 2/A).
- Put the steam hose adapter into the steam hose connection nozzle (Fig. 2/B). You will hear and feel both its release catches (Fig. 2/1) snap into place.
NOTE:
If you want to release the steam hose after use, press both the release catches (Fig. 2/1) on the steam hose adapter and pull it off.
3.3 Preparing to steam-clean small surfaces

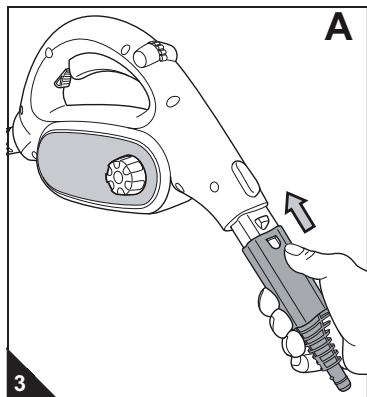

Mount accessory adapter (Fig. 3/A):
NOTE:
Before you can fix the special nozzles to the steam pistol, you have to mount the accessory adapter. If required, you can also use the accessory adapter without any further attachment for numerous cleaning jobs.

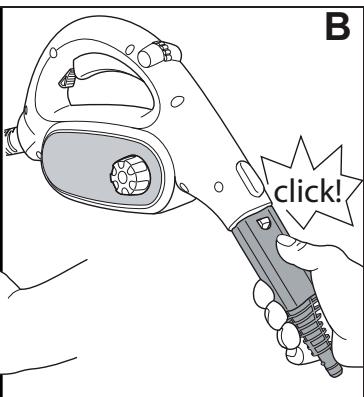

- Attach the accessory adapter to the steam pistol as shown (Fig. 3/A). You will feel and hear it snap into place.
NOTE:
To release the accessory adapter at any time, push the release catch on the steam pistol.
Attaching further accessories:
NOTE:

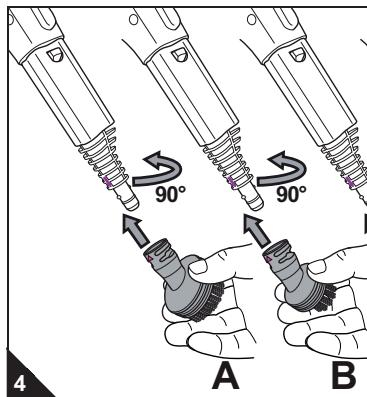

The attachments shown (Fig. 4, Fig. 5) can only be put onto the previously mounted accessory adapter.
-
Select a special attachment:
-
the plastic brushes (Fig. 4/A,B) on insensitive surfaces to remove large quantities of dirt;

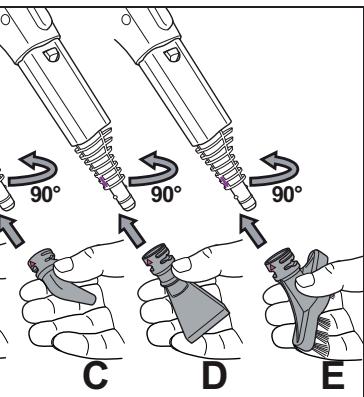

- the jet nozzle (Fig. 4/C), if you want the steam jet to be more concentrated than when just using the accessory adapter;
- the spatula attachment (Fig. 4/D) on insensitive, flat surfaces to remove stubborn layers of dirt;
- the crevice brush (Fig. 4/E) to remove stubborn dirt from between tiles and cracks;
- the 2-in-1 combi attachment with scraper lip (Fig. 5/A,B) to steam-clean smooth polished surfaces;
-
the 2-in-1 combi attachment with cotton cover (Fig. 5/C) to steam-clean upholstery and clothes.
-
Push the selected attachment onto the accessory adapter so that the small triangle on the respective attachment and the arrow on the accessory adapter are opposite one another (Fig. 4, Fig. 5).
- Lock the selected attachment to the accessory adapter by turning it through 90^ as shown (Fig. 4, Fig. 5).
NOTE:
Should you wish to release the adapter from the attachment, simply rotate it through 90^ in the other direction and pull it off forcefully.
3.4 Preparing to steam-clean floors
-
Attaching extension tubes and floor nozzle:
-

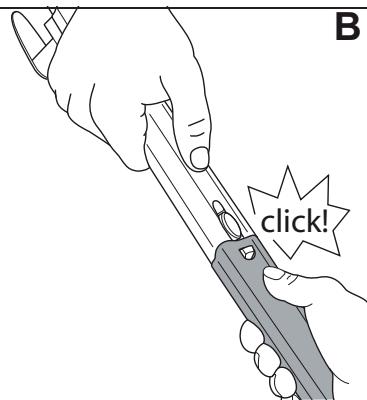

Attach the upper extension tube as shown to the steam pistol (Fig. 6/ A). You will feel and hear it snap into place.
-
Attach the middle extension tube to the extension tube just mounted as shown (Fig. 6/B). You will feel and hear it snap into place.
-
Attach the lower extension tube to the extension tube just mounted as shown (Fig. 7/A). You will feel and hear it snap into place.
- Now attach the floor nozzle onto the extension tube just attached (Fig. 7/B). You will feel and hear the connecting piece of the floor nozzle snap into place.
To steam-clean insensitive stone floors, tiles and the like which have stubborn stains (Fig. 8/B):
- Release the steam base with collar brush from the floor nozzle by pushing down the foot pedal of the floor nozzle (Fig. 8/A).
- Remove the steam base with collar brush up out of the floor nozzle.
ATTENTION:
Not all floors suited to steam cleaning would also withstand the powerful bristles of the collar brush. Only use the combination of hot steam and collar brush on completely insensitive floors. If you are unsure, enquire with the manufacturer of your floor surface. Then test to see whether the floor can withstand this treatment without damage on an unnoticeable part of the floor.
To steam-clean smooth, lightly soiled stone floors, tiles and the like (Fig. 9/B):

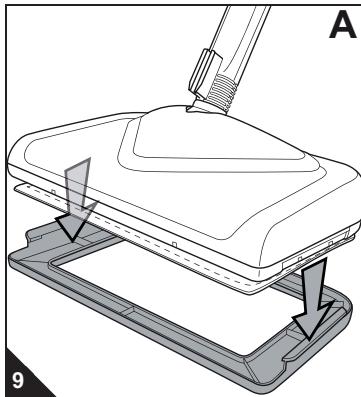

- Release the carpet glider base from the floor nozzle (Fig. 9/A).
- If you have not done so already, attach a clean micro-fibre cleaning cloth to the floor nozzle (Fig. 9/B).
To refresh carpets and the like (Fig. 10/B):
- If you have not done so already, attach a clean micro-fibre cleaning cloth to the floor nozzle (Fig. 9/B).
- If you have not done so already, attach the carpet glider base back on to the floor nozzle (Fig. 10/A).
3.5 Filling the water tank
WARNING:
Danger of injury! Do not add disinfectant or any other additives such as cleaning agents, alcohol, perfumes or chemicals into the water tank. These make use of the appliance unsafe. If the funnel, which you want to use to fill the water tank, was previously in contact with disinfectant (Fig. 13/B), rinse it out before using it to fill the water tank.
WARNING:
Danger of electric shock! Never fill an appliance when it is connected to the mains. Never submerge the appliance in water to fill it (Fig. 11/A). Always fill the water tank carefully using a refilling container and a funnel (Fig. 12/A). Keep the other parts of the appliance dry.
3.6 Filling the disinfectant tank
WARNING:
Health hazard! Only use the disinfectant supplied or ordered from us. The device has been designed for and tested with this disinfectant. Do not mix this disinfectant. Other products may make using the appliance unsafe.
WARNING:
Danger of scalding! Only operate the appliance if the tank cap is securely screwed on.
- If the appliance was previously in operation:
WARNING:
Danger of scalding! The water tank is under pressure as soon as the appliance is switched on. Even after you have pulled the plug from the socket, compressed steam could still be in place:
a Pull out the plug before you have finished cleaning.
b Release the remaining steam reserves by holding down the steam button.
c Allow the appliance about thirty minutes to cool off — until the red pin in the cap goes down.
Only then can the cap be opened.
If the cap will not open after steps a-c, push down the red pin in the cap. Only after this has been done can you unscrew the tank cap and fill the water tank as described below.
- Unscrew the tank cap counter-clockwise and take it off the water tank (Fig. 11/B).
WARNING:
Danger of burns! If the appliance was in operation before, the tank cap and the appliance parts around it could still be hot. Always fill the water tank carefully using a refilling container and a funnel.
- Fill the refilling container with cold, clear tap water.
- Put a funnel into the opening of the water tank (Fig. 12/A).
- Fill the water tank by emptying the refilling container into the funnel (Fig. 12/A).
NOTE:
The water tank holds about 1 litre of water. Do not overfill the tank. Be aware of any residual water in the tank. If there was already water in the tank, the tank is certainly full enough now. Pour the water in slowly and carefully.

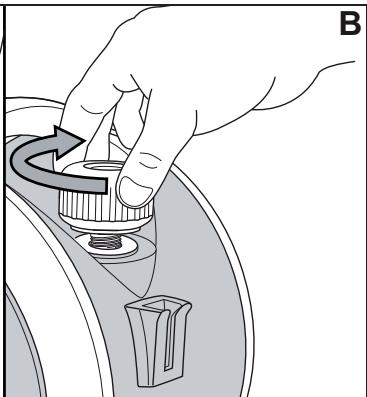

- Refit the tank cap and fasten it by turning it clockwise (Fig. 12/B).
- Check that it is securely fitted.
WARNING:
Health hazard! Always make sure that the disinfectant is inaccessible to children, particularly just after filling the disinfectant tank and before steam cleaning. Also observe the instructions on the disinfectant bottle.
NOTE:
If you do not have any original disinfectant available, simply leave the disinfectant tank empty. You can still steam clean with the appliance normally. In this case, set the disinfectant regulator (Fig. 1/23) to 'OFF'.

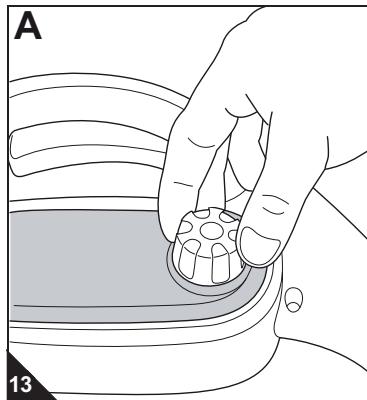

- Unscrew the tank cap from the disinfectant tank (Fig. 13/A).
- Insert a funnel (Fig. 13/B).
- Pour in the undiluted disinfectant carefully into the disinfectant tank no higher than just under the filling nozzle (Fig. 13/B).
NOTE:
Do not overfill the tank. It can only hold 0.25 litres. Always observe the level through the transparent outer wall.
4. Refit the tank cap and fasten it (Fig. 13/A). Check that it is securely fitted.
4.1 Safety when steam-cleaning
ATTENTION:
Before connecting the appliance to the power supply, make sure that the voltage stated on the type plate matches the voltage of your plug socket. Only use sockets with a ground/safety contact.
ATTENTION:
Before starting cleaning, check whether the surface to be cleaned is suitable for steam cleaning. Always follow the cleaning recommendations of the material manufacturers. The steam cleaner is definitely not suitable for use on uncoated wooden floors, soft plastics and polished furniture. Do not operate the appliance on one spot for too long. Keep moving the appliance back and forth to loosen dirt from an area. Otherwise there will be increased danger of damaging the surface to be cleaned. Cold glass surfaces can shatter as a result of heat shock.
ATTENTION:
Operate the device only with the water tank filled. Although the appliance is fitted with overheating protection, running it without water would shorten the appliance's service life.
NOTE:
The steam cleaner has overheating protection. It will switch off automatically if overheated (e.g. due to an empty water tank). If this happens, pull the mains plug and refill the water tank Chapter 3.5, "Filling the water tank". Wait for about 45 minutes. Once the steam cleaner has cooled down you can switch it on again.
NOTE:
Have a cotton or microfibre cloth ready for follow-up wiping. This serves to absorb water and loosened dirt.
NOTE:
It is recommended to first sweep or vacuum-clean floors to remove loose dirt before using the steam cleaner on them.
NOTE:
Provide adequate ventilation during steam cleaning. Otherwise, the increased humidity after cleaning could, in the worst case, cause the formation of mould. Preferably operate the steam cleaner on warm days when the air can absorb more moisture without condensation.
4.2 Steam cleaning procedure
- Check that the water tank is full. If not, fill it (Chapter 3.5, "Filling the water tank").
- Insert the mains plug into a socket with ground/safety contact.

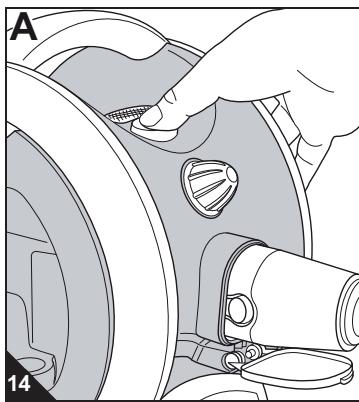

- Switch on the appliance with the on/off switch (Fig. 14/A). The operating light goes on (Fig. 14/B). The appliance is heating up.
- Wait for about 7 minutes until the steam ready indicator also goes on (Fig. 14/B). The appliance is now ready for operation.
- Disengage the child protection device by pushing it down (Fig. 15/A).
-
You can now press the steam button on the steam pistol (Fig. 15/B).
-
A few drops of water will be ejected first.
- Collect these if you want to avoid puddles.
- After a short while, a steam jet will appear.
- As long as you press the steam button, steam will come out.
- When the steam ready indicator goes out, you can continue working.
- Only if the steam produced is no longer sufficient, should you release the steam button and wait so the device can reaccumulate pressure and produce hot steam again.
- The steam flow will stop as soon as you release the steam button.
- To save steam and energy, it is advisable to adjust the force of the steam using the steam power control according to the cleaning task (Fig. 16/A).
WARNING:
Danger of scalding! Always point the steam jet downwards towards the surface to be cleaned. Never lay the steam pistol on its side when the appliance is running. When interrupting your work, always switch off the appliance and use up any remaining steam. When interrupting work to fill the tank or to change attachments also pull the plug from the mains socket and engage the child safety device by pushing it up (Fig. 16/B).
WARNING:
Danger of falling! Always be especially careful when cleaning smooth floors as well as steps and stairs! Only work with moderate amounts of steam when cleaning smooth floors, otherwise a moisture film will be left on the floor. Using less steam also ensures quicker drying and reduces the risk of slipping. When cleaning stairs make sure that you are always higher up than the appliance.
4.3 Steam cleaning using disinfectant
4.4 Steam-cleaning glass surfaces
4.5 Refreshing carpets
4.6 Refreshing upholstery and clothing
- Check that the disinfectant tank is full. If not, fill it (Chapter 3.6, "Filling the disinfectant tank").
- Turn the control for the addition of disinfectant on the steam pistol in the 'MAX' direction (Fig. 17/A).
- Insert the plug into a mains socket with a ground/safety contact and proceed as described in Chapter 4.2, "Steam cleaning procedure".
NOTE:
Disinfectant will be added to the jet of steam until the disinfectant tank is empty or you turn the regulator for the addition of disinfectant back to the OFF position (Fig. 17/B).
4. If you want to disinfect floors, cover each stretch of floor several times so that a closed film of disinfectant is produced.
ATTENTION:
Cold glass surfaces can shatter as a result of heat shock. Always warm glass surfaces before directly using steam on them. Do not work on window panes on cold days!
- Warm the glass surface to be cleaned by applying steam from a distance of about 30~cm (Fig. 18/A).
- After a time reduce the distance to about 20~cm to cover the glass surface evenly with steam.
- Stop the steam flow by releasing the steam button and engage the child safety device on the steam pistol.
- Strip the water off of the glass surface with the scraper lip of the 2-in-1 combi attachment (Fig. 18/B).
- Wipe the scraper lip and the bottom edge of the glass surface dry after each pass of the squeegee.
ATTENTION:
First test an unnoticeable part of the floor to see if the floor surface is suited to steam cleaning.
NOTE:
Ensure that the carpet glider base is mounted to the floor nozzle (Fig. 19/A). Otherwise you will not be able to effectively slide over the carpet with the floor nozzle (Fig. 19/B).
NOTE:
We recommend using as little steam as possible and to do without disinfectant when steam cleaning carpets.
WARNING:
Danger of scalding! Never apply the steam jet directly to pieces of clothing while they are still being worn by persons or animals!
ATTENTION:
Before refreshing upholstery or clothes, make sure that their material and colour is suitable for steam cleaning. Always follow the cleaning recommendations of the material manufacturers.
NOTE:
We recommend to always use the cotton cover (Fig. 20) when refreshing upholstery or clothing as this reduces the formation of condensation drops that can adversely affect the cleaning result.
5.1 After use
WARNING:
Danger of scalding! When interrupting your work, always switch off the appliance and use up any remaining steam. Pull the plug from the mains socket and engage the child safety device by pushing it up.
WARNING:
Danger of stumbling and falling! Coil the power cord and lay it safely beside the appliance until this has completely cooled off.
ATTENTION:
If you have been working with one of the two cotton cloths, take this off of the attachment immediately after the appliance has cooled down and let it dry or clean it, Chapter 5.5, "If required: look after cleaning cloths". Otherwise, germs and mould might develop.
- Switch off the appliance with the on/off switch
- Use up the remaining steam supply until the flow from the nozzle has stopped.
- Engage the child protection device by pushing it up (Fig. 16/B).
- Pull the plug out of the plug socket.
- Coil the power cord and lay it safely beside the appliance until this has completely cooled off.
- Now wait at least 30 minutes until all parts of the appliance have completely cooled off. You can then put the accessories and the appliance away, Chapter 5.2, "Putting away accessories" and Chapter 5.3, "Storing the device".
- If required, you can attach the power cord to the extension tubes, Chapter 5.4, "If required: wind up the power cord".
5.2 Putting away accessories
- Let the appliance and its accessories cool down.
- Take the attachments used off the steam pistol and let them dry.
- Once accessories are completely dry, if possible, store them in their console in the respective accessory compartment of the steam cleaner.
The accessory compartment with three storage points (Fig. 21) can accommodate the following attachments:
2-in-1 combi attachment
Large, round plastic brush
Small, round plastic brush
The accessory compartment with four storage points (Fig. 22) can accommodate the following attachments:
Accessory adapter
Crevice brush
Spatula attachment
Jet nozzle
5.3 Storing the device
If necessary, park the floor nozzle in the provided parking bracket (Fig. 23).
If you want to store the appliance for a longer period of time, empty the water tank and let it dry completely.
Only stow away the appliance if it is completely dry.
Store the appliance in a cool, dry place, out of the reach of children.
5.4 If required: wind up the power cord
5.5 If required: look after cleaning cloths
WARNING:
Danger of scalding! The appliance continues to run. Even after you have pulled the mains plug from the socket, hot steam will continue to be available.
ATTENTION:
Wash the cleaning cloths after each cleaning session.
NOTE:
If you have mounted and parked the extension tubes and the floor nozzle as described (Chapter 5.3, "Storing the device"), you can wind the power cord around the cable storage hooks (Fig. 24/A,B).
NOTE:
If you want to unwind the power cord quickly before using the appliance, turn the rotatable cable storage hook (Fig. 24/A) through 180^ and take the entire cable off.
5.6 If required: decalcify the appliance
NOTE:
In areas with hard water, we recommend using distilled water in the appliance or at least to decalcify it more often.
NOTE:
If you use only distilled water, the appliance does not have to be decalcified.
NOTE:
To decalcify the appliance you may as an exception add biologic decalcifying agent to the water in the tank. This is the only exception.
Care for the cleaning-cloths (Fig. 1/31,36) as follows:
Wash normally at 60 degrees.
Do not bleach.
Do not put in a dryer.
Do not iron.
Do not clean chemically.
Decalcify the appliance approx. every six months to extend its service life.
- Fill the water tank with clear, cold water and add biological decalcifier (available commercially). Follow the decalcifier manufacturer's instructions on use and dosage.
- Direct the steam pistol into a container which can collect the steam.
- Connect the appliance to the mains.
- Wait until the appliance is steam-ready and then let the decalcifying solution run through for about 5 minutes.
- Then wait another 5 minutes with the appliance still plugged in.
- Repeat this procedure three times and dispose of the remaining solution.
5.7 Spare parts and accessories
ATTENTION:
Only use original spare parts from the scope of delivery or those that you have purchased by reordering.
Spare parts and accessories are available from www.dirtdevil.de as well as at Ersatzteilshop@dirtdevil.de or from:
Page 88, "International Service"
The following accessories and spare parts can be reordered:
| Item number/figure | Description |
| 0319001 | 3-piece set consisting of: 2 micro-fibre cleaning cloths + 1 cotton cover |
| 0319002 | Set of 3 bottles of disinfectant |
| 0319003 | 1 2-in-1 combi attachment |
| 0319004 | 6-piece brush set consisting of: 1 small, round plastic brush 1 large, round plastic brush 1 nozzle brush, 1 jet nozzle 1 spatula attachment, 1 cleaning needle |
6.1 Before you send in the appliance
WARNING:
Danger of injury! Never use a defective appliance or operate an appliance with a defective power cord.
Before sending the appliance to Royal Appliance Customer Services, use the following table to check whether you can solve the problem yourself.
| Problem | Possible cause Solution |
| Steam ready indicator is not on after switching on or goes out just after switching on | The overheating protection device has tripped due to an empty water tank. Disconnect power cord from mains, release the last reserves of steam, let the appliance cool for about thirty minutes and fill the water tank (▷Chapter 3.5, “Filling the water tank”). |
| Water tank and/or heating elements are calcified. Decalcify the appliance (▷Chapter 5.6, “If required: decalcify the appliance”). | |
| Water tank cap cannot be opened after you have pulled the plug, discharged the remaining steam, and have allowed it to cool for at least 30 minutes. | The pressure in the water tank is still too high or the safety valve integrated into the water tank cap is stuck. Press the steam button again to discharge any remaining steam. If this is not enough, press the red pin in the water tank cap with a sharp object (e.g. a pen) and release the water tank cap for opening in this way. |
| Problem | Possible cause Solution |
| The appliance is steam ready, but no steam is produced when the steam but- ton is pressed | The child safety device/lock (Fig. 1/22) of the steam button (Fig. 1/21) is not released. Release the child safety device/lock of the steam but- ton (▷Chapter 4.2, “Steam cleaning procedure”). |
| The steam channels are calcified. Decalcify the appliance (▷Chapter 5.6, “If required: de- calcify the appliance”). | |
| The nozzles are clogged by limescale. Clean the nozzles , e.g. using the cleaning needle (Fig. 1/47*, *optional). | |
| The floor is spotty after cleaning | The cleaning-cloth may have been dirty or have be- come worn-out due to improper care. Replace the cloth with a clean or new one (▷Chapter 6.3, “Disposal”). |
| You may have been cleaning too long in one place. Never work the steam cleaner on one spot for too long. |
NOTE:
If you cannot solve the problem following these instructions, contact Royal customer service Page 88, "International Service".
6.2 If the appliance is defective
If the power cord of the appliance is damaged, it must be replaced by the manufacturers, their authorised service representative or a similarly qualified person to avoid danger.
Never use a defective appliance or operate an appliance with a defective power cord. Bring or send defective appliances to a specialist dealer or to Royal Appliance Customer Services for repair. Address Page 88, "International Service".
6.3 Disposal
Dispose of the appliance in compliance with the environmental protection laws of your country.
Electrical waste may not be disposed of together with domestic waste. Use local old-appliance collection points instead.
6.4 Warranty
We offer a warranty of 24 months from the date of purchase for the appliances we sell.
Within this warranty period, we will correct all defects free of charge that are due to material or manufacturing faults, either by repair work or replacing the appliance or accessories, at our discretion (damage to accessory parts does not automatically lead to the entire appliance being replaced). Damages due to inappropriate use (operation on wrong voltage or type of current, connecting to unsuitable power supplies, breakage, etc.) are exempt from warranty, as are normal wear and minor defects that only negligibly affect the appliance's value or serviceability.
Interventions by unauthorised parties and the use of spare parts not supplied by Royal Appliance make the warranty null and void. Consumable parts are not included in the warranty and therefore must be purchased by the customer!
The warranty is only valid if the date of purchase has been acknowledged by the dealer's stamp and signature on the warranty card or if a copy of the invoice is included with the appliance that has been sent in. Warranty work does not extend the warranty period nor does it constitute a claim for a new warranty!
Send us the appliance with the water tank emptied and a short description of the defect in block capitals. Head your accompanying letter with the comment 'warranty claim'. Send it to the following address, including the warranty card or a copy of the receipt:
Page 88, "International Service"
Merci beaucoup!
Page 88, "International Service"
Page 88, "International Service"
Kundenservice:
Royal Appliance International GmbH
Abt. Kundenservice
Jagenbergstraße 19
41468 Neuss
DEUTSCHLAND
Tel.: +49 (0) 180 - 501 50 50*
Fax: +49 (0) 2131 - 60 90 60 95
www.dirtdevil.de
info@dirtdevil.de
TD "MEDJIMURKA" D.D.
Trg Republike 6
40000 Čakovec
HRVATSKA
Tel.: +385 - 40 - 31 27 60
Fax: +385-40-32 86 61
Z.E.S. Goes B.V.
T.a.v. afd. Service
Pearyweg 1
4462 GT Goes
NEDERLAND
Tel: +31-113-240700
Fax: +31 - 113 - 24 07 50
dirtdevil@zesgoes.nl
Aspico Slovakia s r.o.
Kracanska 40/104
DSV Sp. z o.o. S.K.A. Gdynia,
Plac Kaszubski 8
OPM France Nant'Est enterprise
