TH8310 - Thermostat SOLAC - Free user manual and instructions

Brand	SOLAC
Model	TH8310
Product type	Fan heater with thermostat
Dimensions (approx.)	25 x 20 x 15 cm
Weight (approx.)	1.5 kg
Power supply	220-240 V ~ 50 Hz
Maximum power	2000 W
Power levels	Intermediate (*) and maximum (**)
Ventilation function	Yes, without heating
Temperature regulator	Adjustable thermostat with automatic shut-off at the chosen temperature
Safety	Automatic shut-off in case of overheating; do not cover; do not use near water
Care and cleaning	Clean the exterior with a dry cloth; vacuum the interior regularly
Off-season storage	Clean, dry and store in its original packaging in a dry place
Repairability	Contact an approved technical service in case of malfunction
Recommended use	Minimum floor area of 4 m²; do not use as the main heating source
Safety distance	At least 50 cm on the sides and above, 120 cm in front

Frequently Asked Questions - TH8310 SOLAC

How to use the ventilation mode without heating?

Set the power selector (1) to the ventilation position (fan symbol) to operate the appliance in ventilation mode only, without heating the air.

How to set the desired temperature?

Turn the temperature regulator (2) to maximum, then wait for the room to reach the desired temperature. Then slowly turn the knob counterclockwise until you hear a click: the appliance will stop and restart to maintain that temperature.

What to do if the appliance suddenly stops?

This is probably due to the overheat safety system. Unplug the appliance, let it cool for 15 minutes, then check that no dust or obstacle is blocking the air outlet grille. Clean if necessary with a vacuum cleaner. If the problem persists, contact an approved technical service.

Can I use the appliance in a bathroom?

No, it is forbidden to use this appliance near a bathtub, shower, swimming pool or any container with water. If it falls into water, do not touch it and unplug it immediately.

How to clean the appliance?

Before any cleaning, turn off and unplug the appliance, then let it cool. Clean the exterior with a dry cloth. For the interior, regularly use a low-power vacuum cleaner to remove dust from the grille.

What safety distance should I respect?

Leave at least 50 cm above and on the sides, and 120 cm in front of the appliance. Keep it away from flammable materials such as curtains, carpets or furniture.

Can I use an extension cord?

Avoid as much as possible. If necessary, use an extension cord in good condition, of sufficient gauge and fully unwound. Never operate the appliance with the power cord coiled.

Can the appliance be left on overnight?

Yes, if you set the thermostat to the desired temperature, the appliance will turn off and on automatically to maintain that temperature. However, ensure it is placed on a stable surface and away from any obstacles.

What to do if the power cord is damaged?

Do not use the appliance. Contact an approved technical service to have it replaced, to avoid any danger.

How to store the appliance after the heating season?

Clean the appliance with a dry cloth, let it dry completely, then store it in its packaging box in a dry place away from dust.

USER MANUAL TH8310 SOLAC

Black and white photo of a solar-powered hood with grille grating (no text or symbols visible)

Solac is a registered Trade Mark

04/06

5- 7 • ESPAÑOL

8-10 • ENGLISH

11-13 • FRANÇAIS

14-16 • DEUTSCH

17-19 • PORTUGUÊS

20-22 • ITALIANO

23-25 • NEDERLANDS

26-28 • ČESKY

29-31 • POLSKA

32-34 • SLOVENSKY

35-38 • MAGYAR

39-41 • българск

42-44 • HRVATSKA

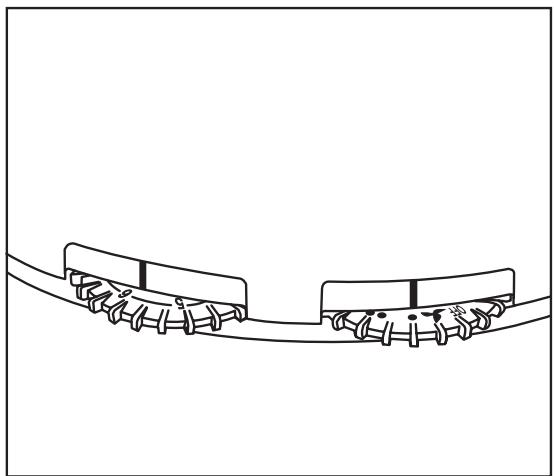

Simple line drawing of two curved mechanical components connected by rods (no text or symbols)

ATENCIÓN

• Read these instructions carefully before using your appliance, and keep them for future reference.
• This fan heater is an excellent source of additional heat: It should not be considered as a principal heating system.
• Before connecting the appliance, make sure that the voltage shown on the specifications plate is the same as the mains power supply at your home.
• Do not obstruct the air inlets or place any objects on top of the vents or openings of the appliance, since this could cause an electrical shock. Do not insert anything into the grill (3).
• Always use the fan heater in the horizontal position and placed on a solid, flat and horizontal surface. Do not place it on excessively soft surfaces such as a bed.
• Leave enough space around the fan heater (at least 50 cm above and to the sides, and 120 cm in front).
• Position the fan heater away from flammable materials (glues, curtains, carpet...).
• Do not place the fan heater directly underneath a mains outlet.
• Do not use your fan heater if you see that the power cord is damaged or notice any defect on the appliance. For safety reasons, take it only to an authorised technical service centre.
• Always make sure you turn off the power switch (1) and unplug the appliance from the mains when not in use.
• NEVER COVER the appliance, due to risk of fire.
• Do not place the cable under carpets or under any other kind of material.
• Do not place the appliance on top of the power cord when the appliance is hot. Do not operate the appliance with the cable wound up.
• Do not handle the appliance with wet hands.
• Do not use the appliance near a bath, shower or swimming pool or any other water container. If the fan heater falls into water, DO NOT try to take it out. Unplug it from the mains.
• Do not use the fan heater to dry clothes, do not leave furniture closer than 50~cm in front of the appliance, and do not use in rooms with less than 4m^2 of floor space.
• Keep the appliance out of the reach of children.

IMPORTANT: When you wish to dispose of the appliance, NEVER throw it in the rubbish. Instead, go to your nearest CLEAN POINT or waste collection point, where it will receive subsequent treatment. In this way, you will be contributing to looking after the environment.

SAFETY SYSTEM

- The appliance is equipped with an OVERHEATING DISCONNECTION system. If a problem occurs, this system automatically switches off the appliance. If this happens, proceed as follows:

1) Unplug the appliance from the mains.
2) Allow it to cool for 15 minutes.
3) Ensure that there is no dust or other obstacles that obstruct the air flow.
4) Clean the intake grill (3) with a vacuum cleaner, if necessary.

- If the appliance still fails to work as normal, please contact the technical service centre.

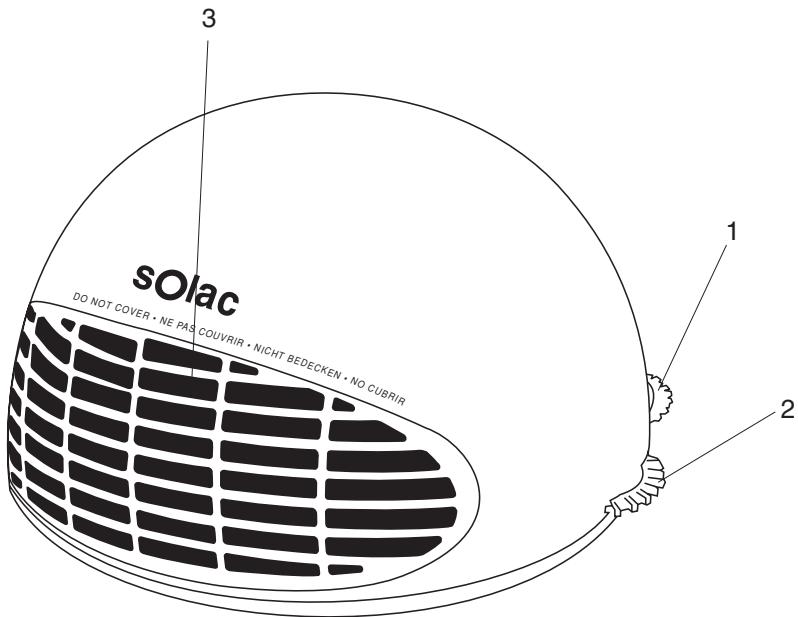

MAIN COMPONENTS

1. Power selector and fan function control
2. Temperature regulator
3. Grill

USER INSTRUCTIONS

Heat function

• Connect your fan heater to the mains.
• Turn the temperature regulator control (2) to high.
• Place the power selector control (1) in the desired position:

* Medium power
**High power

• When the room has reached the desired temperature, slowly turn the temperature regulator (2) clockwise until a soft "click" is heard. The fan heater will switch off. The appliance will switch on and off in order to maintain the right temperature in the room.
• In order to turn off the fan heater, place the power selector (1) in position 0, and disconnect the appliance from the mains.
• In order to prevent temperatures below 0^ C in the room, select position * on the temperature regulator (2), and place the power selector (1) in the medium power position.

Fan function

- If you would like the fan heater to operate as a fan without heat, simply select the fan function on the control (1).

CLEANING AND MAINTENANCE

• Before cleaning the appliance, make sure it is switched off and unplugged from the mains.
• Allow it to cool.
• Clean the outside of the appliance with a dry cloth.
• To clean the interior of the appliance, periodically use a vacuum cleaner on low power.
  • After each season, we recommend that you clean the appliance with a cloth and store it in its box in a dry place.
• Before each use, be sure that the appliance is in perfect condition.

ATTENTION

1. Regulator snage i regulator ventiliranja
2. Regulator temperature
3. Rešetka

UPUTSTVA ZA UPORABU

Funkcija grijanja
