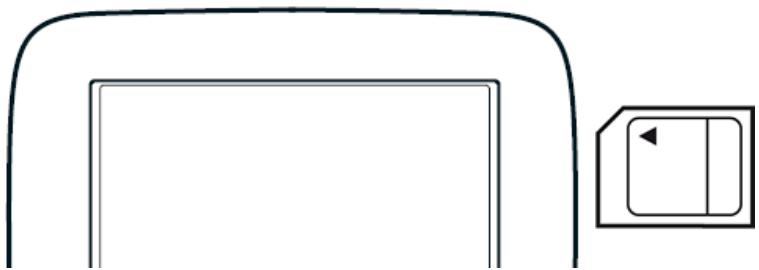

Inserting a memory card 8
Removing the memory card 8
Securing the cradle 9
Securing the navigation device to the cradle 9
Supplying power to the navigation device 10
Connecting an Optional GPS Antenna (Not Included) 10

Optional Accessory Services 11

Activating an Optional Accessory Service 11
Confirming Optional Traffic Accessory Service Activation 14
Confirming Optional Zagat POI Accessory Service Activation 15

Basic Operations

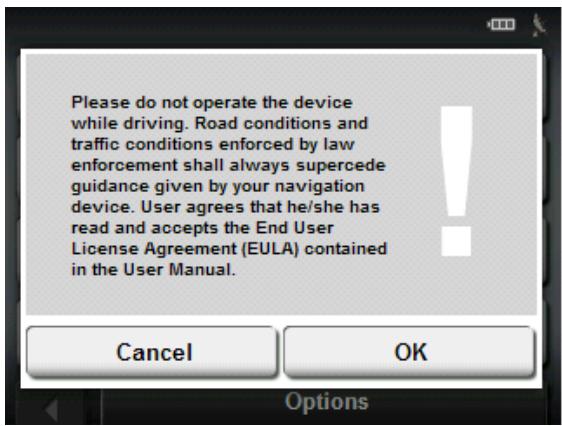

Starting the NAVIGON 2100/2120 17

The Main Window 17

My Destinations 18
Take Me Home 18
Show Map. 18
The Options Button 18
Returning to the Main Window 18

Initializing the GPS receiver 19

Setting the volume 19
Using Standby Mode 20
Turning the NAVIGON 2100/2120 Off. 20

Viewing device status 21

GPS 21
Power 21
TMC (Traffic Information) 22

Using software keyboards 23

Alphabetic keyboard 23
Numeric keyboard 23
Special character/symbol keyboard 23
Special keys 24

Using menus. 24

Security

The Password Lock Window 25

Setting a password 25

Changing a password 25

Cancelling password protection 26

Forgotten your password? 26

Selecting Destinations

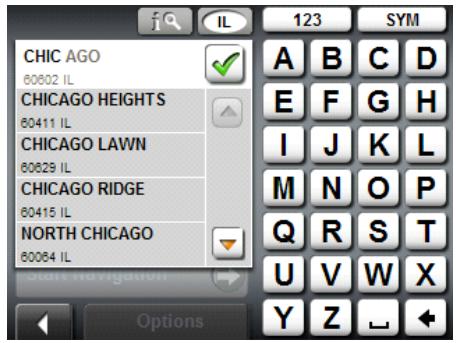

Using auto-complete to select a destination 27

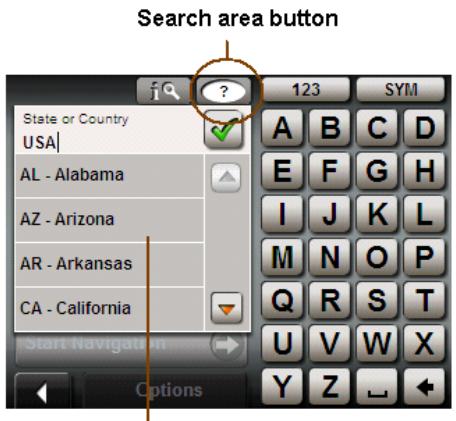

The Search Area Button 28

Selecting a Search Area 28

Ways to Search for Destinations 29

Enter an Address 29
Search for a POI 29
By Tapping on the Map 29

Entering an address 30

Specifying a city first 30
Specifying a street first 31

Selecting a Point of Interest (POI) destination 32

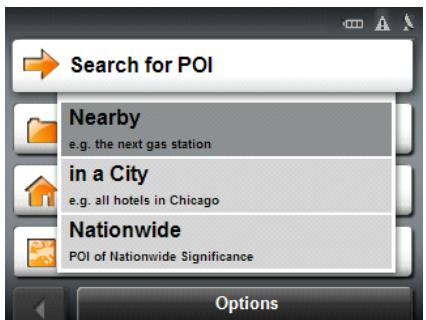

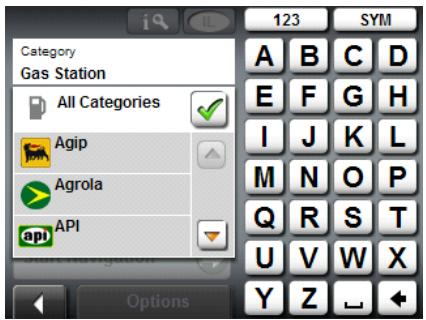

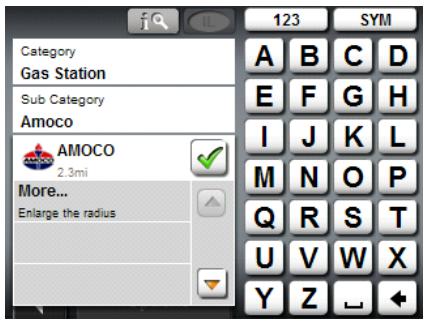

POIs nearby 32

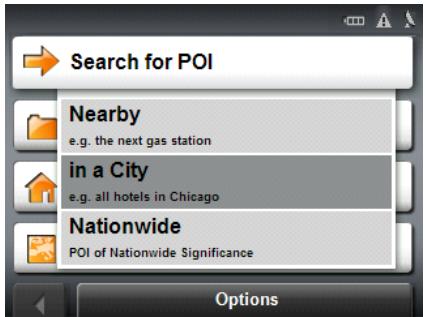

POIs in a specified city 34

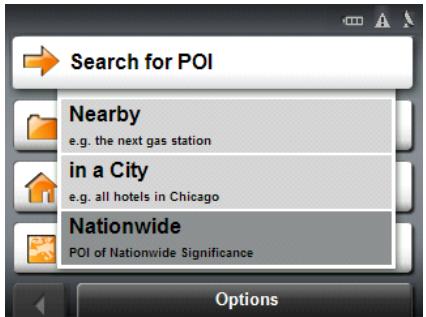

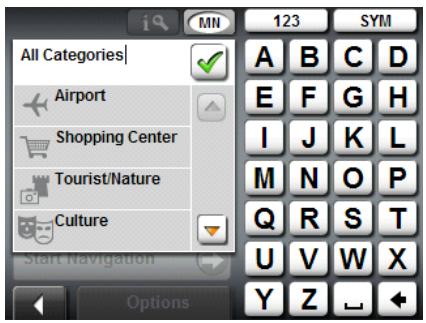

Nationwide POIs 36

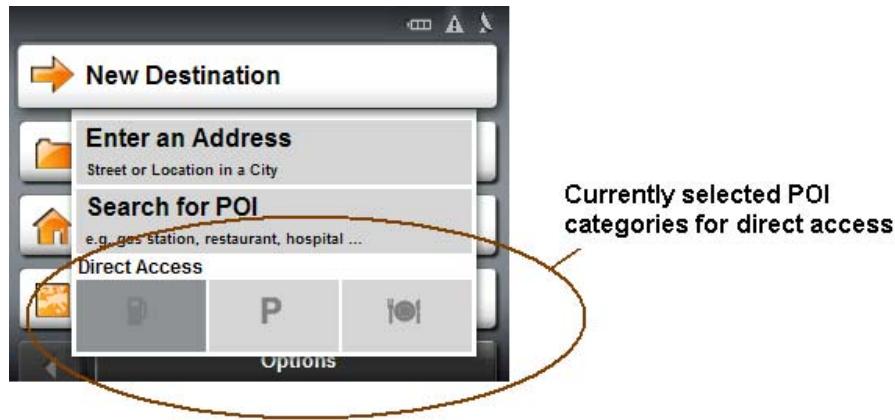

Direct Access POIs 37

Specify Direct Access POI categories 38

Information about the POI 39

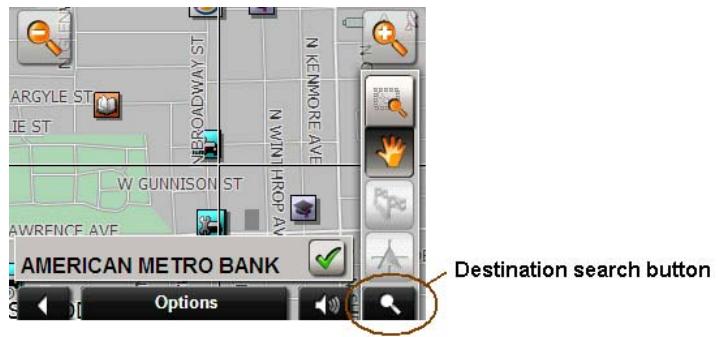

Selecting a destination by tapping the map 40
Starting navigation 42

Quitting navigation 42
No GPS reception 42
Arriving at your destination 42

Zagat Points of Interest (POIs) (Optional Accessory)

Zagat POI Categories 43

Search for Zagat POIs 43

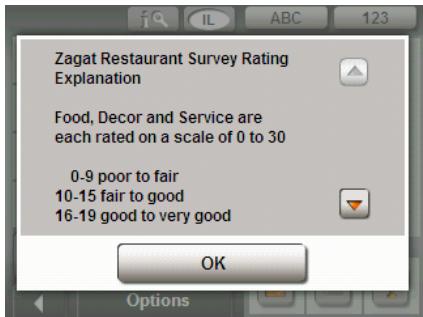

View Zagat POI Information 44

My Destinations

Saving a destination 45

Saving the current location using GPS 46
Saving your home address as a destination 46

Selecting a saved destination 48

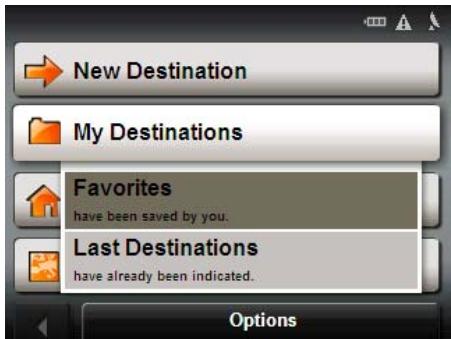

Selecting a destination from the Favorites list 48
Selecting a destination from the Last Destinations list 49

Navigating homewards 50

Working With Routes

Accessing the Route Planning Window 51
Entering the starting point 51
Changing the starting point 52
Entering route points 52
Changing the order of route points 52

Managing routes 53

Saving routes 53
Loading routes 53

Navigation 54

Calculating and displaying routes 54
Viewing the Route Profile 54

Simulating routes 55

Starting a route simulation 55
Ending simulation 55

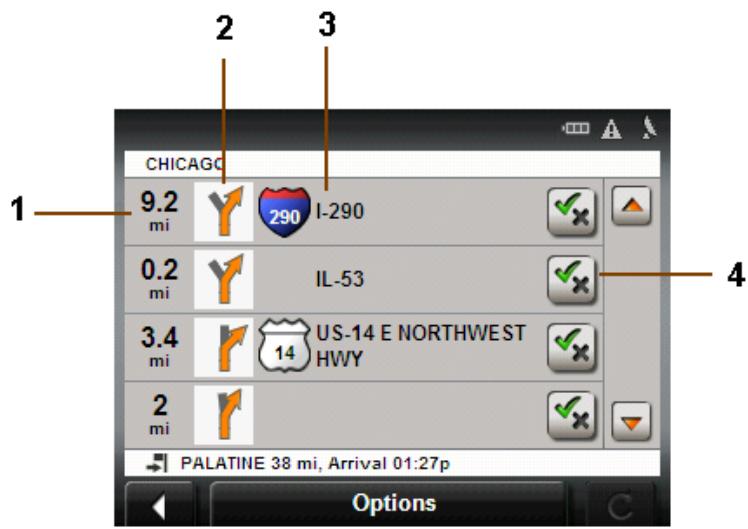

Viewing a Turn-by-Turn List. 56

Blocking route sections 56
Removing blocks and using original routes 57

Working With Maps

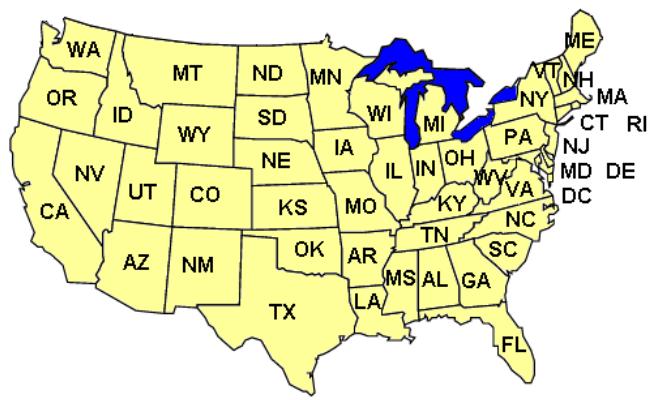

NAVIGON 2100 Map 59
NAVIGON 2120 Maps 59

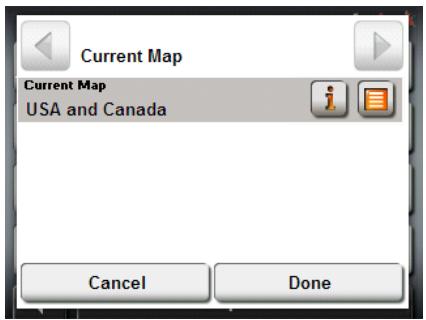

View information on the current map 60

Selecting a different map (NAVIGON 2120 only) 60

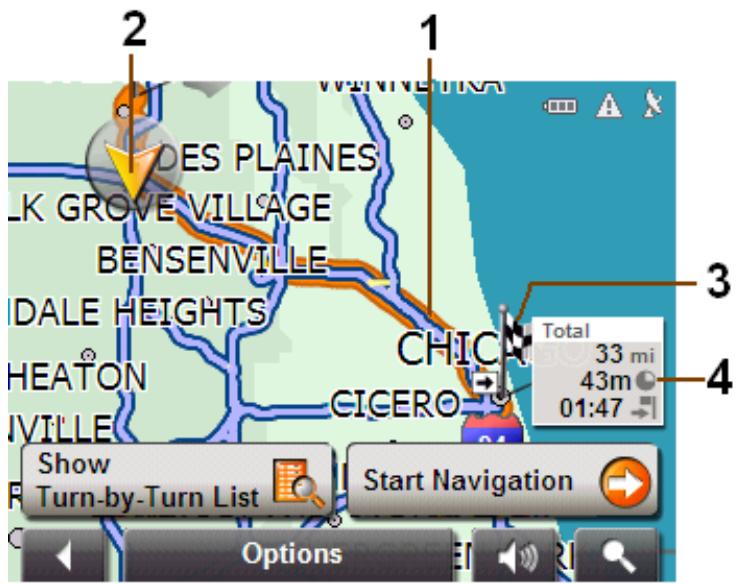

Map in Preview mode 61
Map in Navigation mode 63

Map functions in Navigation mode 65

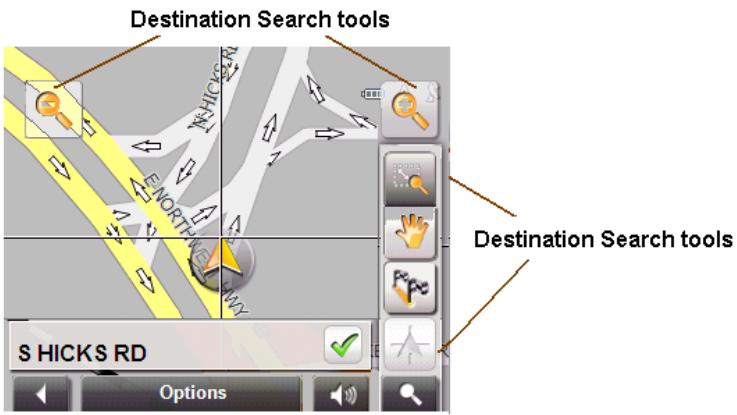

Map in Destination search mode 66
Operating in Destination search mode 67

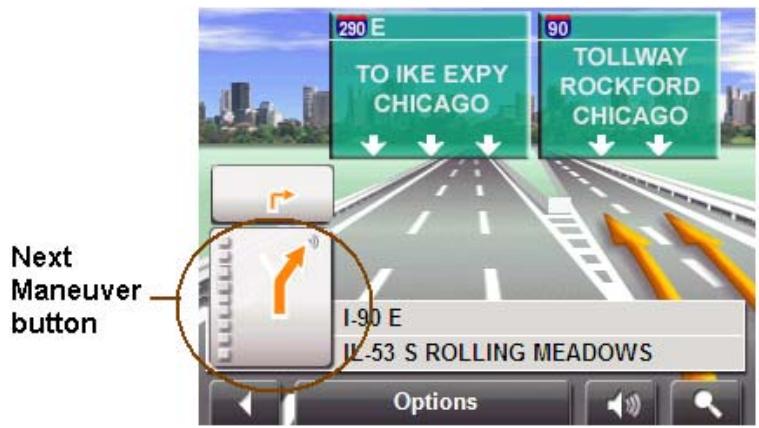

Reality View (Junction View) 68

TMC (Traffic Information) (Optional Accessory)

Accessing the TMC (Traffic Information) Window 69

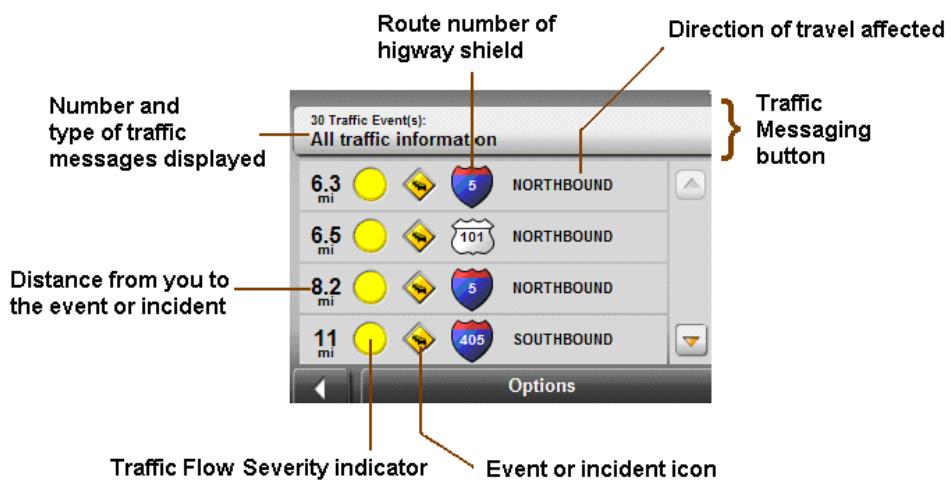

The TMC (Traffic Information) Window 70

Types of Messages 70
Traffic Flow Severity Indicators 71
Event or Incident Icons 71

Displaying traffic messages 72

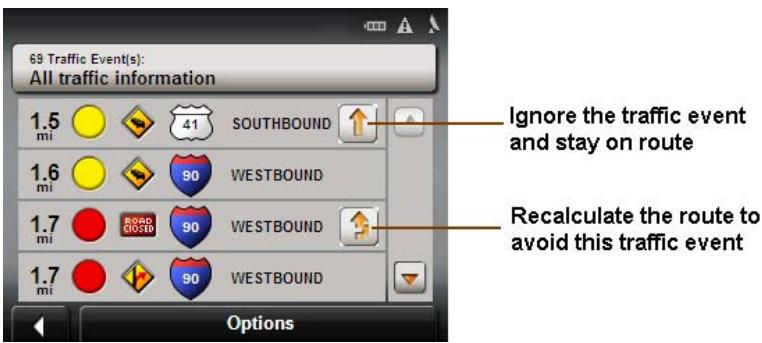

Requesting a route recalculation 73

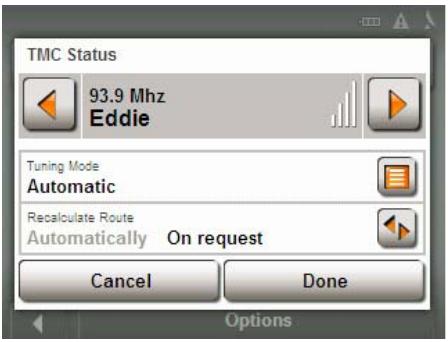

TMC Settings Window 74

Select another station 74
Select Tuning Mode Settings 74

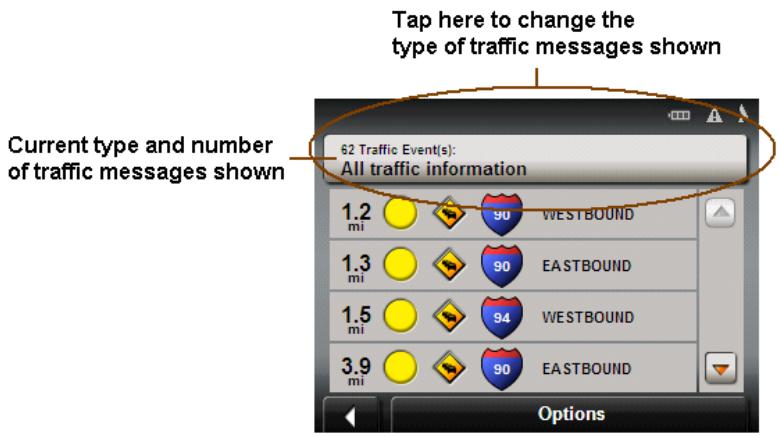

Specify the type of traffic messages to display 75
SelectReroute Settings 76

Logbook

Starting a recording 77

Stopping the recording 77

Customizing Your NAVIGON 2100/2120

Accessing the Settings window 79

The Settings window. 79

Basic Settings 79

Current Map Settings 81

POI Settings 81

Route Profile Settings 81

Selecting options 83

Moving between pages 83

Viewing a list of options for a setting 83

Viewing information about a setting 83

Toggling between options 84

Changing an option setting 84

Legal Notices

NOTICE TO DRIVERS IN CALIFORNIA AND MINNESOTA 85

GPS 85

Technical Data

Specifications 87

Compliance Notices 88

Index

This page intentionally left blank.

About this manual

Conventions

For better legibility and clarification, the following styles are used in this manual:

Bold and italics: Registered names, company and product descriptions.

SMALL CAPITALS: WINDOW AND DIALOG BOX TITLES.

Bold: Highlighting of important parts in the text.

Underlined: Descriptions of buttons, input fields and other elements on the user interface.

Symbols

The following symbols refer to specific passages of text:

Warnings.

Instructions and tips for operating the software.

More detailed information and explanations.

Legal notice

Liability

The software and the manual are subject to change without notice. NAVIGON, INC is not liable for the accuracy of the information contained in this manual or for damages resulting from the use of this manual.

Trademarks

All brands and trademarks mentioned in this document are possibly registered by third parties and are subject to the current legislation and to the rights of their respective owners without reservation. All mentioned names of products, societies, or brands may be registered trademarks of their respective owners. Every right that is not explicitly accorded is reserved.

The absence of the explicit labelling of registered trademarks used in this manual does not imply that the brand is not subject to the rights of a third party.

NAVIGON is a registered trademark of NAVIGON, INC.

Microsoft, Windows, and Excel are trademarks of the Microsoft Corporation.

NAVTEQ is a registered trademark of NAVTEQ.

ZagatSurvey is a registered trademark of Zagat Survey, LLC.

Total Traffic Network is a registered trademark of Total Traffic Network.

Clear Channel is a registered trademark of Clear Channel Communications.

ZENRIN is a registered trademark of ZENRIN EUROPE GmbH.

Customer Service

Our service team is available via telephone or E-mail.

Telephone Support

Telephone: [phone] (Toll Free)

Service Hours: Monday through Friday, 9 a.m. to 8 p.m. CT (except official holidays)

E-mail

To ensure a timely response via e-mail, visit http://www~-navigon.com and select:

US and Canada > Support > Email

Customers will receive a response within 2 business days.

Introducing Your NAVIGON 2100/2120

Welcome to the exciting world of handheld navigation. The NAVIGON 2100/2120 offers Global Positioning System (GPS)-based navigation and thousands of Points Of Interest (POIs).

With the optional lifetime TMC accessory service, your navigation system can receive the latest traffic information available. If necessary, it can change your route dynamically in order to avoid traffic congestion.

With the optional lifetime Zagat POIs accessory service, you receive ratings on thousands of POIs from the world's leading provider of consumer survey-based dining, travel and leisure information.

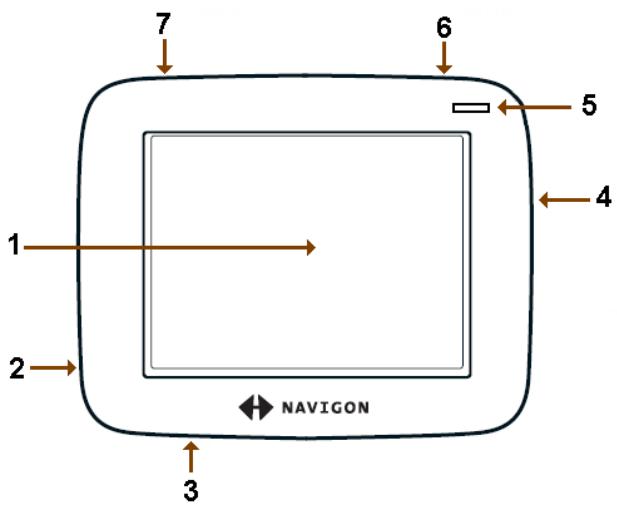

1		Touch screen
2	●	Reset
3	←→	Power Connector Port (with integrated TMC antenna)
4	SD	SD memory card slot
5		LED
6	○	On/Off/Hibernate
7	Y	(Optional) External GPS antenna Socket

About GPS navigation

GPS is based on a total of 24 satellites that circle the earth and are constantly transmitting their position. The GPS receiver uses this data and calculates its own geographical position on the basis of the information transmitted by the various satellites.

For a sufficiently precise positioning it is necessary to obtain the data from at least three satellites. With the data from 4 or more satellites the altitude above sea level can also be ascertained. The determination has an accuracy of about 3 yards.

Once the navigation device has determined your position, it can be used as a starting point for route calculation.

The map data on your navigation device includes the geographical coordinates of all digitally recorded Points Of Interest (POIs), streets and places. This enables the device to calculate a route between a starting point and a destination.

The calculation of the current position and its representation on the map takes place once every second so your current position is always shown on the map.

If GPS reception is impaired, navigation is interrupted. The navigation software remains active.

As soon as GPS reception is restored, the navigation system calculates any change of position which has occurred in the meantime. Navigation may simply be continued.

Caution! The United States government operates the Global Positioning System (GPS) and is solely responsible for its accuracy and maintenance. Changes by the United States government may affect the accuracy and performance of all GPS equipment, including your personal navigation device.

Caution! Ordinances or laws may restrict use of certain abilities of your navigation device on public or private land.

What's included

Your NAVIGON 2100/2120 comes with the following accessories. If the contents are incomplete, please notify us within 14 days of purchase. The purchased product includes:

• NAVIGON 2100/2120 navigation device
• Car cradle and device holder
• Car charger cable (12 volt adapter) with integrated TMC antenna.
• SD card containing software and navigation map(s)

Important safety information

Please read the following notices and safety information carefully before starting to use your navigation system.

Navigation safety information

Use this navigation system at your own risk.

Caution! To prevent accidents, do not operate the navigation system while driving.

Caution! Do not look at the display unless it is absolutely safe to do so!

Caution! Traffic regulations have priority over any instructions from the navigation system.

Caution! Follow the instructions of the navigation system only when the circumstances and the road traffic regulations allow you to do so! The navigation system guides you to your destination even if you deviate from the calculated route.

Caution! Check that the cradle is secured and adjusted properly before each journey.

Note: If you have not understood the spoken instructions, or you're not sure about what to do next, you can briefly refer to the map or arrow view of your navigation system.

Safety information for the navigation device

Caution! Protect the device from moisture. The device is not waterproof and is not protected against water damage.

Caution! Do not run cables directly next to safety-relevant devices and supply lines.

Caution! After installation, check all safety-relevant equipment in the car.

Caution! Unplug the navigation device's power supply when you park the vehicle. The navigation device requires power in standby mode, and may drain the vehicle's battery.

Caution! Do not open the navigation device's casing under any circumstances.

Caution! Do not expose the navigation device to extreme heat or cold. This may damage the device or impair its function.

Caution! Use only the charger provided or one that has been approved by the manufacturer.

Caution! Connect the charger to a suitable power supply. The voltage requirements can be found on the device case and/or the packaging.

Note: Ensure that there are no kinks in the cable and that it will not be damaged by any sharp objects.

Note: To clean the navigation device, use a moist cloth only.

Note: Do not unplug by pulling on the cable. Doing so could damage the cable!

Note: Create a backup of the data contained on the memory card provided.

Note: The memory card must remain inserted in the device during operation of the navigation system.

Note: Use SD or MMC memory cards only! Ensure that memory card contacts are clean and undamaged.

Safety guidelines when installing in your car

Caution! Secure the cradle in such a way that the driver's visibility is not impaired.

Caution! Do not attach the cradle within the deployment zone of airbags.

Caution! When installing the cradle, ensure that it does not represent a risk in the event of an accident.

Caution! Do not run cables directly next to safety-relevant devices and power supplies.

Caution! After installation, check all safety-relevant equipment in the car.

Caution! The car charger cable is to be connected to cigarette lighters with an operating voltage of 12V only.

Preparing your NAVIGON 2100/2120 for use

Use the navigation system at your own risk.

Caution! Please be sure to see the safety information in "Important safety information" on page 6.

Charging the battery

• Connect the car charger cable to the navigation device and to the vehicle's cigarette lighter.

The LED of the NAVIGON 2100/2120 indicates the current battery charge. The LED lights:

No light, the battery is flat.
Orange during charging.
- Green when the battery is fully charged.

Note: It takes approximately 6 hours to charge the device when the battery is flat. A fully charged battery provides up to 3.5 hours of use.

Inserting a memory card

The SD memory card contains maps and navigation software. It also stores saved destinations, routes, and logbook entries.

• Insert the memory card provided into the slot on the side of the device. Press the card into the device until it locks into place.

Removing the memory card

1. Switch the navigation device off by pressing the (On/Off/Standby) switch for at least 6 seconds.
2. Press the memory card gently into the device until the lock disengages. The card pops up slightly.
3. Gently slide the card out of the slot.

Securing the cradle

Clean and dry the mounting surface and the suction cup on the base of the cradle. These areas must be dry and free of dirt and grease.

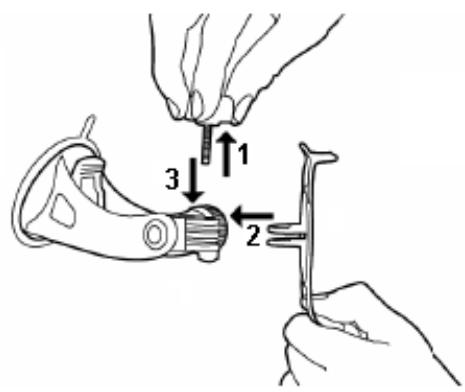

1. Unscrew the holding screw from the cradle.

1. Align the back of the holder into the cradle.
2. Replace the screw and tighten to secure the holder in the cradle.

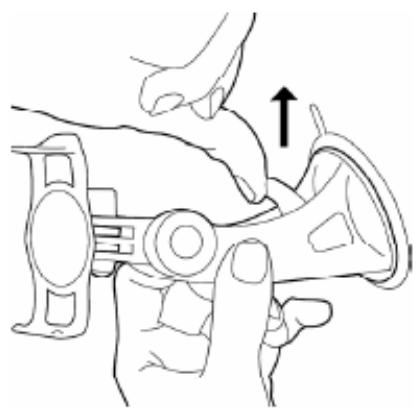

1. Using the suction cup, fix the cradle provided to the mounting surface. The cradle should be as level as possible.
2. Press the suction cup lever down.

Securing the navigation device to the cradle

The holder has two small projections on the bottom and one on the top. These projections are designed to fit into corresponding slots on the bottom and top of the NAVIGON 2100/2120.

1. Insert the navigation device into the holder by aligning the two bottom projections into the slots on the bottom of the device.
2. Tilt the device backward slightly until the top projection clicks into place in the top slot
3. Adjust the navigation device so that it can be seen easily.

Supplying power to the navigation device

Included in delivery of the NAVIGON 2100/2120 is a car charger cable with which power can be supplied to the navigation device via the vehicle's cigarette lighter.

The car charger cable is connected to the NAVIGON 2100/2120 via the power connection port on the bottom of the device.

Caution! The car charger cable is to be connected to cigarette lighters with an operating voltage of 12V only.

Connecting an Optional GPS Antenna (Not Included)

With the NAVIGON 2100/2120, you can also use an external GPS antenna (not provided with the device).

1. Connect the GPS antenna to the external antenna/headset socket ♀ on the NAVIGON 2100/2120.
2. Secure the antenna to the mounting surface using the suction cups.

Optional Accessory Services

Optional accessory services available for your NAVIGON 2100/2120 are:

TMC (Traffic) Information
- Zagat Points of Interest (POIs)

Each optional service is purchased separately. Once activated, the service is provided for the lifetime of your NAVIGON 2100/2120.

Activating an Optional Accessory Service

At a retail outlet where NAVIGON 2100/2120 devices are sold:

1. Purchase an Accessory card for each service you want.

On the Accessory card is the 15 character activation key, three blocks of five characters separated by hyphens. This key is used to obtain a device unlock code.

On your NAVIGON 2100/2120:

1. Switch on the device by pressing and holding the (On/Off/Standby) switch for at least 6 seconds.

The MAIN WINDOW displays.

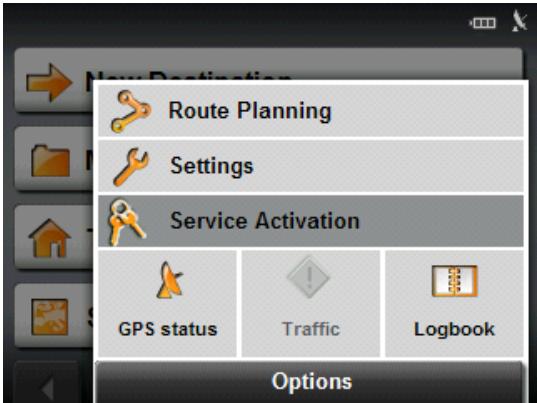

1. Tap Options > Service Activation.

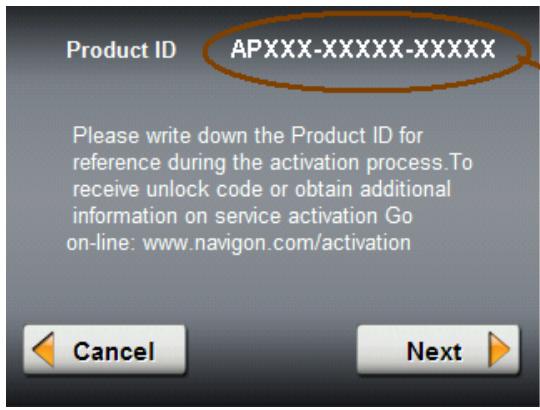

The PRODUCT ID WINDOW displays the 15 character product ID.

• For a NAVIGON 2100, the first two characters are "AP".

• For a NAVIGON 2120, the first two characters are "A2".

• Record the product ID for the next step.

Record the number shown on your device.

On a computer with internet access:

1. Go to www.navigon.com/activation.
2. On the MAIN MENU, select Options > Service Activation.

The website requests your e-mail address, NAVIGON 2100/2120 product ID, and the Accessory card activation key.

1. Enter the requested information in the appropriate fields.

The website returns your device unlock code, used to unlock the service on the device. The unlock code is also sent to your e-mail address.

1. If both accessory services have been purchased, enter the requested information and the second Accessory card activation key.

The website returns a device unlock code for the second accessory service.

On your NAVIGON 2100/2120:

1. On the PRODUCT ID WINDOW, tap Next. The DEVICE UNLOCK WINDOW displays.

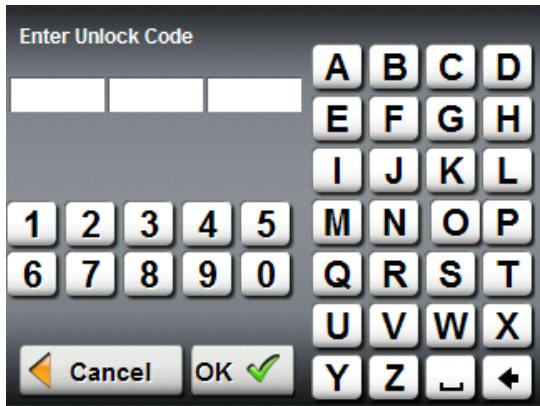

1. In the Enter Unlock Code fields, enter the 18 character device unlock code, in blocks of six characters.

Note: If both accessory services have been purchased, you can enter the device unlock code for the second accessory to unlock both services automatically.

1. Tap OK (OK).

The ACTIVATION COMPLETE WINDOW displays. The purchased accessory is now available for use.

If Traffic was activated:

If Zagat POIs were activated:

If both were activated:

1. Tap OK (OK) to close the window.

Confirming Optional Traffic Accessory Service Activation

Note: This function is only available if TMC traffic messages are being transmitted in the map area in which you are travelling. Traffic messages are not available in all areas.

Note: The charger cable does not need to be connected to the vehicle's cigarette lighter for the antenna to be operational.

Note: Without the antenna, TMC messages may not be received when the device is operating on battery power only.

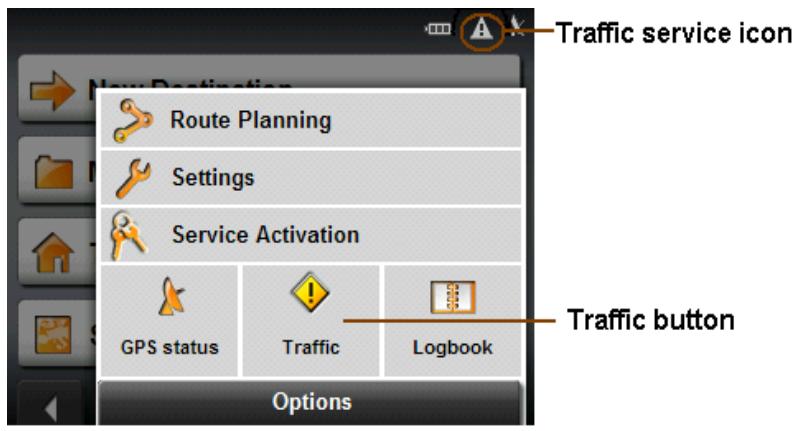

On the MAIN WINDOW:

• In the upper right hand corner, the Traffic service icon ( ) appears. The color of the icon indicates the current status of the service. For more information, see "TMC (Traffic Information)" on page 22.
• Tap Options. The Traffic button is now active. Tap the Traffic button to display the TRAFFIC INFORMATION WINDOW.

Confirming Optional Zagat POI Accessory Service Activation

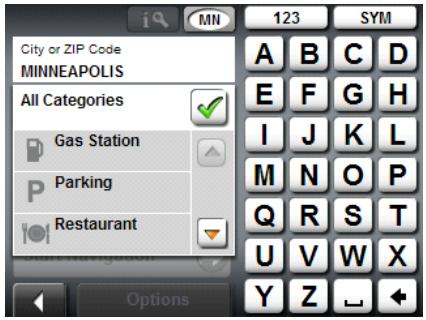

Select a POI destination (as described in "Selecting a Point of Interest (POI) destination" on page 32). Zagat POIs are available for most major cities, such as Chicago, Los Angeles, New York, etc.

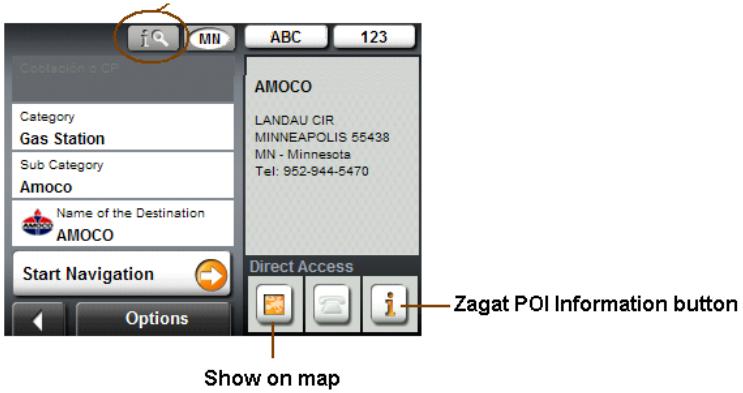

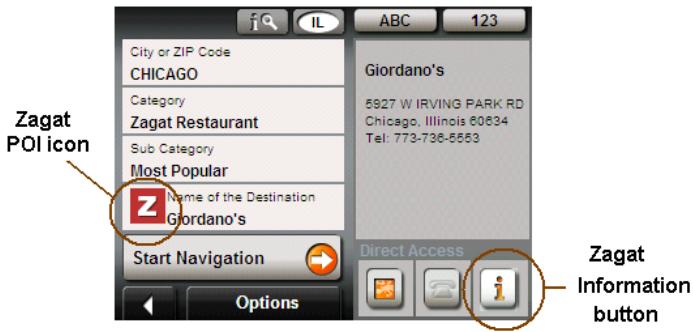

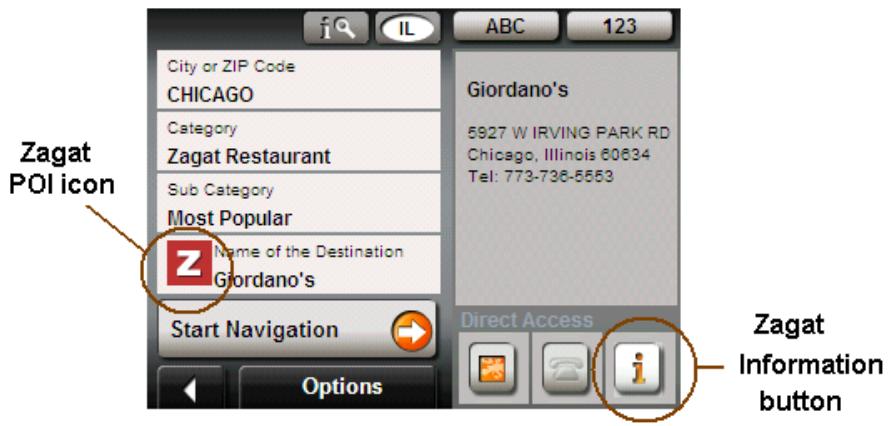

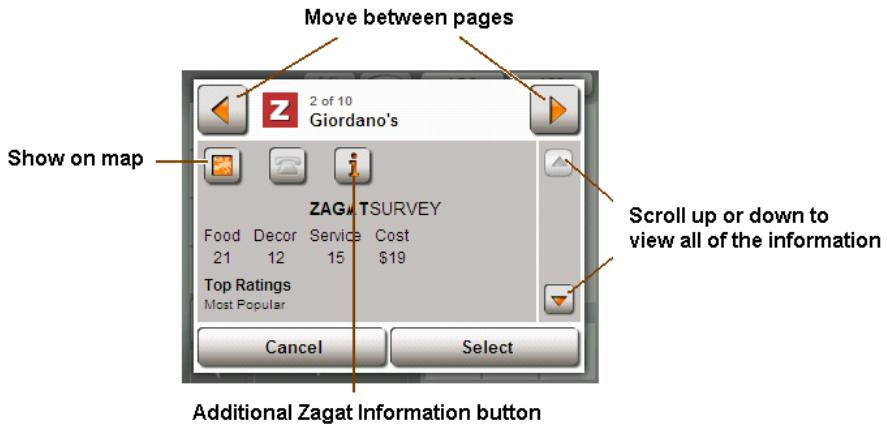

All available Zagat POIs appear at the top of the returned list. A Zagat Icon (Z) appears in front of the POI and the Zagat information button (i) can be used to view POI details. For more information on Zagat POIs, see page 43.

Note: Zagat POI information is not available for all locations.

This page intentionally left blank.

Starting the NAVIGON 2100/2120

1. Press and hold the ( On / Off / Standby ) switch for at least 6 seconds.

2. If password protection has been activated, the ENTER PASSWORD WINDOW opens.

3. Enter the password.

4. Tap the Continue button.

See "Security" on page 25 for more information on using passwords.

Each time the navigation device is turned on, the following message appears:

1. After you have read and fully understood the text, tap OK.

Note: If you do not accept these instructions, tap Cancel to exit the navigation software.

The MAIN WINDOW displays.

The Main Window

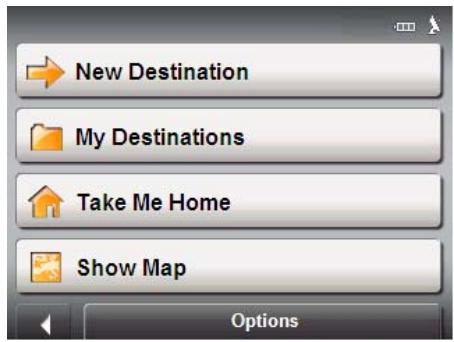

The MAIN WINDOW opens when the navigation software starts.

You can reach all of the navigation software functions from this window.

New Destination

Tap this button to:

• Select an address by city or street. (See page 30.)

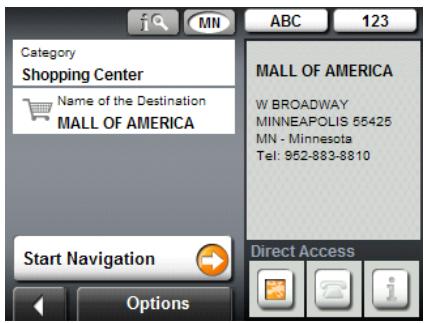

• Select a POI as a destination. (See page 32.)

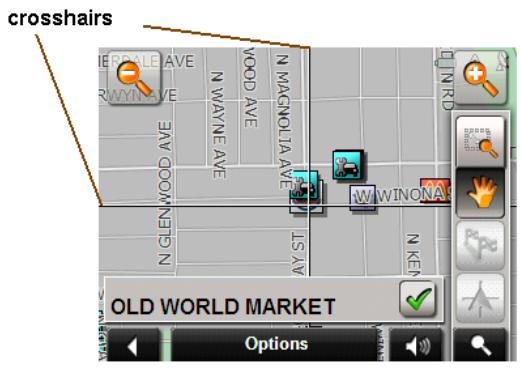

• Select a destination by tapping on the map. (See page 40.)

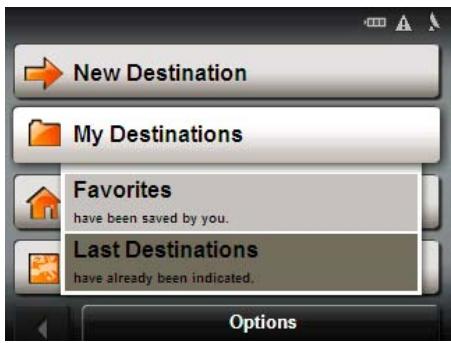

My Destinations

Tap this button to select a destination from:

• A list of destinations you have saved. (See page 48.)
• A list of the most recently entered destinations. (See page 49.)

Take Me Home

Tap this button to:

• Specify your home address as a destination. (See page 46.)
• Quickly create a route back to your home address from your present location. (See page 50.)

Show Map

Tap this button to:
Show your location on the current map.

The Options Button

Tap this button to:

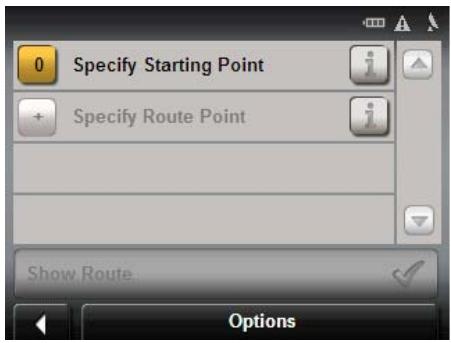

• Access ROUTE PLANNING WINDOW to: Create a route. (See page 51.) Save a route. (See page 53.) Load a saved route. (See page 53.)

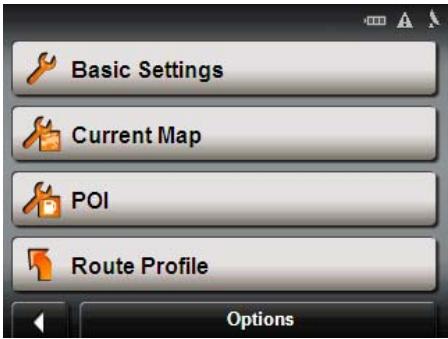

• Access the SETTINGS WINDOW to set:
• Basic Settings. (See page 79.)
• Show information on the current map or change maps. (See page 81.)
• POI settings. (See page 81.)

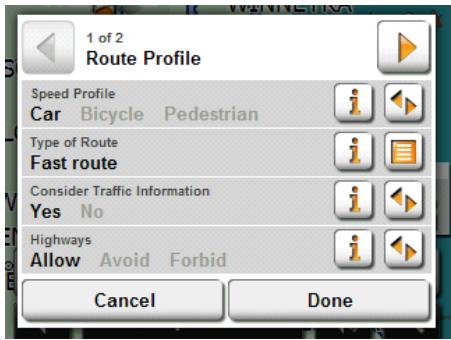

• View or change route profile information. (See page 81.)

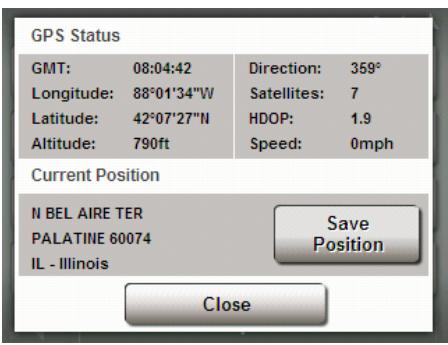

• Save the current location as a destination. (See page 46.)
• View the TMC TRAFFIC WINDOW information. (Only available if the TMC accessory service has been purchased. (See page 72.)
• Go to the LOGBOOK WINDOW. (See page 77.)

Returning to the Main Window

To return to the Main Window from any other window:

• Tap (Back) repeatedly, until the MAIN WINDOW redplays.

Initializing the GPS receiver

Note: GPS initialization requires data from at least three satellites. If GPS data is not available, the receiver will not initialize.

Note: It can take up to 20 minutes to initialize the integrated GPS receiver for the first time.

Note: Each time you turn on the device, GPS receiver initialization begins. When GPS data is available, reception starts within one minute.

If the navigation device has been switched off for more than a week, the next initialization can take up to 10 minutes.

In the upper right-hand corner of the display, the GPS symbol appears. As soon as data from at least 3 satellites is received, the symbol changes to GPS Ready.

Note: If the GPS symbol displays GPS Ready after considerably less than 20 minutes, it is advisable to leave the receiver switched on for at least an additional 15 minutes to ensure reliable operation.

Caution! If you have connected the navigation device to the power supply via the vehicle's cigarette lighter, remove the connector before you leave the vehicle standing for a longer period of time.

As the GPS receiver requires a constant supply of power, it could drain the vehicle's battery.

Setting the volume

The volume of the spoken driving instructions can be adjusted during navigation.

With a map displayed:

1. Tap (Volume).

The volume bar opens. It contains three buttons for adjusting the volume:

(Louden),

(Softer),

(Volume on/off).

1. Tap (Volume) again.

The volume bar closes.

Using Standby Mode

When switched to standby, the device requires virtually no power and conserves battery time.

• Press the (On/Off/Standby) button briefly.

To switching the Device back on from Standby

• Press the (On/Off/Standby) button briefly.

Note: If a password has been created for the device, the ENTER PASSWORD WINDOW appears when the device is switched back on from Standby. See "Security" on page 25 for more on using passwords.

Turning the NAVIGON 2100/2120 Off

• Press and hold the (On/Off/Standby) switch for at least 6 seconds.

Viewing device status

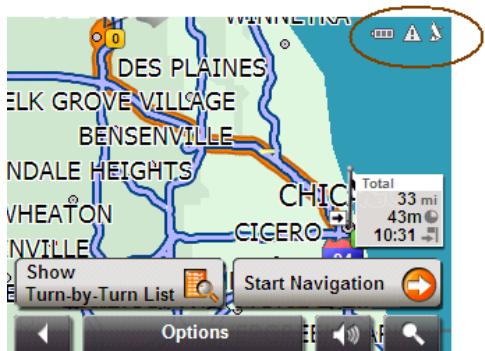

Symbols located at the top of the screen are used to display information.

GPS

The GPS symbol can show the following GPS reception status:

No Symbol The built-in GPS receiver is not operational. Contact customer service if the problem persists.

No Signal Data is being received from less than three satellites. Position cannot be calculated.

GPS Ready Data is being received from at least three satellites. Position can be calculated.

For more information, see "About GPS navigation" on page 4.

Power

The Power symbol can display the following conditions of the built-in battery:

The device is powered by an external power source. The battery is charging.

The device is powered by its internal battery. Battery is fully charged.

The device is powered by its internal battery. Battery charge is sufficient.

The device is powered by its internal battery. Battery charge is low.

TMC (Traffic Information)

Important Note

Traffic functionality is available as an accessory option. If this service has not been purchased and activated, the TMC icon does not display.

For more information, see page 69.

The NAVIGON 2100/2120, with a car charger cable with integrated TMC antenna, provides the navigation system with up to date traffic messages. If necessary, it can alter the route dynamically in order to avoid a traffic jam.

Note: This function is only available if TMC traffic messages are being transmitted in the map area in which you are travelling. Traffic messages are not available in all areas.

Note: The charger cable does not need to be connected to the vehicle's cigarette lighter for the antenna to be operational.

Note: Without the antenna, TMC messages may not be received when the device is operating on battery power only.

The TMC symbol can display the following TMC reception status:

No Symbol

TMC is not operational. Can also indicate the the purchased TMC accessory service has not been activated successfully. See "Activating an Optional Accessory Service" on page 11 for more information.

Tuning

TMC is operational, but cannot find a station that is transmitting TMC signals.

TMC Ready

Traffic messages can be received.

For more information, see "Displaying traffic messages" on page 72.

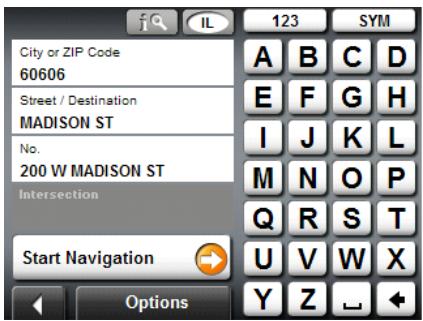

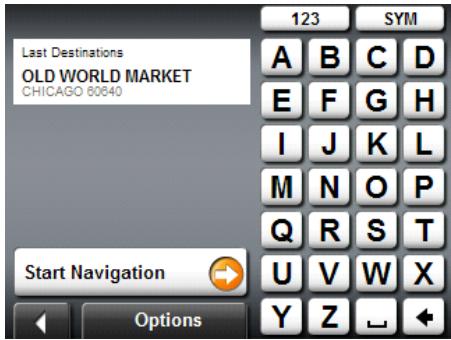

Using software keyboards

Software keyboards appear on the screen when text entries are necessary. All entries can be made on the software keyboard using the fingertips. Only capital letters can be entered. Three keyboards are available for entering destination information.

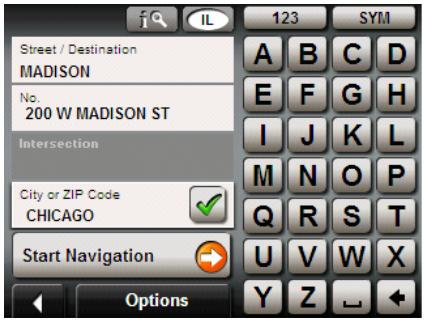

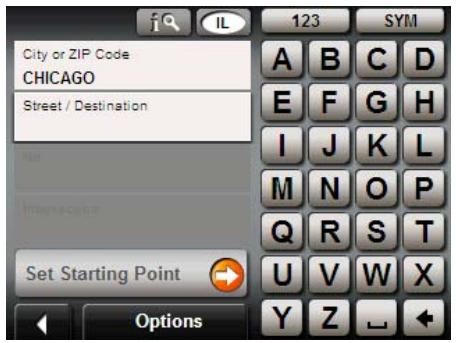

Alphabetic keyboard

Tap ABC to display the alphabetic keyboard. Only capital letters can be entered.

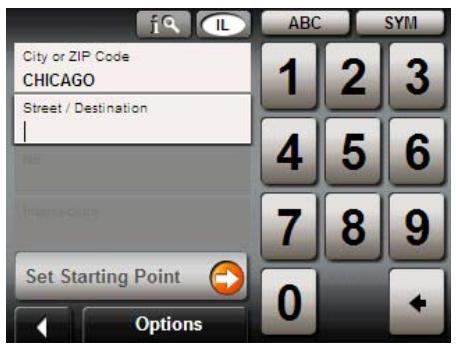

Numeric keyboard

123 to display the numeric keyboard.

Special character/symbol keyboard

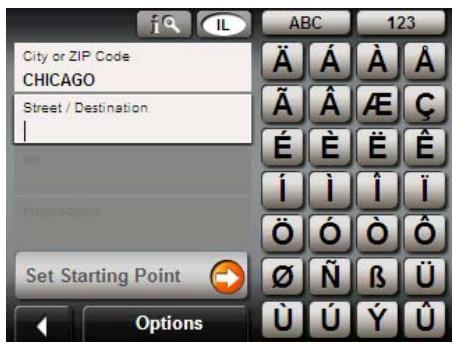

Tap SYM to display the special character keyboard. As soon as you have entered a special character, the letter keyboard reappears automatically.

Special keys

On the Alphabetic keyboard, enters a space character.

On the Alphabetic and Numeric keyboards, deletes the previous character and moves the cursor back one space.

On the Alphabetic and Special Character keyboards, opens the Numeric keyboard.

On the Numeric and Special Character keyboards, opens the Alphabetic keyboard.

On the Alphabetic and Numeric keyboards, opens the Special Character keyboard.

Using menus

Some buttons have menus which open when activated.

To select a function:

• Tap on a menu button to execute its function.

To close a menu without selecting a function:

• Tap on the button you used to open the menu.

By using a password, you can protect your navigation system from unauthorized use.

Note: Password protection takes effect the next time the NAVIGON 2100/2120 is switched off or switched to standby mode. See “Turning the NAVIGON 2100/2120 Off” on page 20 and “Using Standby Mode” on page 20.

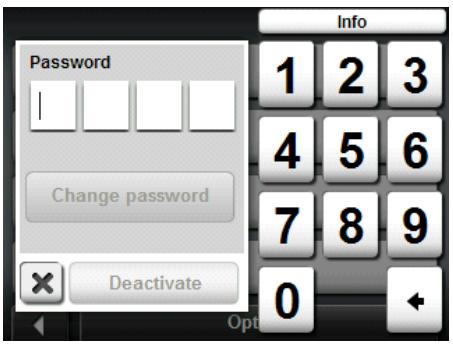

The Password Lock Window

Setting a password

Note: The password must be exactly 4 digits.

In the MAIN WINDOW:

1. Tap Options > Settings

The SETTINGS WINDOW opens.

1. Tap Options > Password Lock.
   The PASSWORD LOCK WINDOW opens.
2. In the New password field, type the password.
3. Re-type the new password in the Confirm new password field.
4. Tap Save password.

Changing a password

In the MAIN WINDOW:
1. Tap Options > Settings
The SETTINGS WINDOW opens.
2. Tap Options > Password Lock.
The PASSWORD LOCK WINDOW opens.
3. Type the current password in the Enter Password_field.
4. Tap the Change Password button.
5. Type the new password in the New password field.
6. Re-type the new password in the Confirm new password.
7. Tap the Continue button.

Cancelling password protection

In the MAIN WINDOW:

1. Tap Options > Settings
   The SETTINGS WINDOW opens.
2. Tap Options > Password Lock.
   The PASSWORD LOCK WINDOW opens.
3. Type the current password in the Enter Password field.
4. Tap the Deactivate button.

Forgotten your password?

If you have forgotten your password, do the following:

On any password window:

1. Tap the fQ (Info) button.
2. Call the number displayed in the window.
3. Follow the instructions given by the service personnel.

Use the navigation system at your own risk.

Caution! Please be sure to refer to the safety information in "Important safety information" on page 6.

New destinations for the NAVIGON 2100/2120 are destinations that you have not yet navigated to or those that you have not yet stored.

You can enter an address, select a POI, or select a destination from the quick search function.

Using auto-complete to select a destination

Lists often appear from which you can select an entry. This is the case, for example, when you enter a location. After you type the first letter, the largest city in the search area appears. Once you type a second letter, the list shows all map areas that begin with the typed letters.

As you enter additional letters, the list shortens, only containing entries that begin with the typed characters. The more characters you enter, the shorter the returned list becomes.

You can move though a list using (Up) and (Down).

To accept an entry from the list:

• Tap on the entry.

The list closes once an entry is accepted.

The Search Area Button

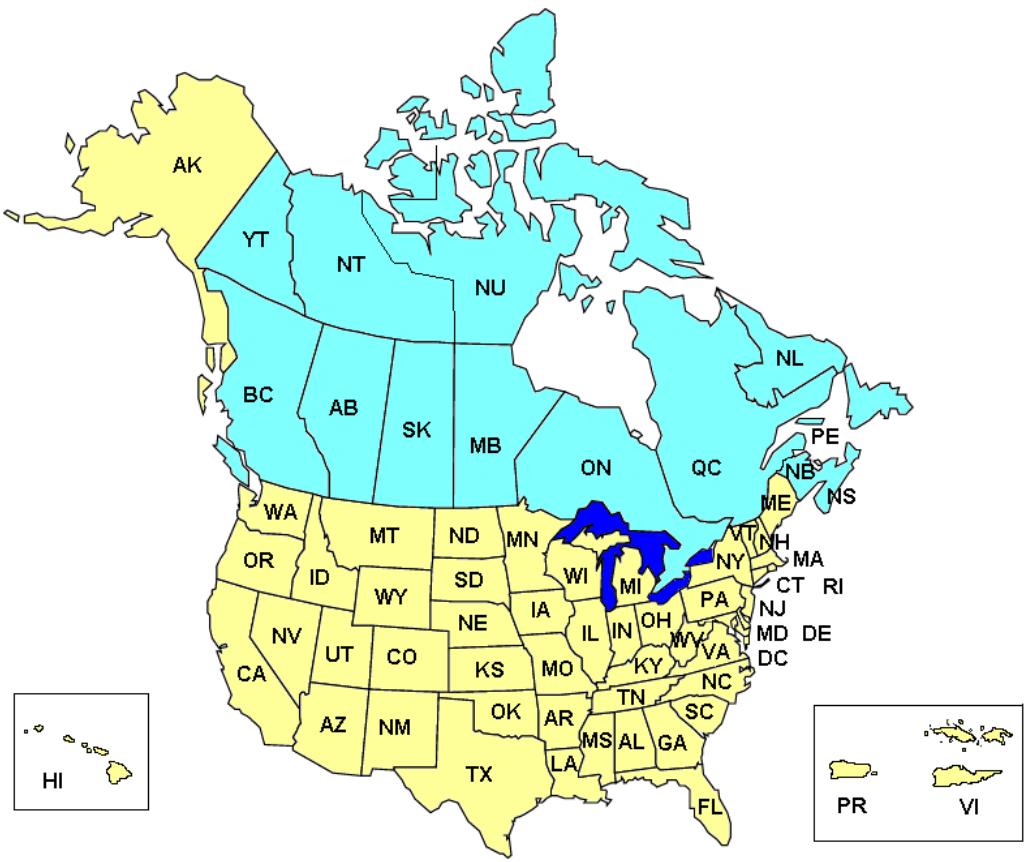

The ? (Search Area) button, used to select a map area, is located at the top of a location entry window. Once an area is selected, a code on the button reflects the selection. For example, if Illinois is selected, "IL" appears on the button.

List of search areas

Selecting a Search Area

When you enter a new destination for the first time, the SEARCH AREA list opens. To select an area that is different from the one currently shown, do the following:

1. Tap? (Search Area).

The SEARCH AREA list opens.

1. Tap on the map area in which your destination lies. The button displays the code for the selected destination area.

Note: Only areas that are represented in the currently loaded map can be selected.

1. Tap (OK).

Ways to Search for Destinations

Enter an Address

To find an address, you can specify a:

City first If you do not know the exact street address.

Street first If you do not know the actual city.

Search for a POI

Note: Optional lifetime Zagat POIs accessory service is available. For more information see “Zagat Points of Interest (POIs) (Optional Accessory)” on page 43.

Points of Interest, (POIs) are useful addresses that are organized according to particular criteria. POIs include airports, restaurants, hotels, gas stations, government offices, banks, hospitals, shopping centers, etc. Icons representing the POIs can be displayed on the map.

Nearby POIs nearby are special destinations that are located within a given radius of your current location. This means you can always find the nearest gas station, for example, no matter where you are.

In a City POIs in a given location can be useful when navigating in an unfamiliar town.

Nationwide POIs of national significance include airports, national parks, historic sites, etc. This enables you to find places of interest without having to know exactly where it is located.

Direct Access POI direct access system contains three categories of special destinations. POIs in your vicinity that correspond to these categories can be listed quickly, without the need for additional entry.

Note: Only areas that are represented in the currently loaded map can be selected.

By Tapping on the Map

You may indicate a destination directly on the map. In addition to towns and streets, you may also select POIs.

Entering an address

When searching for a location, you do not have to enter all of the address details.

If you do not know the house number, leave the field blank to display the Intersection field. In this field, enter the name of a nearby side street and the navigation system calculates a route to the intersection of the specified streets.

Additionally, if you only specify the:

• City - a route is calculated to the town center.
• City and street - a route is calculated to the center of the street.

Specifying a city first

In the MAIN WINDOW:

1. Tap New Destination > Enter an Address.

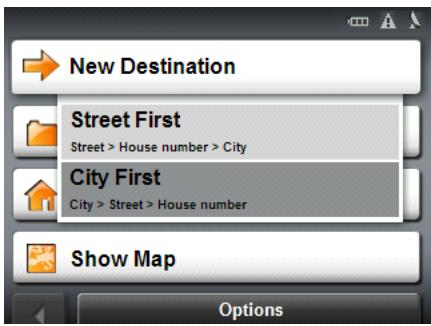

2. Select (City First).

The ADDRESS WINDOW opens.

1. Enter the name of the city or the postal code of the destination location.

1. Enter the name of the destination street.
2. Enter the house number. If you don't know the number of the house, leave this field blank to display the Intersection field.
3. If you don't know the house number, tap in the Intersection field and enter the name of this street.
4. Tap the Start Navigation button.

The map opens in Preview mode.

For more information, see "Starting navigation" on page 42.

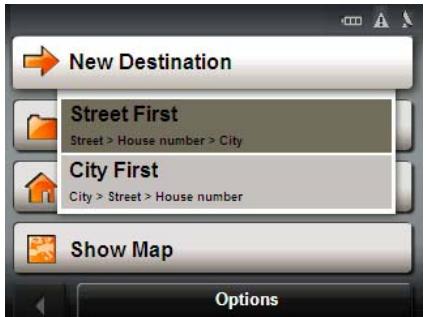

Specifying a street first

In the MAIN WINDOW:

1. Tap New Destination > Enter an Address.
2. Select (Street First).

The ADDRESS WINDOW opens.

1. Enter the name of the destination street.

1. Enter the house number. If you don't know the number of the house, leave the field blank to display the Intersection field.
2. If you don't know the house number, tap on the Intersection field and enter the name of this street.
3. Tap the Start Navigation button. The map opens in Preview mode.

For more information, see "Starting navigation" on page 42.

Selecting a Point of Interest (POI) destination

POIs nearby

Note: GPS reception must be sufficient to determine your current position. You can see if GPS reception is sufficient by looking at the (GPS Ready) symbol. For more information, see “GPS” on page 21.

In the MAIN WINDOW:

1. Tap New Destination > Search for POI.
2. Tap Nearby.

1. Specify a category from which you would like to select a POI.

1. If a sub-category exists, specify a sub-category.

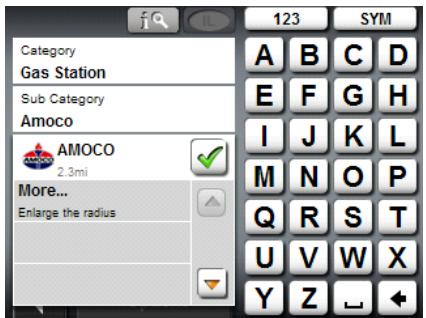

The Name of the Destination list opens. It contains the nearest POIs in the specified category, sorted by distance.

1. Tap on the name of the destination.
2. Tap the Start Navigation button.

The map opens in Preview mode.

For more information, see "Starting navigation" on page 42.

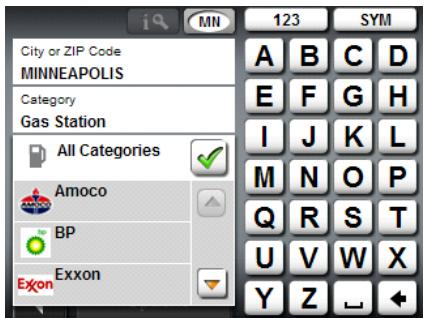

POIs in a specified city

On the MAIN WINDOW:

1. Tap New Destination > Search for POI.
2. Tap in a City.

1. Enter the name or the postal code of the destination location.

1. Specify a category from which you would like to select a POI.
2. If sub-categories exist for the category, specify a sub-category.

The Name of the Destination list opens. It contains POIs from the specified category, sorted alphabetically.

Note: Enter the first characters from the beginning of the POI name to shorten the returned list of POIs.

1. Tap on the name of the destination.

1. Tap the Start Navigation button.

The map opens in Preview mode.

For more information, see "Starting navigation" on page 42.

Nationwide POIs

In the MAIN WINDOW:

1. Tap New Destination > Search for POI.
2. Tap Nationwide.

The POI OF NATIONAL SIGNIFICANCE WINDOW OPENS.

1. Specify a category from which you would like to select a POI.

The Name of the Destination list opens. It contains a list of national POIs, sorted by distance.

Note: Enter the first characters from the beginning of the POI name to shorten the returned list of POIs.

1. Tap on the name of the destination.

1. Tap the Start Navigation button.

The map opens in Preview mode.

For more information, see "Starting navigation" on page 42.

Direct Access POIs

Note: Sufficient GPS reception is required for Direct Access POIs. You can check GPS reception by looking at the (GPS Ready) symbol.

In the MAIN WINDOW:

1. Tap the New Destination button.

The NEW DESTINATION MENU opens.

The symbols of the categories which have been selected for direct access can be seen in the menu at the bottom.

Note: When first used, the default direct access categories are Restaurants, Gas Stations, and Parking. To change these categories, see “Specify Direct Access POI categories” on page 38.

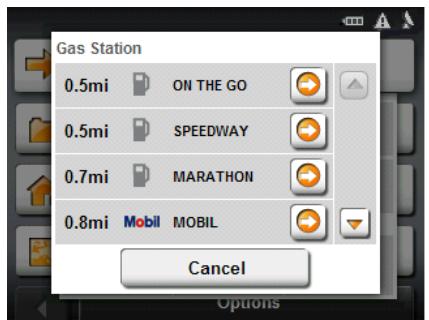

1. Tap on a category from which you would like to select a POI.

The Name of the Destination list opens. It contains the nearest POIs in the specified category, sorted by distance.

1. Tap on the name of the destination.

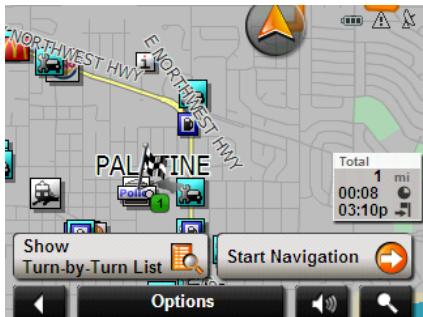

The map opens in Preview mode.

For more information, see "Starting navigation" on page 42.

Specify Direct Access POI categories

In the MAIN WINDOW:

1. Tap Options > Settings
2. Tap POl.

1. In the Direct Access 1 field, tap (List) and select a POI category.
2. Repeat the above step in the Direct Access 2 and Direct Access 3 fields.
3. When finished, tap Done to save the changes.

Information about the POI

For many POI destinations, additional information is available. For example, telephone numbers are provided for many restaurants, allowing you to call the restaurant and reserve a table ahead of time.

POI Information button

On the DESTINATION SELECTION WINDOW, the following buttons are available:

fQ	Destination Info	Opens the DESTINATION INFO WINDOW and shows basic information about a POI, including address and phone number. On the window, tap the (To the Left) and (To the Right) to view information on other POIs returned from the search.
	Show on Map	Show the POI on a map relative to your current location. (GPS reception required.)
	Call the POI	Not available with NAVIGON 2100/2120.
i	Zagat Information	Displays Zagat survey information about the POI. (Only available if the Zagat POI accessory service has been purchased. See page 43.)

Selecting a destination by tapping the map

You can select towns, streets, and even POIs by tapping on the map.

On the MAIN WINDOW:

1. Tap (Show on Map).
2. Tap (Destination search).

The map opens in Destination search mode.

For more information on using destination search tools, see "Map in Destination search mode" on page 66.

1. Tap on the point to which you wish to navigate.

The selected destination is centered in the map and appears under the cross hairs.

1. Tap OK).

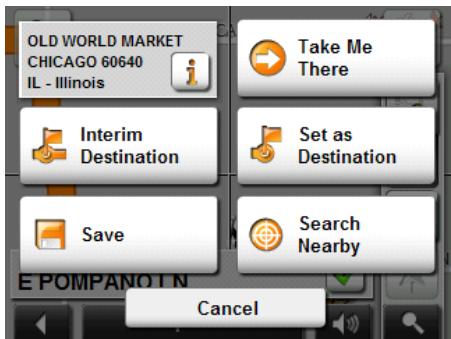

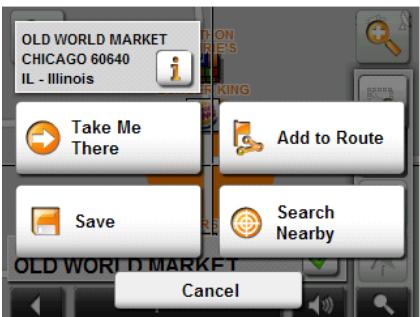

The DESTINATION ON MAP WINDOW opens. Detailed address information for the selected destination displays in the upper left-hand corner.

1. Tap the Take Me There button.

The map opens in Preview mode and shows the route calculated from your current location to this destination.

For more information, see "Starting navigation" on page 42.

Starting navigation

With the map open in Preview mode, the destination is shown as a small flag. The route and the estimated trip time are displayed.

With the map open in Preview mode:

• Tap the Start Navigation button or simply start driving.

Quitting navigation

• Tap (Back) to quit navigation.

A window prompts you to confirm.

No GPS reception

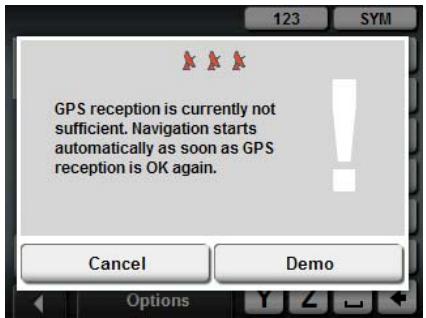

When GPS signal is interrupted, the following message appears:

You can:

• Wait until GPS reception resumes for determining position. Navigation begins automatically once GPS reception is sufficient.
• Tap the Cancel button. The MAIN WINDOW opens. Your destination is saved in the LAST DESTINATIONS list.
• Tap the Demo button. The route is calculated using the center of the specified location as starting point. The simulation of the calculated route begins. Tap (Back) to end the demonstration.

Arriving at your destination

A message displays when you have reached your destination.

Your current position (indicated by an orange triangle) is shown on the map.

Zagat Points of Interest (POIs) (Optional Accessory)

Zagat POIs can be purchased for the NAVIGON 2100/2120 as an optional accessory service.

Once purchased, Zagat information is provided for the lifetime of your NAVIGON 2100/2120 device at no additional charge.

For more on purchasing and activating this accessory, see "Optional Accessory Services" on page 11.

With lifetime Zagat POIs, your NAVIGON 2100/2120 can select from thousands of POIs and view customer survey ratings for a selected POI.

Zagat POI Categories

Zagat survey information features over 30,000 points of interest (POIs) in hundreds of cities

The NAVIGON 2100/2120 offers Zagat survey information for the following five categories:

Attractions

Shopping centers and entertainment venues.

Golf Courses

Public, semi-private and resort courses.

Hotels

Hotels, resorts and spas.

Nightlife

Nightspots and dance clubs.

Restaurants

Food, decor, service, and cost.

Search for Zagat POIs

Once the Zagat POI accessory service is purchased and activated, Zagat POIs are returned with any POI search.

Note: Zagat POI information is not available for all locations.

Zagat categories appear first in the list of returned locations. A (Zagat POI) appears in front of a Zagat category.

View Zagat POI Information

On a POI DESTINATION SELECTION WINDOW:

1. Tap on a Zagat POI category.
2. If sub-categories exist for the category, tap the subcategory.
3. Tap on the name of a POI. The DESTINATION INFO WINDOW opens and displays basic POI information.

1. Tap (Zagat Information) to view Zagat survey information about the POI.

The ZAGAT DETAIL WINDOW opens and displays detail information for the POI including hours of operation, costs, offered services, etc.

1. Tap (Zagat Survey Results) to view an explanation of Zagat Survey results.

1. When finished, tap (OK).

Every destination that you enter and the destinations from the LAST DESTINATIONS list can be saved to the FAVORITES list. This is useful if you often navigate to a particular destination.

Saving a destination

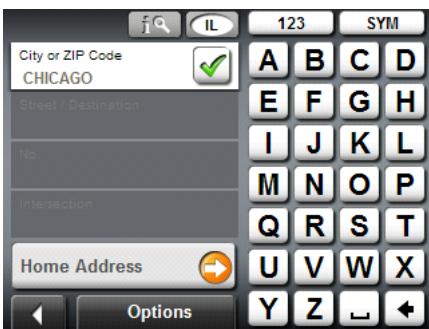

1. Enter a destination. (See "Selecting Destinations" on page 27.)
   Do not tap the Start Navigation button!
2. Tap Options > Save Destination.

-OR-

1. Select a destination from the LAST DESTINATIONS LIST. (See page 49.)

Do not tap the Start Navigation button!

1. Tap Options > Save as Favorite.

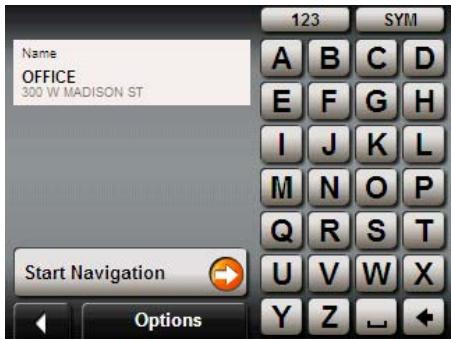

1. Enter the name for the destination. (You must enter at least two characters.)
2. If you want to define the destination as your home address, tap (Toggle) so that the value Yes is highlighted in black.
3. Tap the Save button.

Saving the current location using GPS

The GPS STATUS WINDOW provides you with an overview of the data the navigation system calculates from the received GPS signals.

GPS status is available via the options of several windows.

In the GPS STATUS WINDOW:

1. Tap Options > GPS status.

The current location can be stored in the FAVORITES list.

1. Tap the Save Position button.

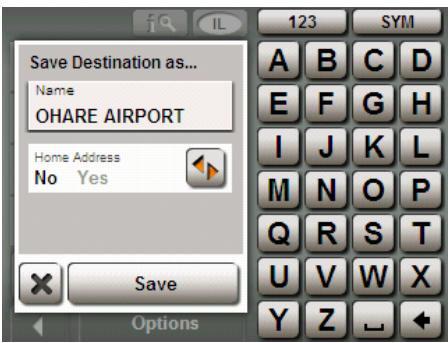

   The SAVE DESTINATION AS... WINDOW opens. The cursor blinks in the Name field.
2. Enter the name for the destination. (You must enter at least two characters.)
3. Specify whether your current position should be stored as the home address.
4. Tap the Save button.

Saving your home address as a destination

You can begin navigation to this destination quickly by tapping the Take Me Home button in the MAIN WINDOW. Only one destination from the FAVORITES list can be defined as your home address.

On the MAIN WINDOW:

1. Tap the Take Me Home button.

The following message displays:

1. Take the OK button.

The HOME ADDRESS WINDOW opens.

1. Enter your home address.
2. Tap the Home Address button.

The selected destination is saved as your home address. On the FAVORITES list, a house icon is shown next to your home address.

Selecting a saved destination

The following lists of destinations and addresses are available under My Destinations.

FAVORITES Destinations you have stored in NAVIGON 2100/2120.

LAST DESTINATIONS Destinations you have previously navigated to.

Selecting a destination from the Favorites list

Destinations to which you often travel can be saved in the FAVORITES list.

In the FAVORITES list, up to 300 destinations can be saved.

Information on how to store a destination can be found in "Saving a destination" on page 45.

In the MAIN WINDOW:

1. Tap My Destinations > Favorites.

1. Tap the destination to which you would like to navigate.

1. Tap the Start Navigation button.

The map opens in Preview mode.

For more information, see "Starting navigation" on page 42.

Selecting a destination from the Last Destinations list

NAVIGON 2100/2120 saves the last 30 destinations to which you have navigated in the LAST DESTINATIONS list.

In the MAIN WINDOW:

1. Tap My Destinations > Last Destinations.

1. Tap the destination to which you would like to navigate.

1. Tap the Start Navigation button.

The map opens in Preview mode.

For more information, see "Starting navigation" on page 42.

Navigating homewards

With NAVIGON 2100/2120 you can save an address as a home address. You can navigate to your home address at anytime by activating a single button.

The first time you tap the Take Me Home button, you are asked to enter your address.

For more information, see "Saving your home address as a destination" on page 46.

In the MAIN WINDOW:

• Tap the Take Me Home button.

If you have not yet entered your home address, a window displays.

Navigation, using the current route profile information to calculate the route, begins.

For more information, "Starting navigation" on page 42.

With the NAVIGON 2100/2120, you can preplan routes. Planned routes can be saved for later use, allowing you to create as many routes as you like.

Accessing the Route Planning Window

In the MAIN WINDOW:

1. Tap the Options button.

The options list opens.

1. Tap the Route Planning option.

The ROUTE PLANNING WINDOW opens.

Entering the starting point

The starting point of a route, is the point at which you want to begin your trip. This does not need to be the current location. If you are at home planning a route for your vacation, you could, for example, enter your hotel as the starting point.

The starting point is only important if you want to see a planned route on the map, but currently have no GPS reception, or you are not currently at the planned starting point. The starting point that you enter has the flow number "0".

As soon as you begin navigation, your current location is used as the starting point for the route calculation.

Route calculation to the first route point is shown as flow number "1".

On the ROUTE PLANNING WINDOW:

1. Tap the Specify Starting Point button.

The STARTING POINT menu opens.

1. Select:

2. Enter an Address to search for a location address.

3. Search for a POI to search for a POI.
4. My Destinations to select a location from the FAVORITES or LAST DESTINATIONS lists.
5. My Address to select your home address. (Only available if you have already specified a home address.)

6. Current Position to specify your current position as the starting point.

7. Enter the starting point. (See the corresponding section of "Selecting Destinations" on page 27.)

8. Tap the Set Starting Point button. The selected destination appears next to the 0, indicating that it is the Starting Point of the route.

Changing the starting point

On the ROUTE PLANNING WINDOW:

1. Tap the Specify Starting Point button. The STARTING POINT menu opens.
2. Select a different starting point by following the above steps.

Entering route points

Route points are destinations on the route that you want to navigate to.

The flow number for each route point can be found on a button in front of it.

On the ROUTE PLANNING WINDOW:

1. Tap the Add Route Point field. The ROUTE POINT menu open
2. Tap on the button for the desired destination entry type.
3. Enter the route point. (See the corresponding section of "Ways to Search for Destinations" on page 29.)
4. Tap the Add button. The selected route point is shown next to its flow number.
5. Repeat these steps for each additional destination that you want to add to your route.

Changing the order of route points

Route points can be deleted from a route. The order of the route points can be varied as you wish.

Note: The starting point (flow number "0") cannot be moved nor deleted.

On the ROUTE PLANNING WINDOW:

• Tap on the route point that you want to edit. The context menu contains the following buttons:

Route Point Up: Moves the selected route stage forwards. (Example: route point 2 becomes route point 1).

Route Point Down: Moves the selected route point backwards. (Example: route point 2 becomes route point 3).

Delete: deletes the selected route point. A window prompts you to confirm deletion.

Managing routes

You can save each planned route under a particular name.

Note: Only the start point and route points are saved. The calculated route is not. If you load a route that has been saved, it must be recalculated before navigation can begin.

You can load, rename or delete stored routes.

Saving routes

You can save a route after you have entered the starting point and at least one route point.

On the ROUTE PLANNING WINDOW:

1. Tap Options > Save Route.
2. Enter a name for the route. (You must enter at least two characters.)
3. Tap the Save button.

The route is saved to the SAVED ROUTES list.

Loading routes

On the ROUTE PLANNING WINDOW:

1. Tap Options > Saved Routes.
2. Tap the route you want to load.
3. Tap the Load Route button.

The ROUTE PLANNING WINDOW displays the starting point and the route points of the selected route.

Navigation

After the route is calculated, you can begin navigation or view a simulation of the route.

Calculating and displaying routes

With the NAVIGON 2100/2120, you can preplan routes. Planned routes can be saved for later use, allowing you to create as many routes as you like.

On the ROUTE PLANNING WINDOW:

1. Load a saved route.

-OR

1. Enter a starting point and at least one route point.
2. Tap the Show Route button.

The map opens in Preview mode.

The starting point and the route points are marked by flags. For each stage, the distance and the estimated trip time is given. This information is also displayed for the entire route.

1. Tap the Start Navigation button or simply start driving.

Viewing the Route Profile

The calculation of a route is based on route options.

On the ROUTE PLANNING WINDOW:

1. Create a route or load a previously saved route.
2. Tap the Show Route button.

The map opens in Preview mode and displays the calculated route.

1. Tap Options > Route Profile.

You can view and, if necessary, change any of the displayed options.

Note: Once options are changed, they remain in effect for all subsequent routes. You can get information regarding changing individual route profiles by tapping the corresponding (Help) button.

Simulating routes

You can also view a simulation of a calculated route.

Note: GPS signal reception is not required for simulation. Simulations are restricted to routes of a maximum of 93 miles.

Starting a route simulation

You have calculated and displayed a route.

With the route displayed in Map Preview mode:

• Tap Options > Simulation.

The route is recalculated for simulation purposes. Simulation starts when calculation has finished.

Ending simulation

You can end simulation at any time.

While viewing the route simulation:

• Tap (Back).

A window prompts you to confirm your decision to cancel navigation.

The ROUTE PLANNING WINDOW redisplays.

Viewing a Turn-by-Turn List

You can display detailed directions of the calculated route before starting navigation or at any time during navigation. This list displays all of the driving instructions in table form.

With the route displayed in Preview mode:

• Tap the Show Turn-by-Turn List button.

-or-

With the route displayed in Navigation mode or Reality View mode:

• Tap Options > Show Turn-By-Turn List.

The TURN-BY-TURN LIST WINDOW opens.

1. Distance to this junction.
2. Schematic depiction of the next junction where you must turn.
3. Name of the street onto which you must turn.
4. Indicates whether you want to travel on the section of the route.

(Allow)

Include this section in the route.

(Forbid)

Exclude this section from the route.

Blocking route sections

On the TURNS-TURN LIST WINDOW:

1. Tap on the route section you do not want to travel on, so that the (Forbid) symbol appears next to them.

2. Tap (Modify Route).

The navigation system calculates an alternative route avoiding (if possible) the route sections selected. The new driving instructions are displayed in the TURN-BY-TURN LIST WINDOW.

1. Tap (Back) to close the TURN-BY-TURN LIST WINDOW.

Removing blocks and using original routes

Section blocks can be removed at anytime.

On the TURNSBY-TURN LIST WINDOW:

• Tap Options > Calculate original route.

This page intentionally left blank.

NAVIGON 2100 Map

Your NAVIGON 2100 comes with a United States map of the 48 contiguous states.

NAVIGON 2120 Maps

Your NAVIGON 2120 comes with maps of the 48 contiguous United States, Alaska, Hawaii, Puerto Rico and the Virgin Islands, and all 13 Canadian provinces/territories.

View information on the current map

On the MAIN WINDOW:

• Tap Options > Settings > Current Map.

The CURRENT MAP WINDOW opens.

Selecting a different map (NAVIGON 2120 only)

On the MAIN WINDOW:

1. Tap Options > Settings > Current Map.

The CURRENT MAP WINDOW opens.

1. Tap (List) and select a different map.

Map in Preview mode

You have entered a destination and tapped the Start Navigation button.

-OR-

Create a route or load a saved route, then tap the Show Route button.

The map opens in Preview mode. The entire route is visible.

1. The route is highlighted in orange.
2. A triangle in orange shows your current position.

If you display a route and the specified starting point is not the same as your current location, the current position may not be shown on the preview.

1. The destination is marked with a small flag.

When you have planned or loaded a route and displayed it, the starting point and each route point is marked with a small flag.

1. The total distance for the route is shown in a small information box, together with the estimated trip time and the estimated time of arrival.

This information can be displayed or hidden by tapping on Options > Settings > Basic Settings.

If you display a route with several stages, information for each stage is shown.

1. Tap:

2. The Show Turn-by-Turn button to view detailed directions for the route. (See "Viewing a Turn-by-Turn List" on page 56.)
   The Start Navigation button to begin the journey.

When you display a planned or loaded route, the route may be recalculated. Starting point for the calculation is your current location. Once the route is calculated, you are guided to the first route point.

• Options > Route Profile to view or change settings used to calculate the route.

(Destination search) to view the map in Destination search mode.

For more information on using this feature, see "Map in Destination search mode" on page 66.

Map in Navigation mode

After the route has been viewed in Preview mode, navigation starts.

Navigation is shown in Navigation mode.

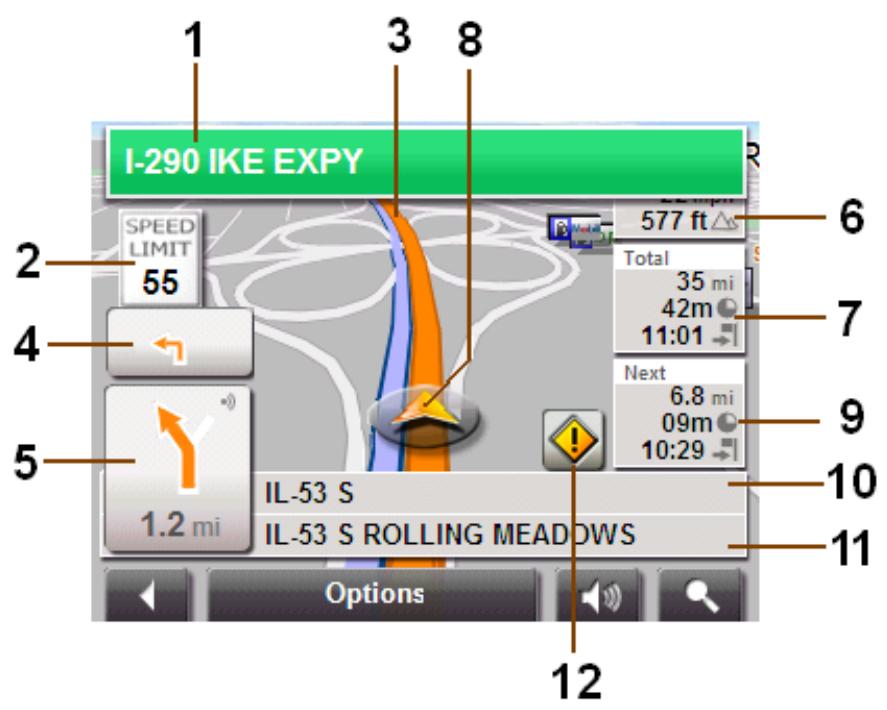

1. Signposting to be followed is displayed here.
2. Posted speed limits are displayed here (where available).
3. The route is marked in orange.
4. When two maneuvers need to be executed in quick succession, the small arrow field indicates the second maneuver to be executed.
5. The large arrow field shows a schematic depiction of the next maneuver. The remaining distance to the junction is displayed below the arrow.

As you get closer to the junction, the spot diagram, rather than the distance, is shown.

The nearer you get to the junction, the more yellow spots are displayed.

If you don't have to change direction for a longer period, you see only a forward-facing arrow. The distance you travel on the road you are on displays beneath the arrow.

• Tap the large arrow field to hear current route instructions.

• Your current speed and the height above sea level are displayed here. (Not shown with default settings. To display this information see “Customizing Your NAVIGON 2100/2120” on page 79.)

• The remaining distance to the destination, the estimated duration of the trip, and the estimated time of arrival are shown.

• An orange triangle shows your current position. The displayed map area continually changes so that your current position is always centered on the map.
• If you are navigating a route with several stages, you see the remaining distance, estimated duration of the trip, and the estimated time of arrival for the next interim destination in the Next field.
• The name of the next stretch of road that you must travel on is displayed in the upper street field.
• The name of the street you are currently travelling on is displayed in the lower street field.
• TMC shortcut button. (Only shown if the TMC (traffic) accessory service has been purchased. See page 69 for more information.) The TMC shortcut button displays when traffic messages have been received and are currently available. Tap the button to display the TRAFFIC INFORMATION WINDOW.

Note: The displays for many of the above mentioned fields can be configured via Options > Settings > Basic Settings. Some displays only function if the corresponding information is available on the map.

Note: If you tap on the large arrow field, the current route instruction is repeated.

• Tap Options > Show Turn-by-Turn List to view detailed directions for the route. (See "Viewing a Turn-by-Turn List" on page 56.)
• Tap (Destination search) to view the map in Destination search mode. (See "Map in Destination search mode" on page 66.)
• Tap (Back) to quit navigation.

Map functions in Navigation mode

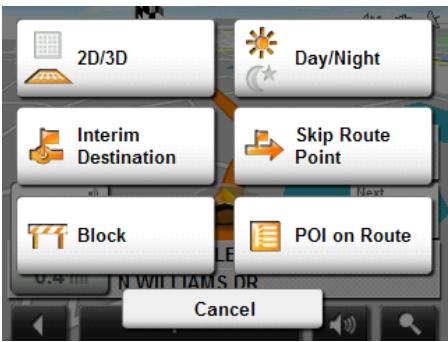

When the map is open in Navigation mode, tap any point on the map. Buttons with various functions are displayed.

2D/3D:

Changes between 2D and 3D mode. The symbol for the mode that is currently set is marked orange.

Day/Night

Changes between "day" and "night" display modes. The symbol for the mode that is currently set is marked orange.

Interim Destination

Opens a menu for entering an interim destination. The navigation system first guides you to this interim destination. Afterwards, you can simply continue navigation to your original destination.

Skip Route Point

Tap this button to omit the next route point. This button is inactive when less than 2 route points are pending.

Block

Tap this button in order to block a section of the route that lies in front of you, i.e. to recalculate the route in order to avoid this section of the route, e.g. if you have heard of a traffic jam relating to this section on the radio.

Tap this button again to remove the block.

POI on Your Route

Tap this button to display POIs on your route. This enables you to find out, for example, how far it is to the nearest services. A destination shown here can be added as an interim destination by tapping the (Interim Destination) button to the right of its entry in the list.

Map in Destination search mode

The map is always in Destination search mode when a pair of cross hairs can be seen.

When you are driving, the map's orientation does not change. It is always oriented with north at the top.

Destination search tools include:

Zoom Out

The map section shown becomes larger, but fewer details are shown.

Zoom In

The map section becomes smaller, but shows more details.

Zoom Mode

When this button is active, you can plot a map section with your finger.

Plot the map section from upper left to bottom right and it zooms to fit the size of the screen.

Plot the map section from bottom right to top left, and the map zooms out.

Pan Mode

When this button is active, you can move the map section with your finger. Tap on the map and drag it in the desired direction.

Entire Route

Zooms the map so that the entire route is visible.

Current Position

Show your current position on the map.

Operating in Destination search mode

1. Tap on the point to which you wish to navigate.

The destination that you have selected appears under the cross hairs.

1. Tap (OK).

Buttons with various functions appear.

Take Me There

Begins navigation to the selected point. If you are currently navigating, navigation stops.

Interim Destination

Sets the selected point as an interim destination. The navigation system first guides you to this interim destination. Afterwards, you can continue navigation to your original destination.

This function is only active during navigation.

Set as Destination

Adds the selected point as the last point in the route plan. If no route plan was open, the selected point becomes the first point in a new route plan.

Save

Opens the SAVE DESTINATION AS... WINDOW. You can enter a name for the selected point to be stored in the FAVORITES list.

For more information, see "Starting navigation" on page 42.

Search Nearby

Opens the POI NEARBY WINDOW. Here you can search for destinations near the specified point. (See “POIs nearby” on page 32.)

• Tap (Destination search) to quit the Destination search mode. You are returned to the window from which you started this mode.
• Tap (Back) to return to the MAIN WINDOW. If you are currently navigating, you are prompted to confirm your decision to quit navigation.

Reality View (Junction View)

When, during navigation, you approach a highway junction, the map changes to Reality View mode.

The Reality View mode shows the signposting and lanes you must follow. This mode displays until you pass the highway junction. Once past the junction, the map returns to Navigation mode.

While traveling through the highway junction:

• To change from Reality View back to Navigation mode, tap anywhere on the map.
• To change from Navigation Mode back to Reality View, tap the Next Maneuver button.

Note: Reality View mode is not available for every highway junction. Availability is dependent on the map data currently in use.

TMC (Traffic Information) (Optional Accessory)

TMC (Traffic) Information can be purchased for the NAVIGON 2100/2120 as an optional accessory.

Once purchased, TMC information is provided for the lifetime of your NAVIGON 2100/2120 device at no additional charge.

For more on purchasing and activating this accessory service, see "Optional Accessory Services" on page 11.

Lifetime TMC Information allows your NAVIGON 2100/2120 to receive the latest traffic information available. If necessary, it can change your route dynamically in order to avoid a traffic jam.

Accessing the TMC (Traffic Information) Window

All currently available traffic information can be viewed from the Options button on the MAIN WINDOW, ROUTE PLANNING WINDOW and any of the map views.

From any of the above windows:

1. Tap Options > Traffic.

The TRAFFIC INFORMATION WINDOW opens.

The TMC (Traffic Information) Window

Types of Messages

All traffic information

Information on all traffic events (severe and moderate traffic jams and obstructions) and weather warnings received in the area, based on TMC antenna reception.

On route

Information on all traffic events (severe and moderate traffic jams and obstructions) and weather warnings occurring along the route.

Not on route: all

Information on all traffic events (severe and moderate traffic jams and obstructions) and weather warnings not occurring on the route, based on TMC antenna reception.

Not on route: traffic jams

Information on severe traffic events (traffic jams) not occurring on the route, based on TMC antenna reception.

Not on route: obstructions

Information on moderate traffic events (obstructions) not occurring on the route, based on TMC antenna reception.

Not on route: weather warnings

Information on weather warnings not occurring on the route, based on TMC antenna reception.

Traffic Flow Severity Indicators

The color of the severity indicator reflects the impact of the traffic occurrence on traffic flow:

Red

Heavy traffic, expect delays.

Yellow

Slow moving traffic.

Green

Normal traffic flow.

Event or Incident Icons

On the Traffic Information window, the following icons are used to represent traffic events or incidents:

Slow traffic.

Construction.

Accident.

Slippery road due to weather (snow, ice, rain, etc.).

General problem affecting traffic flow.

Wind.

Lane closures.

Flooding.

Road closed or blocked.

Informational only. No negative affect on traffic flow.

Ramp problems. On- or off-ramp closures, etc.

Displaying traffic messages

The traffic reports that are currently valid are available via the options of several windows.

On the MAIN WINDOW:

1. Tap Options > Traffic.

The TRAFFIC INFORMATION WINDOW opens.

Above the list, the Traffic information button indicates the type of traffic information listed (on-route, off-route, etc.) and how many messages of this type are listed.

For each traffic message in the list, information about the location and type of traffic obstruction is displayed.

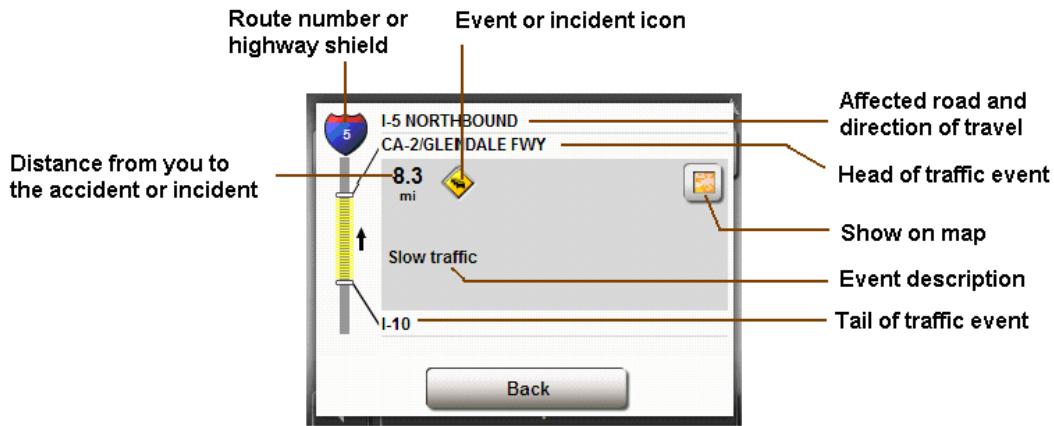

1. Tap a message to view more information on the traffic event.

The TMC DETAIL WINDOW displays.

1. When finished, tap the Back button to return to the TRAFFIC INFORMATION WINDOW.

Requesting a route recalculation

Note: This procedure is only available when the TMC Setting Recalculate Route is set to On Request. For more information, see "Select Reroute Settings" on page 76.

During navigation, a message displays when a traffic message indicates a traffic event exists on your current route. Details of the event are shown on the TMC Detail WINDOW.

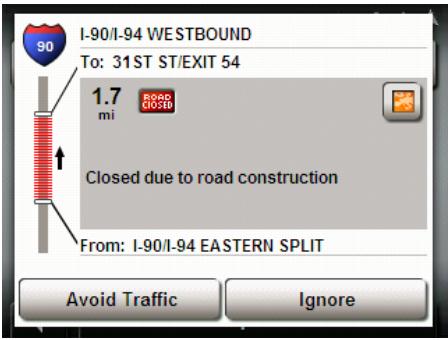

On the TMC DETAIL WINDOW:

1. Select how you want the traffic block to be handled. Options are:

Avoid Traffic

The navigation software recalculates a route to avoid the traffic.

fic obstruction. A (Avoid) appears next to the traffic segment on the TMC (TRAFFICMESSAGE) WINDOW.

Ignore

The navigation software ignores the traffic message and remains on the current route. A (Ignore) appears next to the traffic segment on the TMC (TRAFFICMESSAGE) WINDOW.

1. Tap the button to select the alternative setting.

1. Tap (Back) to close the TRAFFIC INFORMATION WINDOW.

TMC Settings Window

In the TMC SETTINGS WINDOW, you can set and configure the TMC receiver, these settings determine how received traffic messages will affect subsequent routing.

On the MAIN WINDOW:

1. Tap Options > Traffic.
2. Tap Options > TMC Settings.

Select another station

On the TMC SETTINGS WINDOW:

to tune into another station.

Select Tuning Mode Settings

On the TMC SETTINGS WINDOW:

1. In the Tuning Mode field, select an option:

Automatically

The system searches for another station if reception becomes poor.

Hold station

The system searches for the same station on a different frequency if the signal becomes poor.

Hold frequency

The system does not search for another station if reception becomes poor.

1. Tap (List) to view the list and select an option.
2. Tap the Done button to save your changes.

Specify the type of traffic messages to display

On the MAIN WINDOW:

1. Tap Options > Traffic.

The TRAFFIC INFORMATION WINDOW opens.

On the Navigation map, the TMC shortcut button can also be used to display the TRAFFIC INFORMATION WINDOW. The TMC shortcut button displays when traffic messages have been received and are currently available. See "Map in Navigation mode" on page 63.

The Traffic Messages button shows the type of traffic messages listed and how many messages of this type are listed.

1. Tap the Traffic information button to view a list of available traffic message types.
2. Tap on the type of error messages to display.
3. Tap the OK button to save your changes.

Select Reroute Settings

You can select whether the navigation software recalculates a route automatically when a TMC message indicates that a problem exists on your current route.

On the TMC SETTINGS WINDOW:

1. Tap Options > TMC Settings
2. In the Recalculate Route, select how you want to set route recalculation:

Automatically

The navigation system determines when to recalculate a route and when to ignore a traffic event, based on the severity of the impact on traffic flow. When a traffic message is received that severely impacts your current route, the navigation software displays a message indicating that it has recalculated a route avoiding the event.

On request

Each received traffic message displays on screen. You can specify whether to calculate an alternative route.

1. Tap (Toggle) to switch between options.

The selected value is in bold.

1. Tap the Done button to save your changes.

You can use the NAVIGON 2100/2120 to record your vehicle mileage for tax purposes or for expense reports. The logbook is recorded in the Logbook.xls file. You can open the file with Microsoft Excel spreadsheet program. Each recorded trip is added at the bottom of the spreadsheet as a new entry.

When first used, the Logbook.xls file is created in the MN6\Logbook directory on the navigation device's memory card. If you delete or move this file, a new file is created when you next record a trip.

The device supports various types of trips for which one could record mileage. You can record mileage for Business, Personal, Commutes to work, etc.

Note: When logbook recording starts, every movement of the vehicle is recorded, even when you are not navigating.

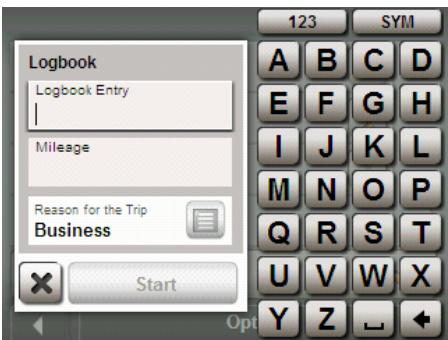

Starting a recording

From the MAIN WINDOW:

1. Tap Options > Logbook.
2. Enter the required details.
3. Tap the Start button.

Stopping the recording

From the MAIN WINDOW:

1. Tap Options > Logbook.
2. Tap the Stop button.

Note: A window opens when you have reached your destination. Specify whether you would like to end logbook recording.

This page intentionally left blank.

Accessing the Settings window

The settings can be reached via the options of several windows.

• Tap Options > Settings.

The Settings window

The SETTINGS WINDOW is where you can customize your NAVIGON 2100/2120 to suit your personal needs and preferences.

The SETTINGS WINDOW has several buttons.

• Tap a button to open the corresponding settings window.

Basic Settings

These settings include:

Language

Select the language to be displayed on screen and to be used with spoken directions. Options are English, Spanish, or French.

Speak Street Names

Indicate whether street names are spoken during navigation.

Reality View

Indicate whether Reality View displays a visual representation of an approaching junction. Highway signs and the lane to be used are indicated. (This feature is dependent on the selected map and may not be available in all areas.)

2D Zoom Factor

Indicate how auto-zoom behaves by default when a 2D view mode is selected. The zoom changes, based on speed. When driving slower, the map scale gets smaller. When driving faster, the map scale gets larger. Options are no automatic zoom, smaller or larger map sections, or standard.

3D Map:Show Street Names

Indicate whether to show street names on maps displayed in 3D view mode.

2D Map:Show Street Names

2D Map Orientation

Show Altitude and Speed

Display Compass

Show Remaining Distance

Show Duration of Journey

Show Time of Arrival

Info When Crossing Borders

Show Speed Limits

Warnings Within Urban Areas

Warnings Outside of Urban Areas

Warn Against Certain Speed Limits

Menu Animation

Distance Unit

Time Format

Coordinates Display

Coordinate Format

Brightness Day

Indicate whether to show street names on maps displayed in 2D view mode.

Indicate the orientation of maps shown in 2D map view mode. Options are Direction of Travel (at the top of the map), or Always North (magnetic North at the top of the map).

Show or hide the altitude and current speed on a displayed map.

Show or hide a small compass on screen during navigation.

Show or hide the distance remaining to the destination or an interim destination, if applicable.

Show or hide the travel time remaining to the destination or an interim destination, if applicable.

Show or hide the time of arrival at the destination or an interim destination, if applicable.

Show or hide local speed restrictions when crossing a country border.

Select whether to show highway speed limits. Options are always, only when exceeding the speed limit, or never.

Indicate whether a warning displays when exceeding the speed limit in densely populated areas. Options are to never warn, or to display a warning when 5, 10, 15 or 20mph over the stated speed limit.

Indicate whether a warning displays when exceeding the speed limit in less densely populated or rural areas. Options are to never warn, or to display a warning when 5, 10, 15 or 20mph over the posted speed limit.

Show or hide speed limit restrictions in force during special situations, such as rain, snow, time of day restrictions, etc.

Indicate whether the opening of menus is animat.

Indicate the distance unit to be used, either Miles or Kilometers.

Indicate how times are displayed, either a 12 hour format (with am and pm), or a 24 hour format.

Show or hide coordinates.

If coordinates are shown, indicate whether they display in decimal format or in minutes and seconds format.

Indicate the display brightness for use during the

	daytime. Options are from 1 (less bright) to 8 (most bright).
Brightness Night	Indicate the display brightness for use at night. Options are from 1 (less bright) to 8 (most bright).
Speed-Dependent Volume	Indicate whether you want the volume level to increase when your speed increases. Options are never, yes with a low amplification, or yes with a high amplification.
In-Store Demo	Enable or disable the in-store demo. (When enabled, the demo starts after 5 minutes.)
Current Map Settings
These settings include:
Current Map	Displays information on the currently displayed map.
POI Settings
These settings include:
Categories Shown	Specify the number of POI categories that are shown on the displayed map.
Direct Access 1	Select the first POI category to display for use with the POI direct access.
Direct Access 2	Select a second POI category to display for use with the POI direct access.
Direct Access 3	Select a third POI category to display for use with the POI direct access.
Route Profile Settings
These settings include:
Speed Profile	Select the type of transport: car, bicycle, or pedestrian. This is used for calculating routes and arrival times.
Type of Route	Select the type of route to be calculated: Fast, Optimum (uses both fast and short sections in the route calculation), Short, or Scenic.
Consider Traffic Information	Select whether TMC (traffic information) is used when calculating a route. (This requires a TMC reception and may not be available in all areas.) Note: This option is only available if the TMC (traffic) optional accessory service has been purchased and activated.
Highways	Select whether highways are considered in a calculated route.
Toll Roads	Select whether toll roads are considered in a cal-

Ferries

Calculate the Next Stage

U-turn allowed

ulated route.

Select whether ferries are considered in a calculated route.

For routes with multiple stages. After reaching a route point, select whether the next stage is calculated automatically.

Select whether u-turns are considered when calculating a route.

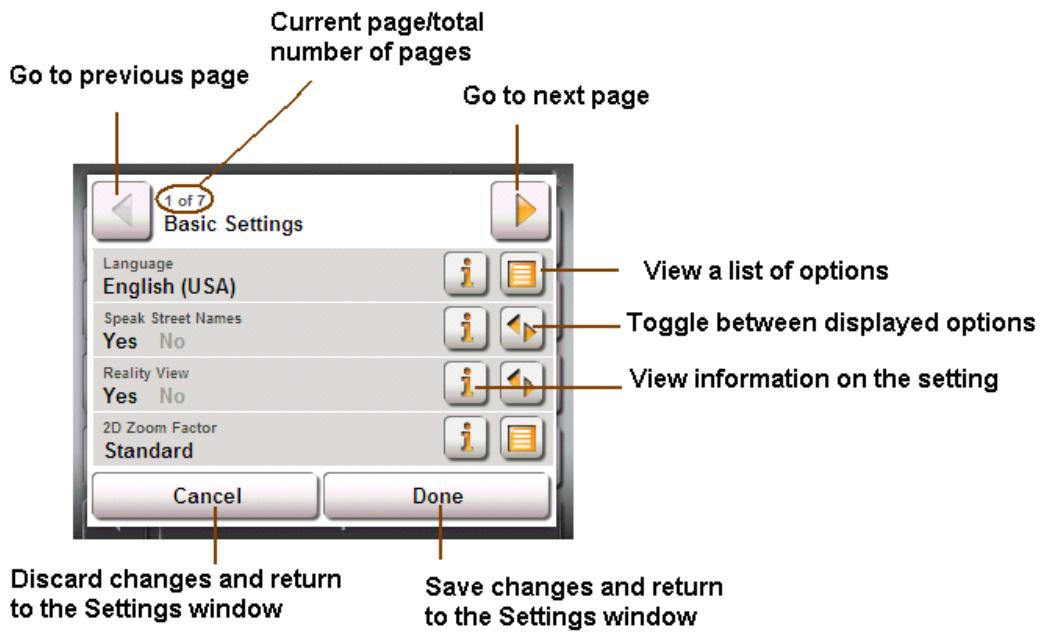

Selecting options

Moving between pages

Some NAVIGON 2100/2120 settings required several windows, as shown in the example above (Page 1 of 7). To move between windows:

• Tap (To the Left) and (To the Right).

Viewing a list of options for a setting

Some settings have several values. A value can be selected from a list. The value that is currently valid is shown.

1. Tap (List).

A list with all potential values opens. The value that is currently valid is marked.

1. Tap the desired value. It is now marked.
2. Tap the Accept button.

The list closes. The new value is displayed.

Viewing information about a setting

For each setting there is a (Help) button. Tap the button to view an explanation of the setting.

Toggling between options

Some settings can only accept two or three different values. All values are displayed with the currently selected value shown in black.

• Tap (Toggle) to alternate between the potential values.

Changing an option setting

After changing an option setting:

To save the change, tap the Done button.
- To discard the change, tap the Cancel button.

The SETTINGS WINDOW redisplay.

Legal Notices

NOTICE TO DRIVERS IN CALIFORNIA AND MINNESOTA

State law prohibits drivers in California and Minnesota from using mounts on their windshields while operating motor vehicles. NAVIGON does not take any responsibility for any fines, penalties, or damages that may be incurred as a result of disregarding this notice. (See California Vehicle Code Section 26708(a); Minnesota Statutes 2005, Section 169.71)

GPS

Underwriters Laboratories Inc. ("UL") has not tested the performance or reliability of the Global Positioning System ("GPS") hardware, operating software or other aspects of this product. UL has only tested for fire, shock or casualties as outlined in UL's Standard(s) for Safety for Information Technology Equipment (UL 60950-1, cUL 991). UL Certification does not cover the performance or reliability of the GPS hardware and GPS operating software. UL MAKES NO REPRESENTATIONS, WARRANTY OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY GPS RELATED FUNCTIONS OF THIS PRODUCT.

This page intentionally left blank.

Specifications

Dimensions		4.05" x 3.09" x .72"
Weight		5.4 ounces
Operating conditions	Operating temperature	-10°C to 60°C
	Storage temperature	-20°C to 70°C
	Humidity	0% to 90%, non-precipitating
CPU		Samsung 400Mhz
Operating System		Microsoft Windows CE Net 5.0
Display		3.5"-LCD-Color display with resistive Touch-Panel 320 x 240 pixels (WQVGA) Landscape format, permeable
Memory	ROM	64 MB
	RAM	64 MB
GPS		Built-in (SiRF Star III)
TMC		Built-in (GNS FM6)
I/O	Keyboard	Software keyboard
	Loudspeaker	Built-in
	Memory card	SD, compatible with MMC/SD
	USB	USB 1.1
Rechargeable battery	Type	Li-Ion, 1100 mAh
	Period of operation	Up to 3.5 hours¹
Charging	Electronic	Built-in
	Duration	Approx. 6 hours
Car charger cable	Type	With integrated TMC antenna
	Input	12V = (Direct current, DC)
	Output	5V =, 1A (Direct current, DC)

1. Some NAVIGON 2100/2120 features can reduce battery operation time. These include TMC accessory service, GPS antenna reception, Daytime backlight feature, etc. When on full power mode, battery time is approx. 2-3 hours.

Compliance Notices

The NAVIGON 2100/2120 complies with Part 15 of the FCC interference limits for Class B digital devices for home or office use.

"Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device."

(Carrier frequency: 1575.42MHz, receiver only)

Index

A

arriving at your destination 42, 57

C

configuration 79

options

move between pages 83

save changes 84

selecting 83

toggle between options 84

view a list 83

view information 83

current location save 46

D

data entry 27

destination 46
current location . 46

Favorites 48

home address 46, 50

Last Destinations 49

My Destinations 48
new 27

new location select by city 30 select by street 31

no GPS reception 42
POI information 39

quit navigation 42
save 45

search for national POIs 29
search for POI 29,43

search for POIs nearby 29

select a map area 28
start navigation 42

Take Me Home 50
tap on the map 29

destination search

POI direct access 29

POI in a city 29

destination search mode 66
functions 67

operating in 67

E

end user license

entering data 27

G

GPS current location 46

faulty reception 4

signals 4

symbols 21

H

home address 46, 50

hotline 2

J

junction view 68

K

keyboards 23

L

Liability 2

license 3

logbook 77
start recording 77

stop recording 77

M

main window 17

manual symbols 1

maps 61 destination search mode 66, 67

junction view 68

navigation mode 63
functions 65

NAVIGON 2100 .59

NAVIGON 2120 .59

Reality View 68

menus 24

message types to display 75

My Destinations 48

Favorites 48

Last Destinations 49

N

navigation 54

block a route section 56

no GPS reception 42

quit 42

remove a block on a route section 57

route profile 54

start 42

navigation mode 63

functions 65

NAVIGON 2100/2120

description 3

installation 8

maps 59

power 10

start 11, 17

stop 20

storage card 8

TMC 10

what's included 5

newdestination 27

0

optional accessories

activating 11

confirming activation

Traffic 14

Zagat POIs 15

optional accessory

TMC

status 22

P

password

cancelling a 26

changing a 25

help 26

setting a

password lock 25

POI

direct access 29

in a city 29

POIs national 29

POIs nearby 29

power 10

symbols 21

preview mode 61

R

Reality View 68

recalculate route 76

route planning 51

route points

delete 52

entering 52

order of 52

route profile 54

routes

arrive at your destination 42, 57

blockaroute section .56

calculate and display 54

load a saved 53

manage 53

navigation 54

planning 51

remove a block on a route section 57

route points 52

route profile 54

save 53

simulation 55

end 55

start 55

starting point 51

changing 52

current location 51

S

safety information 6

search

national POIs 29

POIsnearby 29

Search for POI

direct access 29

in a city 29

search for POI

information 39

service

settings

configuration 79

move between pages 83

save changes 84

selecting 83

TMC 74

toggle between options 84

view a list 83

view information 83

volume 19

settings window 79

accessing 79

simulation

end 55

start 55

software keyboards 23

storage card 8

support 2

symbols used in the manual 1

T

Take Me Home 46,50

TMC

recalculate route 76
show 69,72
symbols 22
traffic message types to display 75
tuning 74

TMC settings

recalculate route 76

trademarks 2

traffic information

recalculate route 76
settings 74
show 69, 72
tuning 74

tuning

TMC 74

turn-by-turn list

block a route section 56
remove a block on a route section 57
view a 56

V

volume 19

W

what's included 5

This page intentionally left blank.
