USER MANUAL 2CORE1333DVI-2.66G ASROCK

Copyright Notice: No part of this installation guide may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this guide may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. Disclaimer: Specifications and information contained in this guide are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide. With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the guide or product. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations English passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate” ASRock Website: http://www.asrock.com Published July 2007 Copyright©2007 ASRock INC. All rights reserved.

ASRock 2Core1333DVI-2.66G Motherboard Motherboard LLayout ayout

PS2_USB_PWR1 Jumper ATX 12V Connector (ATX12V1) CPU Fan Connector (CPU_FAN1) 775-Pin CPU Socket North Bridge Controller Clear CMOS Jumper (CLRCMOS1) 2 x 240-pin DDRII DIMM Slots (Dual Channel A: DDRII_1, DDRII_3; Yellow) 2 x 240-pin DDRII DIMM Slots (Dual Channel B: DDRII_2, DDRII_4; Orange) South Bridge Controller IDE1 Connector (IDE1, Blue) Chassis Speaker Header (SPEAKER 1) System Panel Header (PANEL1) Fourth SATAII Connector (SATAII_4; Orange) Secondary SATAII Connector (SATAII_2; Red)

Third SATAII Connector (SATAII_3; Orange) Primary SATAII Connector (SATAII_1; Red) Chassis Fan Connector (CHA_FAN1) USB 2.0 Header (USB6_7, Blue) USB 2.0 Header (USB4_5, Blue) Floppy Connector (FLOPPY1) HDMR Slot (HDMR1) Front Panel Audio Header (HD_AUDIO1) PCI Slots (PCI1- 2) Internal Audio Connector: CD1 (Black) PCI Express x1 Slot (PCIE2) PCI Express x16 Slot (PCIE1) ATX Power Connector (ATXPWR1) BIOS FWH Chip Serial Port Connector (COM1) Infrared Module Header (IR1)

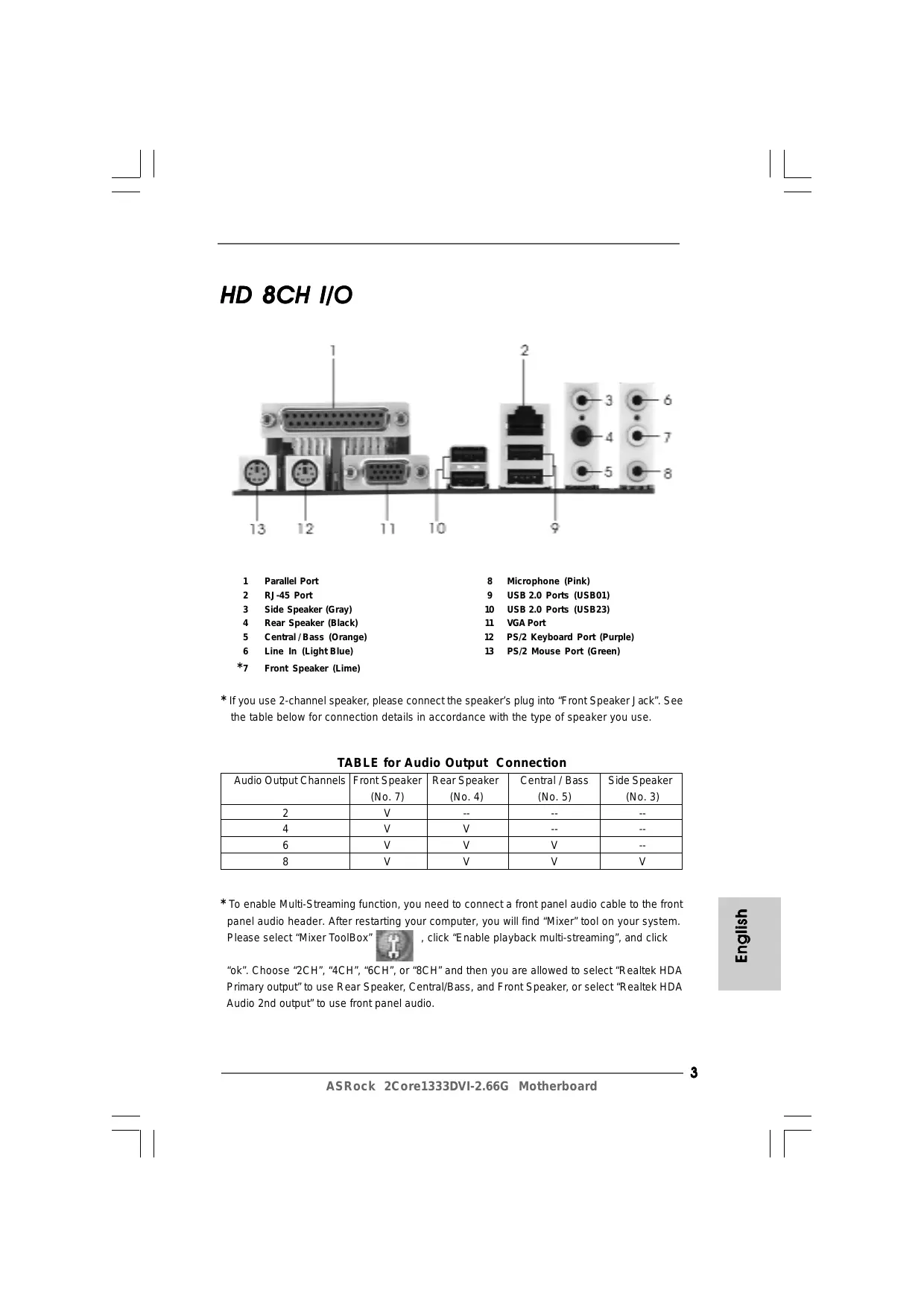

ASRock 2Core1333DVI-2.66G Motherboard HD 8CH I/O

Parallel Port RJ-45 Port Side Speaker (Gray) Rear Speaker (Black) Central / Bass (Orange) Line In (Light Blue)

Microphone (Pink) USB 2.0 Ports (USB01) USB 2.0 Ports (USB23) VGA Port PS/2 Keyboard Port (Purple) PS/2 Mouse Port (Green) Front Speaker (Lime)

If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below for connection details in accordance with the type of speaker you use. TABLE for Audio Output Connection Audio Output Channels Front Speaker Rear Speaker (No. 7) (No. 4)

Central / Bass (No. 5) --V

Side Speaker (No. 3) ---V English

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front panel audio header. After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio.

ASRock 2Core1333DVI-2.66G Motherboard

1. Introduction

Thank you for purchasing ASRock 2Core1333DVI-2.66G motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance. This Quick Installation Guide contains introduction of the motherboard and step-bystep installation guide. More detailed information of the motherboard can be found in the user manual presented in the Support CD. Because the motherboard specifications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com

1.1 Package Contents

ASRock 2Core1333DVI-2.66G Motherboard Bundled With Selected Dual Core CPU Operating at FSB1333 / 2.66GHz (Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm) One selected Dual Core CPU operating at FSB1333 / 2.66GHz ASRock 2Core1333DVI-2.66G Quick Installation Guide ASRock 2Core1333DVI-2.66G Support CD One 80-conductor Ultra ATA 66/100 IDE Ribbon Cable One Ribbon Cable for a 3.5-in Floppy Drive One Serial ATA (SATA) Data Cable (Optional) One Serial ATA (SATA) HDD Power Cable (Optional) One HD 8CH I/O Shield One COM Port Bracket One DVI Graphics-HDCP Card English ASRock 2Core1333DVI-2.66G Motherboard

Specifications Platform CPU - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Bundle with selected Dual Core CPU operating at FSB1333 / 2.66GHz

This motherboard also supports below CPU specifications: - LGA 775 for Intel® Dual Core CoreTM 2 Extreme / CoreTM 2 Duo / Pentium® D / Pentium® Dual Core / Pentium® 4 / Celeron® / Celeron® D - Compatible with all FSB1333/1066/800/533MHz CPUs except Quad Core (see CAUTION 1) - Supports Hyper-Threading Technology - Supports Untied Overclocking Technology (see CAUTION 2) Memory Hybrid Booster Expansion Slot Graphics Audio LAN Rear Panel I/O - Northbridge: Intel® 945GC A2 - Southbridge: Intel® ICH7 - Dual Channel DDRII Memory Technology (see CAUTION 3) - 4 x DDRII DIMM slots (see CAUTION 4) - Support DDRII667/533 (see CAUTION 5) - Max. capacity: 4GB (see CAUTION 6) - CPU Frequency Stepless Control (see CAUTION 7) - ASRock U-COP (see CAUTION 8) - Boot Failure Guard (B.F.G.) - 1 x PCI Express x16 slot - 1 x PCI Express x1 slot - 2 x PCI slots - 1 x HDMR slot - Intel® Graphics Media Accelerator 950 - Pixel Shader 2.0, DirectX 9.0 - Max. shared memory 224MB (see CAUTION 9) - Dual VGA Output: support D-Sub and DVI-D ports with DVI Graphics-HDCP card by independent display controllers - Supports HDCP function with DVI Graphics-HDCP card - 7.1 CH Windows® VistaTM Premium Level HD Audio (ALC888 Audio Codec) - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111B - Supports Wake-On-LAN HD 8CH I/O - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x VGA Port - 1 x Parallel Port (ECP/EPP Support) ASRock 2Core1333DVI-2.66G Motherboard English - Supports EM64T CPU Chipset

Connector BIOS Feature Support CD Hardware Monitor

English Certifications - 4 x Ready-to-Use USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jack: Side Speaker/Rear Speaker/Central/Bass/ Line in/Front Speaker/Microphone (see CAUTION 10) - 4 x SATAII 3.0 Gb/s connectors (No Support for RAID and “Hot Plug” functions) (see CAUTION 11) - 1 x ATA100 IDE connector (supports 2 x IDE devices) - 1 x Floppy connector - 1 x IR header - 1 x COM port header - CPU/Chassis FAN connector - 20 pin ATX power connector - 4 pin 12V power connector - CD in header - Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports) (see CAUTION 12) - 4Mb AMI BIOS - AMI Legal BIOS - Supports “Plug and Play” - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - AMBIOS 2.3.1 Support - Drivers, Utilities, AntiVirus Software (Trial Version) - CPU Temperature Sensing - Chassis Temperature Sensing - CPU Fan Tachometer - Chassis Fan Tachometer - CPU Quiet Fan - Voltage Monitoring: +12V, +5V, +3.3V, Vcore - Microsoft® Windows® 2000/XP/XP 64-bit/VistaTM/ VistaTM 64-bit compliant (see CAUTION 13)

- FCC, CE, WHQL

WARNING Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using the thirdparty overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

ASRock 2Core1333DVI-2.66G Motherboard CAUTION! FSB1333-CPU will operate in overclocking mode. Under this situation, PCIE frequency will also be overclocked to 115MHz.

2. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 23 for details.

3. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the installation guide of memory modules on page 12 for proper installation.

4. There are memory module installation limitations on this motherboard,

please read “Installation of Memory Modules (DIMM)” on page 12 for details.

5. Please check the table below for the CPU FSB frequency and its corresponding memory support frequency.

CPU FSB Frequency Memory Support Frequency DDRII533*, DDRII667 DDRII533, DDRII667

DDRII400, DDRII533, DDRII667

When you use a FSB1333-CPU on this motherboard, it will run at DDRII500 if you adopt a DDRII533 memory module.

6. Due to the chipset limitation, the actual memory size may be less than

4GB for the reservation for system usage under Windows® XP, Windows® XP 64-bit, Windows® VistaTM and Windows® VistaTM 64-bit.

7. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU bus frequencies may cause the instability of the system or damage the CPU.

8. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the motherboard functions properly and unplug the power cord, then plug it back again. To improve heat dissipation, remember to spray thermal grease between the CPU and the heatsink when you install the PC system.

9. The maximum shared memory size is defined by the chipset vendor and

is subject to change. Please check Intel® website for the latest information.

10. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel, 6-channel, and 8-channel modes. Please check the table on page 3 for proper connection.

11. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 22 to adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA hard disk to SATAII connector directly.

12. Power Management for USB 2.0 works fine under Microsoft® Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4. English

ASRock 2Core1333DVI-2.66G Motherboard

13. Microsoft® Windows® VistaTM / VistaTM 64-bit driver keeps on updating now. As

long as we have the latest driver, we will update it to our website in the future. Please visit our website for Microsoft® Windows® VistaTM / VistaTM 64-bit driver and related information. ASRock website http://www.asrock.com

Minimum Hardware R equirement TTable able for W indows ® Requirement Windows Vista TM Premium 2007 and Basic Logo For system integrators and users who purchase this motherboard and plan to submit Windows® VistaTM Premium 2007 and Basic logo, please follow below table for minimum hardware requirements. Memory VGA 512MB x 2 Dual Channel (Premium) 512MB Single Channel (Basic) 256MB x 2 Dual Channel (Basic) DX9.0 with WDDM Driver DVI with HDCP

If you plan to use onboard VGA to submit Windows® VistaTM logo, please keep the default setting of “DVMT Mode Select” option under BIOS.
If you plan to use external graphics card on this motherboard, please refer to Premium Discrete requirement at http://www.asrock.com
If the onboard VGA supports DVI, it must also support HDCP function to qualify for Windows® VistaTM Premium 2007 logo.
After June 1, 2007, all Windows® VistaTM systems are required to meet above minimum hardware requirements in order to qualify for Windows® VistaTM Premium 2007 logo. English ASRock 2Core1333DVI-2.66G Motherboard

2. Installation

Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet or the like. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

2.1 CPU Installation

In the future, you may adopt other compatible Intel 775-LAND CPU on this motherboard. For the installation of Intel 775LAND CPU, please follow the steps below. ASRock reminds you that as long as you adopt other CPU on this motherboard, we will not be responsible for the after service of the bundled CPU. ASRock CPU Sticker English This motherboard is bundled with one selected Dual Core CPU operating at FSB1333 / 2.66GHz. Please do not remove ASRock CPU stickers on both sides of CPU socket on this motherboard. If the stickers are damaged, removed or bear the word “VOID”, ASRock is not responsible for the after service of this CPU. Before you insert the 775-LAND CPU into the socket, please check if the CPU surface is unclean or if there is any bent pin on the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.

ASRock 2Core1333DVI-2.66G Motherboard Step 1. Open the socket: Step 1-1. Disengaging the lever by depressing down and out on the hook to clear retention tab. Step 1-2. Rotate the load lever to fully open position at approximately 135 degrees. Step 1-3. Rotate the load plate to fully open position at approximately 100 degrees. black line black line Step 2. Insert the 775-LAND CPU: Step 2-1. Hold the CPU by the edges where are marked with black lines. Step 2-2. Orient the CPU with IHS (Integrated Heat Sink) up. Locate Pin1 and the two orientation key notches. Pin1 orientation key notch orientation key notch Pin1 alignment key alignment key For proper inserting, please ensure to match the two orientation key notches of the CPU with the two alignment keys of the socket. English Step 2-3. Carefully place the CPU into the socket by using a purely vertical motion. Step 2-4. Verify that the CPU is within the socket and properly mated to the orient keys. Step 3. Remove PnP Cap (Pick and Place Cap): Use your left hand index finger and thumb to support the load plate edge, engage PnP cap with right hand thumb and peel the cap from the socket while pressing on center of PnP cap to assist in removal.

ASRock 2Core1333DVI-2.66G Motherboard

1. It is recommended to use the cap tab to handle and avoid kicking

2. This cap must be placed if returning the motherboard for after

service. Step 4. Close the socket: Step 4-1. Rotate the load plate onto the IHS. Step 4-2. While pressing down lightly on load plate, engage the load lever. Step 4-3. Secure load lever with load plate tab under retention tab of load lever.

Installation of CPU Fan and Heatsink For proper installation, please kindly refer to the instruction manuals of your CPU fan and heatsink. Below is an example to illustrate the installation of the heatsink for 775-LAND CPU. Step 1. Apply thermal interface material onto center of IHS on the socket surface. Step 3. Step 4. Place the heatsink onto the socket. Ensure fan cables are oriented on side closest to the CPU fan connector on the motherboard (CPU_FAN1, see page 2, No. 3). Align fasteners with the motherboard throughholes. Rotate the fastener clockwise, then press down on fastener caps with thumb to install and lock. Repeat with remaining fasteners. English Step 2. If you press down the fasteners without rotating them clockwise, the heatsink cannot be secured on the motherboard. Step 5. Step 6. Connect fan header with the CPU fan connector on the motherboard. Secure excess cable with tie-wrap to ensure cable does not interfere with fan operation or contact other components.

ASRock 2Core1333DVI-2.66G Motherboard

2.3 Installation of Memory Modules (DIMM)

2Core1333DVI-2.66G motherboard provides four 240-pin DDRII (Double Data Rate II) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDRII DIMM pair in the slots of the same color. In other words, you have to install identical DDRII DIMM pair in Dual Channel A (DDRII_1 and DDRII_3; Yellow slots; see p.2 No.7) or identical DDRII DIMM pair in Dual Channel B (DDRII_2 and DDRII_4; Orange slots; see p.2 No.8), so that Dual Channel Memory Technology can be activated. This motherboard also allows you to install four DDRII DIMMs for dual channel configuration, and please install identical DDRII DIMMs in all four slots. You may refer to the Dual Channel Memory Configuration Table below. Dual Channel Memory Configurations (DS: Double Side, SS: Single Side) DDRII_1 DDRII_2 DDRII_3 DDRII_4 (Yellow Slot) (Orange Slot) (Yellow Slot) (Orange Slot) 2 memory modules SS

If you want to install two memory modules, for optimal compatibility and reliability, it is recommended to install them in the slots of the same color. In other words, install them either in the set of yellow slots (DDRII_1 and DDRII_3), or in the set of orange slots (DDRII_2 and DDRII_4). If only one memory module or three memory modules are installed in the DDRII DIMM slots on this motherboard, it is unable to activate the Dual Channel Memory Technology. If a pair of memory modules is NOT installed in the same Dual Channel, for example, installing a pair of memory modules in DDRII_1 and DDRII_2, it is unable to activate the Dual Channel Memory Technology . It is not allowed to install a DDR memory module into DDRII slot; otherwise, this motherboard and DIMM may be damaged.

ASRock 2Core1333DVI-2.66G Motherboard Recommended Memory Configurations (DS: Double Side, SS: Single Side) DDRII_1 DDRII_2 DDRII_3 DDRII_4 (Yellow Slot) (Orange Slot) (Yellow Slot) (Orange Slot) 1 memory module DS/SS*

2 memory modules DS/SS DS/SS 2 memory modules X DS/SS DS/SS 3 memory modules SS DS/SS 4 memory modules SS

If you only install one memory module, you can install it to any one of the four slots. These two TRANSCEND memory modules can only be supported under the following conditions: DRAM SIZE TYPE VENDOR (MB) TRANSCEND 256 DDRII533 TRANSCEND 512 DDRII533

1. If you plan to install one above memory module, you can install it to any DDRII

slot of this motherboard.

2. If you plan to install two above memory modules, it is recommended to

install them either in the set of yellow slots (DDRII_1 and DDRII_3), or in the set of orange slots (DDRII_2 and DDRII_4).

3. This motherboard does not support three or four above memory modules.

Installing a DIMM Please make sure to disconnect power supply before adding or removing DIMMs or the system components. Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot. English Step 1. Step 2.

ASRock 2Core1333DVI-2.66G Motherboard The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation. Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully snap back in place and the DIMM is properly seated.

2.4 Expansion Slots (PCI, HDMR and PCI Express Slots)

There are 2 PCI slots, 1 HDMR slot and 2 PCI Express slots on this motherboard. PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI interface. HDMR slot: HDMR slot is used to insert a HDMR card with v.92 Modem functionality. The HDMR slot is shared with PCI2 slot. PCIE Slots: PCIE1 (PCIE x16 slot) is used for PCI Express cards with x16 lane width graphics cards or ASRock DVI Graphics-HDCP card. PCIE2 (PCIE x1 slot) is used for PCI Express cards with x1 lane width cards, such as Gigabit LAN card, SATA2 card, etc.

1. If you install the add-on PCI Express VGA card to PCIE1 (PCIE x16 slot),

the onboard VGA will be disabled. If you install the add-on PCI Express VGA card to PCIE1 (PCIE x16 slot) and adjust the “Internal Graphics Mode Select” BIOS option to [Enabled], the onboard VGA will be enabled, and the primary screen will be onboard VGA.

2. You can only choose either PCI Express VGA card or DVI Graphics-HDCP

card to install to PCIE1 (PCIE x16 slot). Installing an expansion card Step 1. Step 2. English Step 3. Step 4. Before installing the expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation. Remove the bracket facing the slot that you intend to use. Keep the screws for later use. Align the card connector with the slot and press firmly until the card is completely seated on the slot. Fasten the card to the chassis with screws.

ASRock 2Core1333DVI-2.66G Motherboard

2.5 DVI Graphics-HDCP Card Installation Guide

With the onboard VGA/D-Sub output and the external installation of our DVI GraphicsHDCP card, this motherboard provides users with dual VGA output support: DVI-D and D-Sub. You can easily enjoy the benefits of dual VGA output support by connecting the D-Sub monitor to the VGA/D-Sub port on the I/O panel and connecting the DVI-D monitor to our DVI Graphics-HDCP card inserted to PCIE1 (PCIE x16 slot) on this motherboard. Please refer to below procedures for proper installation of DVI GraphicsHDCP card. Step 1. Install the DVI Graphics-HDCP card to PCIE1 (PCIE x16 slot). Please refer to the expansion card installation procedures on page 14 for details. DVI Graphics-HDCP card Connect the DVI-D monitor to the DVI-D output connector of DVI GraphicsHDCP card which is inserted to PCIE1 (PCIE x16 slot) on this motherboard. DVI-D connector of DVI-D monitor English Step 2. DVI-D output connector of DVI Graphics-HDCP card

ASRock 2Core1333DVI-2.66G Motherboard Step 3. Step 4. Connect the D-Sub monitor to the VGA/D-Sub port on the I/O panel of this motherboard. If you have installed Intel® VGA driver from our support CD to your system already, you can freely enjoy the benefits of DVI-D output function with this motherboard after your system boots. If you haven’t installed Intel® VGA driver yet, please install Intel® VGA driver from our support CD to your system and restart your computer. Then you can start to use DVI-D output function with this motherboard. HDCP Function with DVI Graphics-HDCP Card HDCP function is supported with DVI Graphics-HDCP card. With the installation of DVI Graphics-HDCP card, this motherboard is equipped with HDCP function. To use HDCP function with this motherboard, you need to adopt the monitor that supports HDCP function as well. Therefore, you can enjoy the superior display quantity with highdefinition HDCP encryption contents. Please refer to below instruction for more details about HDCP function. What is HDCP? HDCP stands for High-Bandwidth Digital Content Protection, a specification developed by Intel® for protecting digital entertainment content that uses the DVI interface. HDCP is a copy protection scheme to eliminate the possibility of intercepting digital data midstream between the video source, or transmitter - such as a computer, DVD player or set-top box - and the digital display, or receiver - such as a monitor, television or projector. In other words, HDCP specification is designed to protect the integrity of content as it is being transmitted. English Products compatible with the HDCP scheme such as DVD players, satellite and cable HDTV set-top-boxes, as well as few entertainment PCs requires a secure connection to a compliant display. Due to the increase in manufacturers employing HDCP in their equipment, it is highly recommended that the HDTV you purchase is compatible.

ASRock 2Core1333DVI-2.66G Motherboard

2.6 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when jumper cap is placed on these 2 pins. Jumper Setting

PS2_USB_PWR1

Short Open Description Short pin2, pin3 to enable (see p.2 No. 1) +5VSB (standby) for PS/2 or USB wake up events. Note: To select +5VSB, it requires 2 Amp and higher standby current provided by power supply. Clear CMOS (CLRCMOS1, 2-pin jumper) (see p.2 No. 6) 2-pin jumper English Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes system setup information such as system password, date, time, and system setup parameters. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short 2 pins on CLRCMOS1 for 5 seconds.

ASRock 2Core1333DVI-2.66G Motherboard

2.7 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! FDD connector (33-pin FLOPPY1) (see p.2 No. 20) the red-striped side to Pin1 Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the connector. Primary IDE connector (Blue) (39-pin IDE1, see p.2 No. 10) connect the black end to the IDE devices connect the blue end to the motherboard 80-conductor ATA 66/100 cable Note: Please refer to the instruction of your IDE device vendor for the details. Serial ATAII Connectors (SATAII_1: see p.2, No. 16) (SATAII_2: see p.2, No. 14) SATAII_3 SATAII_4 SATAII_1 SATAII_2 (SATAII_3: see p.2, No. 15) (SATAII_4: see p.2, No. 13) Serial ATA (SATA) Data Cable These Serial ATAII (SATAII) connectors support SATAII or SATA hard disk for internal storage devices. The current SATAII interface allows up to

3.0 Gb/s data transfer rate.

Either end of the SATA data cable can be connected to the SATA / SATAII hard disk or the SATAII connector on the motherboard. (Optional) English Serial ATA (SATA) Power Cable (Optional) connect to the SATA HDD power connector connect to the power supply Please connect the black end of SATA power cable to the power connector on each drive. Then connect the white end of SATA power cable to the power connector of the power supply.

ASRock 2Core1333DVI-2.66G Motherboard USB 2.0 Headers Besides four default USB 2.0 ports on the I/O panel, there are two USB 2.0 headers on this motherboard. Each USB 2.0 header can support two USB

2.0 ports.

(9-pin USB6_7) (see p.2 No. 18) (9-pin USB4_5) (see p.2 No. 19) This header supports an optional wireless transmitting and receiving infrared module. (5-pin IR1) (see p.2 No. 30) Internal Audio Connector (4-pin CD1) CD1 (CD1: see p.2 No. 24) Front Panel Audio Header (9-pin HD_AUDIO1) This is an interface for front panel audio cable that allows convenient connection and control of audio devices.

1. High Definition Audio supports Jack Sensing, but the panel wire on the

chassis must support HDA to function correctly. Please follow the instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for HD audio panel only. You don’t need to connect them for AC’97 audio panel. E. Enter BIOS Setup Utility. Enter Advanced Settings, and then select Chipset Configuration. Set the Front Panel Control option from [Auto] to [Enabled]. English (see p.2 No. 22) This connector allows you to receive stereo audio input from sound sources such as a CD-ROM, DVD-ROM, TV tuner card, or MPEG card.

ASRock 2Core1333DVI-2.66G Motherboard F. Enter Windows system. Click the icon on the lower right hand taskbar to enter Realtek HD Audio Manager. Click “Audio I/O”, select “Connector Settings” , choose “Disable front panel jack detection”, and save the change by clicking “OK”. System Panel Header This header accommodates several system front panel functions. (9-pin PANEL1) (see p.2 No. 12) Chassis Speaker Header Please connect the chassis speaker to this header. (4-pin SPEAKER 1) (see p.2 No. 11) Chassis Fan Connector Please connect a chassis fan cable to this connector and match the black wire to the ground pin. (3-pin CHA_FAN1) (see p.2 No. 17) CPU Fan Connector Please connect a CPU fan cable to this connector and match the black wire to the ground pin. (4-pin CPU_FAN1) (see p.2 No. 3)

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3. Pin 1-3 Connected 3-Pin Fan Installation ATX Power Connector (20-pin ATXPWR1) Please connect an ATX power supply to this connector. English (see p.2 No. 27) ATX 12V Connector (4-pin ATX12V1) (see p.2 No. 2) Please note that it is necessary to connect a power supply with ATX 12V plug to this connector so that it can provides sufficient power. Failing to do so will cause the failure to power up.

ASRock 2Core1333DVI-2.66G Motherboard Serial port Header (9-pin COM1) This COM1 header supports a serial port module. English (see p.2 No. 29)

ASRock 2Core1333DVI-2.66G Motherboard

Before installing SATAII hard disk to your computer, please carefully read below SATAII hard disk setup guide. Some default setting of SATAII hard disks may not be at SATAII mode, which operate with the best performance. In order to enable SATAII function, please follow the below instruction with different vendors to correctly adjust your SATAII hard disk to SATAII mode in advance; otherwise, your SATAII hard disk may fail to run at SATAII mode. Western Digital If pin 5 and pin 6 are shorted, SATA 1.5Gb/s will be enabled. On the other hand, if you want to enable SATAII 3.0Gb/s, please remove the jumpers from pin 5 and pin 6. SAMSUNG If pin 3 and pin 4 are shorted, SATA 1.5Gb/s will be enabled. On the other hand, if you want to enable SATAII 3.0Gb/s, please remove the jumpers from pin 3 and pin 4. HITACHI Please use the Feature Tool, a DOS-bootable tool, for changing various ATA features. Please visit HITACHI’s website for details: http://www.hitachigst.com/hdd/support/download.htm The above examples are just for your reference. For different SATAII hard disk products of different vendors, the jumper pin setting methods may not be the same. Please visit the vendors’ website for the updates. English ASRock 2Core1333DVI-2.66G Motherboard

Serial A ATTA (SA (SATTA) / Serial A ATTAII (SA (SATTAII) Hard Disks Installation This motherboard adopts Intel® ICH7 south bridge chipset that supports Serial ATA (SATA) / Serial ATAII (SATAII) hard disks. You may install SATA / SATAII hard disks on this motherboard for internal storage devices. This section will guide you to install the SATA / SATAII hard disks. STEP 1: Install the SATA / SATAII hard disks into the drive bays of your chassis. STEP 2: Connect the SATA power cable to the SATA / SATAII hard disk. STEP 3: Connect one end of the SATA data cable to the motherboard’s SATAII connector. STEP 4: Connect the other end of the SATA data cable to the SATA / SATAII hard disk.

2.10 Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical drive first. Then, the drivers compatible to your system can be auto-detected and listed on the support CD driver page. Please follow the order from up to bottom side to install those required drivers. Therefore, the drivers you install can work properly.

2.11 HDMR Card and Driver Installation

If you do not insert HDMR card to this motherboard, and you finish installing all drivers to your system now, but in the future, you plan to use HDMR card function on this motherboard, please follow the steps below then.

1. Insert HDMR card to HDMR slot on this motherboard. Please make sure that the

HDMR card is completely seated on the slot.

2. Install HDMR card driver from our support CD to your system.

3. Reboot your system.

2.12 Untied Overclocking TTechnology

echnology English This motherboard supports Untied Overclocking Technology, which means during overclocking, FSB enjoys better margin due to fixed PCI / PCIE buses. Before you enable Untied Overclocking function, please enter “Overclock Mode” option of BIOS setup to set the selection from [Auto] to [CPU, PCIE, Async.]. Therefore, CPU FSB is untied during overclocking, but PCI / PCIE buses are in the fixed mode so that FSB can operate under a more stable overclocking environment. Please refer to the warning on page 6 for the possible overclocking risk before you apply Untied Overclocking Technology.

ASRock 2Core1333DVI-2.66G Motherboard

3. BIOS Information

The Flash Memory on the motherboard stores BIOS Setup Utility. When you start up the computer, please press <F2> during the Power-On-Self-Test (POST) to enter BIOS Setup utility; otherwise, POST continues with its test routines. If you wish to enter BIOS Setup after POST, please restart the system by pressing <Ctl> + <Alt> + <Delete>, or pressing the reset button on the system chassis. The BIOS Setup program is designed to be user-friendly. It is a menu-driven program, which allows you to scroll through its various sub-menus and to select among the predetermined choices. For the detailed information about BIOS Setup, please refer to the User Manual (PDF file) contained in the Support CD.

4. Software Suppor

Supportt CD information This motherboard supports various Microsoft® Windows® operating systems: 2000 / XP / XP 64-bit / VistaTM / VistaTM 64-bit. The Support CD that came with the motherboard contains necessary drivers and useful utilities that will enhance motherboard features. To begin using the Support CD, insert the CD into your CD-ROM drive. It will display the Main Menu automatically if “AUTORUN” is enabled in your computer. If the Main Menu does not appear automatically, locate and double-click on the file “ASSETUP. EXE” from the BIN folder in the Support CD to display the menus. English ASRock 2Core1333DVI-2.66G Motherboard

ASRock 2Core1333DVI-2.66G Motherboard

Spezifikationen Plattform CPU

ASRock 2Core1333DVI-2.66G Motherboard

ASRock 2Core1333DVI-2.66G Motherboard Deutsch

ASRock-CPU-Aufkleber Deutsch

ASRock 2Core1333DVI-2.66G Motherboard

ASRock 2Core1333DVI-2.66G Motherboard Deutsch ASRock 2Core1333DVI-2.66G Motherboard

ASRock 2Core1333DVI-2.66G Motherboard

ZELLENAN ZELLENNUMMER -BIETER

ASRock 2Core1333DVI-2.66G Motherboard DVI Graphics-HDCP-Karte

ASRock 2Core1333DVI-2.66G Motherboard

ASRock 2Core1333DVI-2.66G Motherboard Serial ATA- (SATA-) Datenkabel (Option)

ASRock 2Core1333DVI-2.66G Motherboard Interne Audio-Anschlüsse (4-Pin CD1) CD1

ASRock 2Core1333DVI-2.66G Motherboard System Panel-Header (3-pin CHA_FAN1) Deutsch

ASRock 2Core1333DVI-2.66G Motherboard

ATTA - (SA

(SATTA) / Serial A ATTAII- (SA (SATTAII) Festplatteninstallation

ASRock 2Core1333DVI-2.66G Motherboard Deutsch ASRock 2Core1333DVI-2.66G Motherboard

4. Software Suppor

Supportt CD information Deutsch

ASRock 2Core1333DVI-2.66G Motherboard

ASRock 2Core1333DVI-2.66G Motherboard ASRock 2Core1333DVI-2.66G Motherboard

ASRock 2Core1333DVI-2.66G Motherboard

ASRock 2Core1333DVI-2.66G Motherboard Autocollant CPU ASRock (Corps du

ASRock 2Core1333DVI-2.66G Motherboard

ASRock 2Core1333DVI-2.66G Motherboard (Orifices des attaches ressortant)

ASRock 2Core1333DVI-2.66G Motherboard DDRII_2 (Slot Orange)

DDRII_3 (Slot Jaunes)

DDRII_4 (Slot Orange)

ASRock 2Core1333DVI-2.66G Motherboard DDRII_1 (Slot Jaunes)

Configurations de mémoire recommandées (DS: Double Side (double face), SS: Single Side (simple face)) DDRII_2 (Slot Orange)

DDRII_4 (Slot Orange)

ASRock 2Core1333DVI-2.66G Motherboard

ASRock 2Core1333DVI-2.66G Motherboard (USB6_7 br.9) (voir p.2 No. 18) (USB4_5 br.9) (voir p.2 No. 19) (5-pin IR1) (voir p.2 No. 30)

ASRock 2Core1333DVI-2.66G Motherboard (9-pin PANEL1) (voir p.2 No. 12) (SPEAKER1 br. 4) (voir p.2 No. 11) (CHA_FAN1 br. 3) (voir p.2 No. 17) (CPU_FAN1 br. 4) (voir p.2 No. 3)

ASRock 2Core1333DVI-2.66G Motherboard (COM1 br.9) (voir p.2 No. 29)

ASRock 2Core1333DVI-2.66G Motherboard

Installation des Disques Durs Serial A ATTA (SA (SATTA) / Serial (SATTAII) ATAII (SA

ASRock 2Core1333DVI-2.66G Motherboard

ASRock 2Core1333DVI-2.66G Motherboard ASRock 2Core1333DVI-2.66G Motherboard

ASRock 2Core1333DVI-2.66G Motherboard

ASRock 2Core1333DVI-2.66G Motherboard (9-pin USB6_7) (ver p.2, No. 18) (9-pin USB4_5) (ver p.2, No. 19)

ASRock 2Core1333DVI-2.66G Motherboard

ASRock 2Core1333DVI-2.66G Motherboard Conector de ATX 12V power (4-pin ATX12V1) (ver p.2, No. 2) (vea p.2, N. 29)

ASRock 2Core1333DVI-2.66G Motherboard
