Product type	Rotary trimmer (wheel cutter)
Brand	FELLOWES
Model	NEUTRON
Cutting capacity	Up to 10 sheets (80 gsm)
Maximum cutting length	30 cm (12 inches)
Dimensions (L x W x H)	40 x 15 x 5 cm
Weight	1.2 kg
Power supply	Manual (no batteries or electricity required)
Base material	ABS plastic with non-slip coating
Blade	Stainless steel, replaceable
Cutting guide	Integrated graduated ruler with adjustable stop
Safety system	Automatic blade holder lock and finger guard
Maintenance	Gentle cleaning with a damp cloth; occasional blade lubrication
Spare parts available	Replacement blade, cutting guide
Repairability	User blade replacement (tool not provided)
Recommended use	Office, school, home
Warranty	1 year (depending on retailer)

Frequently Asked Questions - NEUTRON FELLOWES

What is the maximum cutting thickness of the Fellowes Neutron?

The Fellowes Neutron cuts up to 10 sheets of standard paper (80 gsm) in one pass.

Can I replace the blade myself?

Yes, the blade is replaceable. You need to remove the blade holder and unscrew the old blade. Use a suitable screwdriver and wear protective gloves.

How do I clean the trimmer?

Wipe the base and blade with a soft, damp cloth. Do not use abrasive cleaners. Dry immediately.

What are the dimensions of the Fellowes Neutron?

It measures approximately 40 cm long, 15 cm wide, and 5 cm high, making it compact for the office.

Is the trimmer suitable for cutting cardboard?

No, the Fellowes Neutron is designed for paper and thin sheets. Thick cardboard may damage the blade.

How to ensure a straight cut?

Use the adjustable cutting guide and the graduated ruler. Make sure the paper stack is well aligned before cutting.

Are there safety features?

Yes, the trimmer features an automatic blade holder lock and a finger guard that prevents accidental contact with the blade.

Where can I buy a replacement blade?

Replacement blades are available from authorized Fellowes dealers or online retail sites. Refer to the Neutron model.

Does the trimmer require electrical power?

No, it is fully manual. No batteries or electricity are needed.

What types of paper can I cut?

The Fellowes Neutron is suitable for standard paper, photo paper, thin cardboard, and laminated sheets (up to 0.2 mm thick).

USER MANUAL NEUTRON FELLOWES

SafeCut™ Rotary Trimmers

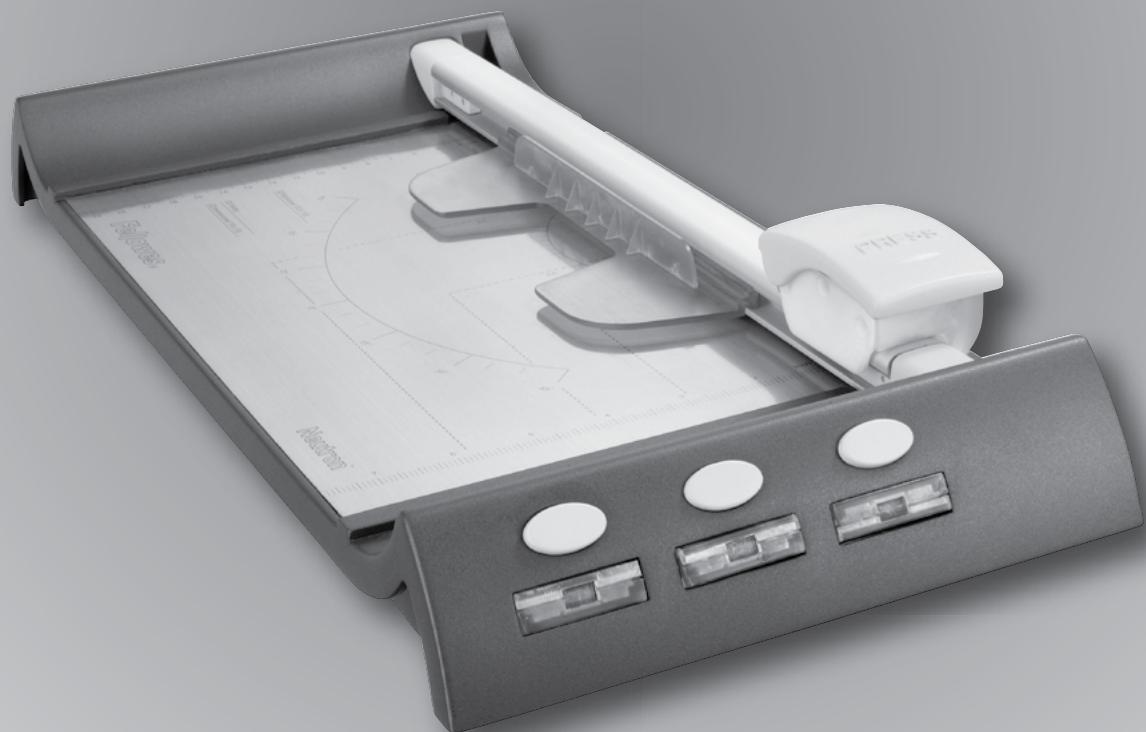

Neutron™ / Neutron™ Plus Proton™ Electron™

Please read these instructions before use.

IMPORTANT SAFETY INSTRUCTIONS — Read Before Using!

CAUTION

• Caution: blades are extremely sharp.
• SafeCut™ cassette encloses blades - do not try to extract blades manually.
• Always supervise children during use.
• Do not overload trimmer.
• Keep pets away from trimmer while in use.
• Do not open or attempt to repair, as this will void your warranty. Contact Customer Service if you have questions. Please note the warranty does not apply in cases of abuse, mishandling or unauthorized repair.
• Do not try to open SafeCut™ blade cartridges.

CUTTING PAPER AND PHOTOS

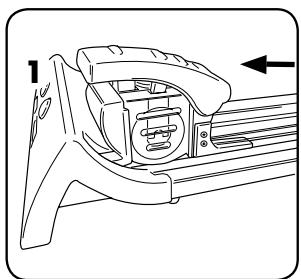

1. Slide cutting carriage to one end into lock position.

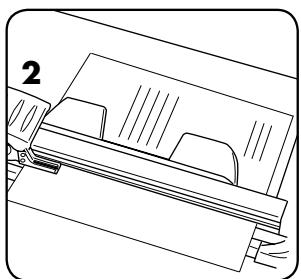

2. Place item (e.g. photo or paper) onto cutting table.

CRC #	Model	Number of blades	Cutting Length (mm)	Cutting Length (inch)	Cutting capacity (sheets 20 lb)
54104	Electron 120	4	320	12	10
54105	Electron 180	4	460	18	10

Electron™ SET-UP

To operate:

1. Remove battery and cover
2. Remove plastic film
3. Re-insert battery and cover

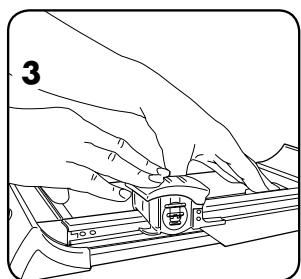

3. Hold paper steady with hand or clamping mechanism. To activate cutting blade, push down carriage handle. (Electron: when pressing handle down, LED will glow)

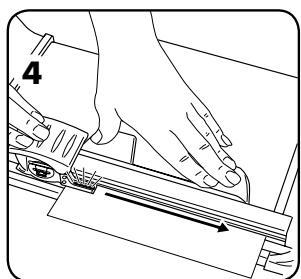

4. To cut, push handle downwards and slide carriage along until reaching the end of the bar. At the end of the bar, release the carriage and the clamping mechanism will release. For cutting larger capacities press blade harder on side nearest the cutting strip.

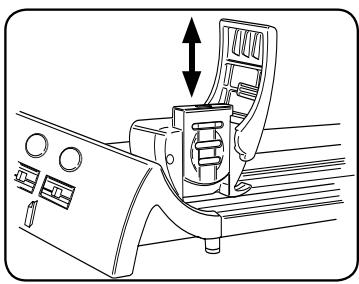

SAFECUT™ SAFETY FEATURES

The SafeCut™ cartridge system allows users to change the cutting cartridge without touching the blades.

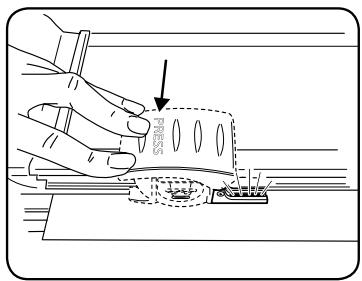

The SafeCut™ LED Guide on the Electron trimmer for illuminated precision. Safer than laser guides.

ACCESSORY PACKS

3 Creative SafeCut™ blades	Cutting capacity (sheets 20 lb)
~ ~ ~ ~ ~ Wave Cut	5
---- Perforate	5
~ ~ ~ ~ ~ Fold (crease)	3

To Order: us: 800-955-0959 Canada: 1-800-665-4339

CRC#	Pack contents
54113	3 Creative SafeCut™ blades (1x wave, 1x perforate, 1x fold)
54114	2 Straight SafeCut™ blades
54115	12” Cutting strips (x3) Strip will need to be trimmed to fit Neutron™ and Neutron Plus models
54116	18” Cutting strips (x3)

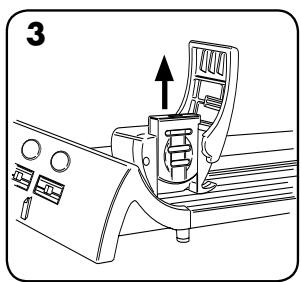

CHANGE SAFECUT CARTRIDGE

1. Slide cutting carriage to one end into lock position.

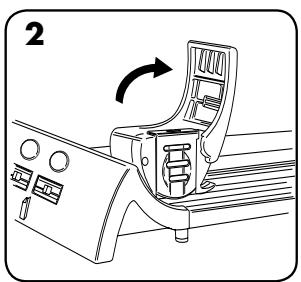

1. Lift carriage handle up.

1. Pull SafeCut™ cartridge upwards out of cutting carriage and insert new cartridge (push down to click into place).

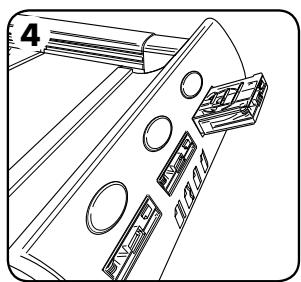

1. Press yellow button to release cassette from base. Return into storage slot in base.

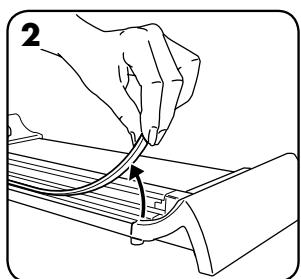

CHANGING CUTTING STRIP

1. Slide cutting carriage to one end into lock position.

1. Remove cutting strip off trimmer base.

1. Turn cutting strip over to use both sides.

1. Replacement strips available (see accessory details).

ELECTRON SAFECUT™ LED GUIDE

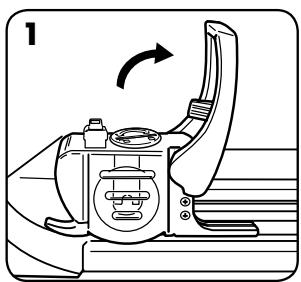

1. Slide cutting carriage to one end into lock position. Pull (swing) carriage handle up.

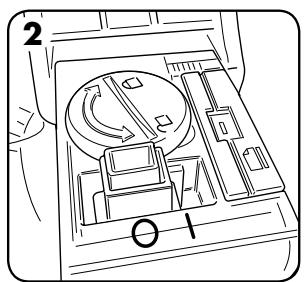

2. Turn switch to ON (I) position.

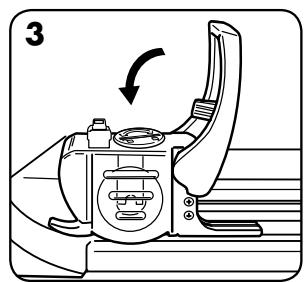

3. Pull (swing) carriage handle down.

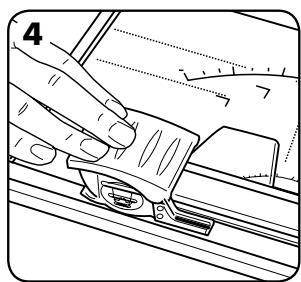

4. Press handle down to activate SafeCut™ LED Guide.

CHANGE BATTERY ON ELECTRON SAFECUT™ LED GUIDE

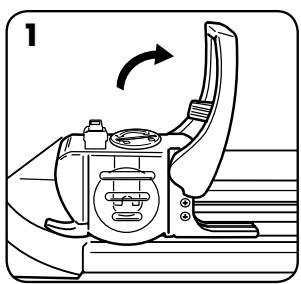

1. Slide cutting carriage to one end into lock position. Pull (swing) carriage handle up.

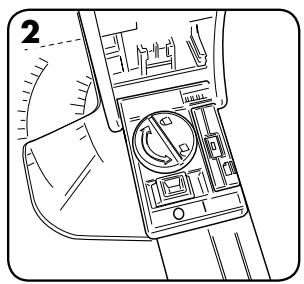

2. Unscrew battery cover with coin or screwdriver (left turn opens, right turn closes battery cover).

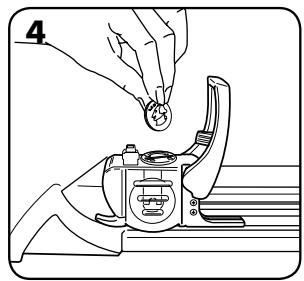

3. Remove old battery and replace with a new battery [type CR2032].

4. Close battery cover.

WARRANTY

Fellowes warrants all other parts of the machine to be free of defects in material and workmanship for 2 year from the date of purchase by the original consumer. If any part is found to be defective during the warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes' option and expense, of the defective part. This warranty does not apply in cases of abuse, mishandling, or unauthorized repair. ANY IMPLIED WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY

LIMITED IN DURATION TO THE APPROPRIATE WARRANTY PERIOD SET FORTH ABOVE. In no event shall Fellowes be liable for any consequential or incidental damages attributable to this product. This warranty gives you specific legal rights. The duration, terms, and conditions of this warranty are valid worldwide, except where different limitations, restrictions, or conditions may be required by local law. For more details or to obtain service under this warranty, please contact us or your dealer. Accessories and consumables are excluded from this warranty.
