Product type	Document shredder
Brand	Fellowes
Model	C-220i / C-220Ci
Cut type	Cross-cut (3.9 x 38 mm) or strip-cut (5.8 mm)
Sheets per pass capacity	Up to 20 sheets (75 g/m²)
CD/credit card capacity	1 per pass
Paper entry width	240 mm
Power supply	120 V, 60 Hz, 2.9 A (C-220i) / 4.5 A (C-220Ci)
Recommended daily usage	Up to 10,000 sheets / 200 cards / 10 CDs (C-220i); 5,000 sheets (C-220Ci)
SafeSense technology	Immediate stop if hands are too close to the paper entry
Anti-jam system	Prevents overloads and feeds misfed papers
Auto Oil (C-220Ci only)	Automatic blade oiling to improve performance
Sleep mode	Automatic shutdown after 2 minutes of inactivity
Oil reservoir	12 oz capacity (approx. 355 ml)
Light indicators	Bin full, door open, paper removal, low oil, sheet capacity, SafeSense
Safety	Disconnect switch, emergency stop, SafeSense auto stop
Maintenance	Periodic sensor cleaning, emptying the bin, refilling oil
Dimensions (approx.)	Not provided, but designed for office use
Weight (approx.)	Not provided
Warranty	3 years parts and labor, lifetime warranty on blades

Frequently Asked Questions - C-220I FELLOWES

How to use the Fellowes C-220i shredder?

Plug in the device and set the disconnect switch to ON (I). Press the ON button to activate. Insert paper straight into the paper entry and release. For a CD, hold it by the edge and insert it into the CD entry. When finished, set to OFF or leave in sleep mode.

What to do in case of paper jam?

The anti-jam system clears jams by preventing overloads and feeding misfed papers. If a jam persists, switch to Reverse mode (I< I) to remove the paper.

How does SafeSense technology work?

The SafeSense technology immediately stops the shredder if your hands are too close to the paper entry. To check its operation, touch the test area; the yellow SafeSense light turns on if everything is normal.

How to oil the Fellowes C-220Ci shredder?

The C-220Ci model features an automatic Auto Oil system. Fill the reservoir with 12 oz of shredder oil (Fellowes #35250). To test, press the Auto and Forward buttons simultaneously. Oil should spray from the nozzles.

What does the 'Low oil' indicator mean?

The Low oil indicator means the oil reservoir needs to be filled. Use Fellowes shredder oil (ref. 35250) and do not exceed 12 oz. Do not overfill.

Why doesn't the shredder start?

Check that the disconnect switch is set to ON (I) and the power cord is plugged in. The shredder will not operate if the door is open or the bin is full (Bin full indicator). Also ensure sleep mode is not active; touch the control panel.

What is the maximum sheet capacity?

The shredder can accept up to 20 sheets per pass (75 g/m² paper). To avoid jams, do not exceed this capacity. Performance may be reduced with thicker paper or high humidity.

How to clean the paper detection sensors?

The sensors are located in the center of the paper entry. If the motor runs without paper, the sensors may be obstructed by dust. Use an automatic cleaning cycle: the shredder advances and reverses for 3 to 6 seconds. Otherwise, gently clean with a dry cloth.

What materials should not be shredded?

Do not insert adhesive labels, continuous paper, transparencies, newspapers, cardboard, large paper clips, plastic-coated materials, folders, X-rays, or unmentioned plastics. Staples and small paper clips are accepted.

What is the warranty for the Fellowes C-220i?

Fellowes offers a limited 3-year warranty on parts and labor, and a lifetime warranty on cutting blades. For maintenance, use recommended Fellowes oils and bags.

USER MANUAL C-220I FELLOWES

Please read these instructions before use.

Do not discard: keep for future reference.

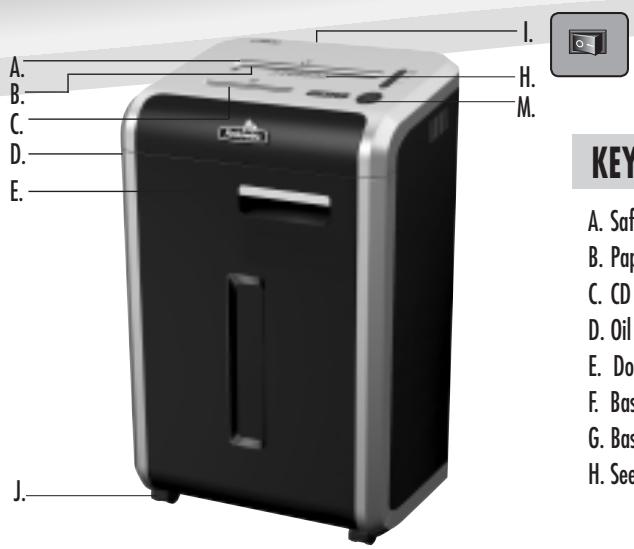

KEY

A. SafeSense Technology
B. Paper entry
C. CD entry
D. Oil reservoir
E. Door
F. Basket - paper (inside)
G. Basket - CD (inside)
H. See safety instructions

I. Disconnect power switch
J. Casters
K. Oil drain plug (inside)
C-220Ci only
L. Shipping bolts (wing nuts) To be removed prior to operation

M. Control Panel and LEDs

1. Reverse
   2.ON/OFF
   3.Forward
2. Bin full

3. Door open

4. Remove paper

5. Low oil
6. Sheet capacity indicator
   SAE 9. SafeSense indicator (yellow)
7. Auto button

CAPABILITIES

Will shred: Paper, credit cards, CD/DVD's, staples and small paper clips

Will not shred: Adhesive labels, continuous form paper, transparencies, newspaper, cardboard, large paper clips, laminates, file folders, X-rays or plastic other than noted above

Paper shred size:

Cross-Cut. 5/32 inches x 1-1/2 inches (3.9mm x 38mm)

Strip Cut. 7/32 inches (5.8mm)

Maximum:

Sheets per pass 20*

CDs/Cards per pass 1*

Paper entry width. 9 1/2 inches (240mm)

• 8.5 inches x 11 inches, 20lb., (75g) paper at 120V, 60 Hz, C-220i: 2.9Amps, C-220Ci: 4.5Amps; heavier paper, humidity or other than rated voltage may reduce capacity. Recommended daily usage rates: C-220i: 10,000 sheets per day C-220Ci: 5,000 sheets per day; both: 200 credit cards; 10 CDs

Fellowes SafeSense® shredders are designed to be operated in home and office environments ranging between 50 - 80 degrees Fahrenheit (10 - 26 degrees Celsius) and 40 - 80% relative humidity.

ADVANCED PRODUCT FEATURES

Jam Proof System Eliminates frustrating by preventing overloc and powering through misfed paper

Patented SafeSense® Technology

Stops shredder immediately when hands are too close to the paper entry

Auto Oil (C-220Ci only)

Automatically oils the cutters to enhance performance and extend shredder life

Sleep Mode Energy saving feature shuts down automatically after 2 minutes of no shredding activity

WARNING: IMPORTANT SAFETY INSTRUCTIONS — Read Before Using!

• Keep away from children and pets. Keep hands away from paper entry. Always set to off or unplug when not in use.
• Keep foreign objects - gloves, jewelry, clothing, hair, etc. away from shredder openings. If object enters top opening, switch to Reverse (I< I) to back out object.
• Never use aerosol products, petroleum based lubricants or other flammable products on or near shredder. Do not use canned air on shredder.

• Do not use if damaged or defective. Do not disassemble shredder. Do not place near or over heat source or water.

• This shredder has a Disconnect Power Switch (I) that must be in the ON (I) position to operate shredder. In case of emergency, move switch to OFF (O) position. This action will stop shredder immediately.

• Avoid touching exposed cutting blades under shredder head.
• Keep finger away from CD hole when shredding.
• Do not put foreign objects in paper entry.
• The grounded socket-outlet shall be installed near the equipment and shall be easily accessible.

BASIC SHredding OPERATION

PAPER/CARD OR CD

Plug in and put disconnect power switch in ON (I) position

Press ON to activate

Feed paper/card straight into paper entry and release

Hold CD at edge, feed into CD entry and release

or

When finished shredding set to OFF ()

Do nothing and shredder will go automatically to sleep mode

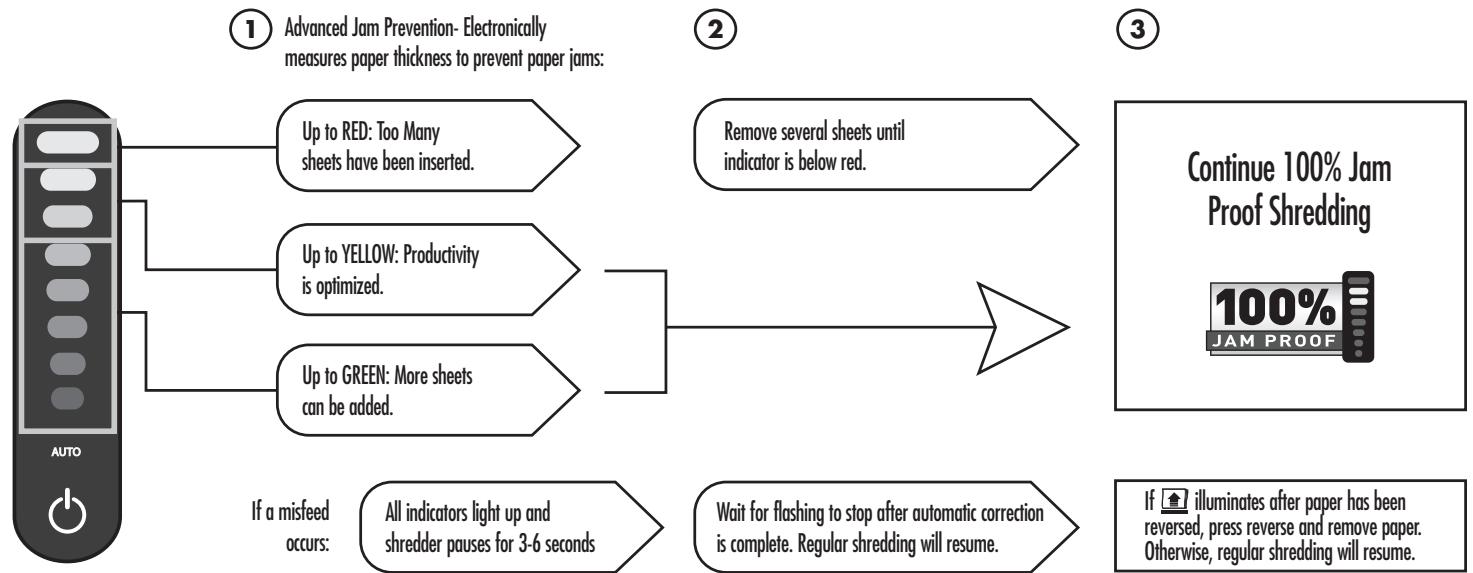

Eliminates frustrating jams by preventing overloads and powering through misfed paper.

*100% Jam Proof when used in accordance with user manual

AUTO OIL OPERATION

Automatically oils the cutters to enhance performance and extend shredder life. (C-220Ci only)

SET-UP AND TESTING

Before using, fill oil reservoir with 12 oz. of shredder oil

To test, press the auto and forward () buttons at the same time

Oil will spray out of the nozzles confirming that the system is working properly

SLEEP MODE

WHEN IN SLEEP MODE

In sleep mode

To get out of sleep mode touch control panel

or

insert paper

REFILLING OIL

Low oil indicator will signal when your reservoir needs refilling

To maintain shredder performance, refill oil reservoir with up to 12 oz. of shredder oil (Fellows #35250)

DO NOT OVERFILL.

Touch test area and look for the SafeSense indicator to illuminate

SafeSense is active and working properly

PREVENTIVE MAINTENANCE AND MISCELLANEOUS TROUBLESHOOTING

• Though paper detection sensors are designed to be maintenance free, the sensors occasionally become blocked by paper dust, causing the motor to run even if there is no paper present. Both sensors are located in the center of the paper entry.
• Self Cleaning Cycle: Shredder periodically cycles in forward and reverse lasting 3-6 seconds
• Empty wastebasket when bin full indicator lights up.
• Shredder won't run if the door is open, or bin needs to be emptied.
• Maintenance is an important part of protecting your investment. Don't forget our oil (35250) and shredder bags (36054).

Go to Support Section at www.fellowes.com or see back page of manual for useful telephone numbers.

WARRANTY

Our promise to you is quite simple. Fellowes shredders are built stronger, engineered to run longer, resist jams and power through large jobs. The Fellowes worry free warranty described below covers the performance of the product, provides for prompt service and support, plus a lifetime cutter warranty.

Limited Warranty: Fellowes, Inc. ("Fellows") warrants the parts of the machine to be free of defects in material and workmanship and provides service and support for 3 years from the date of purchase by the original consumer. Fellowes warrants the cutting blades of the machine to be free from defects in material and workmanship for the lifetime of the shredder. If any part is found to be defective

during the warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes' option and expense, of the defective part. This warranty does not apply in cases of abuse, mishandling, or unauthorized repair. ANY IMPLIED WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED IN DURATION TO THE APPROPRIATE WARRANTY PERIOD SET FORTH ABOVE. In no event shall Fellowes be liable for any consequential or incidental damages attributable to this product. This warranty gives you specific legal rights. The duration, terms, and conditions of this warranty are valid worldwide, except where different limitations, restrictions, or conditions may be required by local law. For more details or to obtain service under this warranty, please contact us or your dealer.
