USER MANUAL UNI-WD-150 Uniprodo

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via

[e-mail]

Technical data

Parameter description	Parameter value
Product name	Water distiller
Model	UNI-WD-100	UNI-WD-150	UNI-WD-200	UNI-WD-250
Rated voltage [V~] / Frequency [Hz]	230/50
Rated power [W]	800
Protection class	I
Protection rating IP	IP20
Capacity [L]	4
Safety temperature [oC]	160
Dimensions [mm]	260 x 250 x 470	260 x 250 x 390	260 x 250 x 390	280 x 250 x 550
Weight [kg]	4.5	5.2	4	6

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.(general warning sign)
	ATTENTION! Electric shock warning!
	Only use indoors.
	Class I protection device.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to the:

Water distiller

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
g) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
h) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
i) Prevent the device from getting wet. Risk of electric shock!

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust.
c) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
d) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently! Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out. f) Use the device in a well-ventilated space.
f) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
g) Keep packaging elements and small assembly parts in a place not available to children.
h) Keep the device away from children and animals.
i) If this device is used together with another equipment, the remaining instructions for use shall also be followed. Only connect and disconnect the pressure line when the air valve is closed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
d) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
e) Do not put your hands or other items inside the device while it is in use!

2.4. Safe device use

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
d) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
e) Keep the device out of the reach of children.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
h) Do not move, adjust or rotate the device in the course of work. Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
i) Clean the device regularly to prevent stubborn grime from accumulating.
j) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
k) Do not run the device when empty.
I) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
m) Keep the device away from sources of fire and heat.
n) Do not overload the device.
o) Do not cover the ventilation openings!
p) The tank should only be filled with cold water.
q) Overheating protection: The device switches off when the temperature exceeds 160° C.
r) Do not remove the upper cover while the device is operating. Wait at least 10 minutes after distillation is complete. Before each use ensure the nozzle is correctly installed in the device and that the hose is correctly attached and undamaged.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The device is designed to distil water.

The user is liable for any damage resulting from unintended use of the device.

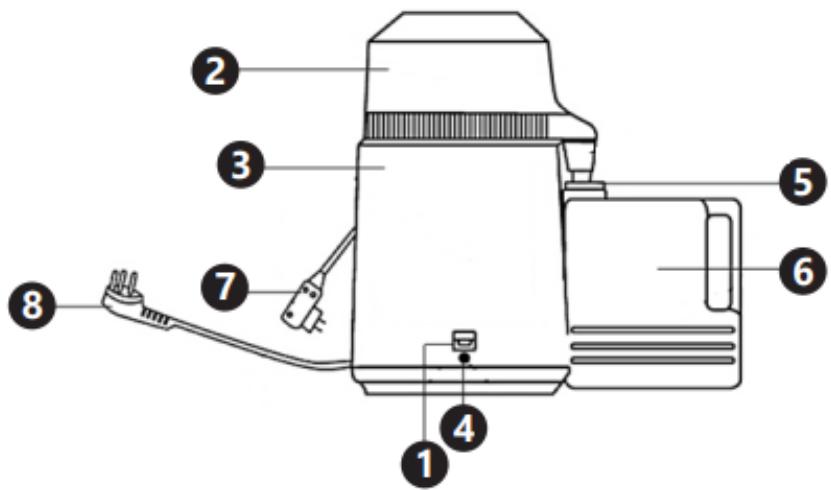

3.1. Device description

1. Reset-button
2. Upper cover
3. Housing

4. Indicator light

5. Trigger overlay

6. Container
7. Upper cover power cord
8. Main power cord

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40° C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which

the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. Keep the product away from hot surfaces. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

3.3. Device use

CAUTION: During the first distillation process, the device will be cleaned of contamination resulting from transport. Water obtained from the first distillation process should not be used.

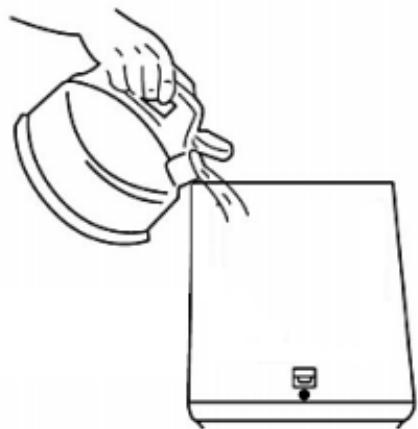

1. Remove the upper cover of the distiller and fill it up with cold water to the maximum level (Caution: do not overfill the container).

CAUTION: Do not fill the distiller with hot water!

1. Put the cover on. Make sure the silicone seal is stretched properly over the entire ring before putting the upper cover on.
2. Then connect the upper cover cable to the socket in the bottom of the device.

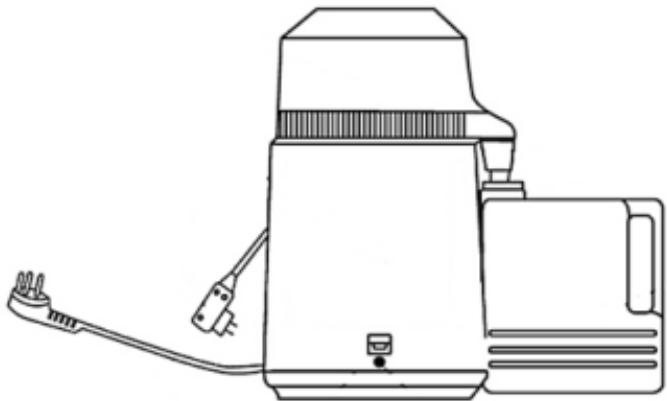

1. Place the water container under the head as shown on the figure below. Insert the plug of the main power cord into an electrical socket.

1. Press the Reset-button, the device starts working. The fan starts automatically.
2. After approximately 30 minutes, water will begin to drip into the container. The distillation of 4 liters of water takes approx. 4 hours. The device will turn off automatically at the end of the cycle.
3. In the case the water container is full and the device still distills water, turn it off (disconnect the power cord and auxiliary cord). Before starting the next distillation, wait until the device has completely cooled down.

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
b) Use only non-corrosive cleaners to clean the surface.
c) After cleaning the device, all parts should be dried completely before using it again.
d) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
e) Do not spray the device with a water jet or submerge it in water.
f) Do not allow water to get inside the device through vents in the housing of the device.
g) Clean the vents with a brush and compressed air.
h) The device must be regularly inspected to check its technical efficiency and spot any damage.
i) Use a soft, damp cloth for cleaning.
j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
k) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.
I) Every 2 weeks the container should be cleaned of sediment using a cleaning agent (the treatment should be performed in accordance with the recommendations of the manufacturer of the cleaning agent) or citric acid.

DISPOSING OF USED DEVICES

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

APPARATETS PLACERING

1. Placer vandbeholderen under hovedet som vist på figuren nedenfor. Sæt stikket til hovedstrømledningen i en stikkontakt.

1. Reset-knop
2. Bovenste deksel
3. Huisvesting

4. Indicatielampje

5. Trigger-overlay

6. Reservoir
7. Bovenste afdekking netsnoer
8. Hoofdstroomkabel

1. Reset-knapp
2. ∅vre deksel
3. Bolig

4. Indikatorlys

5. Utløs overlegg

6. Beholder
7. ∅vre deksel strømledning
8. Hovedstrømledning

1. Sett på dekselet. Pass på at silikonforseglingen er strukket skikkelig over hele ringen før du setter det øvre dekselet på.
2. Koble deretter den øvre dekselkabelen til kontakten i bunnen av enheten.

1. Gumb za resetiranje
2. Gornji poklopac
3. Stanovanje
4. Svjetlo indikatora

5. Prekrivanje okidača

6. Spremnik

7. Kabel za napajanje gornjeg poklopca
8. Glavni kabel za napajanje

3.2. Priprema za upotrebu POLOŽAJ APARATA

Temperatura okoline ne smije biti viša od 40°C, a relativna vlažnost zraka manja od 85%. Osigurajte dobru ventilaciju u prostoriji u kojoj se uređaj koristi. Razmak između svake strane uređaja i zida ili drugih predmeta mora biti najmanje 10 cm.

Držite proizvod podalje od vrućih površina. Uređaj uvijek treba koristiti postavljen na ravnu, stabilnu, čistu, vatrostalnu i suhu površinu, te biti izvan dohvata djece i osoba s ograničenim mentalnim i osjetilnim funkcijama. Postavite uređaj tako da uvijek imate pristup utikaču. Kabel za napajanje spojen na uređaj mora biti pravilno uzemljen i odgovarati tehničkim podacima na etiketi proizvoda.

3.3. Upotreba uređaja

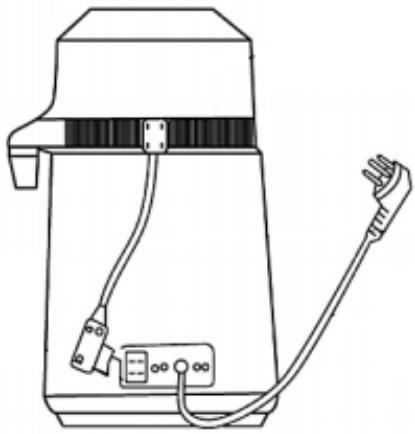

1. Stavite poklopac. Provjerite je li silikonska brtva pravilno rastegnuta preko cijelog prstena prije stavljanja gornjeg poklopca.
2. Zatim spojite kabel gornjeg poklopca na utičnicu na dnu uređaja.

1. Stavite posudu s vodom ispod glave kao što je prikazano na slici ispod. Utaknite utikač glavnog kabela za napajanje u električnu utičnicu.

1. Pritisnite tipku Reset, uređaj počinje raditi. Ventilator se pokreće automatski.
2. Nakon otprilike 30 minuta, voda će početi kapati u posudu. Destilacija 4 litre vode traje cca. 4 sata. Uređaj će se automatski isključiti na kraju ciklusa.
3. U slučaju da je spremnik za vodu pun, a uređaj i dalje destilira vodu, isključite ga (odspojite strujni i pomoćni kabel). Prije početka sljedeće destilacije pričekajte da se uređaj potpuno ohladi.

For the disposal of the device please consider and act according to the national and local rules and regulations.
