Product Type	Pool Ladder Support
Brand	Uniprodo
Model	UNI_LADDER_SUPPORT_42
Weight	0.4 kg
Compatibility	UNI_POOL_LADDER series (1320, 1570, 1820, 1600)
Intended Use	Provides safe and sturdy entry and exit from swimming pools
Assembly	Requires assembly according to manual instructions
Maintenance	Regularly inspect for damage; clean with mild soap and water
Safety	Read all safety warnings and instructions before use
Safety	Do not use if damaged; contact manufacturer's service center
Safety	Keep out of reach of children when not in use
Recycling	Dispose of according to national and local regulations
Manufacturer	expondo Polska sp. z o.o. sp. k.
Quality Standards	Manufactured in accordance with strict technical guidelines
Manual Language	English (official version)
Noise Emission	Designed to reduce noise emission to a minimum

Frequently Asked Questions - UNI_LADDER_SUPPORT_42 Uniprodo

What is the UNI_LADDER_SUPPORT_42 used for?

It is a pool ladder support designed to provide safe and sturdy entry and exit from swimming pools.

Which pool ladders is the UNI_LADDER_SUPPORT_42 compatible with?

It is designed for the UNI_POOL_LADDER series, including models UNI_POOL_LADDER_1320, 1570, 1820, and 1600.

What is the weight capacity of the support?

The support is designed to work with ladders that have a maximum load capacity of 180 kg, but the support itself does not have a specified load rating.

How do I assemble the support?

Follow the assembly instructions in the manual. The support attaches to the ladder according to the provided technical drawings and assembly steps.

Can I use the support without a pool ladder?

No, it is intended to be used as part of the pool ladder assembly to provide additional stability.

How should I clean and maintain the support?

Inspect the support before each use for any damage. Clean it with mild soap and water if necessary. Do not use harsh chemicals.

What safety precautions should I take when using the support?

Read all safety instructions, ensure the support is properly assembled, keep children away, and do not use if damaged.

Is the support suitable for saltwater pools?

The manual does not specify, but it is recommended to rinse with fresh water after use in chlorinated or saltwater pools to prevent corrosion.

Can I order spare parts for the support?

The manual advises that repairs should be carried out by the manufacturer's service center and only original spare parts should be used. Contact the manufacturer for spare parts.

What is the warranty on the support?

The manual does not explicitly state a warranty period, but you should contact the manufacturer for warranty information.

USER MANUAL UNI_LADDER_SUPPORT_42 Uniprodo

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

Technical data

Parameter description	Parameter value
Product name	Pool ladder				Pool ladder support
Model	UNI_POOL_LA DDER_1320	UNI_POOL_LA DDER_1570	UNI_POOL_LA DDER_1820	UNI_POOL_LA DDER_1600	UNI_LADDE R_SUPPORT 42
Number of steps	3	4	4	3	-
Spacing between rungs [mm]	250				-
Maximum load [kg]	180
Dimensions [width x depth x height; mm]	270x545x1320	265x500x1570	620x500x1820	600x500x1600	-
Weight [kg]	5.45	7.2	9	7.5	0.4

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.

(general warning sign)

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Pool ladder / Pool ladder support

2.1. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
c) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
d) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
e) Use the device in a well-ventilated space.
f) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
g) Keep packaging elements and small assembly parts in a place not available to children.

Remember! When using the device, protect children and other bystanders.

2.2. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The machine may be operated by physically fit persons who are able to handle the machine, are properly trained, who have reviewed this operating manual and have received training in occupational health and safety.
c) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
d) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.3. Safe device use

a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner.
b) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
c) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
d) Keep the device out of the reach of children.
e) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
f) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
g) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The product provides a safe and sturdy way to enter and exit swimming pools. The user is liable for any damage resulting from unintended use of the device.

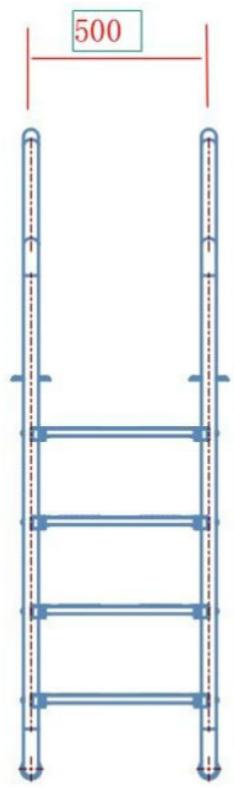

3.1. Technical drawing

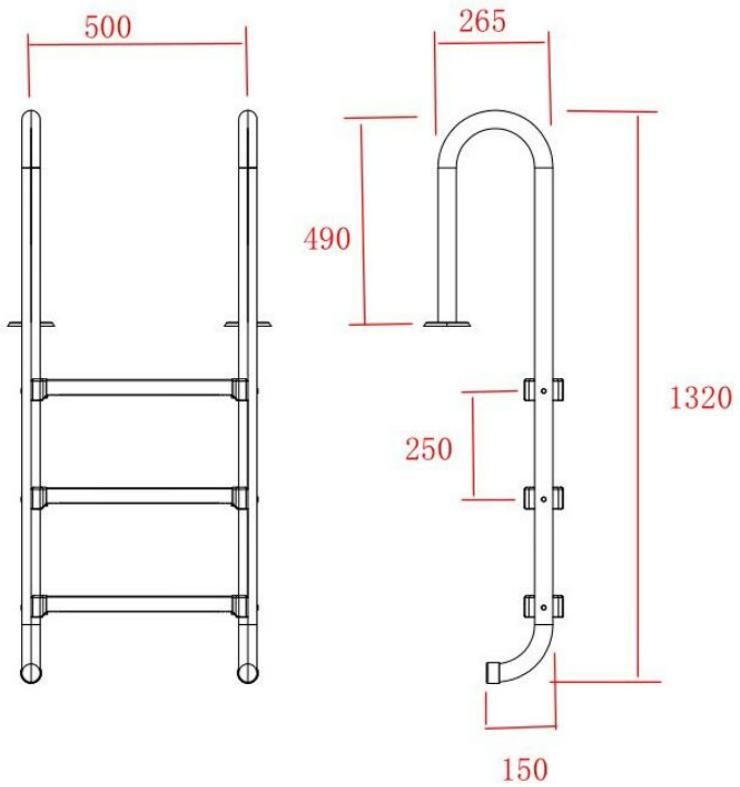

UNI_POOL_LADDER_1320

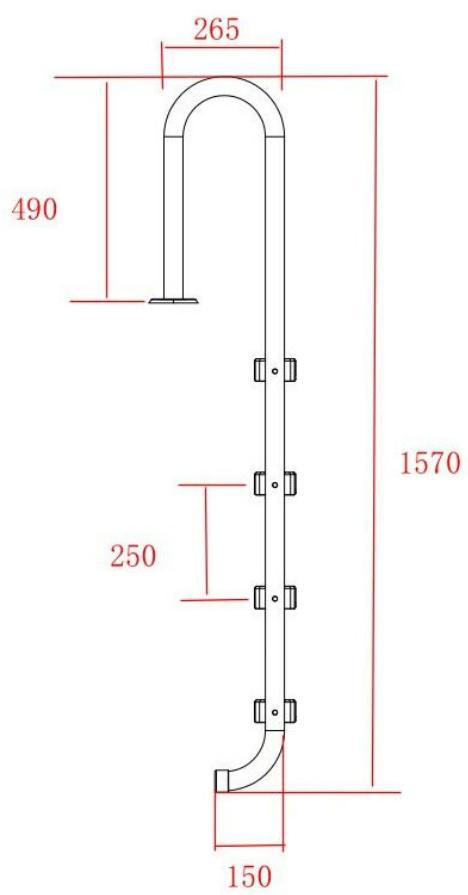

UNI_POOL_LADDER_1570

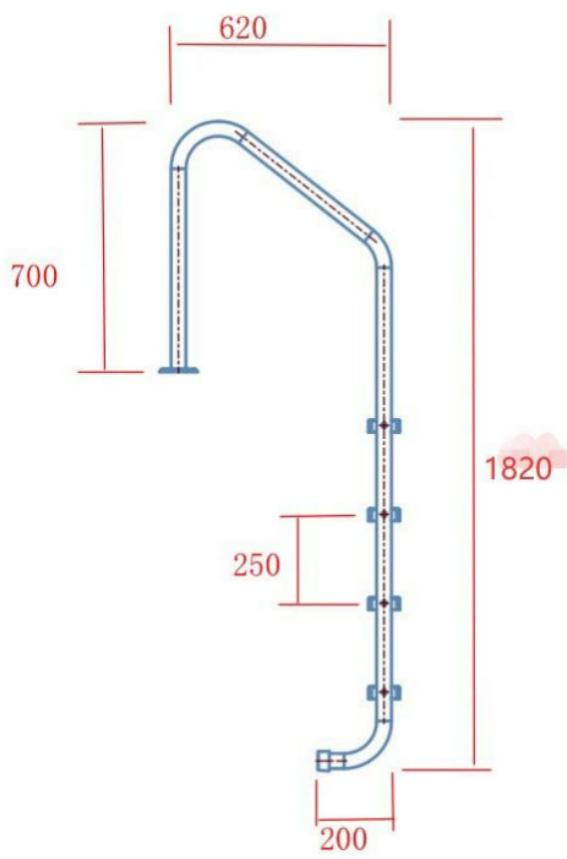

UNI_POOL_LADDER_1820

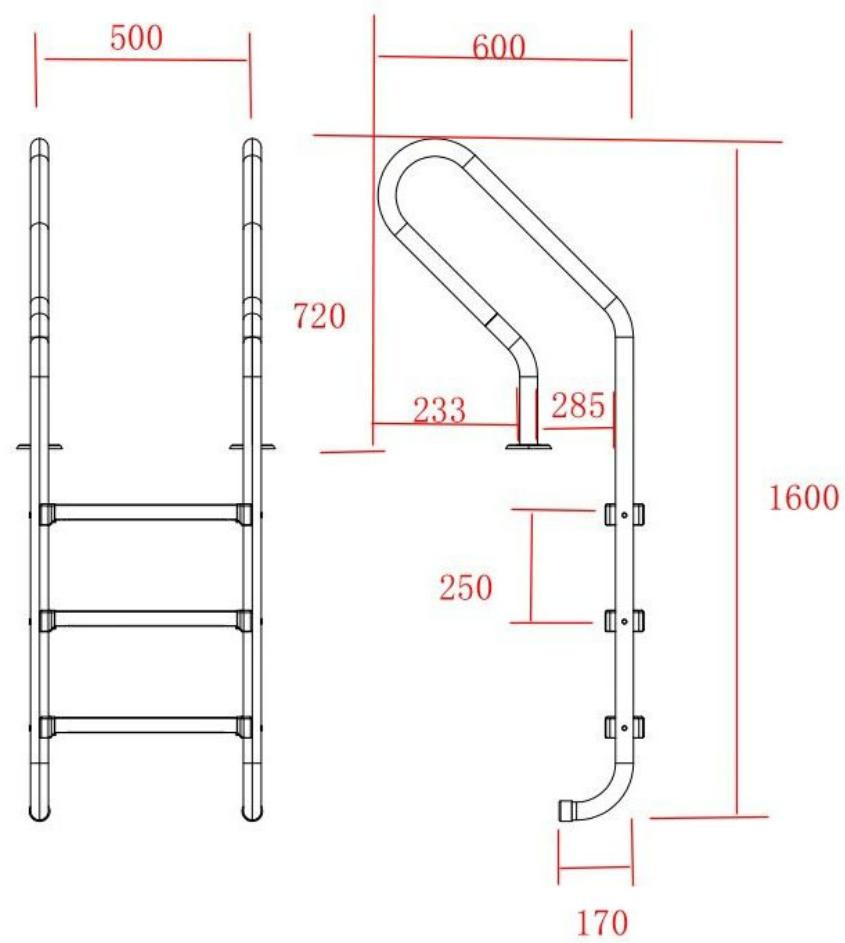

UNI_POOL_LADDER_1600

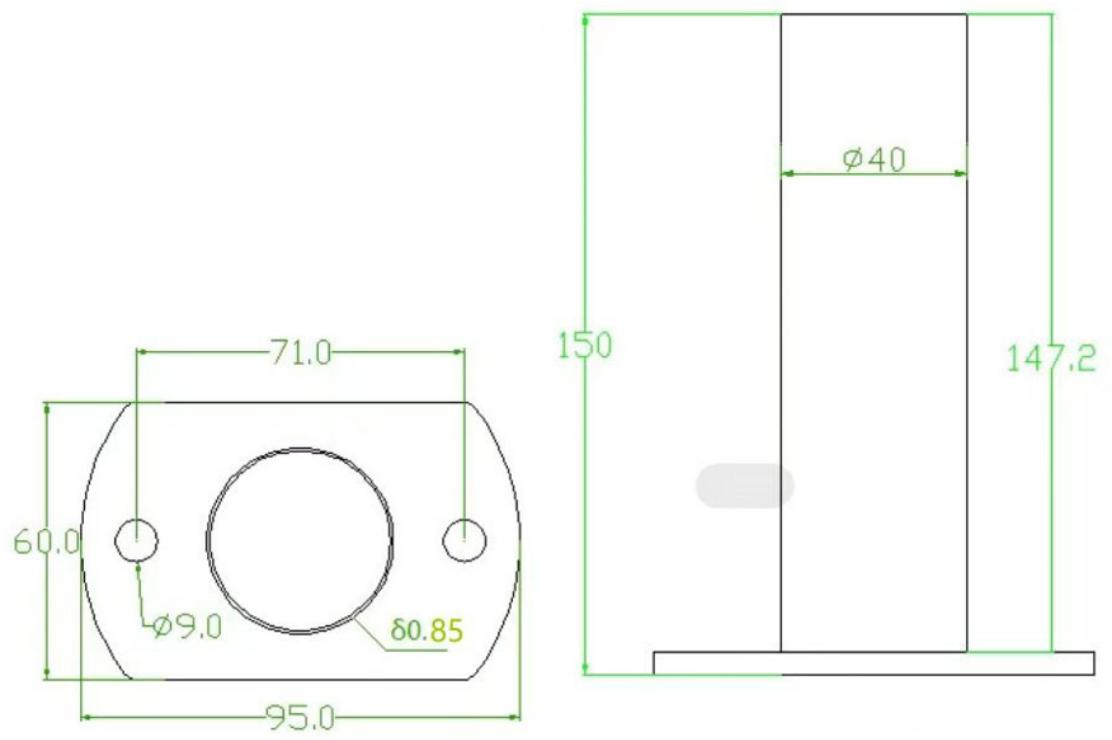

UNI_LADDER_SUPPORT_42

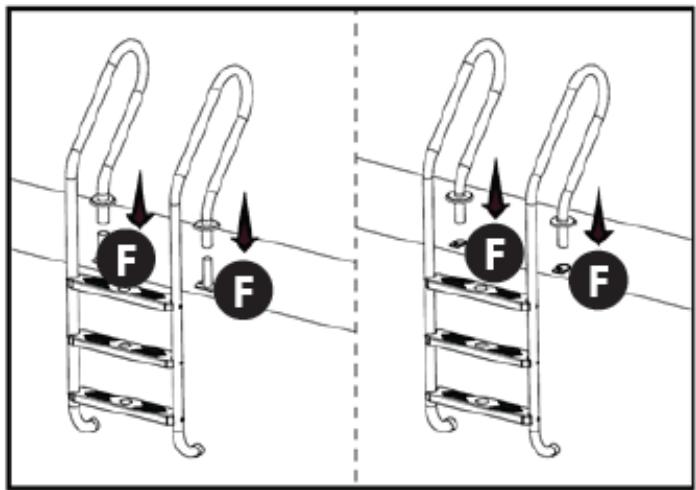

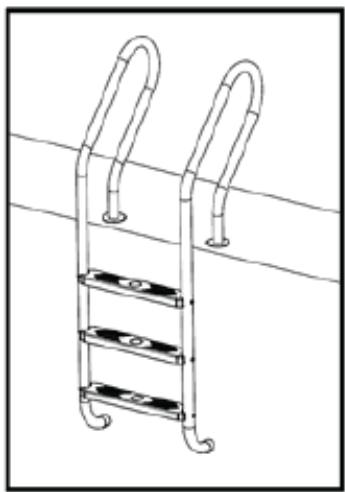

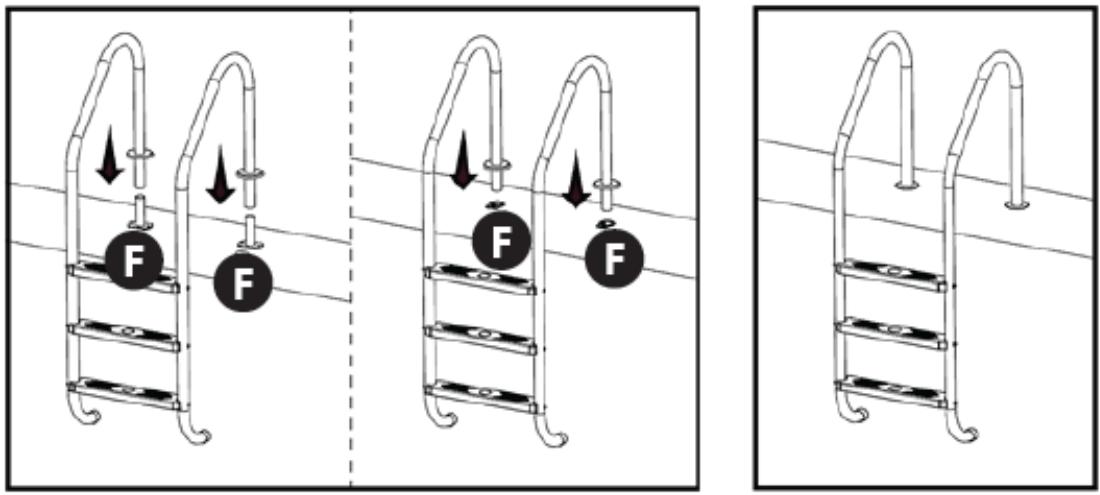

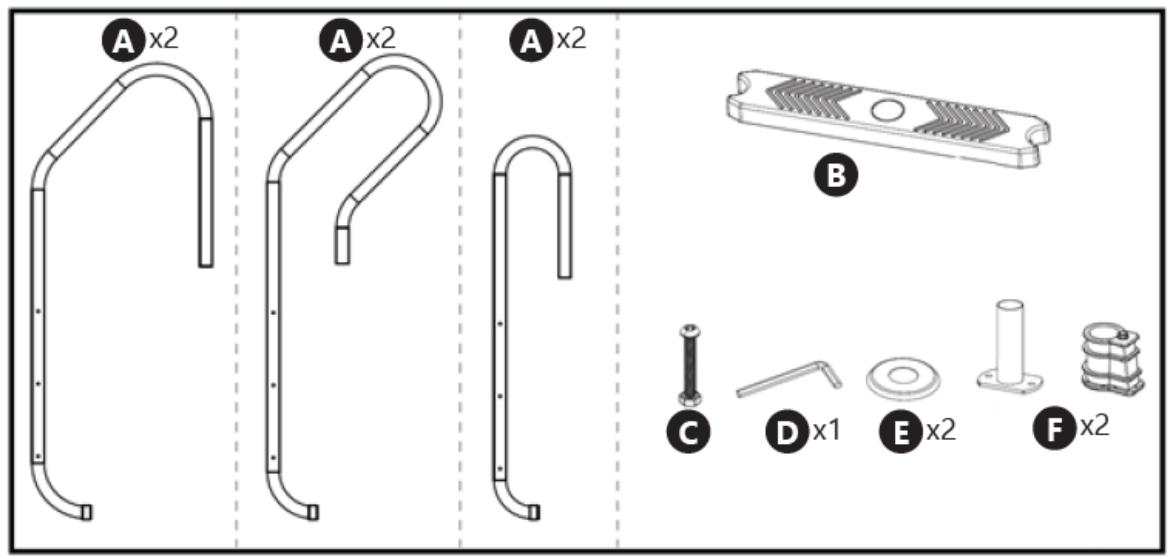

3.2. Assembling the device

UNI_POOL_LADDER_1820 / UNI_POOL_LADDER_1600 / UNI_POOL_LADDER_1320 / UNI_POOL_LADDER_1570

UNI_POOL_LADDER_1820 / UNI_POOL_LADDER_1600 / UNI_POOL_LADDER_1320 / UNI_POOL_LADDER_1570

UNI_POOL_LADDER_1820

UNI_POOL_LADDER_1600

UNI_POOL_LADDER_1320 / UNI_POOL_LADDER_1570

For the disposal of the device please consider and act according to the national and local rules and regulations.
