Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Contents 17

Parts List 18

Sink installation for Undermouting 20

Drain set Installation 25

Check Sealing Performance and Clean 29

Manufacturer 30

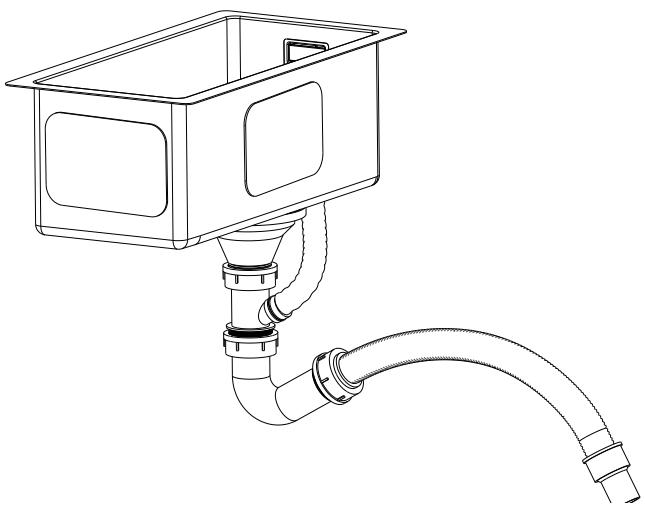

ARTICLE

Article number

10046015

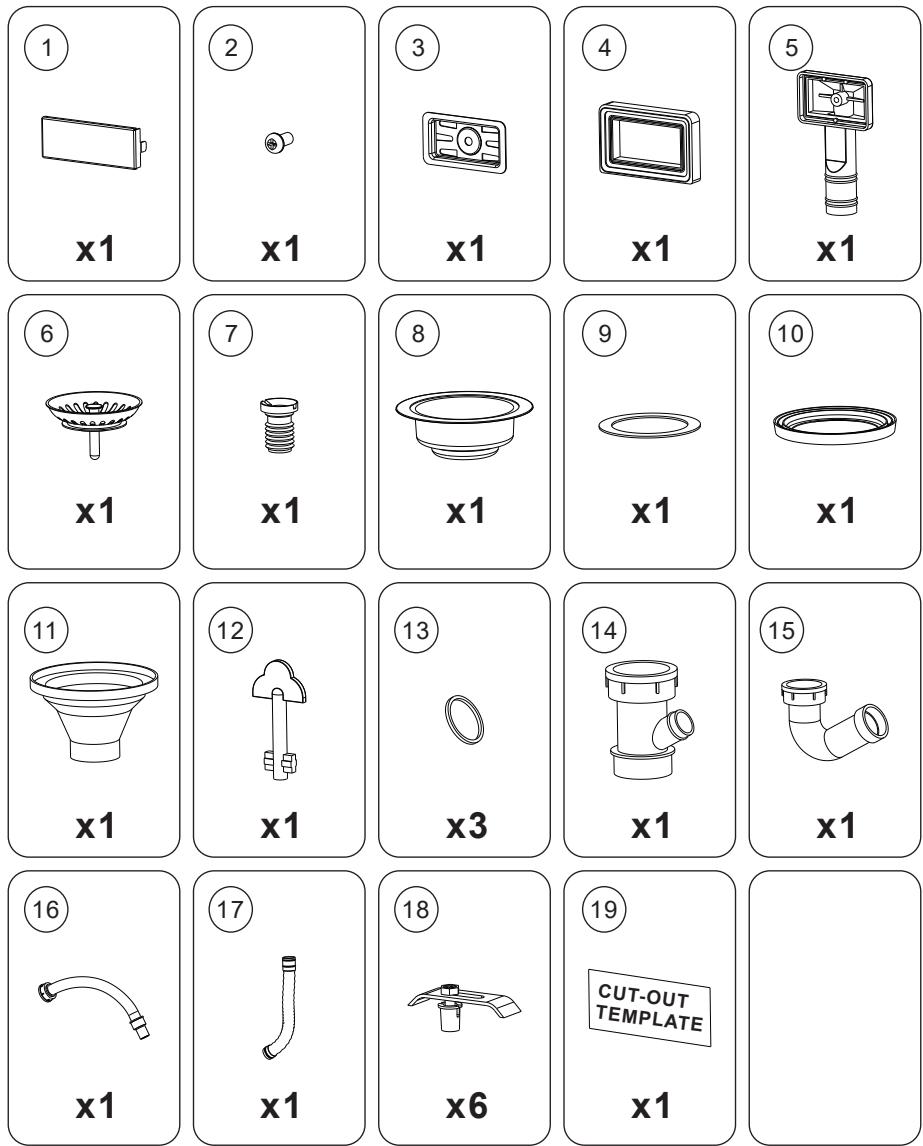

PARTS LIST

Tools

Pencil x1		φ 20 mm φ 10 mm φ 3 mmElectric drill x1	Ruler x1
Silicon x1	Electric saw x1		Shovel x1
Screw driver x1	Scissor x1

SINK INSTALLTION FOR UNDERMOUTING

No.	Description	Reference	Qty
A	Kitchen Sink		1
B	Undermout Clips	18	1
C	Cutout Template	19	1

1. Cut the cut-out template along the wireframe with a scissor

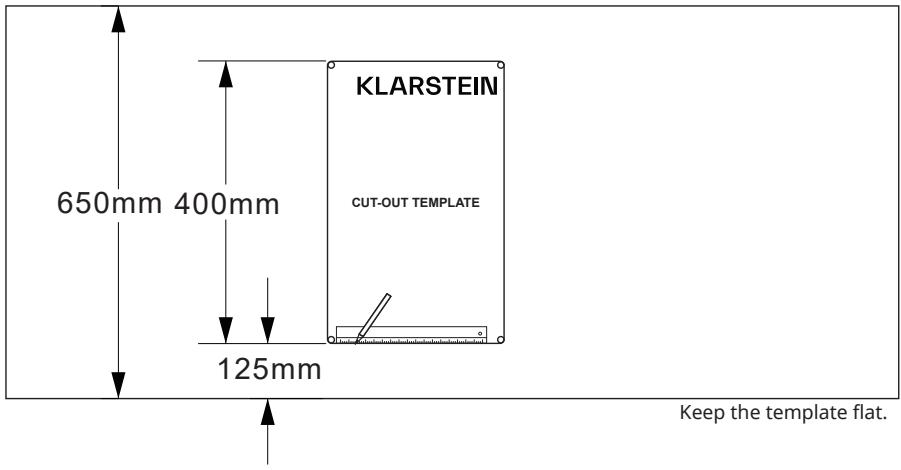

1. Place the cut-out template on the counter and draw the wireframe on the counter with pencil and ruler.

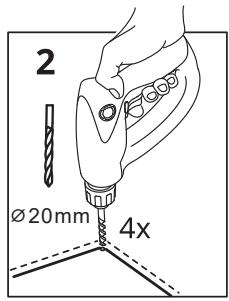

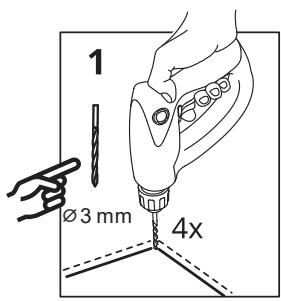

1. Drill 4 small holes with electric drills. First cut with small drill(∅3), then cut with big drill (∅20), twice totally.

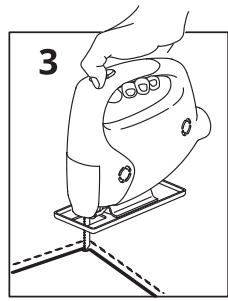

1. Cut the counter along the cutting line with electric saw.

1. Drill corresponding quantity holes according to the sink dimension at the back of counter with electric drills, please refer to the distance between holes and lines.

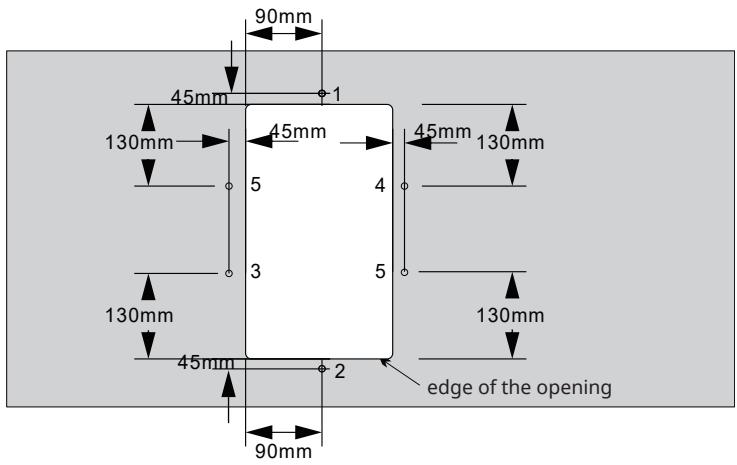

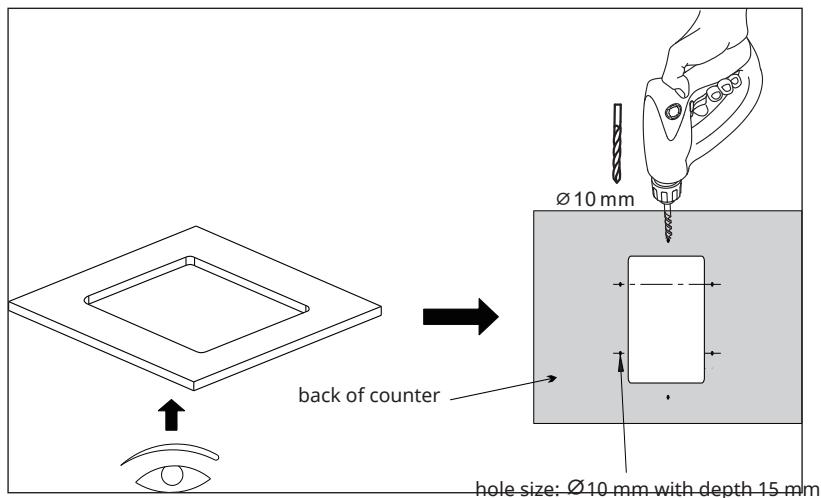

1. According to the following drawing, drill 6 ∅10mm holes with a depth of 15 mm on the back of the counter around the opening holes successively.

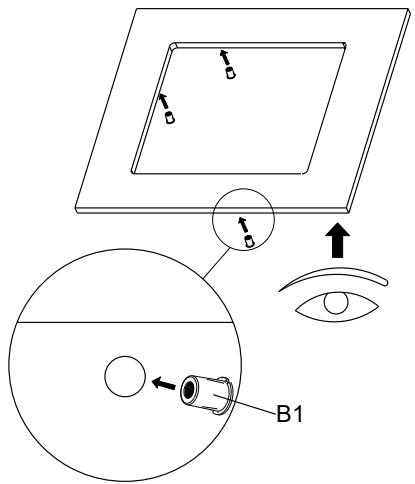

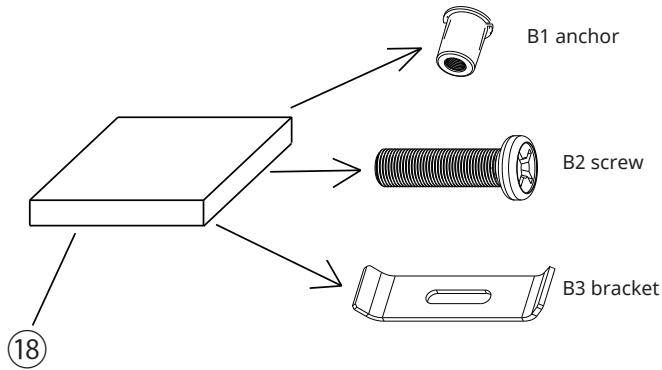

1. Open the undermount clips, take out the anchors and install them to the holes under the counter.

undermount clips

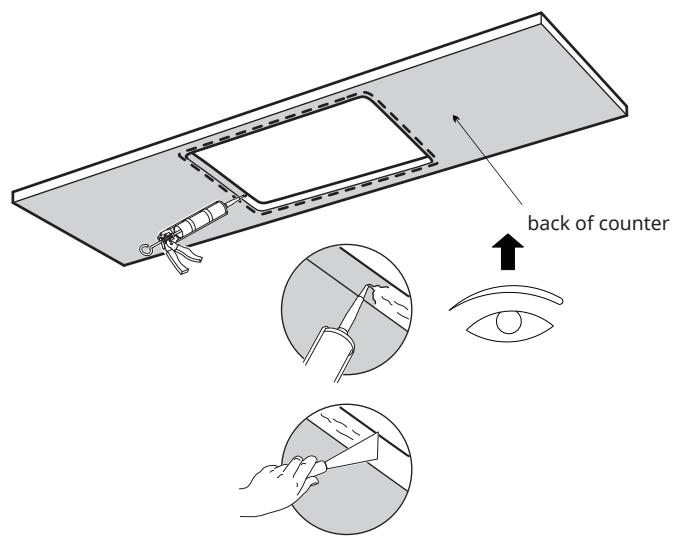

1. Put a layer of silicon along side the cutting lines at the back of the counter and scrape the silicon to be even and level.

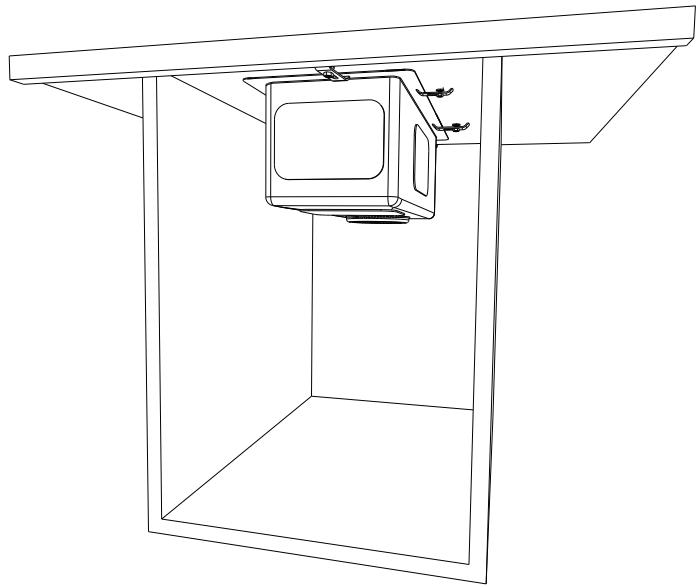

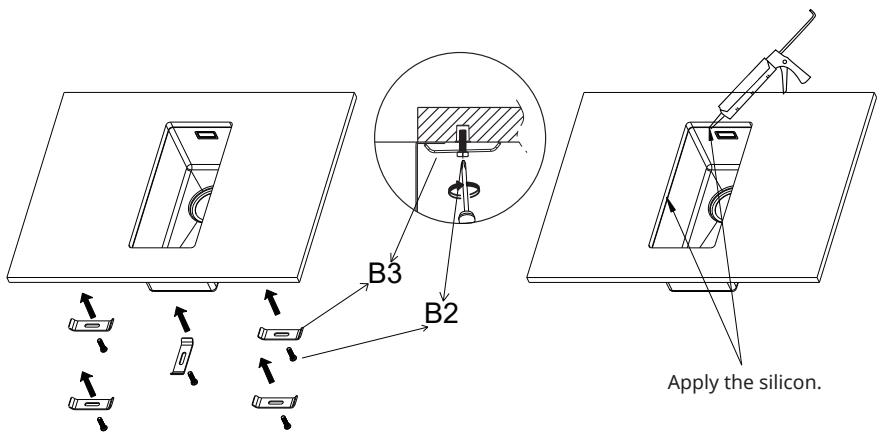

1. Install the kitchen sink with undermount clips.

Connect the sink to the cut-out hole at the back of the counter, put the screws and brackets into the anchor and tighten, then to apply the silicon between counter and sink at the front.

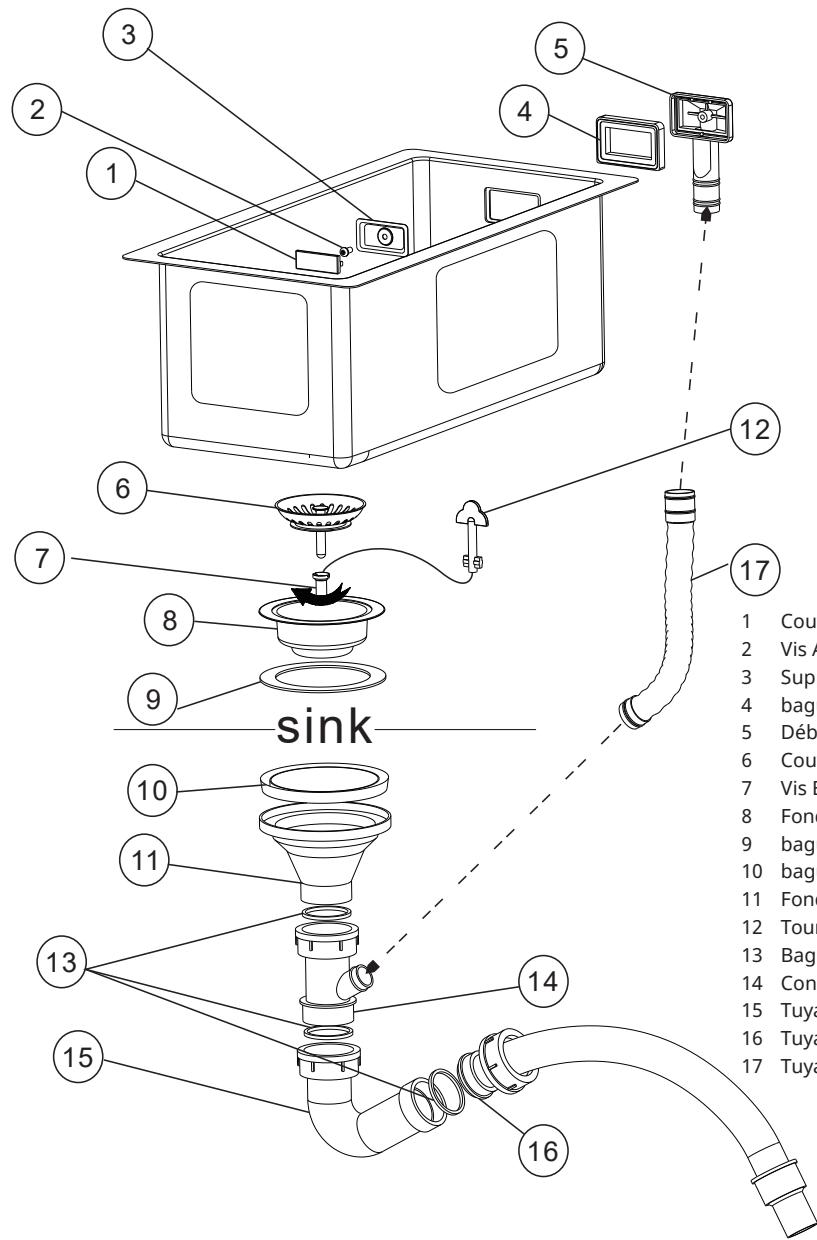

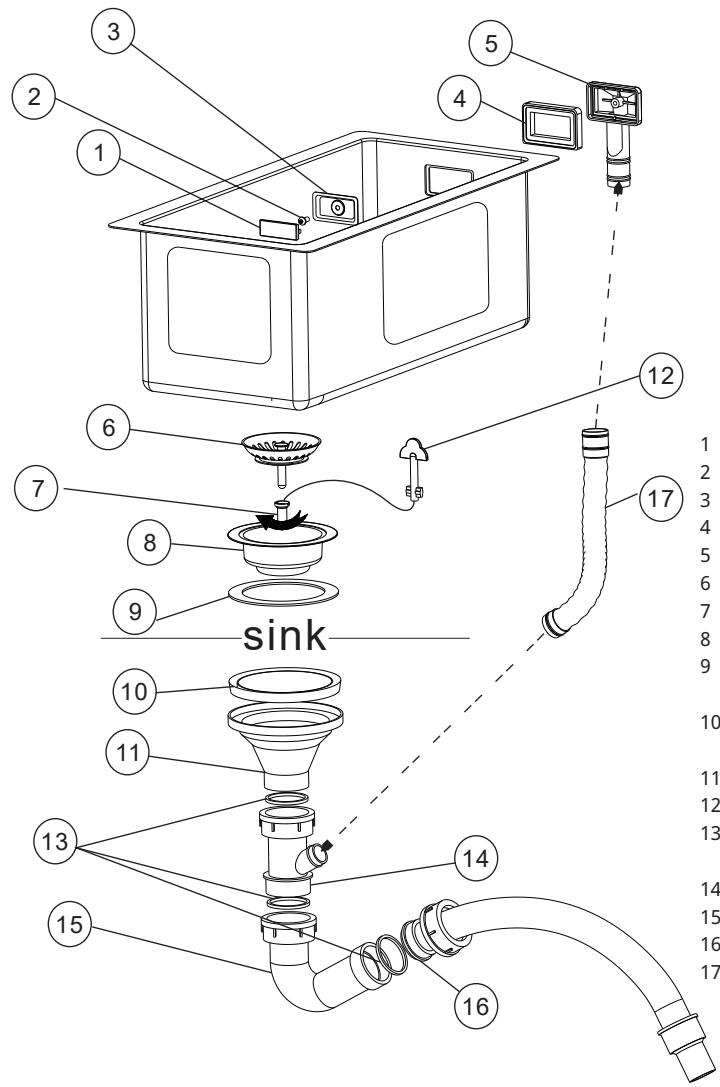

1 Overflow cover

2 ScrewA

3 Overflow base

4 Sealing ring

5 Overflow head

6 Strainer cover

7 Screw B

8 Strainer stainless steel base

9 Strainer sealing ring A

10 Strainer sealing ring B

11 Strainer plastic base

12 Screw tightening tool

13 Interface sealing ring

14 Three-way connectors

15 Bend pipe

16 PVC steel wire pipe

17 Overflow pipe

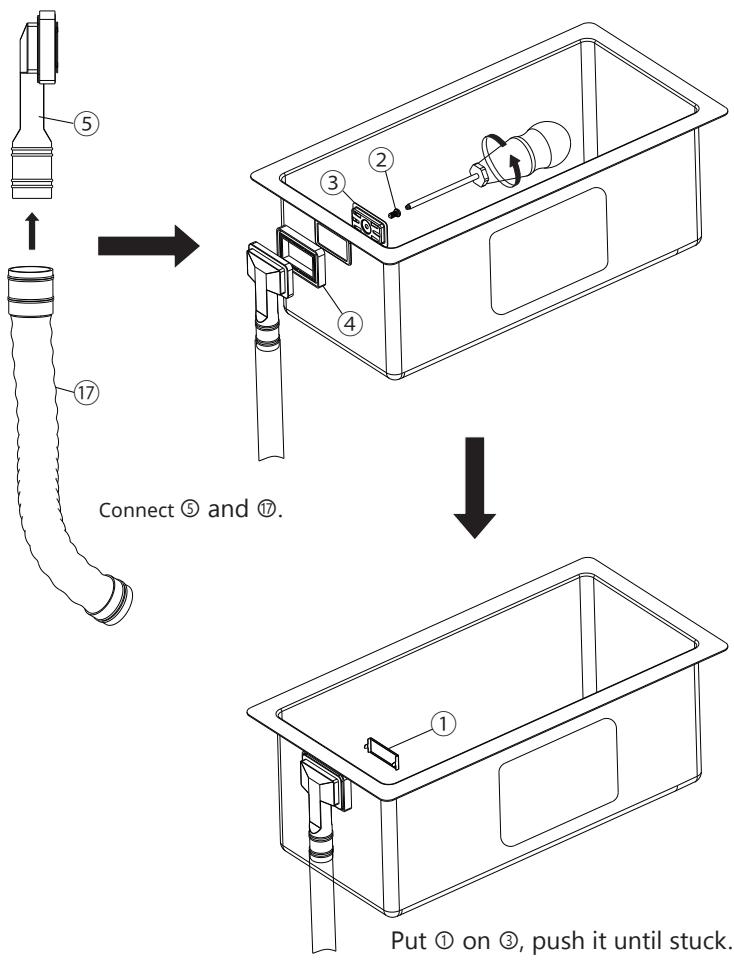

Install the overflow set

Put ④ on ⑤, put ② in ③, then put them together through the overflow hole, make sure ② is in ⑤, then tighten ②.

Install the strainer set

1. Take out ⑥, dismiss to several parts as below:

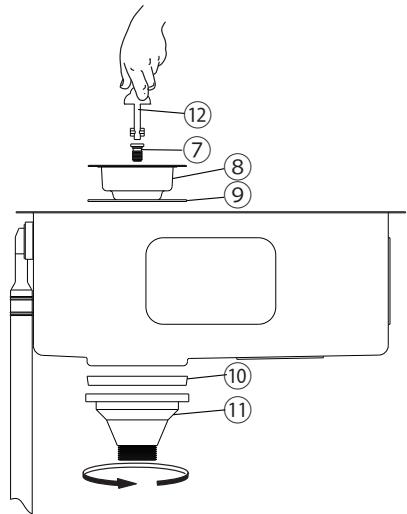

Put ⑦ in ⑧ and tighten ⑦ with ⑫, put ⑨ under ⑧ and put the whole assembly into sink drain hole.

Put ⑩ in ⑪, then connect the above assembly and tighten.

1. Take out the pipes

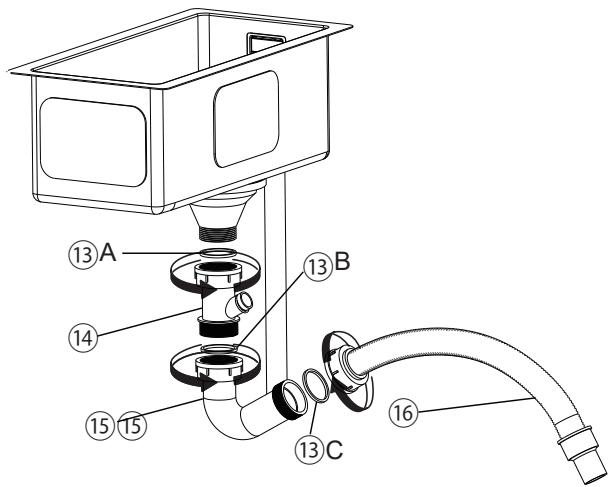

Put sealing ring ⑬A in ⑭, then connect ⑭ with ⑪ and tighten. Put sealing ring ⑬B in ⑮, then connect ⑭ with ⑮ and tighten. Put sealing ring ⑬C in ⑯, then connect ⑯ with ⑮ and tighten.

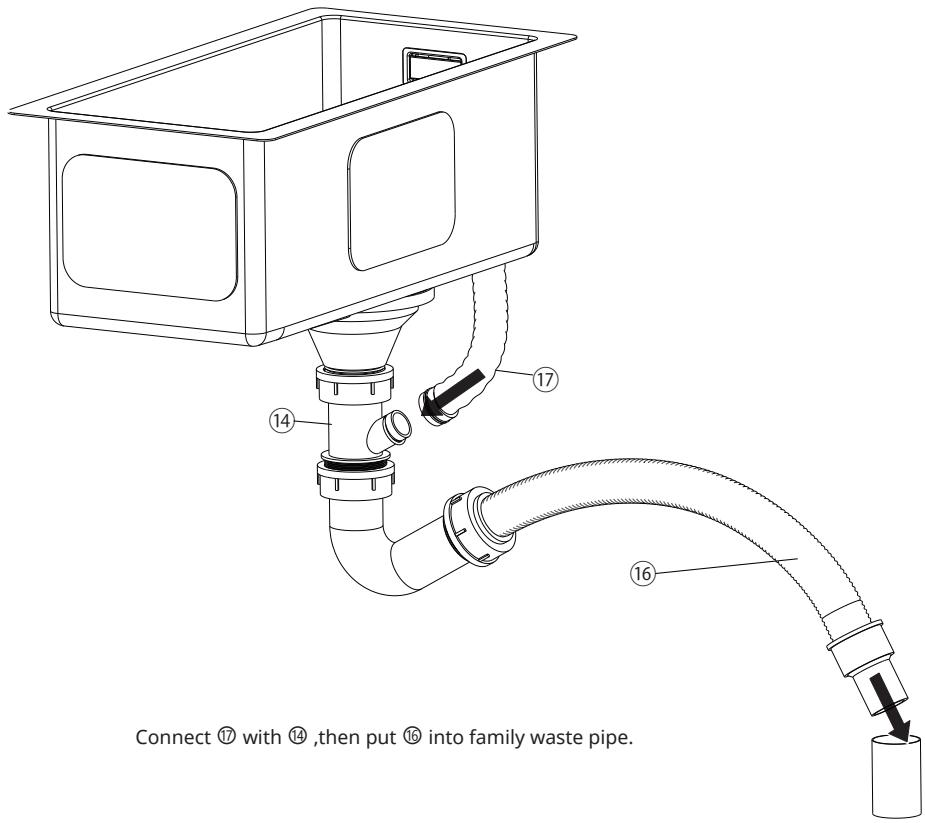

Install the waste pipe set

Connect ⑰ with ⑭, then put ⑯ into family waste pipe.

CHECK SEALING PERFORMANCE AND CLEAN

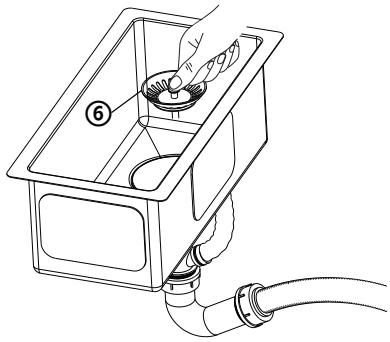

Put ⑥ into ⑧.

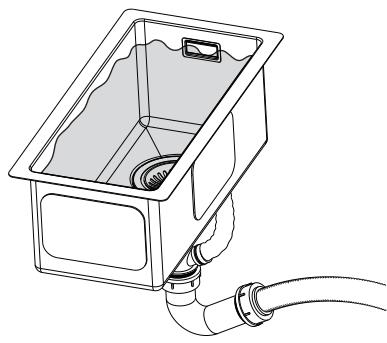

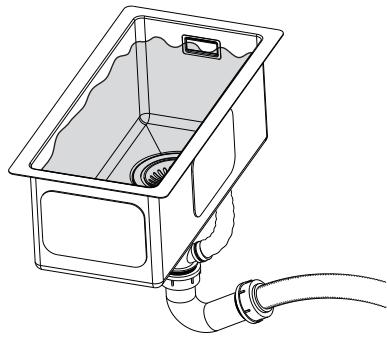

Fill in water to overflow hole. There is water coming out from overflow pipe.

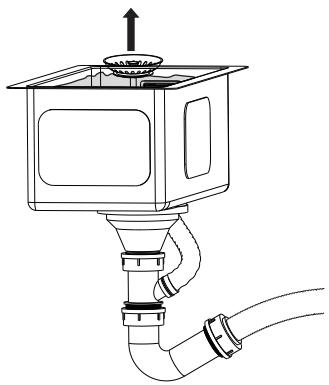

Take out ⑥, the water will drain

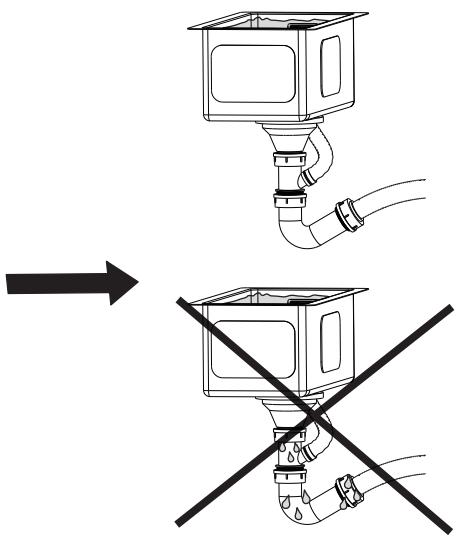

There is no water coming out outside the pipes. then it is successfully installed.

If there is water leakage, please check whether the fittings are tightened in this position to remove water leakage.

MANUFACTURER

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Deutschland (Germany).
