USER MANUAL Totalsoldier Station 6500 CECOTEC

Manual de instrucciones Instruction manual

Fig./Img. 1
Fig./Img. 3

Fig./Img. 2
Fig./Img. 4

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

- The appliance must be powered at a low safety voltage as stated on the marking.

- This device should only be used with water or specific solutions.

- To avoid risk of burns, electric shock, fire, or injury:

- Do not attempt to connect or disconnect the charger with wet hands. To disconnect it, pull on the adapter, not the cable.

- Ensure the mains voltage matches the voltage specified on the appliance's rating label and that the socket is properly earthed.

- Check the charging cable regularly for visible damage. If the cord or adapter is damaged, malfunctioning, or has been dropped, it must be repaired by Cecotec's official Technical Support Service to avoid any danger.

- Disconnect the charger from the mains when the product is charged.

- Keep the product and cord away from fire and other heat sources. - Never leave a product unattended while plugged in.

- You must charge the product with the charger supplied by Cecotec. Do not use any other charger type.

- Use the appliance only for the purposes described in this manual.

- Only use tips or accessories recommended or marketed by Cecotec

- Do not drop or insert any foreign object into any opening or hose.

- Do not use the appliance if you are wearing oral jewellery. Remove it before use.

- Do not use the device if you have an open wound on your tongue or your mouth. If you have been advised by your physician to receive antibiotic pre-medication prior to dental procedures, you should consult your dentist before using this device or any other oral-hygiene device.

- This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

- Store the appliance and its instruction manual in a safe and dry place when not in use.

- Do not use the device without assembling a brush head.

- Do not place the device in a hot or wet place, nor in places with direct sunlight.

- During cleaning or maintenance, make sure that the device is switched off and is not charging.

- Users suffering from periodontitis or those who have undergone oral surgery within the last 2 months should consult a physician before using this device.

- Do not try to open, disassemble, or repair the appliance by yourself. There are no serviceable parts inside the appliance.

- To avoid burns, do not fill the tank or attempt to clean your mouth with water above 40 °C.

- Do not use the device for any purpose other than oral hygiene.

Battery instructions

- This appliance contains an irreplaceable battery.

- This appliance includes a Li-ion battery. Do not incinerate or expose it to high temperatures, as it may explode.

- WARNING: to recharge the battery, use only the power cord supplied with the appliance.

- Leaks from the battery or cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

- Keep batteries out of the reach of children when there is a risk of ingestion.

- Battery ingestion can cause burns, soft tissue perforation and death. Severe burns may occur within two hours of ingestion.

- In case of battery ingestion, please seek medical help immediately.

- Do not expose batteries to heat or fire. Avoid storage in direct sunlight.

- Do not subject batteries to mechanical shock.

- Do not leave the battery charging for an extended period of time when not in use.

- After long periods of storage, it may be necessary to charge and discharge the batteries several times to obtain maximum performance.

- Dispose of the battery properly.

- The recommended room-temperature range during charging is between 4 °C and 40 °C.

- The recommended room temperature range for battery storage is between 0 to 50°C.

- The recommended room-temperature range during charging is between 5 and 50 °C.

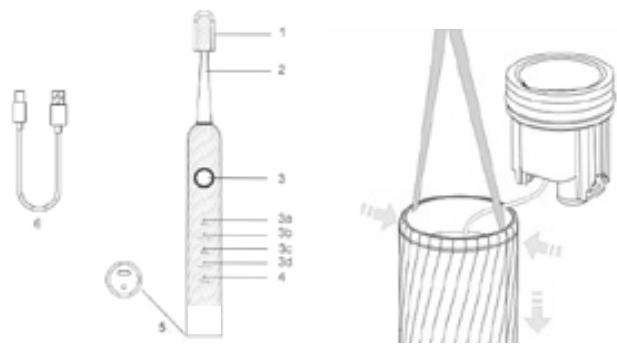

1. PARTS AND COMPONENTS

Fig. 1

1. Brush head travel cap

2. Brush head

3. Switches / Mode

a. Clean

b. Gum care

c. White

d. Sensitive

1. Charging indicator light

2. Charging port

3. Type-C charging cable

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

- This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.

- Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

- Electric toothbrush

- Heads x8

- Travel case

- USB charging cable

- Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. OPERATION

Cautions:

- Ensure the charging cable is disconnected before using the toothbrush.

- Do not share the brush head with others.

Note: Even healthy teeth may experience a tingling sensation or slight bleeding when using an electric toothbrush for the first time, as the gums are not accustomed to the stimulation. These symptoms usually disappear within one or two weeks. If they persist beyond this period, it is recommended to stop using the toothbrush and consult a dentist.

Warnings:

- Before charging, ensure the charging port is completely dry before connecting it to the power supply.

- This product contains a built-in rechargeable battery. Do not expose to fire, heat, overcharge or use in high-temperature environments.

- Do not use the toothbrush if it is damaged.

Charging the battery

1. If the indicator flashes green or the product does not switch on properly, the battery power is low. Please, charge it.

2. Ensure the charging port is completely dry before connecting the charger.

3. The charging indicator flashes while charging.

4. When charging is complete, the indicator will light up green continuously.

5. Full charging takes approximately 4 hours.

Important:

1. Disconnect the charging cable once charging is complete.

2. Fully charge before first use.

3. If it has not been used for more than 6 months, charge it before use.

4. If it has not been charged for a long time, the indicator may not flash initially when charging. This is normal and may take a while to turn on.

5. Charging the battery before it is completely depleted may reduce its service life.

6. It is recommended to fully discharge the battery at least once a year to optimise its service life.

Smart timer

- Dentists recommend brushing your teeth for 2 minutes each time. This toothbrush has a preset brushing time of 2 minutes and automatically stops after that time.

- The product features a zone change function every 30 seconds. During use, there will be short pauses every 30 seconds to remind you to change areas and clean another part of your teeth, thus ensuring an even cleaning of the entire oral cavity.

- Includes a memory function that allows you to return to your favourite settings. The next time you switch on the toothbrush, it will activate in the last mode you used.

Brushing modes

This product features 4 operating modes: Clean, Gum Care, White and Sensitive. These modes help remove plaque and improve tooth and gum health.

1. Clean mode: Removes up to 100% of plaque.

2. Gum care mode: Gently cares for your gums.

3. White mode: Helps reduce surface stains.

4. Sensitive mode: Gently cleans your teeth and gums.

Reminder: This device contains a rechargeable lithium battery. Please recycle or dispose of it properly.

Brushing

- For the first use, fully charge the battery until the indicator lights up green.

- Properly attach the brush head to the handle. - Wet the bristles, apply toothpaste to the brush head, and switch on the brush head only when the brush head is in your mouth. - For thorough gum cleaning, it is recommended to brush at a 45-degree angle. - Press gently when brushing to avoid damaging the gums. - Rinse the toothbrush and shake excess water from the brush head, the dry the handle.

Product recycling instructions

It is essential to remove the battery from the electric toothbrush before recycling it, as

it contains substances that may be harmful to the environment. Follow the specific steps

to disassemble the product safely:

a. Stop charging the electric toothbrush.

b. Switch off the electric toothbrush.

c. Open the bottom cover of the toothbrush using tools. Fig. 2

d. Hold the handle upside down and pull down on the handle shaft while separating the two locks. Fig. 3

e. Remove the three inner screws. Fig. 4

f. Extract the assembly from inside the toothbrush.

g. Disconnect the connection cable using an insulated tool

h. Press the clips on both sides of the body to extract the entire assembly and then remove the battery.

i. After removing the battery, do not connect the electric toothbrush to power supply.

Ensure each component is recycled according to local recycling regulation:

4. CLEANING AND MAINTENANCE

Brush head

1. After use, rinse the toothbrush and shake off excess water.
2. Press gently when brushing to avoid damaging the gums.

Toothbrush handle

1. After each use, clean the bristles and brush head, shake off excess wa and allow to air dry naturally.

2. Do not pull on the bristles, as they may become deformed and come loose.

Brush head replacement

- Dentists recommend replacing the brush head every 3 months.

Storage

- Store the toothbrush in a dry and ventilated place. - If it is not to be used for an extended period of time, ensure it is completely dry before storing it.

Battery

- Fully discharge the battery once a year to maintain its efficiency. - Fully charge before first use and after prolonged periods of non-use.

1. TROUBLESHOOTING

Problem	Possible causes	Possible solution
Weak vibrations.	1. Too much pressure on the teeth.	1. Press lightly on the teeth.
	2. Tight brush head connection.	2. Position the brush head correctly.
The brush head becomes loose or operates with an abnormal sound.	Brush head failure.	Replace the brush head immediately.
Shorter operating time with a charged battery.	1. Failure to charge.	1. Charge correctly.
	2. Low battery.	2. Charge fully.
The toothbrush does not work.	No battery power.	Charge the battery.

6. TECHNICAL SPECIFICATIONS

Product: ToothCare UltraSonic

Product reference: EU01_122182

Product input: 5 V=1A

Power: 5 W

Battery: Li-ion 3.7 V, 2000 mAh, 7.4 Wh

IPX7

To recharge the battery, it is recommended to use an adapter with the following characteristics:

Input: 100-240 V\~, 50/60 Hz

Output: 5 V =, 1 A

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

7. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

广力云智慧零售收银系统

Information regarding national packaging recycling systems and their searking can be found on our website.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations. Repairs should be carried out by qualified personnel.

If you detect any problem with the product or have any queries, please contact Cecotec's Official Technical Support Service at [phone]

the COPYRIGHT

The intellectual property rights over the texts in this manual belong to sCECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

10. SIMPLIFIED EU DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed,

manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

[Non-Text]

[Non-Text]

NOTA

EU01_122182_ToothCare UltraSonic

EN · The coding in this manual is generic and applies to all code variants of the appliance.
