USER MANUAL Readywarm 3590 Flames Connected A01 Eu01 117777 CECOTEC

ES · Este producto no es adecuado para calefacción primaria. Este producto está indicado únicamente en lugares abrigados o para una utilización puntual. EN · This appliance is not suitable for primary heating purposes. This appliance is only suitable for well insulated spaces or occasional use. FR · Ce produit ne convient pas pour une utilisation en tant que chauffage primaire. Cet appareil a été conçu seulement pour être utilisé dans des espaces intérieurs ou pour une utilisation momentanée. DE · Dieses Produkt ist nicht für die Primärheizung geeignet. Dieses Produkt ist nur für den Gebrauch in geschützten Räumen oder für den gelegentlichen Gebrauch geeignet. IT · Questo apparecchio non è adatto a scopi di riscaldamento primario. Il suo utilizzo è indicato solo in luoghi riparati o per uso specifico. PT · Este produto não é adequado para ser utilizado como aquecimento primário. Este produto só é adequado para utilização em áreas abrigadas ou para uma utilização ocasional. NL · Dit product is niet geschikt voor hoofdverwarming. Dit product is alleen geschikt voor beschutte locaties of incidenteel gebruik. PL · Ten produkt nie nadaje się do ogrzewania podstawowego. Ten produkt nadaje się tylko do miejsc ostoniętych lub do użytku okazjonalnego. CZ · Tento výrobek není vhodný pro primární vytápění. Tento výrobek je vhodný pouze pro chráněná místa nebo pro občasné použití. TR · Bu ürün birincil ısıtma için uygun değildir. Bu ürün yalnızca korunakli yerler veya ara sira kullanım için uygundur. GR · Autó to προϊόν δεν είναι κατάλληλο για κύρια θέρμανση. Autó to προϊόν είναι κατάλληλο μόνο για προστατευμένους χώρους ή περιστασιακή χρήση. CAT · Aquest producte no és adequat per a calefacció primária. Aquest producte está indicat únicament a llocs abrigats o per a una utilització puntual. HU · Ez a termék nem alkalmas elsődleges fűtésre. Ez a termék csak fedett helyeken vagy alkalmi használatra alkalmas. يبسرع: يس اسلا تี่فندتل بسانم ريغ چتنلا اده بيسانم. يشرعلا مادغتىكال وأ فيمحلا نكاملط 🔍ف

Safety instructions 8

1. Parts and components 57

2. Before use 57

3. Assembling the appliance 57

4. Operation 58

5. Cleaning and maintenance 59

6. Technical specifications 60

7. Recycling of electrical and electronic equipment 61

8. Technical support and warranty 61

9. Copyright 62

10. Simplified EU Declaration of Conformity 62

SOMMAIRE

EU01_117777 ReadyWarm 3590 Flames Connected White

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.
• This appliance is designed for domestic use only and is not intended for use in bars, restaurants, farmhouses, hotels, motels and offices.
• Do not immerse the cord, plug, or any other non-removable part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by Cecotec's Official Technical Support Service to avoid any danger.
• Do not place the appliance close to heat sources, flammable substances, wet surfaces or allow it to come into contact with water or other liquids. Do not use outdoors.
• Do not cover the device during operation.
• Do not introduce or allow objects to be introduced in the device, this could cause risk of electrical shock, fire or

damage.

• Always turn off and unplug the appliance when not in use and before moving it. To unplug the appliance, pull the plug, not the cord.
• Avoid using extension cords, as they could overheat and cause risk of fire.
• The appliance must not be placed directly under a power socket.
• CAUTION: some of the product's parts may become very hot and cause burns. Particular attention should be paid when children and/or vulnerable people are present.
• Keep the appliance out of the reach of children under 3 years of age unless they are continuously supervised.
• Children between 3 and 8 years old should only switch the appliance on or off when it has been placed or installed in its normal, intended operating position and if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children between 3 and 8 years old should not plug in, adjust, and clean the appliance and should not carry out maintenance tasks.
• This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance should not be carried out by children without supervision.
• Supervise children to ensure they do not play with the product. Close supervision is necessary when the appliance

is being used by or near children.

Battery instructions

• Non-rechargeable batteries must not be recharged.
• Do not allow children to replace the battery without adult supervision.
• Do not disassemble, open, or damage the battery.
• Keep the battery out of the reach of children. In case of battery ingestion, please seek medical attention immediately.
• Do not expose the battery to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Do not subject the battery to mechanical shock.
• Leaks from the batteries can occur under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, rinse them immediately with clean water for at least 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks and ensure they are used correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not use the appliance if powered with batteries that differ in capacity, size, or type.
• The use of the battery by children must be supervised.
• In case of battery ingestion, please seek medical attention

immediately.

• Keep the battery clean and dry.
• Clean the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Use the battery only for its intended purpose.
• Remove the battery from the device when not in use whenever possible.
• Dispose of the battery properly.

INSTRUCTIONS DE SÉCURITÉ

Instructions relatives aux piles

1. Power on/off
2. Power heat 1 (1000 W)
3. Power heat 2 (2000 W)
4. Temperature
5. Weekday
6. Timer on
7. Timer off
8. Open window indicator
9. Brightness
10. Time (hours/min)

2. BEFORE USE

• Take the appliance out of the box.
• Remove all packaging materials. Keep the original box.
• This device is designed to be installed on a wall or on an included base.
• Make sure all parts and components are included and in good conditions. If any visible signs of damage are observed, contact the official Cecotec Technical Support Service.

Box content

• Appliance
• Remote control
• Instruction manual

3. ASSEMBLING THE APPLIANCE

Installation on wall

• This appliance is designed to be fixed to a wall at a minimum height of 30 cm and the minimum distance from the top of the heater to the ceiling must be 100 cm. The wall bracket must be installed horizontally, and the cable must be routed to the bottom right of the heater.
• It is recommended to leave a distance of at least 60 cm between the bottom of the heater and the floor for an optimal visual effect.
• Select the place on the wall where you want to hang electric fireplace. Draw a horizontal

line with a level and mark 5 holes for the anchor screws. The distance between 2 holes is 141 mm. Fig. A.

Please note

The holes are for mounting the fireplace and must be level so that it can be assembled correctly. Mark the positions of the holes on the wall as shown in Fig. A

1. Drill 5 holes 8 mm (0.3 in) diameter and 26 mm (1.02 in) deep at the marked locations. For holes not touching the stud, use the wall anchor supplied. Install the wall anchors into the holes and tap them gently into place with a hammer until the flange of the wall anchor is flush with the wall surface. Fig. B.
2. Attach the mounting bracket to the wall anchors using the 6 anchor screws as shown in Fig. A.
3. Mount the fireplace to the wall using the slots in the metal bracket on the back of it. (Fig. C). Make sure that the mounting bracket is properly fixed in the metal bracket at the rear of the fireplace.

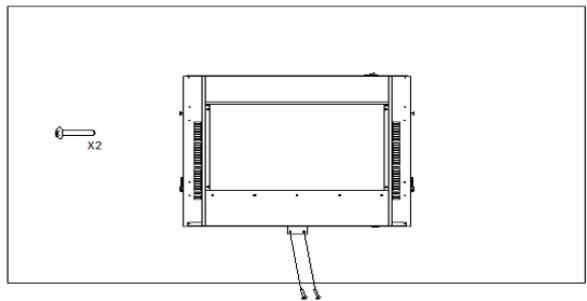

4. Attach the mounting bracket to the fireplace using 2 mounting screws. Fig. D.

4. OPERATION

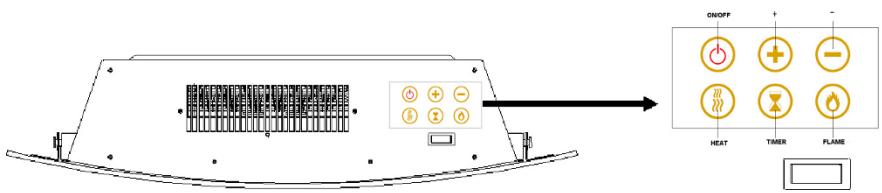

Control panel. Fig. 2

This is located at the top of the fireplace. It takes some time for the receiver to respond to the transmitter. Do not press the buttons more than once within two seconds for proper operation.

Power button

• ON(I). Allows all functions
• OFF(0). Turns off all control functions

Power icon

Press this button once to turn the appliance on. The device will switch on and is ready to select any of its functions. Press this button again and the device will turn off.

Timer

Press this button and "+" or "-" to set the real time, the day (Monday-Tuesday-Wednesday-Thursday-Friday-Friday-Saturday-Sunday), the hour and the minutes.

Increase/decrease brightness

Press this button to increase or decrease the brightness of the flame.

Setting 5 is the brightest grade and setting 1 is the least bright grade. Brightness adjustment is made on a scale of 1-2-3-4-5.

Heat

Two settings. Press once for low heat, press twice for high heat, press again to turn off the heating, and the fan will continue to run for 10 seconds after the heating is turned off.

Please note

The device will switch off automatically when the temperature drops by 5 to 10°C suddenly. The corresponding indicator lamp will light up. (open window symbol)

Remote control operating Fig. 3

• On/Off: Press this button to turn the device on or off.
  – Day: This button allows you to set the current time and day.
  – Hour: press this button to select the timer hours.
• Min: press this button to select the timer minutes.
• Week: Press this button to activate the weekly timer.
• Set up: Press this button to set the timer, select the day of the week with the week button.
• Increase/decrease brightness: press this button to increase or decrease the brightness of the flame.
  – Temperature setting: press this button to select the operating temperature.
• You can adjust the operating temperature in steps of 15-30 °C using the "+" and "-" buttons.

Please note

The remote control requires one 3V CR2025 lithium battery (included) Remove the protective foil between the battery and the contacts to enable the device to operate. Fig. E-F

5. CLEANING AND MAINTENANCE

• Disconnect the appliance from the power supply and allow it to cool down completely before cleaning.
  – Clean or vacuum dirt from the surface and ventilation openings of the device periodically.
• Do not make the device wet, avoid contact with water or other liquids.
• Avoid the use of abrasive cleaning agents or scouring pads as these could damage the product.
  – Use a soft, damp cloth to clean the surface of the appliance.

6. TECHNICAL SPECIFICATIONS

Product reference: EU01_117777

Product: ReadyWarm 3590 Flames Connected White

Power: 1750 - 2000 W

Voltage: 220-240 V\~

Frequency: 50 Hz

IP20

Contact details:		Cecotec Innovaciones S.LAv. Reyes Católicos, No. 60, 46910, Alfatar, Valencia (Spain)
Model identifier(s): EU01_117777 ReadyWarm 3590 Flames Connected White
Item	Symbol	Value	Unit	Item Unit
Heat output				Type of heat output/room temperature control (select one)
Nominal heat output	Pnom	2.0	kW	single stage heat output, no room temperature control [no]
Minimum heat output (indicative)	Pmin	0.93	kW	two or more manual stages, no room temperature control [no]
Maximum continuous heat output	Pmax,c	1.87	kW	with mechanic thermostat room temperature control [no]
Auxiliary electricity consumption				with electronic room temperature control [no]
In off mode	Po	0.00	W	with electronic room temperature control plus day timer [no]
In standby mode	Psm	0.39	W	with electronic room temperature control plus week timer [yes]
In idle mode	Pidle	0.40	W	Other control options (multiple selections possible)
In networked standby mode	Pnsm	N/A	W	room temperature control, with presence detection [no]
In standby mode with information or status display			[yes]	room temperature control, with open window detection [yes]

Seasonal spaceheating energyefficiency in activemode	hs,on	92.0	%	with distance control option	[no]
				with adaptive start-up control	[no]
				with working time limitation	[yes]
				with black bulb sensor	[no]
				with self-learning functionality	[no]
				with control accuracy	[no]

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

7. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

10. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Img. 1

Prodotto: ReadyWarm 3590 Flames Connected White

Product: ReadyWarm 3590 Flames Connected White

Vermogen: 1750 – 2000 W

Spanning: 220-240 V\~

Frequentie: 50 Hz

IP20
