USER MANUAL Ready Warm 6600 Ceramic Style Smart Icon CECOTEC

ES · Este producto no es adecuado para calefacción primaria. Este producto está indicado únicamente para lugares abrigados o para una utilización puntual. EN · This product is not suitable for primary heating purposes. This product is only suitable for well insulated spaces or occasional use. FR · Ce produit n'est pas approprié pour un chauffage primaire. Cet appareil a été conçu seulement pour être utilisé dans des espaces intérieurs ou pour une utilisation momentanée. DE · Dieses Produkt ist nicht für primäre Heizzwecke geeignet. Dieses Produkt ist nur für gut isolierte Räume oder gelegentlichen Gebrauch geeignet. IT · Questo prodotto non è adeguato per essere usato come fonte primaria di riscaldamento. Questo prodotto è indicato unicamente per luoghi protetti o per un uso specifico. PT · Este produto não está adequado para aquecimento primário. Este produto está indicado unicamente para lugares abrigados ou para uma utilização pontual. PL · Ten produkt nie nadaje się do wstepnego ogrzewania. Ten produkt jest wskazany tylko w miejscach ostoniętych lub do okazjonalnego użytku. CZ · Tento přístroj není vhodný jako primární topidlo. Tento přístroj je vhodný jako přídavné topení v krytých prostorách na občasné použití.

Manual de instrucciones Instruction manual Manuel d'instructions Bedienungsanleitung Manuale di istruzioni Manual de instruções Instrukcja obstugi Návod k použití

Instrucciones de seguridad 3
Safety instructions 5
Instructions de sécurité 8
Sicherheitshinweise 11
Istruzioni di sicurezza 14
Instruções de segurança 17
Instrukcje bezpieczeństwa 20
Bezpečnostní pokyny 23

ÍNDICE

1. Parts and components 31
2. Before use 31
3. Operation 31
4. Cleaning and maintenance 33
5. Technical specifications 33
6. Disposal of old electrical appliances 34
7. Technical support service and warranty 34

SOMMAIRE

Read these instructions thoroughly before using the appliance.

Keep this instruction manual for future reference or new users. Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.

This product is intended for indoor, non-commercial, household use for temporarily heating residential rooms. Do not use the product for any other purpose.

Do not leave the product unattended while it is in use. Always unplug the product from the electrical outlet when it is not use. Place the product on a flat, steady, stable, heat-resistant surface.

Do not use the device in areas where gasoline, paint, or flammable liquids are used or stored, as there may be a risk of fire or explosion.

Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.

Use the product in a well-ventilated area.

The device will reach high temperatures during use. To avoid burns, do not let bare skin touch a hot surface. If provided, use handle when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains at least 0.9 from all sides of the heater.

Do not place the appliance close to heat sources, flammable substances, wet surfaces where it can fall or be pushed into water or allow it to come into contact with water or other liquids.

Do not insert or allow objects to enter any ventilation or exhausted opening as this may cause an electric shock, fire or product damage.

To prevent a possible fire, do not block air intake or exhaust in any manner. Do not use on soft surface, such as a bed, where air outlet may become blocked.

Wipe the air openings clean if they become clogged.

Do not use this product to dry or heat clothing, shoes or any other items.

This heater is not intended for use in bathrooms, laundry areas, or other damp/wet locations.

To disconnect the product, turn the switch off first, and then remove the plug from the electrical outlet. Pull directly on the plug; do not pull on the power cord.

Do not handle the element with bare or wet hands.

Keep the packaging materials out of the reach of children, they could be dangerous.

The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.

This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

Battery instructions

Keep batteries away from children and animals, they could be deadly if swallowed. In case of ingestion, seek medical assistance immediately.

Should a battery have leaked, do not allow your skin, eyes or mucous membranes to come into contact with the battery acid. In case of contact with acid, rinse the affected areas with abundant fresh water immediately and contact a doctor as soon as possible.

Make sure the battery contacts in the device are clean before inserting batteries; if they are not, clean them.

Use only the battery types specified in the technical specifications. Always replace all the batteries at the same time. Do not use different types of batteries or of different capacities.

When replacing batteries, note the correct polarity (+/-).

Take the batteries out of the device when they are discharged or when the device is not going to be used in a long time.

Batteries must not be recharged or reactivated, dismantled, thrown into fire, immersed in fluids or short-circuited.

INSTRUCTIONS DE SÉCURITÉ

1. Increase temperature
2. Decrease temperature
3. Timer
4. Oscillation
5. Mode
6. On/Off

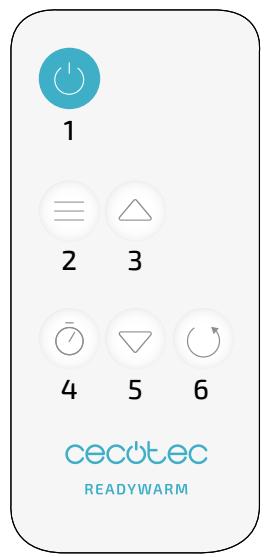

Fig. 3

1. On/Off
2. Mode
3. Increase temperature
4. Timer
5. Decrease temperature
6. Oscillation

2. BEFORE USE

Take the product out of the box.

Remove all packaging material. Save the original box.

Make sure all parts and components are included and in good conditions. If any visible signs of damage are observed, contact the Technical Support Service immediately.

3. OPERATION

Plug the device's power cord into an electrical outlet.

Place the device on a firm level surface.

Turn on the main switch located at the back of the device.

Press the On/off button to start the heater and press the mode button to select the desired mode.

Select the temperature using the direction buttons to increase or decrease the temperature. The temperature can be adjusted from 10 to 35°.

When the set temperature is higher than the room temperature, the device will start heating and the Mode indicator light will light up.

Press the mode button once or twice to start the heating directly. Pressing the button once will start the low-temperature setting and pressing it twice you will start the high-temperature setting.

Press the timer button to set the timer from 0 to 8 hours.

Press the oscillation button to operate the device with oscillation.

Press the On/off button to switch the device off. The fan blade indicator light will light up and after 30 seconds, the device will switch off.

Oscillation button

Press the oscillation button to turn the oscillation function on and off.

Timer function

This function can be operated under any mode. The timer function allows you to set the operation time from 1 hour to 8 hours. Every time the timer button is pressed, the operation time will increase 1 hour. Once the timer has been set, the timer will count hour by hour, showing the remaining time on the screen. Once this time is completed, the device will turn off itself.

Pressing the timer button once more after the screen shows 8 hours will reset the heater to continuous operation.

Thermostat instructions

Select the temperature using the direction buttons to increase or decrease the temperature.

When the set temperature reaches the same or lower temperature than the room, the heater will stop operating, but the fan will continue working to allow the product to cool down and maintain the temperature.

When the set temperature is 2 degrees higher than the room temperature, the device will start running in low temperature mode, and if it is 4 degrees lower it will start running in high temperature mode.

Temperature can be set from 10 to 35°.

Remote control

This remote control uses a Lithium battery CR2025 3V.

Any function set with the remote control will work identically as if the user had used the control panel.

Overheat protection

The device includes a overheat-protection system that switches the device off in case of an overheating. For example, in case the air outlets were partially or totally clogged. In that case, unplug the device, let it cool down for 30 minutes and remove the object clogging the vent. Then, start the device again as described above. The device should operate normally now. In case the problem persists, contact Cecotec's customer service for assistance.

The security push button stops the device in case of a tip-over.

4. CLEANING AND MAINTENANCE

Disconnect the appliance from the power supply, turn it off and allow it to cool down before cleaning or storing it.

Use a soft, damp cloth to clean the product's surface.

Clean dust from the device's surface and air outlets regularly.

Clean and store the device in a safe, dry place if it is not going to be used for a long period of time.

Do not immerse heater in water or allow water to drip into the interior of the heater, as this could create an electric shock hazard.

Avoid the use of abrasive cleaning agents or scouring pads as these could damage the product.

The power cord should not be in contact with sharp edges, and it should not be compressed by heavy objects. Store the cord in a clean, dry location always away from metal objects. Always check the plug before use to assure metal items haven't become attached.

Do not place any heavy items on top of appliance during storage as this may result in possible damage of appliance.

To disassemble the filter, press both upper tabs and remove the cover. Shake and clean the filter with a damp cloth. Do not wash it.

5. TECHNICAL SPECIFICATIONS

Product reference: 05378

Product: ReadyWarm 6600 Ceramic Style Smart

2000W, 220-240 V\~, 50 Hz

Made in China | Designed in Spain

Power Supply: AC 220-240V \~ 50Hz

Power: 2000 W

6. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

7. TECHNICAL SUPPORT SERVICE AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.

The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.

Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].

1. PIÈCES ET COMPOSANTS

Img. 1

Fig./Img./Abb./Afb./Rys./Obr. 3

Fig./Img./Abb./Afb./Rys./Obr. 2

Fig./Img./Abb./Afb./Rys./Obr. 3
