USER MANUAL Precisioncare Oneshave Pro CECOTEC

Safety instructions 7

1. Parts and components 50

2. Before use 50

3. Operation 51

4. Cleaning and maintenance 52

5. Troubleshooting 53

6. Technical specifications 54

7. Recycling of electrical and electronic equipment 54

8. Technical support and warranty 55

9. Copyright 55

10. Simplified EU Declaration of Conformity 55

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental

capabilities or lack of experience and knowledge if they have been given appropriate supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the device. Cleaning and user maintenance must not be carried out by children without supervision.

• The appliance must be powered at a low safety voltage as stated on the marking.
• The appliance may only be used with the power supply unit provided with the appliance.
• Check the power cable regularly for visible damage. If the power cord is damaged, it must be replaced with a special cable or set to be supplied by Cecotec's Official Technical Support Service or by its after-sales service to avoid any hazard.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.
• Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.
• Keep all packaging materials away from children. Risk of suffocation.
• This device must be checked frequently for signs of wear or damage. If such signs are present, or if the device has been used improperly, contact the official Cecotec Technical Support Service. Do not try to repair the device by yourself.
• For hygienic reasons, this appliance should only be used by one person.

• Switch off the device immediately in the event of defects or malfunctions.

• Do not use attachments or parts that have not been provided by Cecotec

• Never leave the device unattended during use.
• Keep the appliance away from heat sources.
• Do not use an extension cord with this device.
• Do not use outdoors or operate it near flammable substances such as sprays.
• Cecotec accepts no liability for damage caused by improper or incorrect use.
• Do not try to open, disassemble, or repair the appliance by yourself. There are no serviceable parts inside the appliance.
• The appliance is exclusively designed for trimming natural hair. Do not use it to cut artificial or animal hair.
• Do not use the device if your skin or head skin is injured or suffers from any type of illness.
• Turn off and unplug the appliance from the power supply before assembling or disassembling attachments.

Battery instructions

• This appliance contains an irreplaceable battery.
• This appliance includes a Li-ion battery. Do not incinerate or expose it to high temperatures, as it may explode.
• Non-rechargeable batteries must not be recharged.
• Leaks from the battery or cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

• When the device is stored and not used for long periods of time, ensure that the battery pack is fully charged.

• Keep batteries out of the reach of children when there is a risk of ingestion.

• Battery ingestion can cause burns, soft tissue perforation and death. Severe burns may occur within two hours of ingestion.
• In case of battery ingestion, please seek medical help immediately.

INSTRUCTIONS DE SÉCURITÉ

1. Blade
2. Power button
3. Indicator
4. Light
5. Adjustable comb
6. Foil head
7. Protective cap
8. Cleaning brush
9. USB charging cable
10. Knob

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Product
• Adjustable comb
• Foil head
• Travel case
• Lubricating oil bottle
• Cleaning brush
• USB charging cable
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. OPERATION

Charging

Initial charging

• Connect a certified 5V/1A power adapter to a suitable mains socket.
• Charge the device completely before first use and for subsequent charges.

Note:

- A full charge provides approximately 45 minutes of cordless operation.

Using the power adapter

• Ensure the product is switched off using the power button before connecting it to the power supply.
• Insert the adapter plug into the device's power input.
• Connect the adapter to an accessible mains socket that matches the voltage specified on the product label.
• Switch on the device using the power button.

Battery indicators

• When the battery is low, the indicator light flashes rapidly.
• During charging, the white light flashes and switches off when fully charged.
• The light remains on while the device is in use.
• A full charge provides approximately 45 minutes of cordless operation.
• Use the device regularly to avoid long periods of inactivity.
• Fully discharge the battery before recharging.
• Switch off the device using the power button.

Using the product

Warning:

• Do not use the product if you have an open wound, cut, sunburn, blister, or acne.
• The product should only be used on the face. It is not designed for shaving, contouring, or trimming hair on other parts of the body or hair on the head.
• Wash and dry the facial area where you plan to use the device.
• Press the power button to activate the trimmer.
• Glide the trimmer gently over the skin using straight or circular movements, depending on the area and desired style.

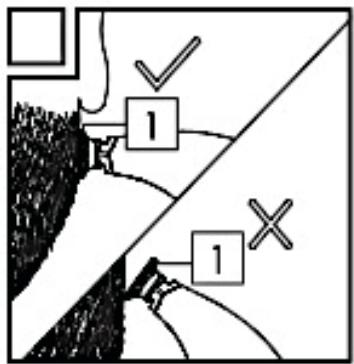

• Ensure you maintain the device at the correct angle, as shown in Figure 2, to avoid irritation or cuts.

• Use the adjustable comb to define the cutting length if necessary.

• Switch off the device by pressing the power button.
• Clean the blades and comb with the included cleaning brush to remove any loose hair debris.
• Clean the device after each use to maintain its effectiveness.
• Store the device in a dry and safe place.

Removing the rechargeable battery

If you wish to dispose of the product, you must remove the rechargeable battery. Before removing it, ensure that the product is disconnected from the power supply and is completely discharged. Take necessary safety precautions when using tools to open the product and when disposing of the battery.

1. Check for screws on the front and rear of the product. If there are any, remove them.
2. Use a screwdriver to remove the front and rear covers of the product. Remove all necessary parts until you can see the printed circuit board holding the battery.
3. Remove the battery.

4. CLEANING AND MAINTENANCE

• Unplug the device before cleaning.
• The comb attachment should be cleaned under running water. Ensure it is completely dry before use.
• Clean the blades with the cleaning brush provided to remove loose hair debris.
• Clean the trimmer housing with a soft, dry cloth.

• Store everything in a clean, dry, and dust-free location.

• TROUBLESHOOTING

Problem	Possible cause	Possible solution
The trimmer does not switch on.	1. The battery is discharged.	1. Charge the trimmer for the recommended time.
	2. Trimmer not connected properly.	2. Ensure the cable is properly connected.
	3. Faulty power button.	3. Check the button and contact the Cecotec's Official Technical Support Service.
The trimmer makes an unusual noise.	1. Adjustable comb incorrectly fitted.	1. Remove and refit the adjustable comb correctly.
	2. Internal obstruction.	2. Switch off the trimmer and clean the blades.
The battery does not charge.	1. Faulty charging cable.	1. Try a different charging cable.
	2. Dirty charging port.	2. Clean the charging port carefully.
The trimmer overheats.	1. Extended continuous use.	1. Switch off the trimmer and allow it to cool down.
	2. Blocked ventilation.	2. Check and clean the ventilation areas.
	3. Internal electrical fault.	3. Switch off the device, unplug it from the mains and contact the Cecotec's Official Technical Support Service.
The trimmer cuts unevenly.	Damaged or worn adjustable combs.	1. Replace the adjustable combs with new ones.
	2. Blunt blades.	2. Sharpen or replace the blades.
	3. Incorrect use of the adjustable comb.	3. Ensure you use the appropriate comb for the cut.

6. TECHNICAL SPECIFICATIONS

Product: PrecisionCare OneShave Pro

Product reference: EU01_122815

Input 5 V =, 1 A

Battery: Li-ion 3.7 V, 320 mAh, 1.184 Wh

IPX7

Charging time: 120 min*.

Operating time: 60 min*.

*Time measurements have been taken under no-load operating conditions; please note that these may vary during actual use.

To recharge the battery, it is recommended to use an adapter with the following characteristics: Input: 100-240 V\~, 50/60 Hz

Output: 5 V =, 1 A

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

7. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old electrical and electronic appliances and/or their batteries. Information regarding national packaging recycling systems and their marking can

be found on our website.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If you detect any problem with the product or have any queries, please contact Cecotec's Official Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

10. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Image 1

6. TEKNIK ÖZELLIKLER

Ürün: PrecisionCare OneShave Pro

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2
